Front shovel for tractors Hanwo
- Front shovel for tractors Hanwo
- Non-binding image
€5,861.38 VAT incl.
The unauthorized use, copying or distribution of the information, images or links contained on this website constitutes a violation of intellectual property rights and will be prosecuted in accordance with the Law. If any improper use of any link or any type of data from our website is detected, legal action will be immediately initiated, as well as notification to the Spanish Data Protection Agency for the relevant purposes.

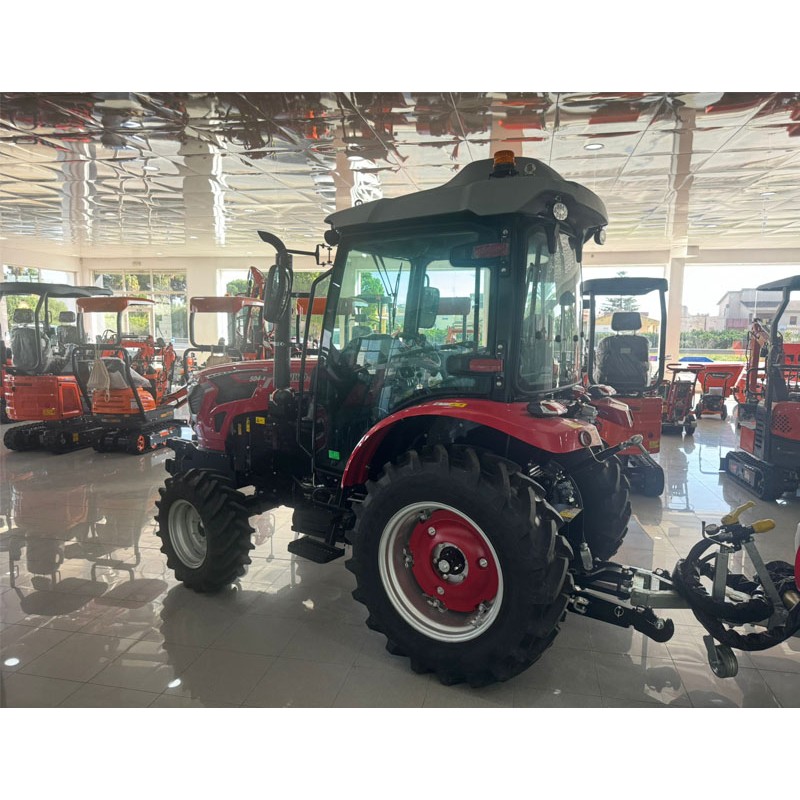

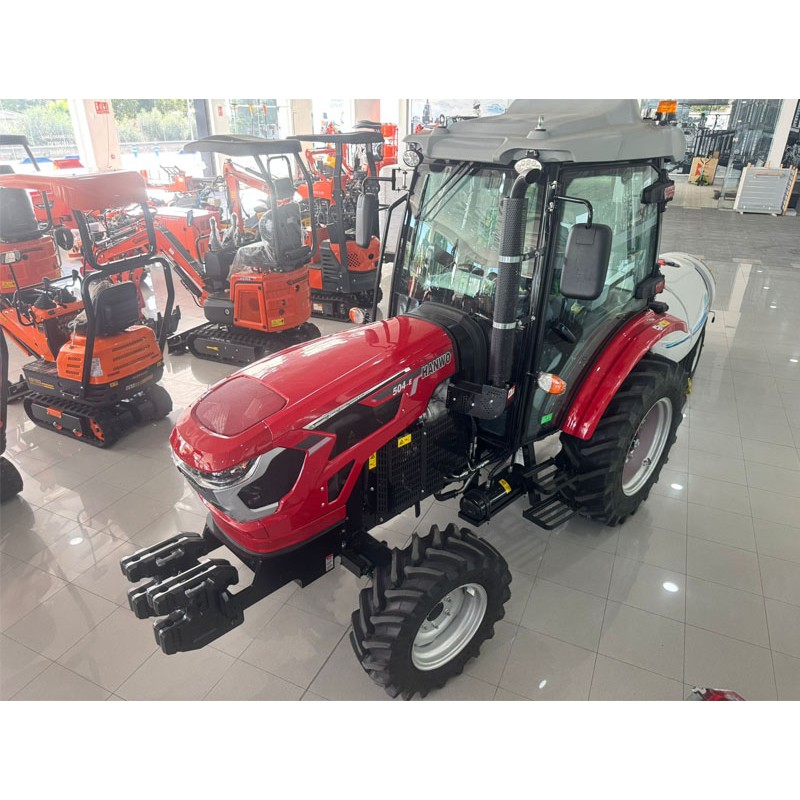

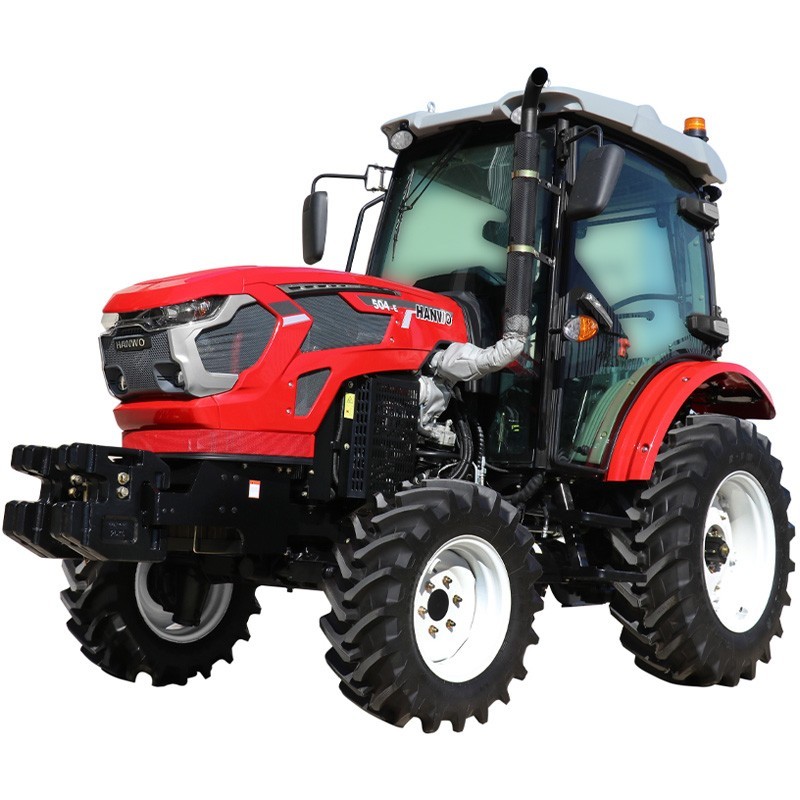

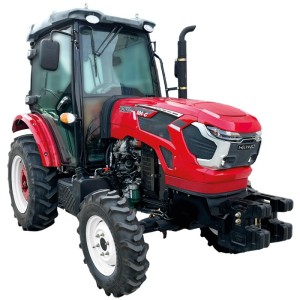

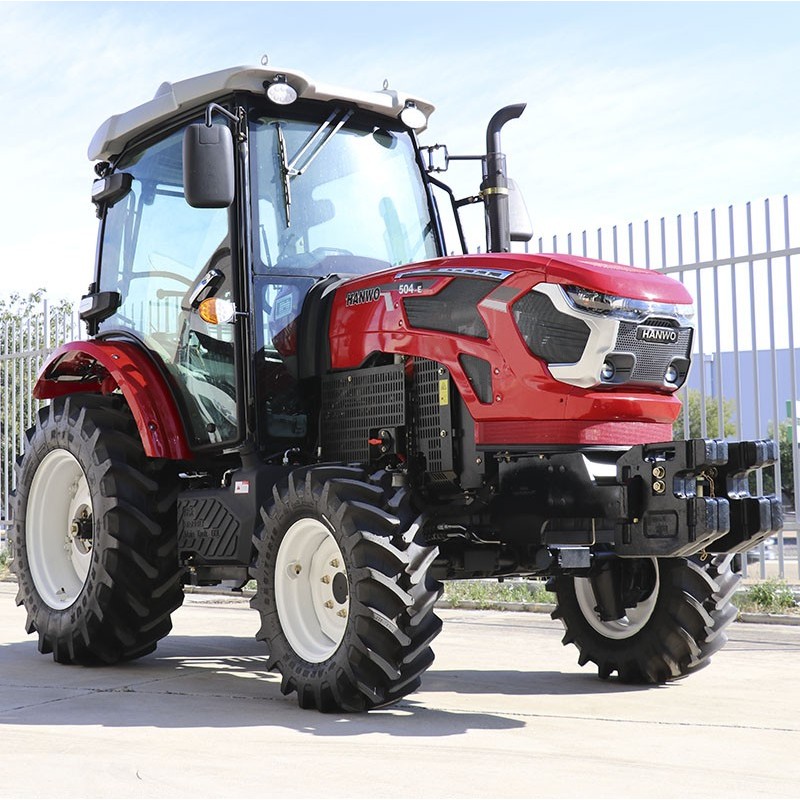

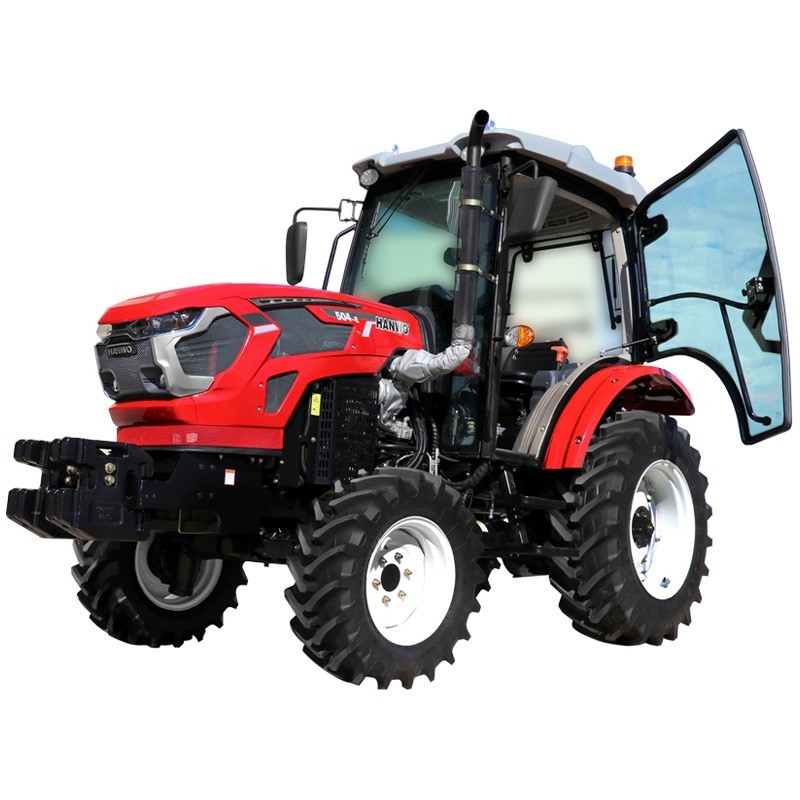

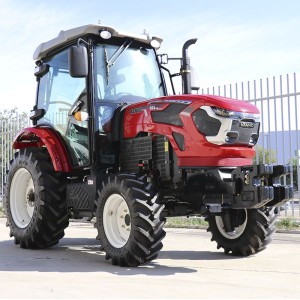

The Hanwo 504C tractor is a versatile and powerful machine, ideal for agricultural work that requires efficiency and endurance. With a 50 HP YN4H055-30VE engine, turbocharged and intercooled, it offers optimum performance with efficient fuel consumption thanks to its 40-liter fuel tank.
Its 4WD system and 8+8 synchronized transmission gears ensure precise travel in demanding terrain. Designed to maximize productivity, the Hanwo 504C incorporates a 36 L/m hydraulic system with semi-split control and quick hitch, facilitating the use of implements.
Its 540/1000 rpm PTO allows to adapt different agricultural implements. In addition, its hydraulic steering and large tires provide stability and maneuverability, reaching speeds of up to 28.37 km/h. With a weight of 2260 kg and a height of 2596 mm, this tractor balances robustness and comfort for the operator.
As a GIFT with the purchase of the tractor, a 125 cm shredder Zeppelin Atacama.

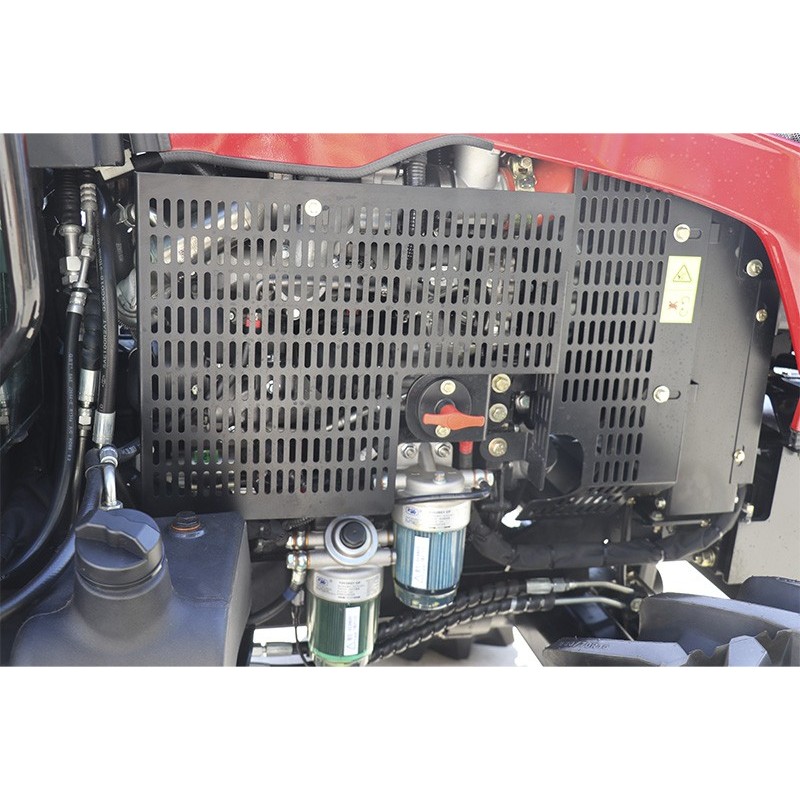

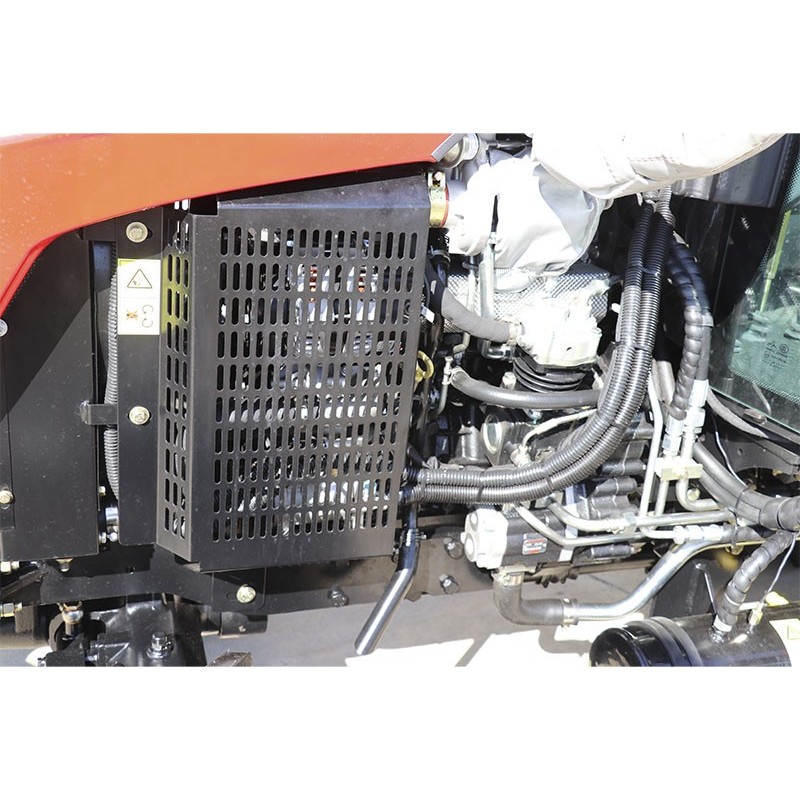

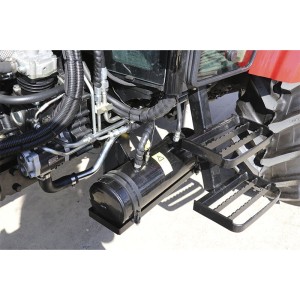

The Hanwo 504C is equipped with a 50 HP YUNNEI YN4H055-30VE, turbocharged and intercooled, a configuration that in the field translates into more "lung" when the implement is demanding: it maintains thrust on climbs, withstands continuous work better and responds solidly both in draft and PTO work. Being a water-cooled 4-cylinder, it offers a stable operation, designed for long days, with good efficiency and without the feeling of being forced.
YUNNEI is considered by many professionals as one of the best in Asian engines and is mounted in many European machinery, so it is a well-known and practical mechanics when it comes to maintenance. In addition, YUNNEI has a factory in Germany, an important detail for those who work for campaigns: continuity of supply, availability of spare parts and the peace of mind of having an engine backed up so that the tractor is operational when it is due.
| Engine | |
|---|---|
| Model | YN4H055-30VE |
| Type | Vertical, water-cooled, 4-stroke |
| Rated/max. power | 36.8 kW / 50 HP |
| Speed R.P.M. rated/max. | 2400 rpm |

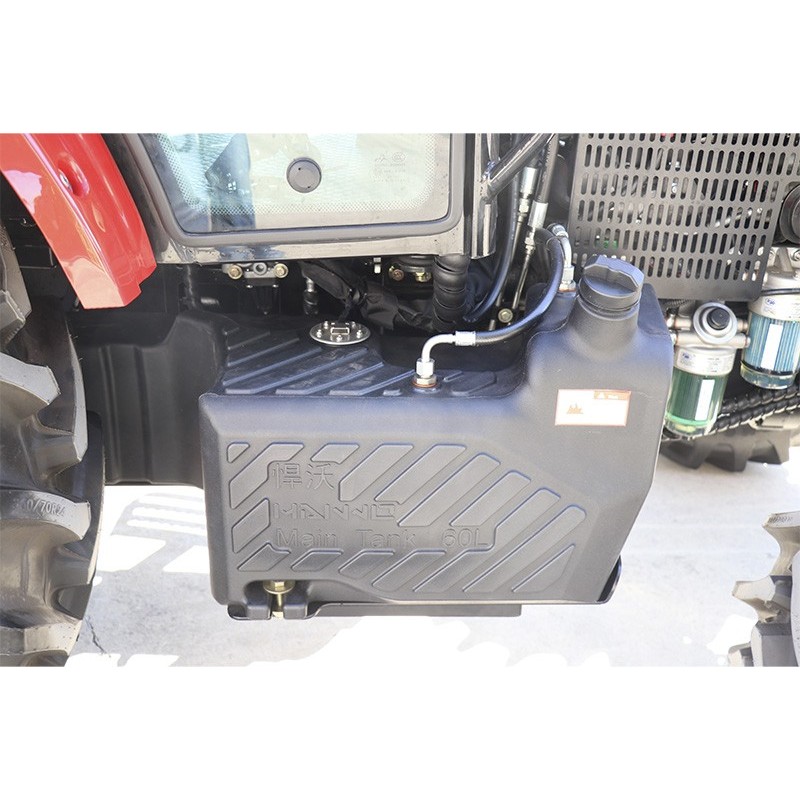

| Fuel tank | 40 L |
| Transmission | |
| Clutch | Dry friction, double stage |

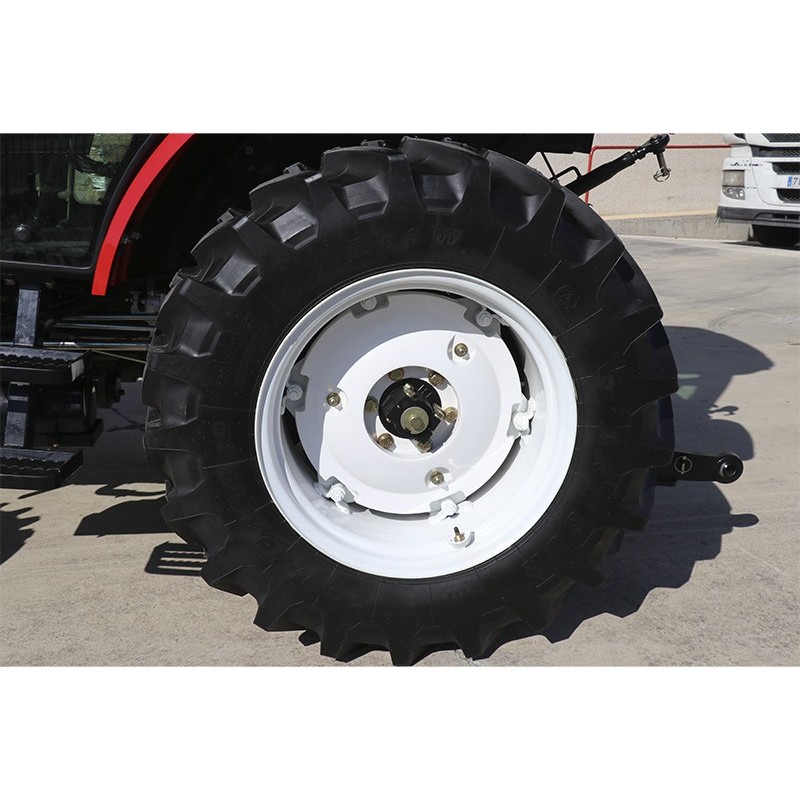

| Front tires | 280/70R16 |
| Rear tires | 360/70R24 |

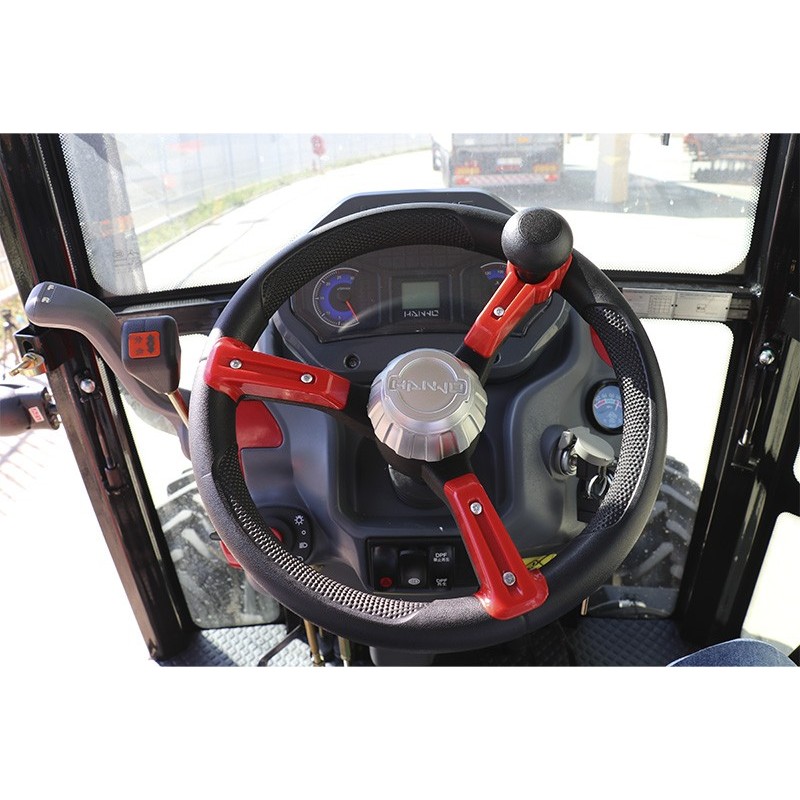

| Steering | Hydraulic |

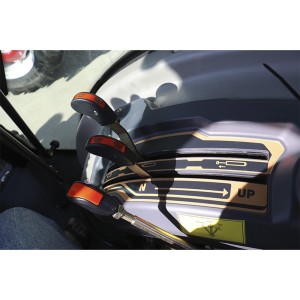

| Transmission | 8 gears front and 8 rear + synchronized shifting |
| Hydraulic flow rate | 36 L/m |
| Hydraulic control system | Semi-split, single position adjustment linkage |

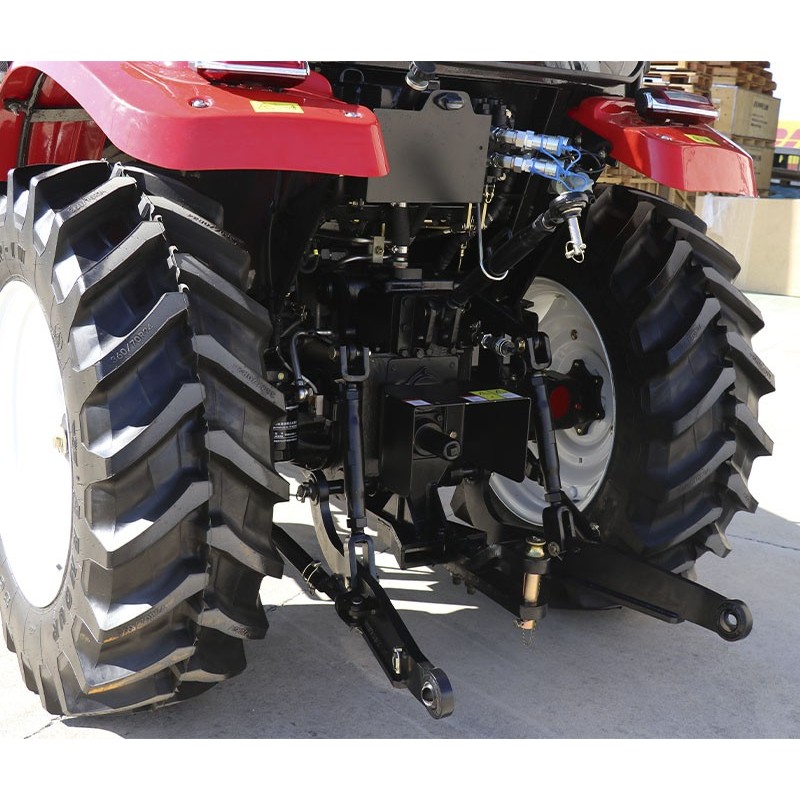

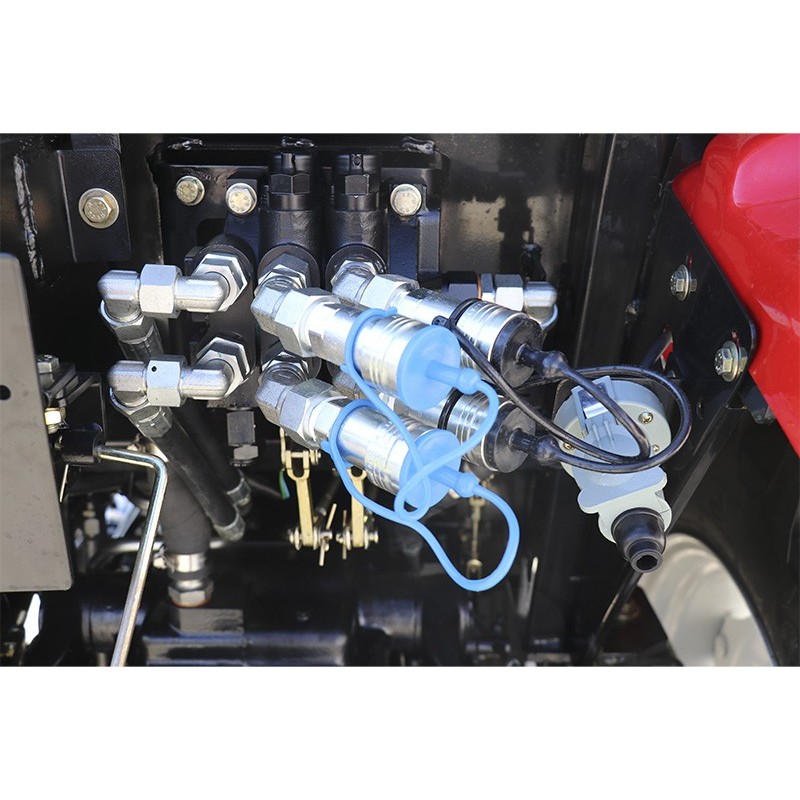

| Rear control | Two groups, hydraulic quick hitch |
| PTO power | 540/1000 |
| Drive | 4x4 (4WD) |
| Max. speed | 1.99 ~ 28.37 km/h |
| Dimensions | |
| Turning radius | 2.1 meters |
| Maximum load of shovel | 500 kg |
| Overall length | 3810 mm |
| Width | 1495 mm |
| Height | 2596 mm (with cab) |
| Wheel base | 1809 mm |
| Minimum ground clearance | 215 mm |
| Front tread | 1160 mm |
| Rear belt | 1200 mm |
| Weight | 2260 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
