Front shovel for compact tractors Hanwo
- Front shovel for tractors Hanwo
€5,232.51 VAT incl.

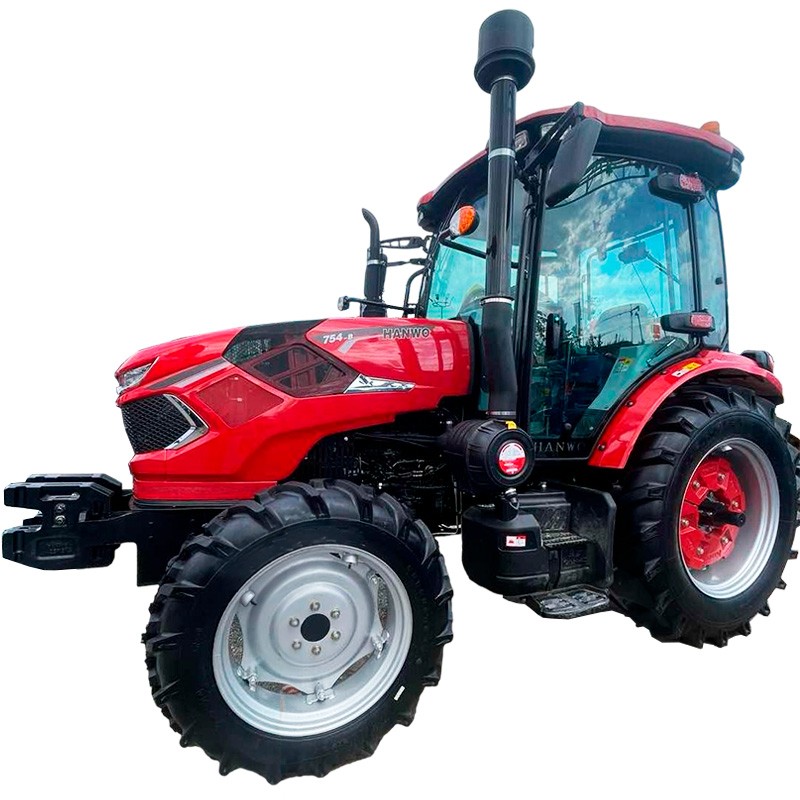

The Tractor Hanwo 754 75 HP with cab maintains the power and working capacity of the 754 model, but adds a very important extra in comfort and protection. The enclosed cab is equipped with air conditioning and heating, offers great visibility when working with implements and maneuvering, improves noise insulation and protects against dust and extreme conditions. It is a version designed to work long hours with more comfort at any time of the year.
It has a 4-cylinder, water-cooled, vertical Quanchai Stage II engine, with a power of 55 kW and 75 hp at 2400 rpm, as well as a 70 L fuel tank for long working days. It incorporates 4WD 4WD, dual-stage dry friction clutch, hydraulic steering and transmission of 16 gears forward and 8 reverse to better adapt the speed to each task.

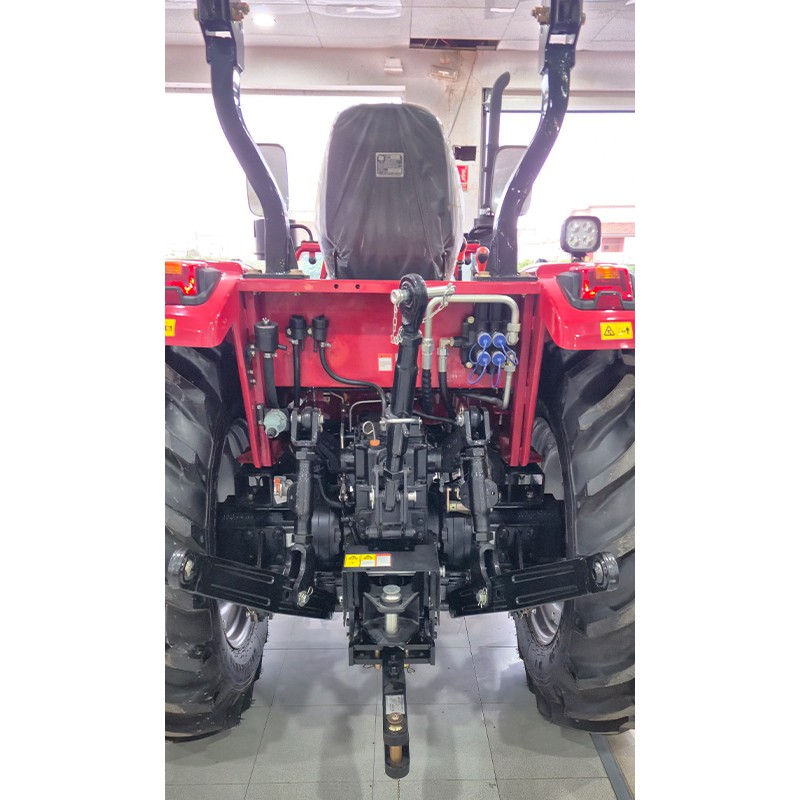

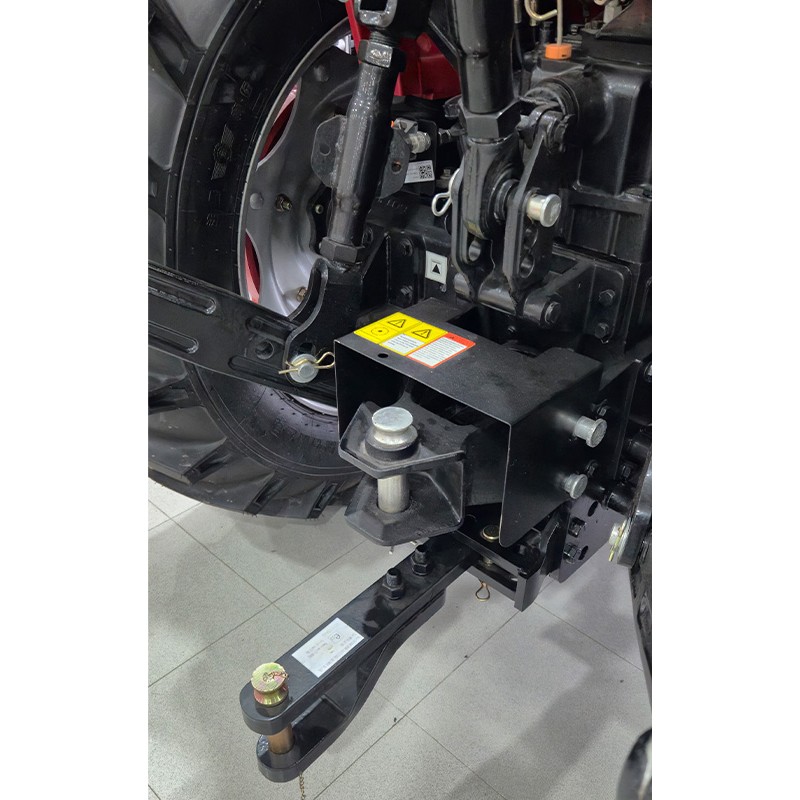

It is also equipped with 540 and 1000 rpm PTO, semi-split hydraulics, single position adjustment linkage and three-group rear control with hydraulic quick coupler, a combination that greatly enhances its versatility with different implements. The front shovel can be mounted as an optional accessory to further expand its possibilities in loading and material handling.
| Engine | ||
| Engine | Quanchai Stage II | |
| Type | Vertical, water-cooled, 4 cylinders | |
| Rated / maximum power | 55 kW / 75 hp | |
| Rated / maximum speed | 2400 rpm | |
| Fuel tank | 70 L | |
| Dimensions | ||
| Overall length | 4100 mm | |
| Width | 1795 mm | |
| Weight | 3350 kg | |
| Transmission and undercarriage | ||
| Clutch | Dry friction, dual stage | |

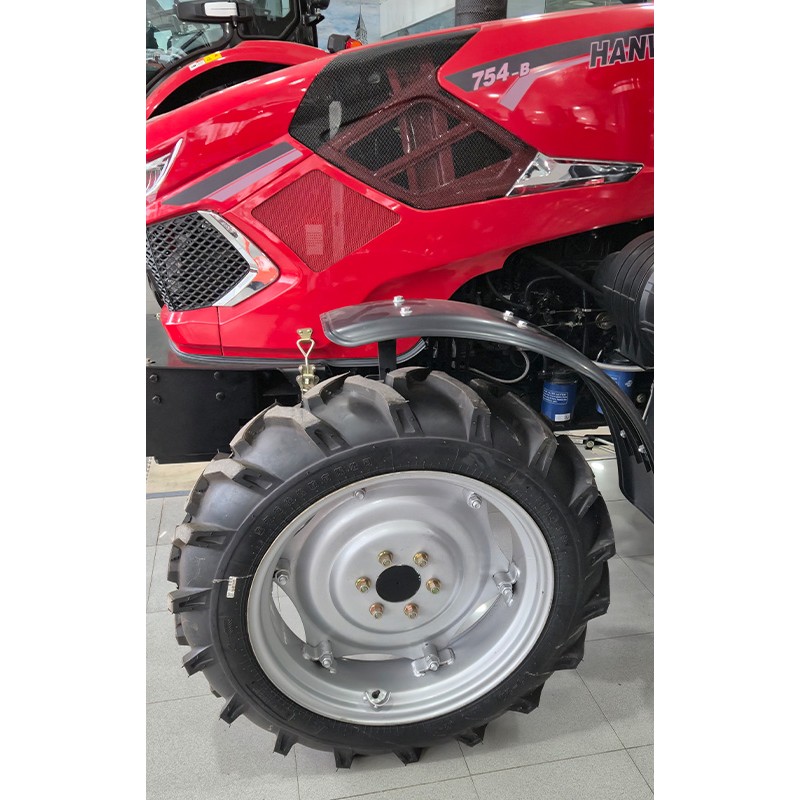

| Front tires | 8.3-24 | |

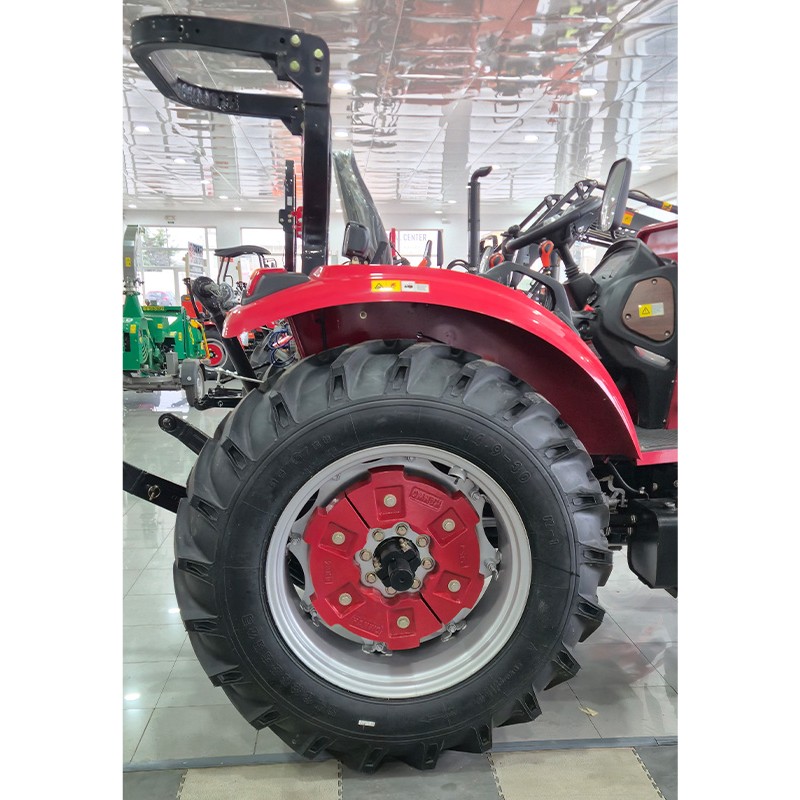

| Rear tires | 14.9-30 | |
| Steering | Hydraulic | |
| Transmission | 16 front and 8 rear | |
| Hydraulic system | Semi-split, single position adjusting linkage | |

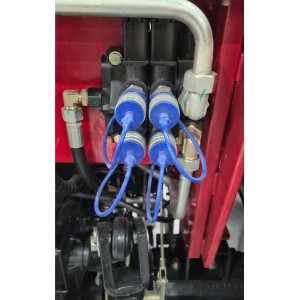

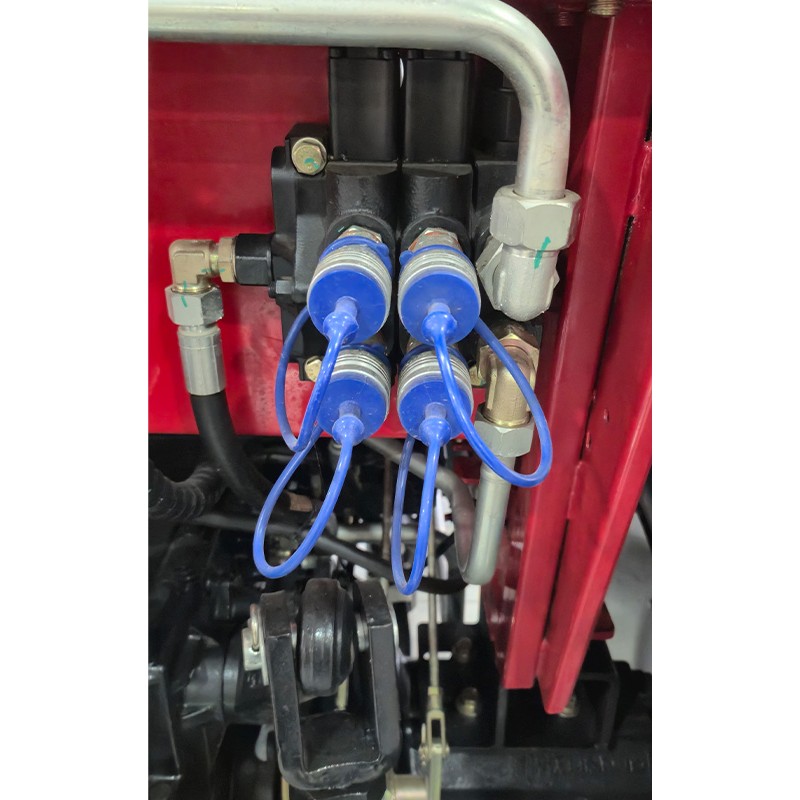

| Rear control | Three groups with hydraulic quick hitch | |
| PTO power | 540 / 1000 | |
| Drive | 4x4 (4WD) | |
| Maximum speed | Forward 2.13-37.61 km/h / Reverse 1.87-32.97 km/h | |
| Optional shovel | ||
| A. Maximum lift height | 3000 mm | |
| C. Maximum discharge height | 2300 mm | |
| D. Unloading distance | 1140 mm | |
| E. Tipping angle | 45° | |
| G. Ground rollback angle | 34° | |
| H. Maximum digging depth | 140 mm | |
| Bucket width | 1652 mm | |
| Bucket capacity | 0,43 m³ | |
| Rated lifting capacity | 600 kg | |

| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, this carrier can be arranged at an additional cost. Please contact us before placing the order to evaluate your case. |
