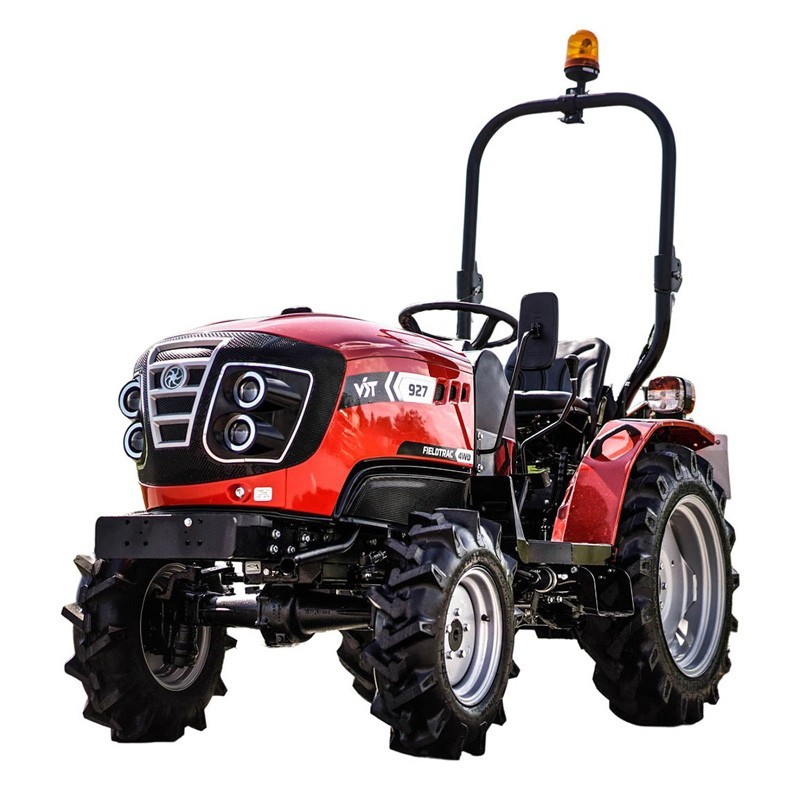

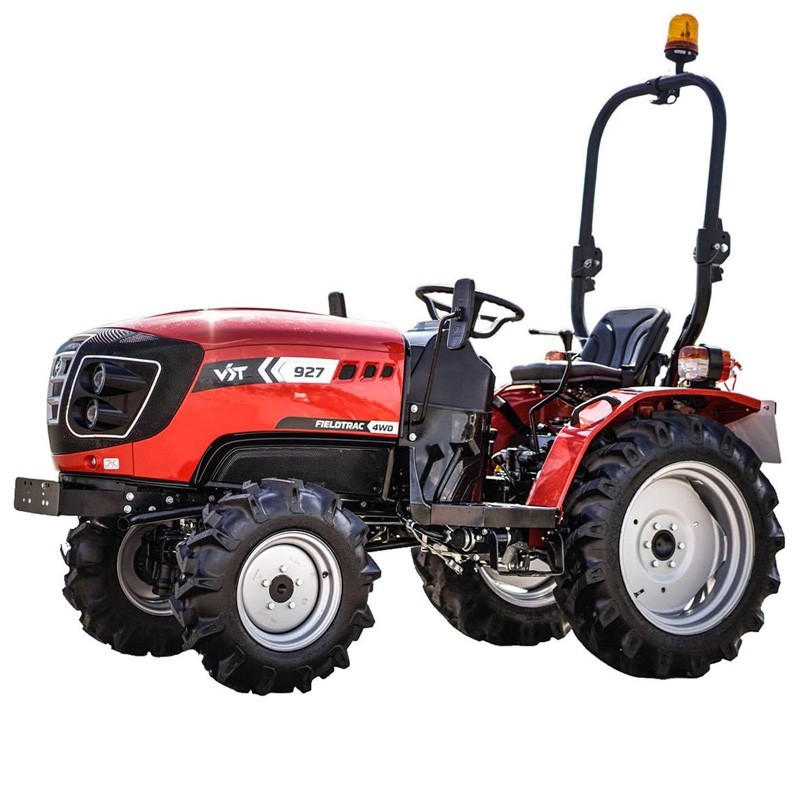

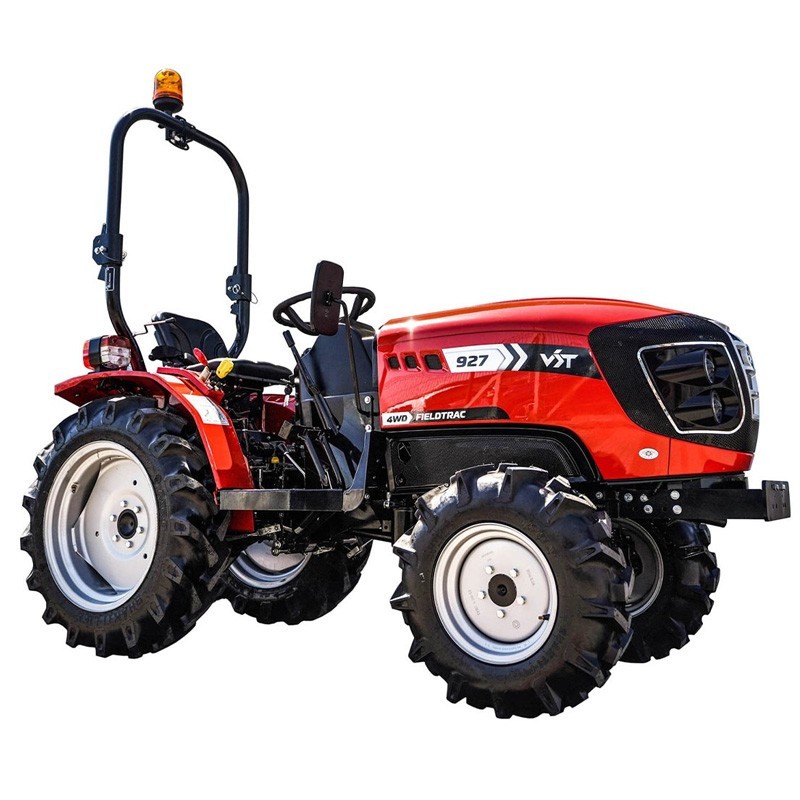

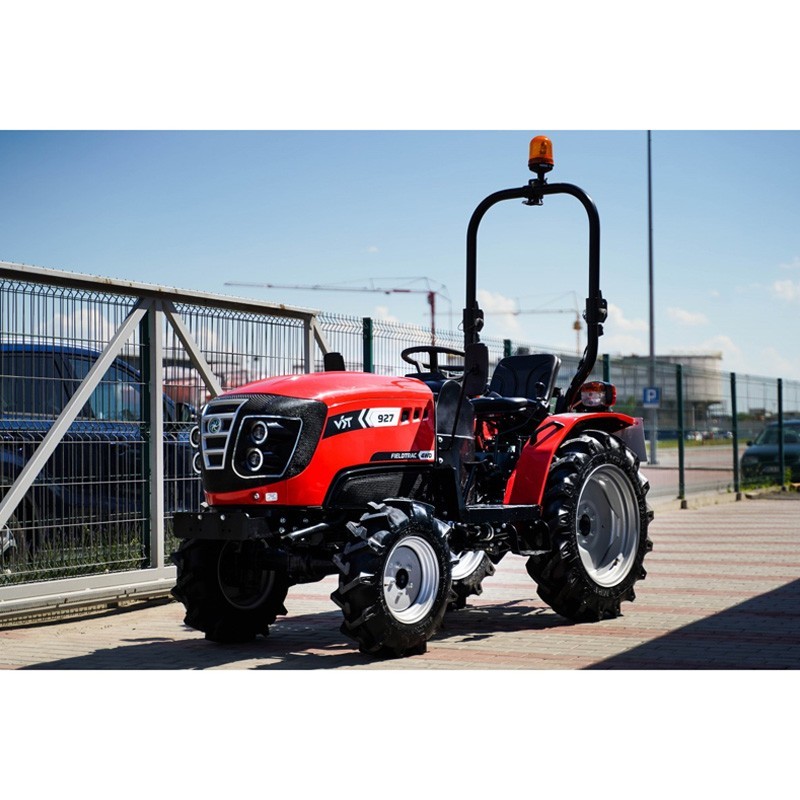

The fieldtrac 927 mini tractor has a four-stroke, four-cylinder diesel engine capable of delivering a 24 HP power at a nominal rate of 2700 RPM. Engine complies with emission standards Stage-V and its displacement is 1306 cc.

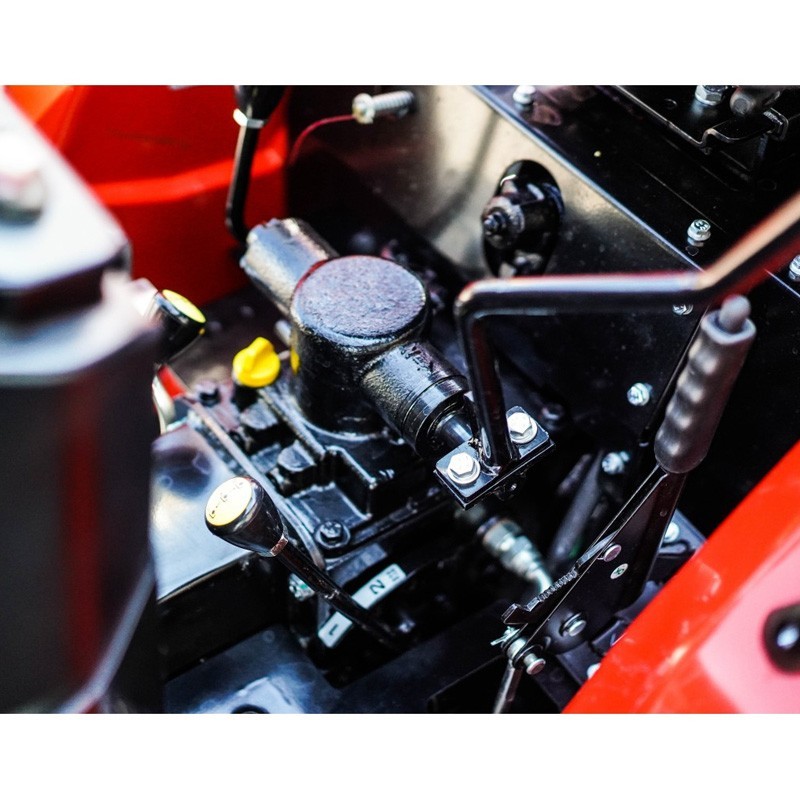

The gearbox of this mini tractor is mechanically synchronized and has 8 speeds of which 6 are forward and two are reverse. It also has the rear differential lock and its brakes are drum type.

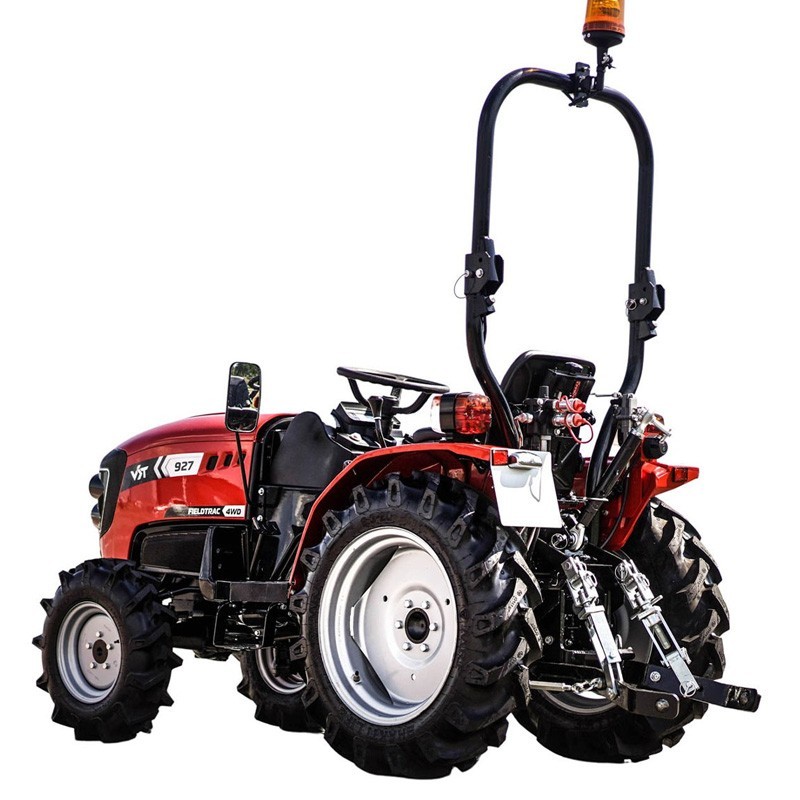

This mini tractor is equipped with electric start driven by a 12 V 2 kW starter motor that draws its energy from a 12 V 70 Ah battery. In addition, Fieldtrac 927 comes equipped with a cAT-1 N 3-point linkage.
Finally, we would like to comment that the mini diesel tractor Fieldtrac 927 is equipped as standard with a battery cut-off switch as well as a adjustable driver's seat. In terms of weight, the machine weighs 950 kilograms and the wheelbase is 1420 mm.
MOTOR | |
Model | V4D1E5 |
Emission standard | Stage-V |
Type | 4-stroke diesel, naturally aspirated, water-cooled, high torque |
No. of cylinders | 4 |
Engine power | 24 HP |
PTO (HP) | 20 |
Nominal RPM | 2700 |
Diameter and stroke | 73 x 78 mm |
Displacement | 1306 cc |
Air Purifier | Dry type double filter |
Fuel tank capacity | 18 liters |
TRANSMISSION | |
Clutch | Individual Dry |
Gearbox type | Synchronized mechanics |
No. of Gears | 6F+2R |
Gearshift position | Lateral displacement |
Speed Range-Km/h |
|
Differential Lock (Rear) | Standard |
Brake Type | Dry Drum |
Transmission Type | 4WD |
PTO (rpm) | 540 and 1000 RPM |
ELECTRICITY | |
Battery | 12 V, 70 AH, (700 CCA) |

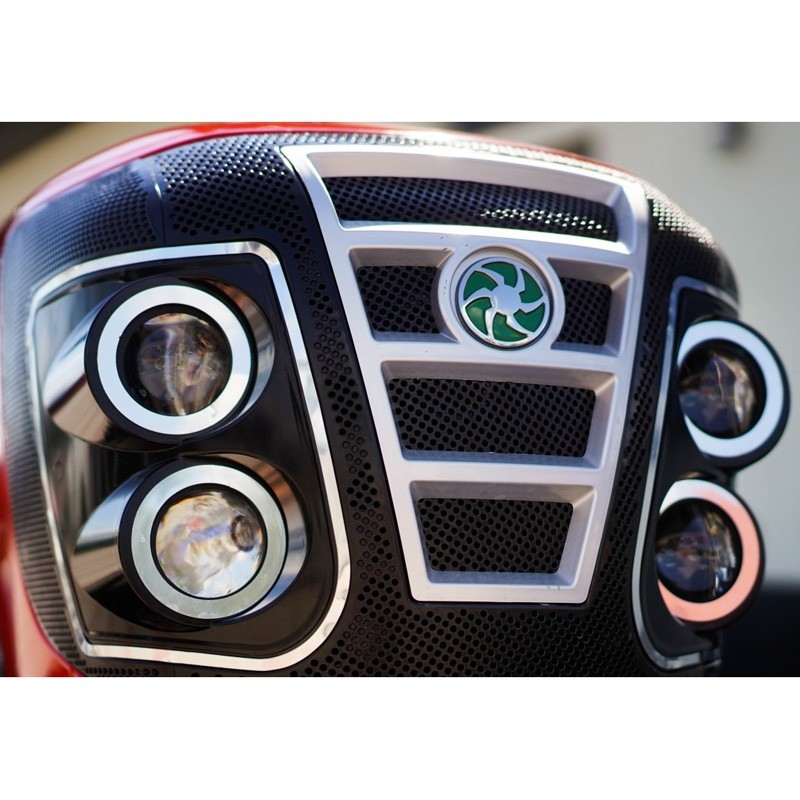

Headlight | 4 Projector Lamps |
Starting System | Starter Motor 12 V, 2 KW |
Alternator | 12V, 35 AMP |
HYDRAULIC SYSTEM | |

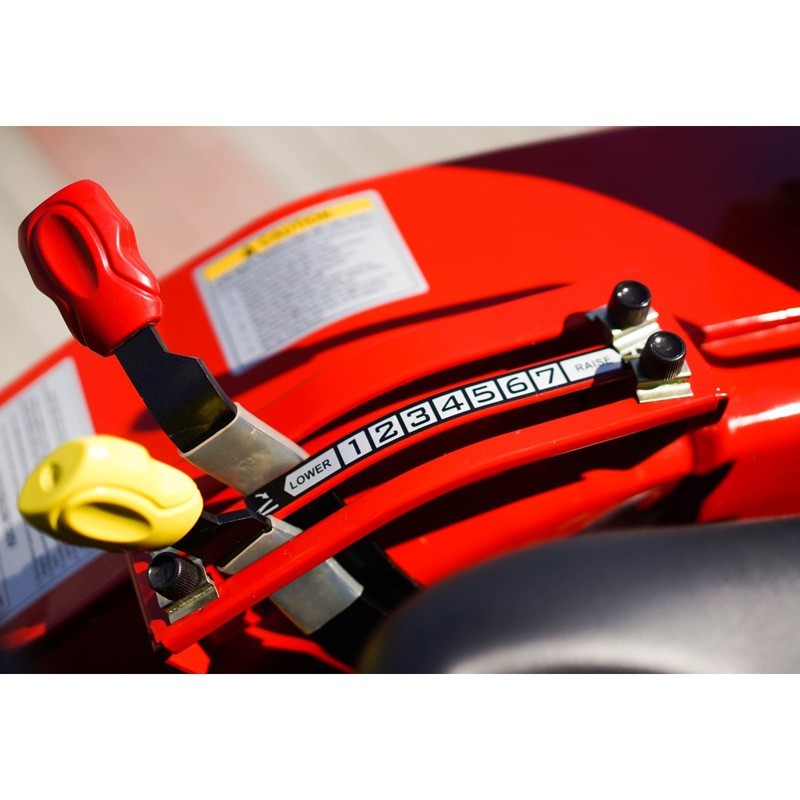

Type of control | ADDC |
Pump Capacity | 12.9 LPM |
Maximum Lift Capacity | 500 Kg |
3-Point Hitch | CAT-1 N |
Steering System | Hydraulic Power Steering |
Rear Coil Value | 2 Values with Quick Coupling |
DIMENSIONS AND OTHER FEATURES | |
Overall Dimensions (LxBxH) with TPL and Front Ballast | 2870 x 1150 x 2075 mm |
Ground Clearance | 230 mm |
Turning Radius | 2.3 meters |
Weight | 950 Kg |
Distance Between Axes | 1420 mm |
Via de las Ruedas |
|
Front Weight/ Ballast (standard) | 60 Kg |
Rear Wheel Ballast (optional) | 60 Kg |
Tire Options (Front and Rear Size) |
|
Driver's Seat | European Design Adjustable Seat |
Operating Environment | 10 - 45ºC |
Mobile Recharging Point | Yes |
Muffler (Under Hood) | Yes |
Battery Cut-Off Switch | Yes |
ROPS | Yes |
Drawbar | Optional |
Hitch Assembly | Yes |
Hood Lock with Special Key | Yes |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
