Concrete screeds and vibrators

Concrete screeds and vibrators are two types of tools used in the construction of concrete structures. Their main function is to achieve a smooth and compact surface. On the one hand, concrete screeds are used to level and smooth large areas of fresh concrete, while concrete vibrators are used to compact fresh concrete by eliminating air pockets that may be present within the material.

Each type of tool has some important characteristics, and from Intermaquinas we want to explain what they are so that you can choose the one that best suits your needs.

Concrete screeds have 3 important characteristics.

  • Length: Concrete screeds usually have removable sections to adjust their length according to the need of the moment to facilitate handling and adaptation to different jobs.
  • Straight profile: The design of concrete screeds consists of a flat and straight surface to level the concrete and eliminate irregularities to ensure a smooth surface.
  • Ease of handling: They have to have ergonomic handles or grips that allow a comfortable grip so that operators can handle them with ease.


Concrete vibrators have 4 important features.

  • Vibrating motor: The motor that concrete vibrators are equipped with produces high frequency vibrations. They are available with electric, gasoline and even hydraulic motors.
  • Vibrating rods: Internal concrete vibrators include vibrating needles that are inserted into the fresh concrete to transmit the vibrations. They have different lengths and diameters, depending on the thickness of the concrete and the work to be done.
  • Vibrating heads: Some external concrete vibrators use vibrating heads placed on the surface of the concrete that move along the concrete generating vibrations.
  • Vibration control: Many concrete vibrators include a vibration control system to adjust the intensity of the vibrations, so that the compaction process can be adapted to the different types of concrete.


From Intermaquinas we want to offer the widest possible range of concrete screeds and concrete vibrators. With the help of our team of experts advising you and the quality of the best brands in the industry, you will not regret buying here, contact us!

There are 13 products.

Showing 1-12 of 13 item(s)

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

Concrete vibrating screed Kompak SCE-H Honda engine

icon Power Supply
Power Supply
Gasoline
icon Engine
Engine
Honda
icon Engine model
Engine model
GX35
icon Engine type
Engine type
4 strokes
icon Weight
Weight
20 Kg
  • Engine: Honda GX35
  • Weight: 20 Kg
  • Dimensions: 72x70x30 cm
€639.45 Regular price €680.26 Price excl. VAT
€639.45 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

Handle for concrete rules Kompak CNSP 5 meters

Tolocha / Llana not included.

€149.39 Regular price €158.93 Price excl. VAT
€149.39 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

Electric concrete vibrating screed Kompak SCE-E 175 W

icon Power Supply
Power Supply
Electric
icon Voltage
Voltage
230 V
icon Power rating
Power rating
175 W
  • Voltage : 230 V
  • Power rating : 175 W
  • Power Supply: Electric
€381.72 Regular price €406.08 Price excl. VAT
€381.72 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

Electric mechanical vibrator Kompak KP-VME-5 2300 W

icon Voltage
Voltage
220 V
icon Working Amps
Working Amps
6 A
icon RPM
RPM
18000 rpm
icon Power rating
Power rating
2300 W
icon Weight
Weight
6 Kg
  • Electric motor : 220 V / 50-60 Hz
  • Power : 2.300 W
  • Rated amperage : 6A
  • Motor Rpm : 18.000 грр
  • Weight : 6 Kg
€185.69 Regular price €197.55 Price excl. VAT
€185.69 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

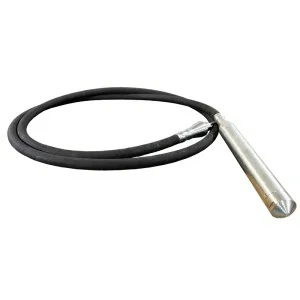

Mechanical transmission hose Kompak KP-TM-40-4 320 mm

icon Length
Length
4 m
icon RPM
RPM
12000 грm
icon Weight
Weight
10 Kg
  • Transmission length : 4 m
  • Needle Ø : 40
  • Needle length : 320 mm
  • Revolutions : 12.000 грm
  • Weight : 10 Kg
€178.43 Regular price €189.82 Price excl. VAT
€178.43 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

Mechanical transmission hose Kompak KP-TM-40-5 320 mm

icon Length
Length
5 m
icon RPM
RPM
12000 rрm
icon Weight
Weight
11 Kg
  • Transmission length : 5 m
  • Needle Ø : 40
  • Needle length : 320 mm
  • Revolutions : 12.000 rрm
  • Weight : 11 Kg
€178.43 Regular price €189.82 Price excl. VAT
€178.43 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

Mechanical transmission hose Kompak KP-TM-50-4 333 mm

icon Length
Length
4 m
icon RPM
RPM
12000 rрm
icon Weight
Weight
11 Kg
  • Transmission length : 4 m
  • Needle Ø : 50
  • Needle length : 320 mm
  • Revolutions : 12.000 rрm
  • Weight : 11 Kg
€181.33 Regular price €192.91 Price excl. VAT
€181.33 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

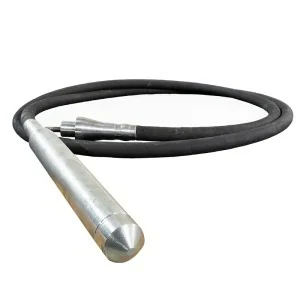

Mechanical transmission hose Kompak KP-TM-50-5 333 mm

icon Length
Length
5 m
icon RPM
RPM
12000 rрm
icon Weight
Weight
12 Kg
  • Transmission length : 5 m
  • Needle Ø : 50
  • Needle length : 320 mm
  • Revolutions : 12.000 rрm
  • Weight : 12 Kg
€188.60 Regular price €200.64 Price excl. VAT
€188.60 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

High-frequency concrete vibrator Kompak KP-CM-25 M/T

icon Current
Current
Single-phase
icon Current
Current
Three-phase
icon Working Amps
Working Amps
25 A
icon Power rating
Power rating
1.8 - 2.8 kW
icon Weight
Weight
34 Kg
  • Current : Single-phase, Three-phase
  • Working Amps : 25 A
  • Weight : 34 Kg
  • Nominal power : 1,8 - 2,8 kW
€741.10 Regular price €788.40 Price excl. VAT
€741.10 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

High-frequency transmission hose Kompak KP-HFS-38 404 mm

icon Length
Length
5 m
icon Weight
Weight
10.6 Kg
  • Centrifugal force : 1,7 N
  • Nominal force (220v) : 8 A
  • Action diameter : 45 cm
  • Amplitude : 1,8 mm
  • Noise : 70 dB
€330.90 Regular price €352.02 Price excl. VAT
€330.90 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

High-frequency transmission hose Kompak KP-HFS-50 403 mm

icon Length
Length
5 m
icon Weight
Weight
14.8 Kg
  • Centrifugal force : 3,08 N
  • Nominal force (220v) : 11 A
  • Action diameter : 60 cm
  • Amplitude : 2,0 mm
  • Noise : 76 dB
€349.04 Regular price €371.32 Price excl. VAT
€349.04 VAT incl.

Concrete rulers and vibrators
Concrete rulers and vibrators
  • -6%
-6%

High-frequency transmission hose Kompak KP-HFS-59 420 mm

icon Length
Length
5 m
icon Weight
Weight
17.4 Kg
  • Centrifugal force : 4,56 N
  • Nominal force (220v) : 12 A
  • Action diameter : 80 cm
  • Amplitude : 2,3 mm
  • Noise : 76 dB
€396.24 Regular price €421.53 Price excl. VAT
€396.24 VAT incl.
