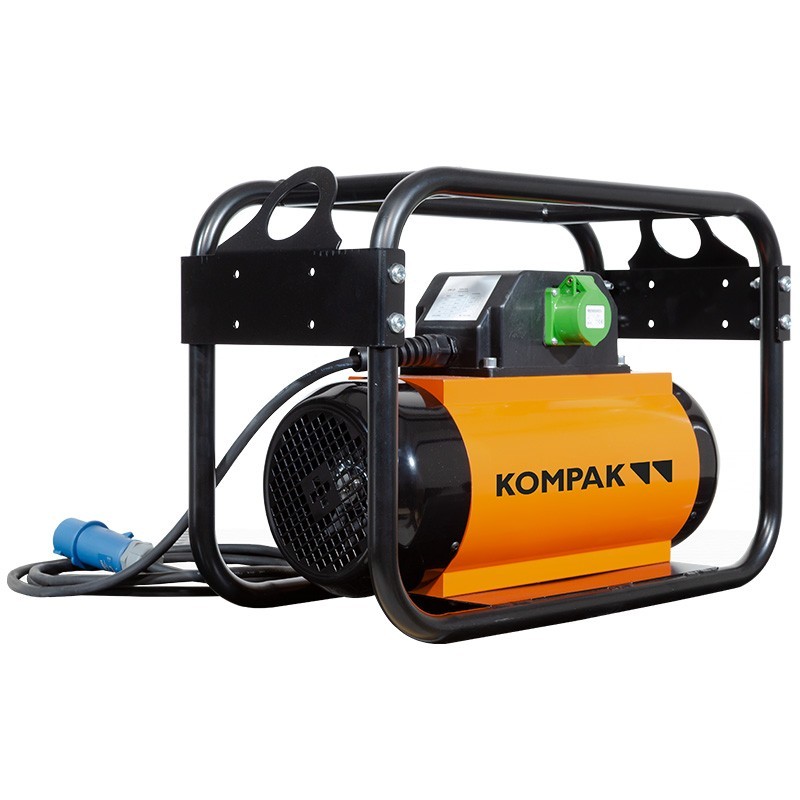

High-frequency concrete vibrator Kompak KP-CM-25 M/T


  • Current : Single-phase, Three-phase
  • Working Amps : 25 A
  • Weight : 34 Kg
  • Nominal power : 1,8 - 2,8 kW
En stock
icon Current
Current
Single-phase
icon Current
Current
Three-phase
icon Working Amps
Working Amps
25 A
icon Power rating
Power rating
1.8 - 2.8 kW
icon Weight
Weight
34 Kg
€764.63 excl. VAT
- 4%
€734.04 excl. VAT
€888.19 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


High-frequency concrete vibrator Kompak KP-CM-25 M/T
€888.19
Select
Qty

Electric mechanical vibrator Kompak KP-VME-5

The Kompak KP-CM-25 High Frequency Concrete Vibrator comes in two models: the KPCM-25M (single-phase) and the KPCM-25T (three-phase). Both models are equipped with high-frequency converters featuring brushless, permanent magnet rotors designed to power concrete vibrators continuously.

These converters provide the flexibility to connect to any vibrating needle of the same voltage. With safety features that include a thermal protection switch and a rugged, impact-resistant iron crash cage, the KP-CM-25 ensures safe, long-lasting operation.

For carrying convenience, the design incorporates ergonomic handles. As for transmission connection, the KPCM-25M model can be connected to 2x KPHFS-38, 2x KPHFS-50, 2x KPHFS-59 and 1x KPHFS-65, while the KPCM-25T model connects to 2x KPHFS-38, 2x KPHFS-50, 2x KPHFS-59 and 1x KPHF-65.

Data sheet

MODELS KP-CM-25M KP-CM-25T
N° outputs 2 2
INPUT
V/F 230 V, 1 Ph, 50 Hz 400 V, 3 Ph, 50 Hz
Current 10 A 5 A
Power 1.8 kW 2.8 kW
OUTPUT
V/F 42 +- 10 %, 3 Ph, 200 Hz 41 +- 10 %, 3 Ph, 200 Hz
Current 25 A 25 A
Power 1.8 kW 1.8 kW
Weight 34 kg 33 kg

Optional hoses

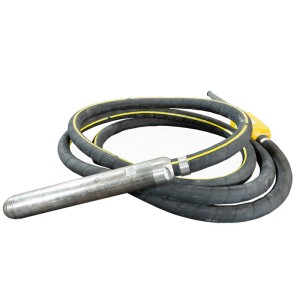

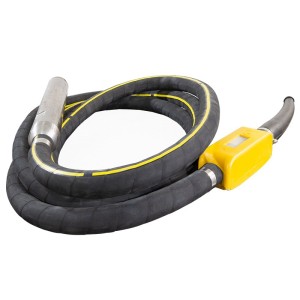

MODELS KP-HFS-38 KP-HFS-50 KP-HFS-59
Centrifugal force 1,7 N 3,08 N 4,56 N
Nominal force (220v) 8 A 11 A 12 A
Action diameter 45 cm 60 cm 80 cm
Amplitude 1.8 mm 2.0 mm 2.3 mm
Noise 70 dB 76 dB 76 dB
Compaction power 20 m3/h 25 m3/h 35 m3/h
needle ø 38 mm 50 mm 59 mm
Needle length 404 mm 403 mm 420 mm
Needle weight 2.4 kg 4.4 kg 6.8 kg
Total weight 10.6 kg 14.8 kg 17.4 kg
259700

Data sheet

Current
Single-phase
Three-phase
Working Amps
25 A
Power rating
1.8 - 2.8 kW
Weight
34 Kg

Specific References

ean13
8435672794117
