what are tractor disc harrows?

Tractor disc harrows are agricultural accessories used to prepare the soil before sowing. This tool consists of a series of rotating discs that cut and break up soil clods. These discs are designed to penetrate the soil and break up plant residues, level the ground, cut weeds and improve soil aeration and drainage.

  • Discs: Disc harrows are equipped with a series of discs that can vary in number, size and spacing depending on the model. These discs are made of heavy-duty steel and sharpened at the edges for efficient cutting.
  • Angle adjustment: Disc harrows generally have the option of adjusting the angle of the discs in relation to the direction of travel, allowing the intensity of the cut and the working depth to be modified.
  • Three-point hitch: This attachment connects to the tractor via a three-point hitch, providing stability and allowing working depth and angle adjustment during operation.
  • Multiple applications: Tractor disc harrows are versatile and are used in various stages of the agricultural process, such as land preparation before planting, weed control, or land leveling after harvesting.
  • Durability: These machines are built with strong and durable materials to withstand the working conditions in the field. The discs are usually replaceable, which keeps the attachment in good condition for a long time.

Gradas de disco para tractor


From Intermaquinas we recommend tractor disc harrows to all those who have cultivated land, as they provide many advantages in terms of time and efficiency when preparing the soil for sowing. They are versatile, adjustable and durable, making them a popular tractor accessory in modern agriculture. Here to help you, contact us now!


There are 22 products.

Showing 1-12 of 22 item(s)
Tractor disc harrows
Tractor disc harrows
  • -4%
-4%

Rotary harrow with tube roller for DELEKS KR tractors

icon Working width PTO
Working width PTO
125 - 165 cm
icon Tractor power
Tractor power
25 - 70 HP
icon Cardan shaft
Cardan shaft
Included
icon Working depth
Working depth
200 mm
icon Type of coupling
Type of coupling
Fixed hitch
icon Robustness
Robustness
Medium
icon Chassis material
Chassis material
Enameled steel
icon Number of blades
Number of blades
12
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
317 - 377 kg
  • 540 RPM
  • Universal hitch
  • 2 blades per rotor
  • Rear roller

CARDAN SHAFT INCLUDED

€1,898.33 Regular price €1,977.43 Price excl. VAT
€1,898.33 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -4%
-4%

Rotary harrow for tractor Giemme LXG 130 - 210 cm

icon Working width PTO
Working width PTO
130 - 210 cm
icon Tractor power
Tractor power
25 - 80 HP
icon Cardan shaft
Cardan shaft
Included
icon Displacement
Displacement
Hydraulic
icon Number of blades
Number of blades
12 - 20
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
274 - 396 kg
  • PTO working width : 130 - 210 cm
  • Tractor power : 25 - 80 HP
  • Weight : 274 - 396 kg
€2,434.50 Regular price €2,535.94 Price excl. VAT
€2,434.50 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -7%
-7%

Rotary harrow for tractor Zeppelin ESGRADAROT 1300-2000 mm

icon Power Supply
Power Supply
PTO tractor
icon Working width
Working width
1300 - 2000 mm
icon Tractor power
Tractor power
25 - 120 HP
icon RPM
RPM
540
icon Number of blades
Number of blades
12 - 20
icon Weight
Weight
280 - 400 Kg
  • Working width: 1300 - 2000 mm
  • Power requirement: 25-35 / 70-120 Hp
  • Working depth: 200 mm
€1,849.51 Regular price €1,988.72 Price excl. VAT
€1,849.51 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -7%
-7%

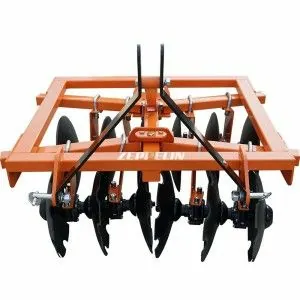

Disc harrows for Zeppelin tractor ESGRADA Suspended in X

icon Power Supply
Power Supply
PTO tractor
icon Working width
Working width
1100 - 1700 mm
icon Tractor power
Tractor power
15 - 55 HP
  • Working width: 1100 - 1700 mm
  • Power requirement: 15-30 / 40-55 Hp
  • Disc diameter: 450 mm
€1,782.21 Regular price €1,916.36 Price excl. VAT
€1,782.21 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -7%
-7%

Quick tractor disc harrows Zeppelin ESGRADARAP 22"

icon Power Supply
Power Supply
PTO tractor
icon Working width
Working width
1400 - 3000 nm
icon Tractor power
Tractor power
45 - 100 HP
  • Working width: 1400 - 4000 mm
  • Power requirement: 45 - 1000 Hp
  • Disc diameter: 560 - 610 mm
€4,095.03 Regular price €4,403.26 Price excl. VAT
€4,095.03 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -7%
-7%

Disc harrows for Zeppelin ESGRADA Tractors Suspended in V

icon Power Supply
Power Supply
PTO tractor
icon Working width
Working width
1400 - 2200 mm
icon Tractor power
Tractor power
40 - 65 HP
icon Weight
Weight
324 - 480 Kg
  • Working width: 1400 - 2200 mm
  • Power requirement: 40 / 55-65 Hp
  • Disc diameter: 510 - 560 mm
€1,906.52 Regular price €2,050.02 Price excl. VAT
€1,906.52 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -4%
-4%

Disc harrow for tractor Garto GDS 110-130 cm

  • 20" (510 mm) discs.
  • 200 mm spacing between discs.
  • 30 mm (30 mm) square shaft
€1,587.72 Regular price €1,653.88 Price excl. VAT
€1,587.72 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -7%
-7%

Quick Stand Zeppelin ESGRADARAP300ZY 100 HP

icon Power Supply
Power Supply
PTO tractor
icon Working width
Working width
3000 mm
icon Tractor power
Tractor power
100 HP
  • Working width: 3000 mm
  • Power: 100 HP
  • Fuel: PTO
€7,631.77 Regular price €8,206.20 Price excl. VAT
€7,631.77 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -7%
-7%

Fast disc harrow Zeppelin ESGRADARAP300SR 100 HP

icon Power Supply
Power Supply
PTO tractor
icon Working width
Working width
3000 mm
icon Tractor power
Tractor power
100 HP
  • Working width: 3000 mm
  • Power: 100 HP
  • Fuel: PTO
€6,579.14 Regular price €7,074.34 Price excl. VAT
€6,579.14 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -4%
-4%

Quick disc harrows for tractor Garto GRDS 140-500 cm

icon Working width PTO
Working width PTO
1400 - 5000 mm
icon Tractor power
Tractor power
45 hp
icon RPM
RPM
540
  • RPM : 540
  • PTO working width : 1400 - 5000 mm
  • Minimum tractor power : 45 hp
€3,913.45 Regular price €4,076.51 Price excl. VAT
€3,913.45 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -4%
-4%

Rotary harrow PTO GEO ITALY MG 110 - 210 cm

icon Power Supply
Power Supply
PTO tractor
icon Working width
Working width
110 - 210 cm
icon Tractor power
Tractor power
25 - 60 HP
icon RPM
RPM
540
icon Cardan shaft
Cardan shaft
Included
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
250 - 380 kg
  • Weight : 250 - 380 kg
  • Working width PTO : 110 - 210 cm
  • Country of manufacture : Italy
  • CARDAN SHAFT INCLUDED
€1,893.16 Regular price €1,972.04 Price excl. VAT
€1,893.16 VAT incl.
Tractor disc harrows
Tractor disc harrows
  • -4%
-4%

PTO Disc Harrow GEO ITALY DH 120 - 150 cm

icon Working width PTO
Working width PTO
120 - 150 cm
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
190 - 235 kg
  • Weight : 190 - 235 kg
  • Working width PTO : 120 - 150 cm
  • Country of manufacture : Italy
€952.90 Regular price €992.60 Price excl. VAT
€952.90 VAT incl.
