| Assembly and set-up INCLUDED |

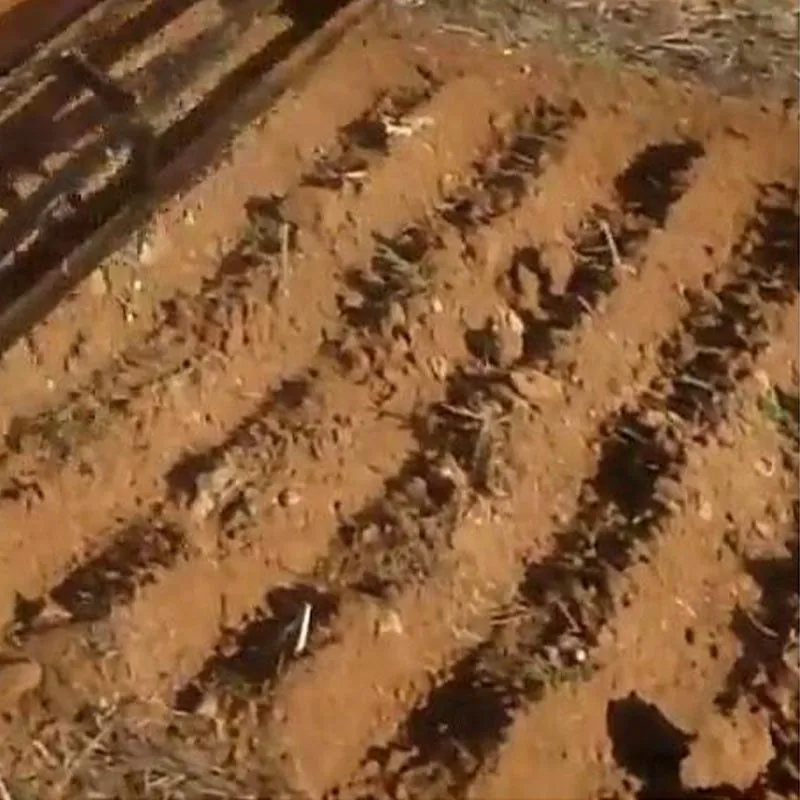

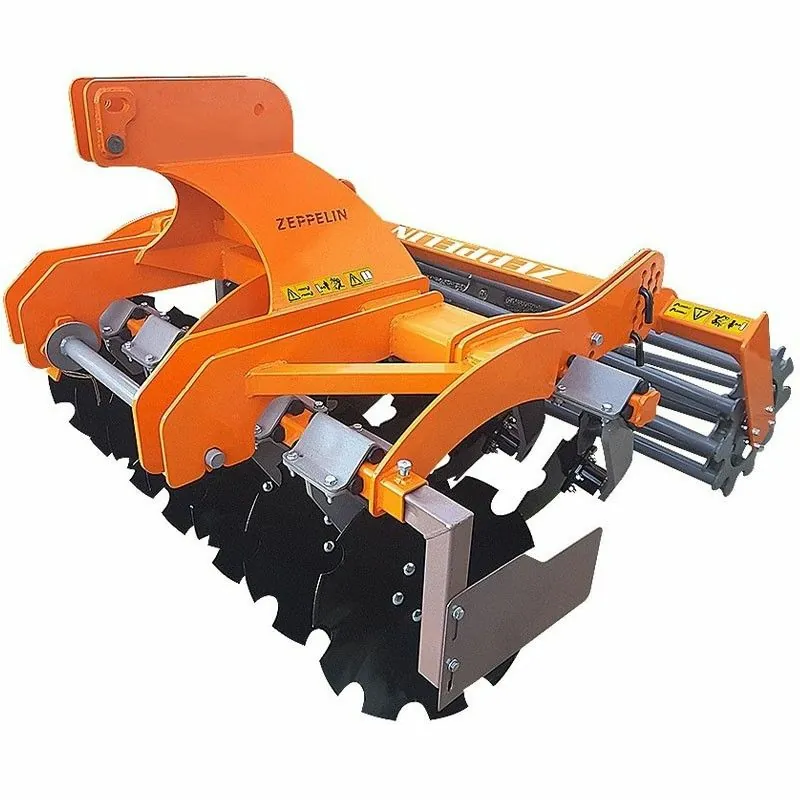

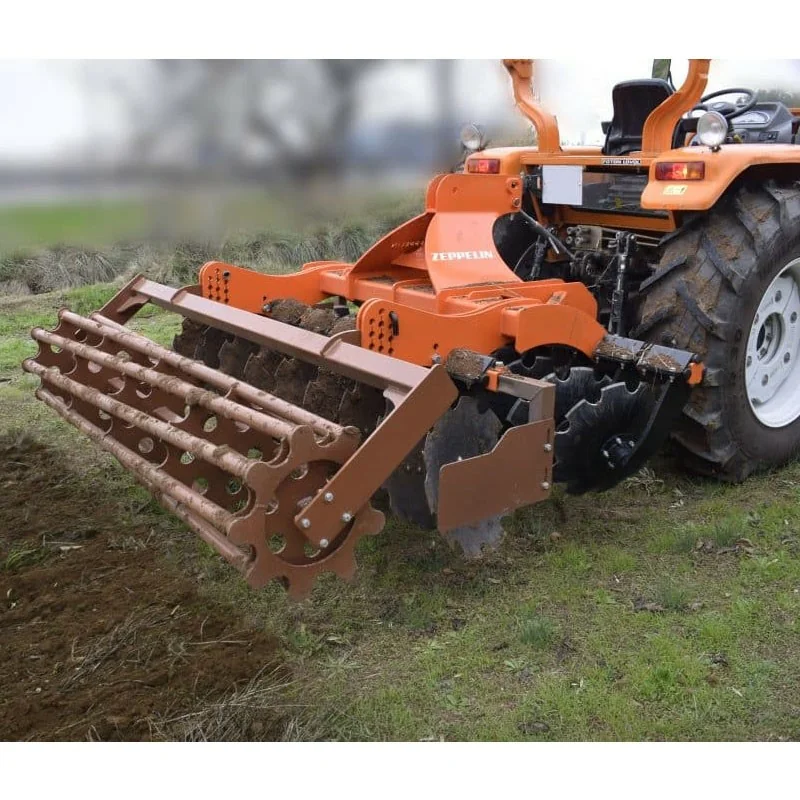

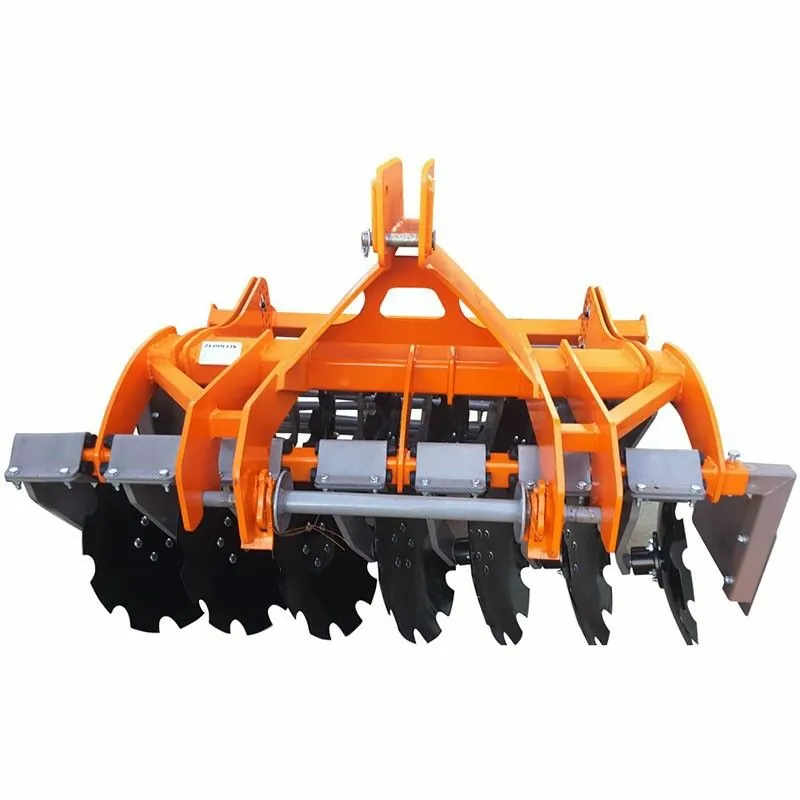

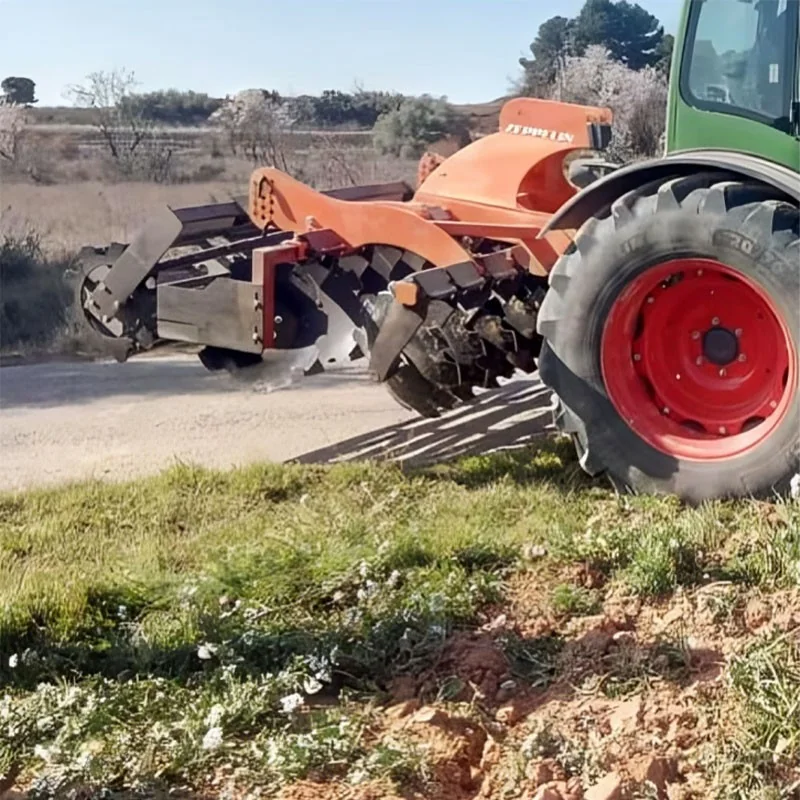

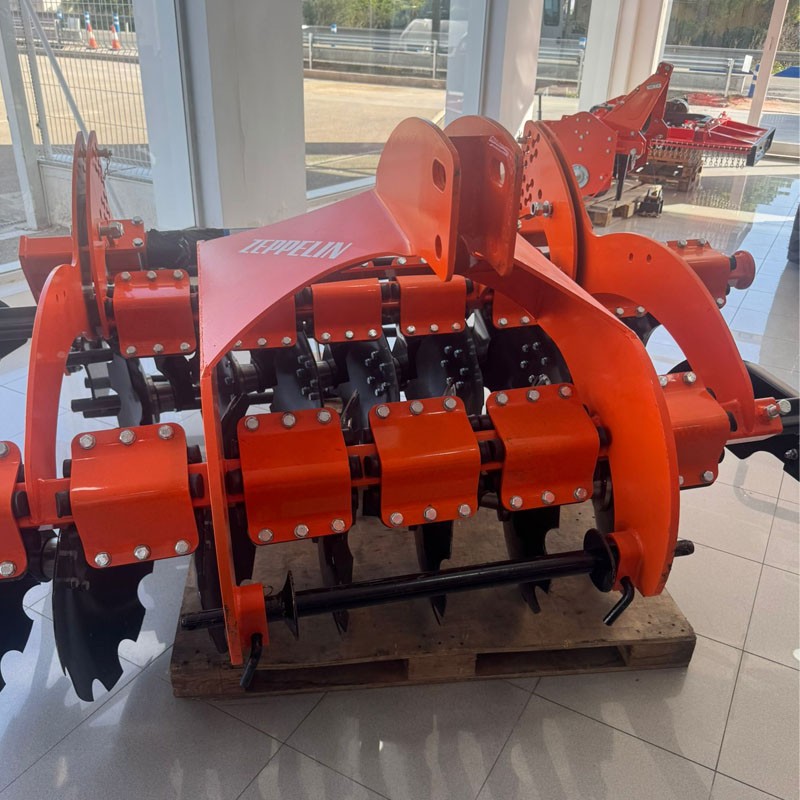

The disc harrows Zeppelin are the ideal solution for the efficient preparation of agricultural land. Available in versions from 10 to 24 discs, with diameters from 560 mm and up to 660 mm in the higher models, they offer a homogeneous and deep work thanks to their double row of discs and its angle of attack increased.

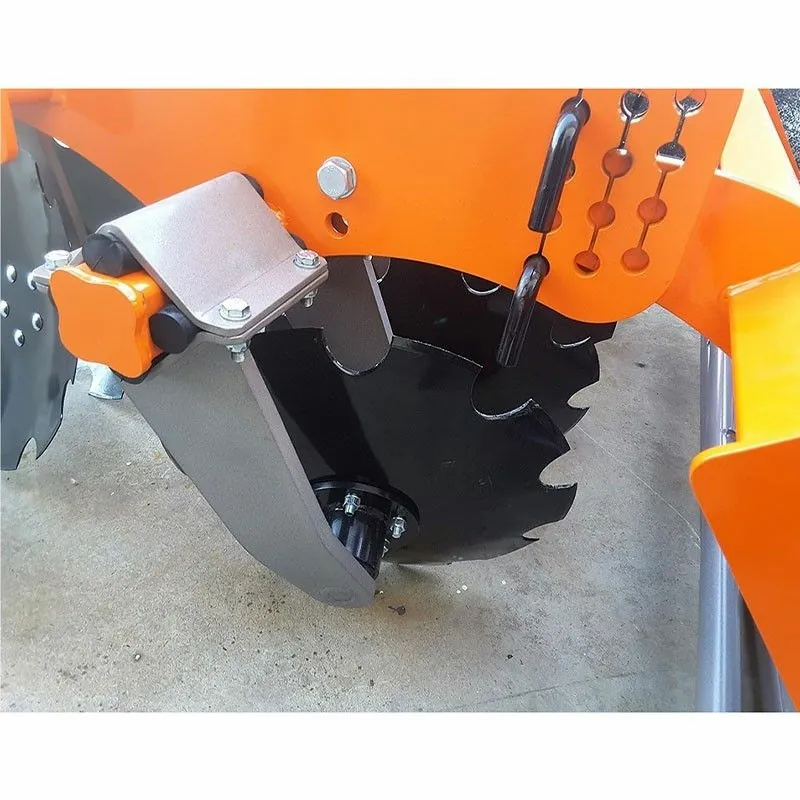

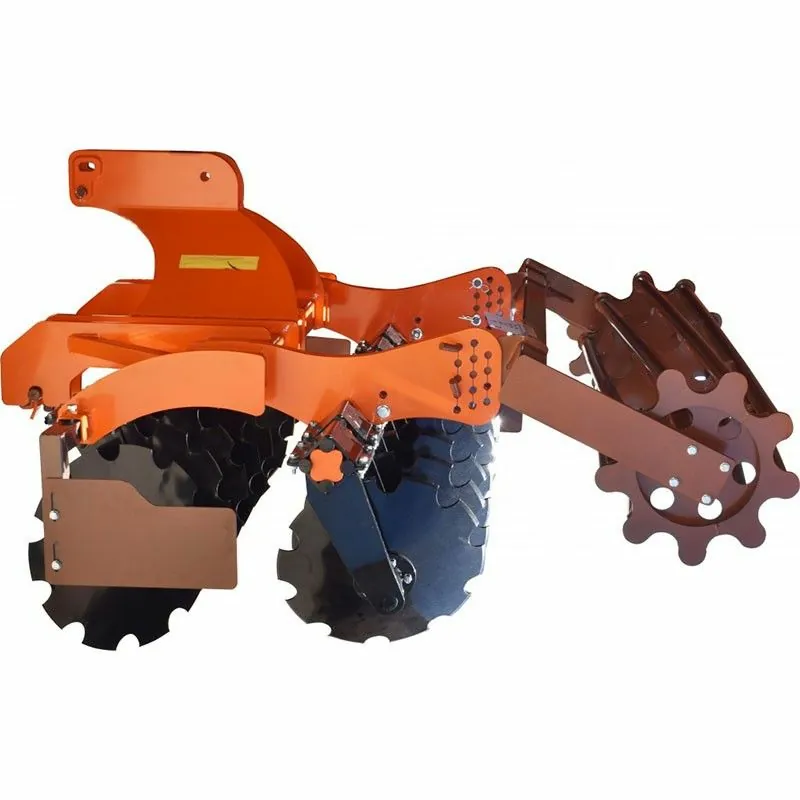

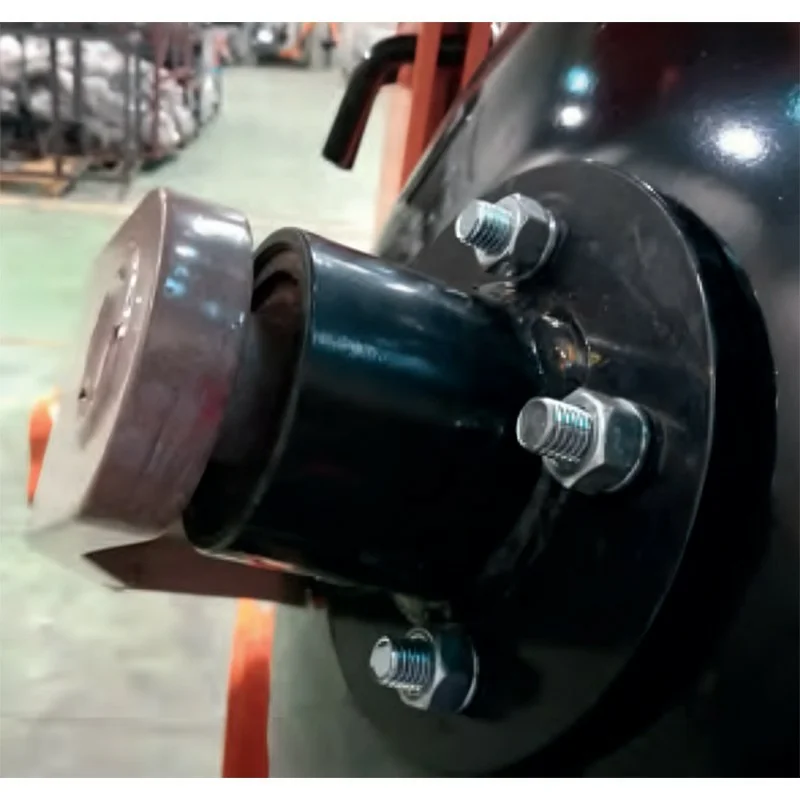

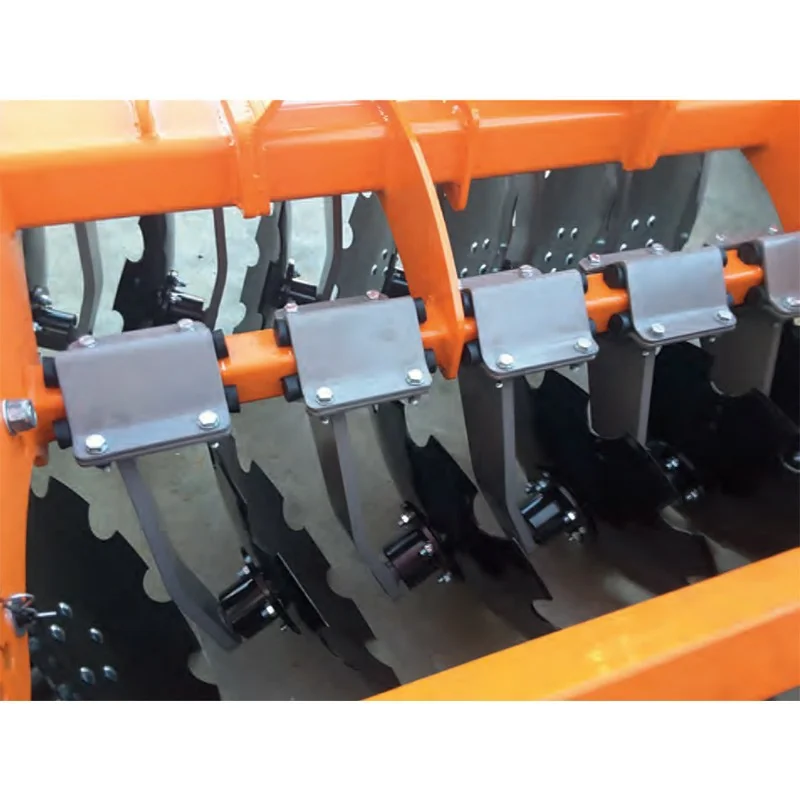

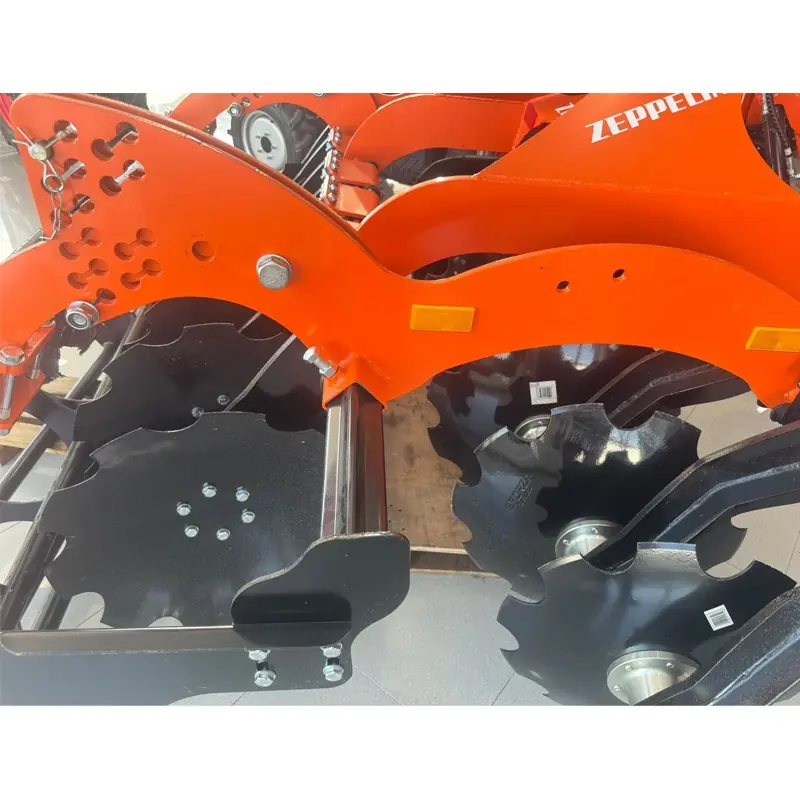

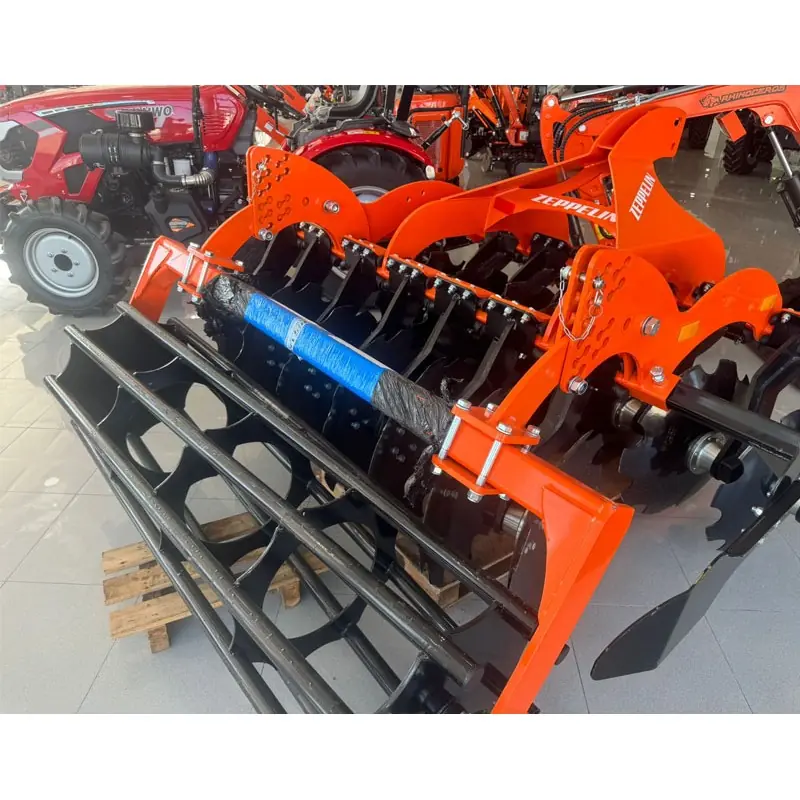

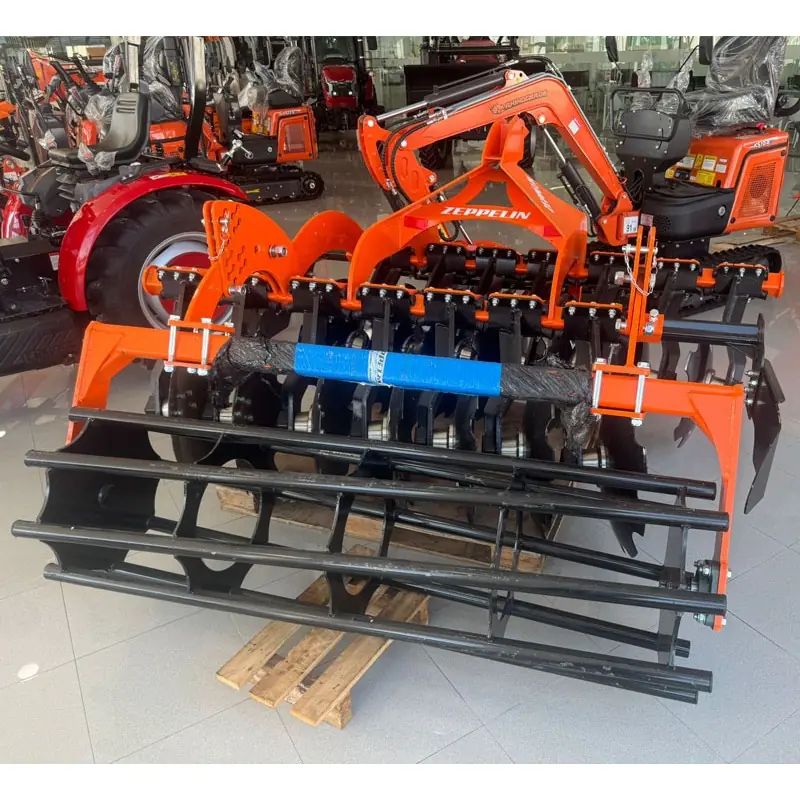

Each disc has independent shock absorber and integrated reinforced bearings, ensuring durability and minimal maintenance. The design includes side screens to prevent soil spillage, rear roller for a perfect finish and a tubular rear axle for stability and strength during work.
The reverse arrangement of the first row of discs allows effective weeding of grass and crop residues, optimizing the cleaning of the soil. In addition, the arm of automatic ABS traction and maintenance-free bearing housings facilitate the use and increase the service life of the equipment.
With working widths from 1.4 to 3 meters and a weight ranging from 570 to 1300 kg depending on the model, the harrows are available in a wide range of sizes Zeppelin are adapted to different agricultural needs, always offering superior performance and high quality soil preparation.
| Models | ESGRADARAP140Z | ESGRADARAP160Z | ESGRADARAP180Z |
| Weight | 570 kg | 670 kg | 770 kg |
| Working width | 1400 mm | 1600 mm | 1800 mm |
| Working depth | 160 mm | 160 mm | 160 mm |
| Number of discs | 10 | 12 | 14 |
| Disc diameter | 560 mm | 560 mm | 560 mm |
| Disc diameter | 22" | 22" | 22" |
| Rulo | Yes | Yes | Yes |
| Dimensions | 155 x 215 x 133 | 175 x 215 x 133 | 195 x 215 x 133 |
| Power required | 45 | 50 | 55 |
| Models | ESGRADARAP200Z | ESGRADARAP220Z | ESGRADARAP250Z |
| Weight | 870 kg | 930 kg | 1100 kg |
| Working width | 2000 mm | 2200 mm | 2500 mm |
| Working depth | 160 mm | 160 mm | 160 mm |
| Number of discs | 16 | 18 | 20 |
| Disc diameter | 560 mm | 560 mm | 560 mm |
| Disc diameter | 22" | 22" | 22" |
| Rulo | Yes | Yes | Yes |
| Dimensions | 215 x 215 x 130 | 235 x 215 x 130 | 265 x 215 x 133 |
| Power required | 65 | 80 | |
| Models | ESGRADARAP270Z | ESGRADARAP300Z | ESGRADARAP300SR |
| Weight | 1200 kg | 1300 kg | 1300 kg |
| Working width | 2700 mm | 3000 mm | 3000 mm |
| Working depth | 160 mm | 160 mm | 160 mm |
| Number of discs | 22 | 24 | 24 |
| Disc diameter | 560 mm | 560 mm | 560 mm |
| Disc diameter | 22" | 22" | 22" |
| Rulo | Yes | Yes | No |
| Dimensions | 285 x 215 x 133 | 315 x 215 x 133 | 315 x 215 x 133 |
| Power required | 90 | 100 | 100 |
| Models | ESGRADARAP300ZY | ESGRADARAP300ZZ | |
| Weight | 1300 kg | 1300 kg | |
| Working width | 3000 mm | 3000 mm | |
| Working depth | 160 mm | 160 mm | |
| Number of discs | 24 | 24 | |
| Disc diameter | 610 mm | 660 mm | |
| Disc diameter | 24" | 26" | |
| Rulo | Yes | Yes | |
| Dimensions | 285 x 215 x 133 | 315 x 215 x 133 | |
| Power required | 100 | 100 |
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |

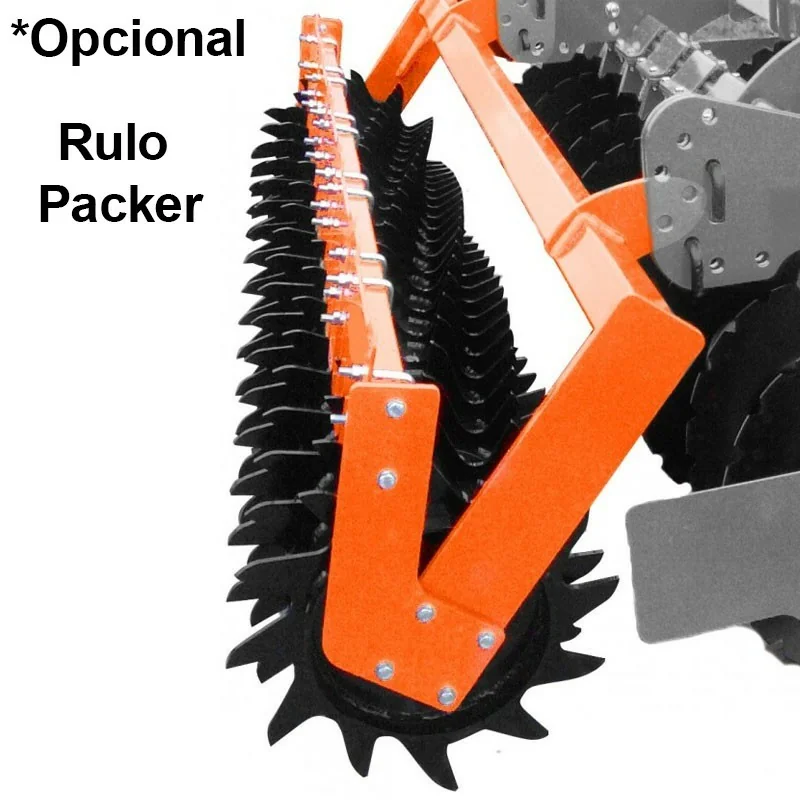

| This tractor disc harrow includes a standard roller, allows you to request, with a surcharge, a roller Packer compatible with ESGRADARAP250Z, ESGRADARAP270Z and ESGRADARAP300Z through our customer service. |
