Quick Stand Zeppelin ESGRADARAP300ZY 100 HP
- Working width: 3000 mm
- Power: 100 HP
- Fuel: PTO
€8,837.26 VAT incl.

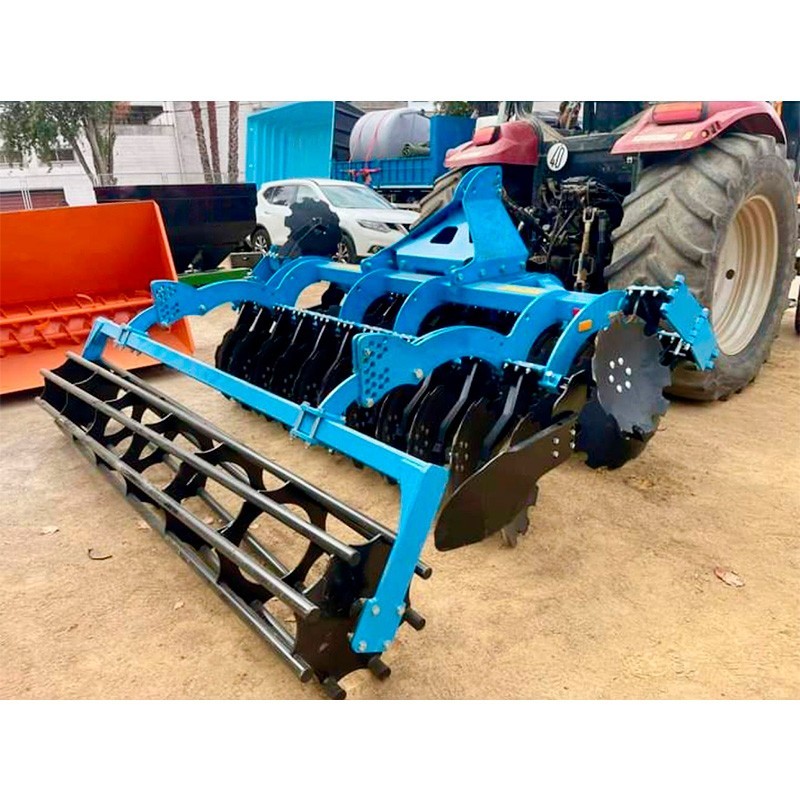

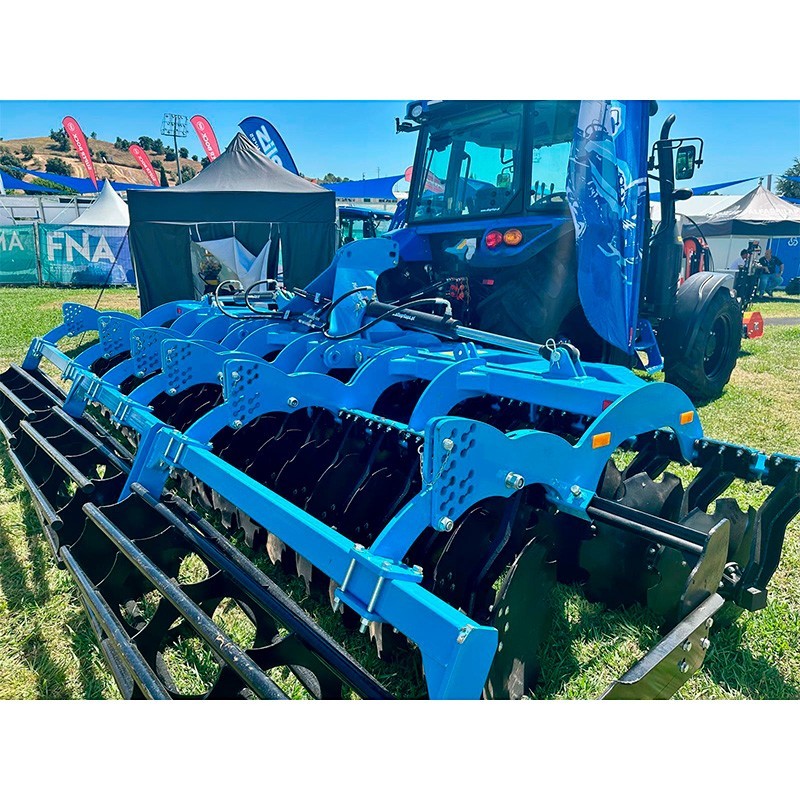

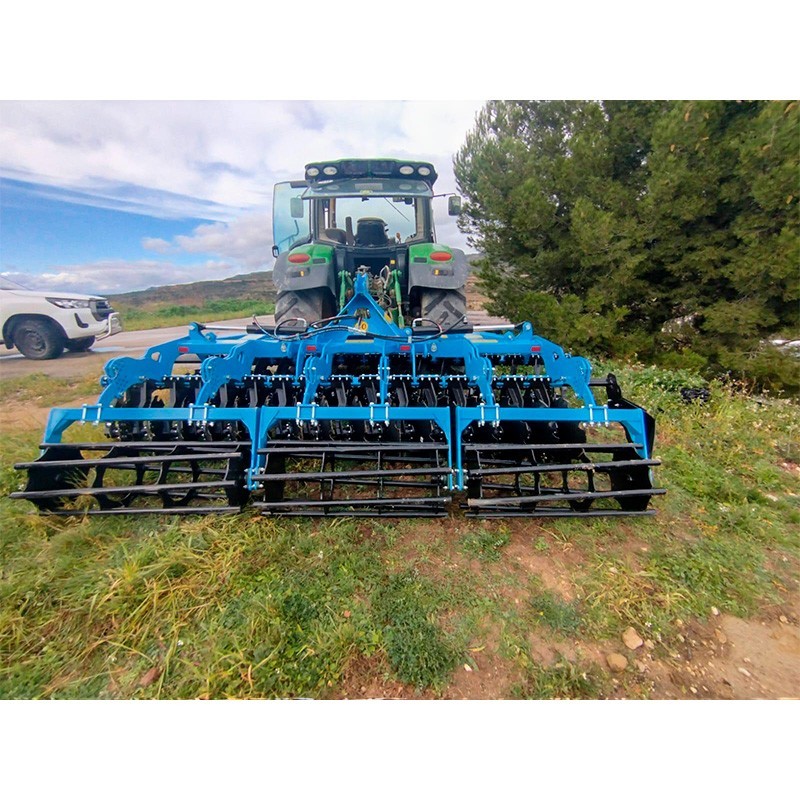

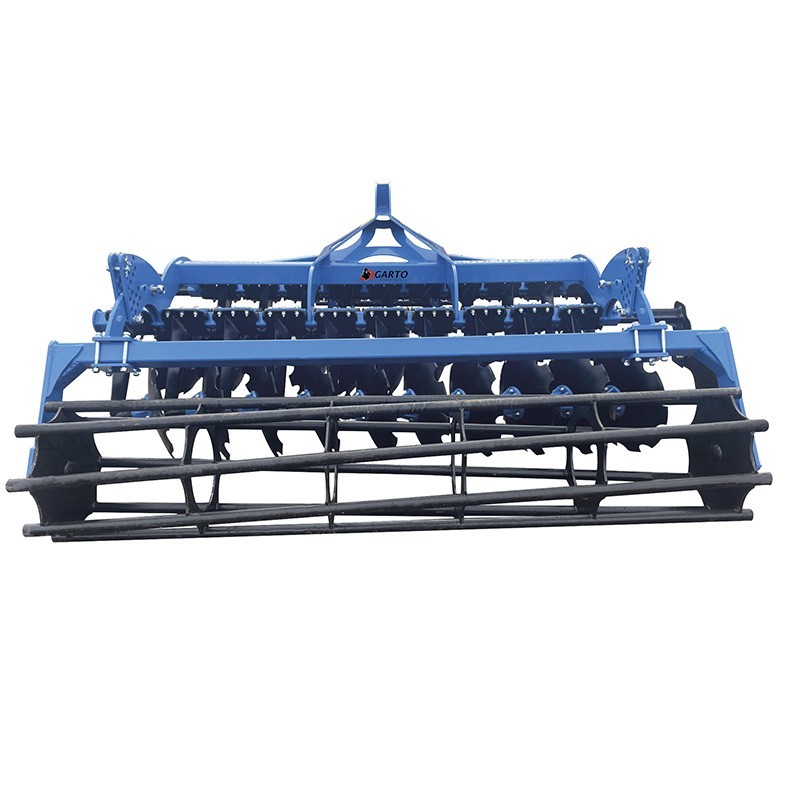

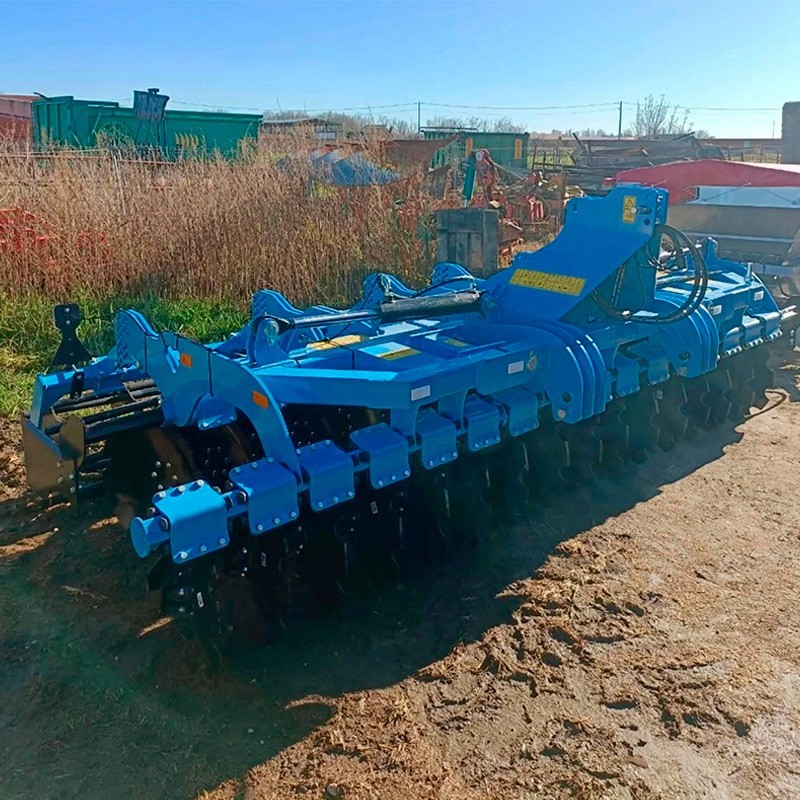

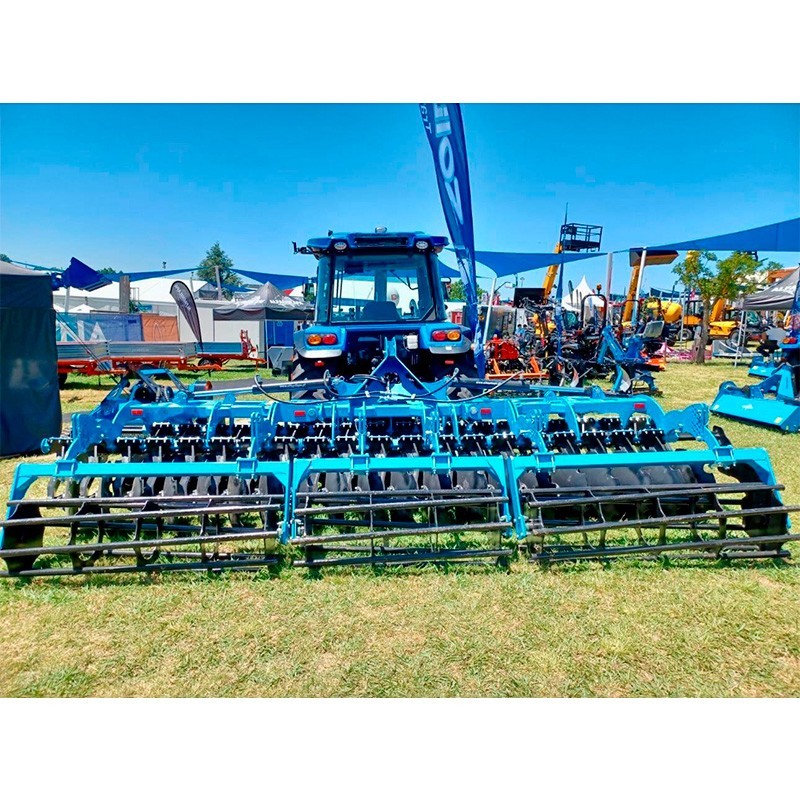

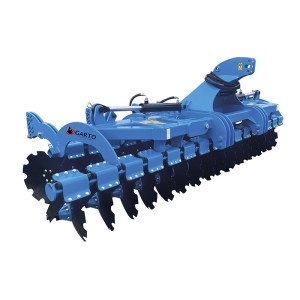

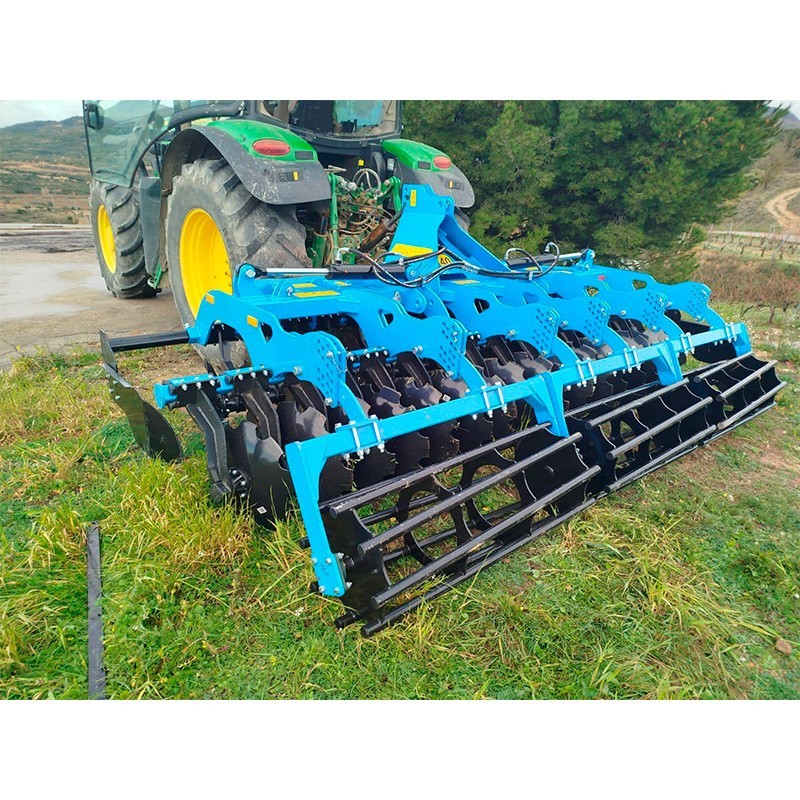

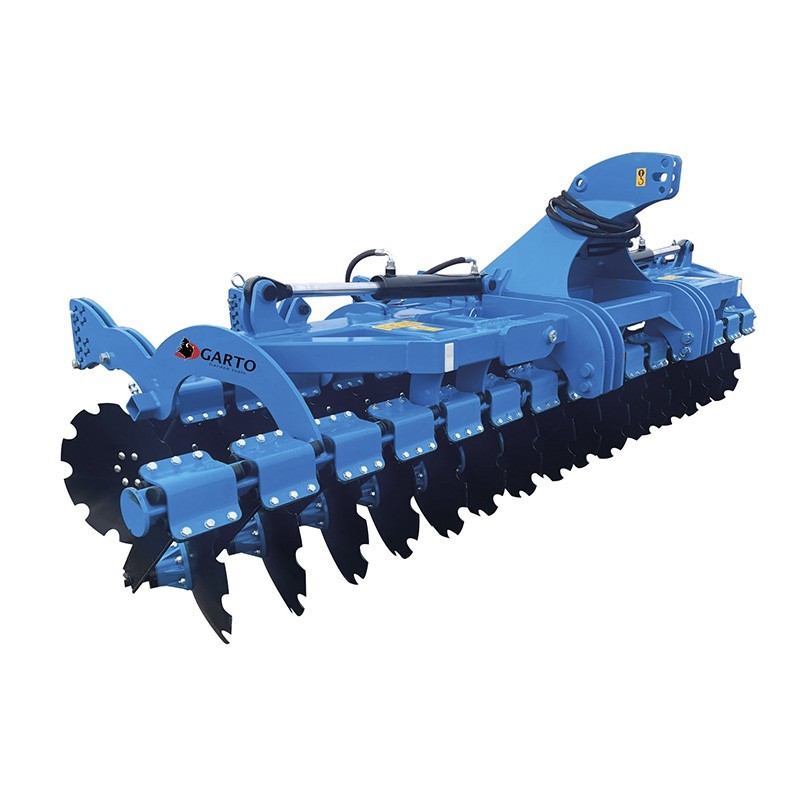

The quick disc harrows for tractor Garto GRDS 140-500 cm are an ideal solution for those looking for fast, precise and reinforced work in their fields. Equipped with 560 x 6 mm discs, they offer exceptional performance in various agricultural tasks.

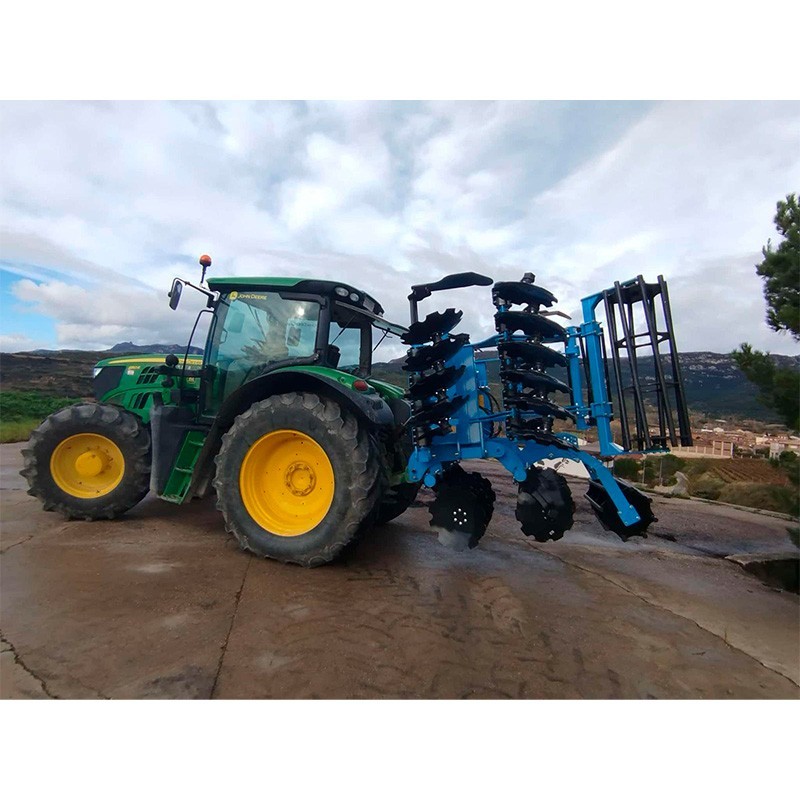

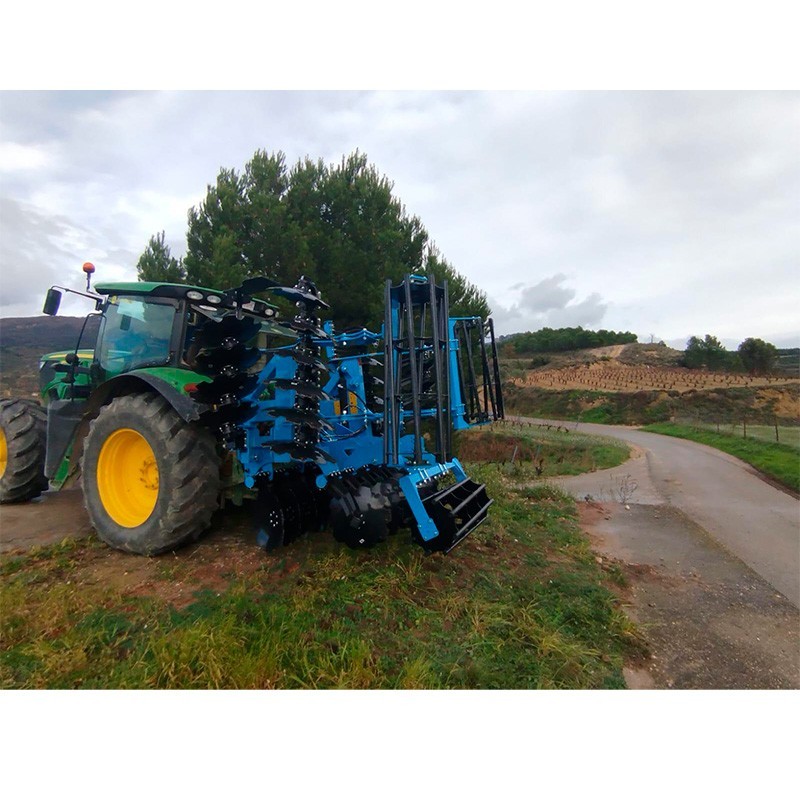

These quick harrows stand out for their versatility, as they can be used in both fixed and foldable versions, adapting to the needs of each user. In addition, their great robustness and the detachable hitch bar guarantee a long service life and ease of transport and storage.
Thanks to its elastomer system, the risk of damage is minimized and the equipment and tractor are protected during use. In addition, the different configurations available, such as the option of tine harrow between discs and the roller or tine harrow in front of the roller, provide greater adaptability to different types of soils and jobs.

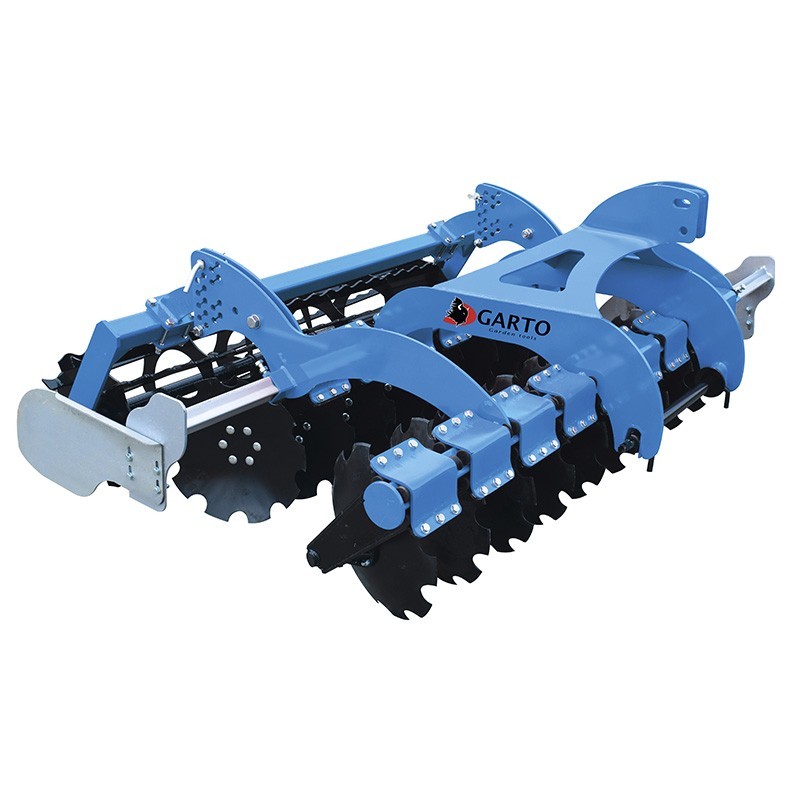

Finally, the design with aggressively profiled 510 / 560 toothed working discs and maintenance-free sealed bearings ensure excellent performance and ease of use, allowing the operator to concentrate on the job without worrying about constant maintenance of the equipment.
Model | GRDS140 | GRDS200 | GRDS220 | GRDS250 |
Weight | 570 kg | 870 kg | 930 kg | 1100 kg |
Working width | 1400 mm | 2000 mm | 2200 mm | 2500 mm |
Working depth | 160 mm | 160 mm | 160 mm | 160 mm |
No. of discs | 10 | 16 | 18 | 20 |
Diameter | 560 mm | 560 mm | 560 mm | 560 mm |
Dimensions | 1550 x 2150 x 1330 mm | 2150 x 2150 x 1330 mm | 2350 x 2150 x 1330 mm | 2650 x 2150 x 1330 mm |
Power requirement | 45 hp | 60 hp | 65 hp | 80 hp |
Model | GRDS270 | GRDS300 | GRDS400 | GRDS500 |
Weight | 1200 kg | 1300 kg | 2325 kg | 2500 kg |
Working width | 2700 mm | 3000 mm | 4000 mm | 5000 mm |
Working depth | 160 mm | 160 mm | 160 mm | 200 mm |
No. of discs | 22 | 24 | 32 | 40 |
Diameter | 560 mm | 560 mm | 560 mm | 560 / 610 / 660 mm |
Dimensions | 2850 x 2150 x 1330 mm | 3150 x 2150 x 1330 mm | 4250 x 2000 x 1500 mm | 5250 x 2000 x 1500 mm |
Power requirement | 90 hp | 100 hp | 100 hp | 160 - 190 hp |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
CARDAN SHAFT INCLUDED
