Rating:
(0)
  • 540 RPM
  • Universal hitch
  • 2 blades per rotor
  • Rear roller

CARDAN SHAFT INCLUDED

Deleks products take about 15 to 20 days.
En stock
icon Working width PTO
Working width PTO
125 - 165 cm
icon Tractor power
Tractor power
25 - 70 HP
icon Cardan shaft
Cardan shaft
Included
icon Working depth
Working depth
200 mm
icon Type of coupling
Type of coupling
Fixed hitch
icon Robustness
Robustness
Medium
icon Chassis material
Chassis material
Enameled steel
icon Number of blades
Number of blades
12
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
317 - 377 kg
€1,977.43 excl. VAT
- 4%
€1,898.33 excl. VAT
€2,296.98 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Rotary harrow with tube roller for DELEKS KR tractors
€2,296.98
Select
Qty

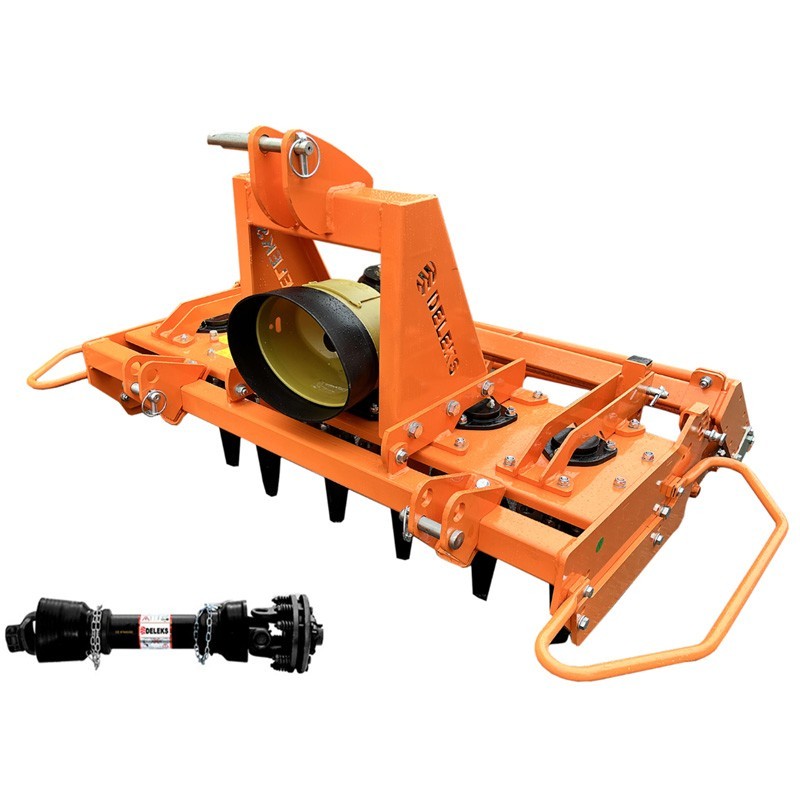

DELEKS KR power harrow with tube roller for DELEKS KR tractors

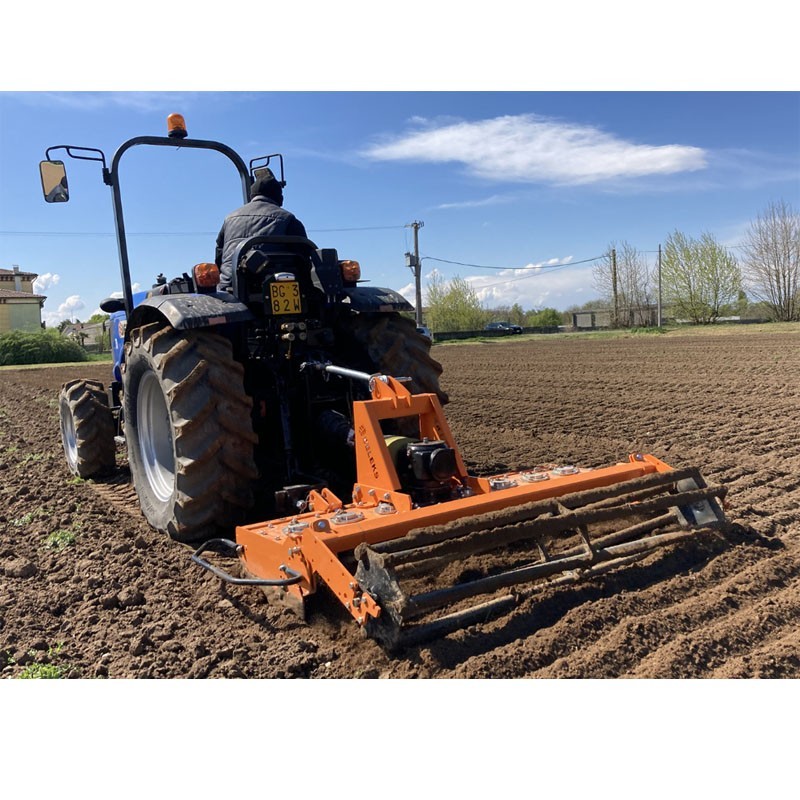

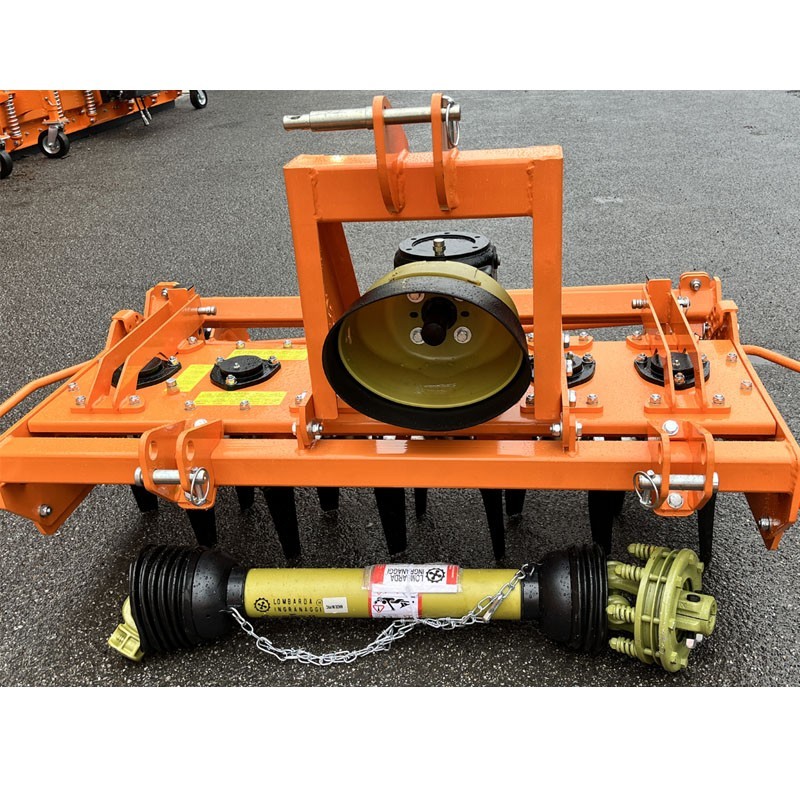

The DELEKS KR rotary harrow with tube roller for tractors has been designed for small farms and for soil tillage in specific crops, such as horticulture and vineyards. It is a machine suitable for low power tractors thanks to its dimensions and low weight.

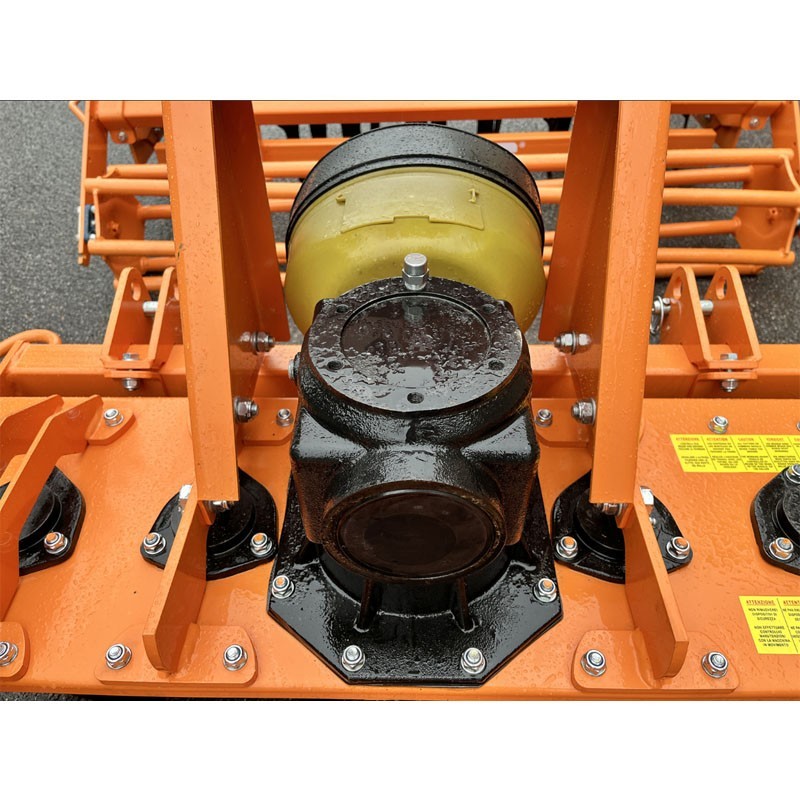

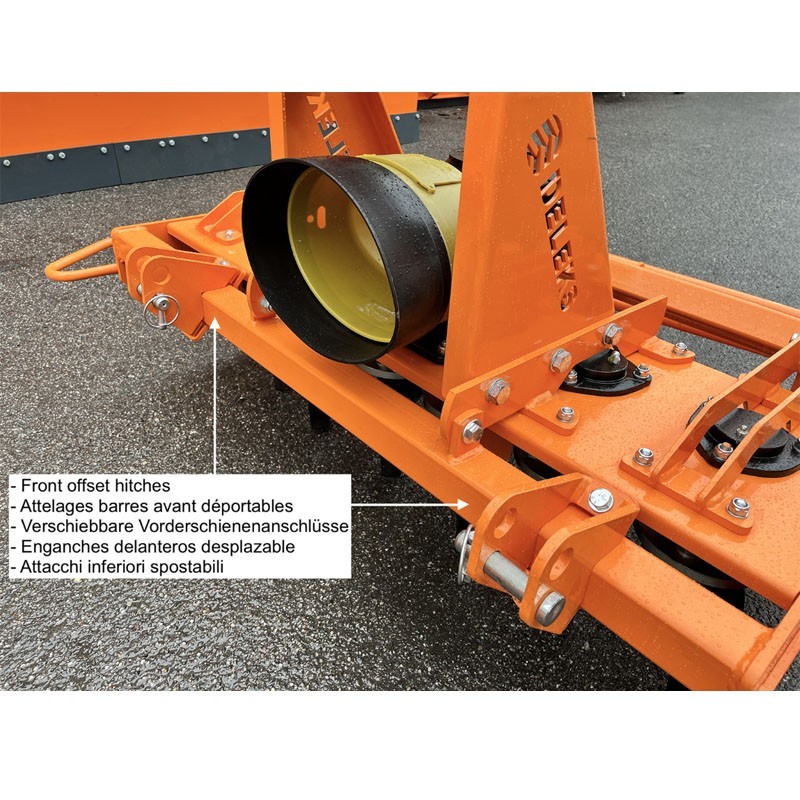

The special design of the blades allows to mulch the soil with a great economy of the tractor, it has a speed reducer with T.D.F. 540 RPM, its cardan contains a clutch and it is equipped with a universal 3-point hitch of category 1 and 2.

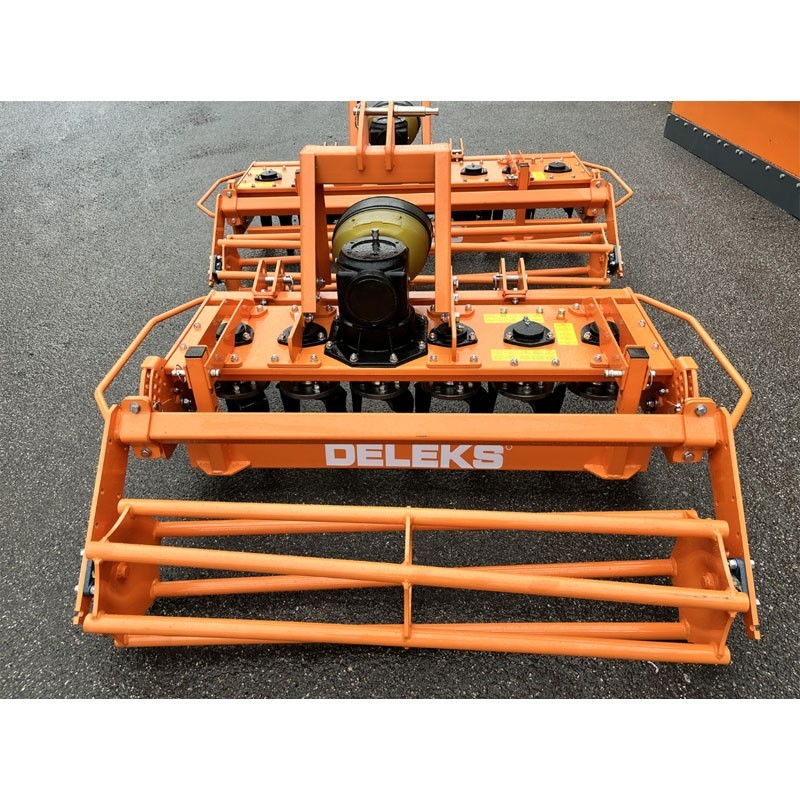

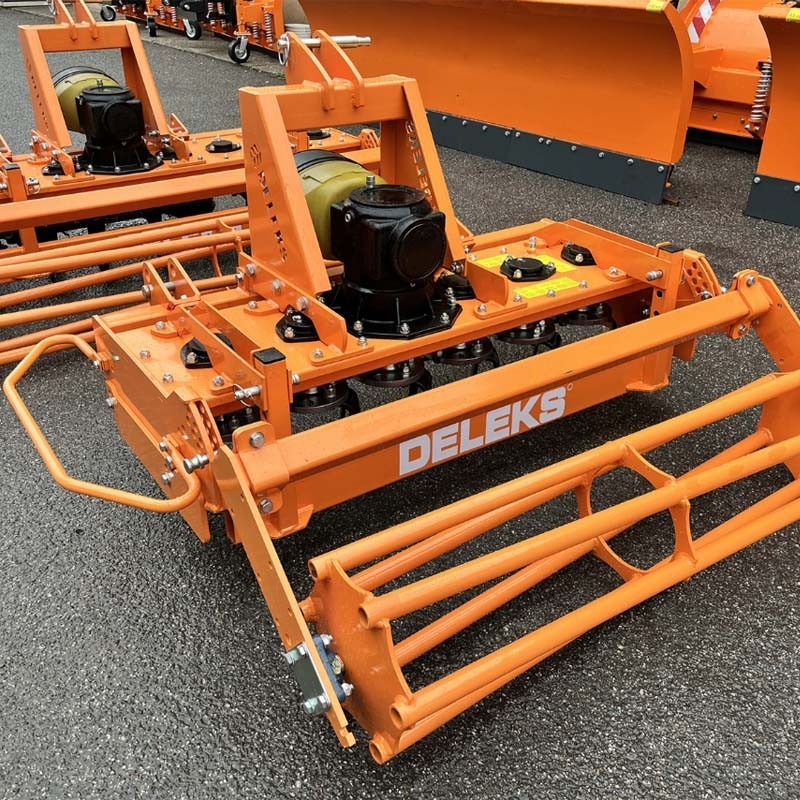

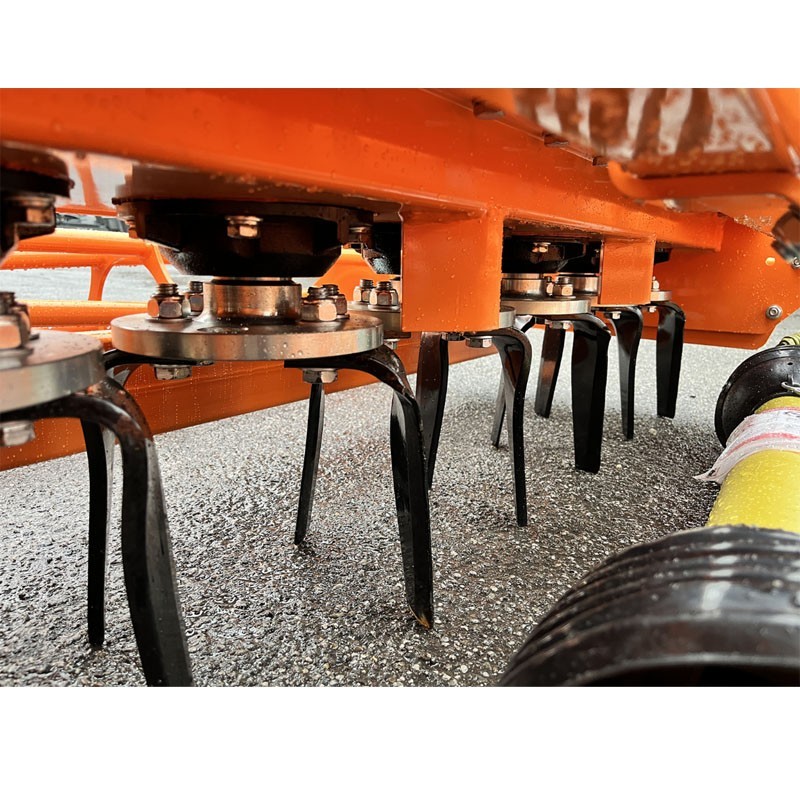

The DELEKS KR Rotovator with tube roller for DELEKS KR tractors has a rear roller and 2 blades per rotor, it also has a rear levelling bar.

Features

Model KR120 KR160
Overall width 1300.0 mm 1700.00 mm
Tractor power 25 - 50 HP 30 - 70 HP
Overall height 900.0 mm 900.0 mm
Weight 317.0 kg 377.0 kg

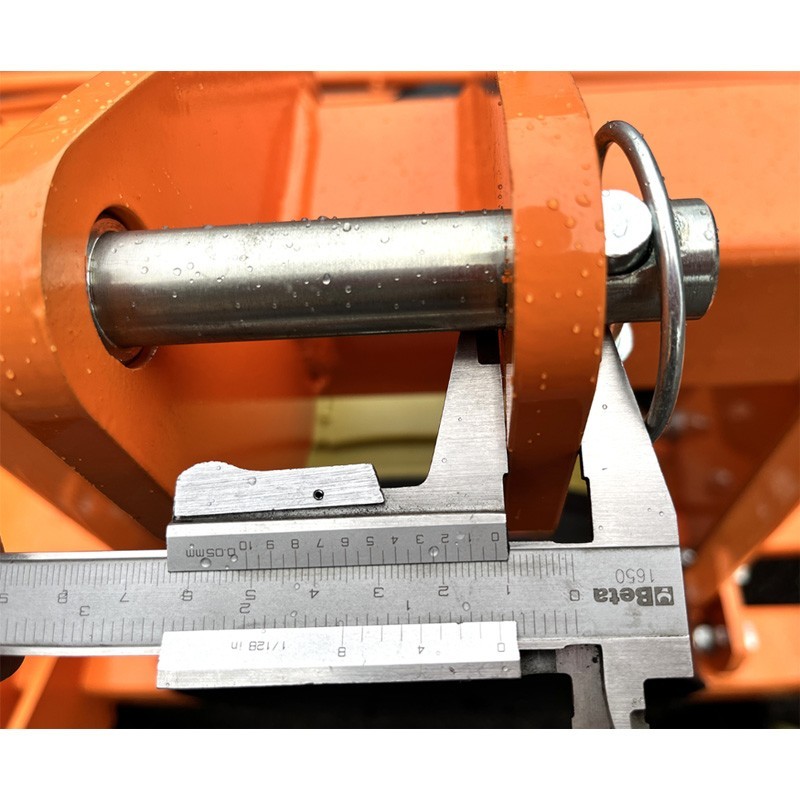

3-point hitch Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Position of gearbox
Total length 1180.0 mm 1180.0 mm
Working width 1250.0 mm 1650.0 mm
Working depth (min/max) 160.0-200.0 mm
Gearbox to ground clearance 520.0 mm

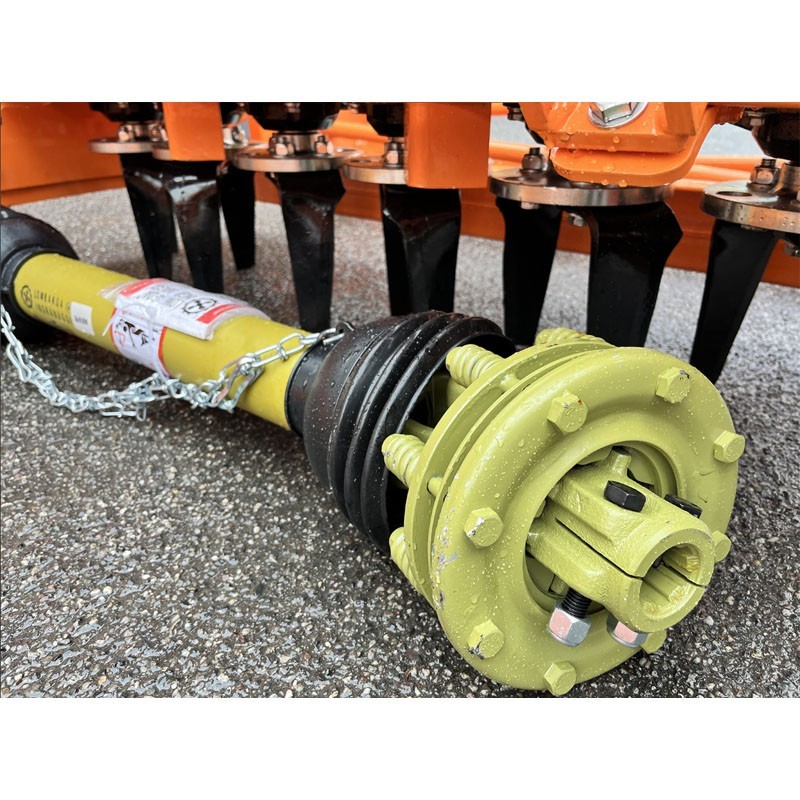

Cardan shaft CE 6x800 mm + friction
Transmission box Lombarda Ingranaggi 540 r/min (3 years warranty)
Direction of rotation PTO Right side
Rotor speed 300 rpm
Gearbox oil yes/ SAE 120 - ISO 72925
Packing dimensions 145 x 90 x 90 cm 185 x 90 x 90 x 90 cm
260419

Data sheet

Working width PTO
125 - 165 cm
Tractor power
25 - 70 HP
Cardan shaft
Included
Working depth
200 mm
Type of coupling
Fixed hitch
Robustness
Medium
Chassis material
Enameled steel
Working width (cm)
120 - 129 cm
160 - 169 cm
Number of blades
12
Country of manufacture
Italy
Weight
317 - 377 kg

Specific References

ean13
8053470238352
mpn
KR120PTO
New
