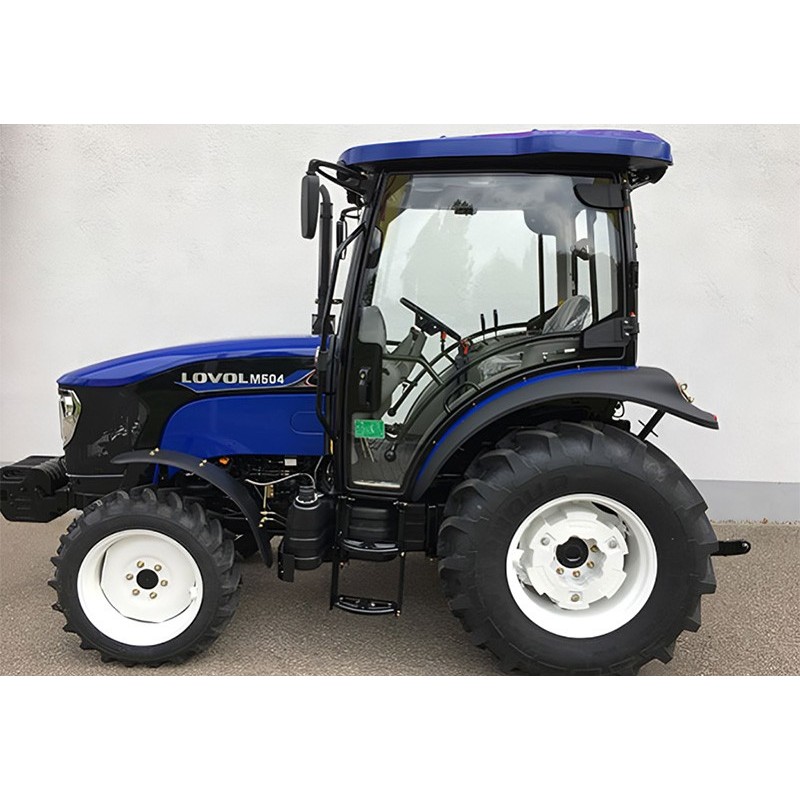

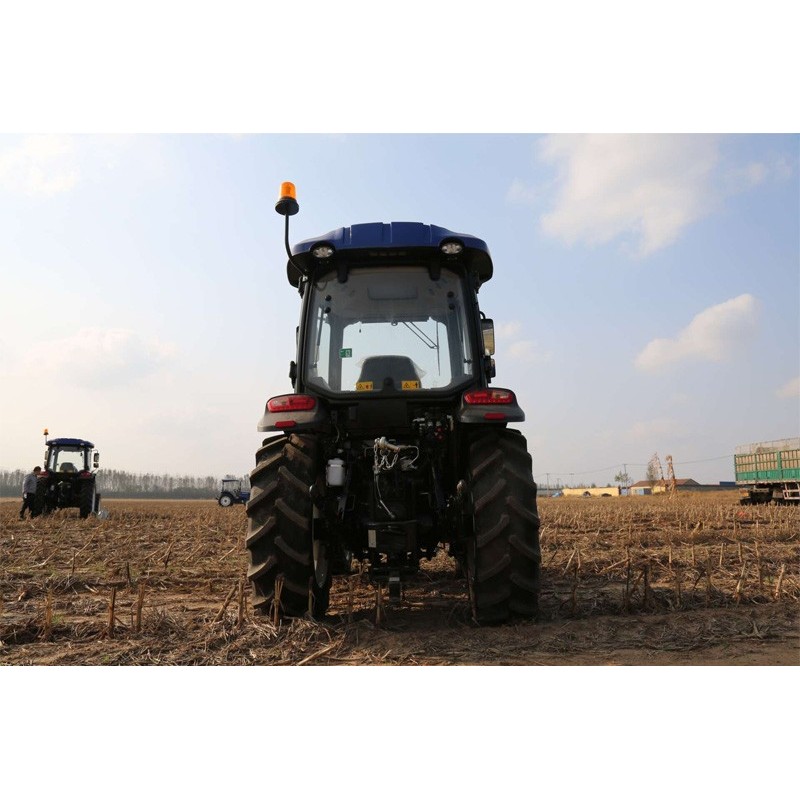

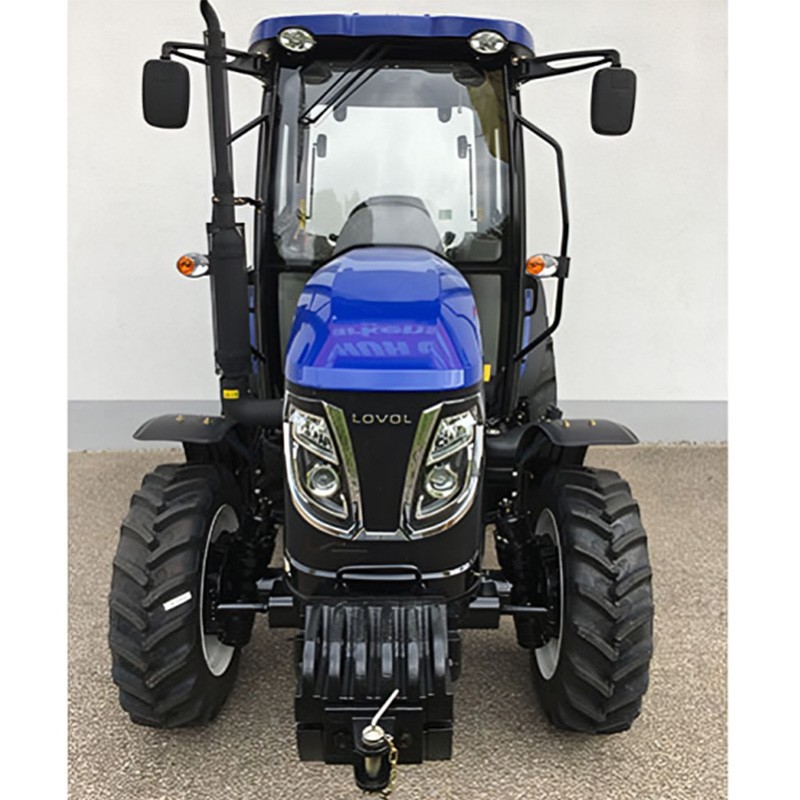

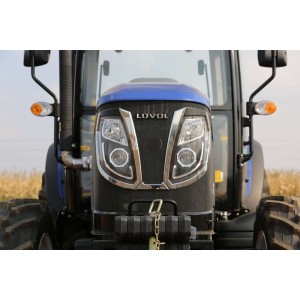

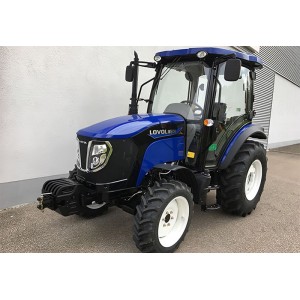

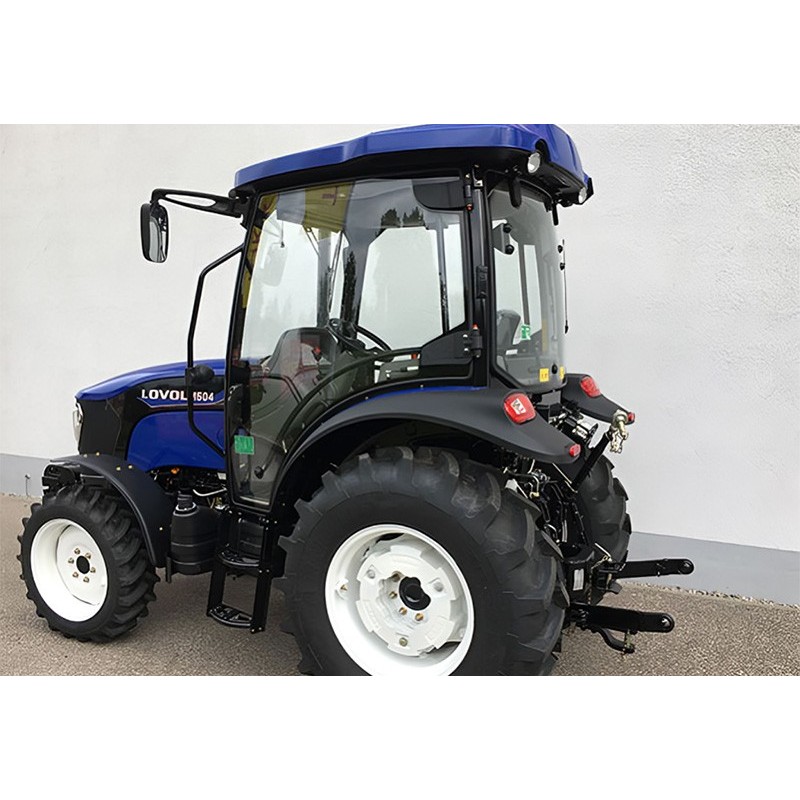

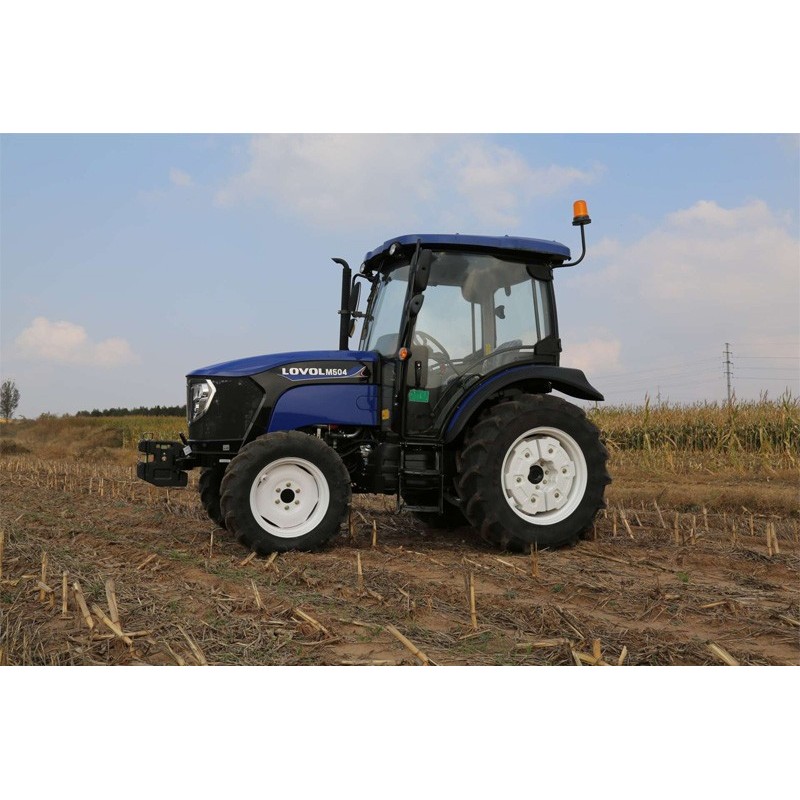

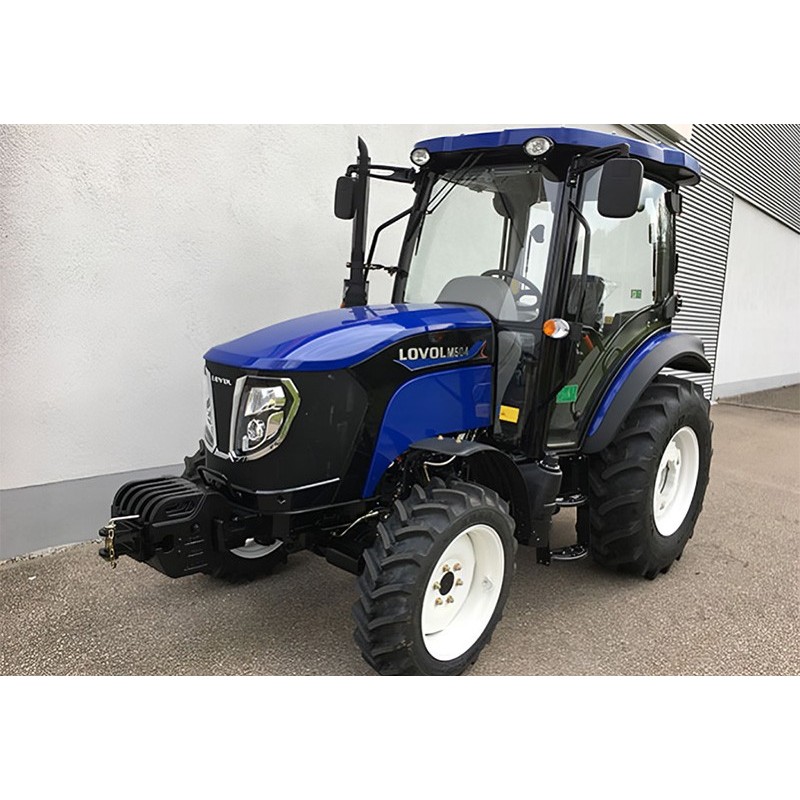

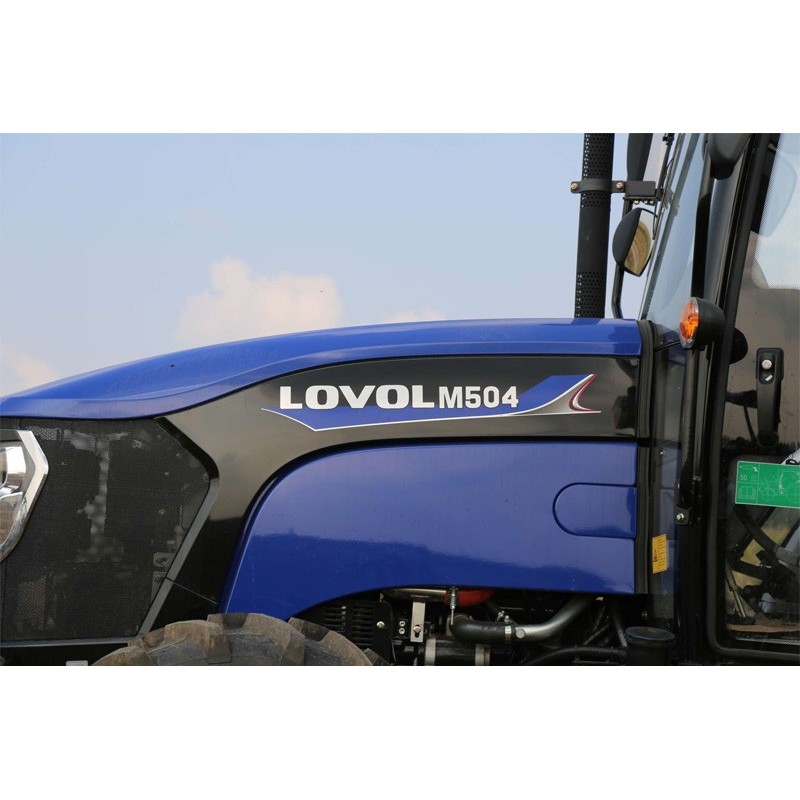

The Lovol M504C tractor is an excellent choice for those looking for power and comfort in their farming tasks. With its 50 hp and a 2400 cc Doosan engine, this tractor offers solid and efficient performance, ideal for tasks that require strength and durability.

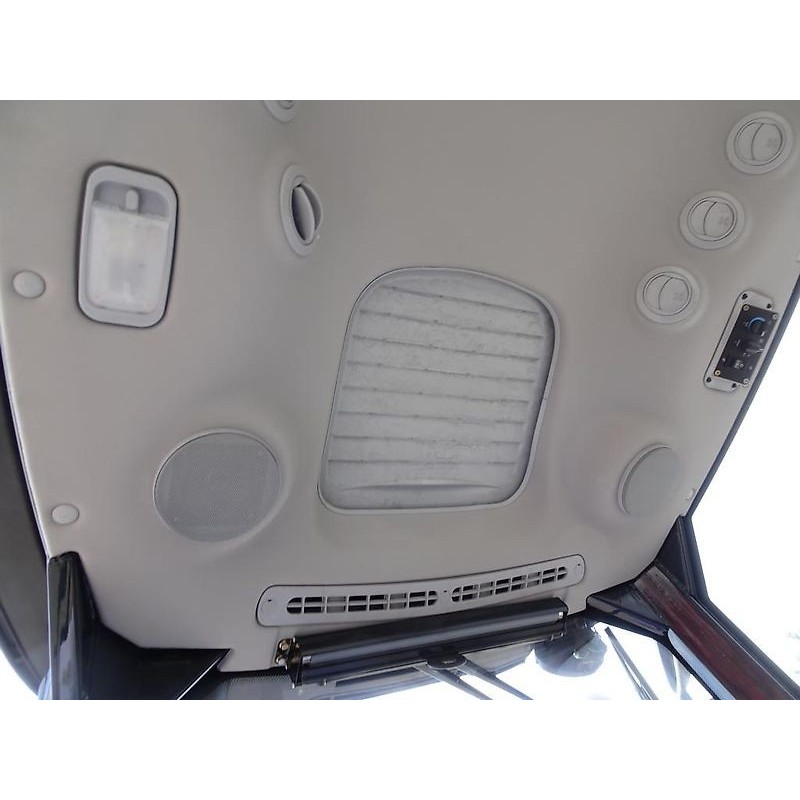

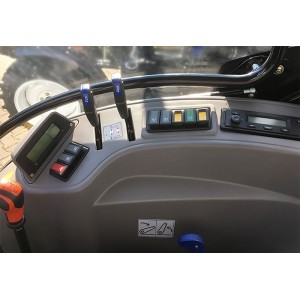

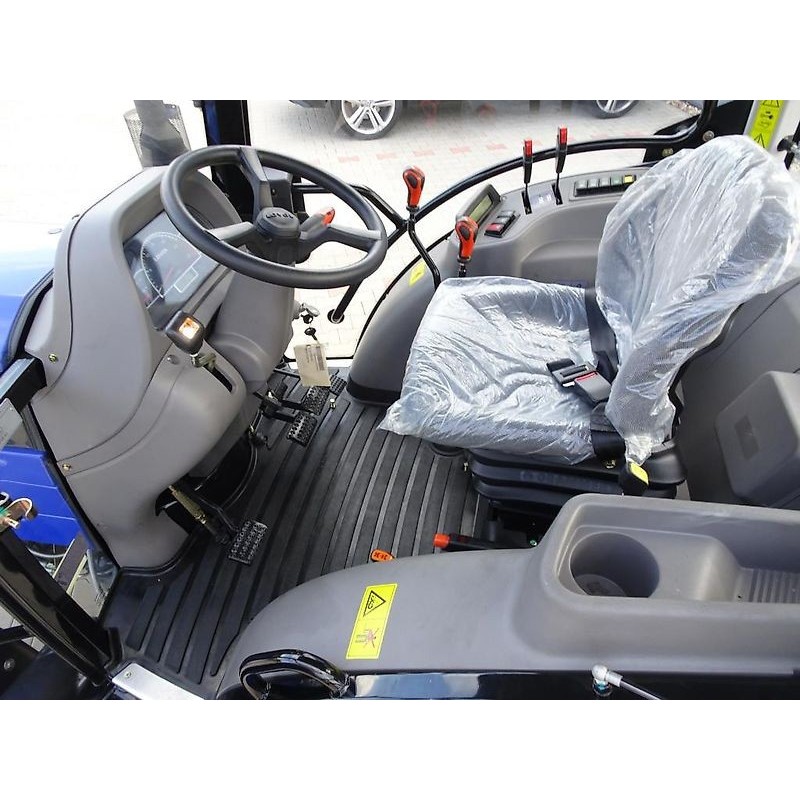

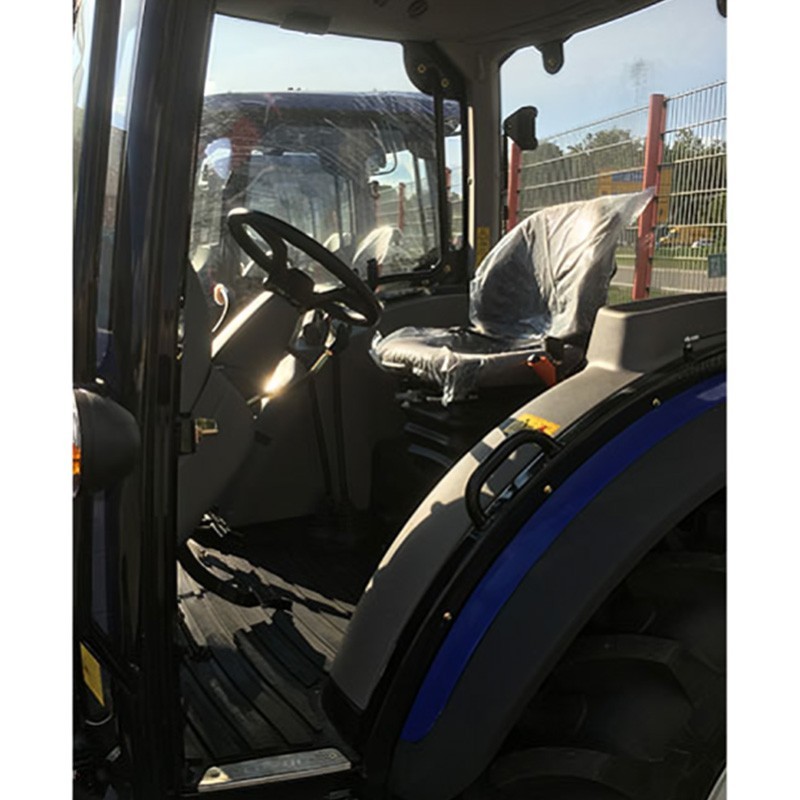

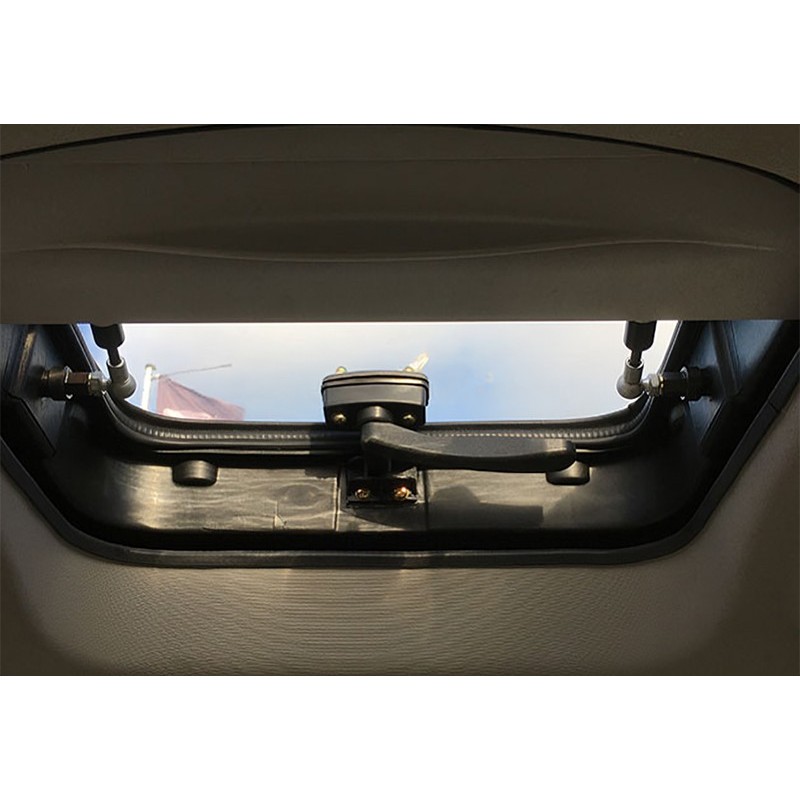

Its fully enclosed cab, equipped with air conditioning, ensures comfort on long days, allowing the operator to work in optimal conditions, regardless of the weather.

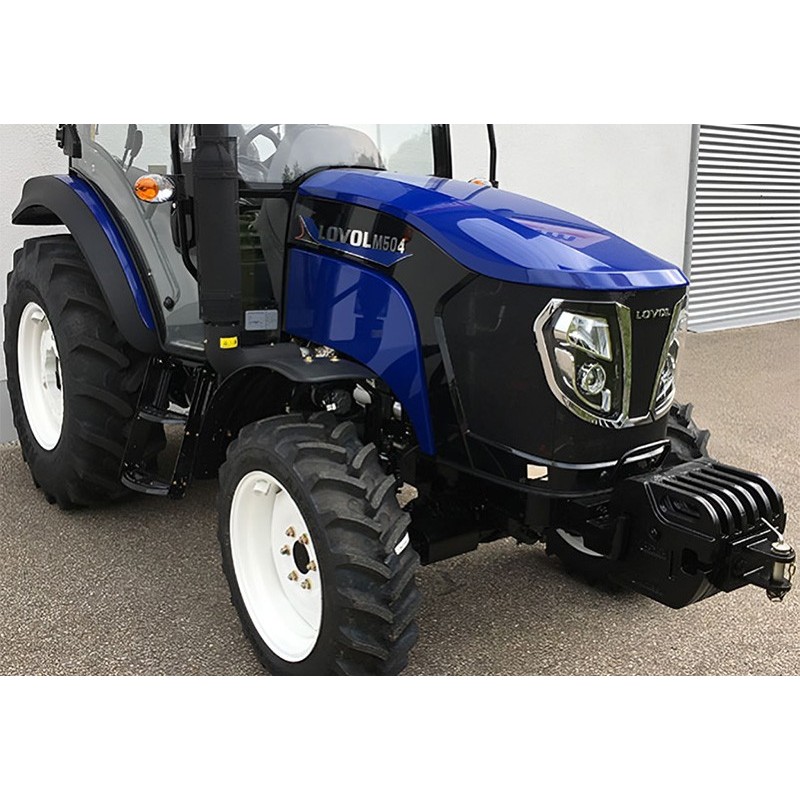

In addition, the Lovol M504C is designed for precise and stable handling. Its robust tires (280/70R20 on the front axle and 380/70R28 on the rear) ensure firm traction on uneven terrain, making it a highly versatile tractor. It also includes counterweights that increase its stability, improving safety in more demanding terrain.

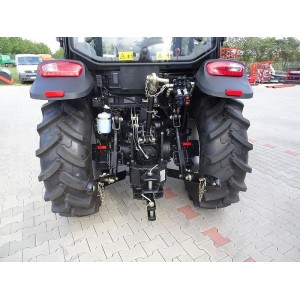

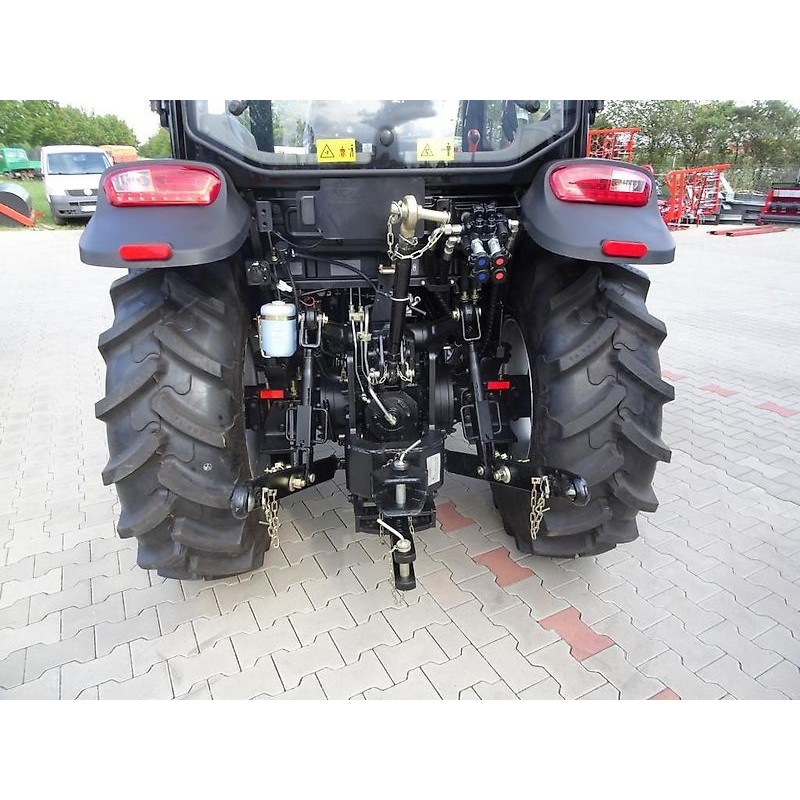

Another outstanding advantage is its independent rear PTO, with 540 and 1000 rpm options, ideal for adapting to a wide variety of agricultural implements. This tractor is a perfect combination of technology, comfort and performance, designed to meet the demands of daily work.

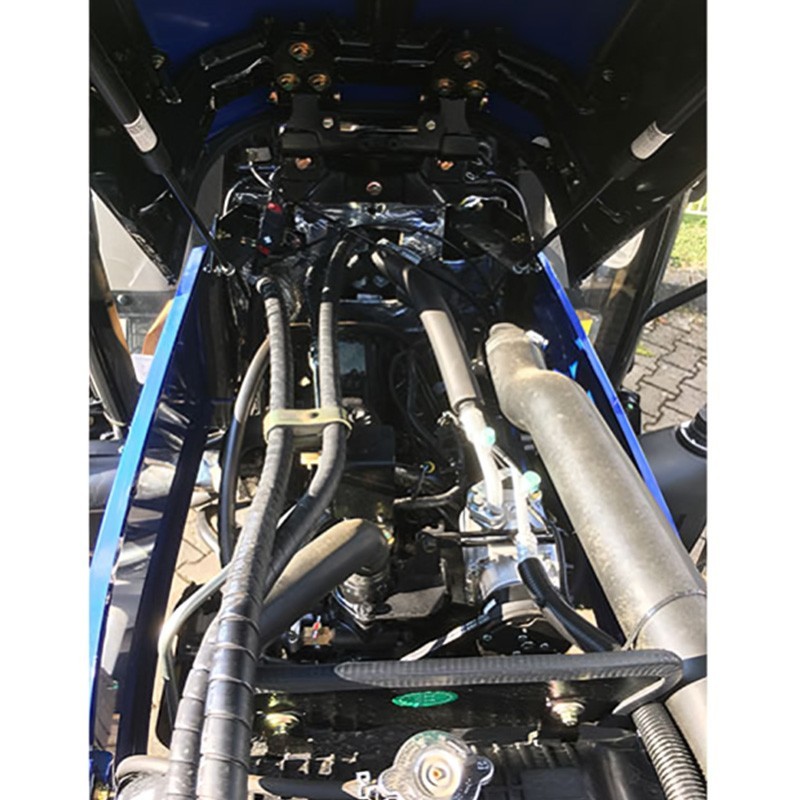

Engine model | Doosan D24 |
Standard emissions | V-stage |
Power | 36.9 kW / 50 hp |
Measuring speed | 2400 r/min |
Maximum torque | 200 N-m |
Displacement | 2400 cc |
Air filter | Dry type |
Fuel tank capacity | 60 L |
Drive | 4x4 |
Clutch | 11-inch, single-acting dry |
Transmission management mode | Synchronizer |
Reducer | 12+12 |
Speed range | 2.7 to 37.6 km/h |
Reverse Range | 2.4 to 33 km/h |
Differential Lock | Mechanical |
Brake Type | Wet Disc |
Parking brake | Independent parking brake |
Flow rate | 41 / 43 L/min |
Number of hydraulic valves | 2 pairs |
Elevator control | Draft and position control |
Lifting capacity | > 13 kN (at 610 mm from the lower balls) |

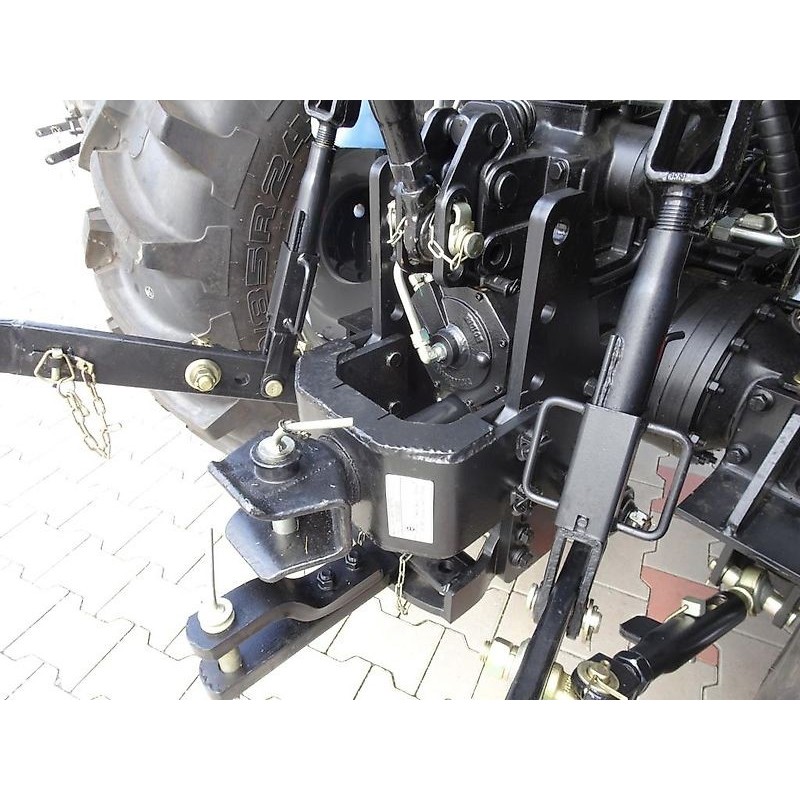

Pulling device | U-type hitch |
Traction | Swinging drawbar |
PTO type | 540/1000 rear independent |
PTO shaft | 6 splines |

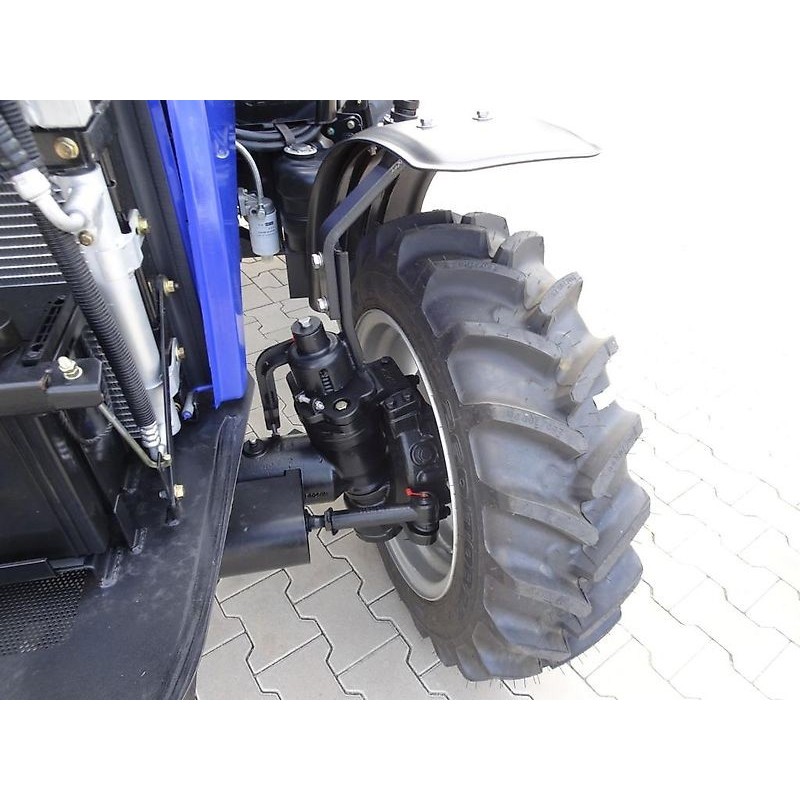

Front tire | 280/70R20 |
Rear tire | 380/70R28 |
Length* Width* Height | 3986 x 1790 x 2842 mm (3986 x 1790 x 2842 mm) |
Wheelbase | 1990 mm |
Shipping weight | 2705 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Tractor approved for on-road use
