Front loader for Rhinoceros Zeppelin tractors
- Front shovel for Rhinoceros Compact 25, 35, 45 HP.
€4,122.34 VAT incl.

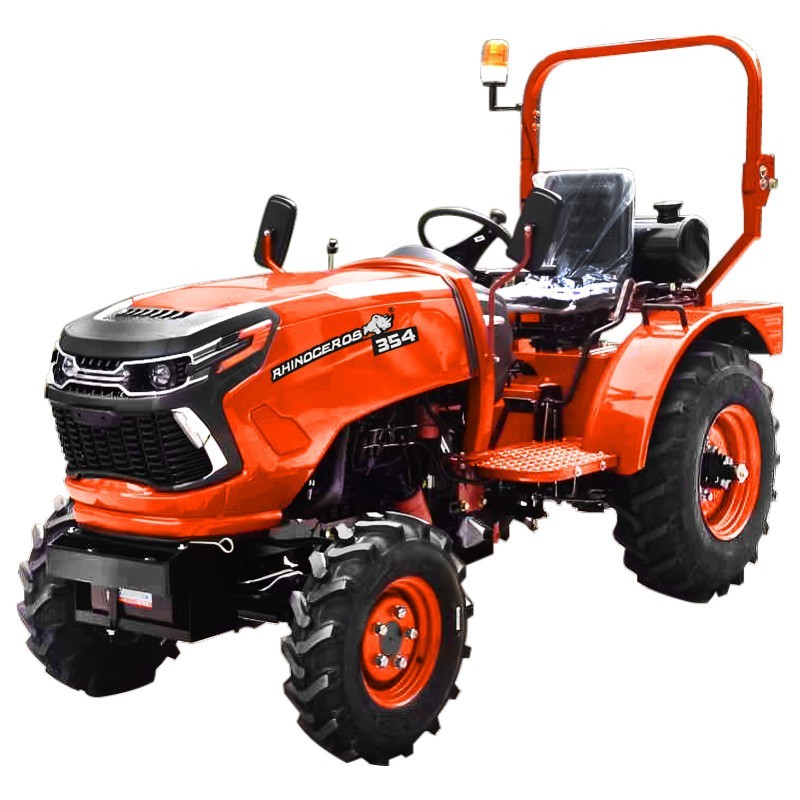

The Rhinoceros 354 35 HP Tractor Zeppelin is a compact machine, ideal for small and medium scale agricultural work. With reduced dimensions and a turning radius of only 3.1 meters, it is perfect for maneuvering in tight spaces without losing efficiency.
This tractor is powered by a 4-cylinder direct injection diesel engine, which ensures powerful and reliable performance. Its 8 gears forward and 2 reverse transmission allows to adapt the speed to any type of work, while the integral power steering facilitates control on uneven terrain.
With a robust and practical design, the Rhinoceros 354 offers a large, comfortable seat and oil-bath brakes for added safety. All this makes it an excellent choice for those looking for an efficient and easy-to-handle tractor.
Technical Specifications
ENGINE | |
---|---|
Type | Liquid-cooled diesel |
No. of cylinders | 4 |
Displacement | 1,723 cc |
Gross power | 37 Hp |
Net power | 35 Hp |
PTO power | 20.7 kw (28 Hp) |
TRANSMISSION | |
Clutch | Single plate |
Steering | Integral power steering |
Transmission | 8 gears forward and 2 reverse |
Brakes | Oil-immersed (OIB) |
Speed range | 1.0 - 25.8 km/h |
Minimum turning radius | 3.1 m |
HYDRAULIC EQUIPMENT | |
Control system | Hydraulic |
Three-point hitch | Yes |
Max. lifting force at lifting point | 750 kg |
Max. lifting force 610 mm behind lifting point | 480 kg |
Position control | Yes |
Hitch category | 1 & 1N |
PTO | |
PTO / Engine speed (rpm) | 540, 760 |
CAPACITY | |
Fuel tank | 26 L |
DIMENSIONS | |
Overall length | 2610 mm |
Overall width | 1080 - 1470 mm |
Overall height (upper part of the steering wheel) | 1250 mm |
Wheelbase | 1600 mm |
Minimum ground clearance | 300 mm |
Weight | 1250 kg |
Brakes | D: 860 - 960 - 1060 - 1180 - 1243 | T: 840 - 1243 adjustable |
TIRES | |
Front | 6-12 mm |
Rear | 9.5-16 mm |
OPTIONAL | |
Ropes and hood | Yes |
Air brake | Yes |
8+8 traction | Yes |
Trigger clutch | Yes |
Turf and industrial tires | Yes |
Remote hydraulic output | Yes |
Pneumatic 13.6-16 | Yes |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
