Tractor Hanwo 504R 50 HP with roll bar
- Nominal/maximum power : 36,8 kW / 50 HP
- Speed R.P.M. nominal/max. : 2400 rpm
€21,486.45 VAT incl.

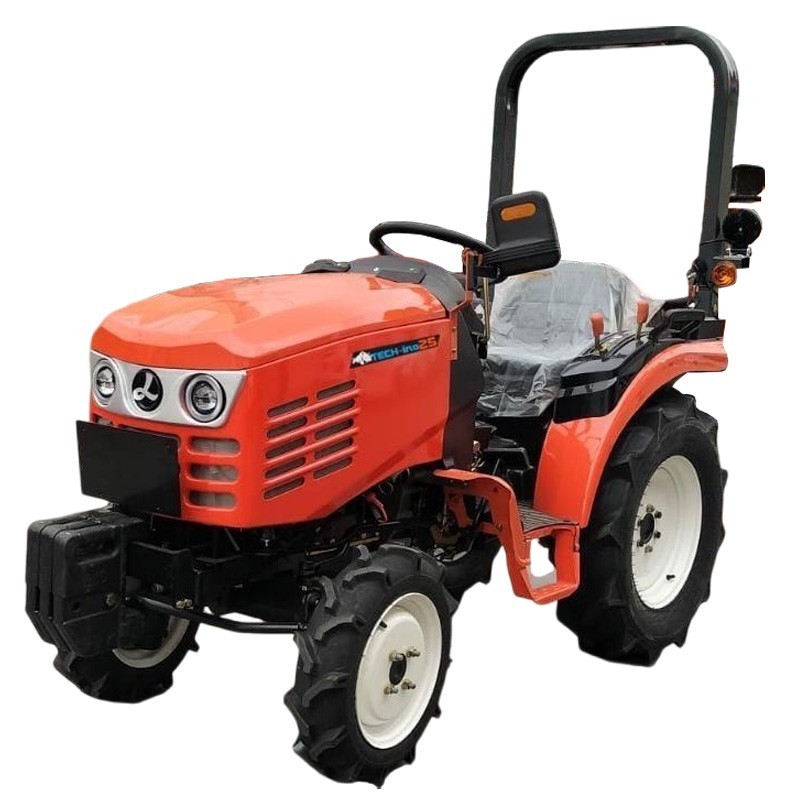

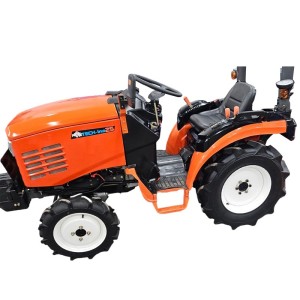

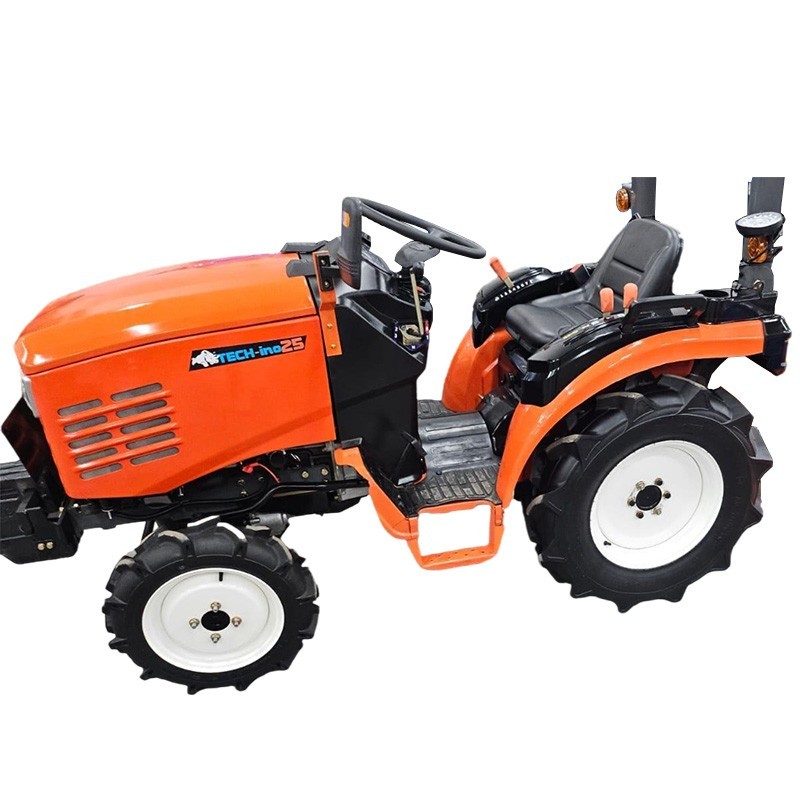

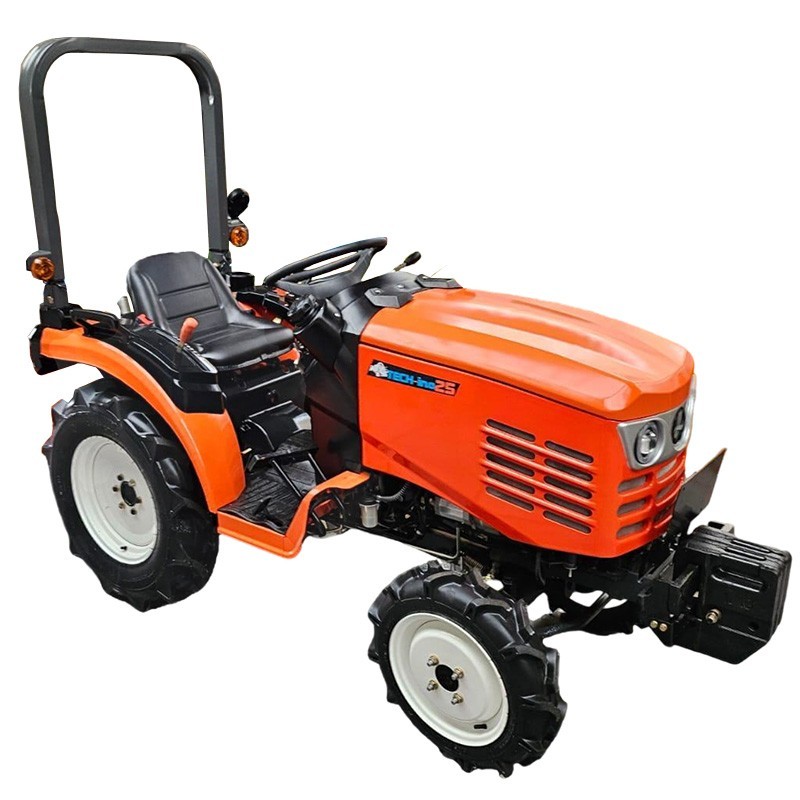

The Mini Tractor Zeppelin Rhinoceros TECH-ino 25 is a versatile and powerful machine designed for demanding agricultural work. Equipped with an 18.5 kW XY377 diesel engine and a rated speed of 3000 rpm, it ensures efficient and consistent performance.
Its transmission system offers 6 gears front and 2 gears rear, allowing precise control in different terrains and working conditions. Thanks to its integral power steering and differential lock system, the TECH-ino 25 provides optimal maneuverability even on uneven terrain.
Its dry-land wheels, with adjustable track from 960 to 1200 mm, improve stability and grip. In addition, its lift system with position control and three-point linkage facilitates the use of agricultural implements, ensuring greater productivity in the field.
ENGINE | |
---|---|
Power Supply | Diesel |
Model | XY377 |
Rated power | 18.5 kW |
Rated speed | 3000 rpm |
FRONT WHEEL | |
Structural type | Inner tube, steel bushing, dry land wheel |
Specification | 5-12 |
Wheel track | 770 (standard)/960~1200 (adjustable) mm |
REAR WHEEL | |
Structural type | Tubeless, steel hub, dry ground wheel |
Specification | 8-16 |
Wheel track | 770 (standard)/960~1200 (adjustable) mm |
TRANSMISSION | |
Clutch/brake type | Single plate dry/disc (wet) |
Steering mode | Power steering (integral) |
Differential gear mode | 2 pairs of bevel gears (with differential lock) |
Number of gears | 6 gears front, 2 gears rear |
Gearshift method | Combination of selective gearing and constant gearing |
PTO shaft speed | 635, 1116, 623 (reverse) |
TRAVEL SPEED | |
Forward (high speed) | 4,17 / 8,53 / 15 km/h |
Forward (low speed) | 0.74 / 1.51 / 2.65 km/h (0.74 / 1.51 / 2.65 km/h) |
Reverse | 1.48 / 8.35 km/h |
LIFTING DEVICE OF THE WORKING MACHINE | |
Control mode | Position control |
Installation method | Three-point connection |
DIMENSIONS | |
Structural type | Ride type (4 WD) |
Overall dimensions (L×W×H) | 2450 x 970 x 1807 mm |
Wheelbase | 1270 mm |
Turning radius | 1200/1700 mm |
Ground clearance | 285 mm |
Weight | 679 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Tractor approved for on-road use
