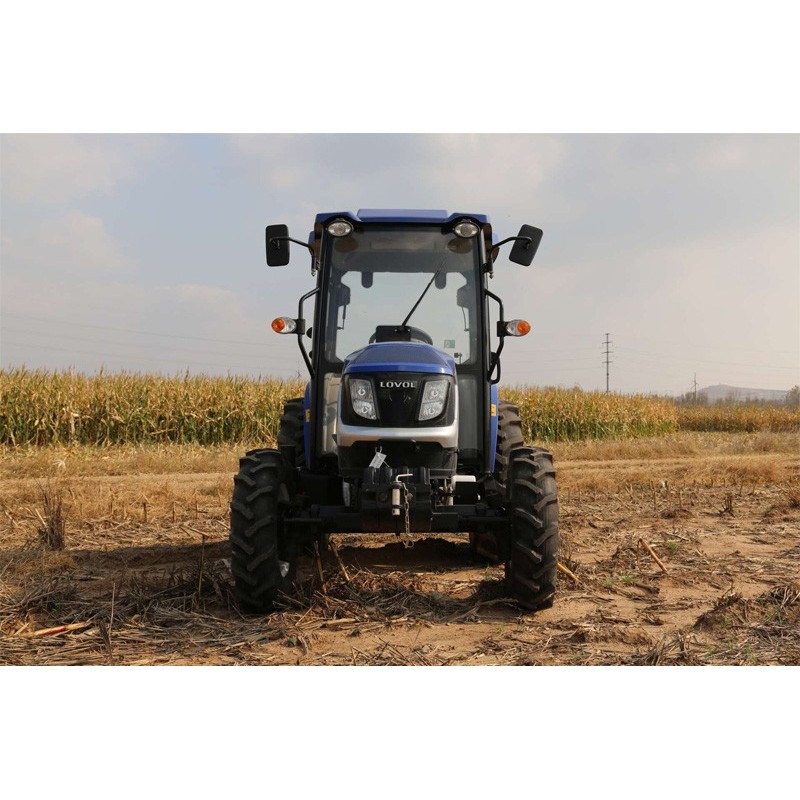

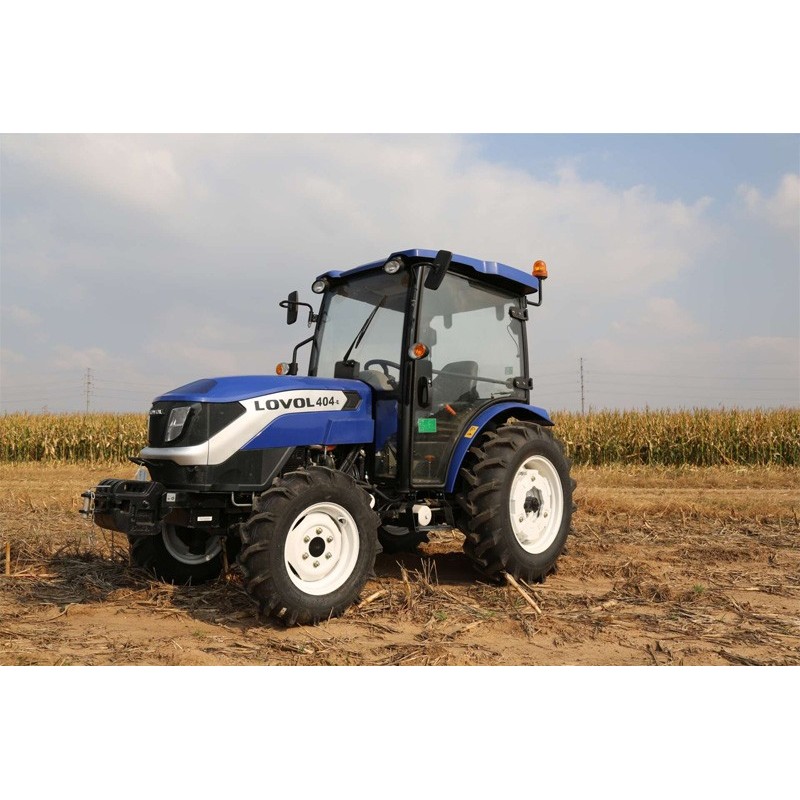

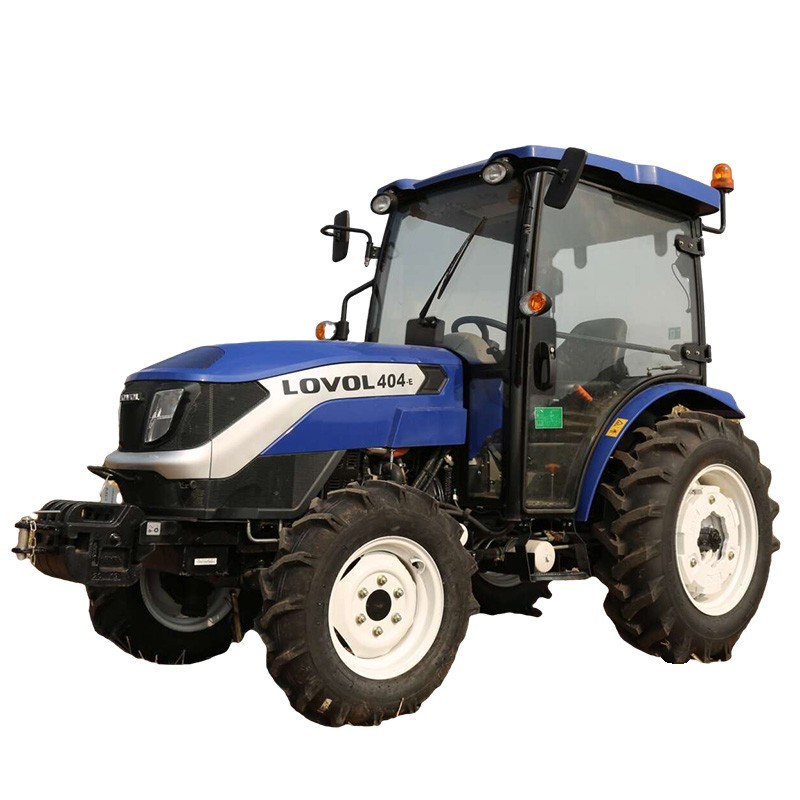

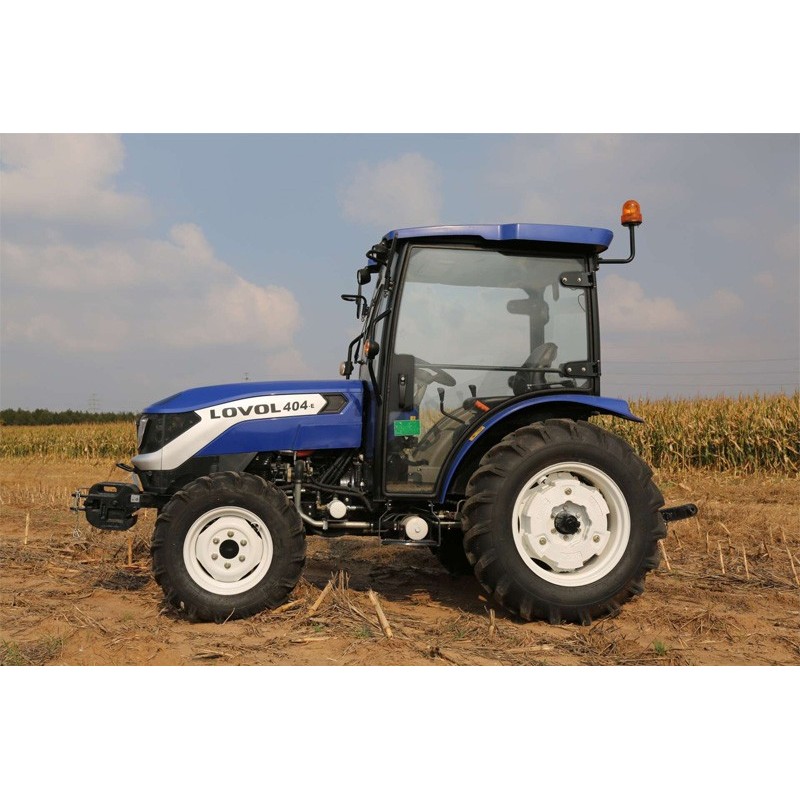

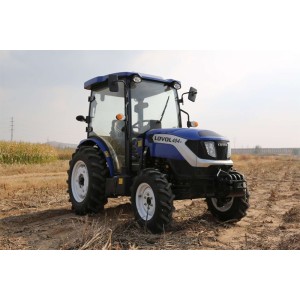

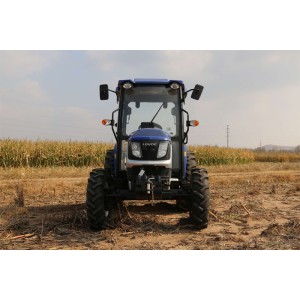

The Lovol M404C tractor stands out for its 40 hp power and its Doosan D18 engine, which meets the latest emission standards. With a metering speed of 2350 rpm, this tractor offers efficient and reliable performance, ideal for a variety of agricultural tasks.
The Lovol M404C includes counterweights, which significantly improves stability and performance in difficult terrain. Its heated cab and premium Gramer seat ensure a comfortable and safe working experience, especially in adverse weather conditions.
In addition, it has a U-type hitch and an oscillating drawbar, which facilitates the connection of agricultural implements. This model combines robustness, comfort and functionality, making it an ideal choice for farmers seeking reliability and comfort in the field.
Engine model | Doosan D18 |
Standard emissions | Stage V / EPA4F |
Power | 29.41 kW / 40 hp |
Metering speed | 2350 r/min |
Maximum torque | 160 N-m |
Displacement | 1800 cc |
Air filter | Dry type 38 |
Fuel tank capacity | 26 L |
Drive | 4x4 |
Clutch | 10-inch, dry, double-acting |
Transmission management mode | Slip gear / synchronizer with shuttle gear |
Number of gears | 8+8 |
Speed range | 1.97 to 29.67 km/h |
Reverse Range | 1.74 to 26.33 km/h |
Differential Lock | Mechanical |
Brake Type | Wet Disc |
Parking brake | Parking brake |
Flow rate | 24 L/min |
Number of hydraulic valves | 2 pairs |
Elevator control | Position control |
Lifting capacity | 8.5 kN (at 610 mm from lower balls) |

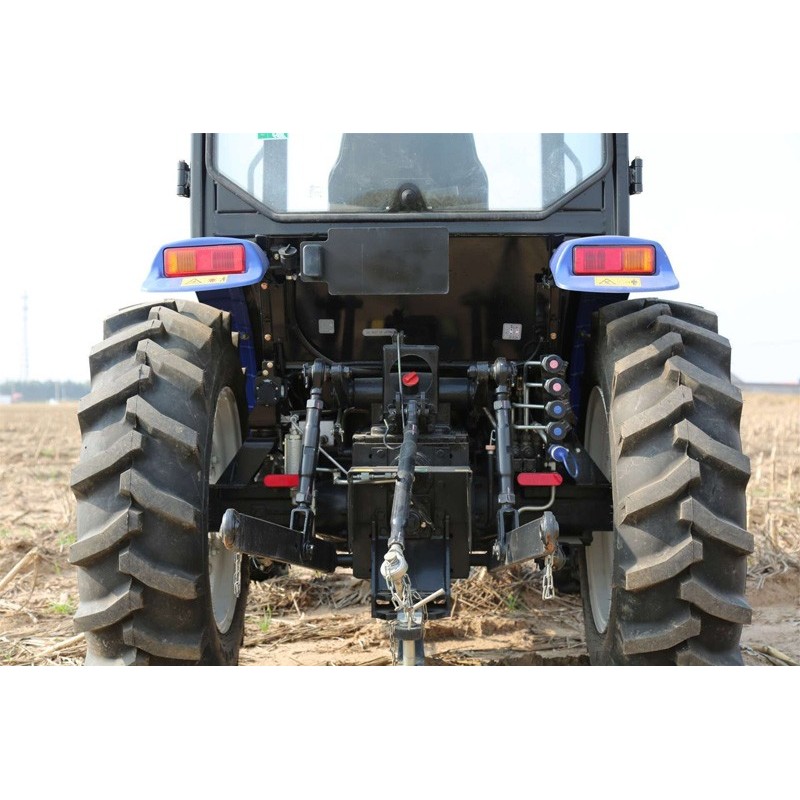

Pulling device | U-type hitch |
Traction | Swinging drawbar |
PTO type | 540/1000 rear independent |
PTO shaft | 6 splines |
Front tire | 260/70R16 |
Rear tire | 320/85R24 |
Length* Width* Height | 3558 x 1550 x 2450 mm |
Wheelbase | 1800 mm |
Shipping weight | 1715 kg |
