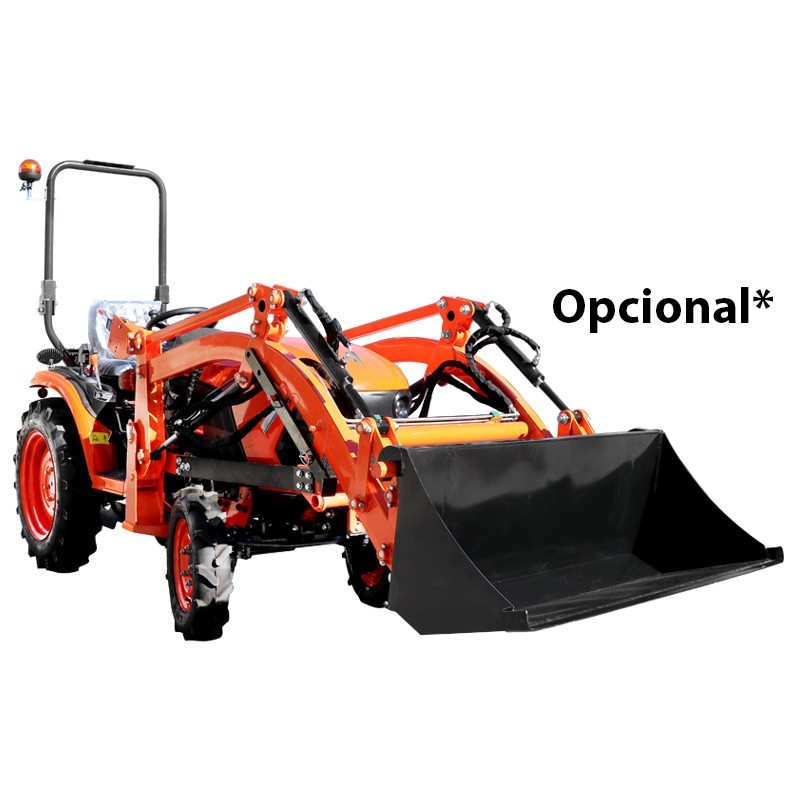

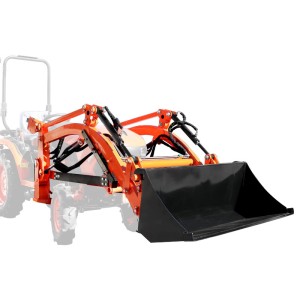

Front shovel for the Rhinoceros Tech 25 HP Zeppelin
- Front shovel for Rhinoceros Tech 25 HP Zeppelin
€3,023.61 VAT incl.

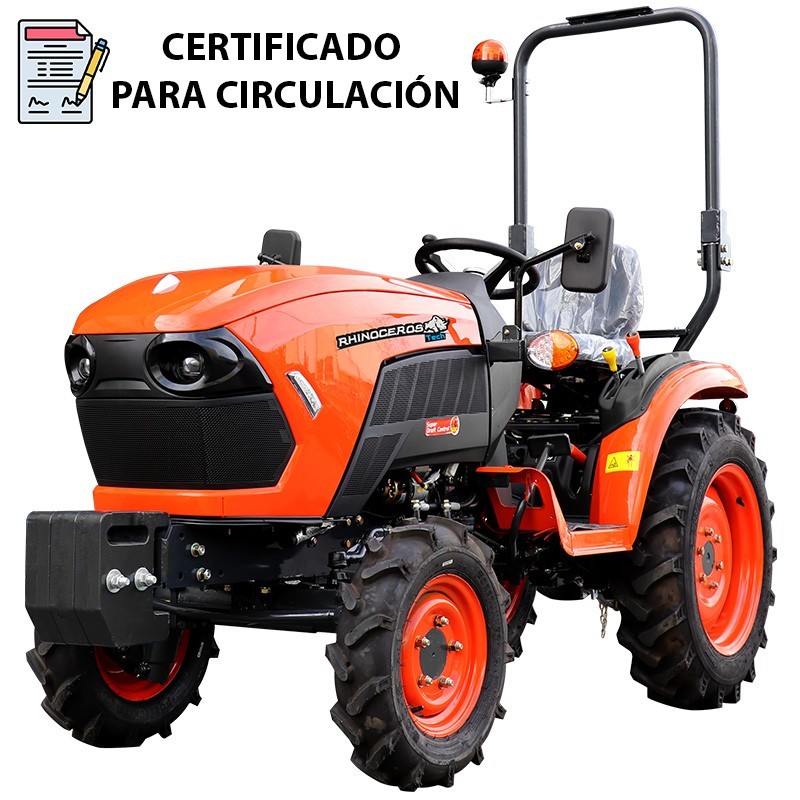

Tractor approved for on-road use

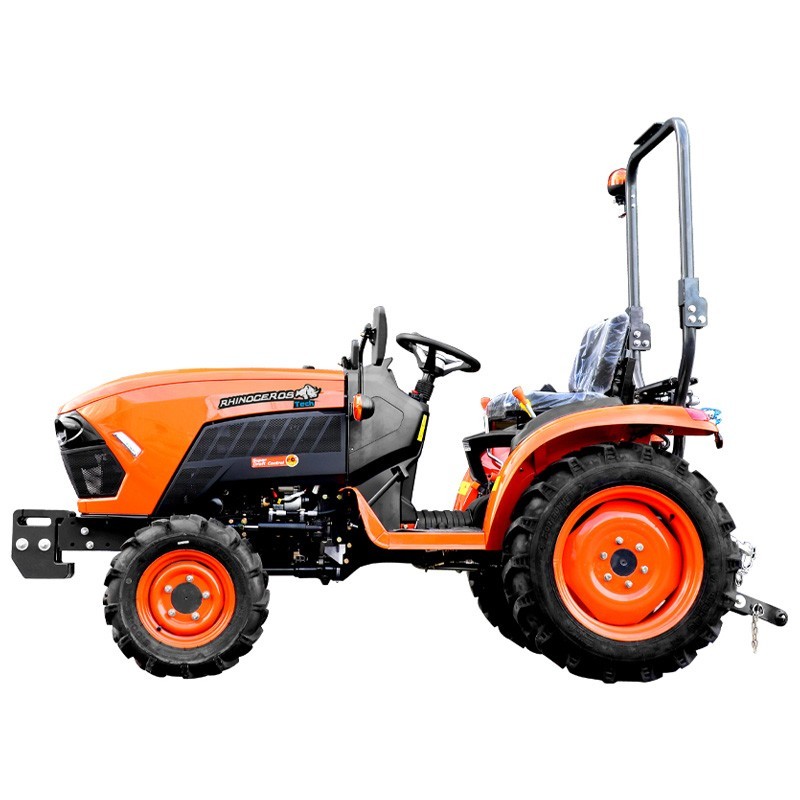

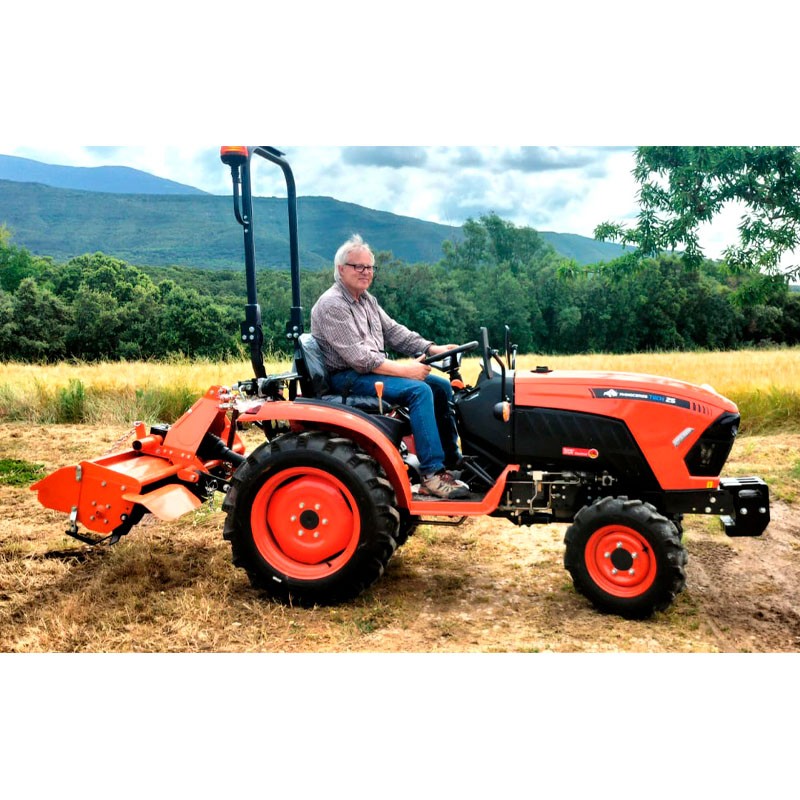

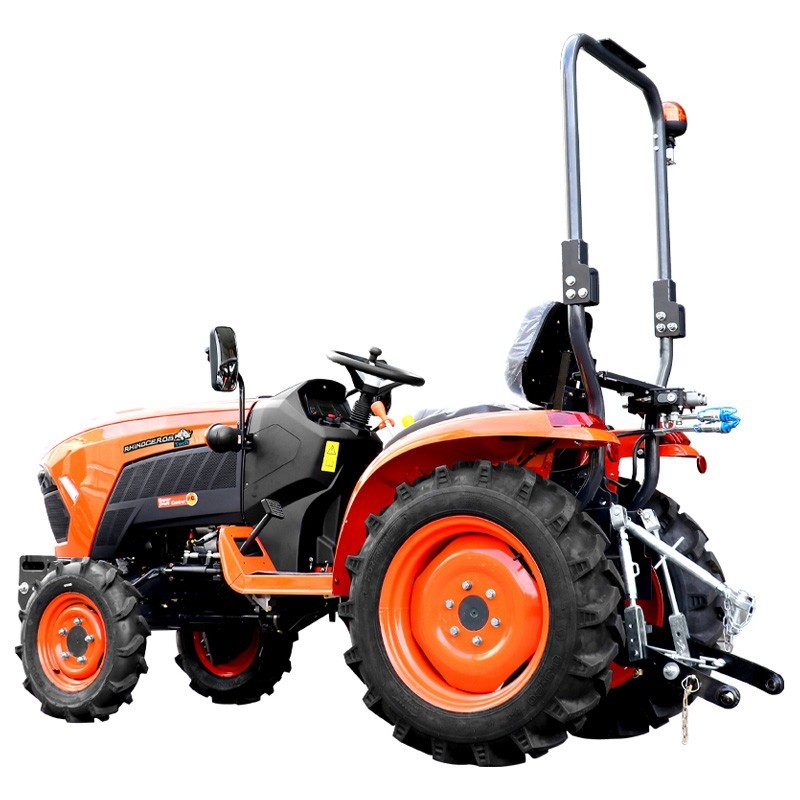

The Rhinoceros Tech 25 HP tractor combines advanced technology with a compact and efficient design, ideal for small farms. Its electronically controlled direct injection engine with high-pressure common rail ensures optimized performance with a power rating of 24-25 HP, allowing it to perform agricultural tasks with precision and efficiency.
In addition, its balancer axle system minimizes engine noise and vibrations, ensuring a more comfortable and silent operation.
This model has 4WD and a transmission box with 9 forward and 3 reverse gears , which gives it great versatility and control in difficult terrain.
Its integral power steering facilitates maneuverability, while the oil-immersed disc brakes ensure efficient and safe braking.
The Rhinoceros Tech 25 HP's hydraulic system has a lift capacity of up to 750 kg at the lift points, making it perfect for handling medium-sized agricultural implements.
With a super tight turning radius of 2.1 meters, this tractor is ideal for working in tight spaces without compromising work capacity.
ENGINE | |
---|---|
Injection Type | Direct injection, electronically controlled, high pressure common rail |
No. of cylinders | 3 |
Bore and stroke | 78 x 86 mm |
Total displacement | 1223 cc |
Rated/Maximum Power | 24 - 25 HP / 17.75 - 18.4 kW |
Rated/Maximum Speed | 2600 / 2800 rpm |
Maximum Torque | 70 N-m |
Fuel Tank | 23 L |
Battery | 12V / 45AH |
Engine Crankcase (with Filter) | 3.1 L |
Engine Coolant | 3.9 L |
Transmission Case | 12.5 L |
TRANSMISSION | |
Clutch | Single plate |
Front Tires | 5 - 12 |
Rear Tires | 8.3 - 20 |

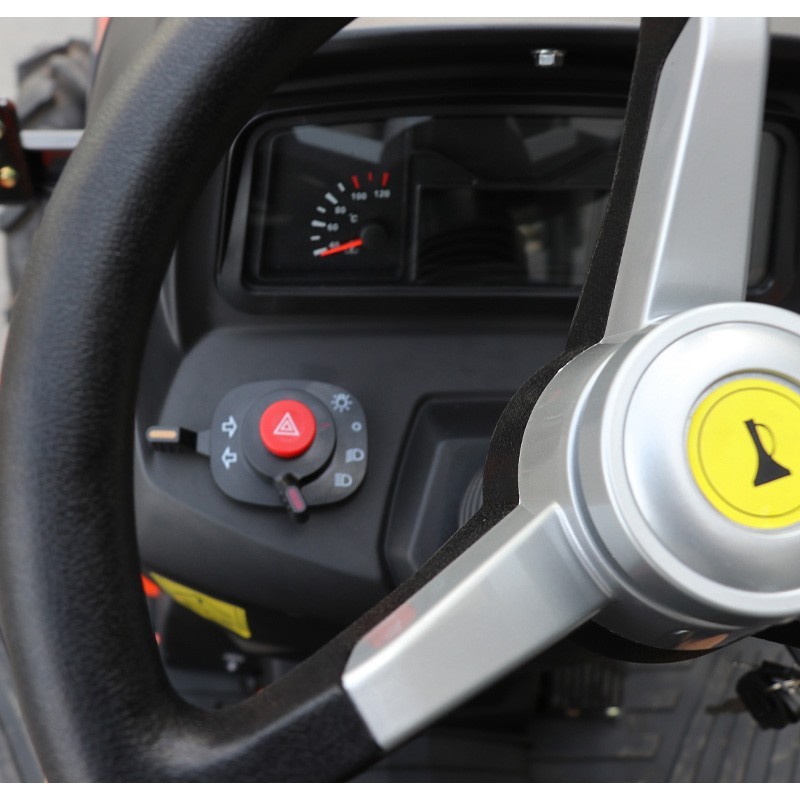

Steering | Integral power steering |
Gears | 9 forward, 3 reverse |
Turning Radius (with brake) | 21 m |
Brakes | Oil-immersed disc brakes |
Rear PTO | 540 / 2504, 980 / 2510 rpm |
PTO power | 14.1 kW (20 HP) |
Drive | 4×4 (4WD) |
Maximum speed | 19.8 km/h |
HYDRAULIC SYSTEM | |
Hydraulic Outputs | 4 |
Maximum Lifting Capacity | 750 kg at lifting points / 480 kg at 60 cm from the three-point linkage |
Double Pump | 23.5 L for applications / 16.8 L for hydraulic steering |
DIMENSIONS | |
Length (without 3P) | 2410 mm |
Width | 1105 / 1015 mm |
Height | 1280 / 1970 mm (with arch) |
Distance between axles | 1563 mm |
Ground clearance | 325 mm |
Front Tread | 815 mm |
Rear band | 810 / 900 mm |
Weight | 625 kg |
Turning Radius | 2.1 m (super reduced) |
OTHER FEATURES | |
3-point hitch | IS Category 1, 1N |
Super Draft Control | Standard, reduces slippage and no need for depth adjustment |

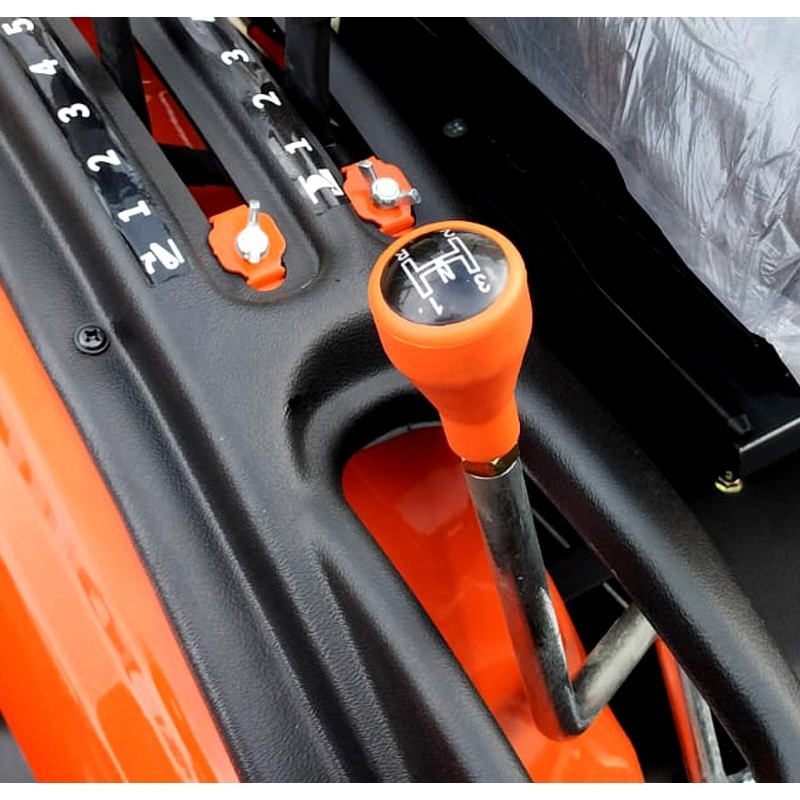

Range Shift Lever (forward) | Low (1-2), Medium (3-5), High (5-7), Max. Speed (7-9) |
Main Shift Lever (forward) | Low (1-3), Medium (1-3), High (1-2) |
Main Gear Shift (Reverse) | Low (R - 14) - Medium (R - 4.4) - High (R - 9.6) - Max. speed (R - 10.2) |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
