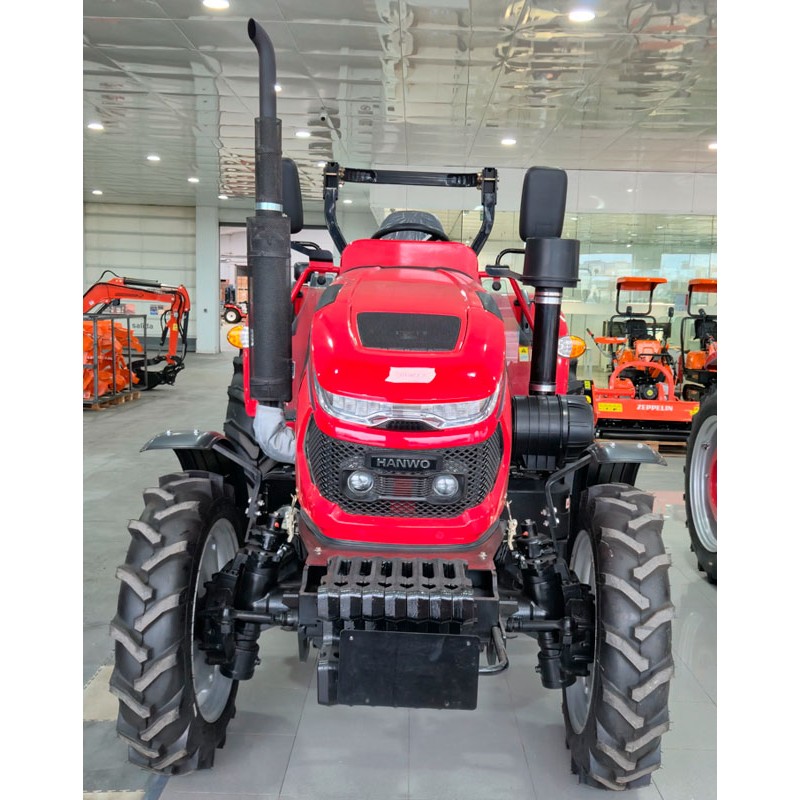

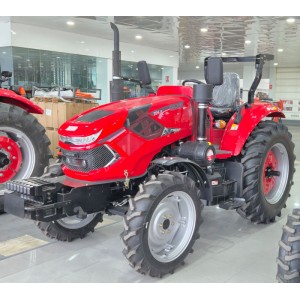

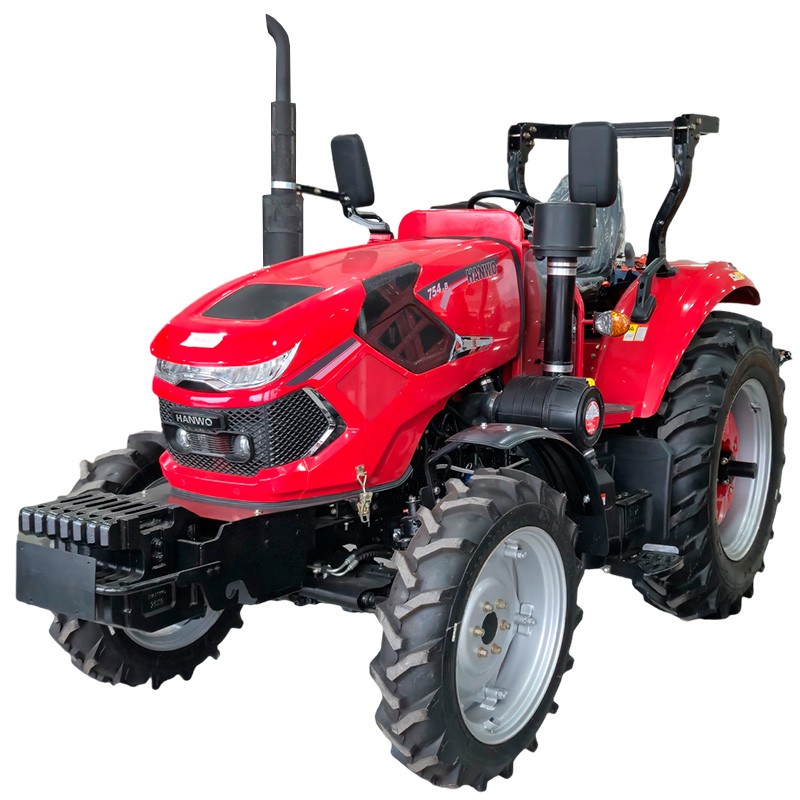

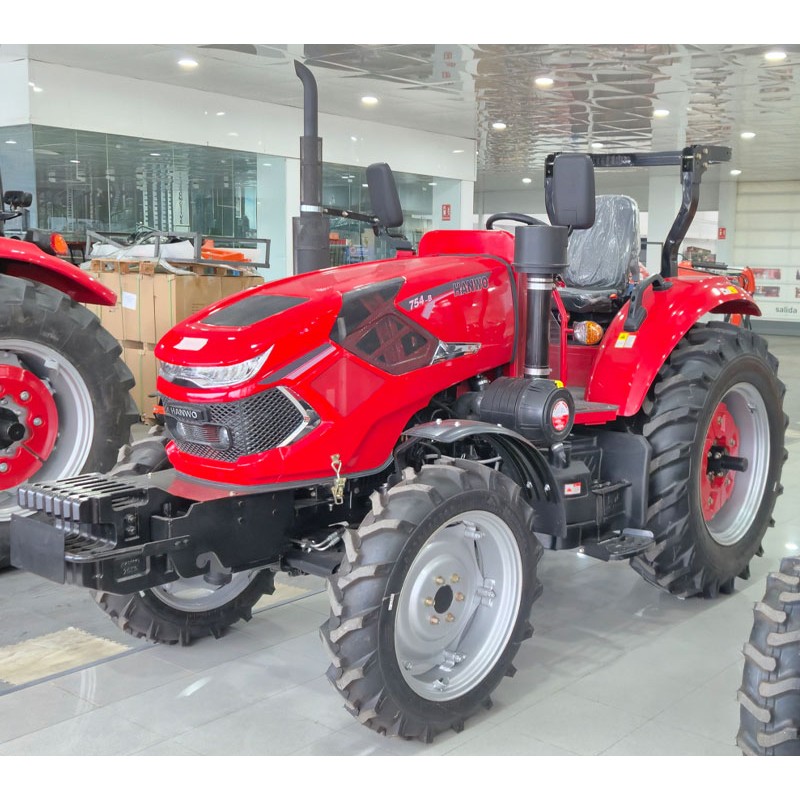

The Tractor Hanwo 754 75 HP is a model designed for demanding agricultural work where more power, more speed range and a structure prepared for larger implements are needed. It has a 4-cylinder, water-cooled, vertical Quanchai Stage II engine with a power of 55 kW and 75 hp at 2400 rpm, as well as a 70 L fuel tank for long working days with fewer stops.

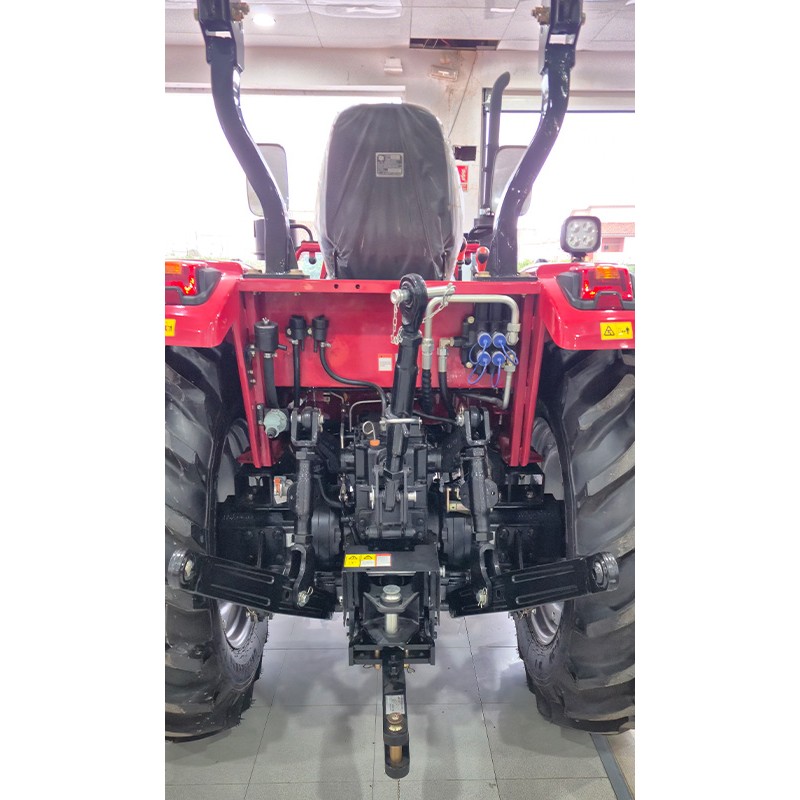

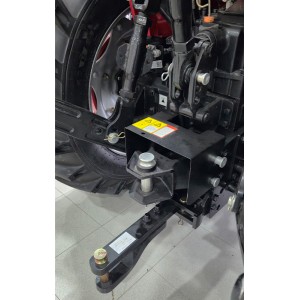

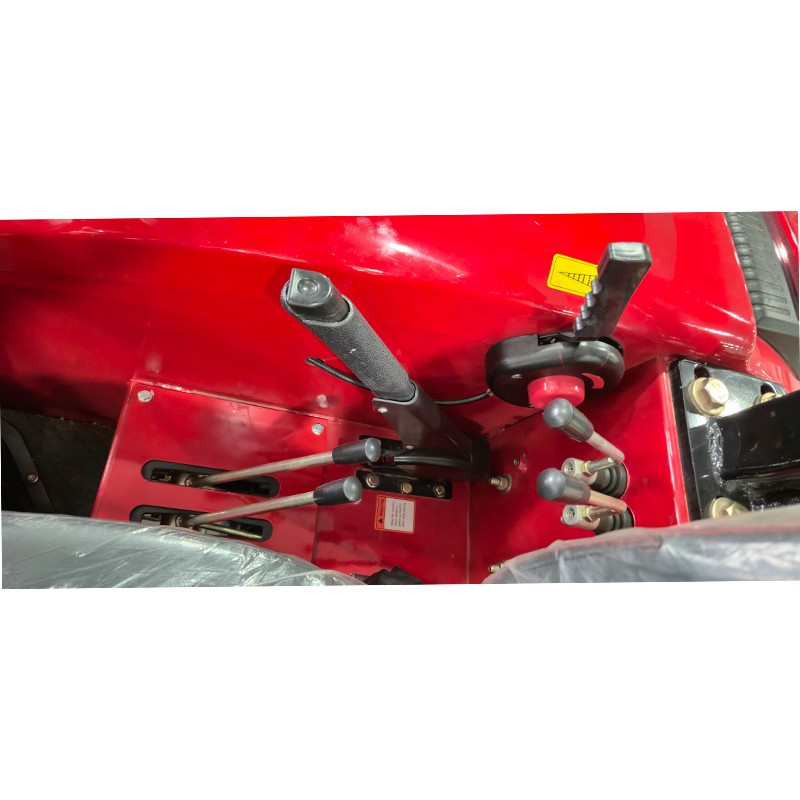

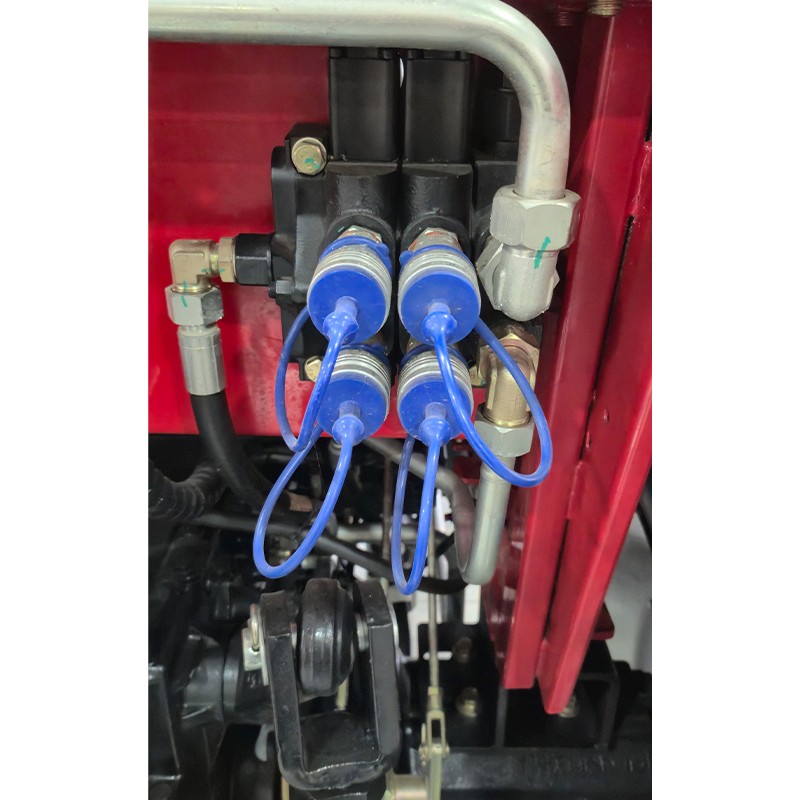

The transmission of the Tractor Hanwo 754 offers 16 gears forward and 8 reverse, a very useful configuration to better adjust the speed to the type of work, from field work to maneuvers with implements. It incorporates a double-stage dry friction clutch, hydraulic steering, 4WD 4WD and 540 and 1000 rpm PTO. It also has a semi-split hydraulic system, single position adjustment linkage and three-group rear control with hydraulic quick hitch, which greatly improves versatility with different implements.

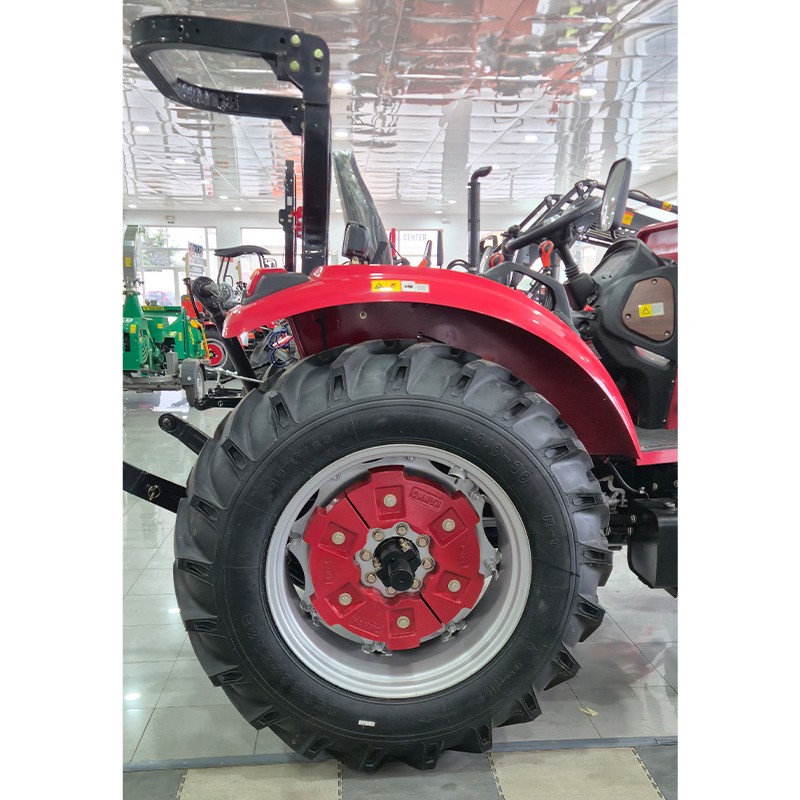

In dimensions, the Tractor Hanwo 754 is 4100 mm long, 1795 mm wide and 2800 mm high. It is equipped with 8.3 24 front tires and 14.9 30 rear tires, with a maximum forward speed between 2.13 and 37.61 km/h and reverse speed between 1.87 and 32.97 km/h. It is a very complete tractor for farms looking for a 75 HP with good working capacity, simple mechanics and all-wheel drive.
The front shovel can be mounted as an optional accessory to further expand the use of the tractor for loading soil, manure, grain or bulk material. In the shovel configuration, the maximum lift height at the arm pivot point is 3000 mm, the maximum dump height is 2300 mm, the bucket capacity is 0.43 m3 and the rated lifting capacity is 600 kg.
| Engine | ||
| Engine | Quanchai Stage II | |
| Type | Vertical, water-cooled, 4 cylinders | |
| Rated / maximum power | 55 kW / 75 hp | |
| Rated / maximum speed | 2400 rpm | |
| Fuel tank | 70 L | |
| Dimensions | ||
| Overall length | 4100 mm | |
| Width | 1795 mm | |
| Height | 2800 mm | |
| Weight | 2980 kg | |
| Transmission and running gear | ||
| Clutch | Dry friction, dual stage | |

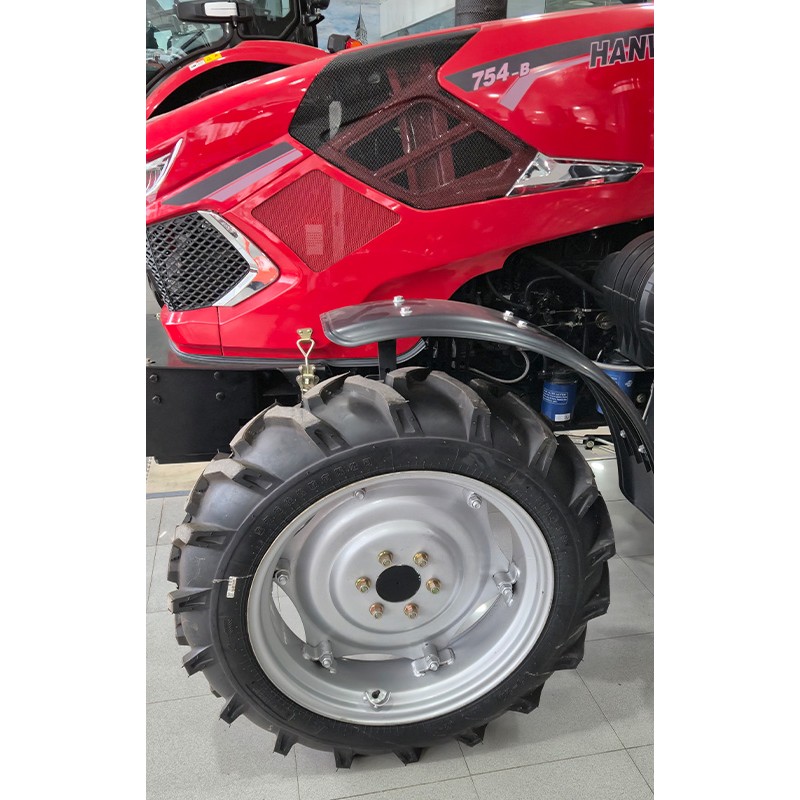

| Front tires | 8.3-24 | |
| Rear tires | 14.9-30 | |
| Steering | Hydraulic | |
| Transmission | 16 front and 8 rear | |
| Hydraulic system | Semi-split, single position adjusting linkage | |

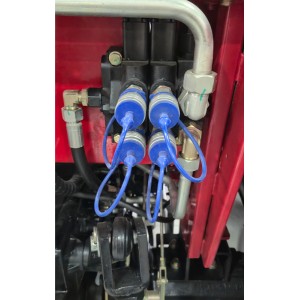

| Rear control | Three groups with hydraulic quick hitch | |
| PTO power | 540 / 1000 | |
| Drive | 4x4 (4WD) | |
| Maximum speed | Forward 2.13-37.61 km/h / Reverse 1.87-32.97 km/h | |
| Optional shovel | ||
| A. Maximum lift height | 3000 mm | |
| C. Maximum discharge height | 2300 mm | |
| D. Unloading distance | 1140 mm | |
| E. Tipping angle | 45° | |
| G. Ground rollback angle | 34° | |
| H. Maximum digging depth | 140 mm | |
| Bucket width | 1652 mm | |
| Bucket capacity | 0,43 m³ | |
| Rated lifting capacity | 600 kg | |

| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
