Agricultural Tractor Lovol M254R Stage V 25 HP
- Engine model : KM385
- Standard emissions : Stage V
- Power : 18.4 kW / 25 HP

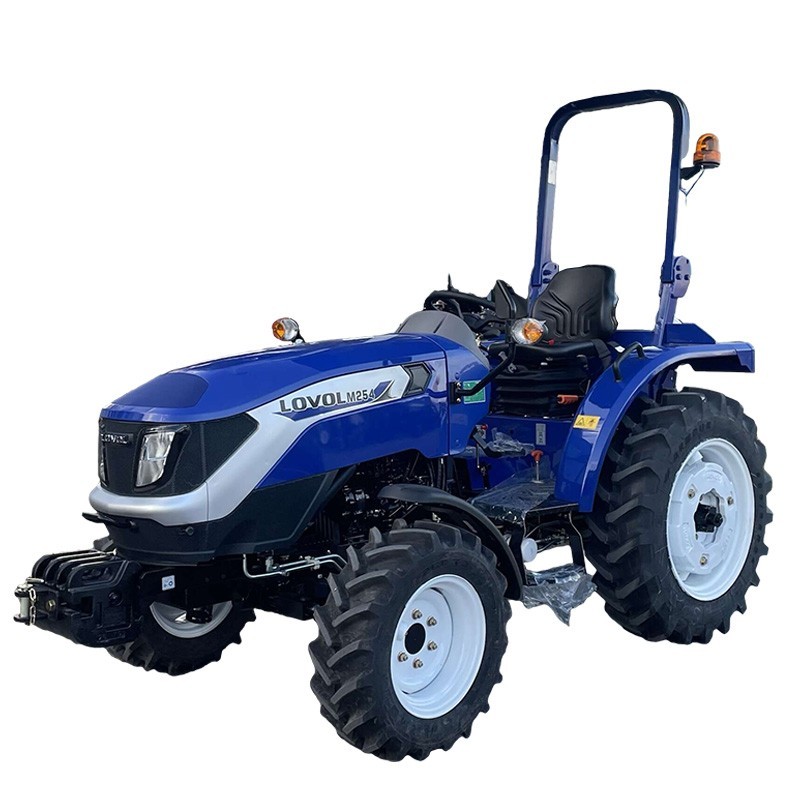

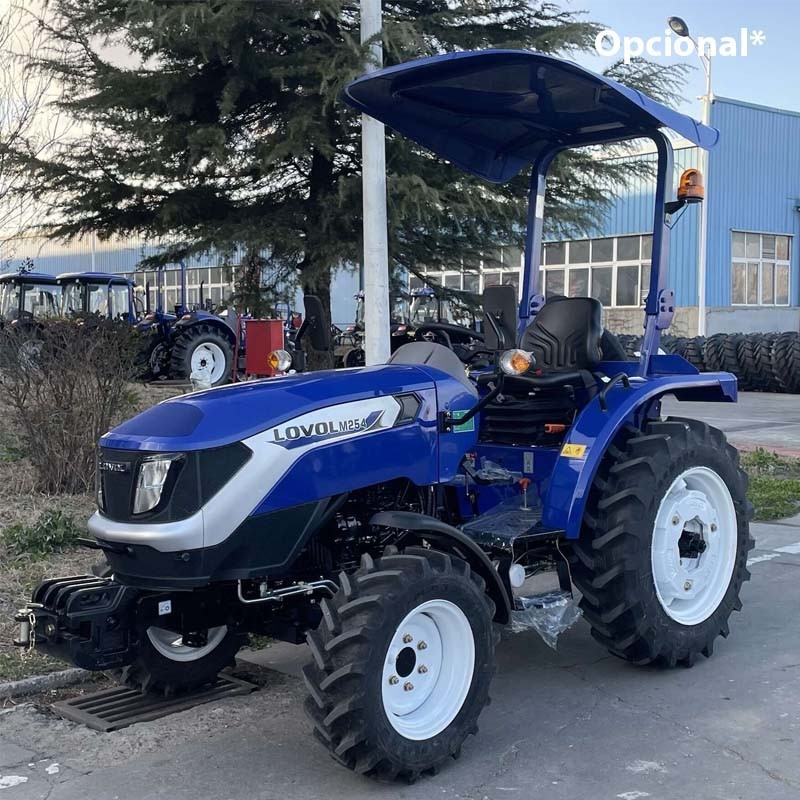

Lovol M254R Tractor

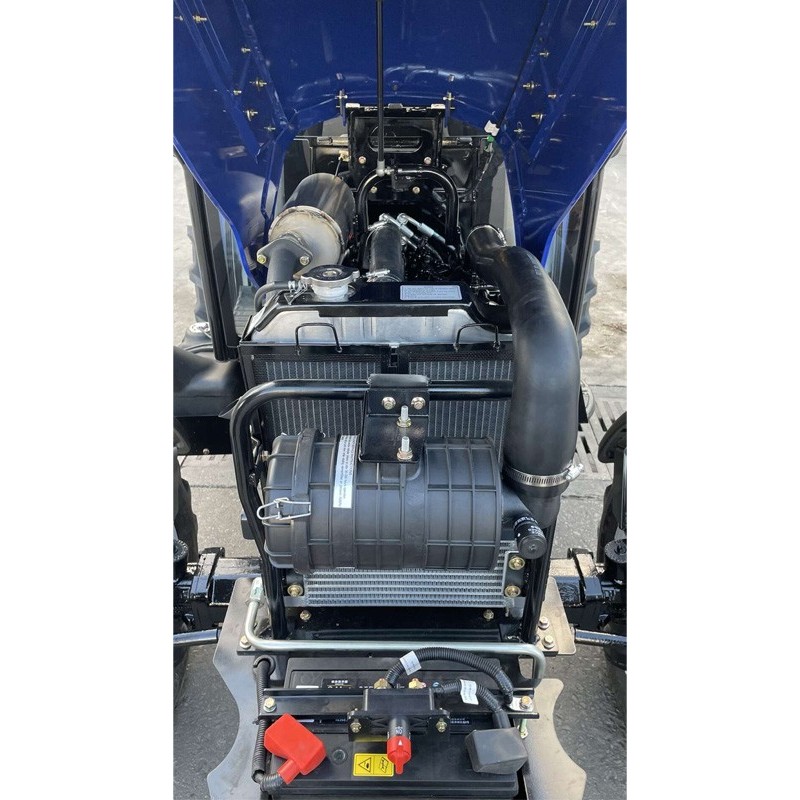

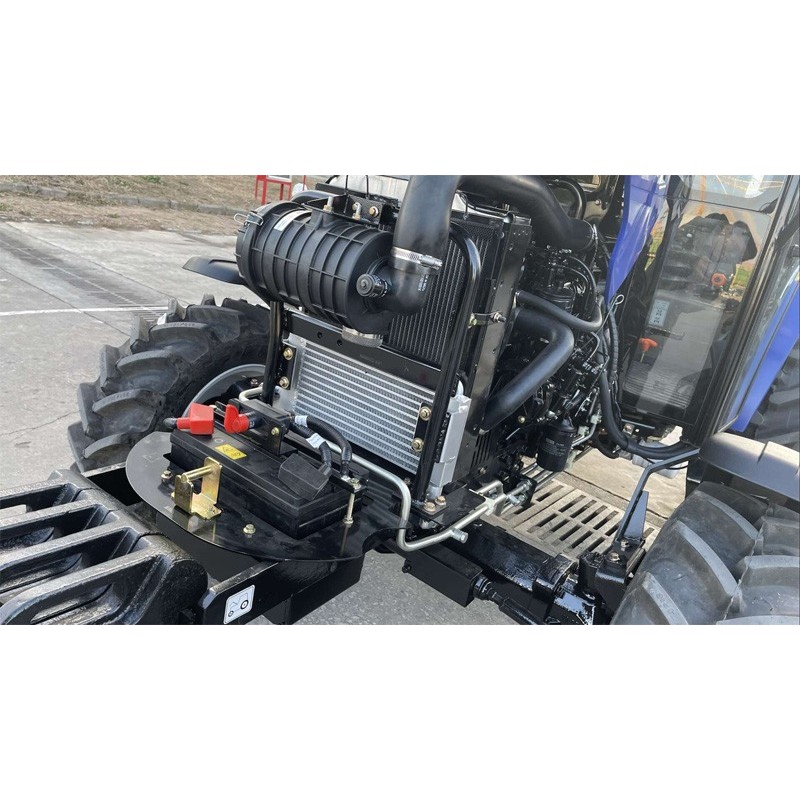

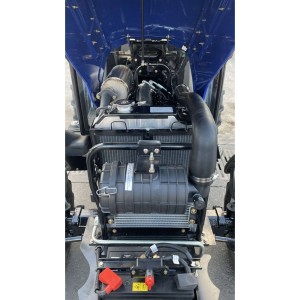

The Lovol M254R agricultural tractor stands out for its 25 hp engine and 4WD traction, making it ideal for field work that requires strength and maneuverability. Equipped with a 1530 cc KM385 engine and standard Stage V emissions, it offers constant and efficient power with a maximum torque of 86 Nm, ensuring solid performance under demanding conditions.

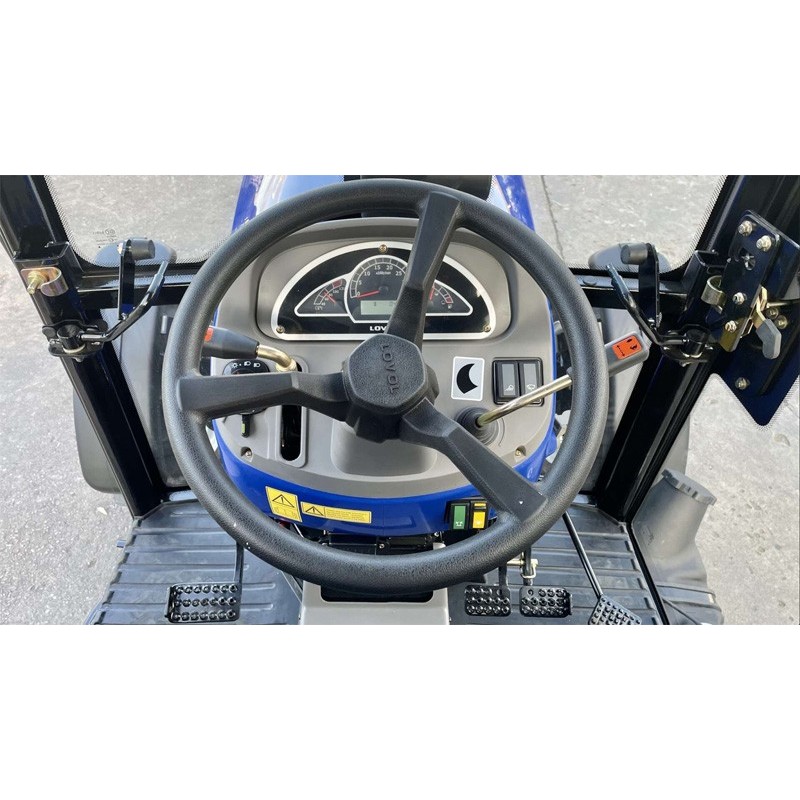

The synchronized transmission with 8 forward and 8 reverse gears , controlled from the steering wheel, allows easy and precise operation. Its hydraulic system includes a flow rate of 24 L/min and two valves, facilitating the control of agricultural implements. In addition, the wet disc brake system ensures safe and efficient braking on all types of terrain.
The Lovol M254R has a lifting capacity of 5.4 kN, ideal for handling heavy implements. The independent rear PTO, with 540 and 1000 rpm options, provides flexibility to operate a variety of equipment. This model also has a 26 L fuel tank, allowing you to work longer without interruptions.
Technical Specifications
Engine model | KM385 |
Standard Emissions | Stage V |
Power | 18.4 kW / 25 hp |
Measuring speed | 2350 r/min |
Maximum torque | 86 N-m |
Displacement | 1530 cc |
Air filter | Dry disc |
Fuel tank capacity | 26 L |
Drive | 4x4 |
Clutch | Dry single-acting |
Transmission management mode | Synchronized with steering wheel control |
Number of gears | 8+8 |
Speed range | 1.88 to 28.3 km/h |
Reverse | 1.66 to 25.11 km/h |
Differential Lock | Mechanical |
Brake Type | Wet discs |
Parking brake | Parking brake |
Flow rate | 24 L/min |
Number of hydraulic valves | 2 pairs |
Elevator control | Control position, float setting |
Lift capacity | 5.4 kN (at 610 mm from lower balls) |
Dragging device | U-type hitch |
Traction | Swinging drawbar |
PTO type | 540/1000 rear independent |
PTO shaft | 6 splines |
Front tire | 260/70R16 |
Rear tire | 280/85R24 |
Length* Width* Height | 3495 x 1550 x 2413 mm |
Wheelbase | 1700 mm |
Shipping weight | 1594 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
- Power Supply
- Diesel
- Displacement
- 1530 cc
- Power
- 25 HP
- Traction
- 4x4
- Road traffic
- Approved
Specific References
- MPN
- M254R
Agricultural Machinery After-Sales Service
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Warranty and Factory Repair
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
Online Mechanics - Fast and Efficient
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
Workshop repair
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
☎️ Always by your side
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
✔️ Advantages of buying in the Spanish territory
- National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
- Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.
❌ Disadvantages of buying outside Spanish territory
- Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
- Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
- Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
