12-speed Lovol M504R tractor with a Doosan 50 HP engine
- Engine model : Doosan D24
- Standard emissions : Stage V
- Power : 36.9 kW / 50 hp

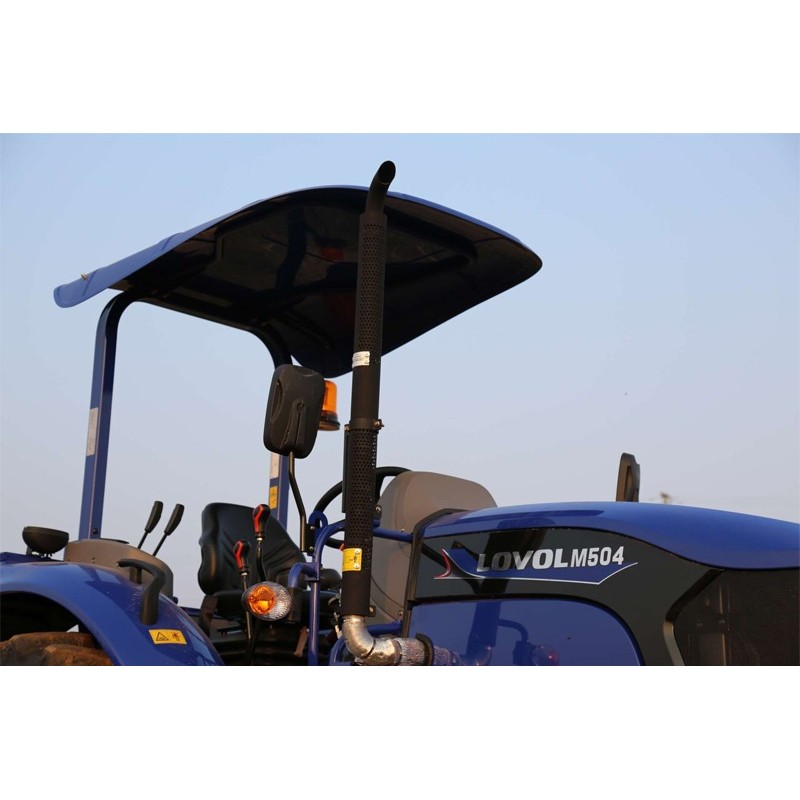

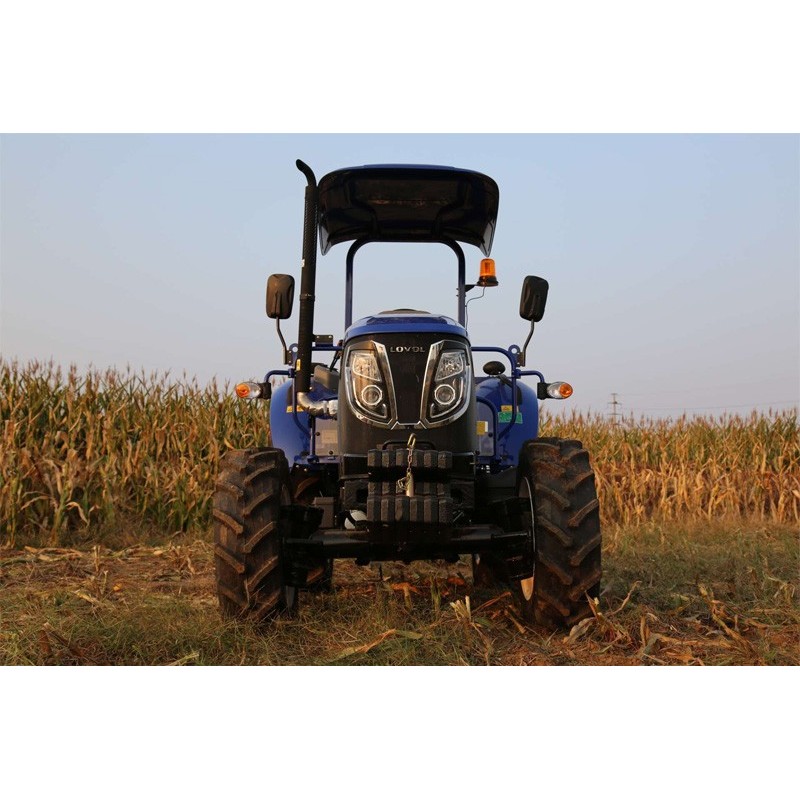

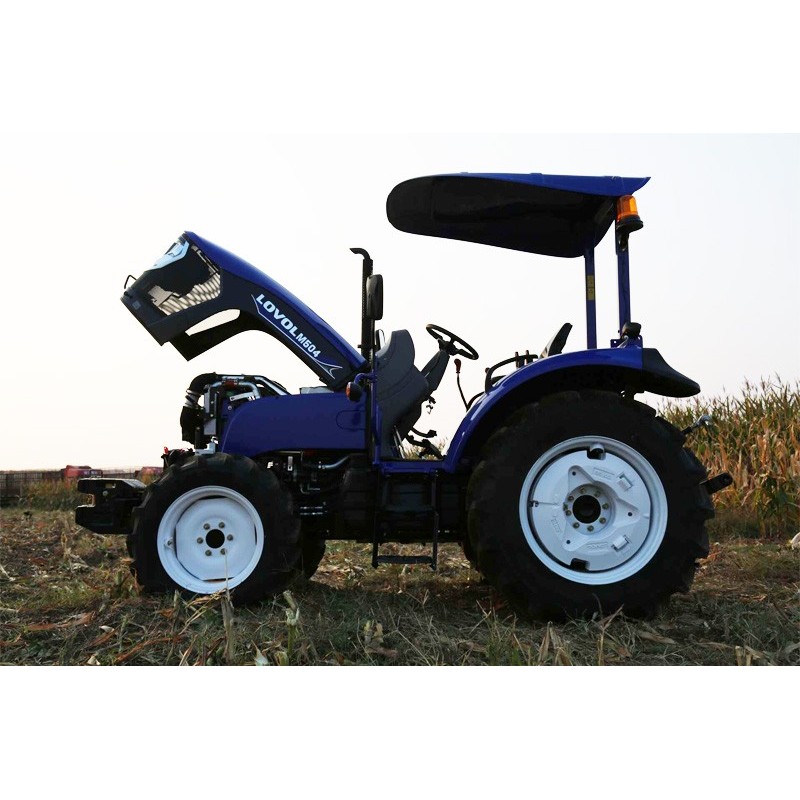

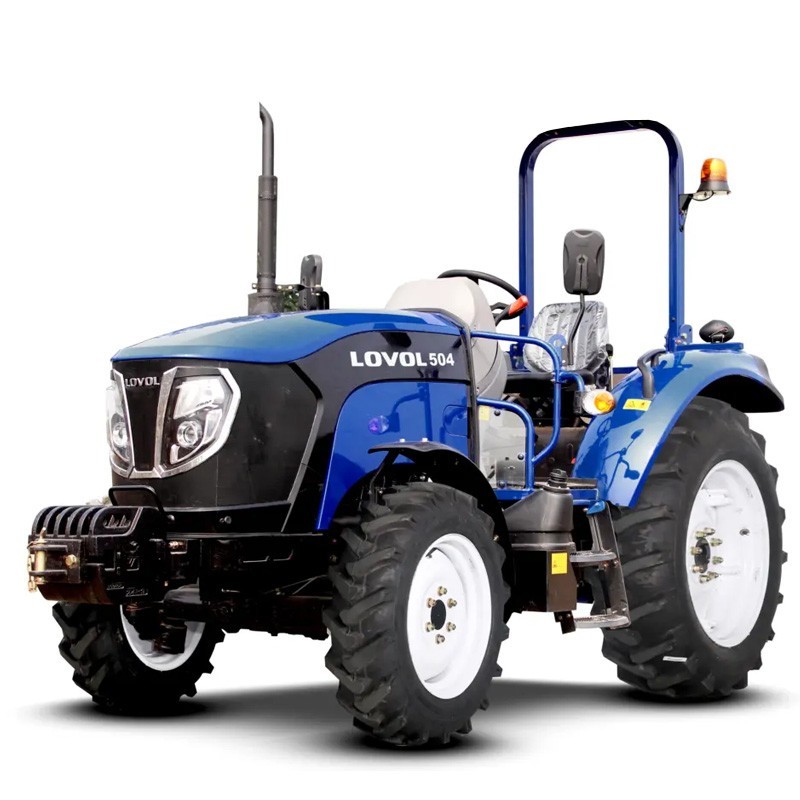

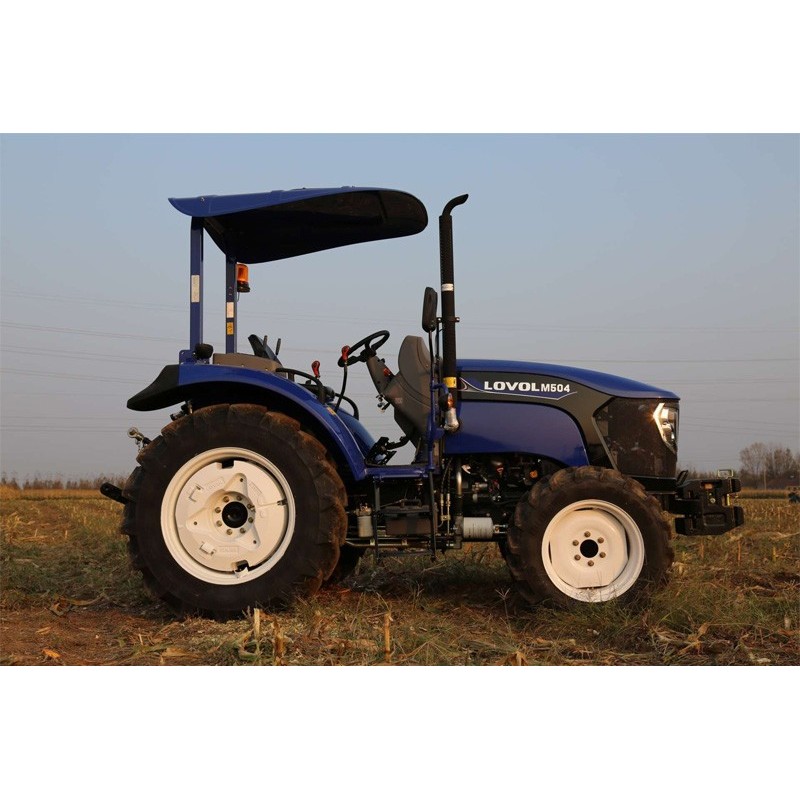

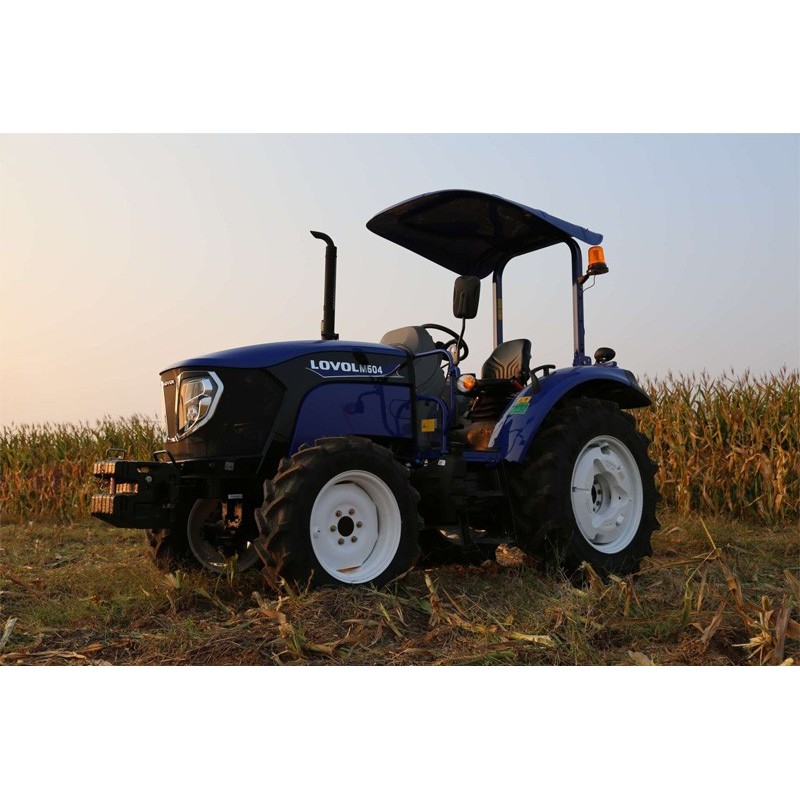

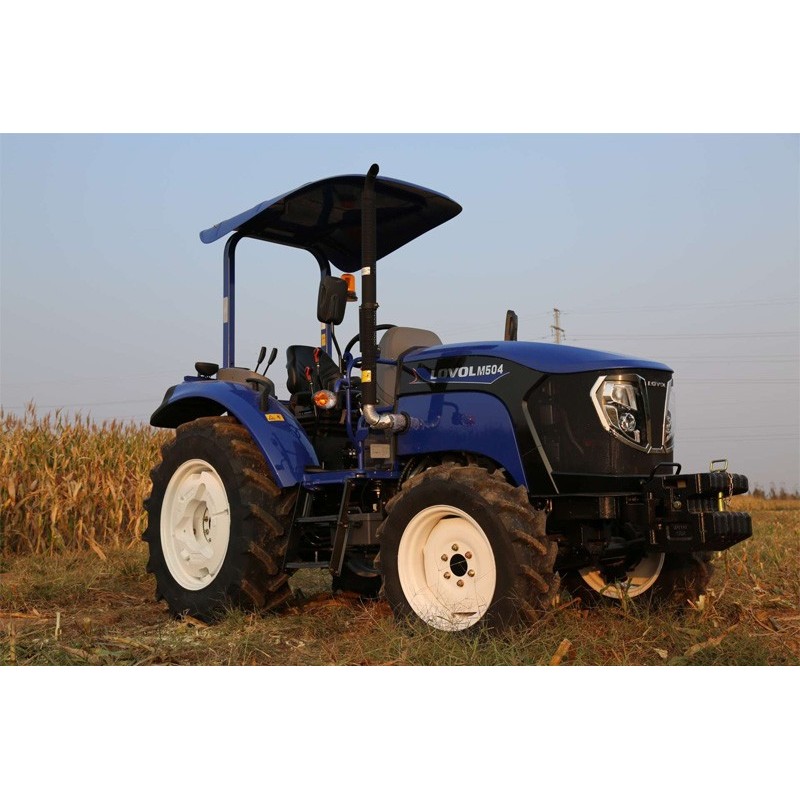

Lovol M504R Tractor
The Lovol M504R tractor is a versatile and efficient choice for agricultural work of various kinds. Thanks to its robust construction and electro-hydraulic control system, it offers precise handling and adaptability to different terrain conditions.
It incorporates counterweights, which provides greater stability, ideal for tasks that require additional traction or the use of heavy implements.
This model is equipped with a synchronized transmission with 12 forward and 12 reverse speeds, allowing a speed range from 2.7 km/h to 37.6 km/h. This facilitates its adaptability to different tasks, from the slowest and most delicate to those that require greater speed.
In addition, its robust tires of 280/70R20 at the front and 380/70R28 at the rear ensure excellent grip on any type of terrain.
The Lovol M504R meets Stage V emissions standards, making it an environmentally friendly machine. With a wheelbase of 1990 mm and a shipping weight of 2525 kg, it is a compact yet powerful tractor, ideal for agricultural work that demands both power and precision.
Roof not included as standard, available as an accessory.
Technical specifications
Engine model | Doosan D24 |
Standard emissions | V-stage |
Power | 36.9 kW / 50 hp |
Measuring speed | 2400 r/min |
Maximum torque | 200 N-m |
Displacement | 2400 cc |
Air filter | Dry type |
Fuel tank capacity | 60 L |
Drive | 4x4 |
Clutch | 11-inch, single-acting dry |
Transmission management mode | Synchronizer |
Reducer | 12+12 |
Speed range | 2.7 to 37.6 km/h |
Reverse Range | 2.4 to 33 km/h |
Differential Lock | Mechanical |
Brake Type | Wet Disc |
Parking brake | Independent parking brake |
Flow rate | 41 / 43 L/min |
Number of hydraulic valves | 2 pairs |
Elevator control | Draft and position control |
Lifting capacity | > 13 kN (at 610 mm from the lower balls) |
Pulling device | U-type hitch |
Traction | Swinging drawbar |
PTO type | 540/1000 rear independent |
PTO shaft | 6 splines |
Front tire | 280/70R20 |
Rear tire | 380/70R28 |
Length* Width* Height | 3986 x 1790 x 2614 mm (3986 x 1790 x 2614 mm) |
Wheelbase | 1990 mm |
Shipping weight | 2525 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
- Power Supply
- Diesel
- Displacement
- 2400 cc
- Power
- 50 HP
- Traction
- 4x4
- Road traffic
- Approved
Specific References
- MPN
- M504R
