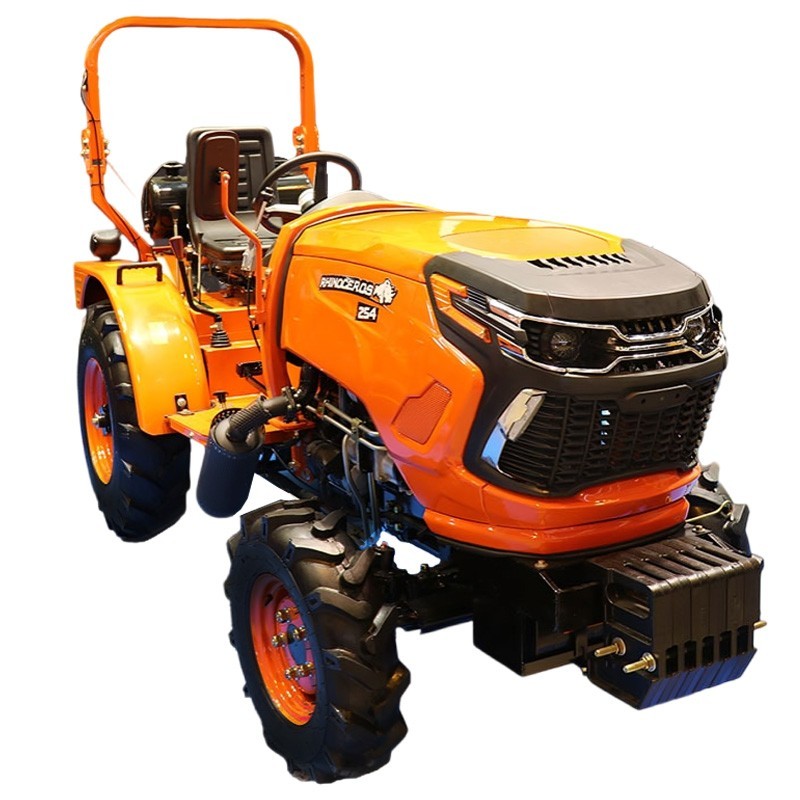

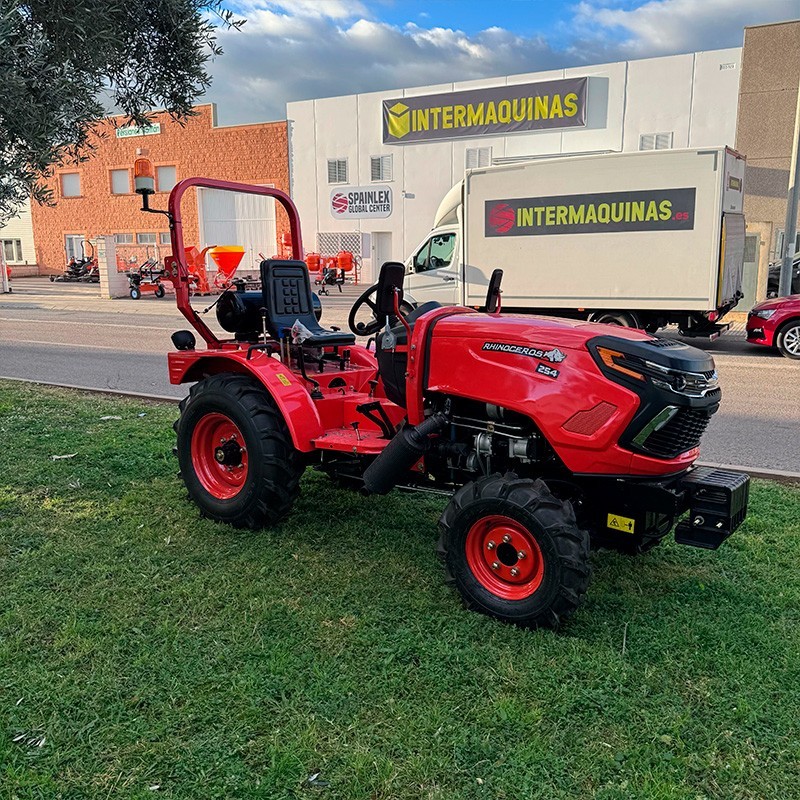

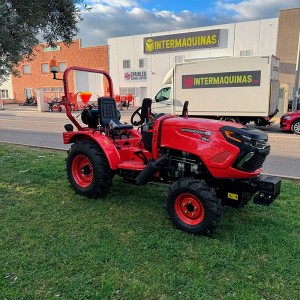

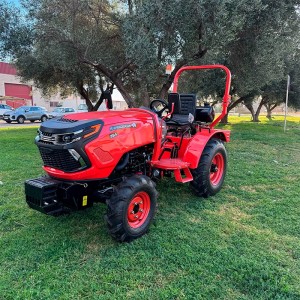

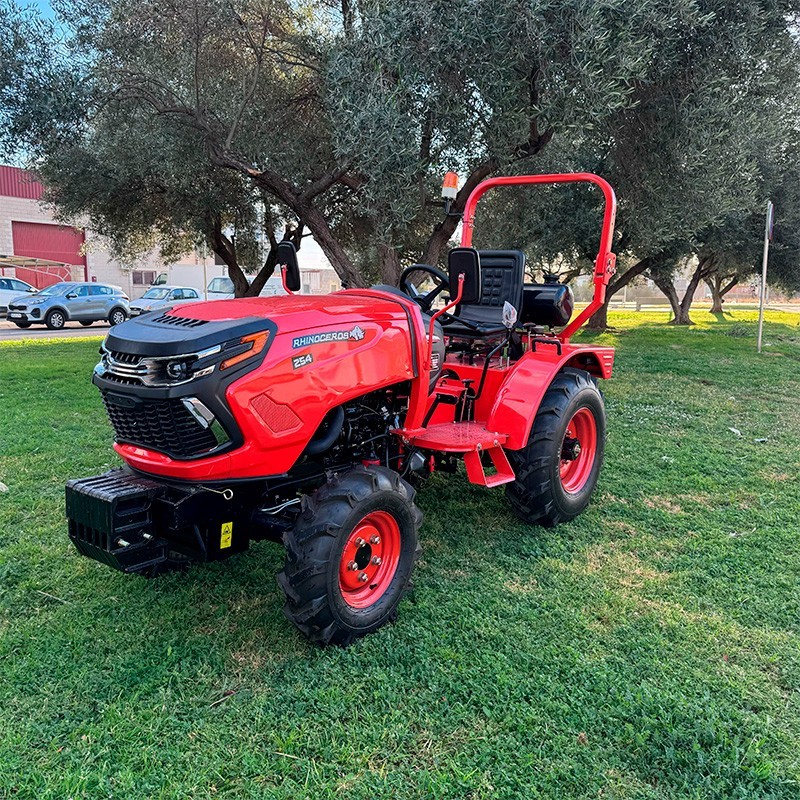

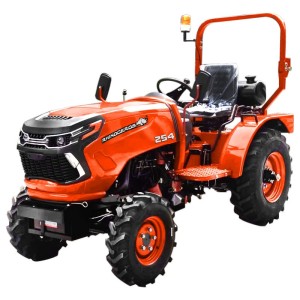

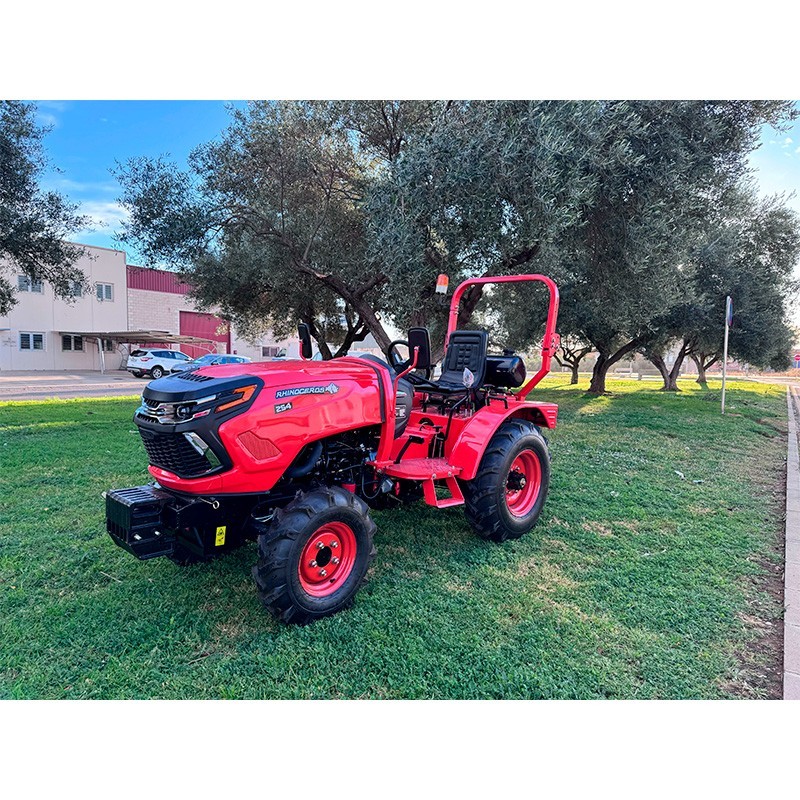

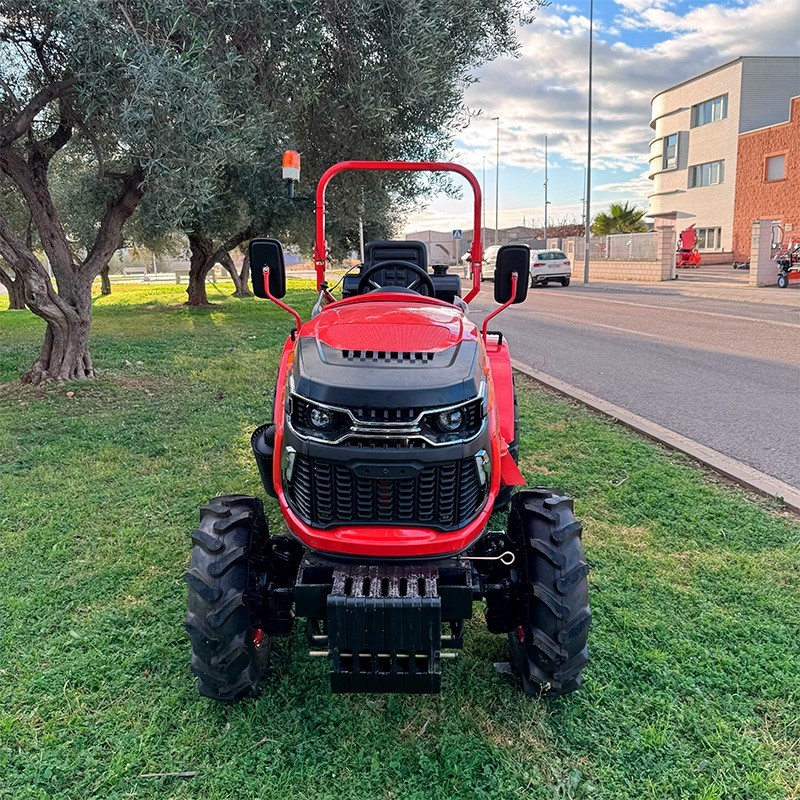

Tractor Zeppelin Rhinoceros Compact 25HP
The Zeppelin Rhinoceros 254 Tractor stands out for its powerful liquid-cooled diesel engine, with a displacement of 1,323 cc and a net power of 25 Hp. Its four-wheel drive (4WD) design provides excellent maneuverability and stability, especially in difficult terrain.
Thanks to its turning radius of only 3.1 meters, it is ideal for operating in confined spaces and between crops, avoiding damage to plants. Equipped with an efficient transmission of 8 gears forward and 2 reverse, the Rhinoceros 254 allows smooth and controlled driving, reaching speeds of up to 25.8 km/h (15.5 mph).
Its hydraulic system facilitates the use of agricultural implements, with a maximum lifting capacity of 750 kg, making it a versatile tool for various tasks in the field.

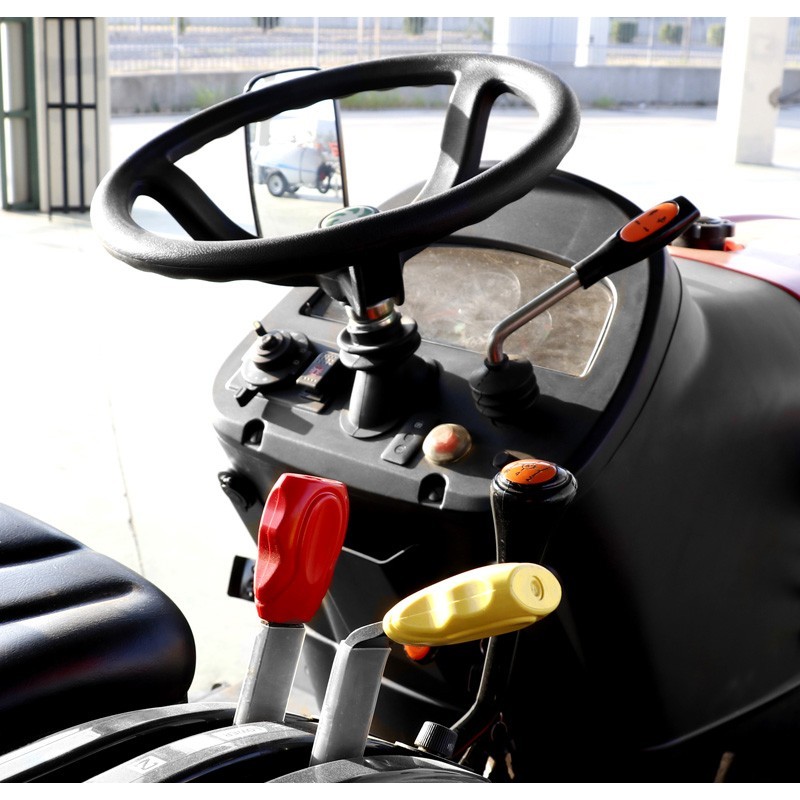

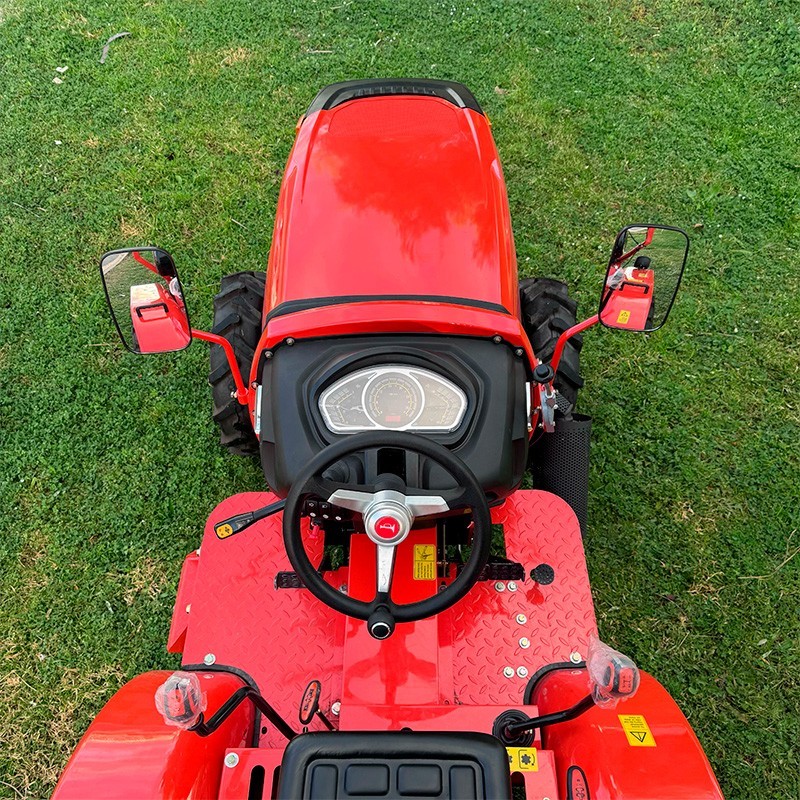

With a practical design that includes a flat deck and side-mounted gearshift, getting on and off the tractor is simple and unobstructed. In addition, its robust structure and 1200 kg weight ensure durability and strength, making the Zeppelin Rhinoceros 254 an excellent choice for farmers looking for performance and efficiency in their daily work.
Technical specifications
| ENGINE |
| Type |
Liquid-cooled diesel |
| No. of cylinders |
3 |
| Displacement |
1,323 cc |
| Gross power |
27 Hp |
| Net power |
25 Hp |
| PTO power |
14.7 kW (20 Hp) |
| Maximum torque |
97 N-m |
| TRANSMISSION |
| Clutch |
Single dry plate |
| Steering |
Integral power steering |
| Transmission |
8 gears forward and 2 reverse |
| Brakes |
Oil-immersed (OIB) |
| Speed range |
1.0 - 25.8 km/h |
| Minimum turning radius |
3.1 m |
| HYDRAULIC EQUIPMENT |
| Control system |
Hydraulic |

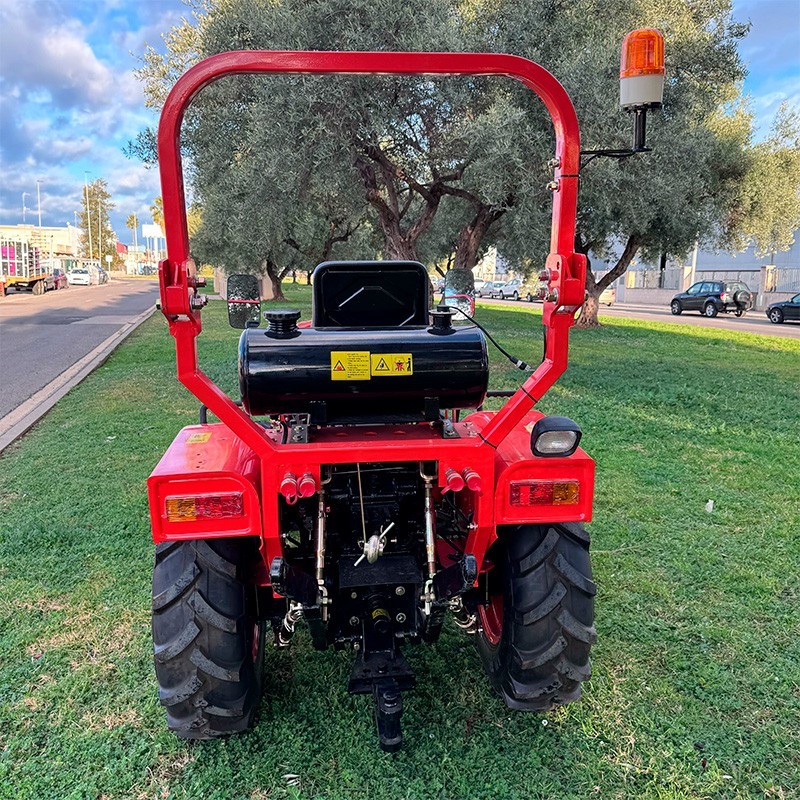

| Three-point hitch |
Yes |
| Max. lifting force at lifting point |
750 kg |
| Max. lifting force 610 mm behind lifting point |
480 kg |
| Position control |
Yes |
| Hitch category |
1 & 1N |
| PTO |
| PTO / Engine speed (rpm) |
540, 760 |
| CAPACITY |
| Fuel tank |
26 L |
| DIMENSIONS |
| Overall length |
2610 mm |
| Overall width |
1080 - 1470 mm |
| Overall height (upper part of the steering wheel) |
1250 mm |
| Wheelbase |
1600 mm |
| Minimum ground clearance |
300 mm |
| Weight |
1200 kg |
| Brakes |
D: 860 - 960 - 1060 - 1180 - 1243 | T: 840 - 1243 adjustable |

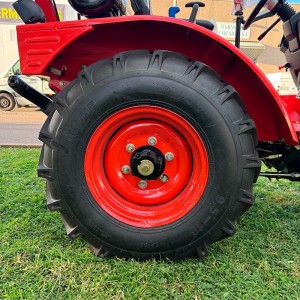

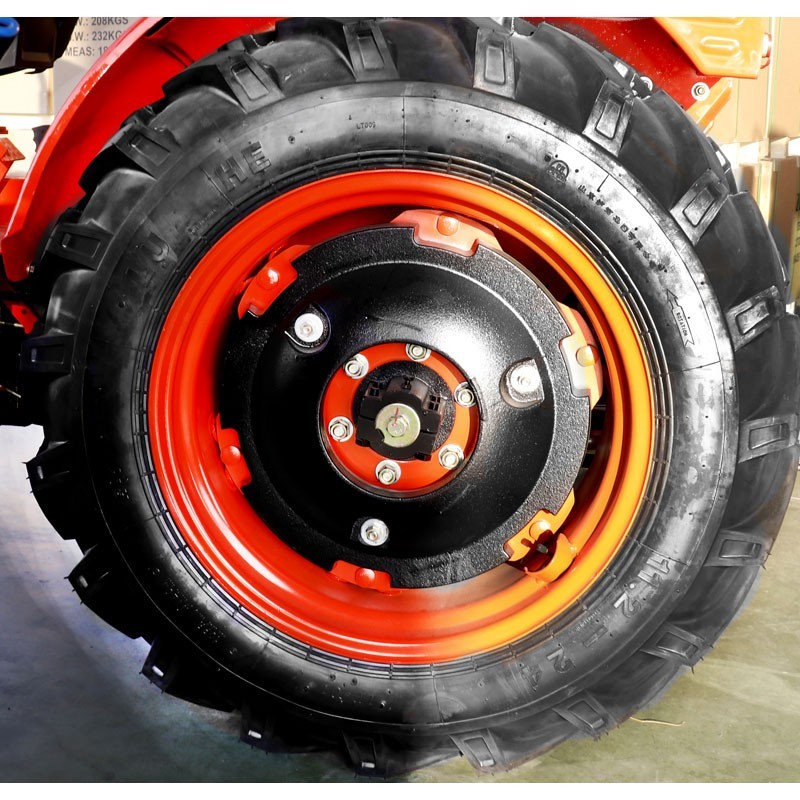

| TIRES |
| Front |
6-12 mm |
| Rear |
9.5-16 mm |
| OPTIONAL |
| Ropes and hood |
Yes |
| Air brake |
Yes |
| 8+8 traction |
Yes |
| Trigger clutch |
Yes |
| Turf and industrial tires |
Yes |
| Remote hydraulic output |
Yes |
| Pneumatic 13.6-16 |
Yes |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
