Front loader for Rhinoceros 55HP tractor
- Front shovel for Rhinoceros Compact 55 hp.
€4,400.52 VAT incl.

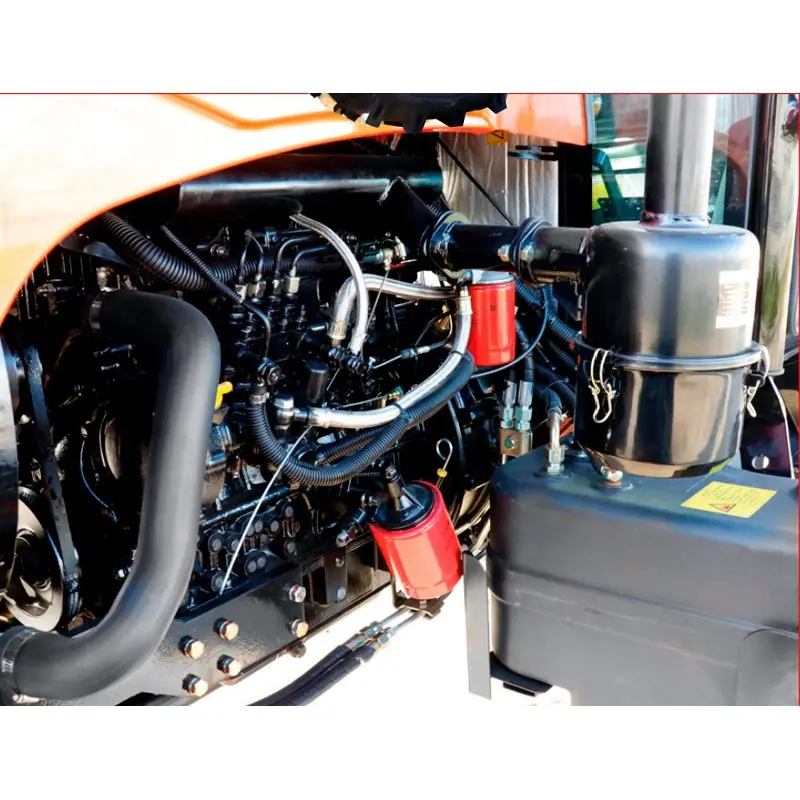

The Rhinoceros 554 is a compact and powerful tractor designed for vineyards and row crops. Its 4-cylinder, 2,223 cc liquid-cooled diesel engine delivers 55 HP with a balancer shaft that reduces vibrations and noise. The PTO power is 36 HP to move demanding implements with low fuel consumption thanks to the 36-liter tank.

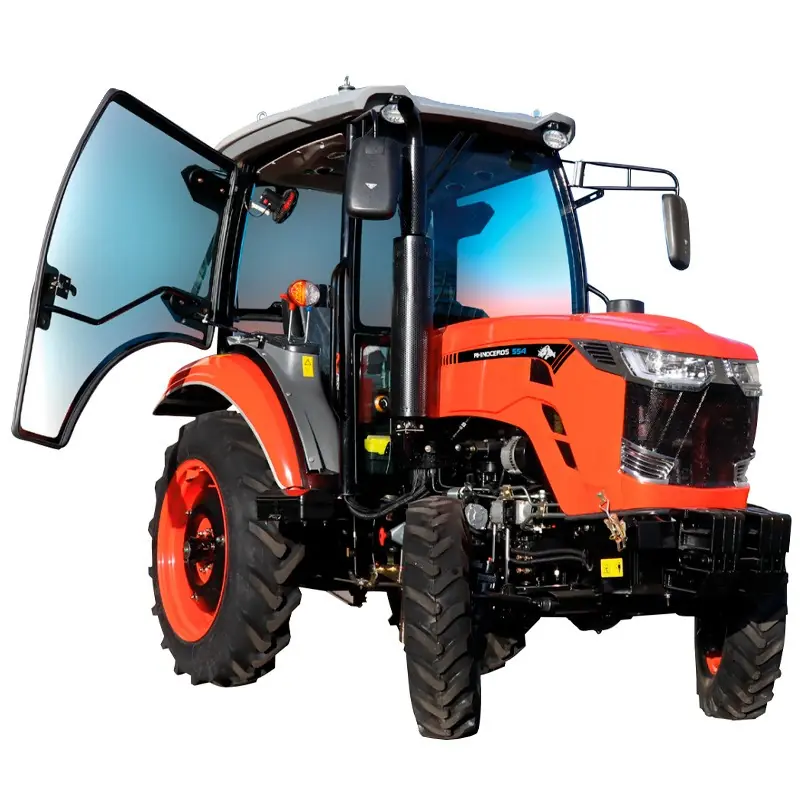

The air-conditioned cab maintains a stable temperature and offers great visibility. The flat platform with side lever facilitates access and improves the working posture. Full power steering and 4WD for more grip on slopes or wet ground with a 3.1 m turning radius for quick maneuvering between 1.5 m windrows.

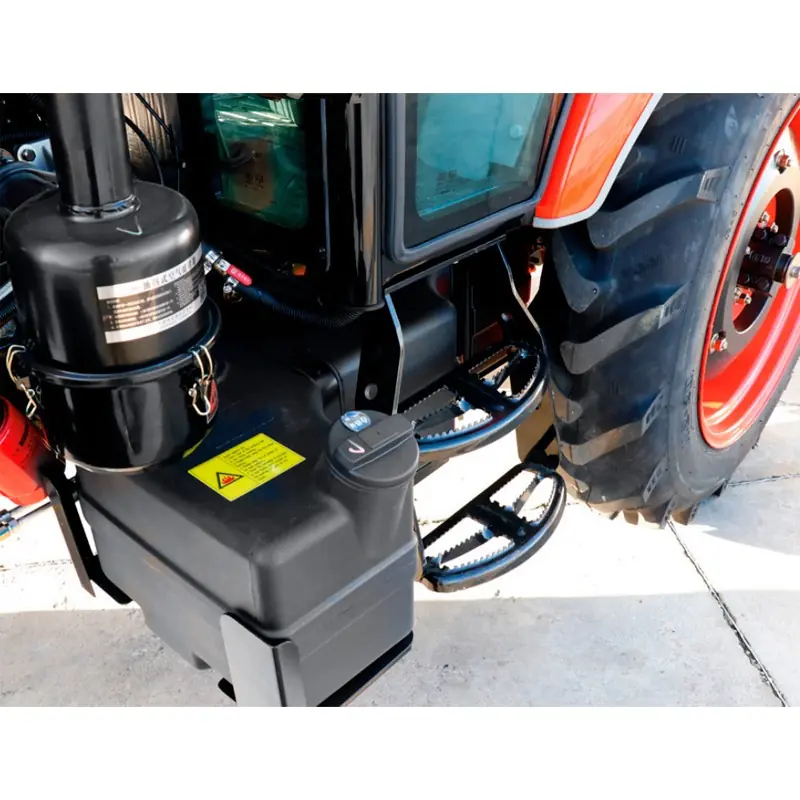

The 8 forward and 8 reverse transmission with mechanical reverse shuttle allows for quick direction changes and a speed range up to 30 km/h (19 mph). The hydraulic system delivers 24 L min with a lifting capacity of 1,250 kg on the arms and 827 kg at 610 mm to work with sprayers, weeders, cultivators or shovels. Air filter and muffler protected under the hood to avoid damage under branches.

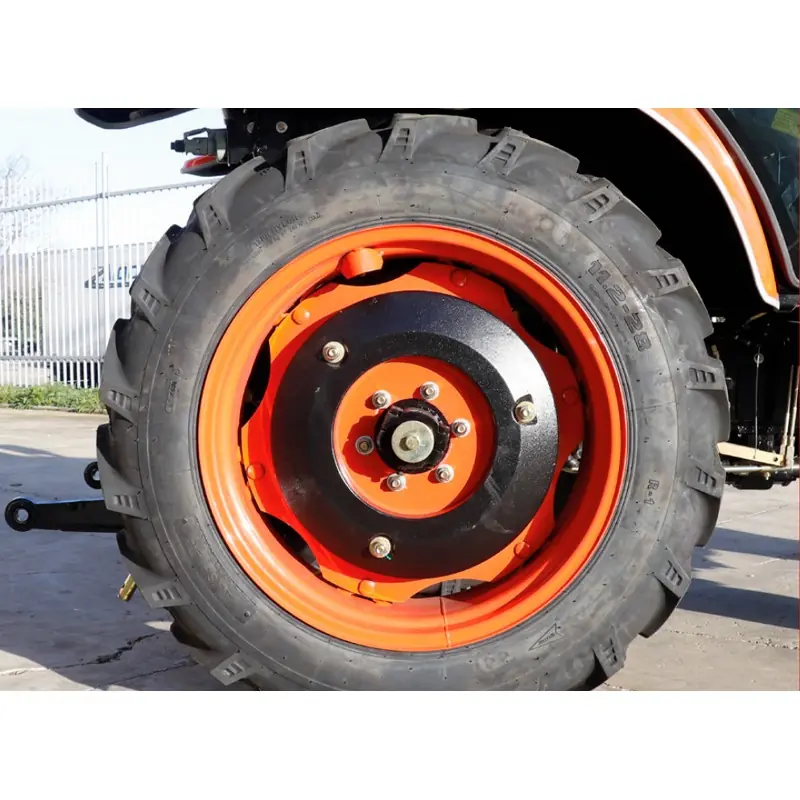

Wide, flat seat for improved comfort during long working days. 7.5-16 mm front and 12.4-28 mm rear tires for optimum balance between flotation and traction. Weight of 1,690 kg for stability with mounted implements.
Engine | |
---|---|
Type | Liquid-cooled diesel |
No. of cylinders | 4 |
Displacement | 2.223 cc |
Gross engine power | 55 hp |
PTO power | 29.5 kW (36 hp) |
Transmission | |
Clutch | Single plate |
Steering | Integral power-assisted |
Gearbox | 8 forward and 8 reverse gears |
Braking system | Mechanical |
Speed range | 1.8-30.01 km/h and 1.8-27.95 km/h |
Hydraulic equipment | |
Hydraulic flow rate | 24 L/min |
Max. force at lifting point | 1.250 kg |
Max. force at 610 mm behind lifting point | 827 kg |
PTO | |
PTO / engine speed | 2.400 rpm |
Capacity | |
Fuel tank | 36 L |
Dimensions | |
Overall length | 3.675 mm |
Overall width | 1.480 mm |
Overall height to the top of the steering wheel | 2.450 mm |
Wheelbase | 1.600 mm |
Brakes | D 300 T 860-960-1060-1180-1243 |
Weight | 1.690 kg |
Tires | |
Front | 7.5-16 |
Rear | 12.4-28 / 7.5-20 (depending on configuration) |
Optional | |
Ropes and hood, Air brake, 8+8 traction, Trigger clutch, Turf and industrial tire, Remote hydraulic output, Tire 13.6-16 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
This product requires means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before ordering to evaluate your case. |
