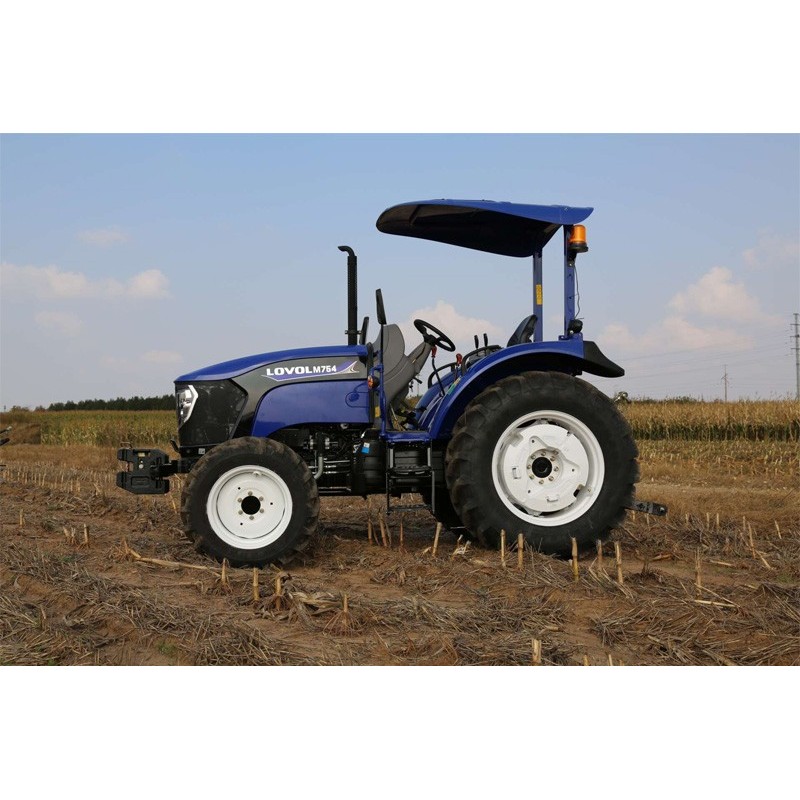

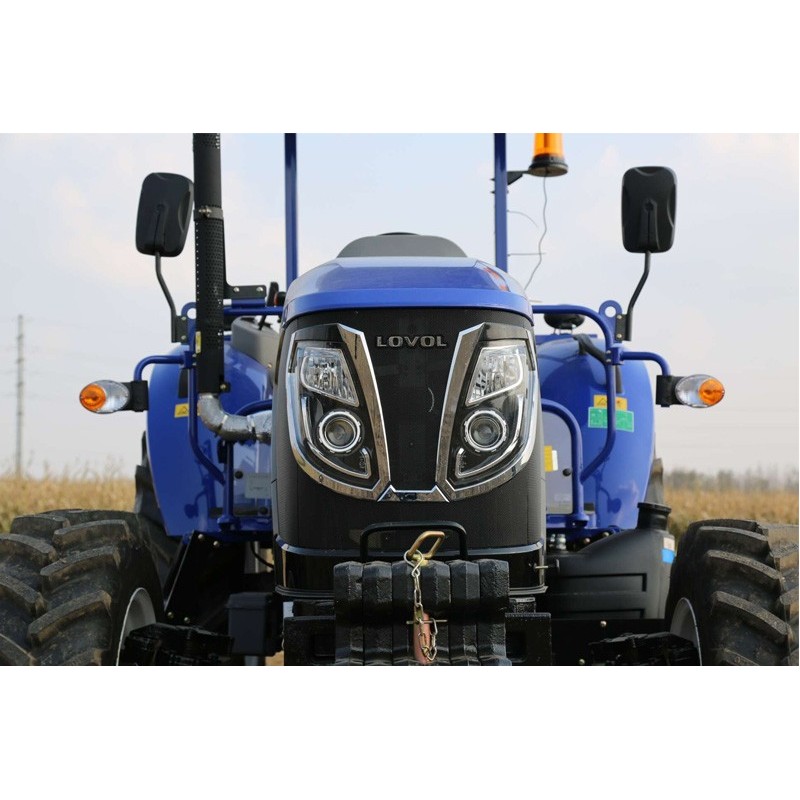

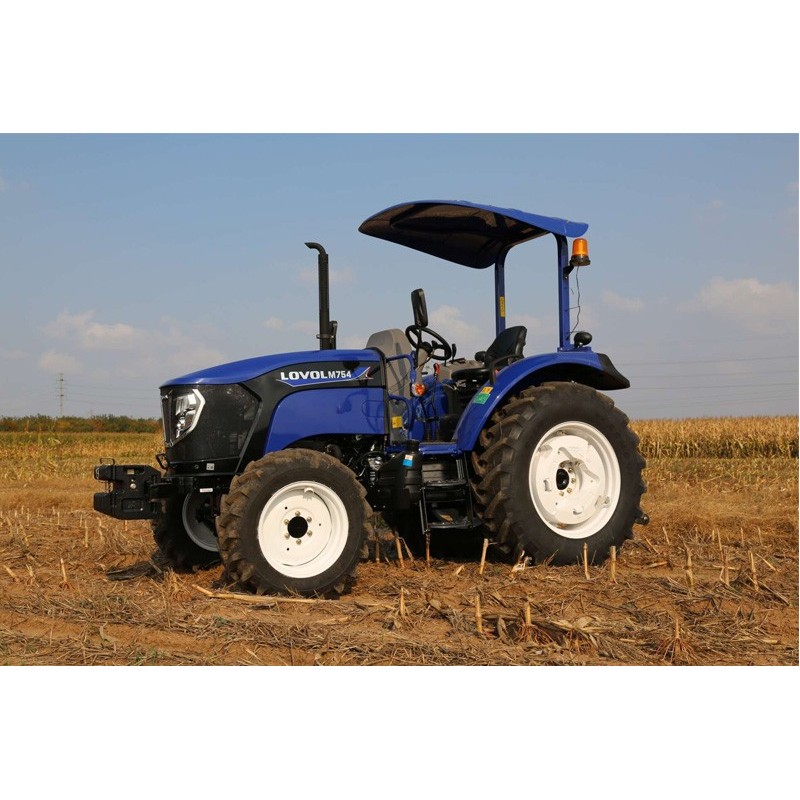

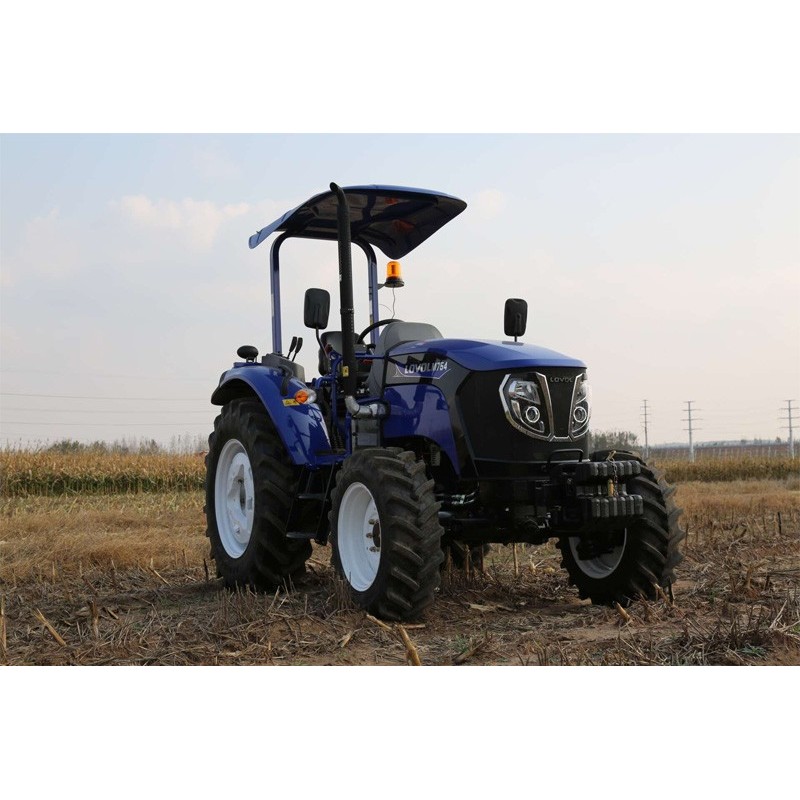

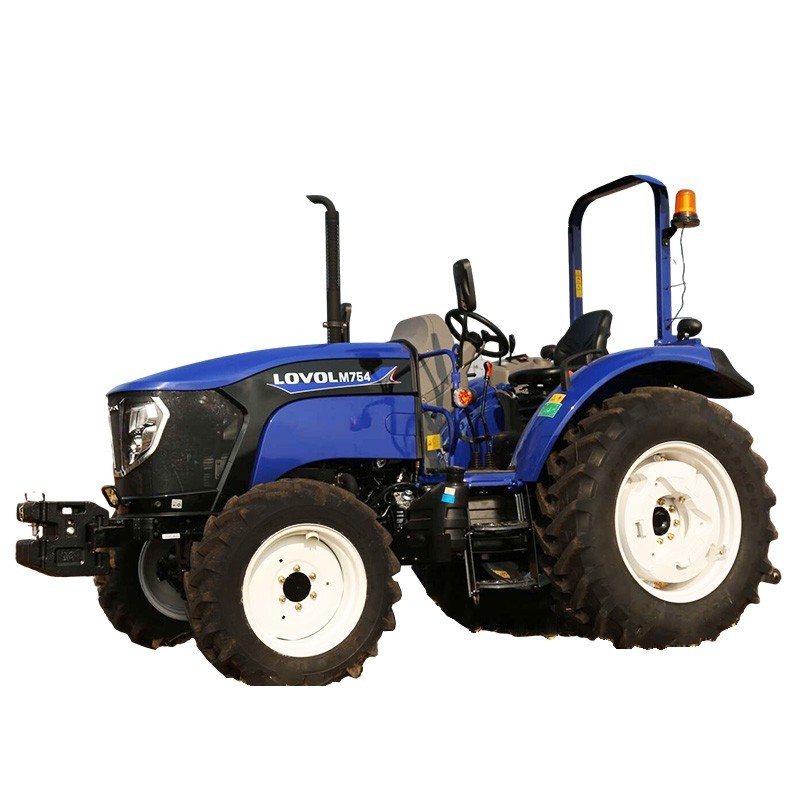

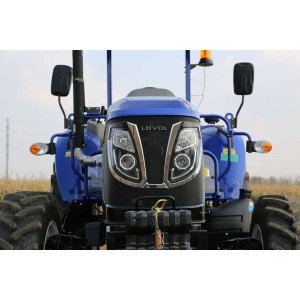

The Lovol M754R Tractor is a rugged and reliable choice for a variety of agricultural jobs. Designed for safety and comfort, it has a protective arch that protects the operator, as well as included counterweights that provide stability on uneven terrain.
Its disc brake system, together with the independent parking brake, ensures precise control in all conditions. This model stands out for its versatility, with a synchronized transmission that offers 12 forward and 12 reverse gears, easily adapting to different speeds, from 2.2 km/h up to 38.2 km/h.
In addition, its hydraulic output with float function facilitates the handling of implements, optimizing tasks in the field. The Lovol M754R also features an 11-inch single-action dry clutch, ensuring quick and efficient response in every operation.

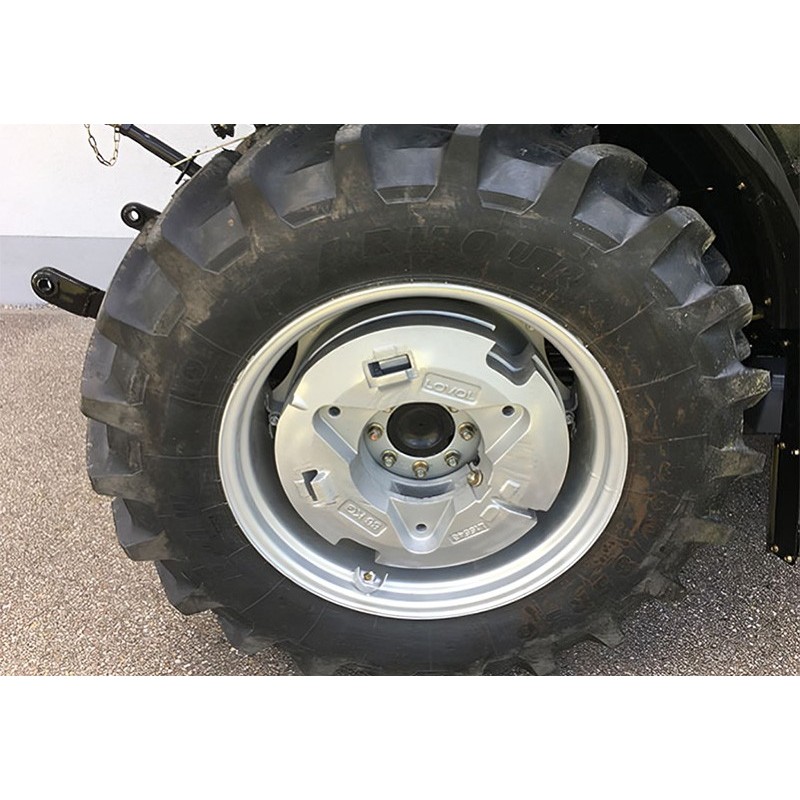

Its 300/70R20 front and 380/85R30 rear tires provide the traction needed to meet any agricultural terrain challenge. Roof not included as standard, available as an accessory.
Engine model | WP3.6N |
Standard Emissions | Stage V / EPA4F |
Power | 55 kW / 75 hp |
Metering speed | 2400 r/min |
Maximum torque | 300 N-m |
Displacement | 3580 cc |
Air filter | Dry type |
Fuel tank capacity | 60 L |
Drive | 4x4 |
Clutch | 11-inch, single-acting dry |
Transmission management mode | Synchronizer |
Number of gears | 12+12 |
Speed range | 2.2 to 38.2 km/h |
Reverse Range | 1.9 to 33.5 km/h |
Differential Lock | Mechanical |
Brake Type | Disc brake |
Parking brake | Independent parking brake |
Flow rate | 57 L/min |

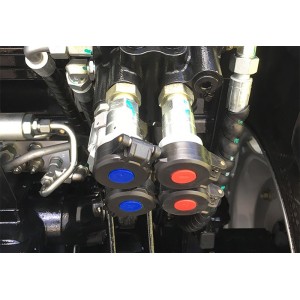

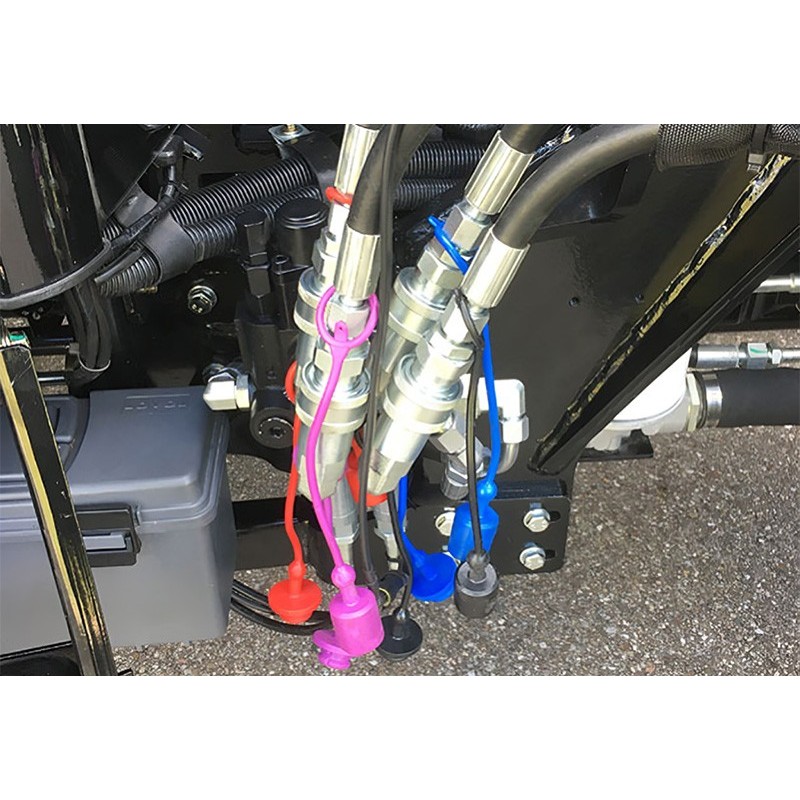

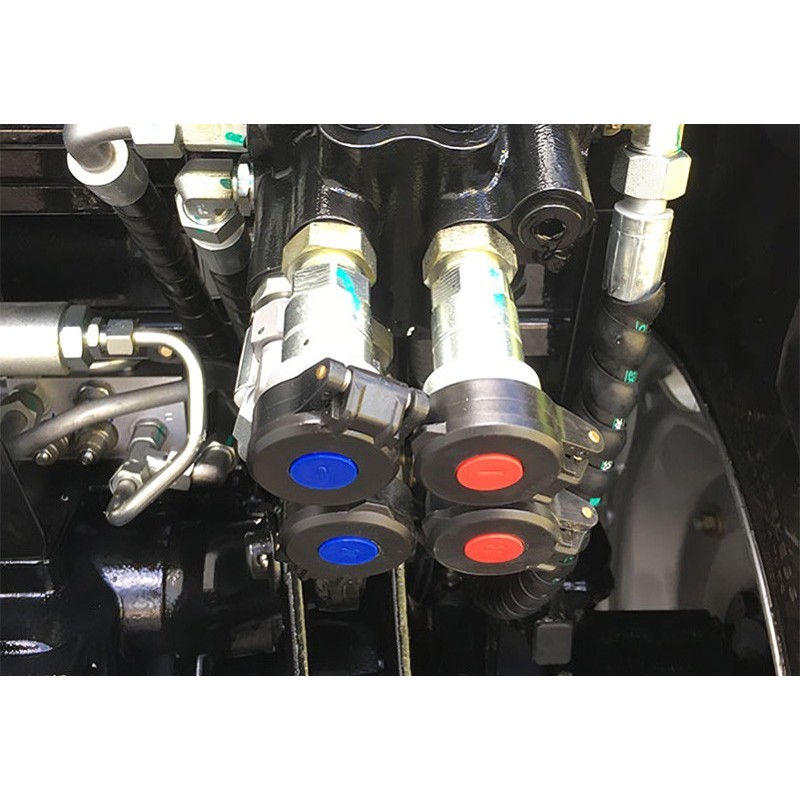

Number of hydraulic valves | 2 pairs |
Elevator control | Draft and position control |
Lifting capacity | > 13 kN (at 610 mm from the lower balls) |

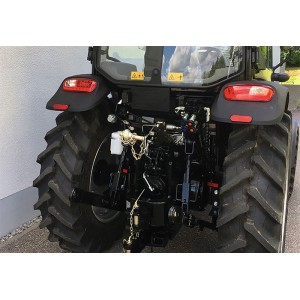

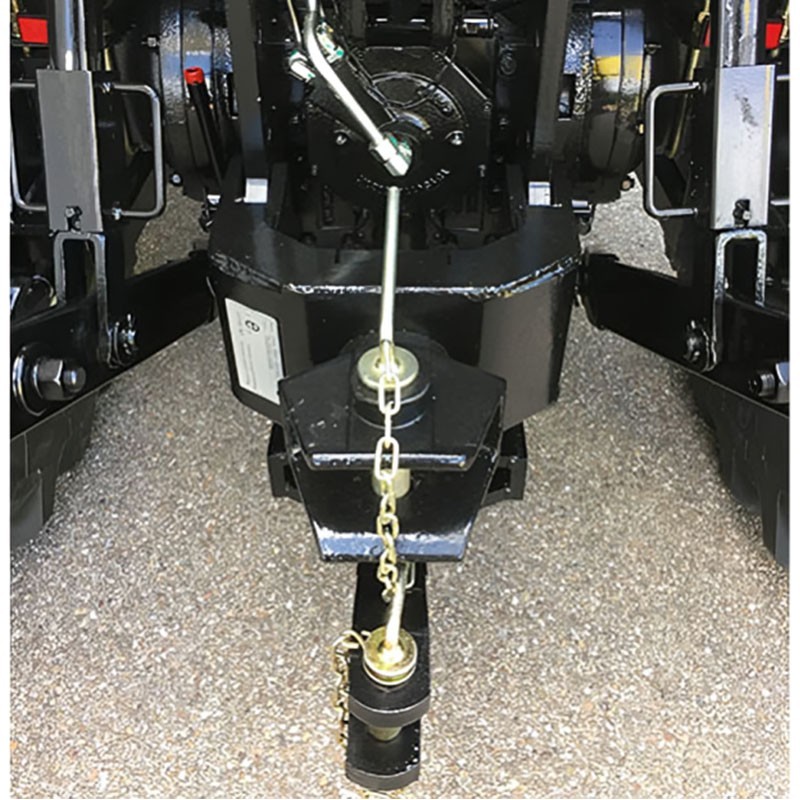

Pulling device | U-type hitch |
Traction | Swinging drawbar |
PTO type | 540/1000 rear independent |
PTO shaft | 6 splines |
Front tire | 300/70R20 |
Rear tire | 380/85R30 |
Length* Width* Height | 4105 x 1830 x 2678 mm |
Wheelbase | 2070 mm |
Shipping weight | 2780 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
