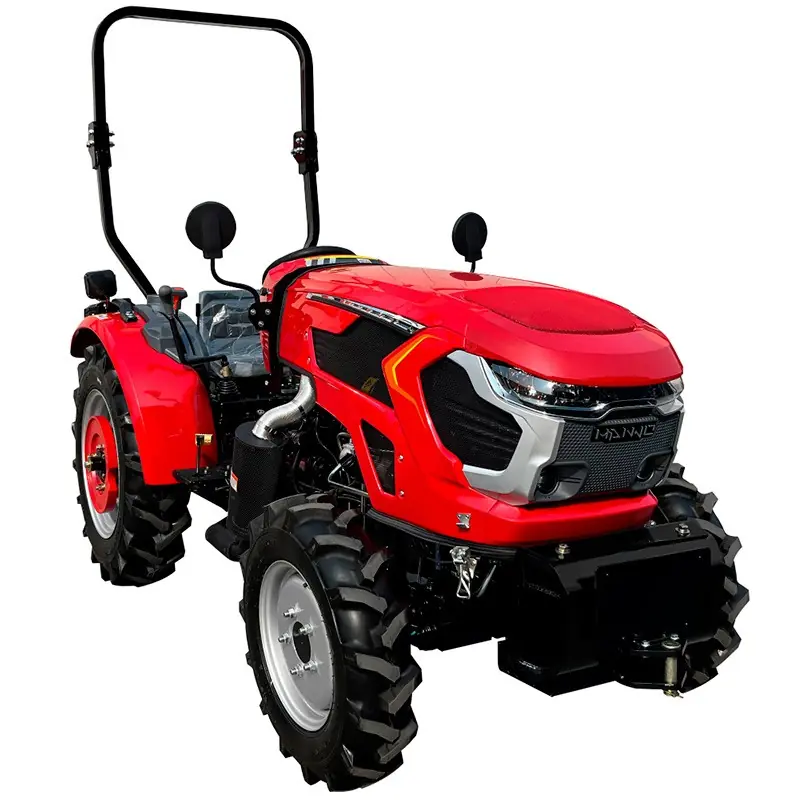

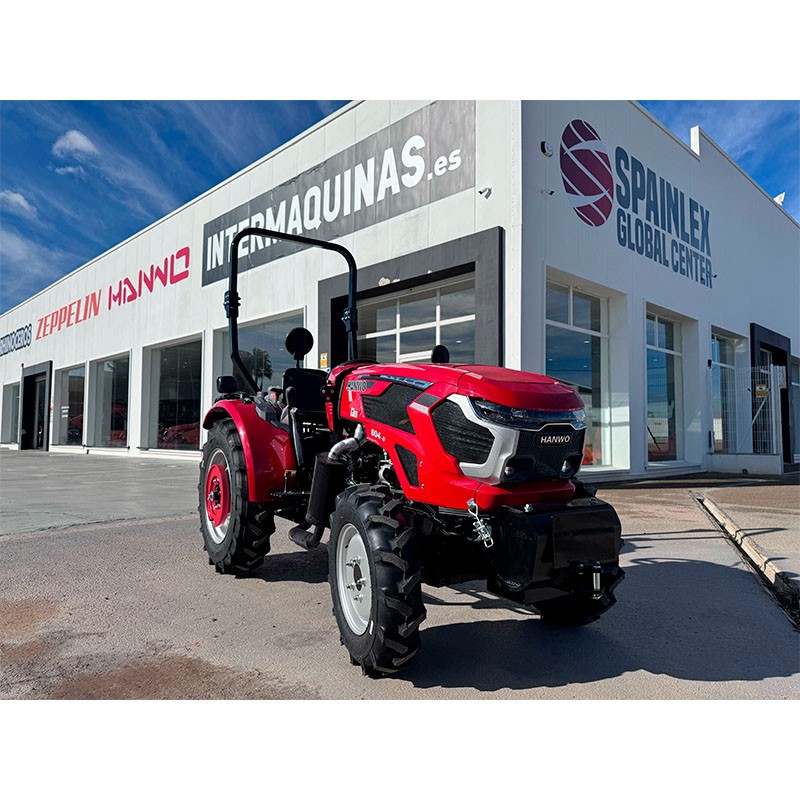

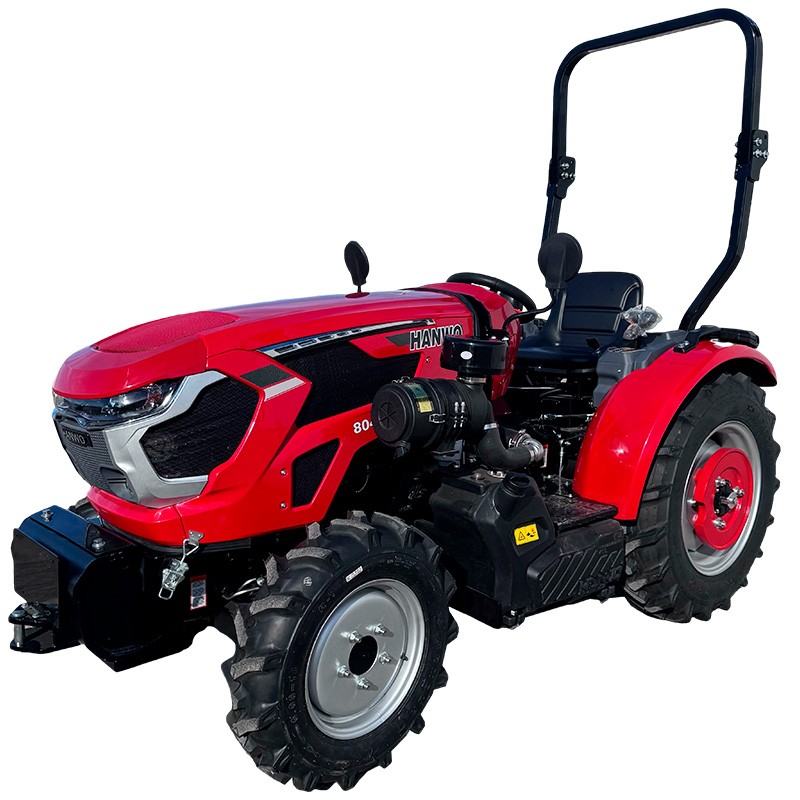

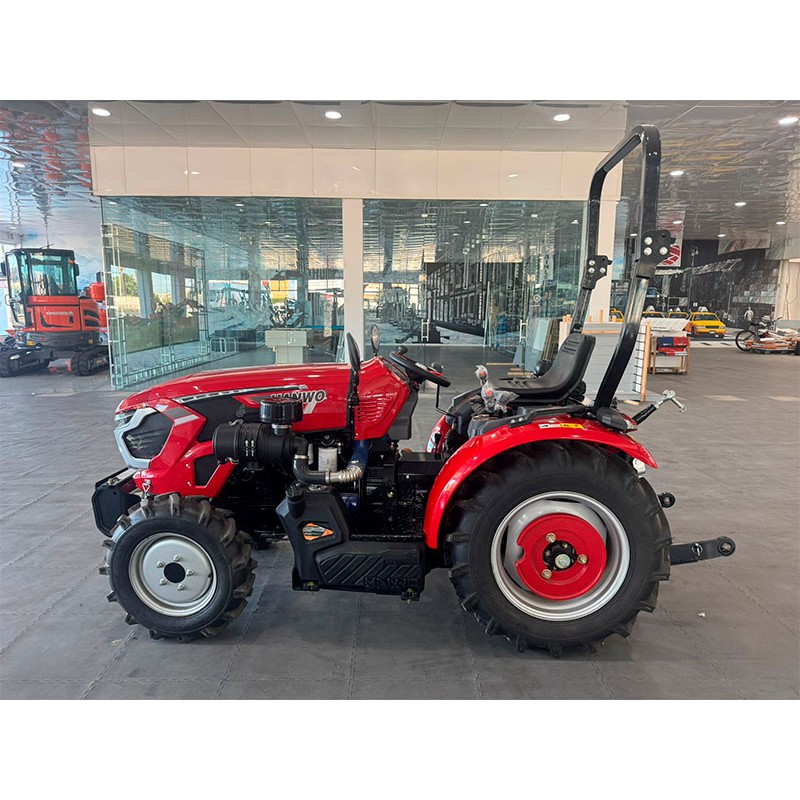

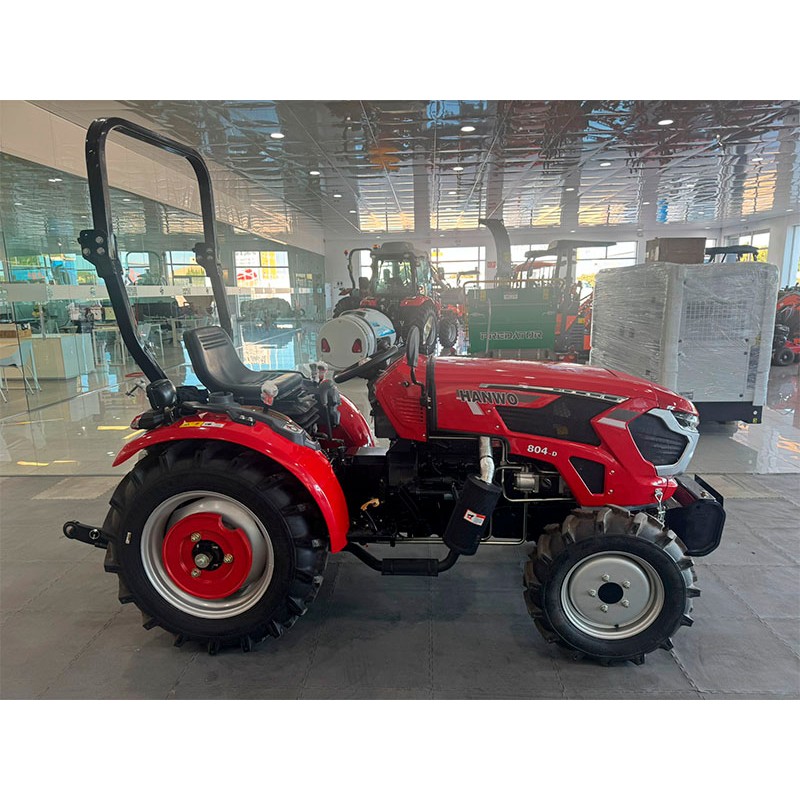

The Hanwo 804D is a compact, high performance fruit harvester designed for vineyards and orchards where real power is needed with contained dimensions. It delivers 80 HP at 2,400 rpm with a water-cooled YN Stage III engine that responds with torque from low revs and keeps fuel consumption low with a 35 L tank.

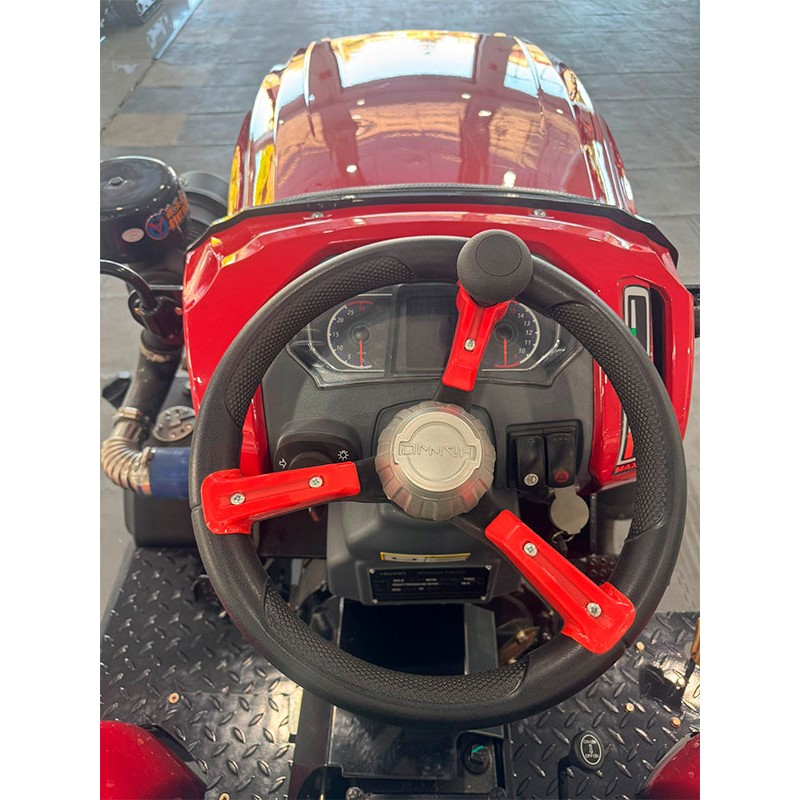

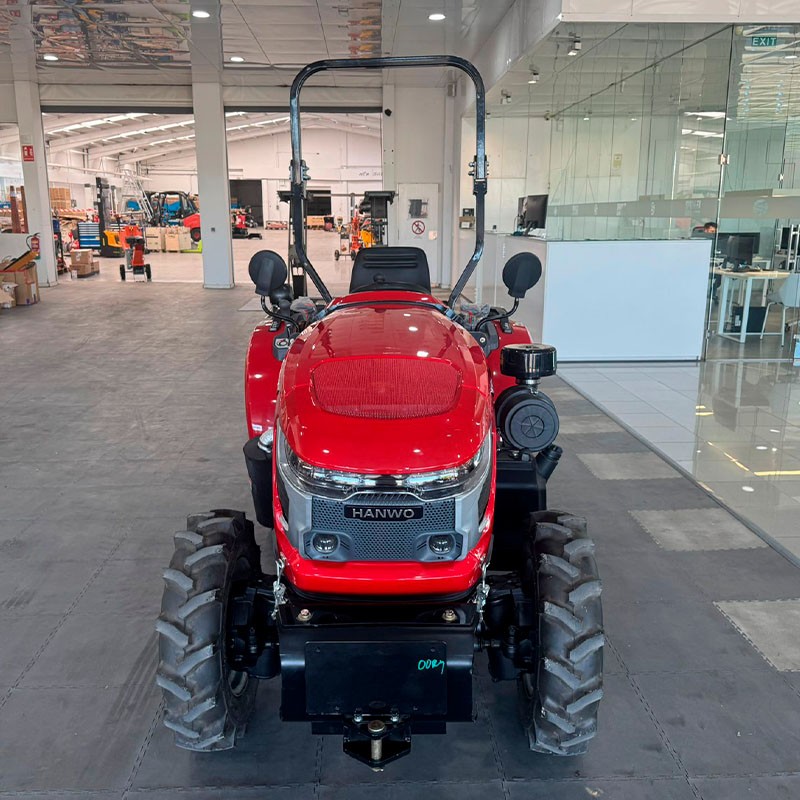

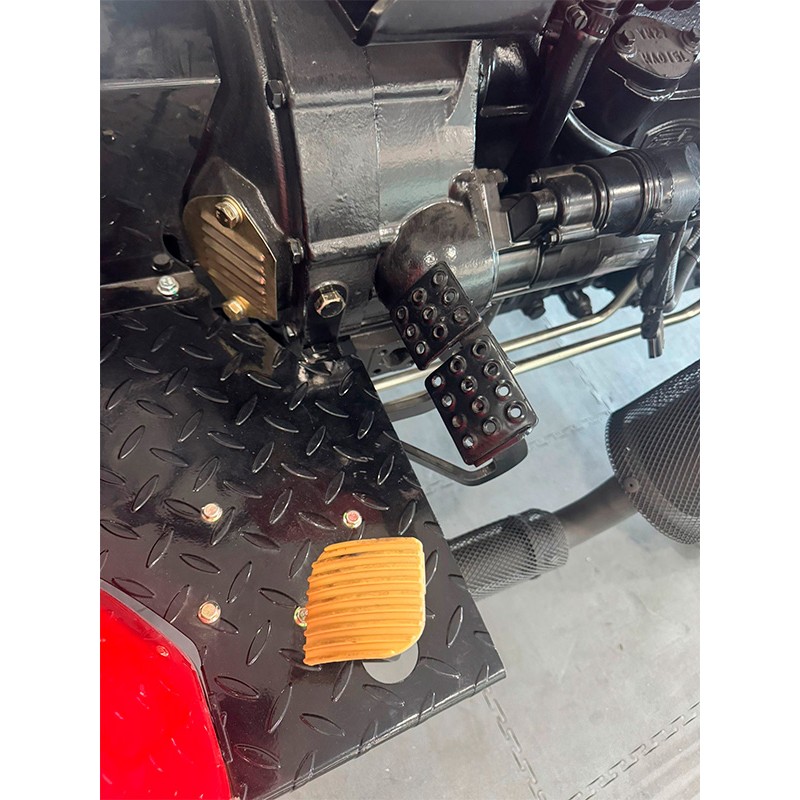

Its narrow chassis of 1.30 m wide and 2.19 m high with arch facilitates passage between rows without rubbing branches. Four-wheel drive and hydraulic power steering improve grip and reduce operator effort on slopes or wet ground. The dual-stage clutch provides smooth and precise PTO engagement during maneuvering.

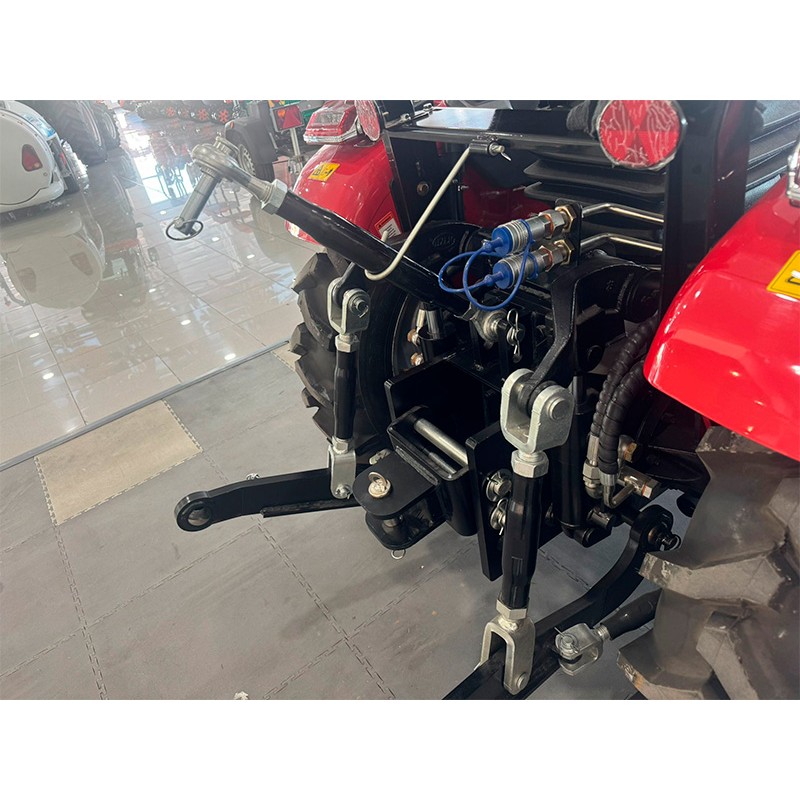

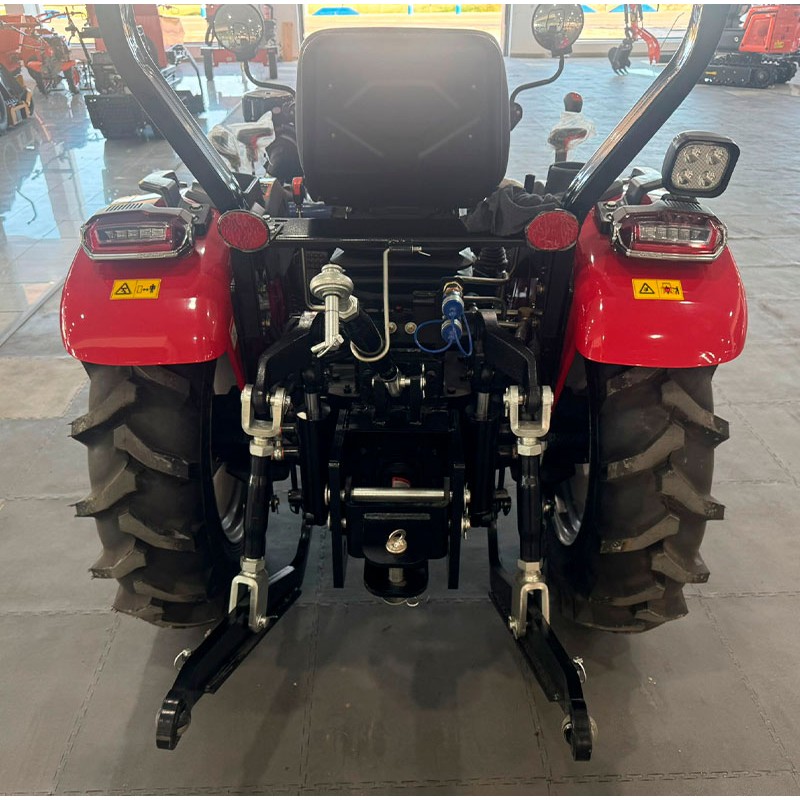

The 8 forward and 2 reverse synchronized gearbox allows you to always choose the right speed and reach up to 26.8 km/h in travel. The PTO operates at 540 and 760 for sprayers, mulchers, mowers and cultivators, among others. The hydraulic system delivers 36 L min with single position adjustment lift and two rear groups with quick coupling to connect implements with agility.

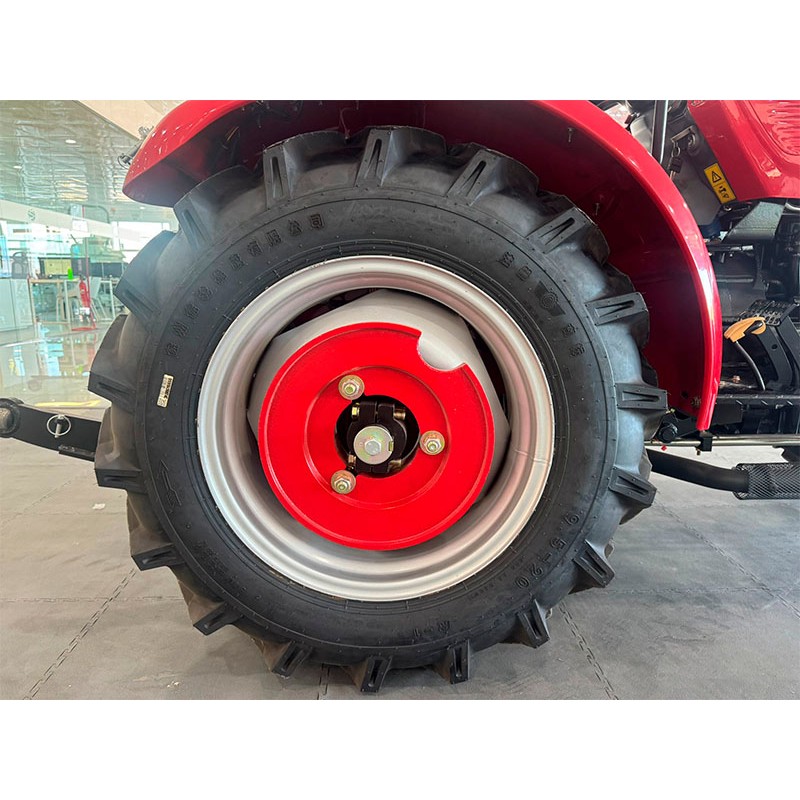

Tires 6.00 14 at the front and 9.5 20 at the rear balance traction and ground clearance. Overall length 3.10 m and stable wheelbase for working with mounted implements in safety.
A robust and very maneuverable fruit tractor that combines compact size with large capacities for light tillage treatments and on-farm transport.
Engine | |
---|---|
Model | YN Stage III |

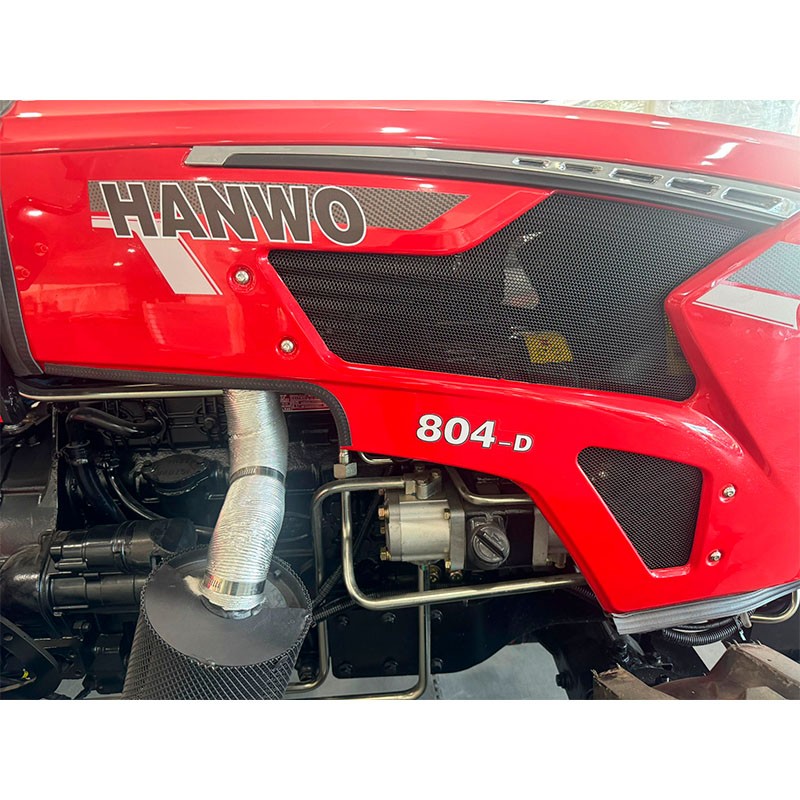

Type | Vertical, water-cooled, 4-stroke |
Rated/max. power | 58.8 Kw / 80 hp |
Speed R.P.M. rated/max. | 2400 rpm |
Fuel tank | 35L |
Transmission | |
Clutch | Dry friction, dual stage |
Front tires | 6.00-14 |
Rear tires | 9.5-24 |
Steering | Hydraulic |
Transmission | Gears8 in front and 2 in rear |
Hydraulic flow | 36 L/m |
Hydraulic control system | Semi-split. Single position adjustment linkage |
Rear control | Two groups, hydraulic quick hitch |
PTO power | 540/760 |
Drive | 4x4 (4WD) |
Maximum speed | 1.8 - 26.81 Km/h |
Dimensions | |
Overall length | 3100 mm |
Width | 1300 mm |
Height | 2190 mm (with anti-tipper) |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
