Front shovel for compact tractors Hanwo
- Front shovel for tractors Hanwo
€5,232.51 VAT incl.

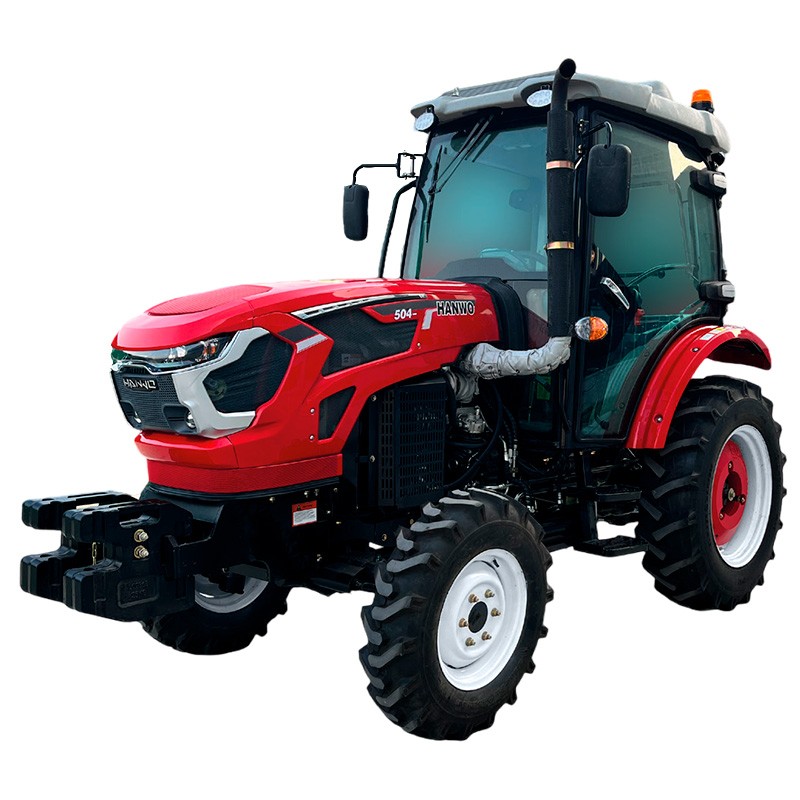

The Hanwo 504 50 HP Tractor with cab is designed to work long hours in comfort and safety, thanks to an enclosed cab that makes the difference in day-to-day operations. This cab is equipped with air conditioning and heating, offers great visibility when maneuvering and working with implements, and provides noise insulation that reduces operator fatigue. In addition, the cab protects against dust and extreme conditions, which is key in long campaigns and in summer or winter work.
Mechanically, the Tractor Hanwo 504 is equipped with a LAIDONG Stage II engine with injection pump and 4 cylinders, with a maximum rated power of 36.8 kW and 55 hp at 2400 rpm. The fuel tank is 50 L, a practical capacity for full days without having to refuel every now and then. The 4WD traction improves grip in loose soil and on slopes, and allows safer work on the farm and in the field.
The transmission of the Tractor Hanwo 504 is gears with 8 forward and 2 reverse speeds, a useful combination to adapt the pace to the implement and the terrain. It incorporates dual-stage dry friction clutch, hydraulic steering and single position adjustment linkage for more direct implement control. The PTO offers 540 and 1000 rpm, and top speed is between 2.9 and 32.7 km/h, giving a wide range for work and travel.
It can be equipped with 12.4 24 front tires and 16.9 34 or 18.4 30 rear tires, configurations that help adjust the tread according to the type of work. It is a balanced tractor for those who are looking for a 50 HP with a real cab, air conditioning and protection to work comfortably in any season.
| Engine | |
| Power | 50 HP |
| Model | LAIDONG Stage II |
| Cylinders | 4 |
| Supercharging (turbo) | No |
| Cooling | Water-cooled |
| Type | Injection pump |
| Injection | Direct |
| Nominal / maximum power | 36.8 kW / 50 HP |
| Rated / maximum RPM | 2400 rpm |
| Fuel tank | 50 L |
| Dimensions and weights | |
| Overall length | 3550 mm |
| Width | 1620 mm |
| Weight | 2250 kg |
| Transmission | |
| Clutch | Dual stage dry friction |
| Front Tires | 12.4-24/16.9-34 |
| Rear Tires | 12.4-24/18.4-30 |
| Steering | Hydraulic |
| Transmission | 8 gears front and 2 rear |
| Hydraulic control system | Single position adjustment linkage |
| PTO power | 540/1000 |
| Drive | 4x4 (4WD) |
| Max. speed | 2.9~32.7 Km/h |
| Front loader OPTIONAL | |
| Lifting capacity | 600 Kg |
| Max. height | 2200 mm |
| Maximum digging depth | 140 mm |
| Bucket capacity | 0,4 m3 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
