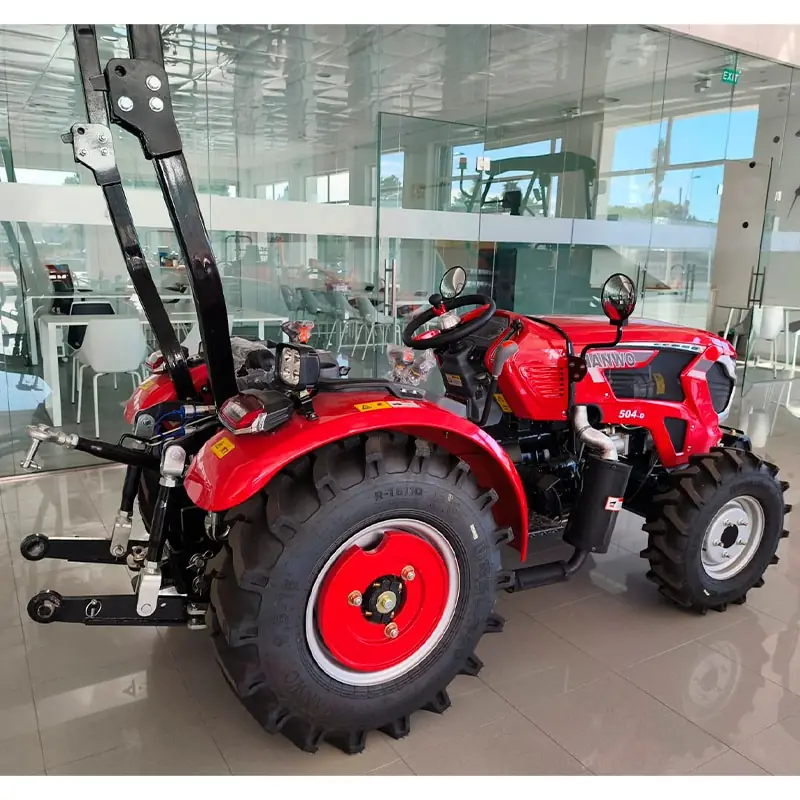

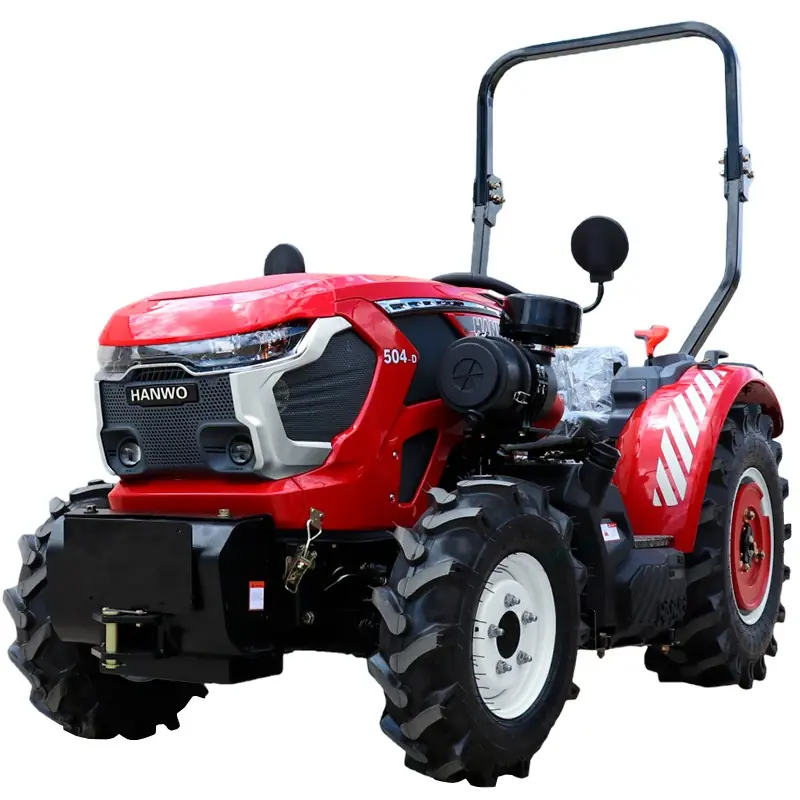

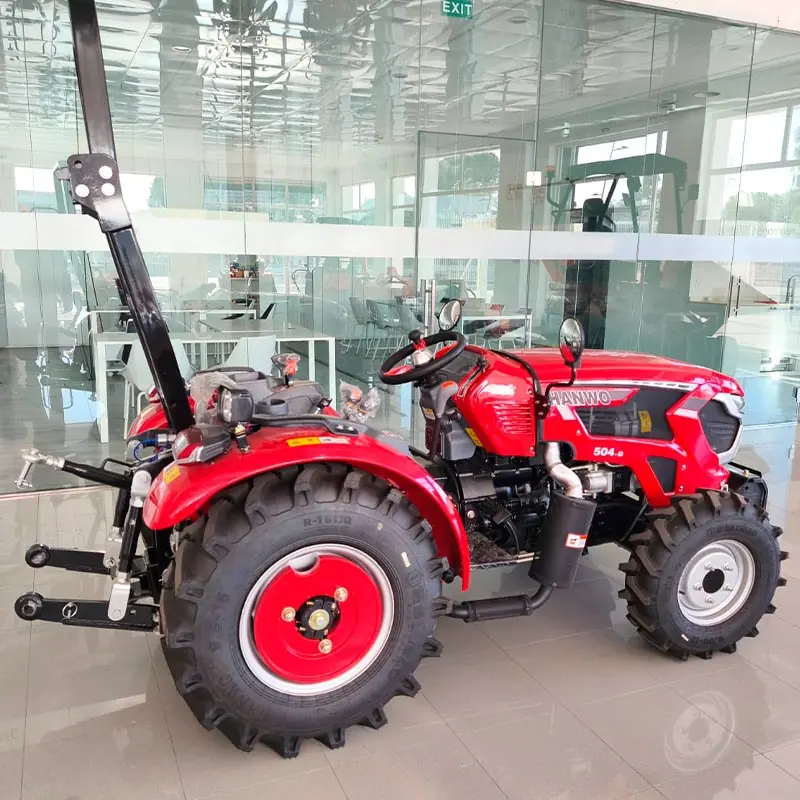

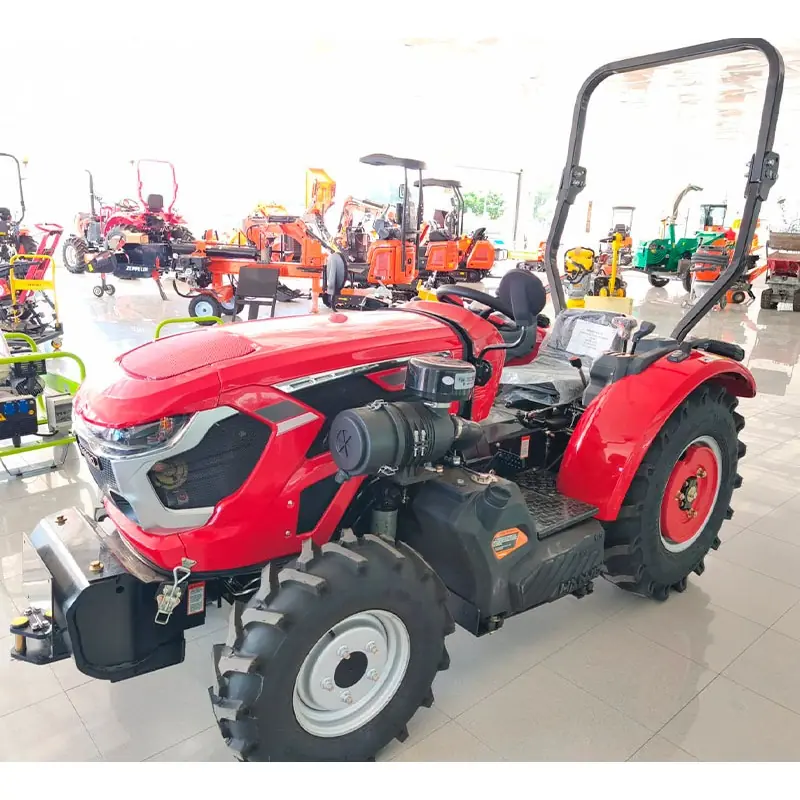

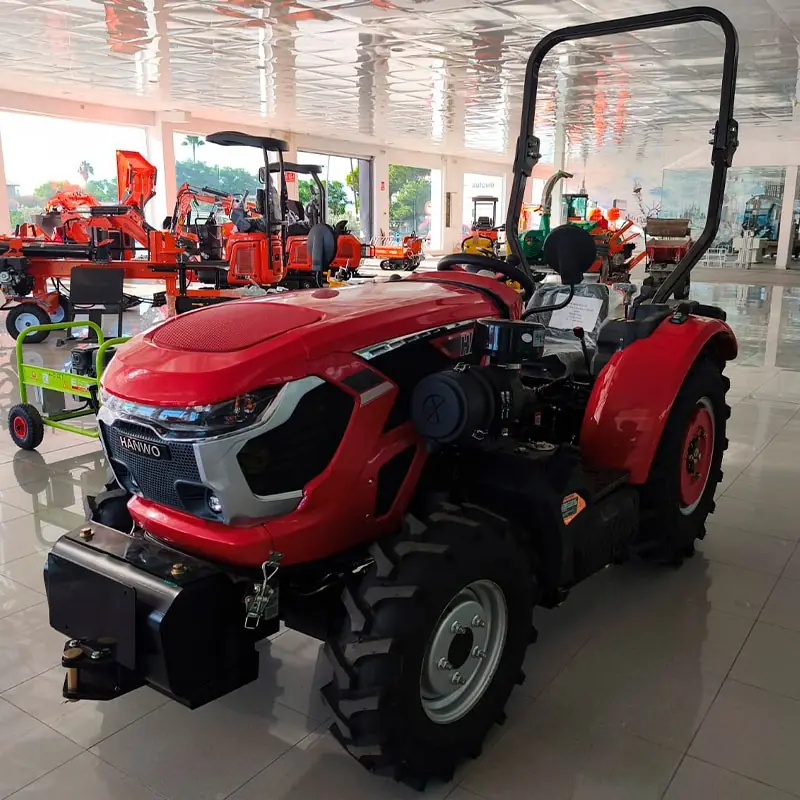

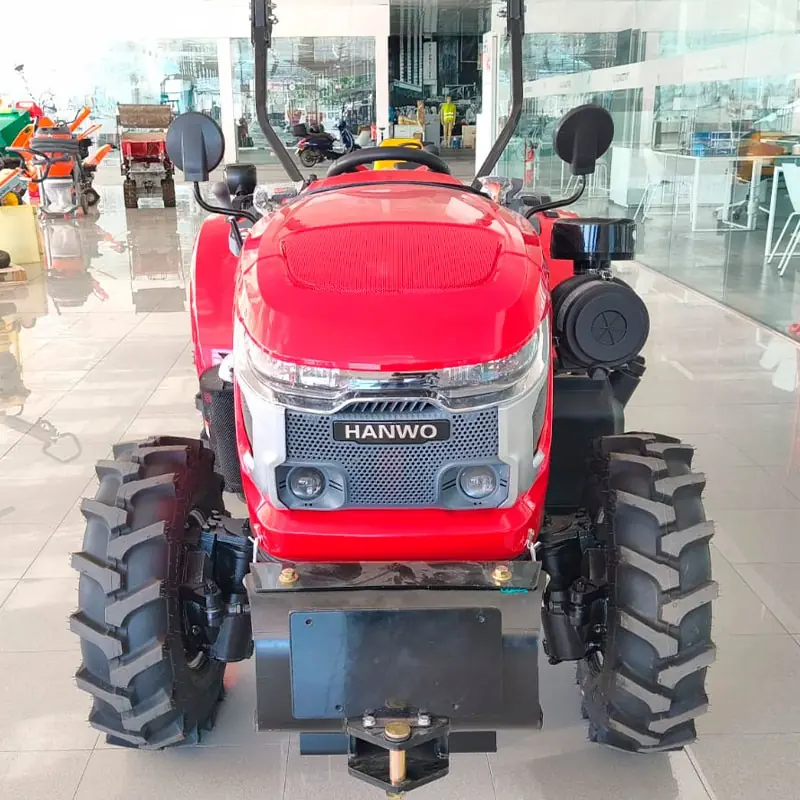

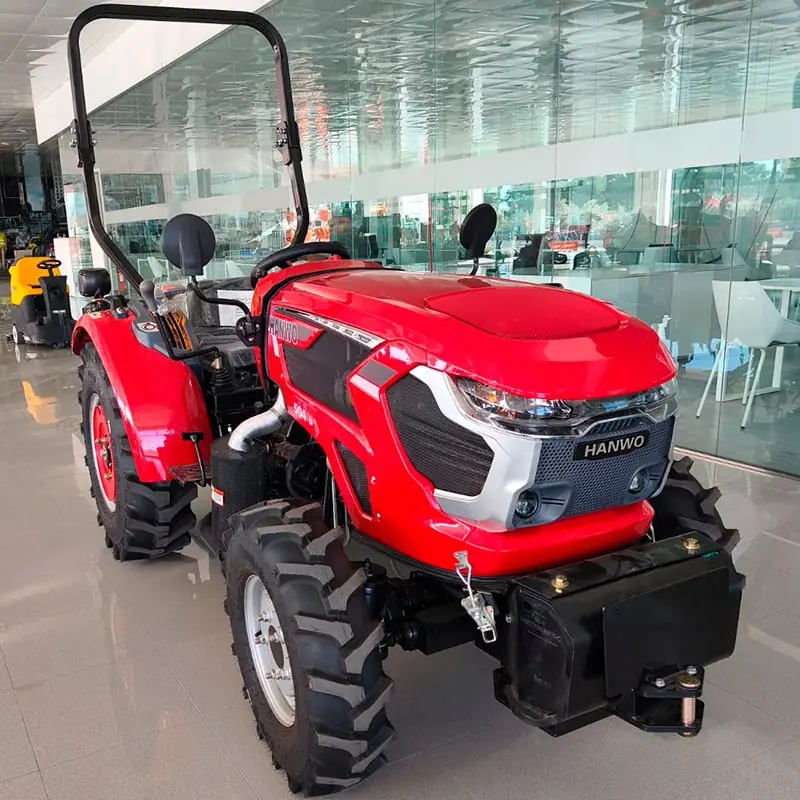

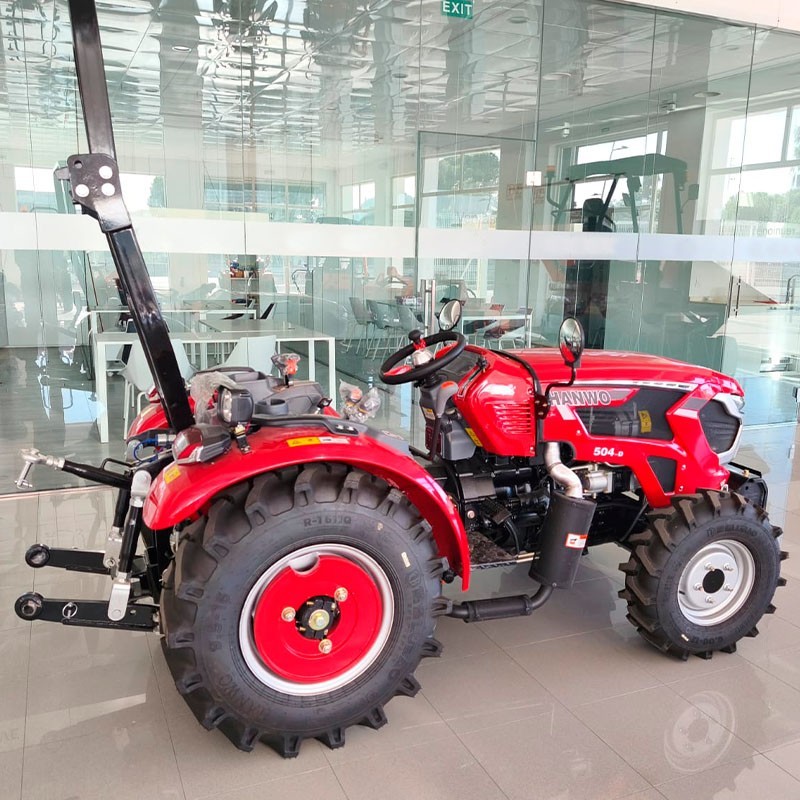

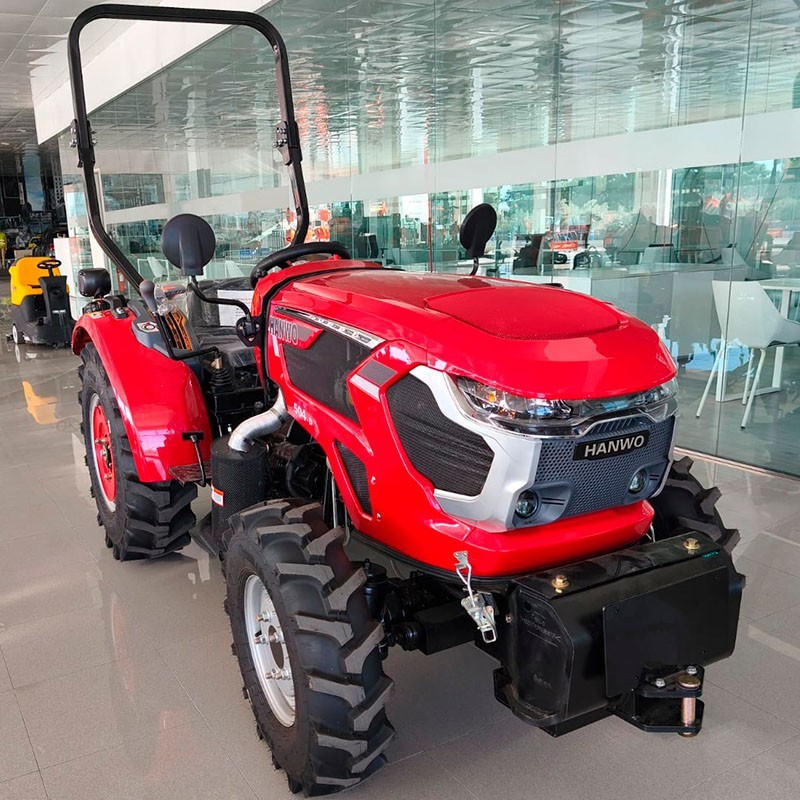

Fruit tractor Hanwo 504D is designed to work between rows with precision. Its overall width is 1.23 m and the height with roll bar reaches 2.15 m, so it moves easily in vineyards and orchards. The 1,436 kg weight provides stability with implements and the integral power steering reduces operator effort in continuous maneuvers.
The YN4H055-30VE four-stroke water-cooled engine delivers 36.8 kW at 2,400 rpm. The 40-liter tank offers good autonomy in treatments and seasonal work, maintaining constant performance even on slopes or wet soils.
The synchronized gearbox has 8 forward and 2 reverse gears to always choose the right speed. It has a two-stage double dry clutch for smooth and precise PTO engagement. The PTO offers two speeds, 540 and 760, for sprayers, mulchers, mowers and cultivators with no power loss.

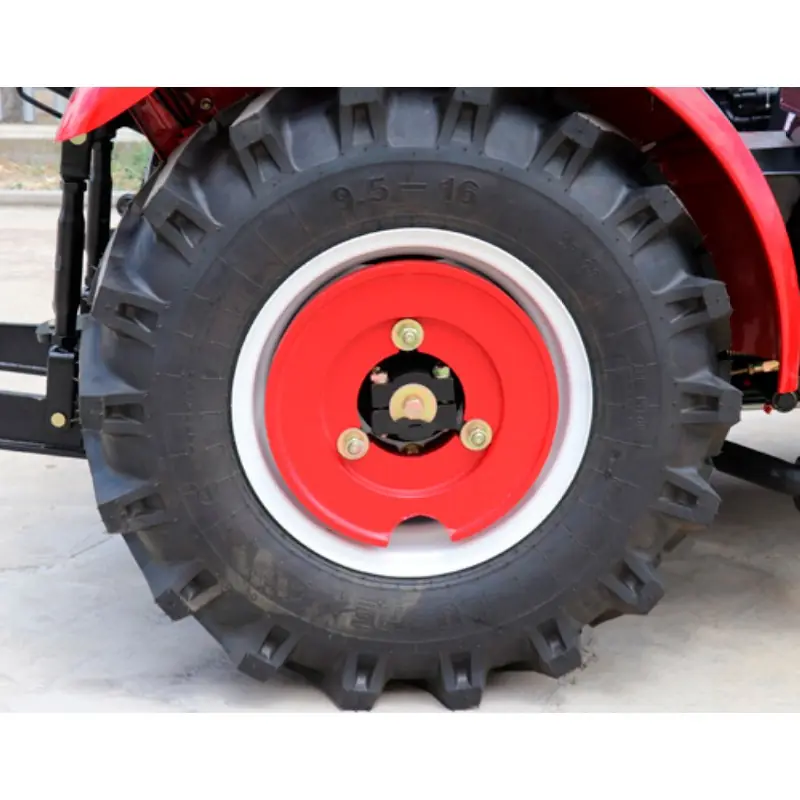

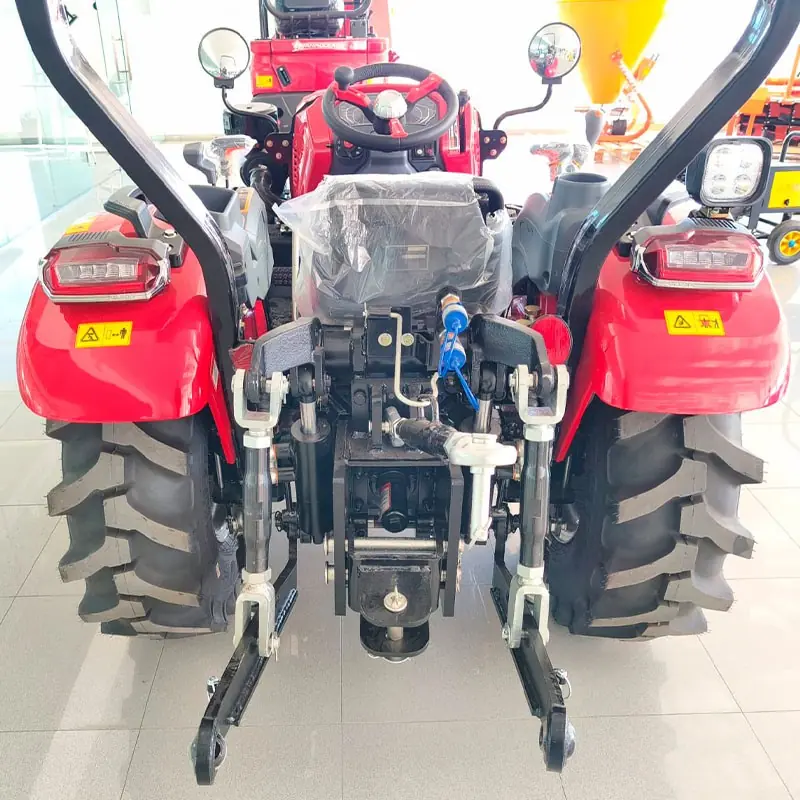

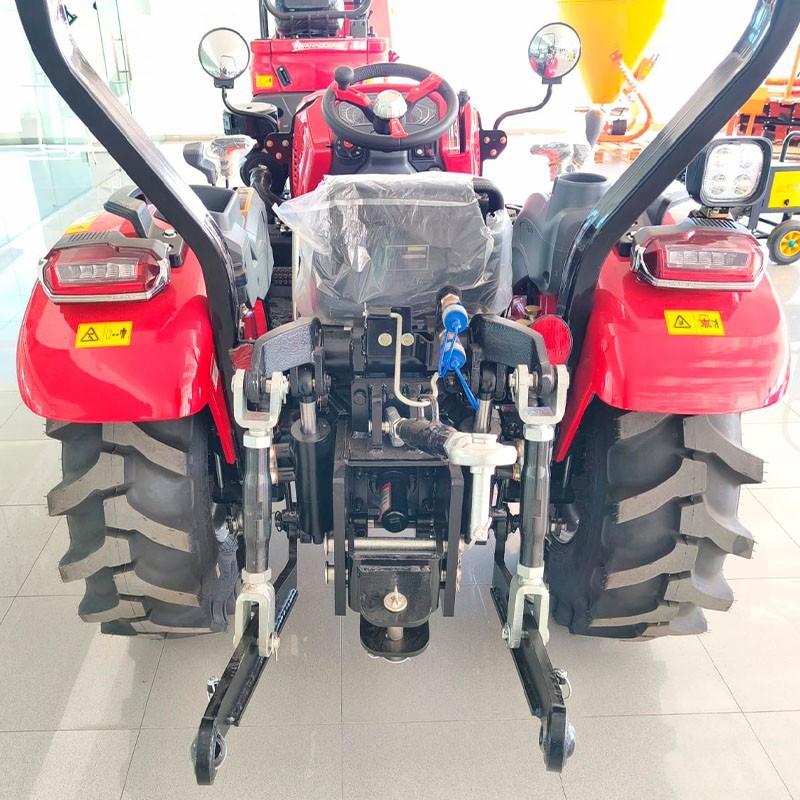

The hydraulic system provides 36 liters per minute and the rear hitch is category I, compatible with most fruit implements. Four-wheel drive and 6.00-14 front and 9.5-24 rear tires improve grip and reduce soil compaction. Ground clearance of 280 mm and a wheelbase of 1,500 mm favor maneuverability in narrow streets.
It is a compact, comfortable and reliable machine for vineyards and orchards that combines small dimensions with real useful power. If you are looking for a fruit tractor with good hydraulic flow, double PTO speed and synchronized transmission, the Hanwo 504D is a balanced choice for treatments, light tillage and on-farm transport.
Engine | |
---|---|
Model | YN4H055-30VE |
Type | Vertical, water-cooled, 4-stroke |
Rated/max. power | 36.8 kW / 50 HP |
Speed R.P.M. rated/max. | 2400 rpm |
Fuel tank | 40 L |
Transmission | |
Clutch | Dry friction, double stage |
Front tires | 6.00-14 |
Rear tires | 9.5-24 |
Steering | Hydraulic |
Transmission | Gears8 forward and 2 reverse + synchromesh shift |
Hydraulic flow rate | 36 L/m |
Hydraulic control system | Common and optional forced lifting and lowering system |
Rear control | Rear hitch category I |
PTO power | 540/760 |
Drive | 4x4 (4WD) |
Maximum speed | 1.99 ~ 28.37 km/h |
Dimensions | |
Overall length | 2860 mm |
Width | 1230 mm |
Height | 2150 mm (with anti-tipper) |
Wheel base | 1500 mm |
Minimum ground clearance | 280 mm |
Front tread | 900 mm |
Rear belt | 950 mm |
Weight | 1436 Kg |
IMPORTANT NOTICE |
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement, unless there is a pending examination. |
