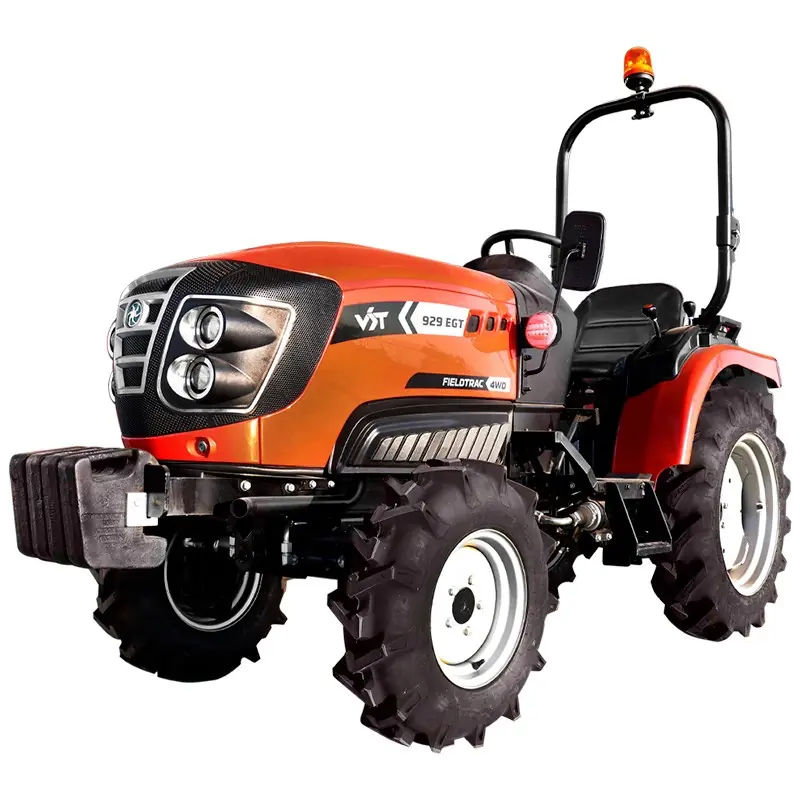

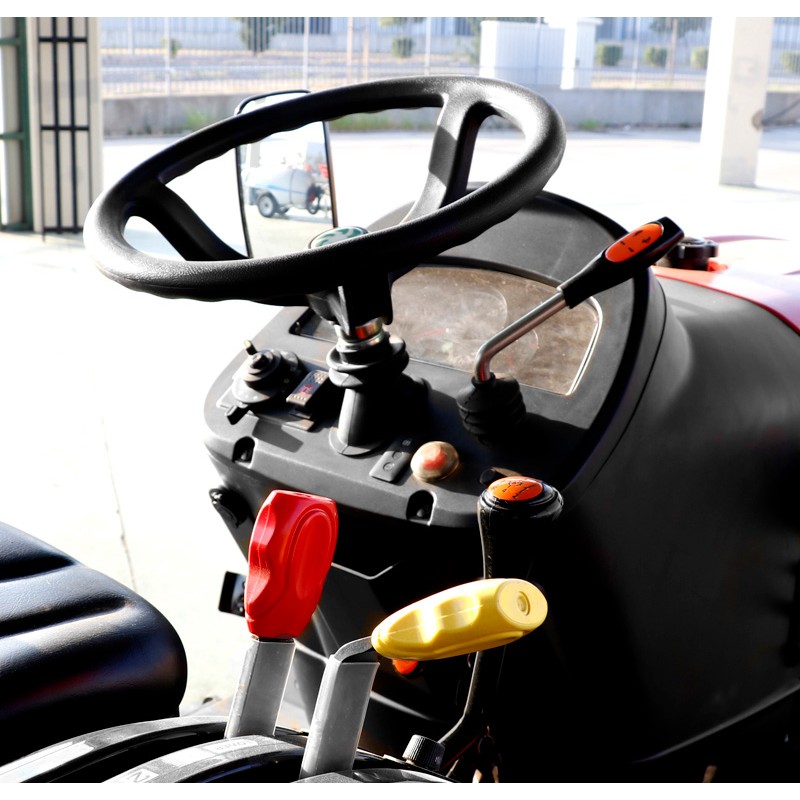

Compact, agiletractor designed to work long hours with low fuel consumption. The Fieldtrac 929 EGT is equipped with a 4-cylinder stage 5 diesel engine that pushes smoothly and reduces smoke and noise. The power steering and adjustable seat make every day more comfortable, even on farms with a lot of maneuvering.

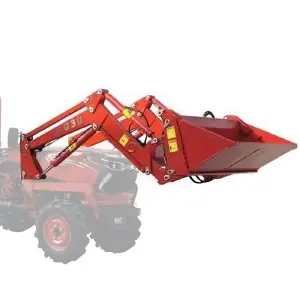

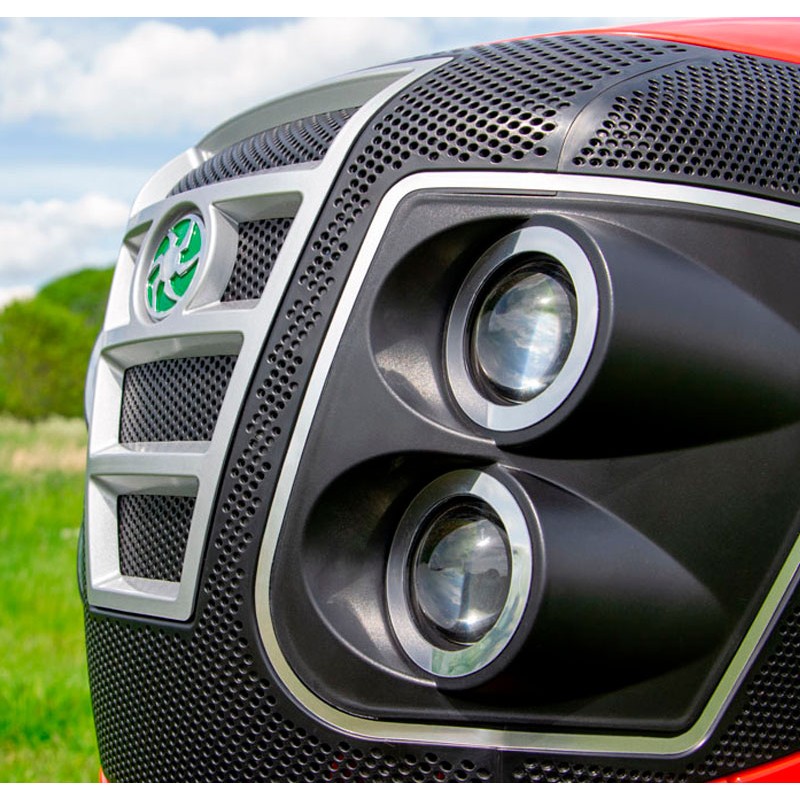

The version with BKT radial tires gains traction and stability without punishing the terrain. The heavy-duty front axle is loader-ready and the oil-immersed brake provides more control on slopes and with a trailer. Dual projector headlights enhance visibility for dawn or dusk work.
The 8+2 transmission is versatile and covers most jobs. Intelligent ADDC hydraulics manage implements with precision and offer high lift capacity for its size. With Cat I PTO and three-point hitch, it is a multi-purpose tool for orchard, vineyard, livestock and municipal maintenance.
| Engine | |
| Description | 4-stroke, naturally aspirated, water-cooled, high-torque diesel engine |
| No. of cylinders | 4 |
| Engine power | 24 hp |
| PTO power | 20 hp |
| Rated RPM | 2700 rpm |
| Bore x stroke | 73 × 78 mm |
| Displacement | 1306 cc |
| Air cleaner | Double dry type filter |
| Fuel tank capacity | 24 L |
| Transmission | |
| Clutch | Single dry |
| Gearbox type | Synchronized mechanical |
| No. of gears | 8F + 2R |
| Gearshift position | Side shift |
| Speed range (km/h) | Forward 1.25-18.47 / Reverse 1.60-7.05 |
| Differential lock (rear) | Standard |
| Brake type | Oil immersed brake (OIB) |
| Transmission type | 4WD |
| PTO (rpm) | 540 y 760 |
| Electricity | |
| Battery | 12 V, 70 Ah (700 CCA) |
| Headlights | 4 projector lamps |
| Starter system | Starter motor 12 V, 2 kW |
| Alternator | 12 V, 40 A |
| Hydraulic system | |
| Control type | ADDC |
| Pump capacity | 12.9 L/min |
| Max. lifting capacity | 750 kg |
| 3-point hitch | Category I N |
| Steering | Power steering |
| Rear valve | 2-way with quick coupling |
| More details | |
| Overall dimensions (L × W × H) | 2910 × 1150 × 2075 mm |
| Ground clearance | 240 mm |
| Turning radius | 2,1 m |
| Weight | 860 kg |
| Wheelbase | 1520 mm |
| Width of wheels | Front 1082/924 mm - Rear 1062/862 mm |
| Front weight / ballast | 60 kg (standard equipment) |
| Rear wheel ballast | 60 kg (optional) |
| Driver's seat | Adjustable seat |
| Operating environment | 10 °C to over 45 °C |
| Cell phone charging point | Yes |
| Muffler (under hood) | Yes |
| Battery cut-off switch | Yes |
| ROPS | Yes |
| Drawbar | Yes (optional) |
| Hitch assembly | Yes |
| Hood lock with special key | Yes |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
