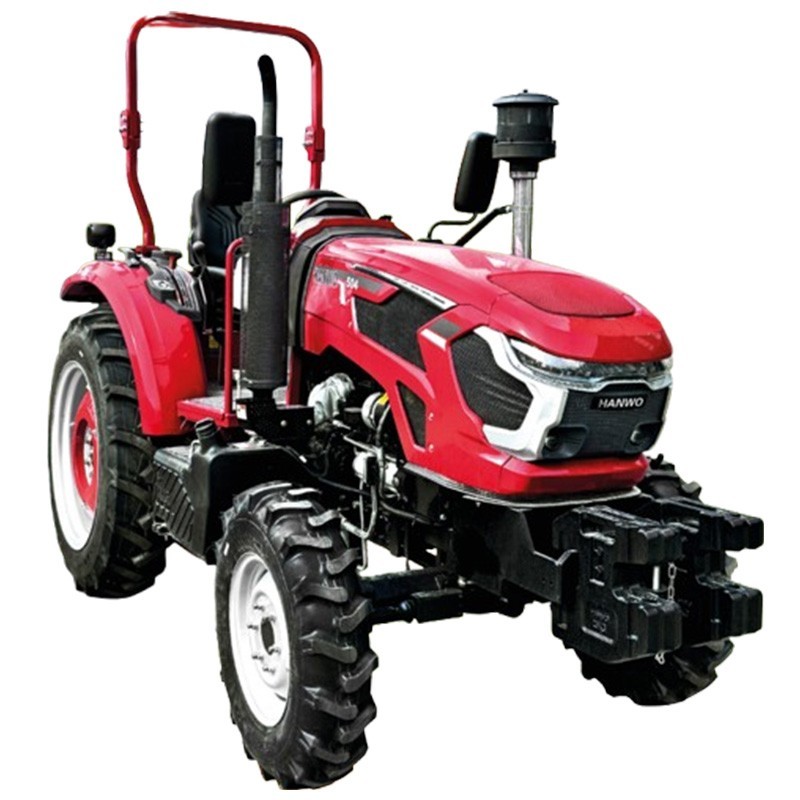

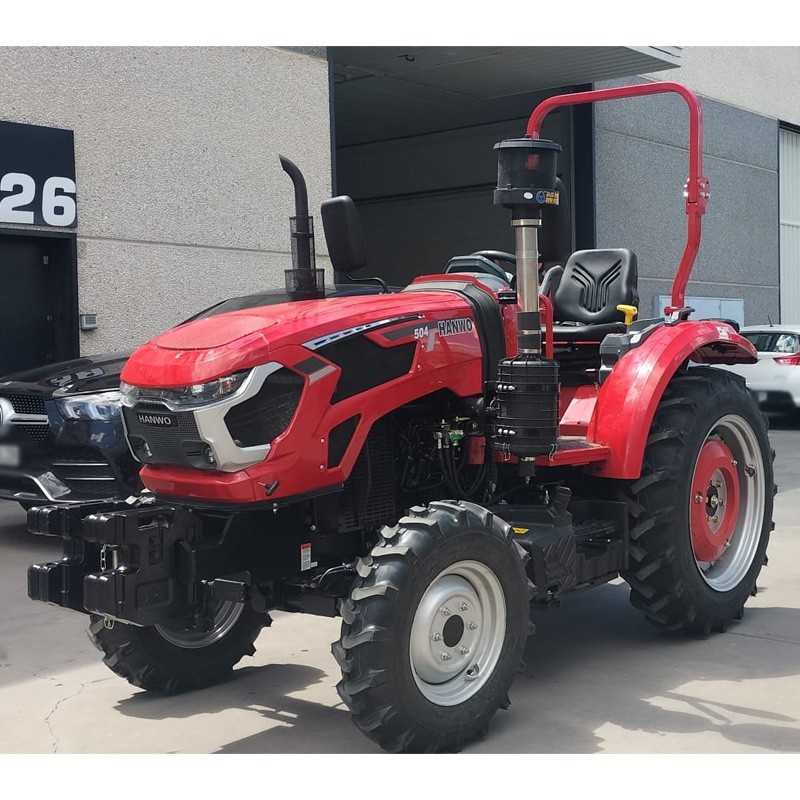

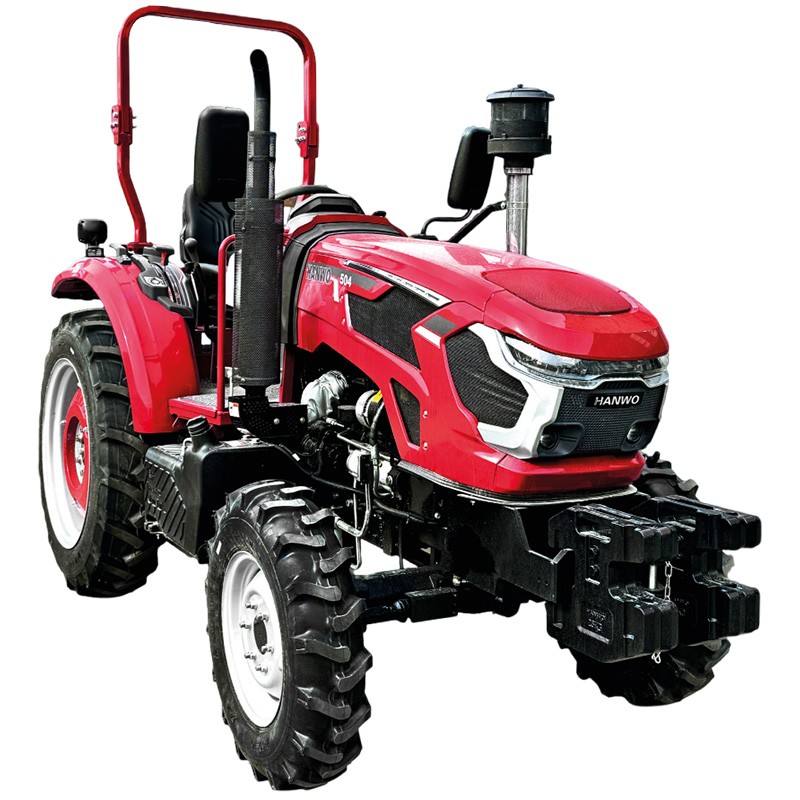

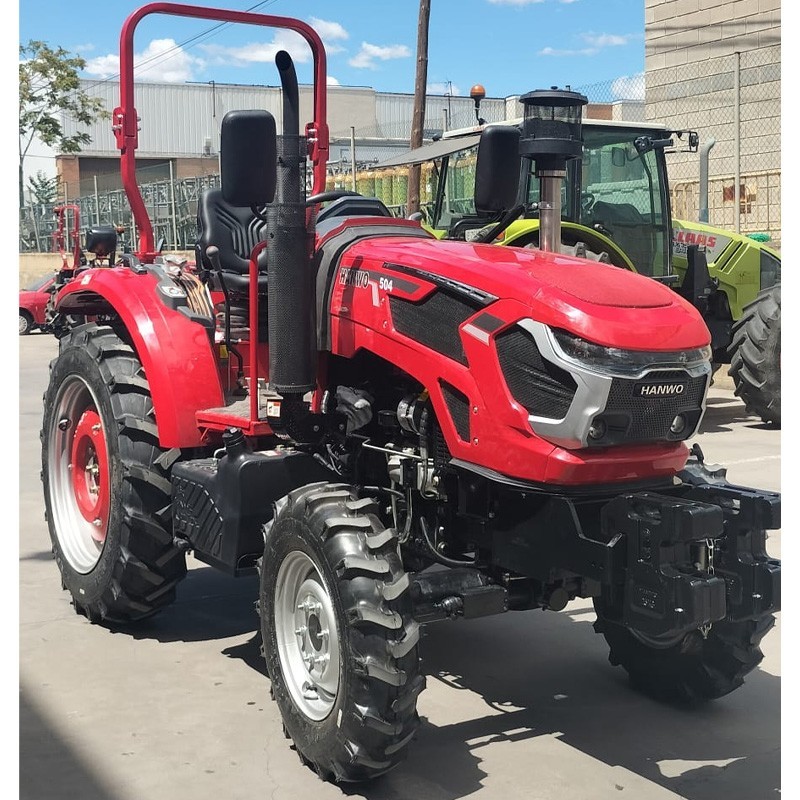

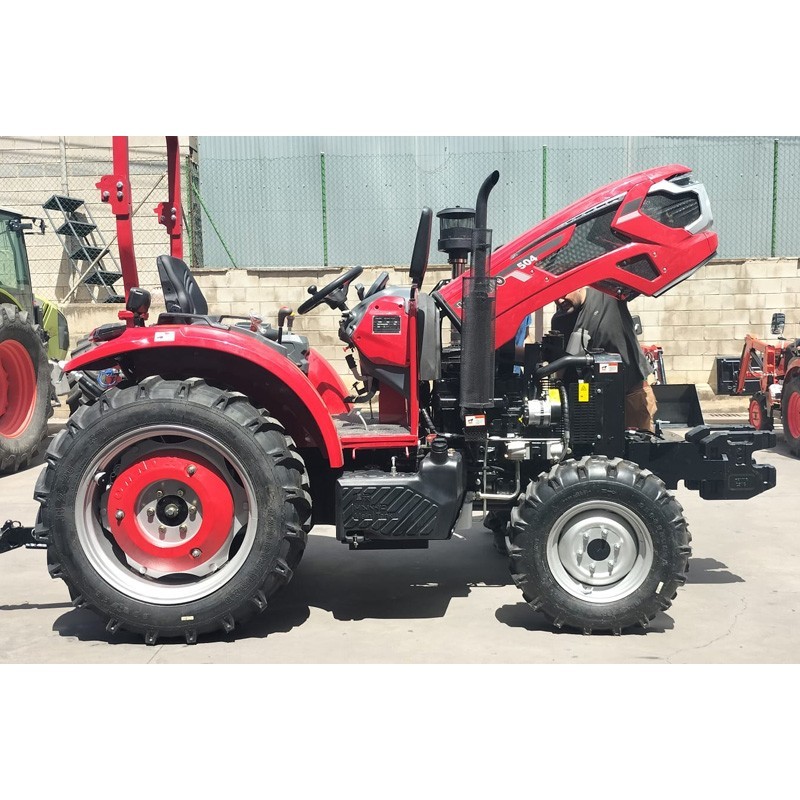

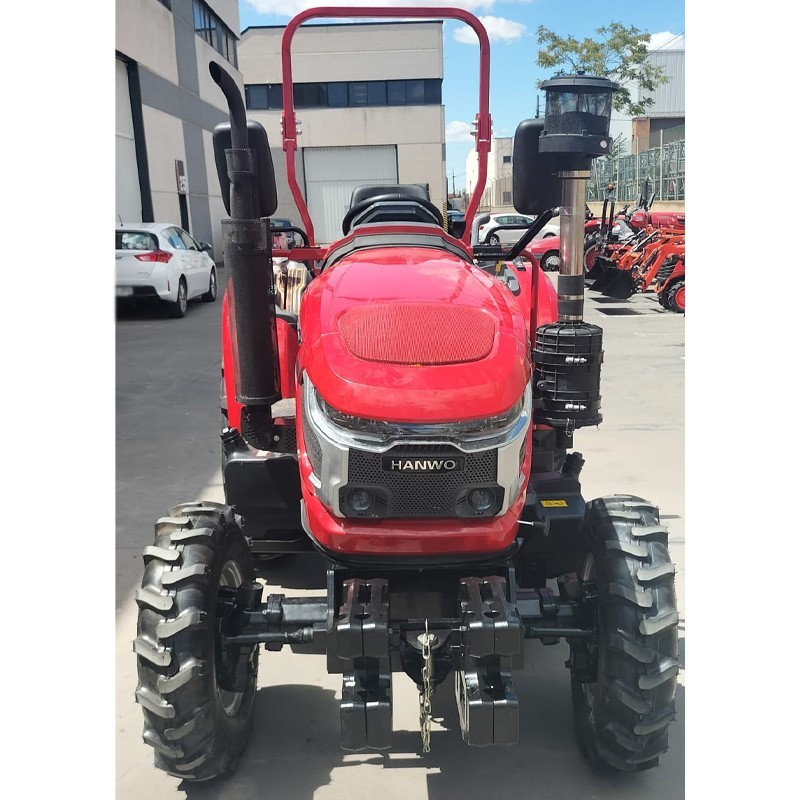

Hanwo 504 is a 50 HP 4WD tractor designed for multipurpose work on farms, orchards and mixed farms, combining compact size and good traction capacity. With dimensions of 3,550 mm long, 1,620 mm wide and 2,480 mm high (with anti-tipper), it moves easily in narrow areas without sacrificing stability and poise in daily work.
It is powered by a LAIDONG Stage II 4-cylinder engine with injection pump, which delivers a nominal/maximum power of 36.8 kW / 50 HP at 2400 rpm. Its 50 L tank allows it to tackle full days with fewer stops, maintaining regular and reliable operation in continuous work.

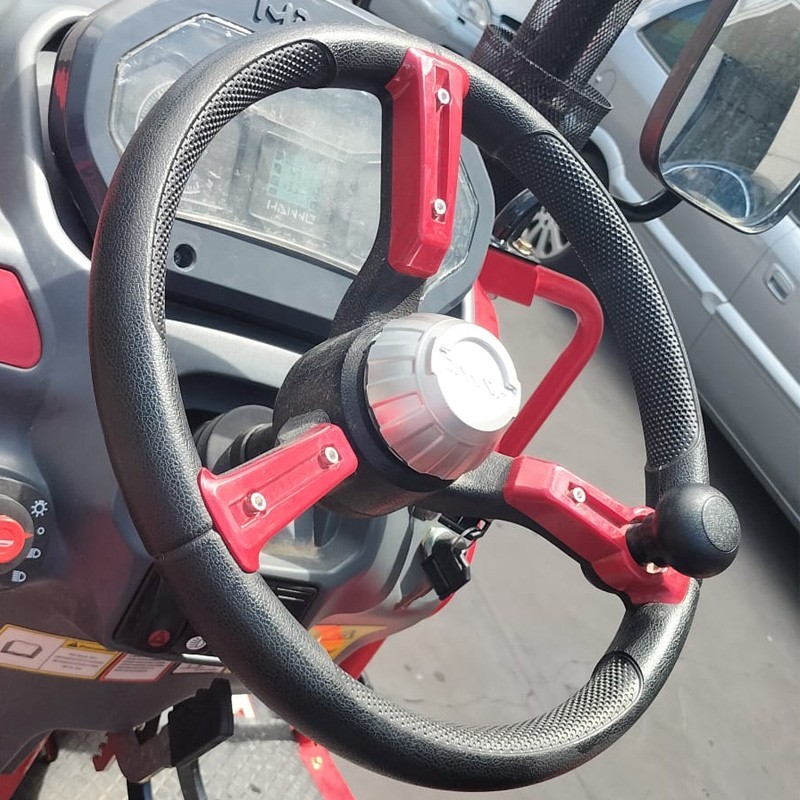

The transmission offers 8 forward and 2 reverse gears , managed by a dual-stage dry clutch, ideal for precise control both in forward and PTO operation. Hydraulic steering improves maneuverability and reduces steering effort, especially with implements or in repeated maneuvers.

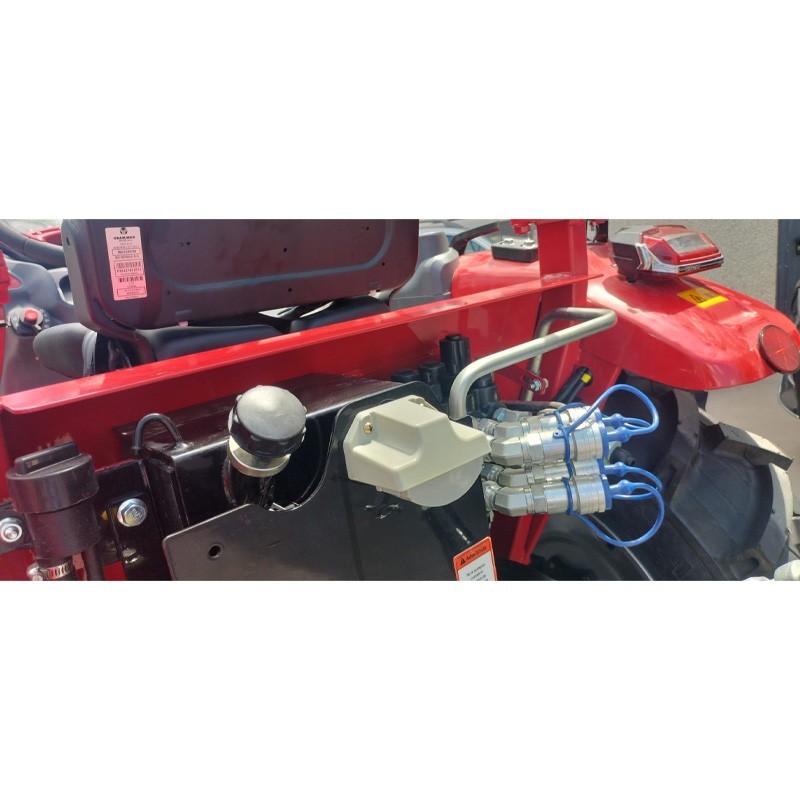

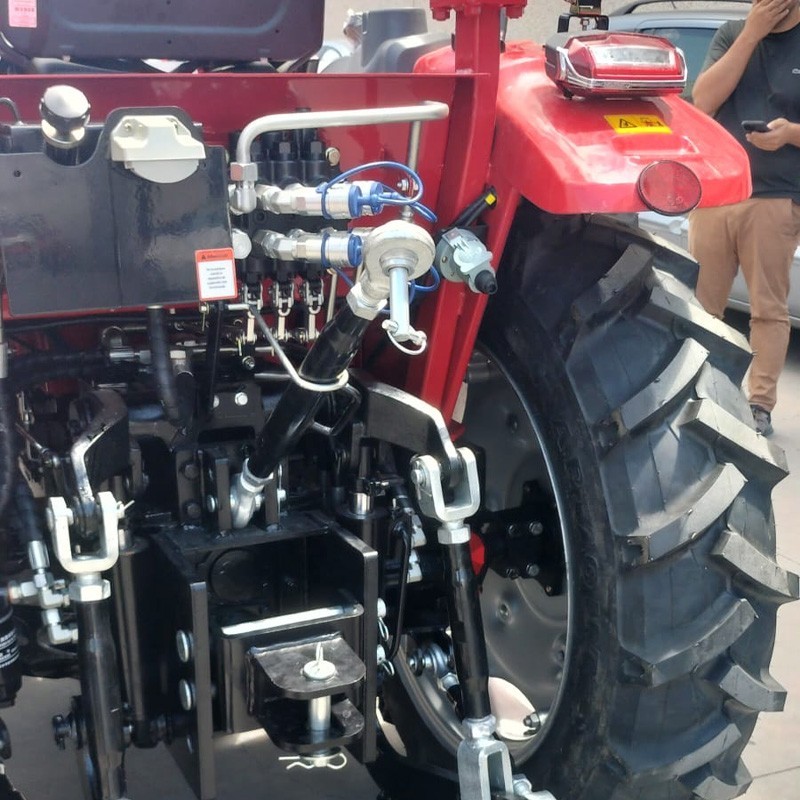

In the hydraulic section, it incorporates a single position adjustment linkage, practical for regular implements and maintenance tasks. The 540/1000 rpm PTO increases compatibility with machinery, and the 4WD traction helps to take advantage of the power in loose or sloping terrain. It can be equipped with tires in different sizes as needed, with options such as 12.4-24, 16.9-34, 18.4-30, configuring the compromise between traction, flotation and use.
It reaches a maximum speed in the range of 2.9 to 32.7 km/h, covering from slow work to travel between plots. The cab and loading shovel are optional, allowing the tractor to be adapted to a more basic approach or to a more intensive and comfortable use depending on the type of work.
| Engine | |
| Power | 50 HP |
| Model | LAIDONG Stage II |
| Cylinders | 4 |
| Supercharging (turbo) | No |
| Cooling | Water-cooled |
| Type | Injection pump |
| Injection | Direct |
| Nominal / maximum power | 36.8 kW / 50 HP |
| Rated / maximum RPM | 2400 rpm |
| Fuel tank | 50 L |
| Dimensions and weights | |
| Overall length | 3550 mm |
| Width | 1620 mm |
| Height | 2480 mm (with anti-tipper) |
| Weight | - |
| Transmission | |
| Clutch | Dual stage dry friction |
| Front Tires | 12.4-24/16.9-34 |
| Rear Tires | 12.4-24/18.4-30 |
| Steering | Hydraulic |
| Hydraulic flow | - |
| Transmission | 8 gears front and 2 rear |
| Hydraulic control system | Single position adjusting linkage |
| PTO power | 540/1000 |
| Drive | 4x4 (4WD) |
| Max. speed | 2.9~32.7 Km/h |
| Front loader OPTIONAL | |
| Lifting capacity | 600 Kg |
| Max. height | 2200 mm |
| Maximum digging depth | 140 mm |
| Bucket capacity | 0,4 m3 |
| OPTIONAL cab | |
| Air conditioning and heating | Yes |
| Noise insulation | Yes |

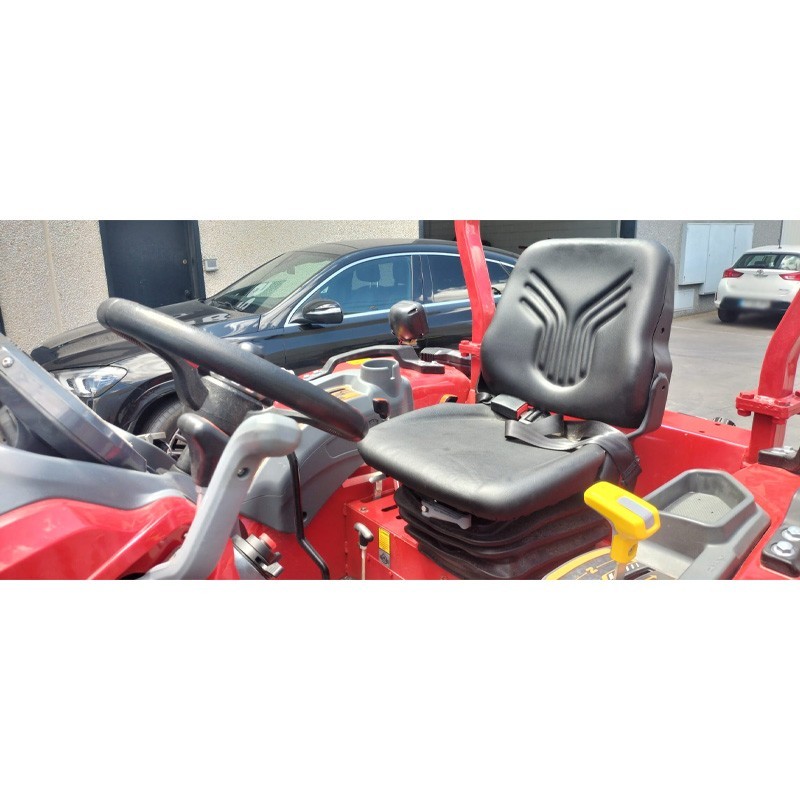

| Other features | - High visibility - Dust and extreme conditions protection - Quick hitch ball - Double hydraulic pump - Rear and front counterweight - 4 power take-offs - Grammer seat |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before starting up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
