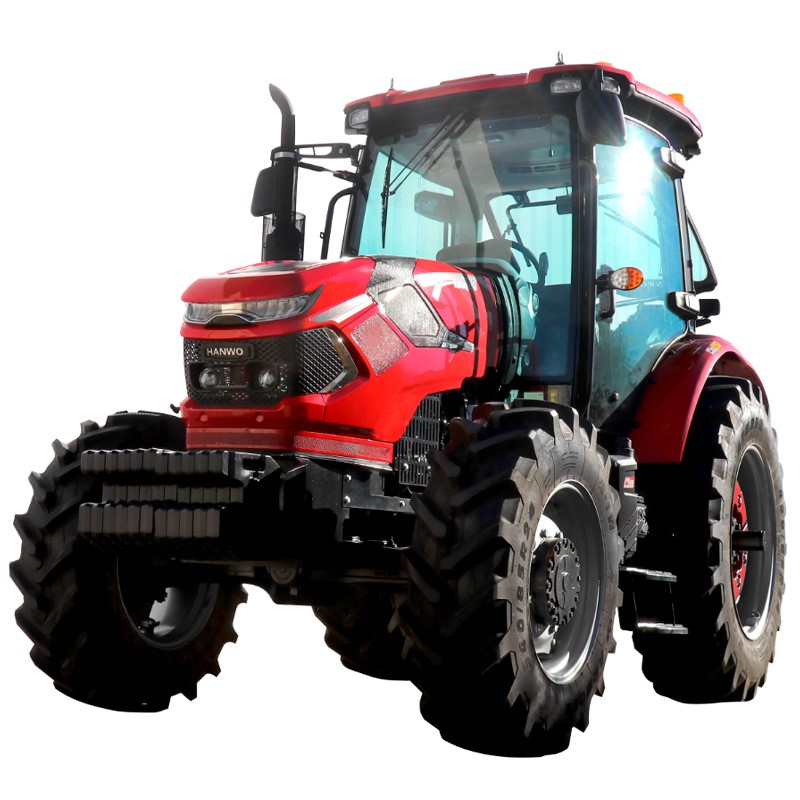

The agricultural tractor Hanwo 1104 with cab is a high power model designed for farms that need strength, comfort and capacity to work with demanding implements. The enclosed cab provides a much more comfortable environment for long days, with better protection against dust, noise and weather conditions, as well as very useful visibility for maneuvering and field work.
It is powered by a 4-cylinder, water-cooled, vertical YN Stage II engine with 92 kW and 110 hp at 2400 rpm. The 180 L fuel tank allows intensive workdays with fewer interruptions, an important advantage in continuous work. Its 4x4 4WD configuration improves traction and allows better use of the tractor's power in demanding terrain and with more demanding implements.
The Tractor Hanwo 1104 incorporates a dual-stage dry friction clutch, hydraulic steering and transmission of 16 gears forward and 8 reverse, a very practical combination to adjust the speed to each task.
It is also equipped with a semi-split hydraulic system with single position adjustment linkage, three-group rear control with hydraulic quick coupling and 540 and 1000 rpm PTO. Its dimensions are 4480 mm in length, 2050 mm in width and 2970 mm in height with cab, with a maximum speed of 1.58 to 33.69 km/h to adapt to both work and travel.
| Engine | ||
| Engine | YN Stage II | |
| Type | Vertical, water-cooled, 4 cylinders | |
| Rated / maximum power | 92 kW / 110 hp | |
| Rated / maximum speed | 2400 rpm | |
| Fuel tank | 180 L | |
| Dimensions | ||
| Overall length | 4480 mm | |
| Width | 2050 mm | |
| Height | 2970 mm (with cab) | |
| Transmission | ||
| Clutch | Dry friction, double stage | |
| Front tires | 12.4-24 / 16.9-34 | |
| Rear tires | 12.4-24 / 18.4-30 | |
| Steering | Hydraulic | |
| Transmission | 16 in front and 8 in rear | |
| Hydraulic control system | Semi-split, single position adjustment linkage | |
| Rear control | Three groups with hydraulic quick hitch | |
| PTO power | 540 / 1000 | |
| Drive | 4x4 (4WD) | |
| Maximum speed | 1.58 ~ 33.69 km/h | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
