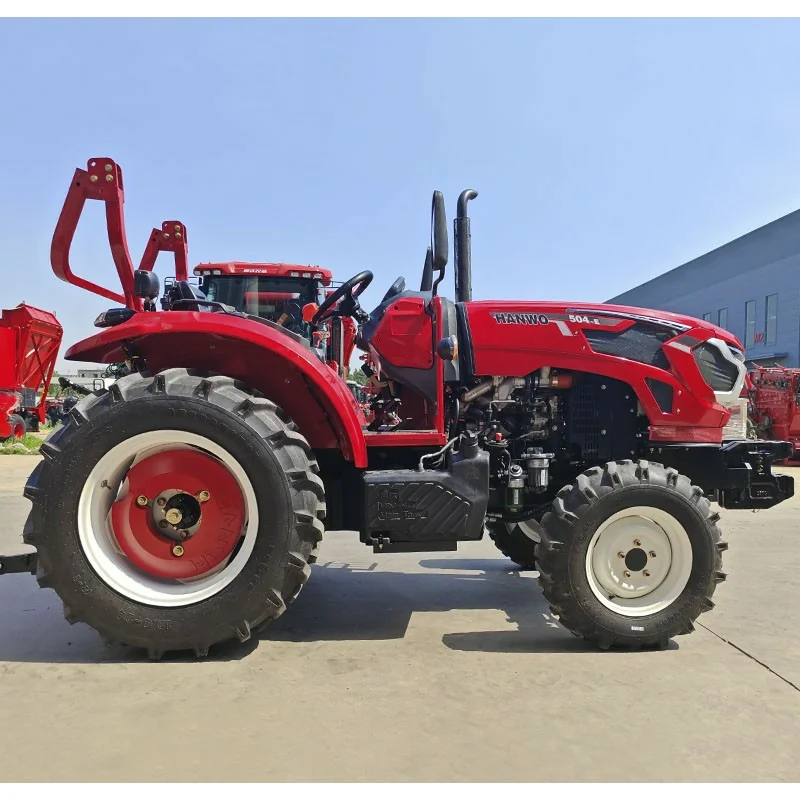

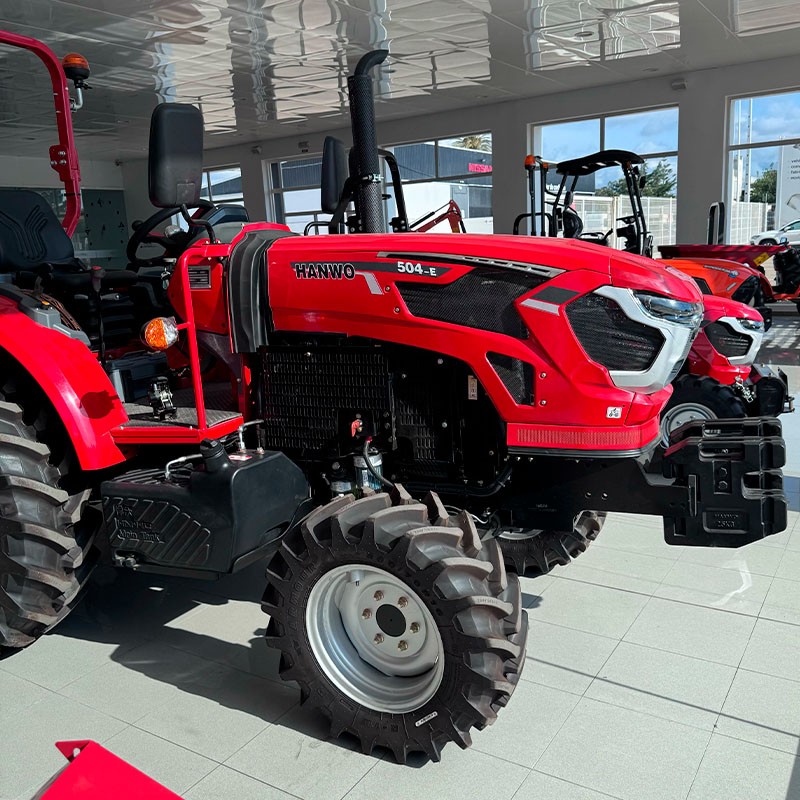

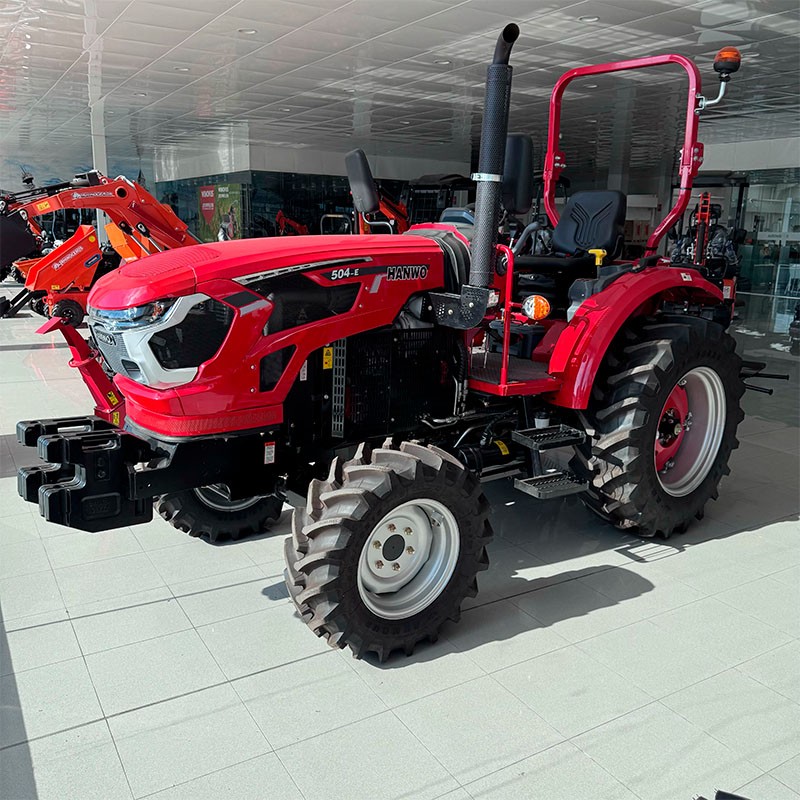

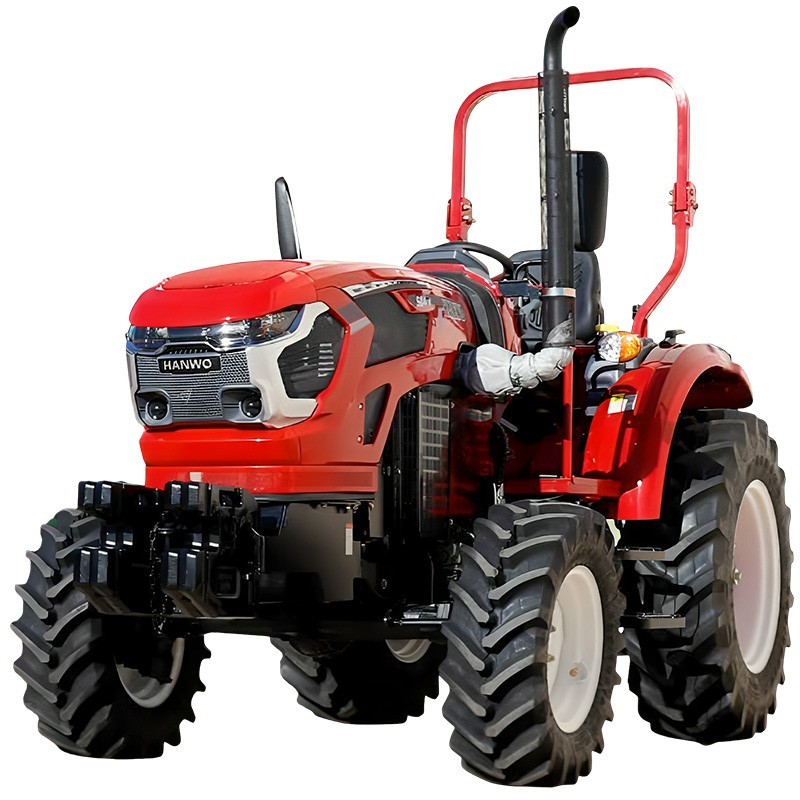

The Hanwo 504R 50 HP Tractor is a versatile and powerful machine, ideal for demanding agricultural work. Its 4-wheel drive and 8-wheel drive transmission gears front and 2 rear, with synchronized shifting, ensure efficient performance in all types of terrain.

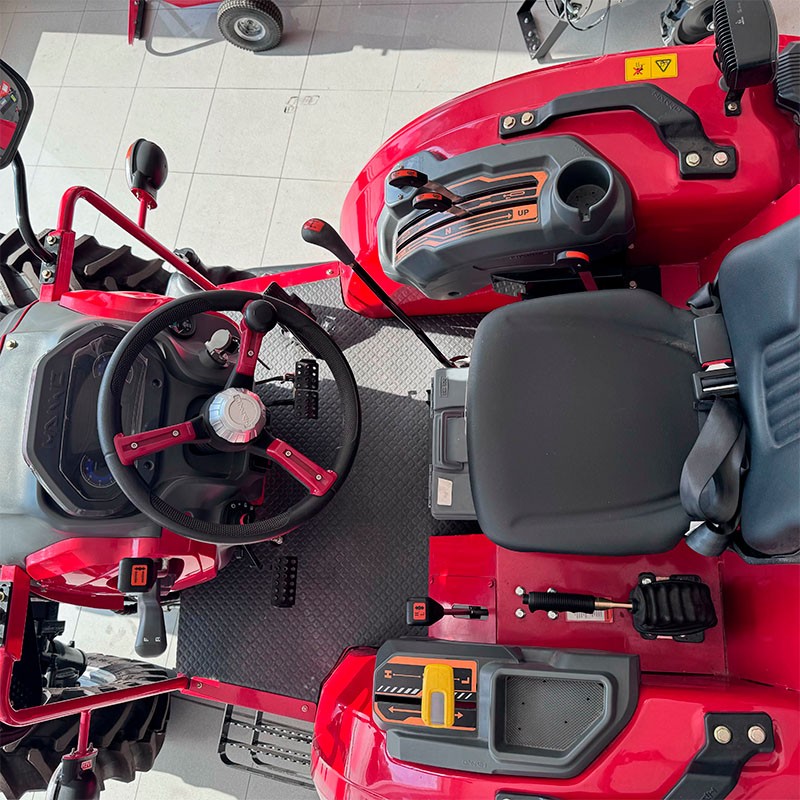

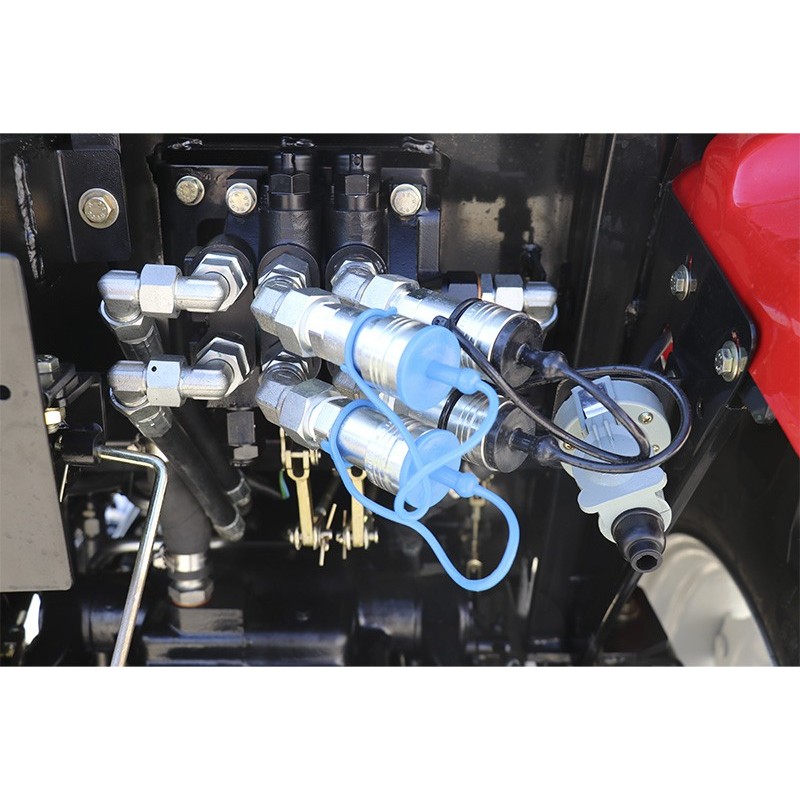

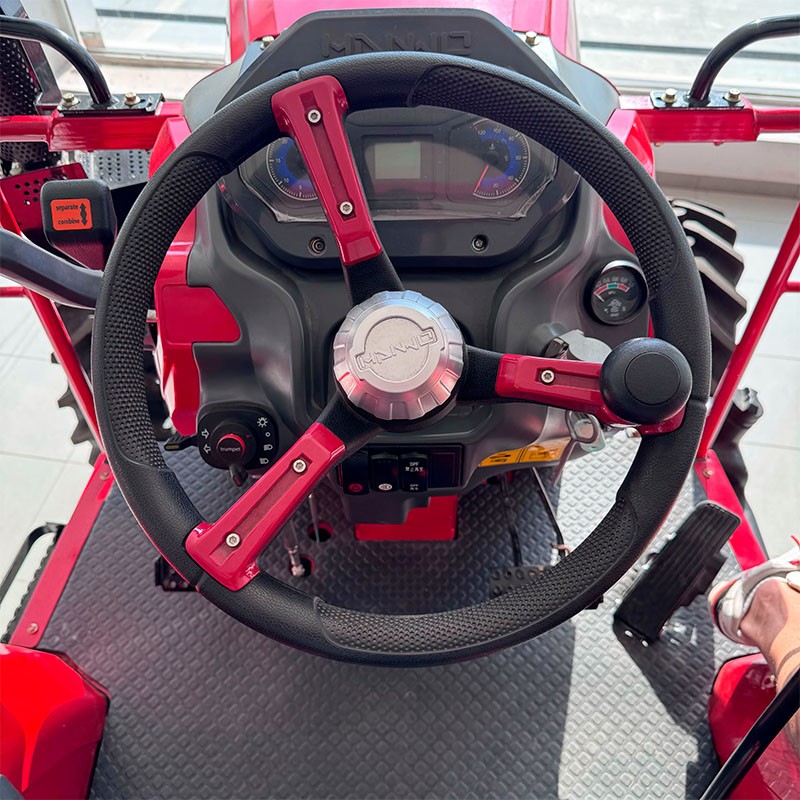

The hydraulic steering provides smooth and precise handling, reducing the operator's effort during long working days. Equipped with a 36 L/min hydraulic system and a category I rear hitch, this tractor allows the use of implements with great ease.
Its maximum speed of 28.37 km/h and minimum ground clearance of 280 mm make it ideal for agile travel and work requiring stability. With a compact design of 3600 mm in length and a weight of 1436 kg, it offers a perfect balance between strength and maneuverability.

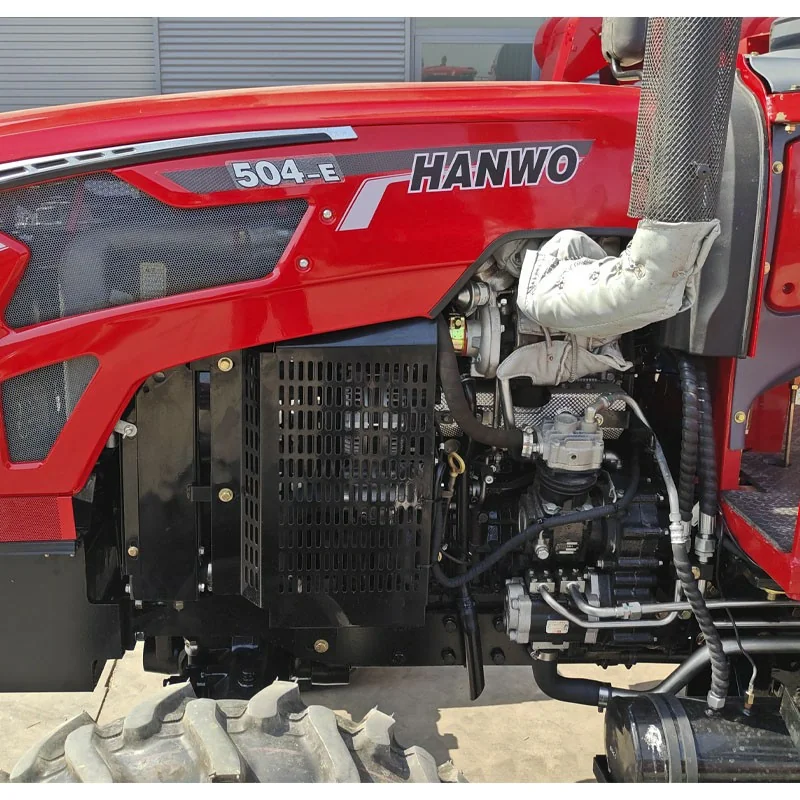

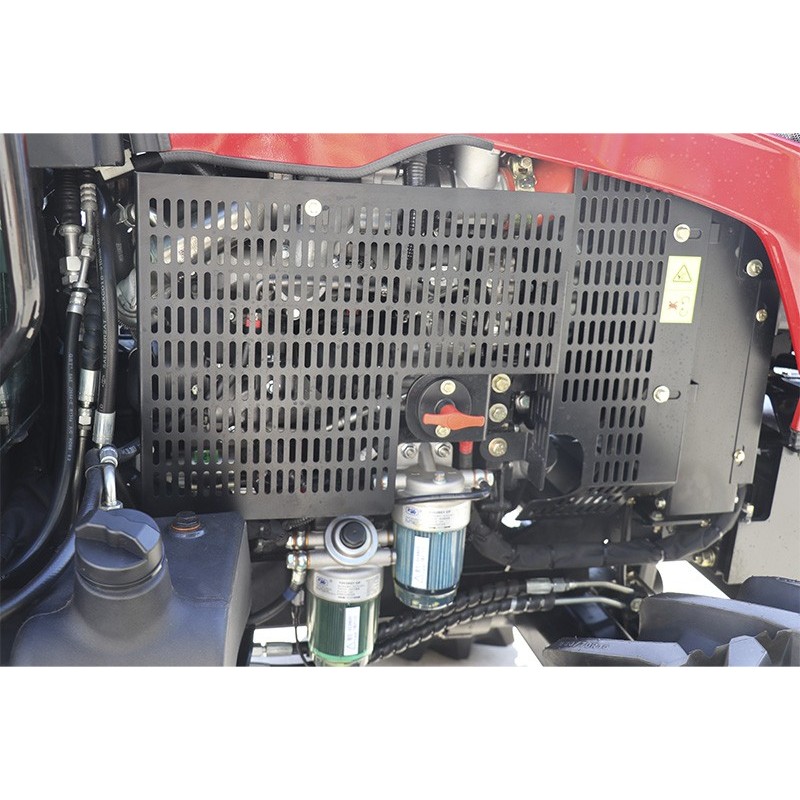

| Engine | |
|---|---|
| Model | DEF20 EURO V |
| Type | Turbocharged and intercooled |
| Bore and stroke | 78x86 mm |
| Nominal/max. power | 36.8 kW / 50 HP |
| Speed R.P.M. nominal/max. | 2400 rpm |

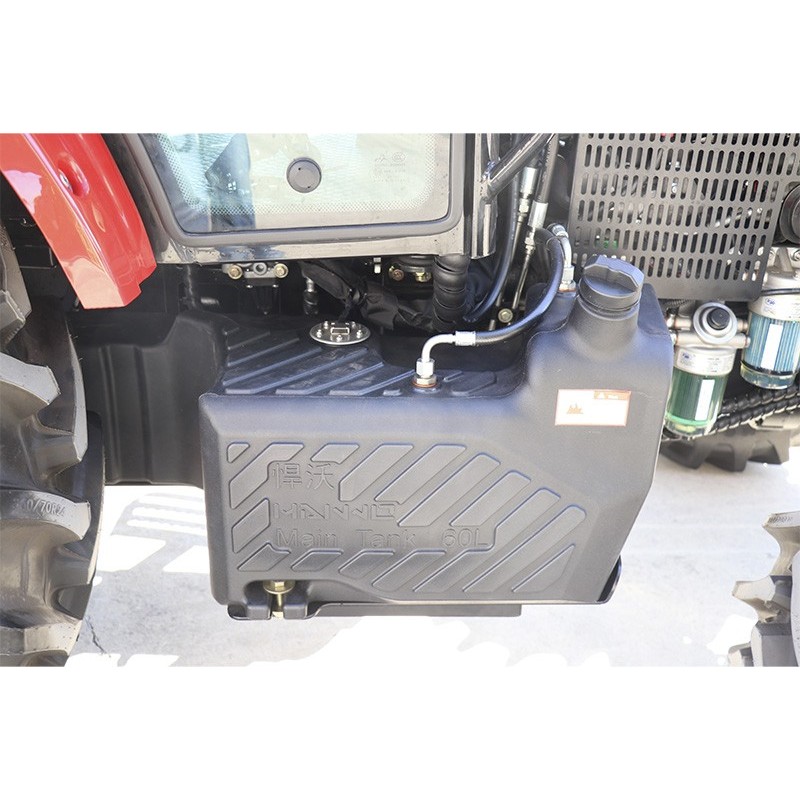

| Fuel tank | 40 L |
| Transmission | |
| Clutch | Dry friction, double stage |

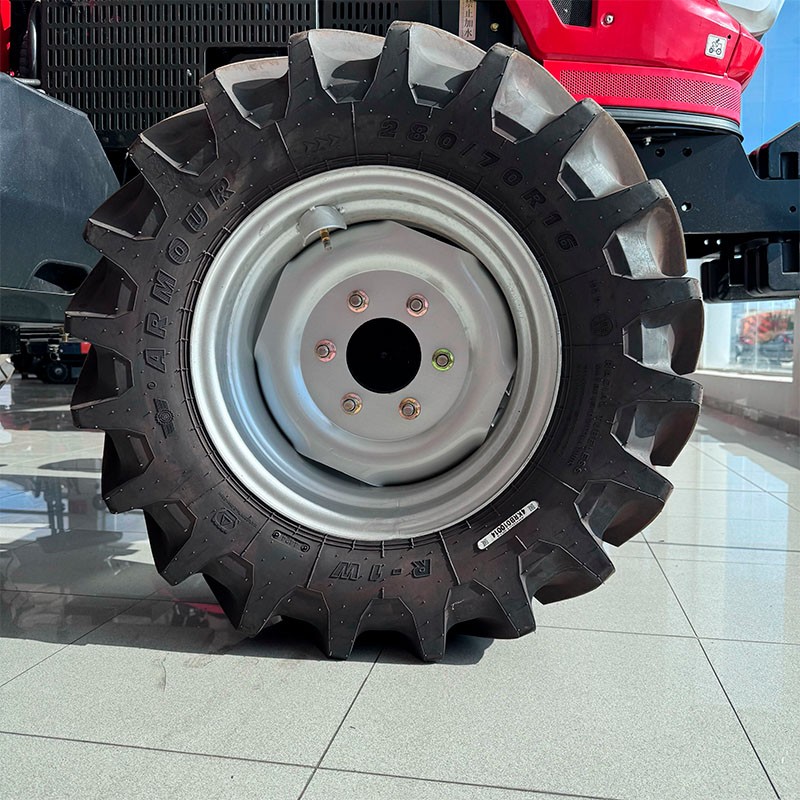

| Front tires | 6.00-14 |

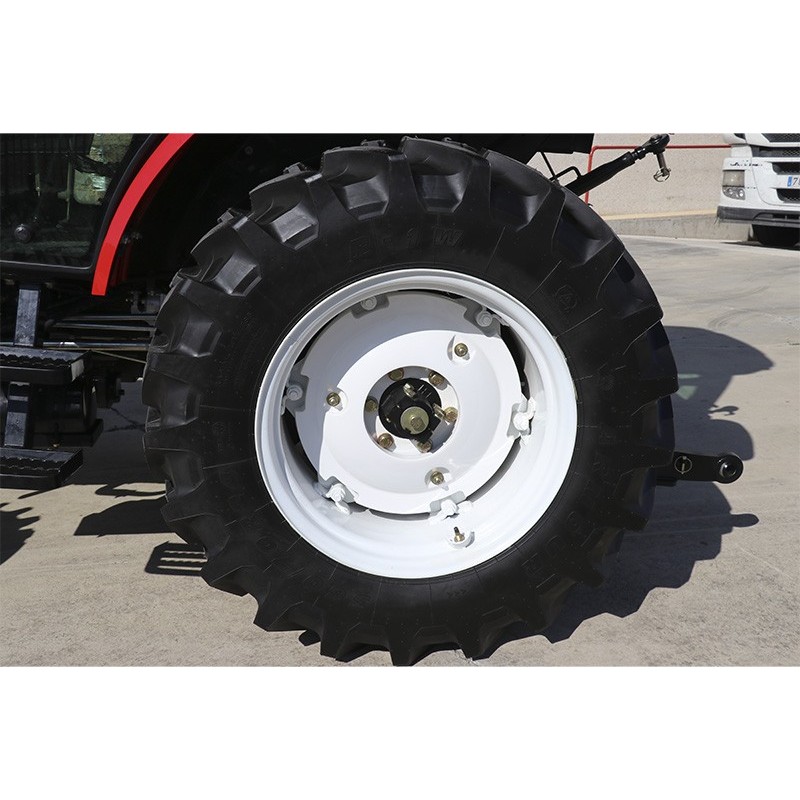

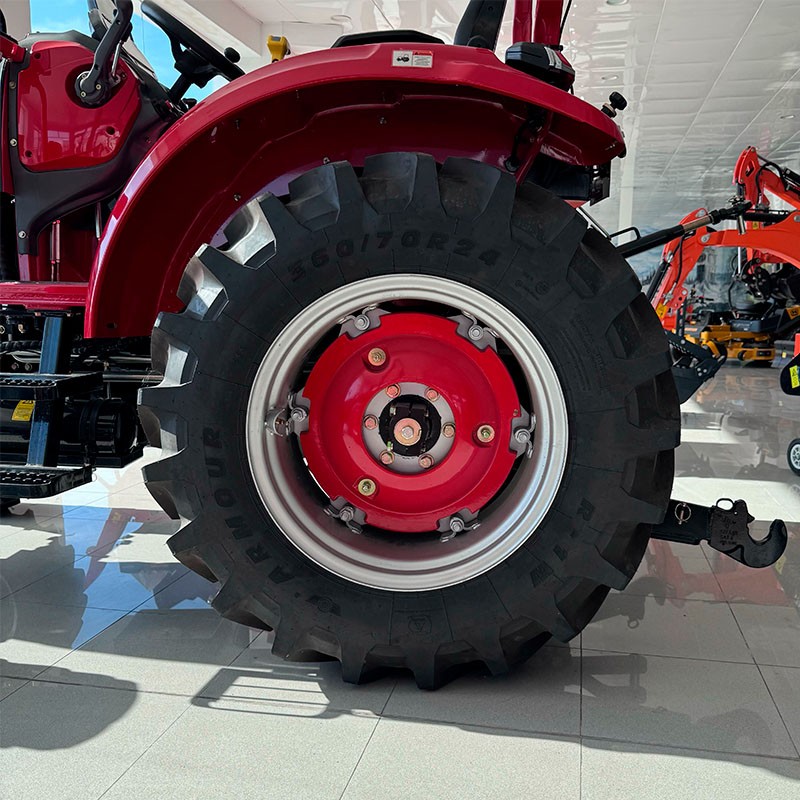

| Rear tires | 9.5-24 |
| Steering | Hydraulic |
| Transmission | 8 gears front and 8 rear + synchronized shifting |
| Hydraulic flow rate | 36 L/m |
| Hydraulic control system | common and optional forced lift and lowering system |

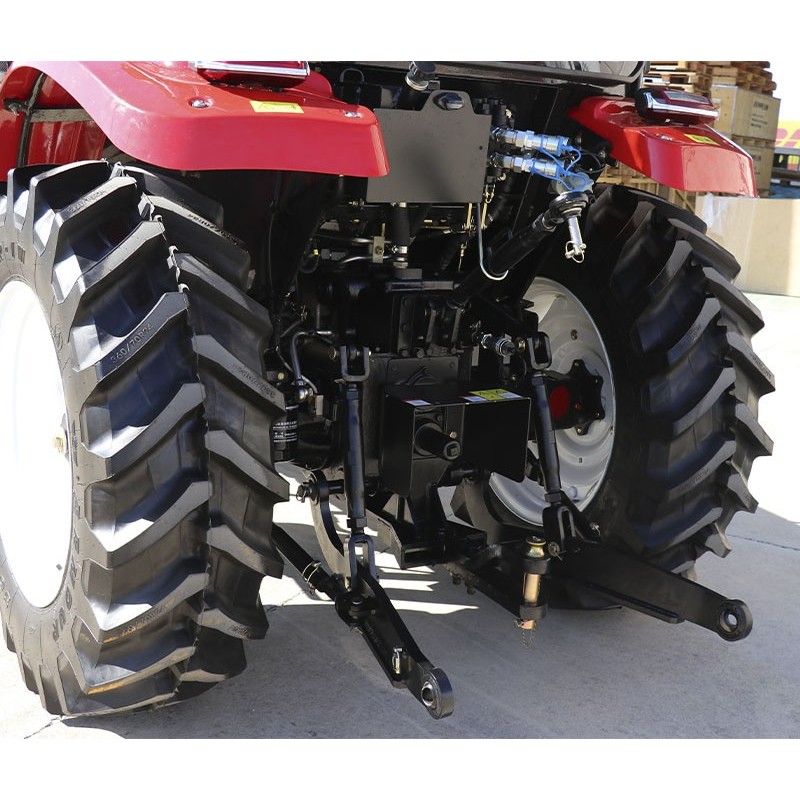

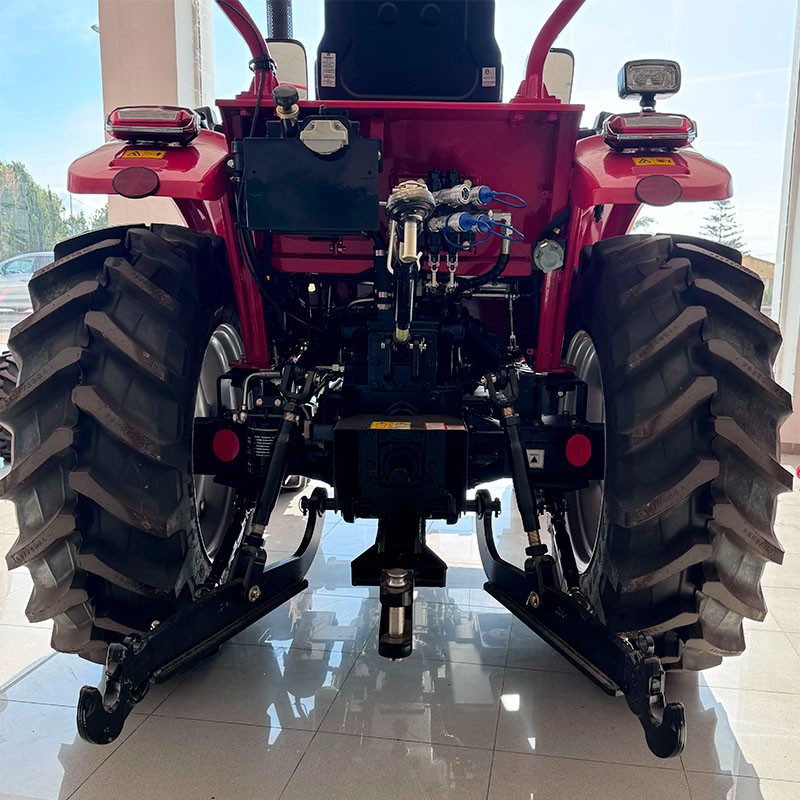

| Rear control | rear hitch category I |
| PTO power | 540 / 760 |
| Drive | 4x4 (4WD) |
| Maximum speed | 1.99 ~ 28.37 km/h |
| Dimensions | |
| Overall length | 3600 mm |
| Width | 1230 mm |
| Height | 2150 mm (with anti-tipper) |
| Wheel base | 1809 mm |
| Minimum ground clearance | 215 mm |
| Front tread | 900 mm |
| Rear band | 950 mm |
| Weight | 1436 Kg |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination. |
Data sheet
Specific References
- Non-binding image
