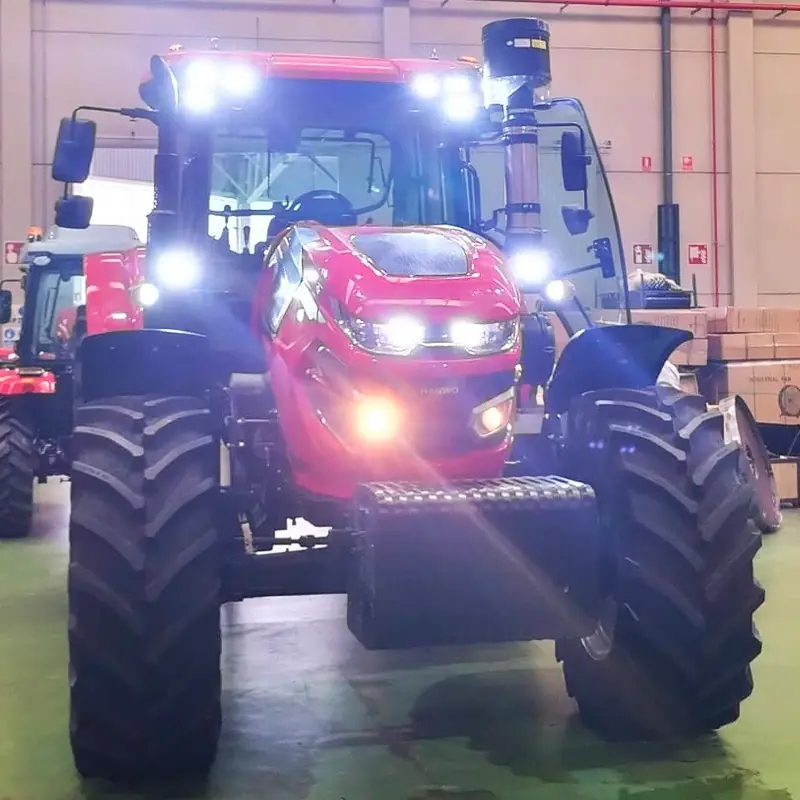

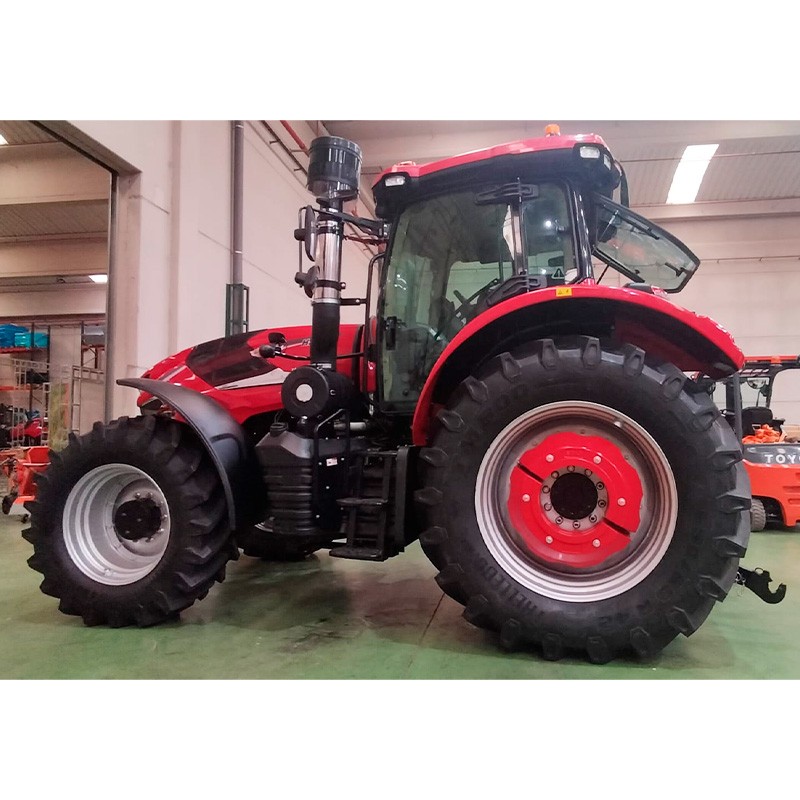

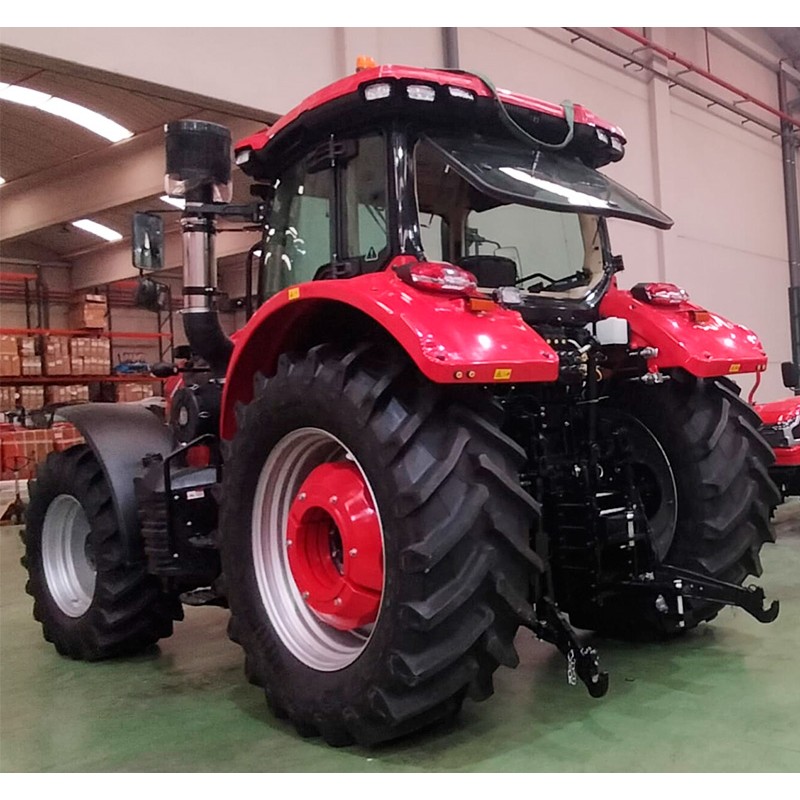

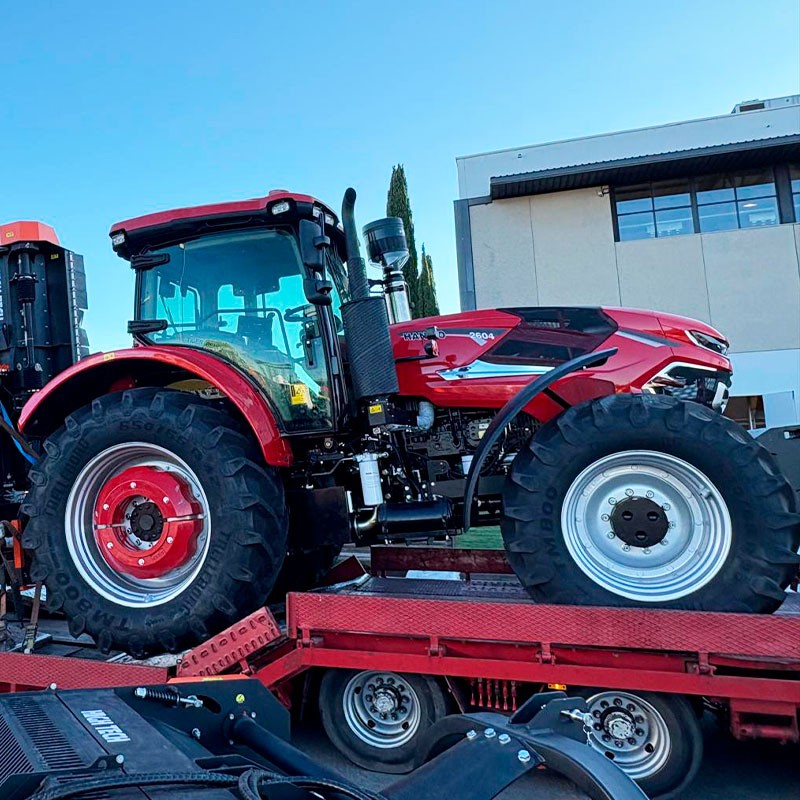

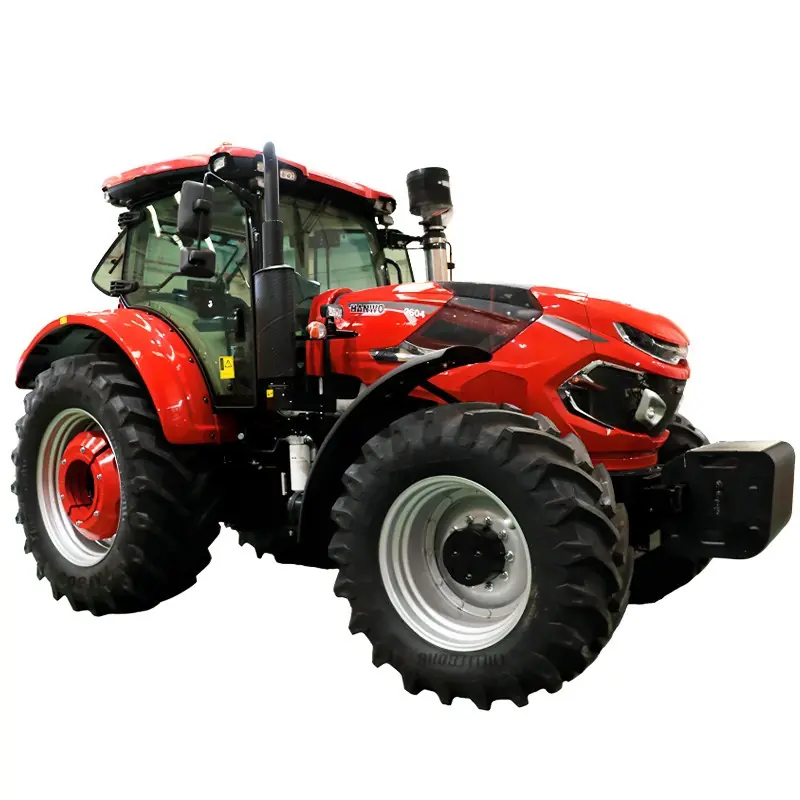

Tractor Hanwo 2604 is a high-poweredtractor designed for large traction and PTO work with a heavy chassis and great stability. With 260 hp and 8.6 tons of weight, it works with demanding implements and maintains poise on slopes and uneven ground. The 3-meter wheelbase frame offers continuous traction and a 6-meter turning radius for good maneuverability on headlands.

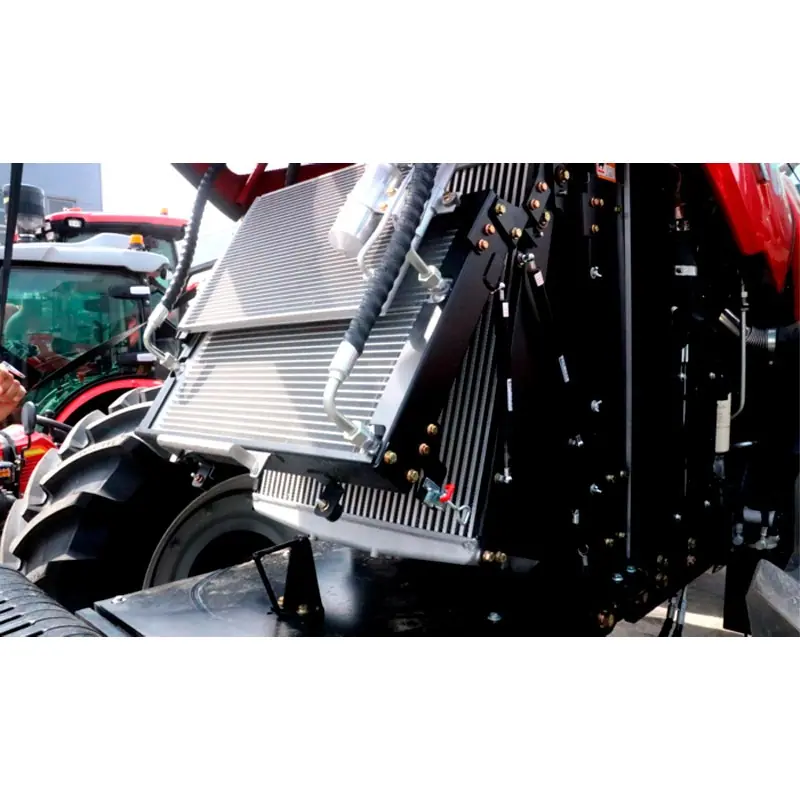

It is powered by a 6-cylinder YCA08300-T300 engine with turbo and intercooler and direct injection that delivers constant thrust from low revs and low fuel consumption. Water-cooled and with a bore and stroke of 110 x 132 mm, it is designed for long shifts with reliability.
The synchronized transmission offers 32 forward and 32 reverse gears with Power Shuttle option for clutchless reversing and Power Hi-Lo for shifting under load. Covers precision work with super slow speeds of 0.26 km/h and goes up to 30.3 km/h in transport, always with smooth shifting.

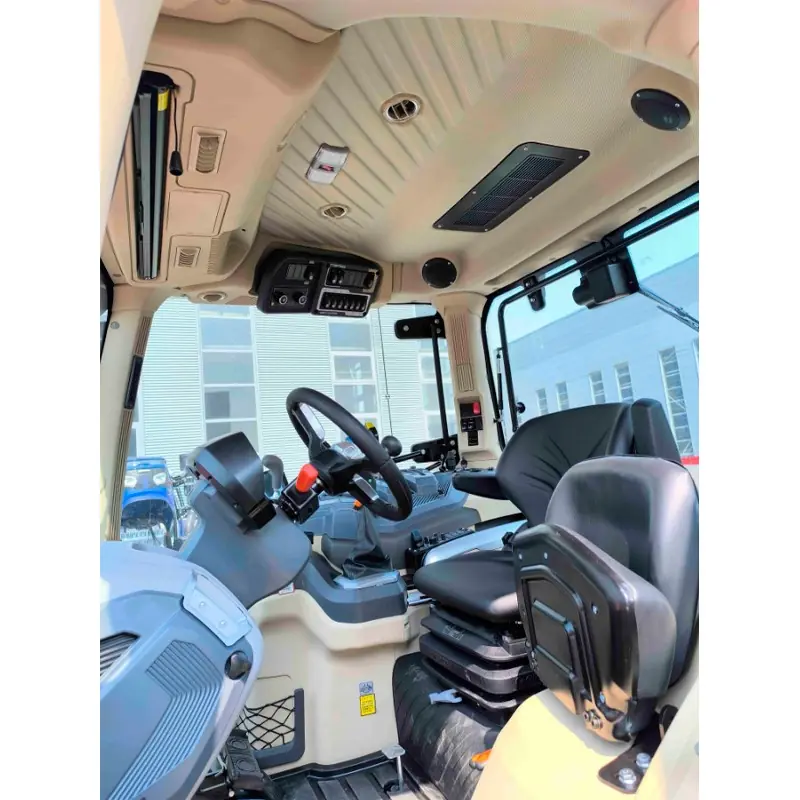

Spacious cab with excellent visibility and ergonomic controls to reduce fatigue on long days. Standard front and rear counterweights improve balance with heavy implements and large balloon agricultural tires for traction and flotation.
Engine | |
Power | 260 HP |
Model | YCA08300-T300 |
Cylinders | 6 |
Arrangement | Vertical |

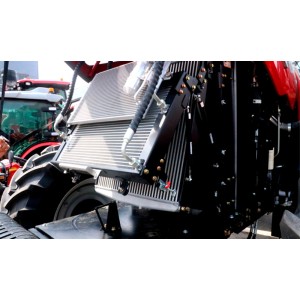

Cooling | Water-cooled |
Supercharging | Yes |
Injection | Direct |
Intake | Turbo with intercooler |
Bore x stroke | 110 × 132 mm |
Nominal/max. speed | 2200 rpm |
Dimensions and weights | |
Dimensions (L × W × H) | 5700 × 2640 × 3200 mm (cab) |
Weight | 8620 kg |
Front counterweight | 1200 kg |
Rear counterweight | 720 kg |
Wheelbase | 3000 mm |
Turning radius | 6 m |
Transmission | |
Type | Synchronized gear |
Gears | 32F + 32R |
Power Shuttle | Optional |
Power Hi-Lo | Yes |
Maximum speed | 0-26 / 30.32 km/h |
Tires | |
Front | 16.9-28 / 20.8-38 |
Rear | 540/65R30 / 650/65R42 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |

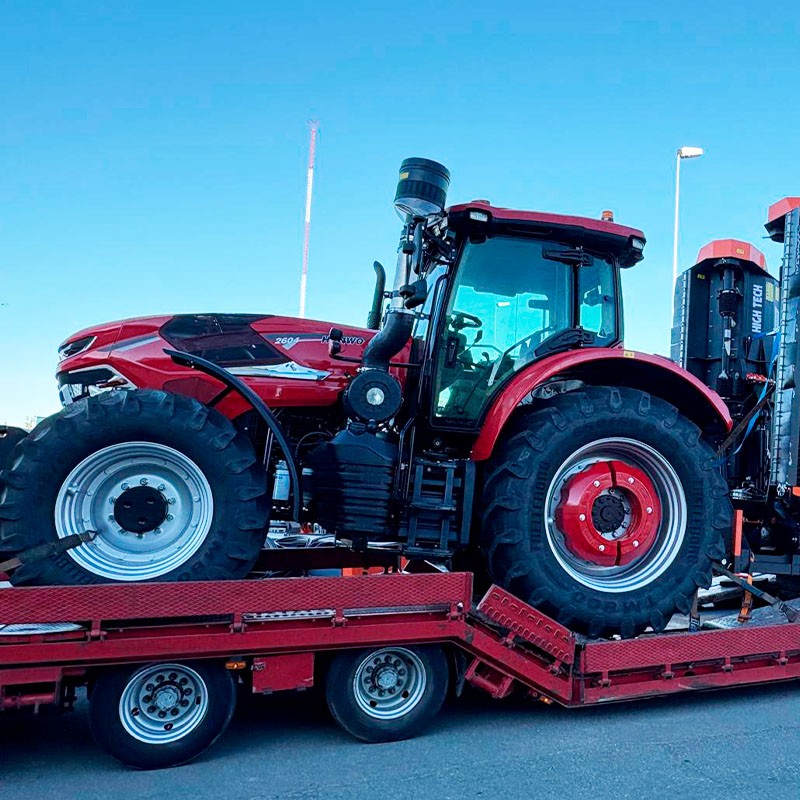

Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
This model with this chassis is set to comply with homologation and ITV with 25 HP per limit and exceeding it would make the set not pass. |
