  • Engine: 4-stroke diesel
  • Displacement: 980 cc
  • Speeds: 6+2
  • Power steering: Yes
En stock
icon Power Supply
Power Supply
Diesel
icon Startup
Startup
Electric
icon Engine model
Engine model
V3DE5
icon Displacement
Displacement
980 cc
icon Power
Power
22 HP
icon Engine type
Engine type
4 times
icon Gears
Gears
6+2
icon Differential lock
Differential lock
Yes
icon Traction
Traction
4x4
icon 3-point hitch for tractor
3-point hitch for tractor
Yes
icon Battery capacity
Battery capacity
73 Ah
icon Weight
Weight
918 Kg
icon Road traffic
Road traffic
Approved
€9,078.12 excl. VAT
- 4%
€8,715.00 excl. VAT
€10,545.14 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote

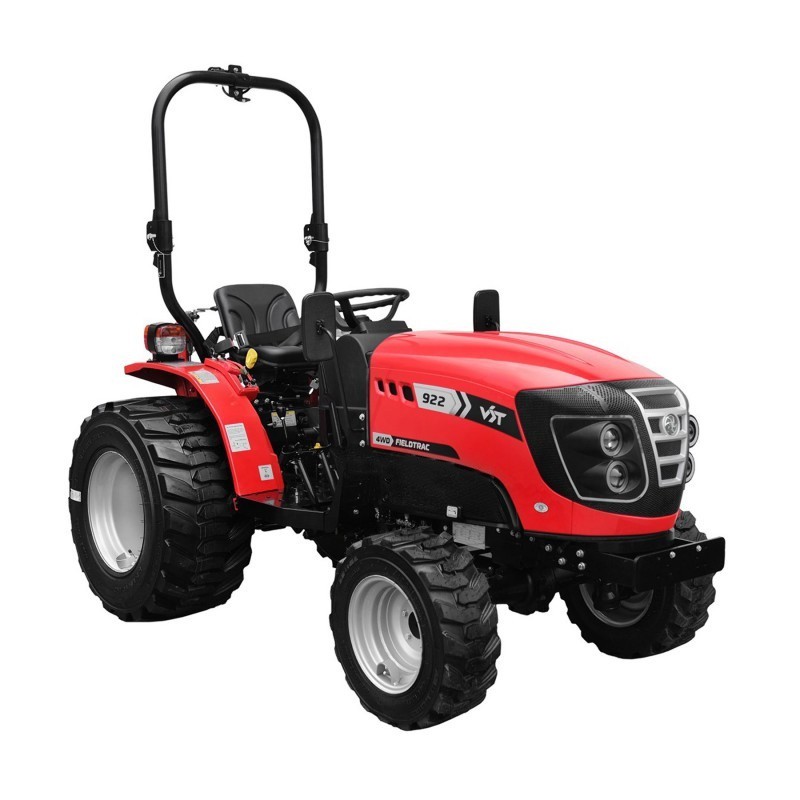

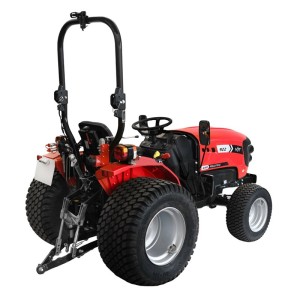

Mini tractor Fieldtrac 922 22HP 980cc
€10,545.14
Qty

Mini tractor Fieldtrac 922 22HP 980cc

The fieldtrac 922 mini tractor has a diesel engine 4-stroke three-cylinder that with a 980 cc displacement is capable of delivering a 22 horsepower power. This power is delivered by working at a nominal speed of 3000 RPM.

The pTO power the maximum fuel capacity of this machine is 18 HP and the maximum fuel that can be filled is 18 liters. As for its transmission, it has a mechanical synchronized gearbox 6 forward and 2 reverse speeds. It should not be forgotten that the gearbox of this mini tractor transmits its power to all four wheels because it is 4WD traction.

The fieldtrac 922 model is equipped with a rear differential lock and the brakes are made of dry drum. Also note that the mini tractor is equipped with electric start powered by a 12V, 1.6 kW starter motor powered by a 12V 73Ah battery.

Finally, it should be mentioned that it incorporates, among other things, a switch for battery power cut-off as well as a muffler installed under the hood.

Technical data

MOTOR
Model V3DE5
Emission standard Stage-V
Type 4-stroke naturally aspirated water-cooled diesel engine
No. of cylinders 3
Engine power 22 HP
PTO (HP) 18
Nominal RPM 3000
Diameter and stroke 73 x 78 mm
Displacement 980 cc
Air Purifier Dry type double filter
Fuel tank capacity 18 liters
TRANSMISSION
Clutch Individual Dry
Gearbox type Synchronized mechanics
No. of Gears 6F+2R
Gearshift position Displacement
Speed Range-Km/h
  • Forward: 1.48 - 21.74
  • Back: 1,89 - 8,3
Differential Lock (Rear) Standard
Brake Type Dry Drum
Transmission Type 4WD
PTO (rpm) 540 and 900 RPM
ELECTRICITY
Battery 12 V, 73 AH, (700 CCA)

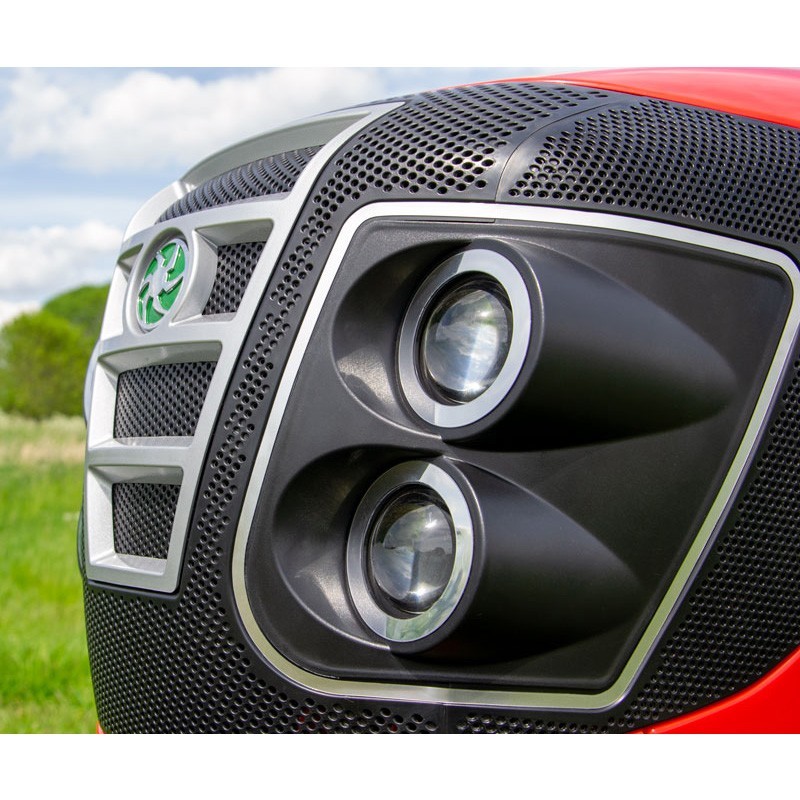

Headlight 4 Projector Lamps
Starting System Starter Motor 12 V, 1,6 KW
Alternator 12V, 35 AMP
HYDRAULIC SYSTEM
Type of control ADDC
Pump Capacity 12.9 LPM
Maximum Lift Capacity 500 Kg

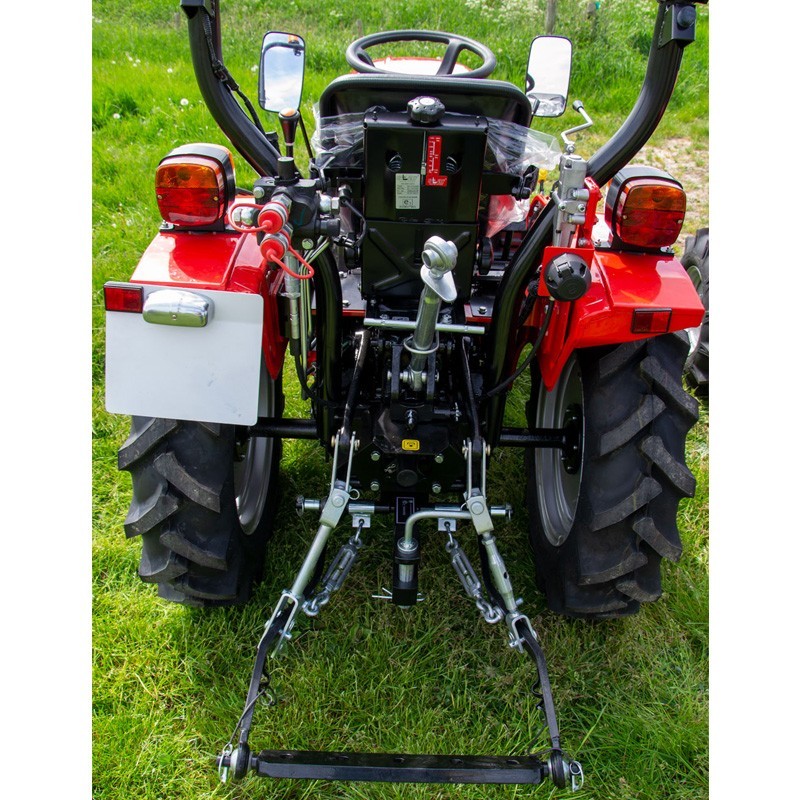

3-Point Hitch CAT-1

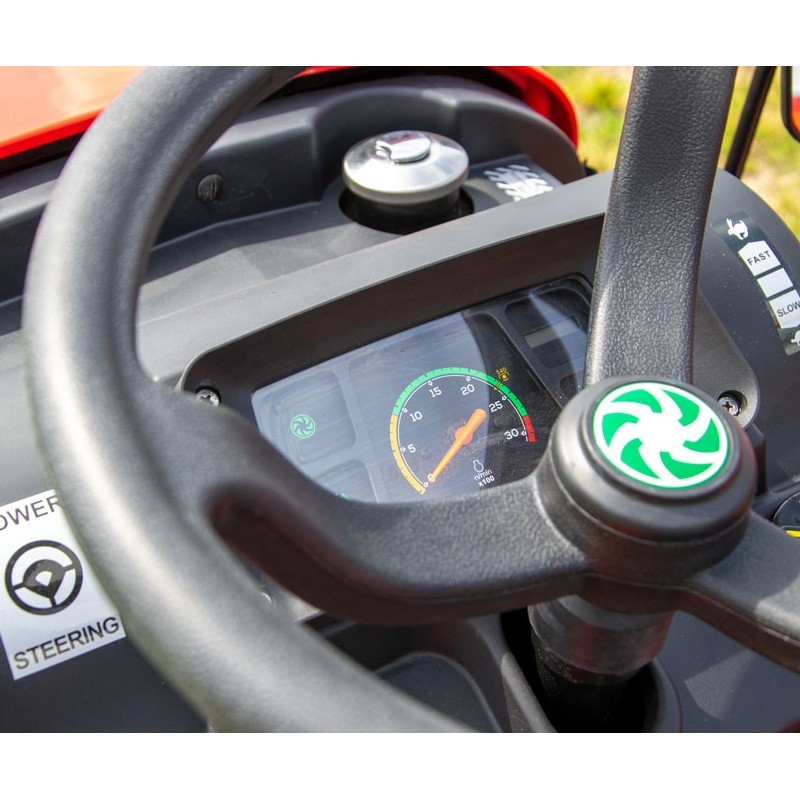

Steering System Hydraulic Power Steering

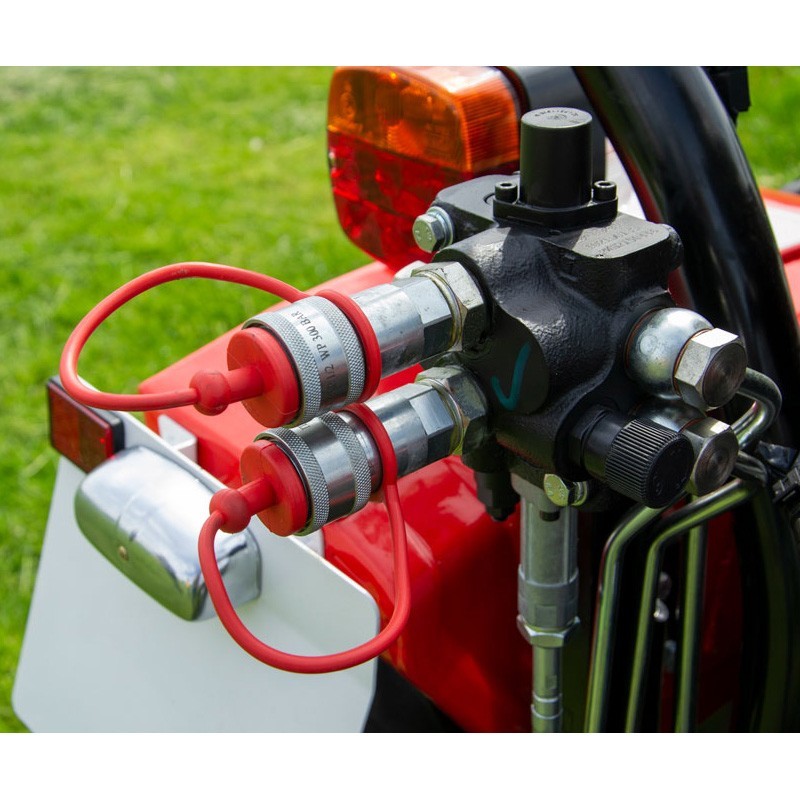

Rear Coil Value 2 Values with Quick Coupling
DIMENSIONS AND OTHER FEATURES
Overall Dimensions (LxBxH) with TPL and Front Ballast 2700 x 1130 x 2075 mm
Ground Clearance 210 mm
Turning Radius 2.2 meters
Weight 918 Kg
Distance Between Axes 1420 mm
Via de las Ruedas
  • Front: 890 / 785 mm
  • Rear: 860 / 740 mm
Front Weight/ Ballast (standard) 60 Kg
Rear Wheel Ballast (optional) 60 Kg
Tire Options (Front and Rear Size)
  • Agriculture: (5 x 12, 8 x 18) and (6 x 12, 8.3 x 20)
  • Peat: (23 x 8.5, 33 x 15.5)
  • Industrial: (23 x 8,5-12, 33 x 15,5 - 16,5)
Driver's Seat European Design Adjustable Seat
Operating Environment 10 - 45ºC
Mobile Recharging Point Yes
Muffler (Under Hood) Yes
Battery Cut-Off Switch Yes
ROPS Yes
Drawbar Optional
Hitch Assembly Yes
Hood Lock with Special Key Yes
IMPORTANT NOTICE
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
