Universal inter-row disc with feeler 63 cm Zeppelin 4 hoses
- Adaptable to any machine
- Double blade disc
- Perimeter protection
€1,606.69 VAT incl.
CARDAN SHAFT INCLUDED
Assembly and set-up INCLUDED |

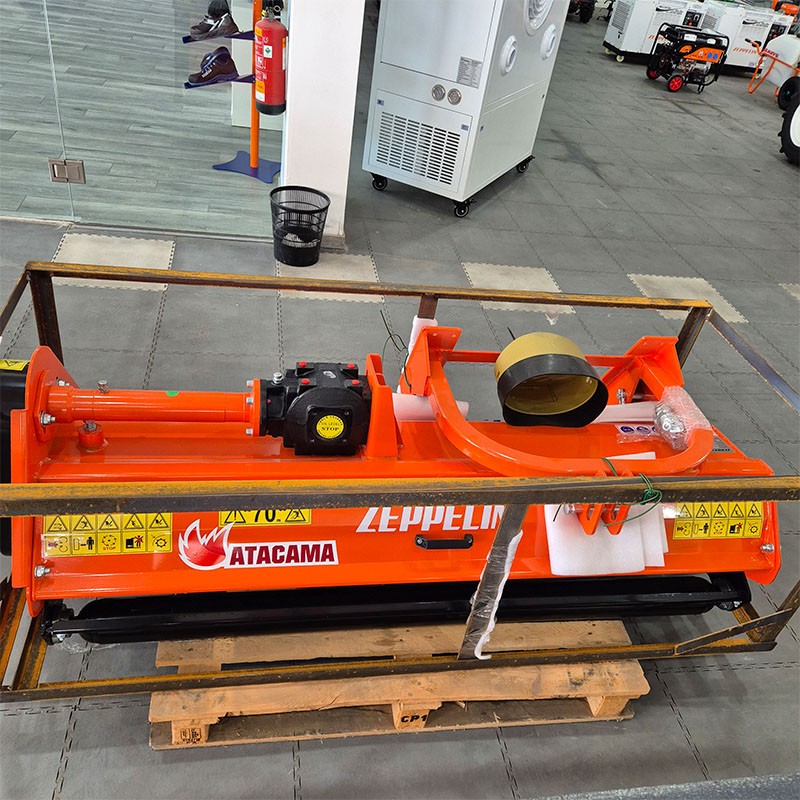

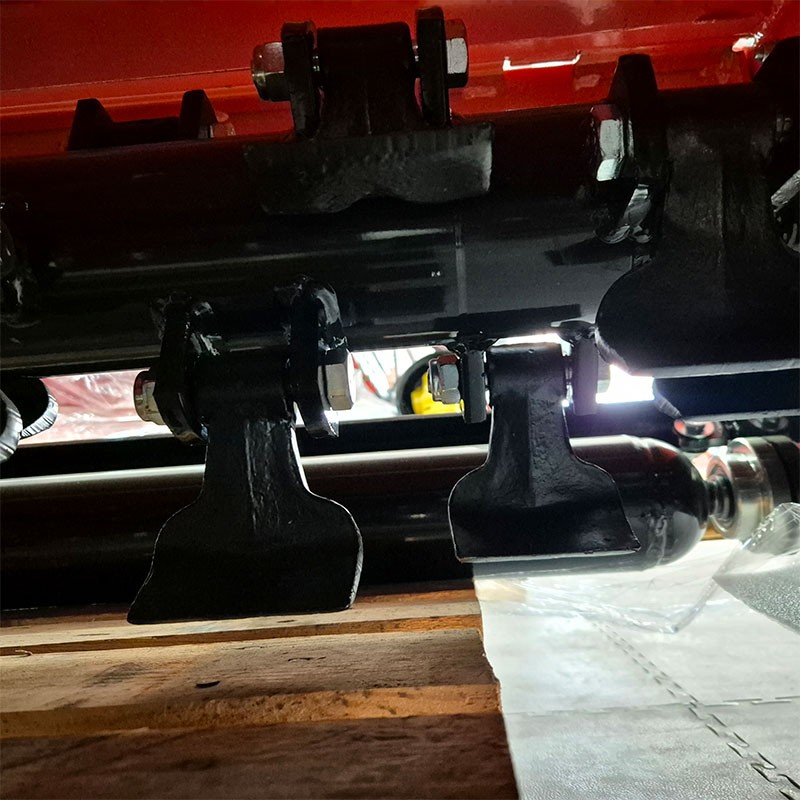

The hammer shredders Zeppelin Atacama are responsible for shredding the remains of leaves, branches, and debris in an instant, thus facilitating the work in the field in a clean and fast manner.
This product is to be applied on the tractor to make the work easier, as well as to shred the grass in the field.
Models | ESTRGC085MZA | ESTRGC105MZA | ESTRGC125MZA |
Working width | 850 mm | 1050 mm | 1250 mm |
No. of belts | 3 | 3 | 3 |
No. of hammers | 14 | 16 | 20 |
Rotor diameter | 108 | 108 | 108 |
Power requirement | 10 - 20 | 30 - 50 | 30 - 60 |
PTO | 540 | 540 | 540 |
Weight | 180 Kg | 230 Kg | 249 Kg |
Dimensions | 920 x 920 x 950 mm | 920 x 1170 x 950 mm | 920 x 1370 x 950 mm |
Models | ESTRGC145MZA | ESTRGC155MZA | ESTRGC175MZA |
Working width | 1450 mm | 1550 mm | 1750 mm |
No. of belts | 3 | 3 | 3 |
Number of hammers | 22 | 24 | 28 |
Rotor diameter | 108 | 108 | 108 |
Power requirement | 60 - 70 | 60 - 80 | 60 - 90 |
PTO | 540 | 540 | 540 |
Weight | 260 Kg | 276 Kg | 294 Kg |
Dimensions | 920 x 1570 x 950 mm | 920 x 1670 x 950 mm | 920 x 1870 x 950 mm |
The products with the MZ termination mean that their shape is with gate opening and Y tripod.
The products with the MZA termination mean that its shape is with arch type tripod.
IMPORTANT NOTICES |
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
