PTO Traveling Shredder Zeppelin Arizona HT 180 - 240 cm
PTO Traveling Shredder Zeppelin Arizona HT 180 - 240 cm
PTO Traveling Shredder Zeppelin Arizona HT 180 - 240 cm
PTO Traveling Shredder Zeppelin Arizona HT 180 - 240 cm

PTO Traveling Shredder Zeppelin Arizona HT 180 - 240 cm


  • Working width : 140 - 240 cm
  • No. of Y-blades : 16 - 22
  • Weight : 579 - 680 kg
Assembly and set-up INCLUDED
The standard cutting system of the shredder is blades. For hammers, indicate it in the order notes or let us know through customer service.
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut

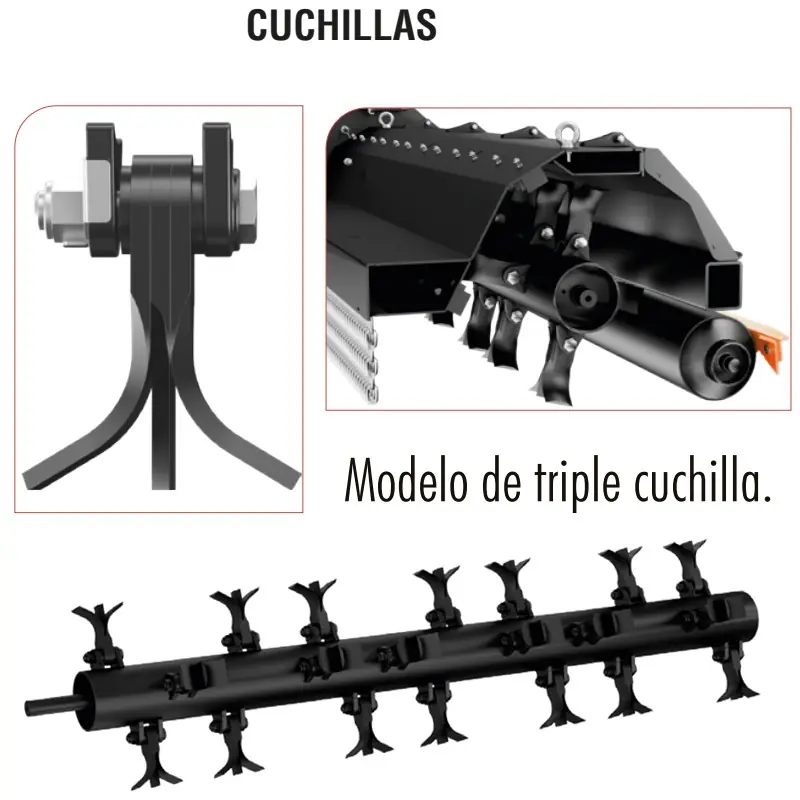

Triple Y-blade
icon Type of cut
Type of cut

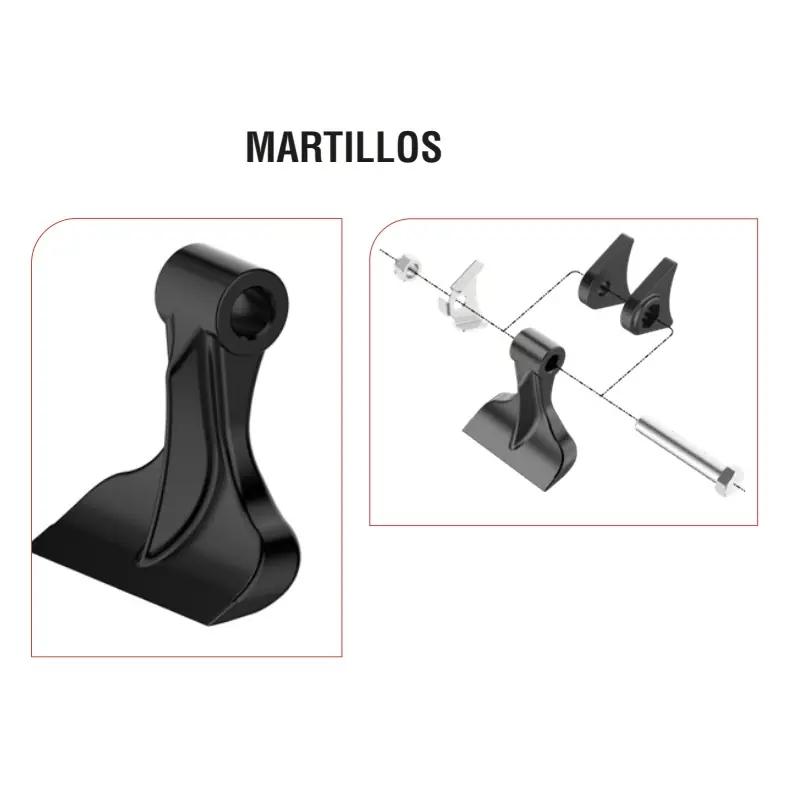

Hammers
icon Working width PTO
Working width PTO
140 - 240 cm
icon Tractor power
Tractor power
70 - 200 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Heavy
icon Num. Triple Y-blade
Num. Triple Y-blade
16 - 22
icon Weight
Weight
579 - 680 kg
€4,650.00 excl. VAT
€5,626.50 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


PTO Traveling Shredder Zeppelin Arizona HT 180 - 240 cm
€5,626.50
Select
Qty

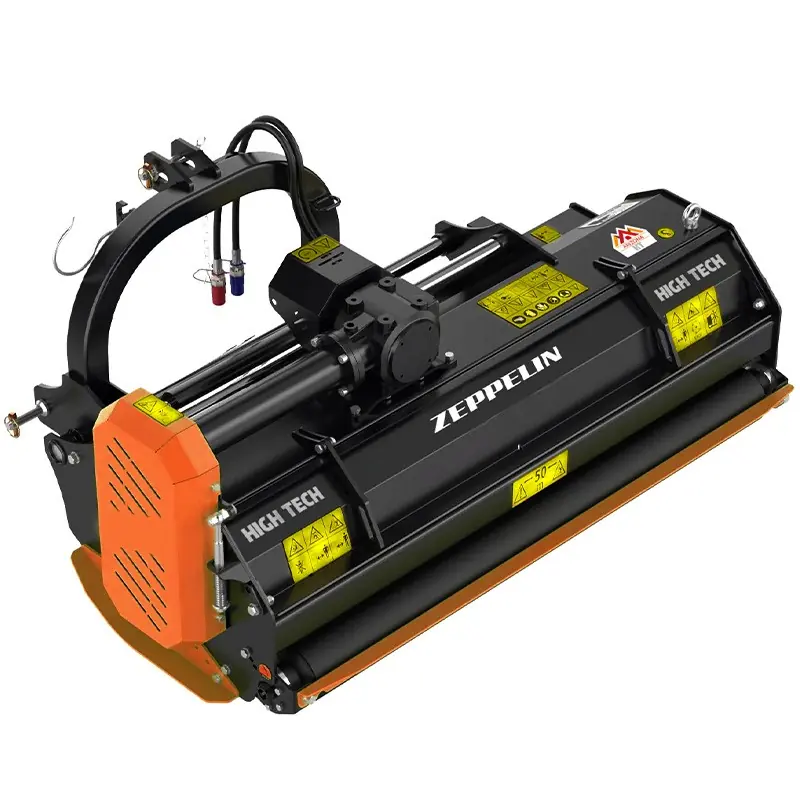

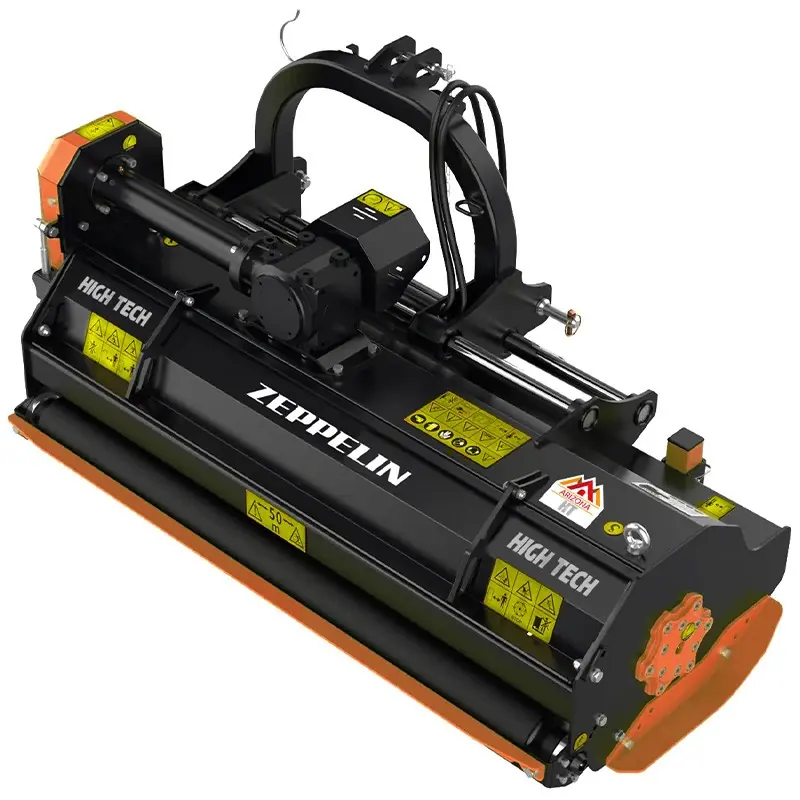

Hydraulic shredder Zeppelin HIGH TECH Arizona HT

The Zeppelin Arizona HT mulcher is an agricultural machine designed to offer maximum efficiency in the maintenance of fruit orchards, vineyards, gardens and roadside verges. Thanks to its hydraulic system, it allows lateral movement to the right and left, facilitating access to difficult areas and optimizing work in different types of terrain.

Equipped with a spiral cutting shaft, gate opening and automatic belt tensioning, the Zeppelin Arizona HT ensures uniform force and minimal vibration during use. Its drive case guard and adjustable skid plate ensure durability and precision, while the option to attach brushcutting discs makes it even more versatile for demanding tasks.

Available in four working widths, the Zeppelin Arizona HT PTO mulcher stands out for its robustness and adaptability. It is perfect for those looking for a professional solution for the maintenance of green and agricultural areas, offering greater working width and reliable performance every day.

Features

Model ESTRARIHT180Z ESTRARIHT200Z
Working width 180 cm 200 cm
No. of blades / hammers 16 18
Belts 4 4
Tractor power required 70-120 hp 80-140 hp
PTO 540 RPM 540 RPM
Weight 579 Kg 612 Kg
Dimensions 200 x 104.4 x 101.2 cm (65 x 104.4 x 101.2 in.) 220 x 104.4 x 101.2 cm (220 x 104.4 x 101.2 x 101.2 cm)
Model ESTRARIHT220Z ESTRARIHT240Z
Working width 220 cm 240 cm
No. of blades / hammers 20 22
Belts 4 4
Tractor power required 80-140 hp 100-200 hp
PTO 540 RPM 540 RPM
Weight 646 Kg 680 Kg
Dimensions 240 x 104.4 x 101.2 cm (240 x 104.4 x 101.2 x 101.2 cm) 260 x 104.4 x 101.2 cm (260 x 104.4 x 101.2 x 101.2 cm)
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
262417

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Triple Y-blade
Working width PTO
140 - 240 cm
Tractor power
70 - 200 HP
Cardan shaft
Including
Type of coupling
Lateral displacement
Displacement
Hydraulic
Robustness
Medium-Heavy
Working width (cm)
180 - 189 cm
200 - 209 cm
220 - 229 cm
240 - 249 cm
Num. Triple Y-blade
16 - 22
Weight
579 - 680 kg

Specific References
