PTO shredder side arm Giemme BCM 160 - 220 cm
€4,816.13
Select
Qty

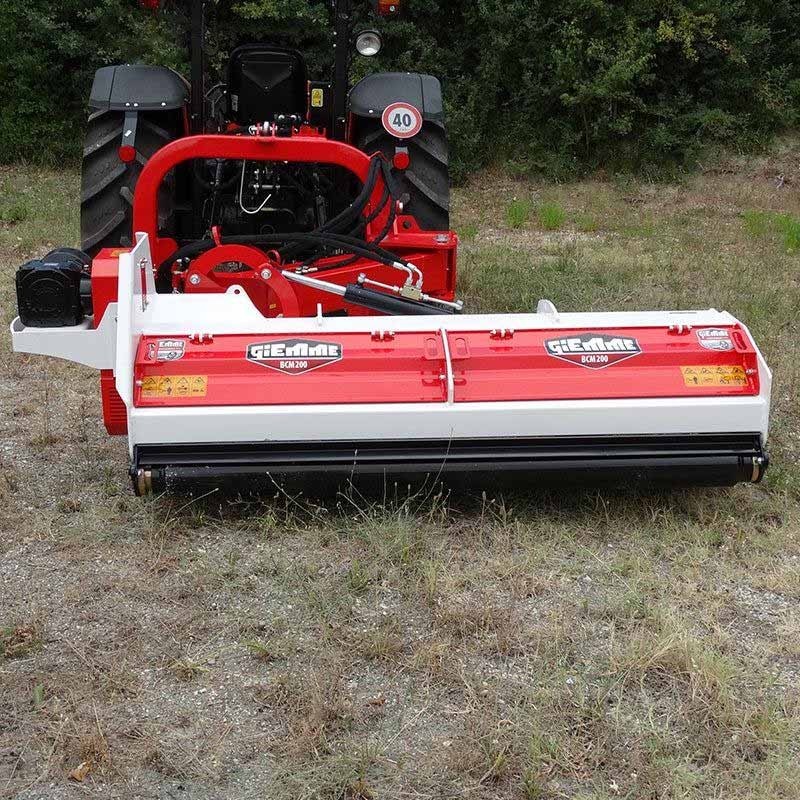

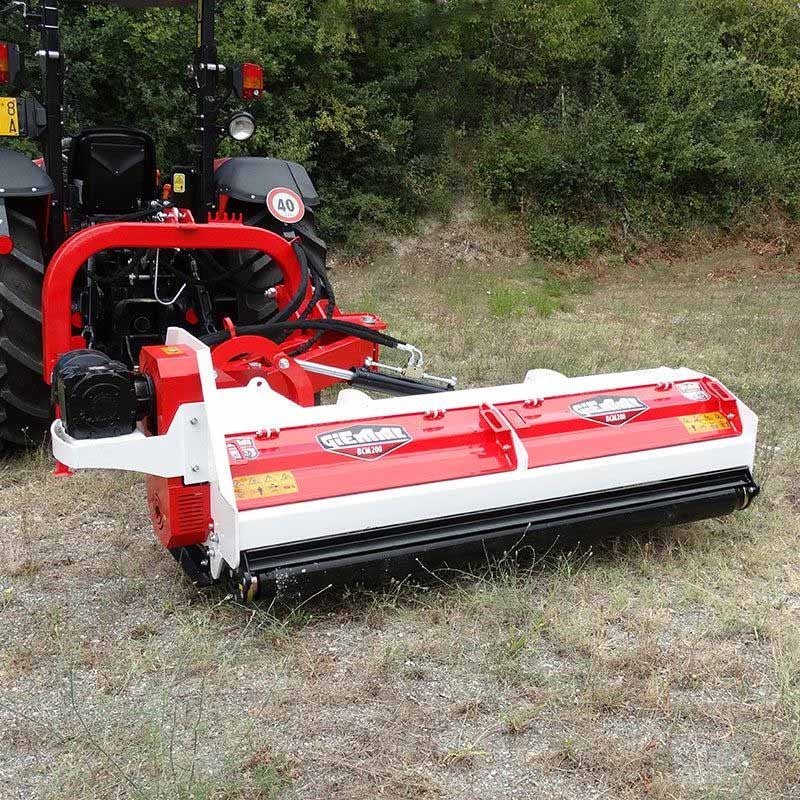

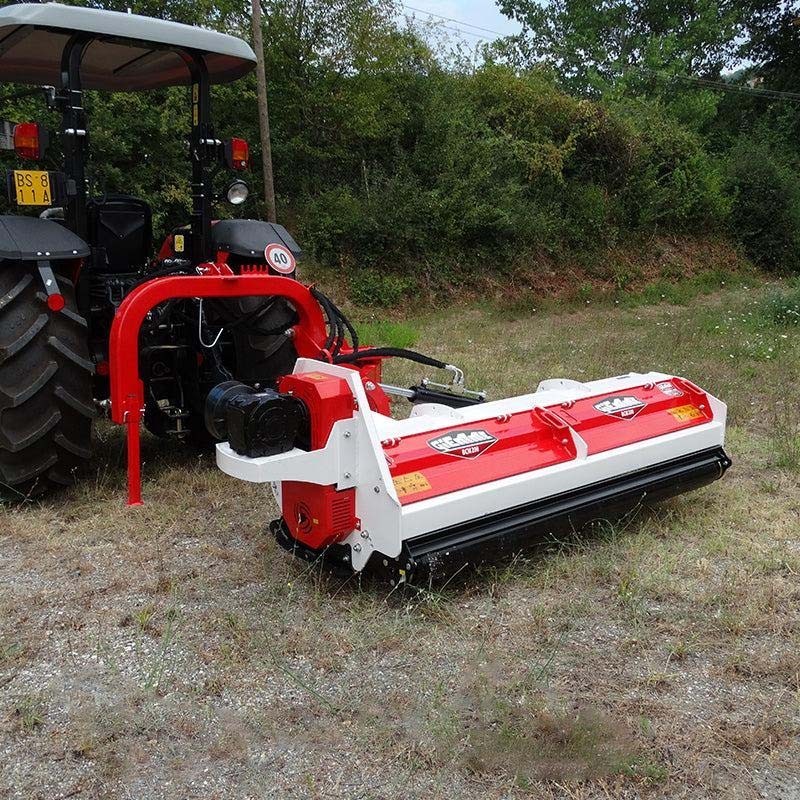

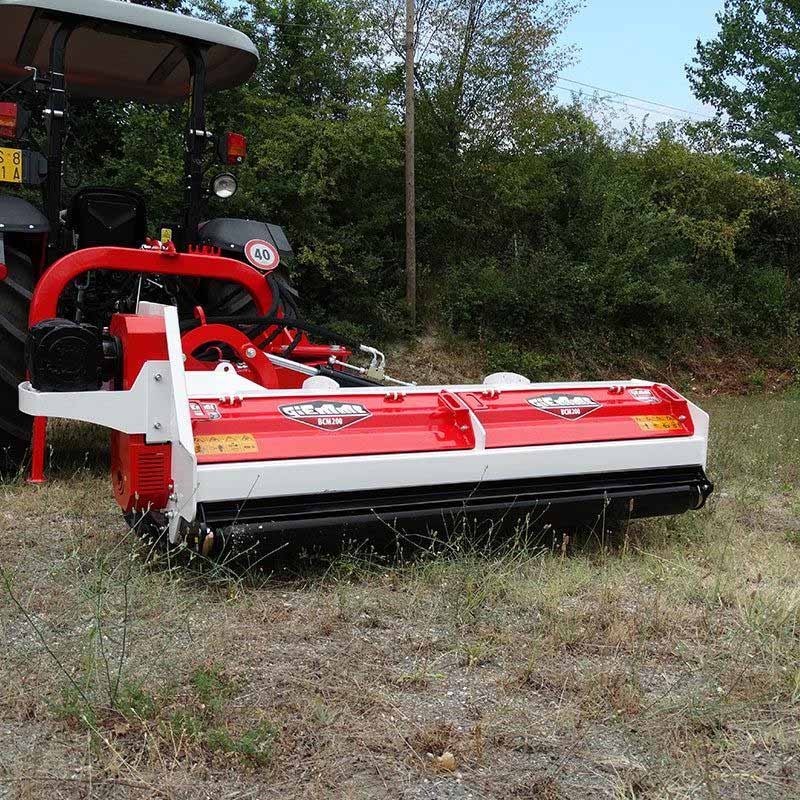

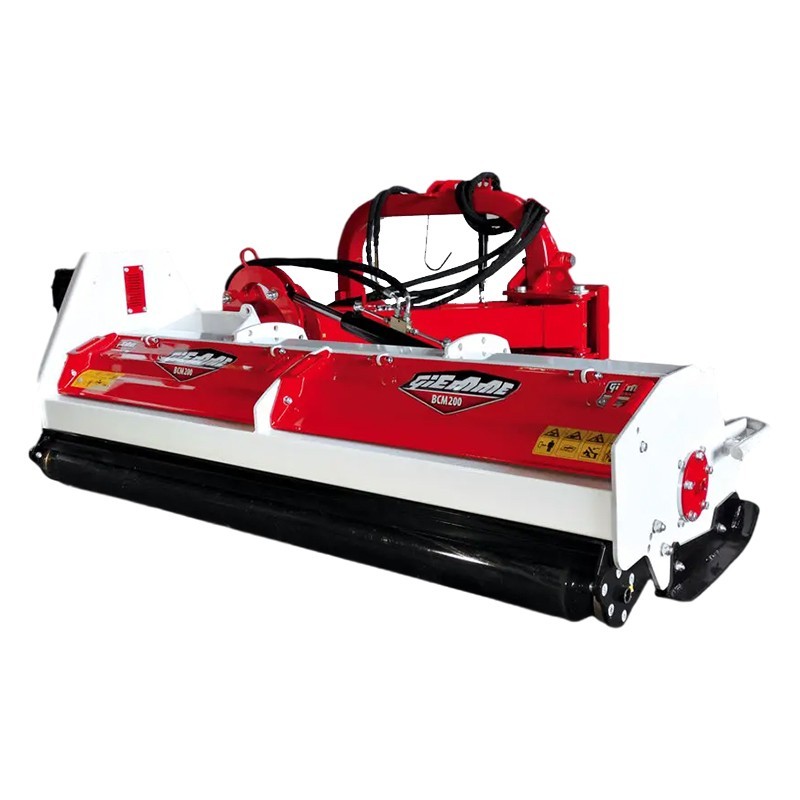

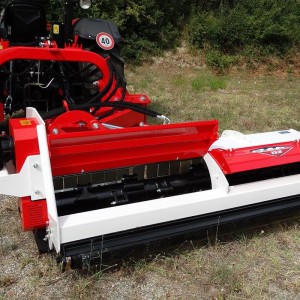

Giemme BCM PTO side swing side arm shredder

The giemme BCM crusher has a automatic belt tensioner and height-adjustable side slides, allowing it to adapt to different working conditions.

In addition, it is equipped with front protection strips and a folding tailgate for safety and convenience during use.

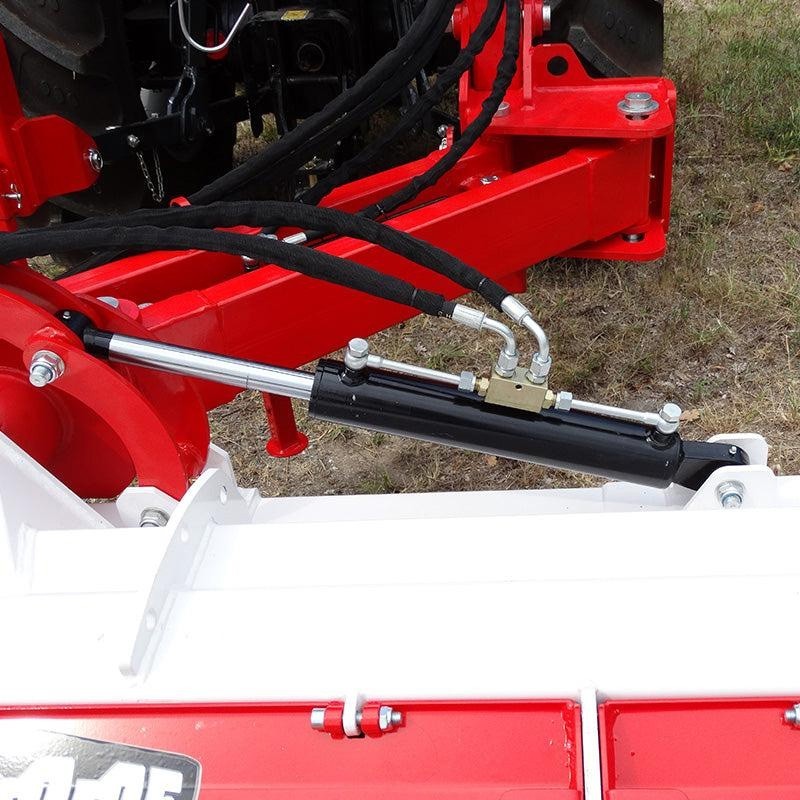

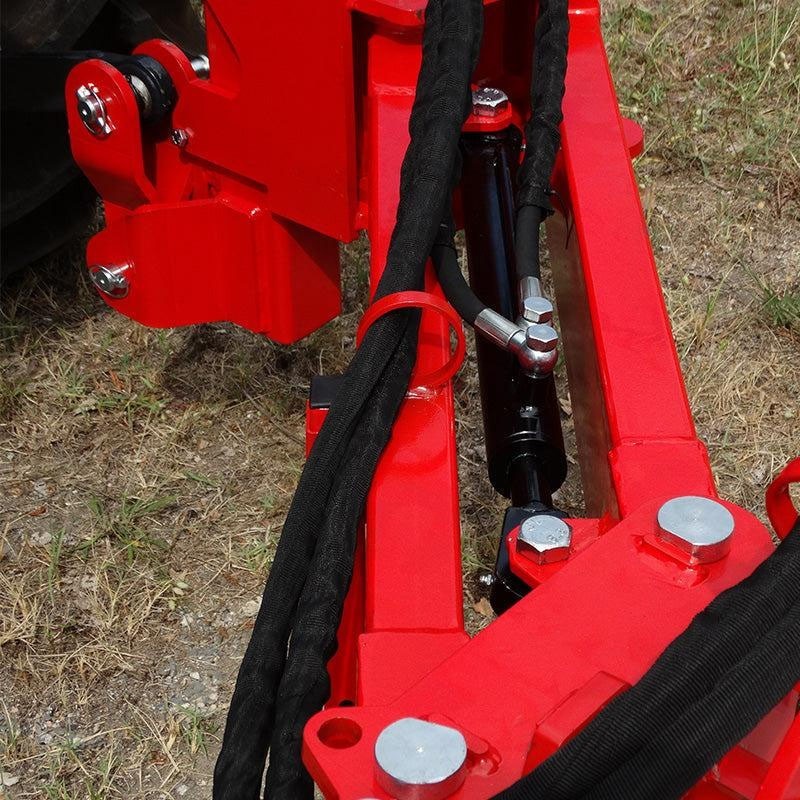

Among its features, the following stand out hydraulic inclination of the shredder head, the system has a range of movement from +90° to -35°, and a mechanical anti-collision safety system.

The shredder is available in four models with different working widths, making it suitable for various applications. Includes a T5 1,800 mm gimbal.

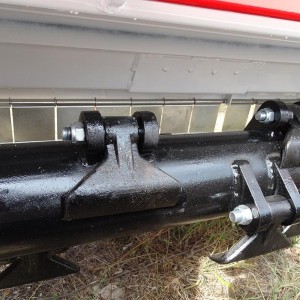

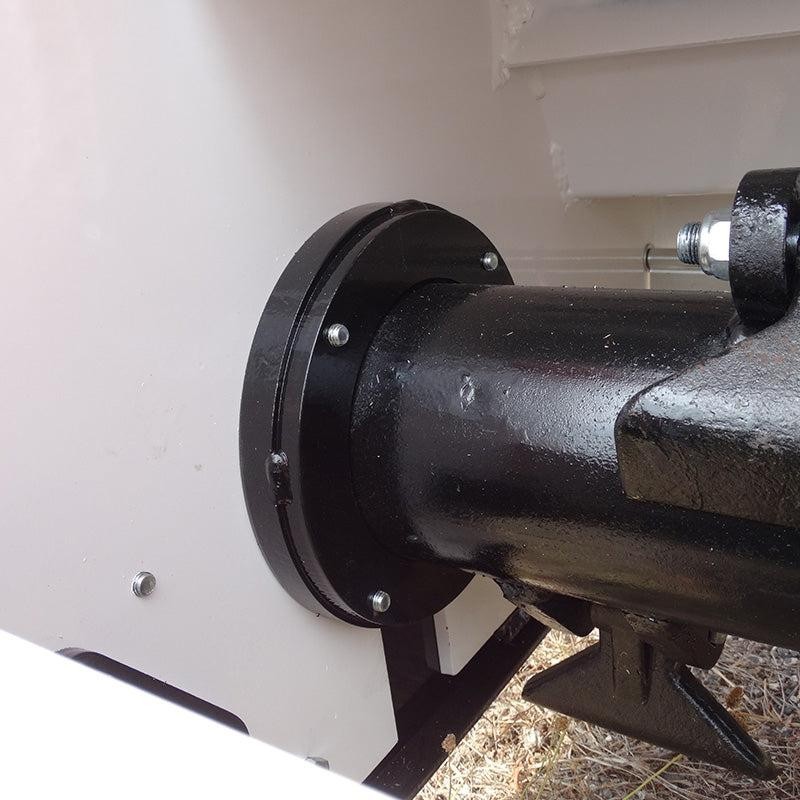

It also includes a adjustable rear roller with scraper and a "COMER" cast iron gearbox with freewheel at 540 rpm, ensuring efficient and long-lasting performance.

Features

Model BCM 160 BCM 180
Working width 160 cm 180 cm
Total width 205 cm 225 cm
Tractor power 60/90 HP 70/110 HP
Weight 672 kg 705 kg
Hammers 14 16
Belts 4 4
Minimum tractor weight 2.400 kg 2.600 kg
Model BCM 200 BCM 220
Working width 200 cm 220 cm
Total width 245 cm 265 cm
Tractor power 80/110 HP 90/120 HP
Weight 735 kg 802 kg
Hammers 18 20
Belts 4 4
Minimum tractor weight 2.800 kg 3.000 kg

Hydraulic head movement

angulación

Displacement dimensions

dimensiones
Model BCM 160 BCM 180 BCM 200 BCM 220
A (cm)
 72 72 72 72
B (cm) 133 153 173 193
C (cm) 205 225 245 265
D (cm) 205 205 205 205
E (cm) 274 294 314 334
IMPORTANT NOTICE
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
261058

Data sheet

Shredder type
Shredder with side arm
Type of cut
Hammers
Working width PTO
160 - 220 cm
Tractor power
60 - 120 HP
Cardan shaft
Including
Type of coupling
Pantograph displacement
Displacement
Hydraulic
Robustness
Heavy
Number of hammers
14 - 20
Working width (cm)
160 - 169 cm
180 - 189 cm
200 - 209 cm
220 - 229 cm
Country of manufacture
Italy
Weight
672 - 802 kg

Specific References

mpn
M1.V5.BCM1
New
