Rating:
(0)
  • Working width: 1990 / 2390 mm
  • Power requirement: 70-140 Hp
  • Weight: 610 - 686 kg

CARDAN SHAFT INCLUDED

Assembly and set-up INCLUDED
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
199 - 239 cm
icon Tractor power
Tractor power
70 - 140 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Heavy
icon Reinforced chassis
Reinforced chassis
Yes
icon Number of hammers
Number of hammers
20 - 24
icon Weight
Weight
610 - 686 kg
€4,248.61 excl. VAT
- 7%
€3,951.21 excl. VAT
€4,780.96 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Reinforced Zeppelin Arizona Movable Shredder
€4,780.96
Select
Qty

Reinforced mulcher Zeppelin Arizona

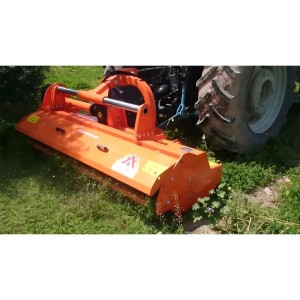

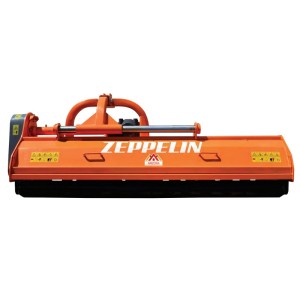

The reinforced shredder Zeppelin Arizona is attached to tractors in order to accomplish the task of shredding leaf debris, branches and smaller debris quickly and easily.

It has a wide variety of models, which not only expand the range of tractors to which it can be attached, but also have a wide range of working widths.

Rear connection features

Model ESTRDESP200SREF ESTRDESP220SREF ESTRDESP240SREF
Working width 1990 mm 2190 mm 2390 mm
Weight 610 kg 646 kg 686 kg
Belts 5 5 5

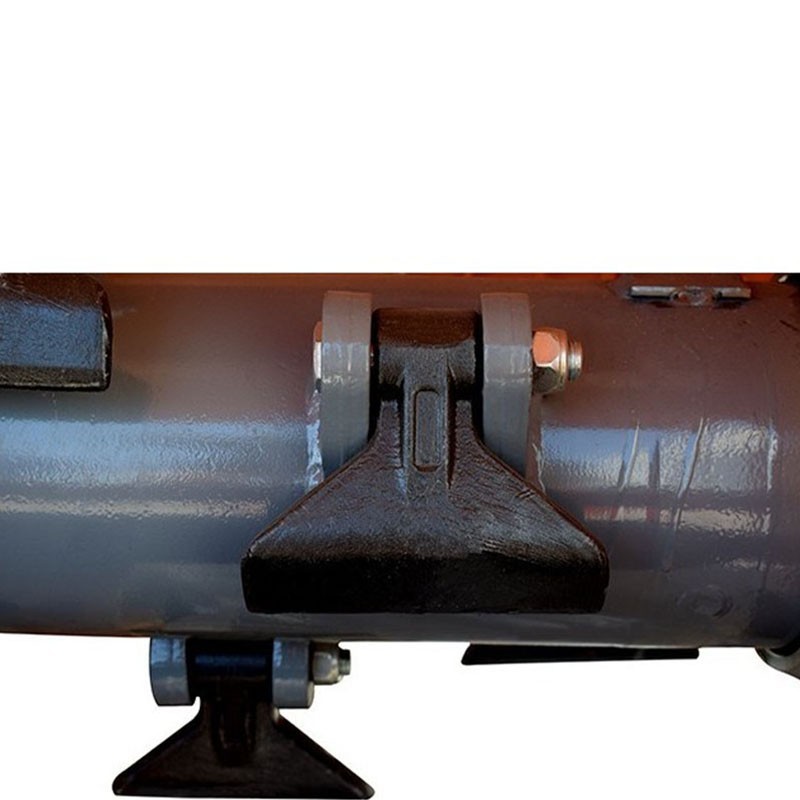

Hammers 20 24 24
Rotor diameter 152 152 152
Power requirement 70-120 hp 80-130 hp 80-140 hp
PTO (rpm) 540 540 540
Dimensions (cm) 90 x 215 x 100 90 x 235 x 100 90 x 255 x 100

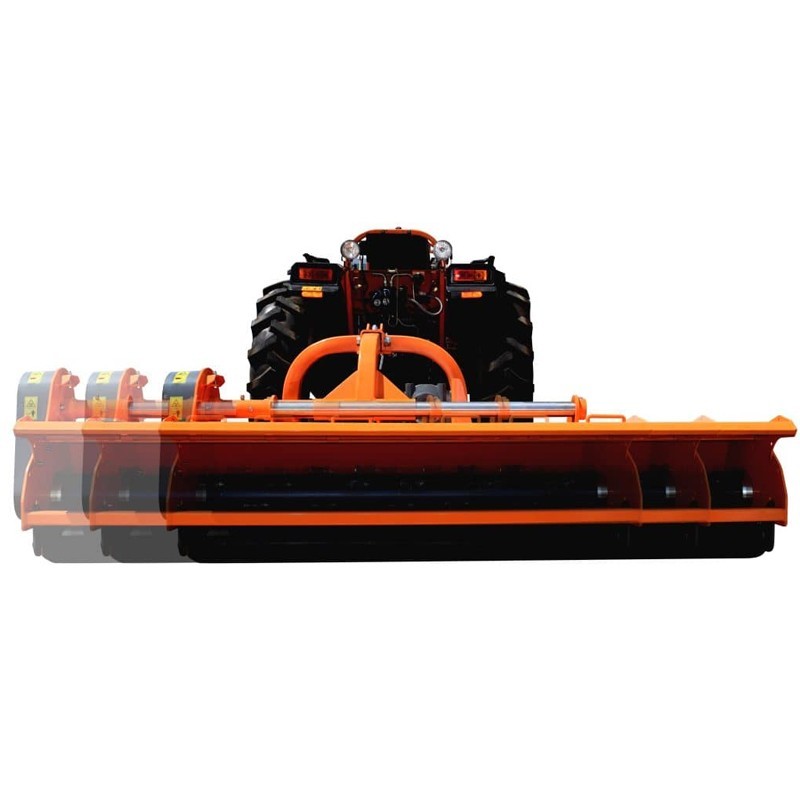

Displacement 500 mm 500 mm 500 mm
Connection Rear Rear Rear

Specifications

  • Super reinforced chassis (10 mm)

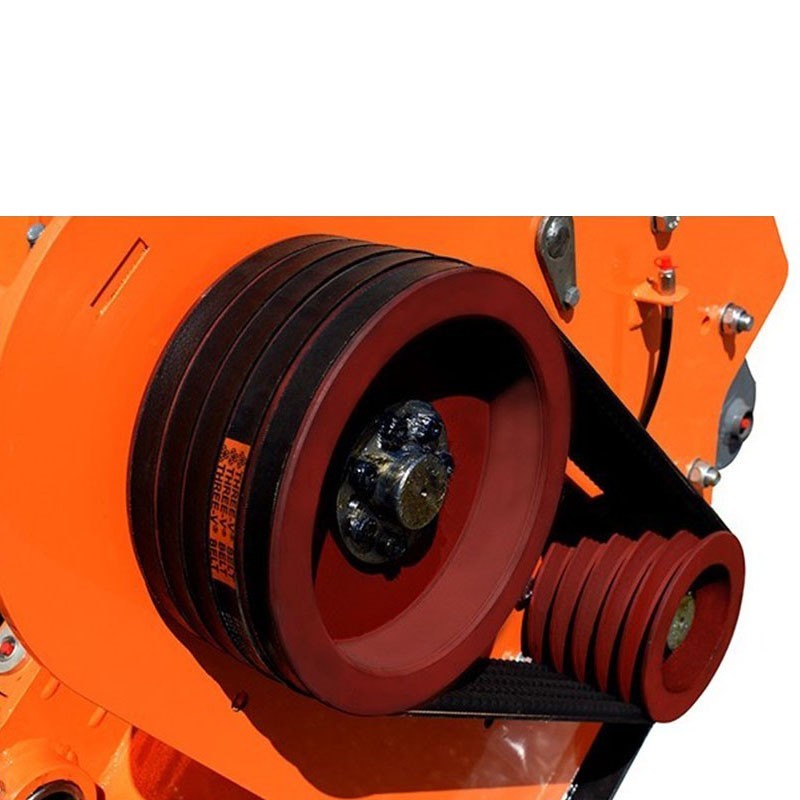

  • 5 top quality belts
  • Optimal for fruit orchards, vineyards, olive groves, etc.
  • Reinforced group with free wheel.
  • Designed for shredding
  • 7 to 8 mm plate with rotor support 10 mm thick
  • Cardan shaft and bolts included.
IMPORTANT NOTICES
It is compulsory for the customer to check oil and grease levels before starting the machine. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
