Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
CARDAN SHAFT INCLUDED
Deleks products take about 15 to 20 days. |

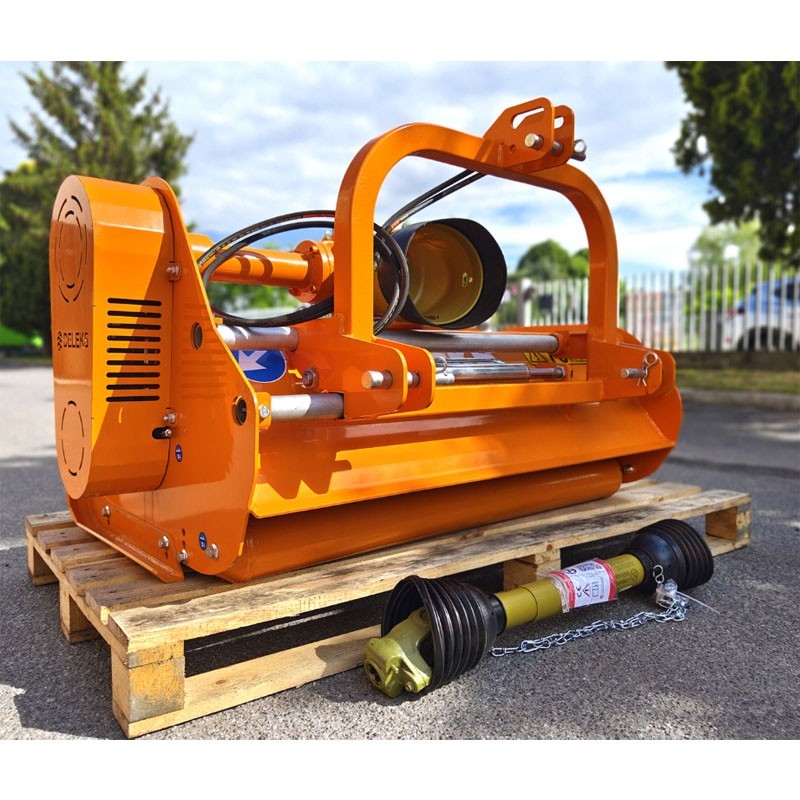

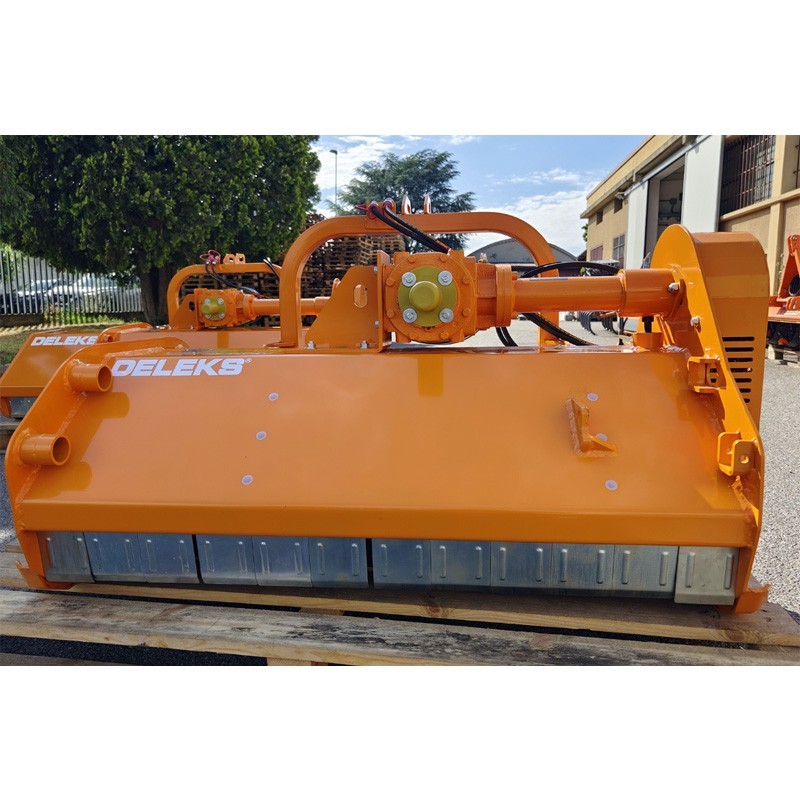

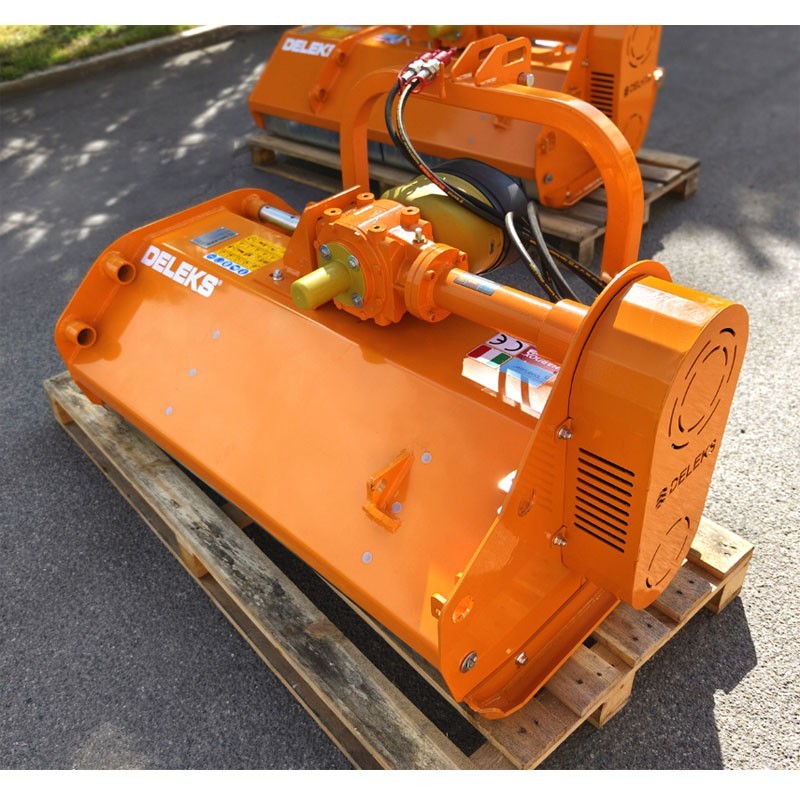

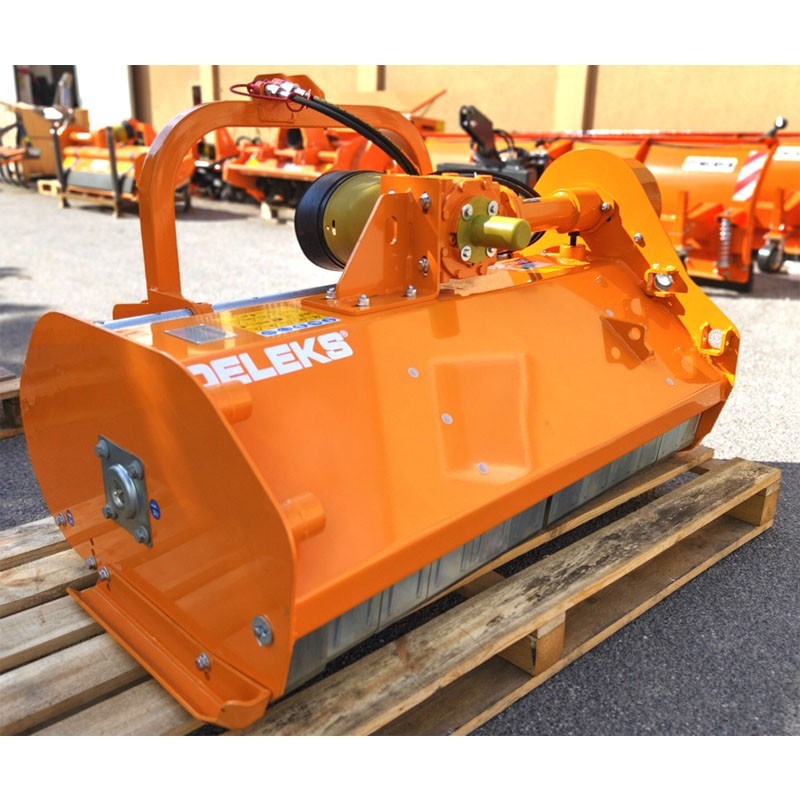

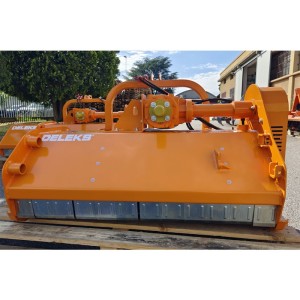

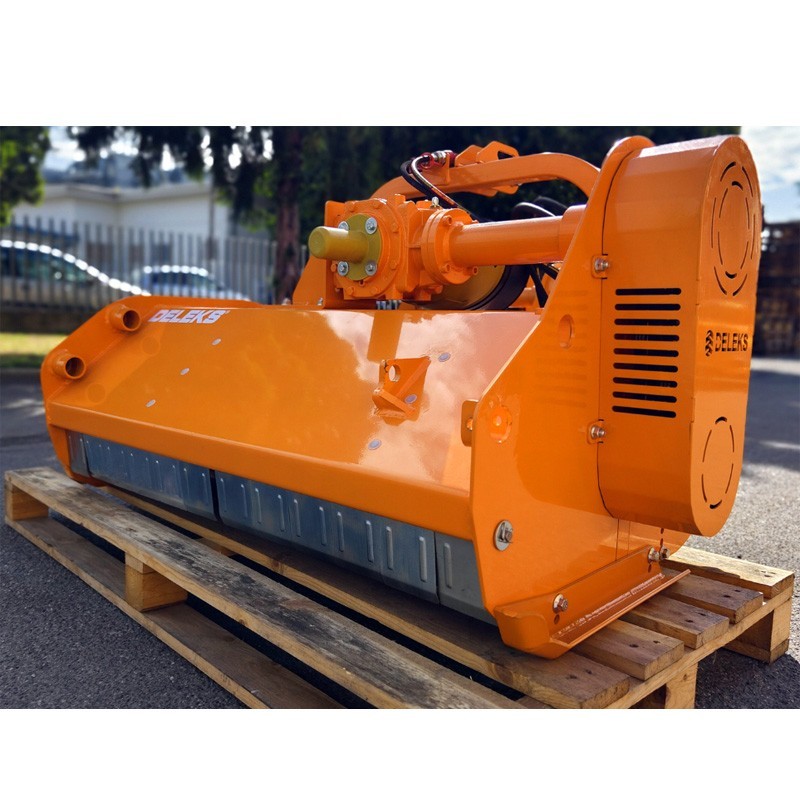

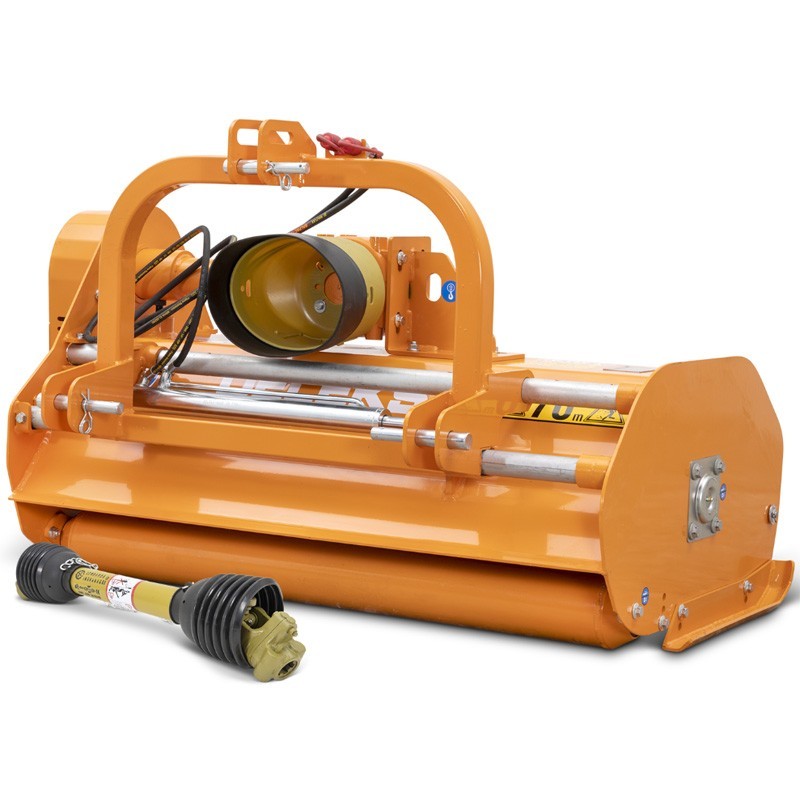

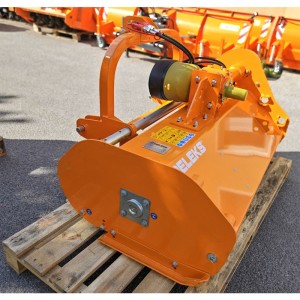

The DELEKS LINCIONE-SPH-REV Reversible PTO Shredder PTO DELEKS LINCIONE-SPH-REV can be installed in front of or behind the tractor. This shredder is specially designed for the gardens, fields and vine shoots of a vineyard, it has a hydraulic displacement and thanks to its robust chassis, it can be installed in front of or behind the tractor can cut pruning up to 3 - 4 cm in diameter.
This model can be attached to the tractor with a universal 3-point hitch and it is suitable for most tractors from the 30 to 70 HP, this shredder is completely manufactured in swedish steel SSAB, its special design in its platform allows for a perfect mulching and avoids clogging.
Your the rotor is made of an ARVEDI S355 steel tube, the hammers of this crusher are equipped with a hARDOX® brand stands, the crusher has self-aligning SKF branded rotor bearings, its side skids are double folded to prevent the crusher from jamming during lateral movements.
Model | LINCIONE-120-SPH-REV | LINCIONE-140-SPH-REV | LINCIONE-160-SPH-REV | LINCIONE-180-SPH-REV |
Working width | 1200.0 mm | 1400.0 mm | 1600.0 mm | 1800.0 mm |
Overall width | 1340.5 mm | 1540.5 mm | 1740.5 mm | 1940.5 mm |
Tractor power | 30 - 60 HP | 30 - 60 HP | 40 - 60 HP | 40 - 70 HP |
Weight | 310.0 kg | 325.0 kg | 350.0 kg | 370.0 kg |
Number of hammers | 16 | 20 | 24 | 28 |
Transmission type | V-belts | V-belts | V-belts | V-belts |
Cutting height min/max | 38.0 - 60.0 mm | |||
Total height | 1130.0 mm | |||
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm | |||
Hood height | 460.00 mm | |||
Distance between the lower points | 560.0 - 950.0 mm | |||
Max. cutting diameter | 40.0-50.0 mm | |||
Total length | 930.0 mm | |||
Ground to gearbox spacing | 540.0 mm | |||
Plate thickness | 5.0 + 6.0 mm | |||
Thickness of sheet metal on the sides | 6.0 mm | |||
Skid thickness | 6.0 mm | |||
Transmission: Gearbox | REBOS (Italy) (Warranty 3 years) | |||
Transmission: PTO | 540 + 540 r/min | |||
Transmission: direction of rotation | Clockwise / counterclockwise | |||
Transmission: freewheel | √ | |||
Transmission: rotor speed | 2300 rpm | |||
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 | |||
Transmission: number of Koreas | 4 | |||
Transmission: diameter of upper pulley | 180.0 mm | |||
Drive: lower pulley diameter | 130.0 mm | |||
Transmission: dimensions of the Koreas | BX43 | |||
Rotor: diameter | 115.0 mm | |||
Rotor: bearing type and dimension | SKF 2208-TVH | |||
Rotor: balancing | Electronic | |||
Rotor: blade thickness | 8.0 mm | |||
Hammers: weight | 820.0 g | |||
Hammers: hole dia | 15.0 mm | |||
Hammers: base width | 82.0 mm | |||
Hammers: head width | 45.0 mm | |||
Hammers: diagonal | 95.0 mm | |||
Roll: diameter | 121.0 mm | |||
Roll: sheet thickness | 5.0 mm | |||
Roll: bearing type and dimension | SKF 6207 | |||
Cardan | CE 4x800 mm + Bolt | CE 6x1000 mm + Bolt | CE 6x1000 mm + Bolt | CE 6x1000 mm + Bolt |
Horizontal displacement | 310.0 mm | |||
Packing dimensions | 138 x 90 x 80 cm | 158 x 90 x 80 cm | 178 x 90 x 80 cm | 198 x 90 x 80 cm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
