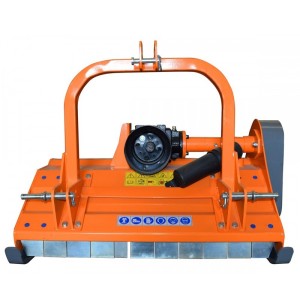

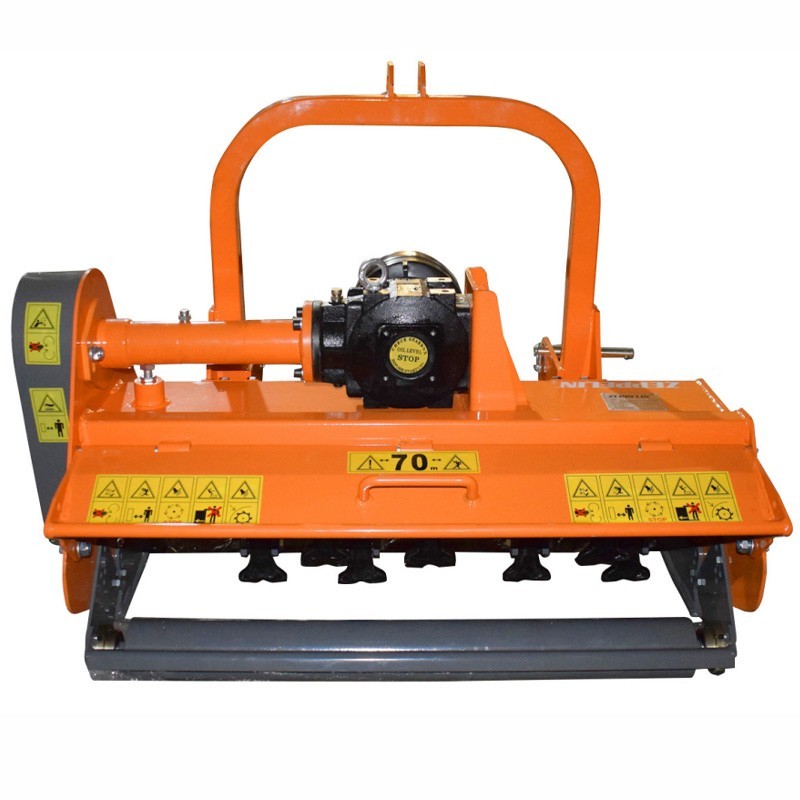

Hammer crusher Zeppelin Atacama 540 PTO
Hammer crusher Zeppelin Atacama 540 PTO
Hammer crusher Zeppelin Atacama 540 PTO
Hammer crusher Zeppelin Atacama 540 PTO
Zeppelin Atacama 540 PTO Hammer Crusher
Zeppelin Atacama 540 PTO Hammer Crusher
Zeppelin Atacama 540 PTO Hammer Crusher
Hammer crusher Zeppelin Atacama 540 PTO

Hammer crusher Zeppelin Atacama 540 PTO


  • Working width: 850 - 1850 mm
  • Power: 10 - 100 HP

CARDAN SHAFT INCLUDED

En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
85 - 185 cm
icon Tractor power
Tractor power
10 - 100 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Fixed hitch
icon Robustness
Robustness
Medium-Light
icon Number of hammers
Number of hammers
14 - 32
icon Weight
Weight
180 - 312 kg
€1,792.55 excl. VAT
- 11%
€1,595.37 excl. VAT
€1,930.40 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Hammer crusher Zeppelin Atacama 540 PTO
€1,930.40
Select
Qty

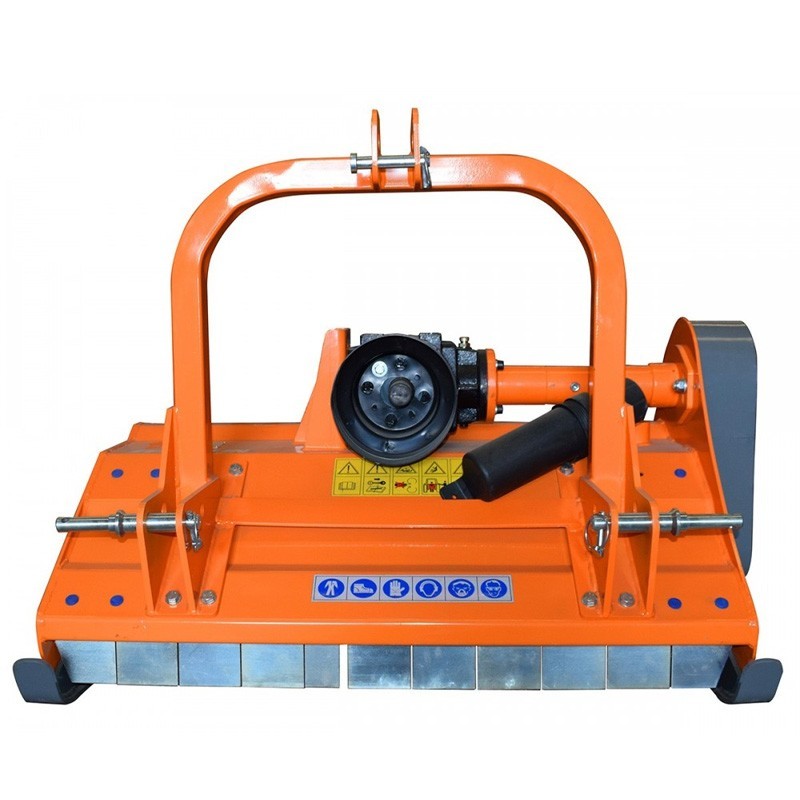

Hammer mill for tractor Zeppelin Atacama

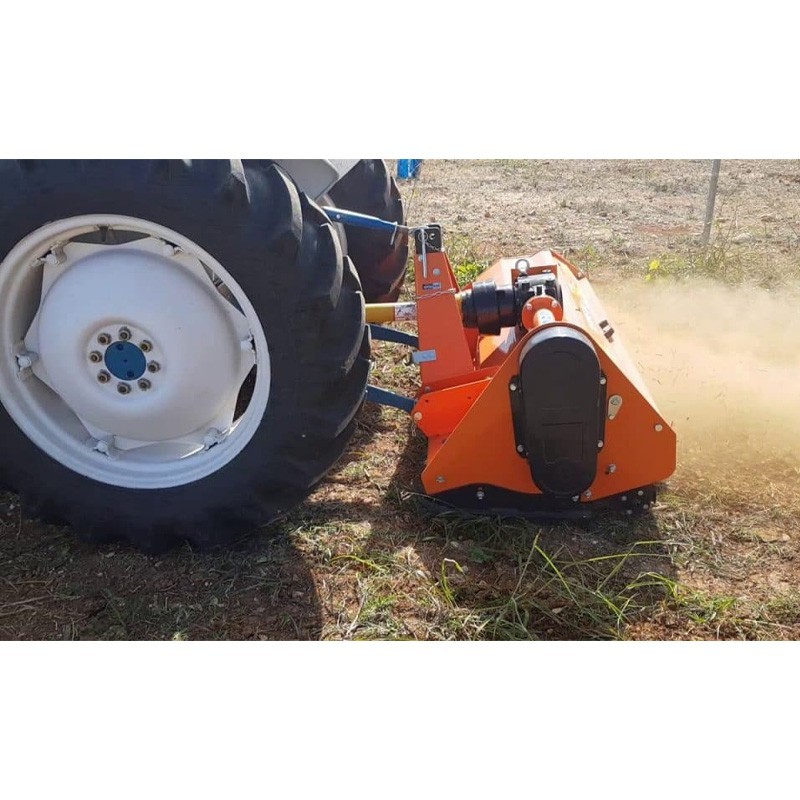

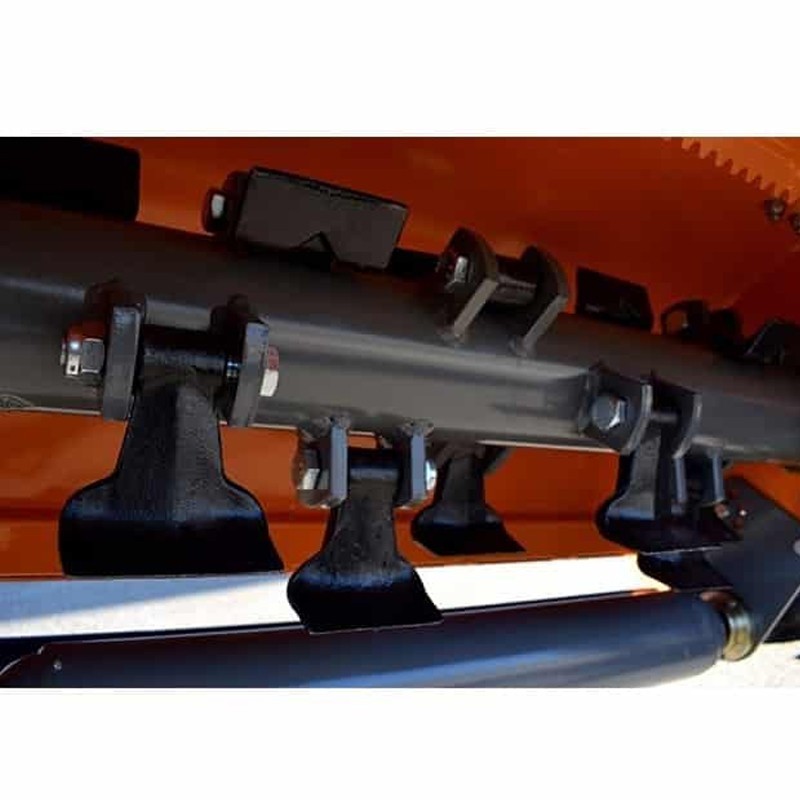

The hammer shredder Zeppelin Atacama is a stationary agricultural machine, designed for demanding work on grass, vineyards, orchards and greenhouses. Thanks to its reinforced cast iron unit and its hammer system, it is capable of shredding brush and pruning debris up to 5 cm in diameter, ensuring an efficient maintenance of the soil.

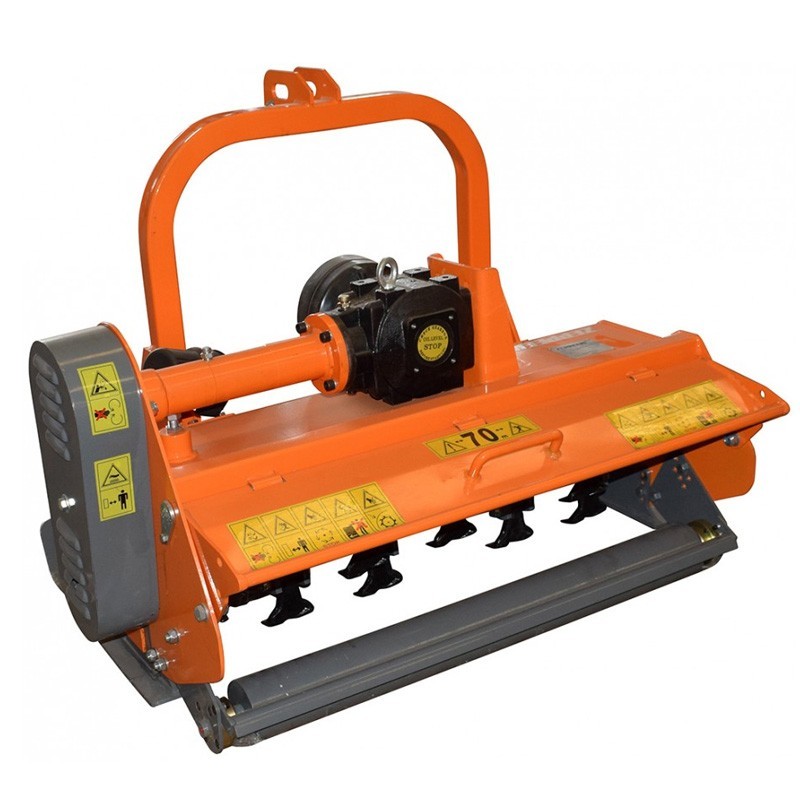

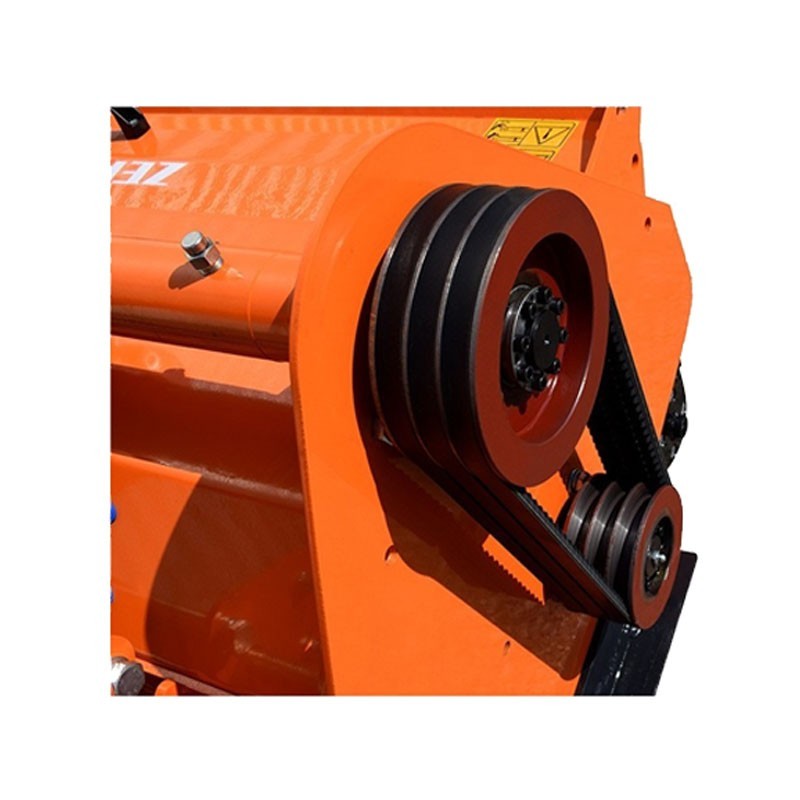

This model stands out for its rear roller with cleaner, height-adjustable side skids and adjustable rear opening, which allows it to adapt to different working conditions. In addition, it incorporates cardan shaft and pins, top quality belts and the option of mounting a brushcutter disc, ensuring durability and versatility in every use.

The Zeppelin Atacama range is available in various sizes, with working widths from 850 mm to 1850 mm and recommended power ratings between 10 and 100 HP, as shown in the table below. This makes it possible to choose the most suitable version according to the user's needs, optimizing performance in any farm.

Characteristics

Models ESTRGC085MZA ESTRGC105MZA ESTRGC125MZA
Working width 850 mm 1050 mm 1250 mm
No. of belts 3 3 3
No. hammers 14 16 20
Rotor diameter 108 108 108
Power requirement 10 - 20 30 - 50 30 - 60
PTO 540 540 540
Weight 180 Kg 230 Kg 249 Kg
Dimensions 920 x 920 x 950 mm 920 x 1170 x 950 mm 920 x 1370 x 950 mm
Models ESTRGC145MZA ESTRGC155MZA ESTRGC175MZA
Working width 1450 mm 1550 mm 1750 mm
No. of belts 3 3 3
Number of hammers 22 24 28
Rotor diameter 108 108 108
Power requirement 60 - 70 60 - 80 60 - 90
PTO 540 540 540
Weight 260 Kg 276 Kg 294 Kg
Dimensions 920 x 1570 x 950 mm 920 x 1670 x 950 mm 920 x 1870 x 950 mm
Models ESTRGC185MZA
Working width 1850 mm
No. of belts 3
No. of hammers 32
Rotor diameter 108
Power requirement 60 - 100
PTO 540
Weight 312 Kg
Dimensions 920 x 1970 x 950 mm

IMPORTANT NOTICES
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the transporter's sheet that the customer is in agreement except for pending examination.

Document

Related products

156971

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Working width PTO
85 - 185 cm
Tractor power
10 - 100 HP
Cardan shaft
Including
Type of coupling
Fixed hitch
Robustness
Medium-Light
Number of hammers
14 - 32
Working width (cm)
80 - 89 cm
100 - 109 cm
120 - 129 cm
140 - 149 cm
150 - 159 cm
170 - 179 cm
180 - 189 cm
Weight
180 - 312 kg
