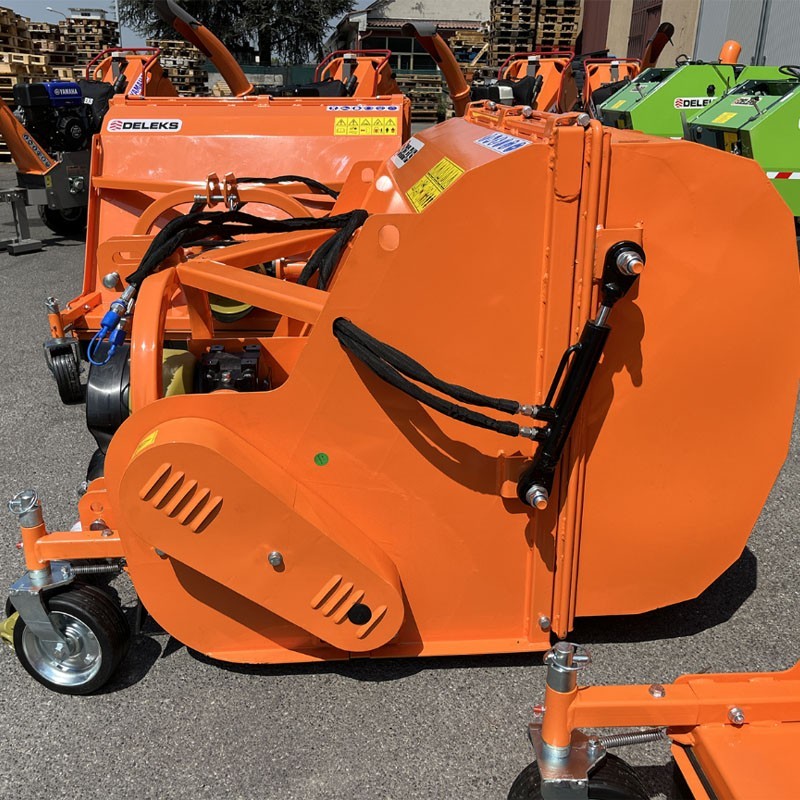

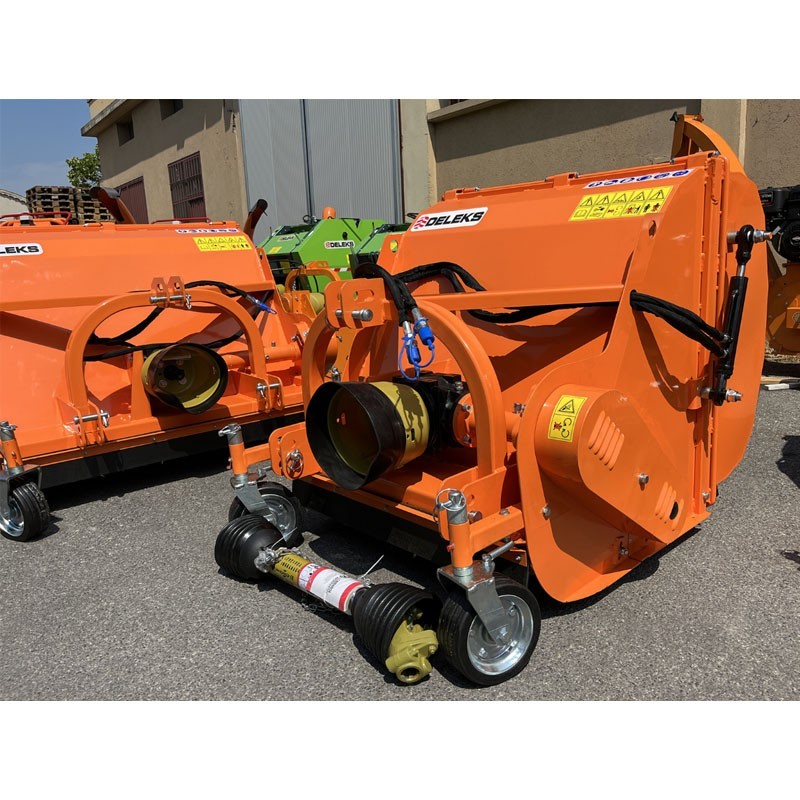

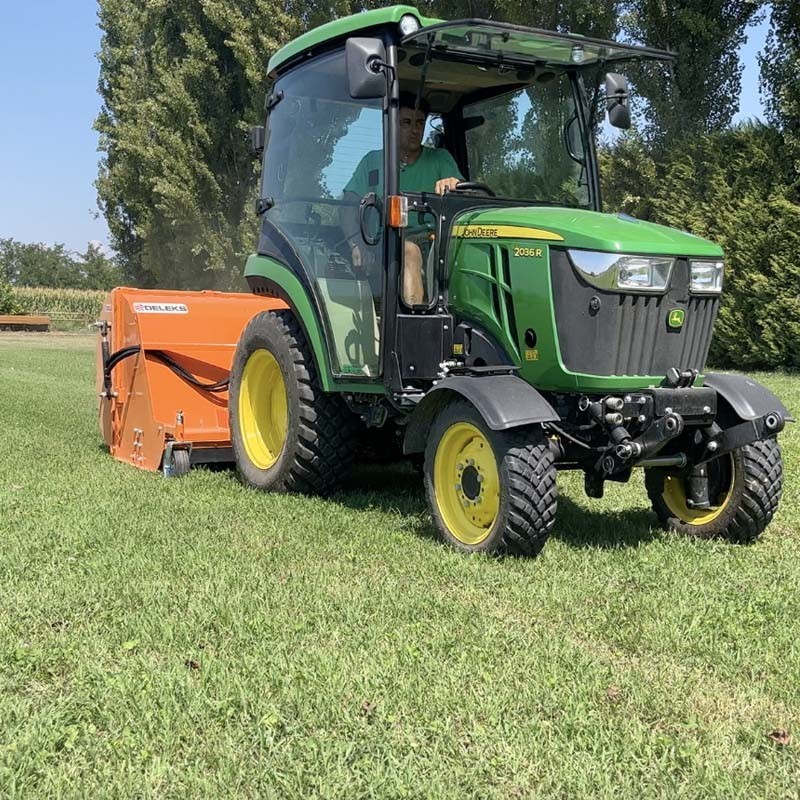

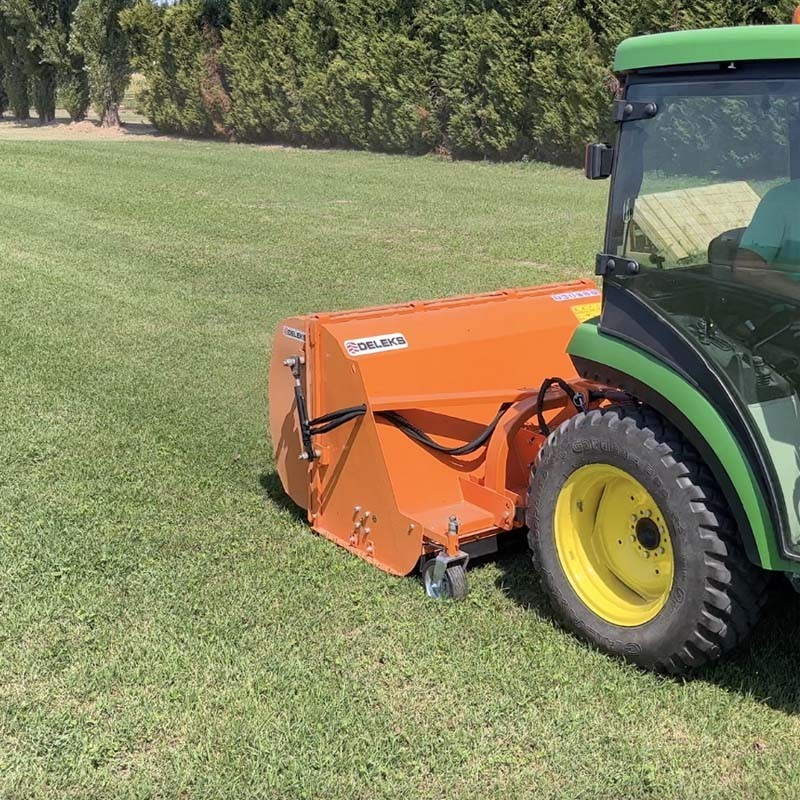

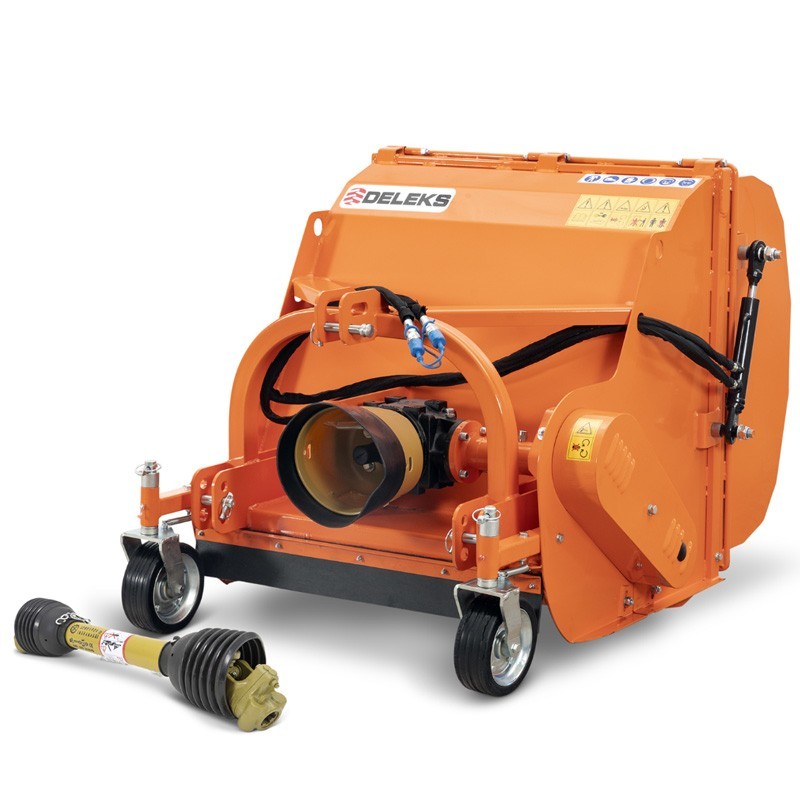

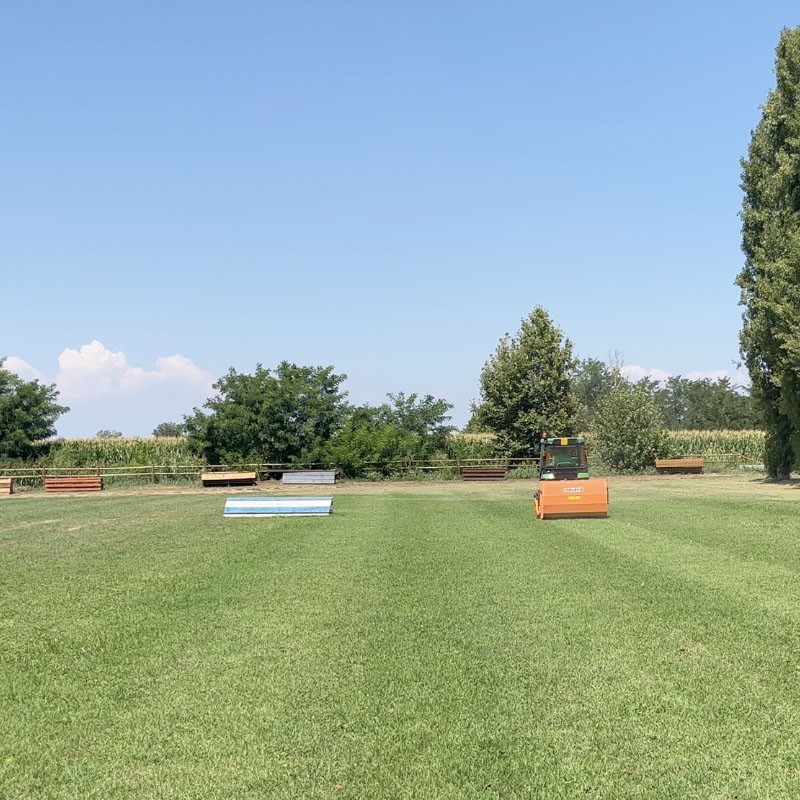

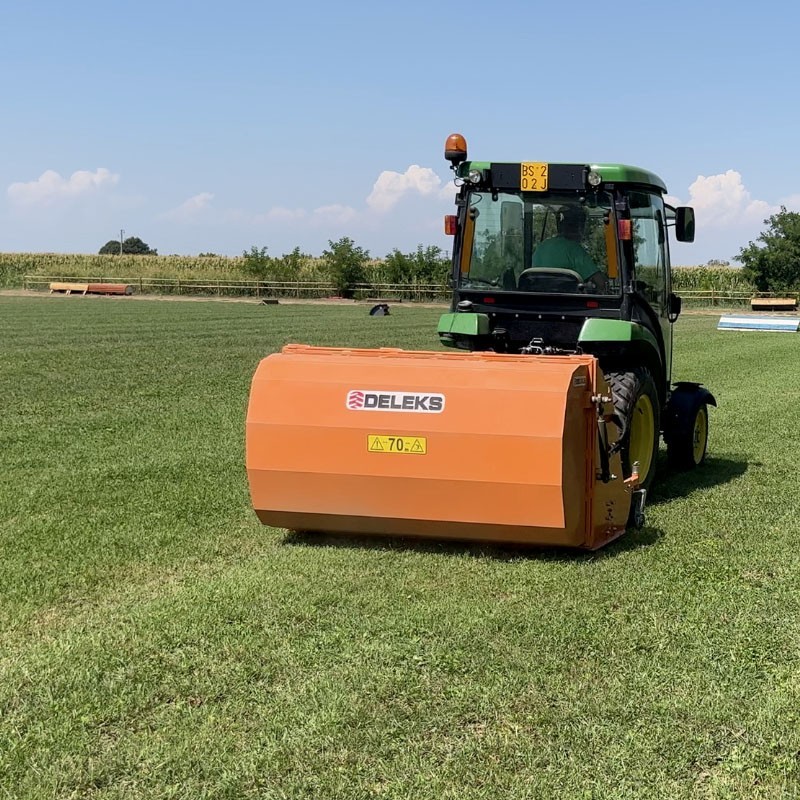

The DELEKS PANDA 120 cm blade shredder with collector is a shredder for grass and residue collection in sports fields, parks, public gardens, camp sites, golf courses, etc. It can also be used in the vineyard to recover small shoots, up to 2 cm in diameter.

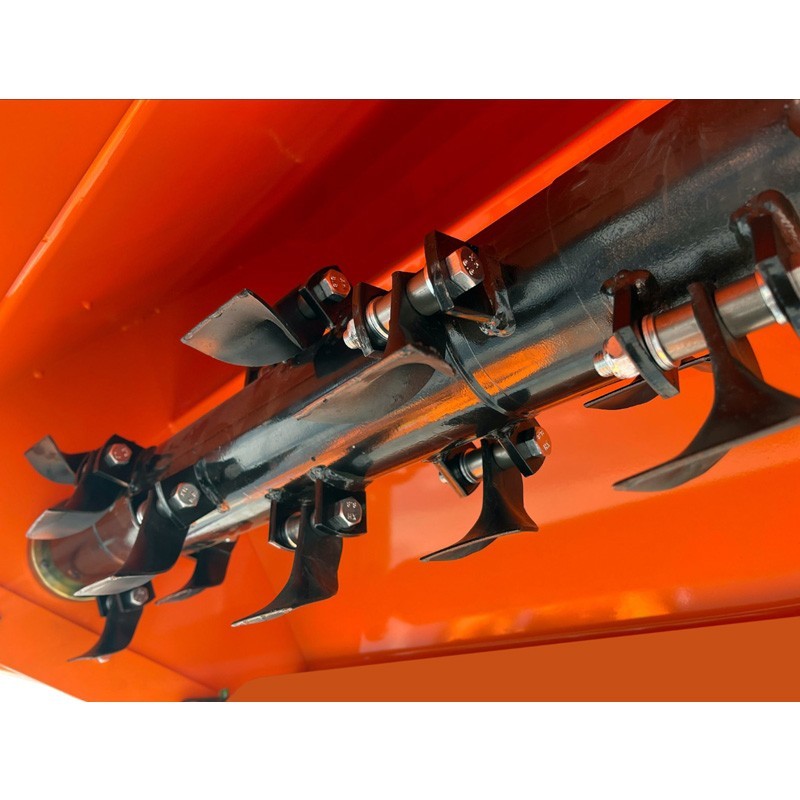

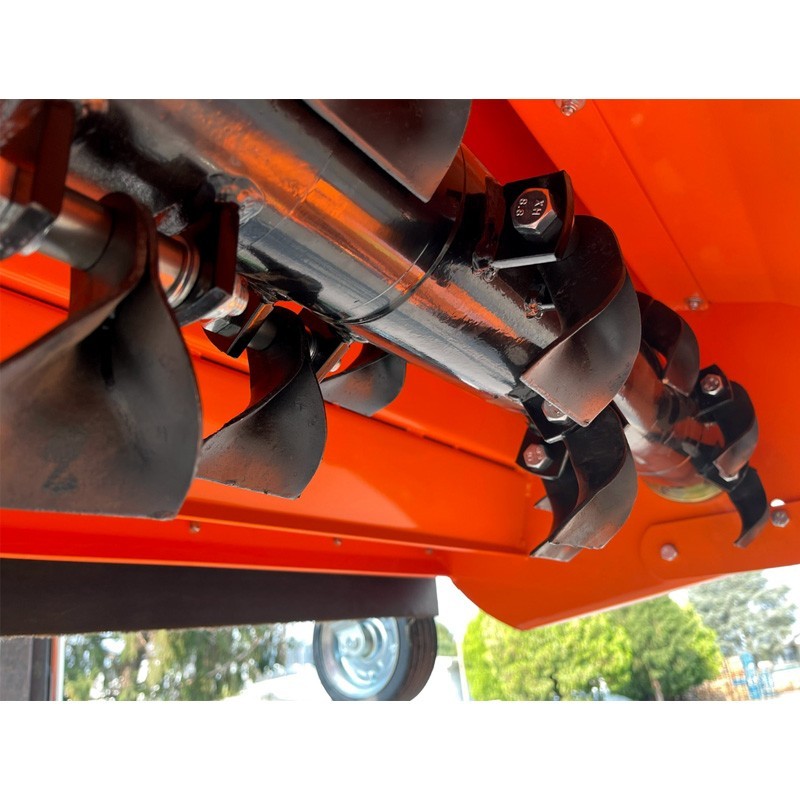

It is equipped with blades that cut flush and create an air flow to channel the grass clippings into the collector. The DELEKS PANDA 120 cm blade shredder with collector has a 2-year warranty. All parts are available in Italy and can be delivered within 7 to 10 days.

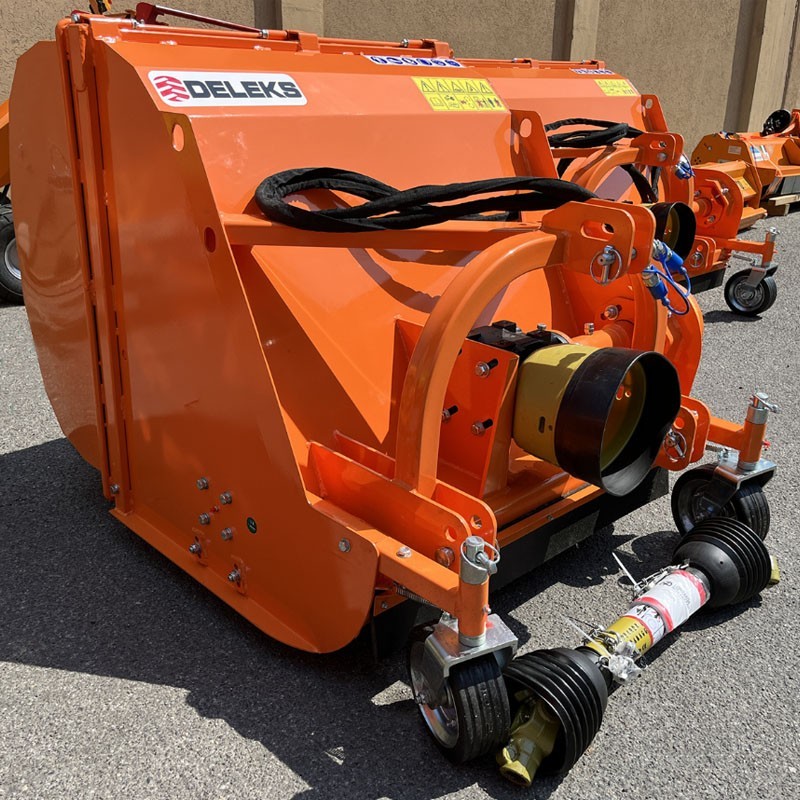

It is equipped with a rear roller, has a basket capacity of 720 L, is equipped with front guards and can be assembled to the tractor with its universal 3-point hitch.

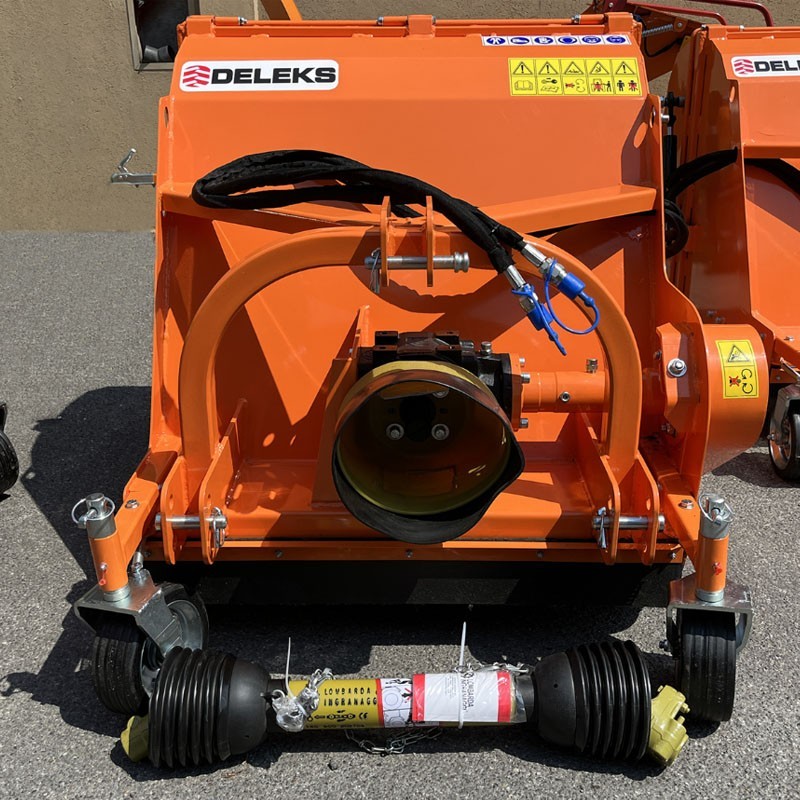

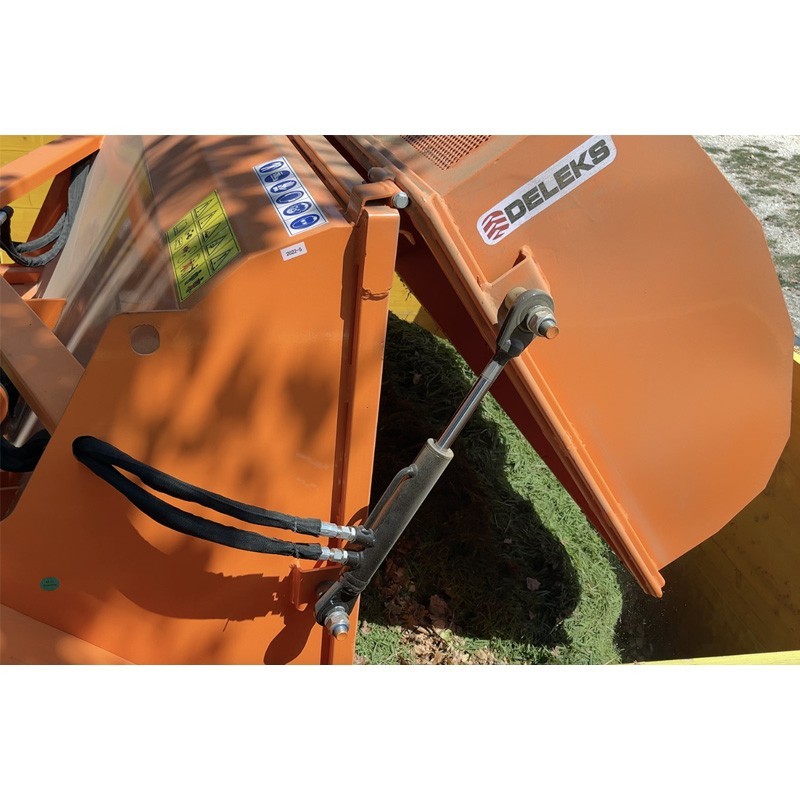

It has a Lombarda Ingranaggi Srl transmission box with free wheel with 3 years warranty, the basket is equipped with a hydraulic cylinder, for a quick opening without having to get up from the driver's seat, it has 3 high resistance belts and an electronically balanced rotor
Working width | 1200.0 mm |
Overall width | 1350.0 mm |
Weight | 342.0 kg |
Overall height | 850.0 mm |
Tractor power | 25 - 50 hp |
3-point hitch | Cat. 1 (ø 19.0-22.0mm) |
Distance between lower points | 630.0 - 725.0 mm |

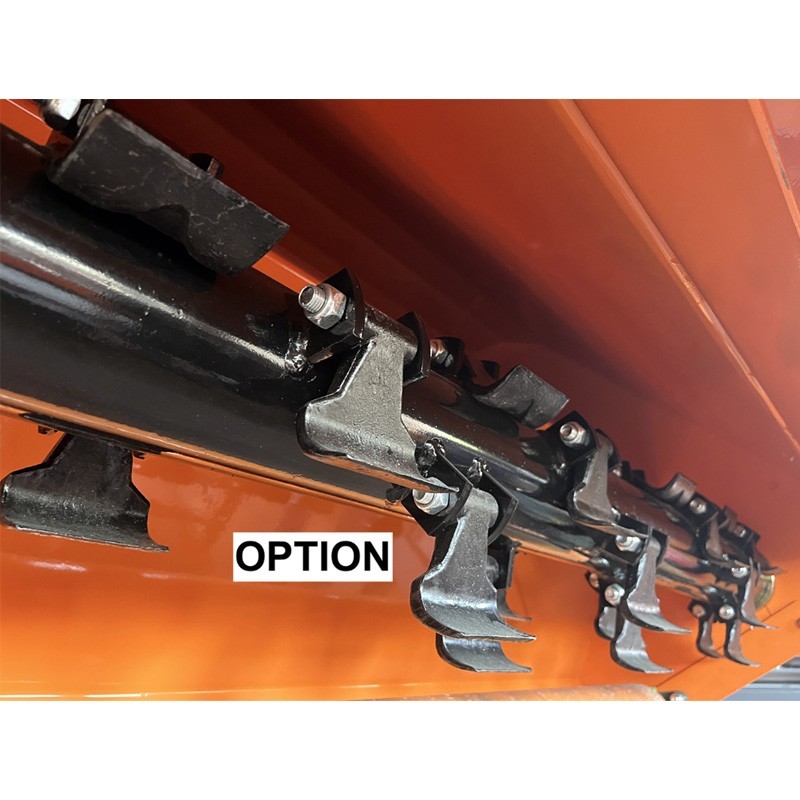

Number of hammers | 20 |
Max. cutting diameter | 20.0 - 30.0 mm |
Total length | 1400.0 mm |
Space between ground and transmission box | 450.0 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi (Warranty 3 years) |
Transmission: PTO | 540 r/min |
Transmission: rotation direction | Timetable |
Transmission: freewheel | √ |
Transmission: rotor speed | 2295 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: number of cores | 3 |
Transmission: dimensions of cores | 17x1067 |
Rotor: diameter | 108.0 mm |
Rotor: bearing type and dimension | UC207 |
Rotor: balancing | Electronic |
Rotor: sheet thickness | 8.0 mm |
Roll: diameter | 102.0 mm |
Roll: sheet thickness | 4.0 mm |
Cardan shaft | CE 4x800 mm + bolt |
Packing dimension | 1420.0*1420.0*1250.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
