Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 20 days. |

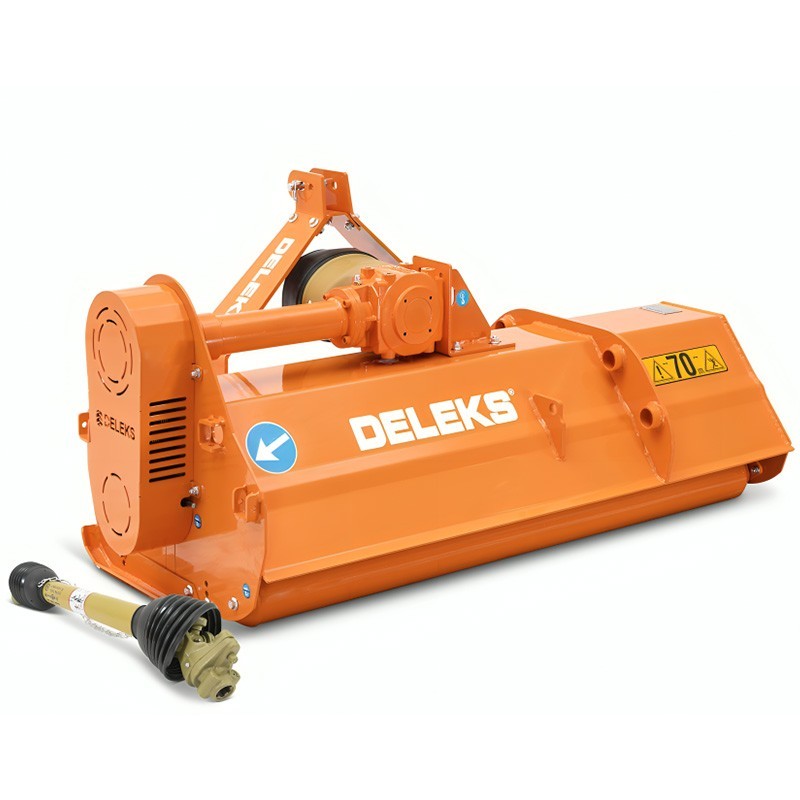

DELEKS LINCIONE Tractor Rear-mounted ShredderHas four models, this shredder has a manual displacement, for orchards, vineyards, olive groves and uncultivated areas.
The LINCIONE model is a versatile shredder model, suitable for mowing lawns and thanks to its robust structure, it is very useful for cutting prunings and pruning waste up to 4-5 cm in diameter.

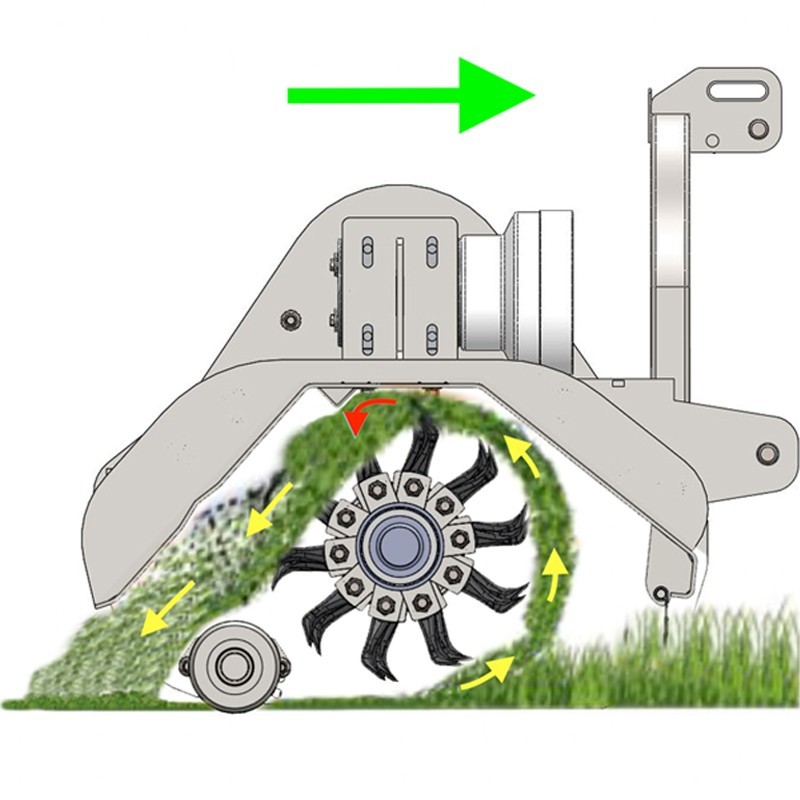

The structure of this made entirely of Swedish SSAB steel, has a thickness of 5 mm and sides of 6 mm, the special design of its platform allows a perfect mulching of the grass and avoids clogging.

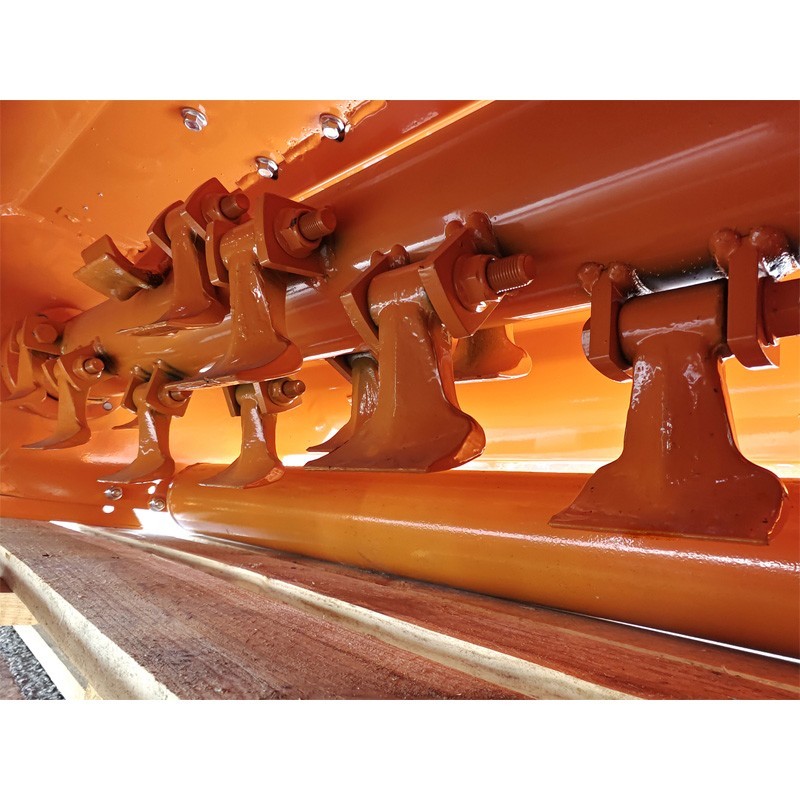

It has a Rotor made of ARVEDI tube, it is electronically balanced, made of S355 steel 8 mm thick, the support of its hammers is made of HARDOX.
Model | Lincione 120 | Lincione 140 | Lincione 160 | Lincione 180 |
Working width | 1200 mm | 1400.0 mm | 1600.0 mm | 1800.0 mm |
Overall width | 1340.5 mm | 1540.5 mm | 1740.5 mm | 1940.5 mm |
Tractor power | 30 - 60 HP | 30 - 60 HP | 40 - 60 HP | 40 - 70 HP |
Number of hammers | 16 | 20 | 24 | 28 |
Cutting height min/max | 38.0 - 60.0 mm | |||
Total height | 1130.0 mm | |||
3-point hitch | Cat. 1 (ø 19.0-22.0mm/ 25.0-28.0mm | |||
Hood height | 460.00 mm | |||
Distance between the lower points | 590.0 - 800.0 mm | |||
Max. cutting diameter | 40.0 - 50.0 mm | |||
Ground to gearbox spacing | 385.0 mm | |||
Total length | 930.0 mm | |||
Plate thickness | 5.0 + 6.0 mm | |||
Thickness of sheet metal on the sides | 6.0 mm | |||

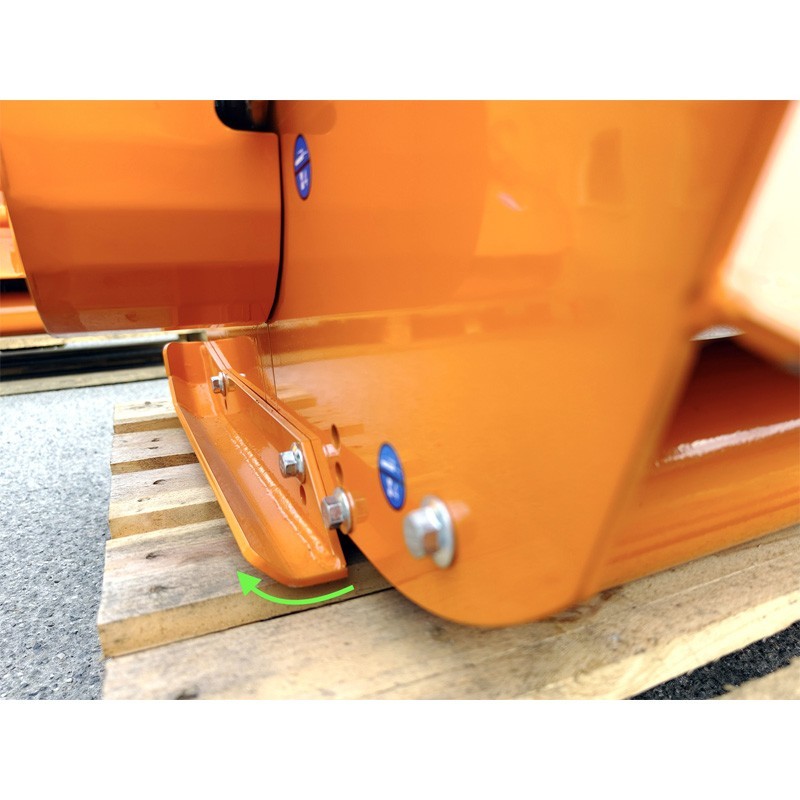

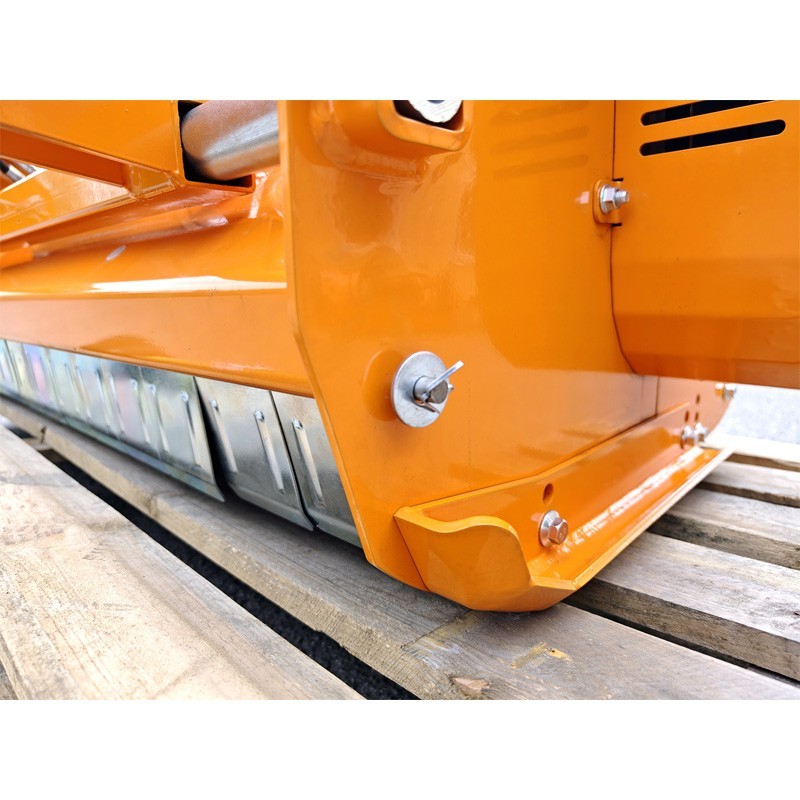

Skid thickness | 6.0 mm | |||
Transmission type | V-belts | |||

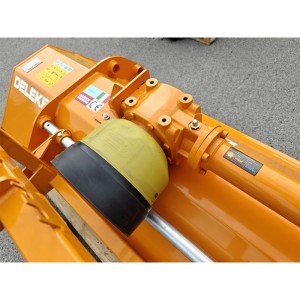

Transmission: Gearbox | Lombarda Ingranaggi Srl (Warranty 3 years) | |||
Transmission: PTO | 540 r/min | |||
Transmission: direction of rotation | Schedule | |||
Transmission: freewheel | √ | |||
Transmission: rotor speed | 2300 rpm | |||
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 | |||
Transmission: diameter of upper pulley | 180.0 mm | |||
Transmission: lower pulley diameter | 130.0 mm 96.0 mm |
|||
Transmission: number of Koreas | 4 | |||
Transmission: dimensions of the Koreas | BX43 | |||
Rotor: diameter | 115.0 mm | |||
Rotor: bearing type and dimension | SKF 2208-TVH | |||
Rotor: balancing | Electronic | |||
Rotor: blade thickness | 8.0 mm | 8.0 mm | 8.0 mm | 10.0 mm |
Hammers: weight | 820.0 g | |||
Hammers: hole dia | 15.0 mm | |||
Hammers: base width | 82.0 mm | |||
Hammers: head width | 45.0 mm | |||
Hammers: diagonal | 95.0 mm | |||

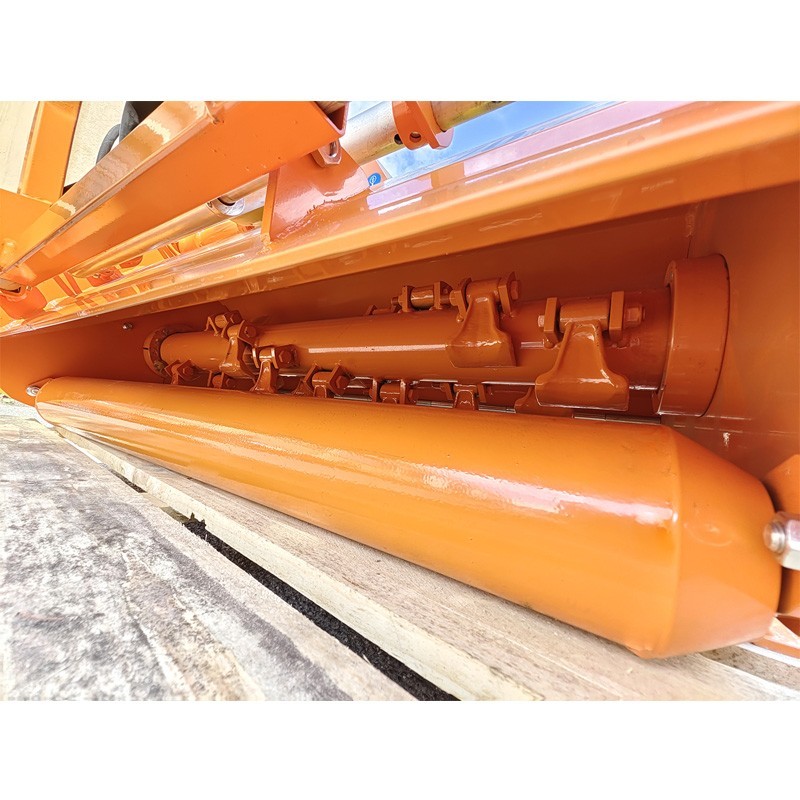

Roll: diameter | 121.0 mm | |||
Roll: sheet thickness | 5.0 mm | |||
Roll: bearing type and dimension | SKF 6207 | |||

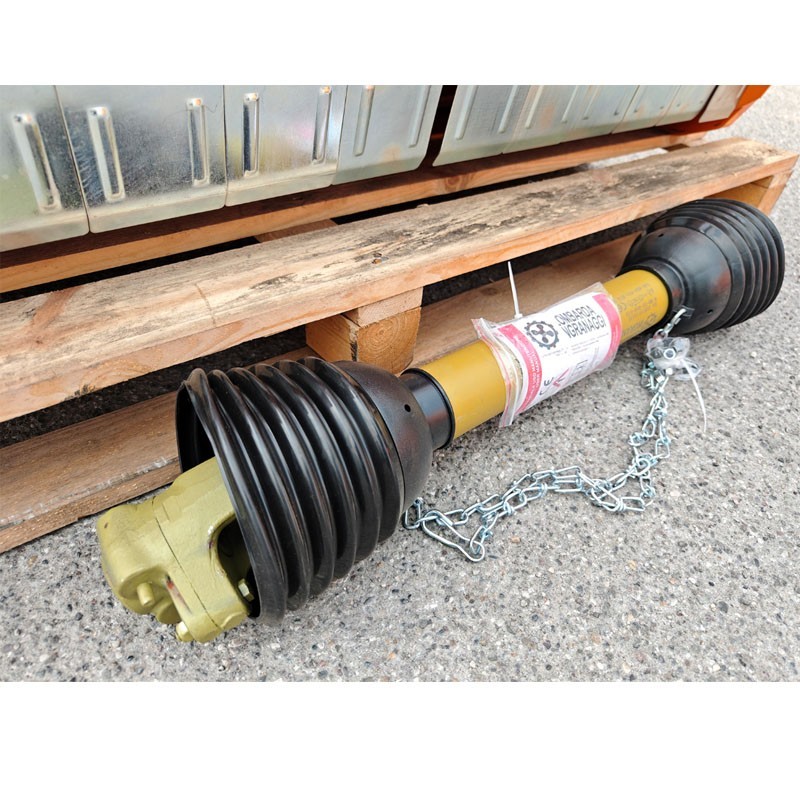

Cardan | CE 4x800 mm + Bolt | CE 6x1000 mm + Bolt | CE 6x1000 mm + Bolt | CE 6x1000 mm + Bolt |
Packing dimensions | 138 x 90 x 80 mm | 158 x 90 x 80 cm | 178 x 90 x 80 cm | 198 x 90 x 80 cm |
Weight | 285.0 kg | 300.0 kg | 325.0 kg | 345.0 kg |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
