Movable hammer crusher with side disc Centauro Huelva
Movable hammer crusher with side disc Centauro Huelva
Movable hammer crusher with side disc Centauro Huelva
Movable hammer crusher with side disc Centauro Huelva
Movable hammer crusher with side disc Centauro Huelva
Movable hammer crusher with side disc Centauro Huelva
Movable hammer crusher with side disc Centauro Huelva
Movable hammer crusher with side disc Centauro Huelva
Movable hammer crusher with side disc Centauro Huelva

Movable hammer crusher with side disc Centauro Huelva

Rating:
(0)
  • Working width: 1250 mm
  • Power requirement: 20-40 Hp
  • Displacement: 175 - 200 mm
  • Belts: 3

CARDAN SHAFT INCLUDED

Assembly and set-up INCLUDED
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
125 - 175 cm
icon Tractor power
Tractor power
20 - 80 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Light
icon Number of hammers
Number of hammers
20 - 28
icon Includes
Includes
Interfila Disc
icon Weight
Weight
324 - 374 kg
€3,650.41 excl. VAT
€4,417.00 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Movable hammer crusher with side disc Centauro Huelva
€4,417.00
Select
Qty

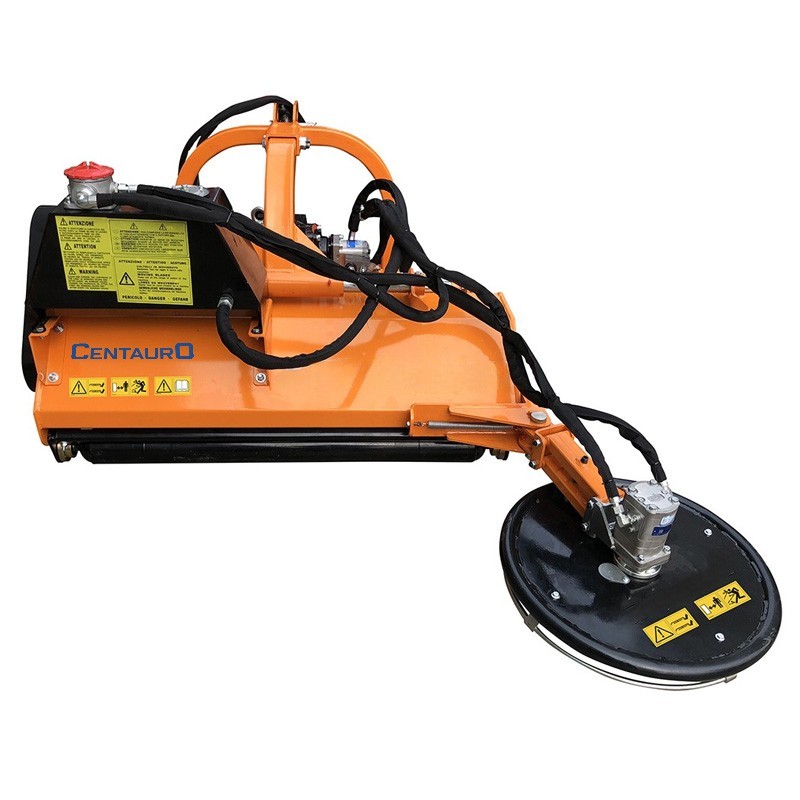

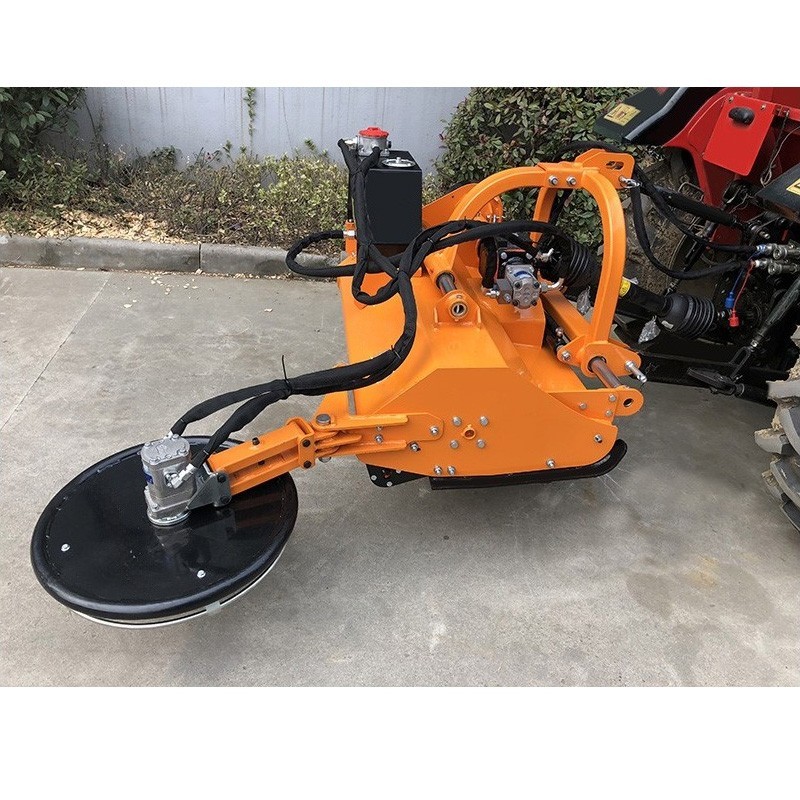

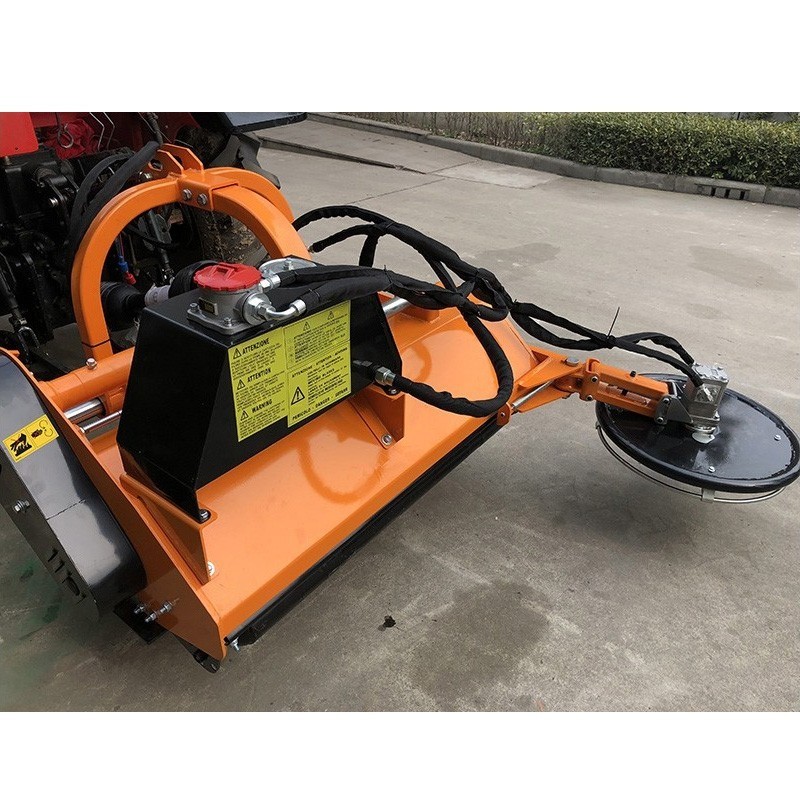

Centauro Huelva hammer shredder with side discs

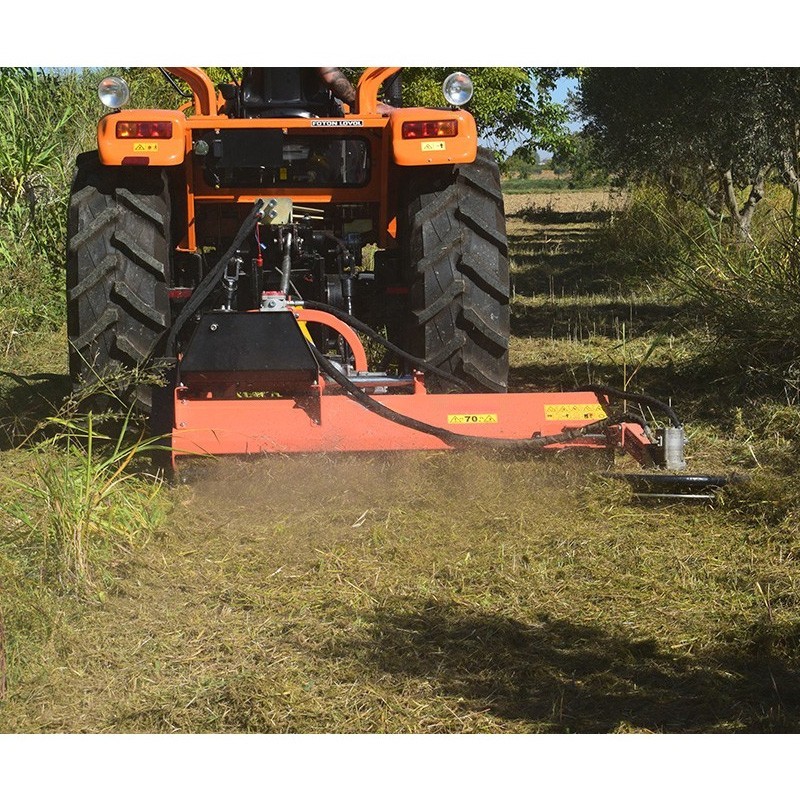

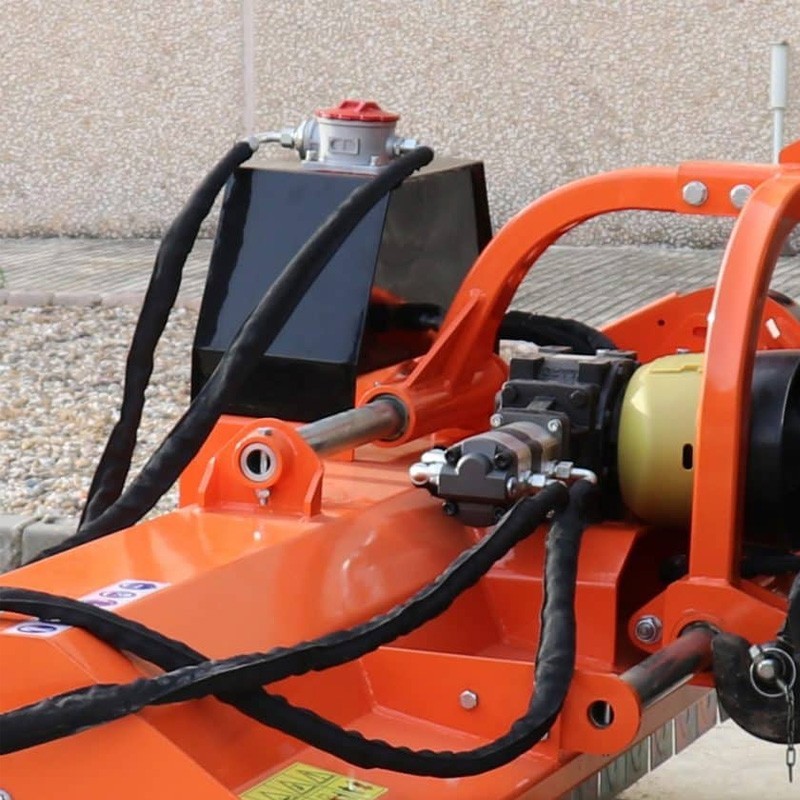

The Centauro Huelva side disc hammermill shredder is ideal for the maintenance of agricultural land with fine prunings and grass. Designed for intensive work, it has a 630 mm diameter side disc and a hydraulic motor that allows precise cuts in hard-to-reach areas. Its hydraulic displacement offers flexibility in the field, optimizing the work in wide terrains and different conditions.

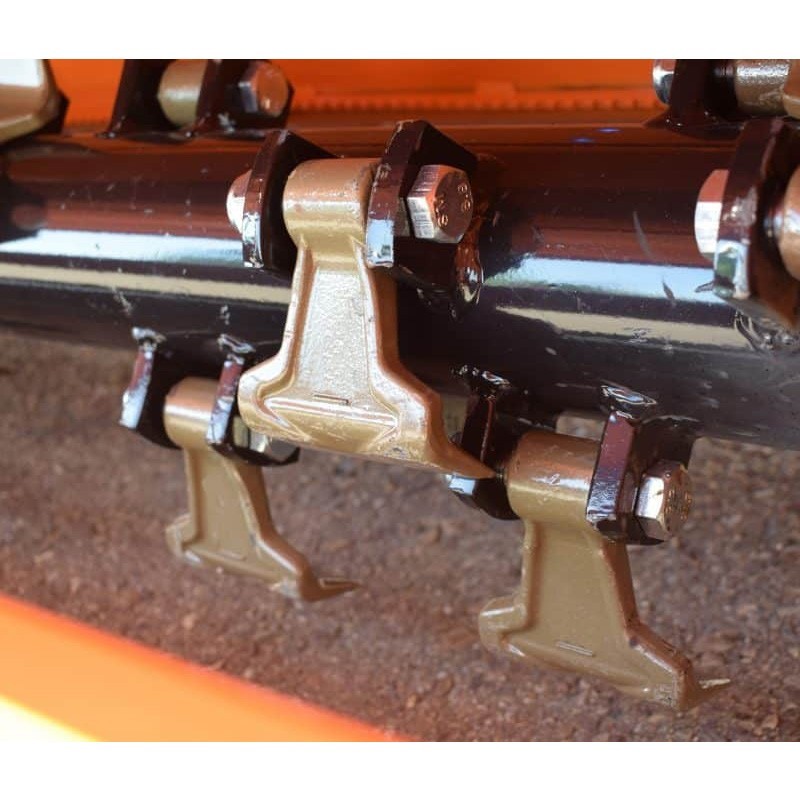

Available in Huelva 125, Huelva 155 and Huelva 175 models, this mulcher offers working widths from 1250 mm to 1750 mm and requires power from 25 to 55 HP, operating at a PTO of 540 rpm. With a heavy-duty 108 mm diameter rotor and 20 to 28 hammers, it guarantees uniform shredding of plant debris up to 5 cm thick. Its three belts ensure constant and long-lasting performance, ideal for farmers looking for efficiency and quality in every use.

With a weight ranging from 322 kg to 372 kg, the Centauro Huelva is robust and designed to withstand prolonged use. Its optimized dimensions and offset from 175 mm to 200 mm make it a versatile and easy to attach shredder. It is the perfect choice for those who require a powerful and adaptable machine for the efficient management of agricultural residues.

Features

Model Huelva 125 Huelva 155 Huelva 175
Working width (mm) 1250 1550 1750
Weight (kg) 322 352 372
Belts 3 3 3
Hammers 20 24 28
Rotor diameter 108 108 108
Power requirement (Hp) 25-55 30-55 30-55
PTO (rpm) 540 540 540
Dimensions (cm) 50 x 137 x 165 50 x 167 x 165 50 x 187 x 165
Displacement (mm) 175 200 200

Specifications

  • Hydraulic with 630 mm diameter blades.
  • Hydraulic displacement shredder with hydraulic displacement.

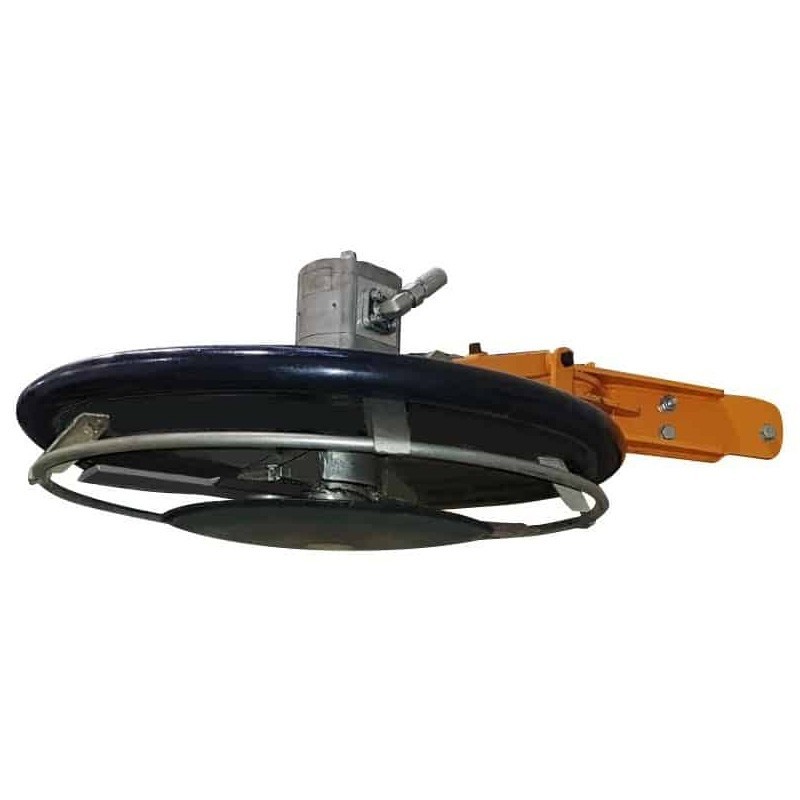

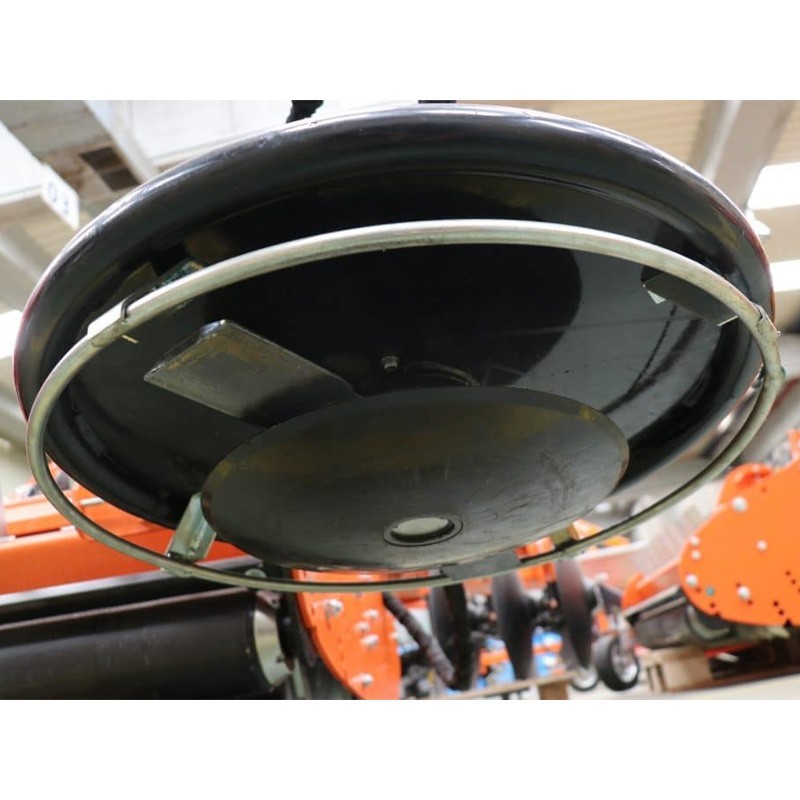

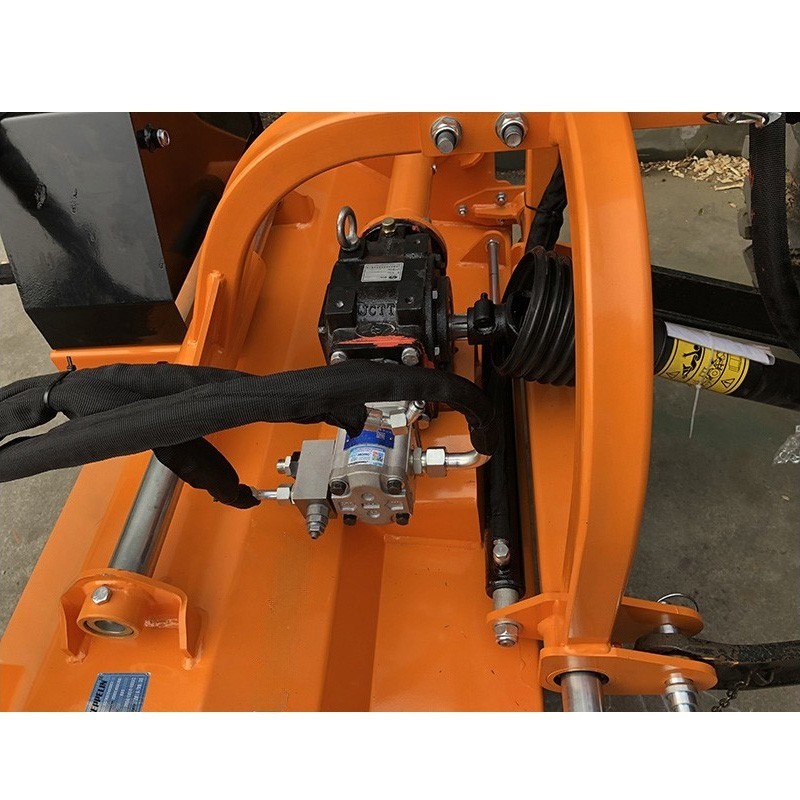

  • Side disc with hydraulic motor
  • Shredder for grass, fine pruning waste (up to 5 cm)
IMPORTANT NOTICES
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination.
