  • Working width: 1500 / 2400 mm
  • Required power: 50 - 130 Hp
  • Displacement 500 mm
  • Hammers on 168 mm shaft

INCLUDES CARDAN SHAFT

Assembly and set-up INCLUDED
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
150 - 240 cm
icon Tractor power
Tractor power
50 - 130 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Heavy
icon Number of hammers
Number of hammers
14 - 24
icon ✔️
✔️
Rear rakes
icon Weight
Weight
596 - 769 kg
€3,573.23 excl. VAT
€4,323.61 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Crusher with adjustable gate Centauro León
€4,323.61
Select
Qty

Hammer crusher with adjustable gate Centauro Lion

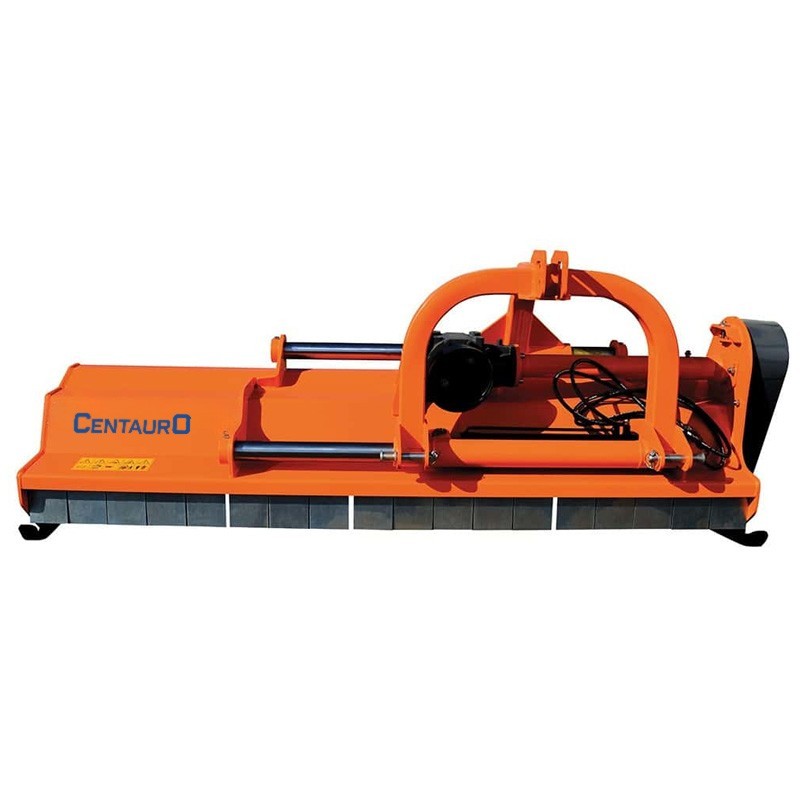

The Hammer crusher with adjustable gate Centauro Lion It is designed for high-volume tasks in pruning and plant waste up to 15 cm in diameter. With a working width that varies between 1500 mm and 2400 mm, this offset mower is ideal for use on tractors of 50 HP or more, providing the power and versatility needed for intensive tasks.

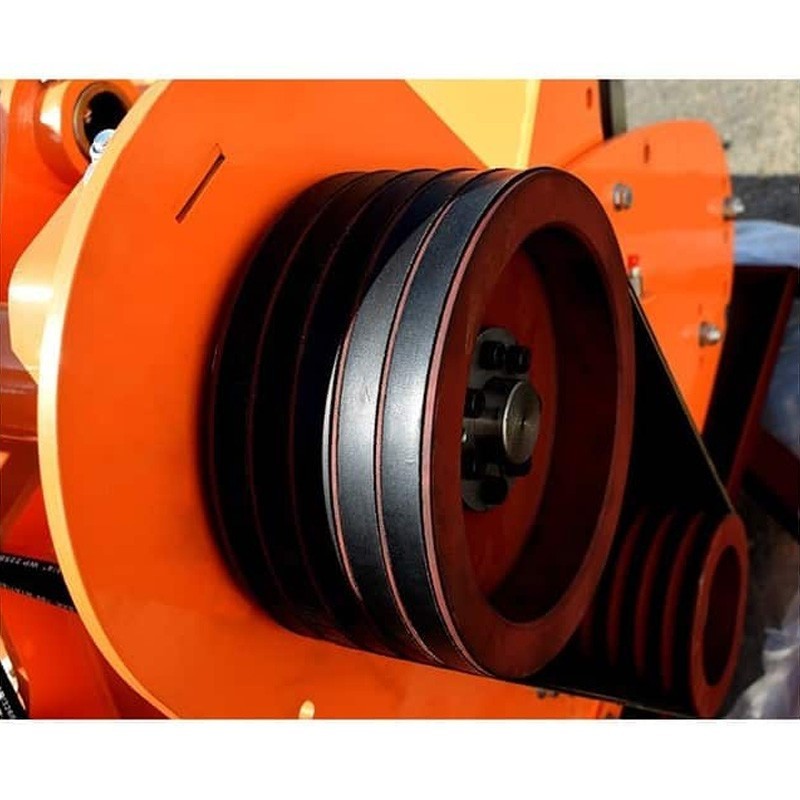

The displacement of 500 mm facilitates its use in small spaces, while the 5 high-quality straps ensure an efficient transmission of power to the hammers.

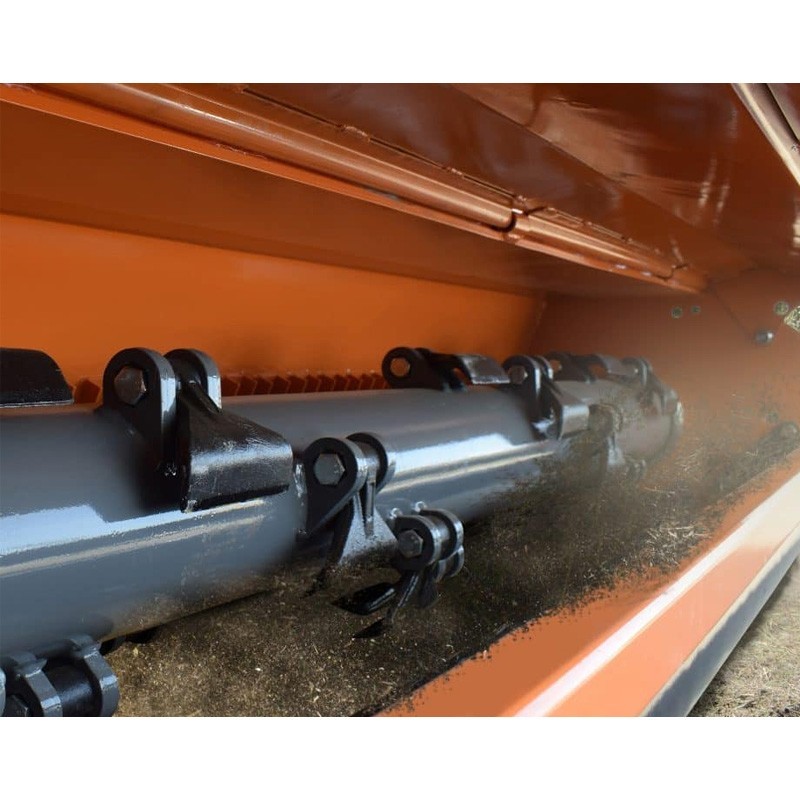

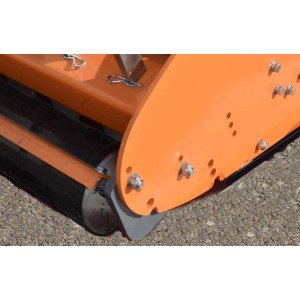

The Centauro Lion stands out for its robustness and durability, with a Reinforced casting group with freewheel which guarantees a long service life and optimal performance in demanding conditions. Its 168 mm diameter rotor is equipped with premium hammers that ensure a fine and uniform grind. Additionally, it features Adjustable height skates and roller, allowing the user to adjust the cut according to the characteristics of the terrain and the plant material.

This model includes a standard gimbal, which facilitates its coupling to the tractor and improves efficiency in the field. The Centauro Lion It is a robust and versatile shredder, ideal for shredding pruning residues in medium and large plantations, easily adapting to different working conditions thanks to its adjustable gate and hydraulic displacement.

Characteristics

Model Lion 15 Lion 16 Lion 20
Working width 1500 mm 1600 mm 2000 mm
Weight (kg) 596 618 684
Belts 5 5 5
Hammers 14 14 20
Rotor diameter 168 168 168
Required power (Hp) 50-80 90-120 50-80
PTO (rpm) 540 540 540
Dimensions 105x165x110 cm 105x175x110 cm 105x215x110 cm
Displacement 500 mm 500 mm 500 mm
No Stubble 10 11 14
Model Lion 22 Lion 24
Working width 2200 mm 2400 mm
Weight (kg) 725 769
Belts 5 5
Hammers 24 24
Rotor diameter 168 168
Required power (Hp) 90-120 90-130
PTO (rpm) 540 540
Dimensions 105x235x110 cm 105x255x110 cm
Displacement 500 mm 500 mm
No Stubble 14 16

The most notable thing about the Centauro Lion

  • Large Volume Movable Shredder. UP TO 15 CM.
  • Thanks to the group and the 5 belts, the shredder transmits great power to the hammers with tractors of more than 50 hp.
  • Displacement 500 mm.
  • 5 premium straps.
  • Hammers on a 168 mm axis
  • Adjustable height skates and roller.

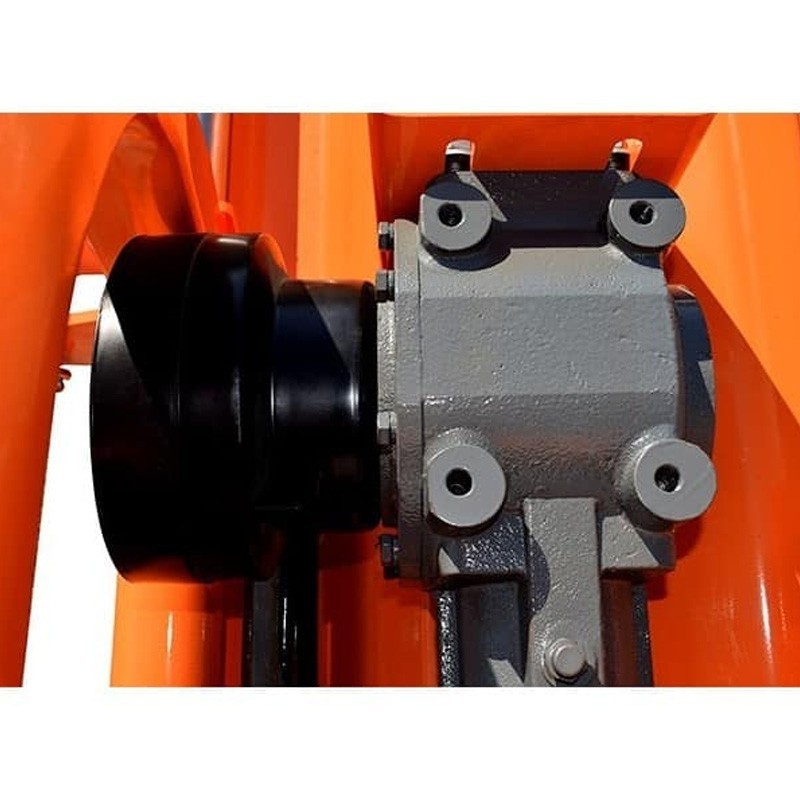

  • Reinforced casting group. Freewheel.
  • Cardan included.
IMPORTANT NOTICES
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement. except for pending exam.
