Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
CARDAN SHAFT INCLUDED
Deleks products take about 15 to 20 days. |

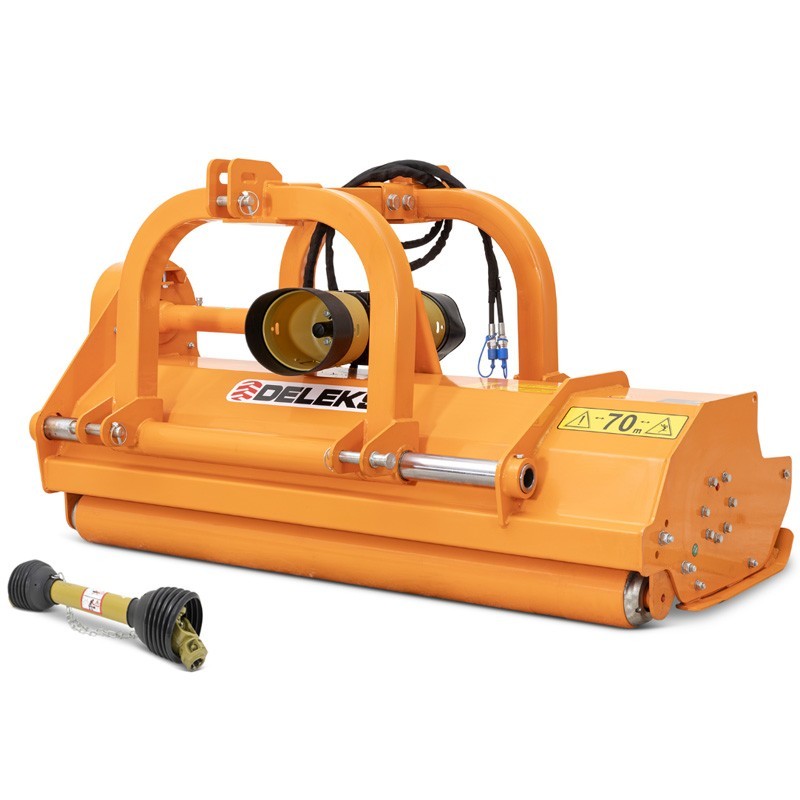

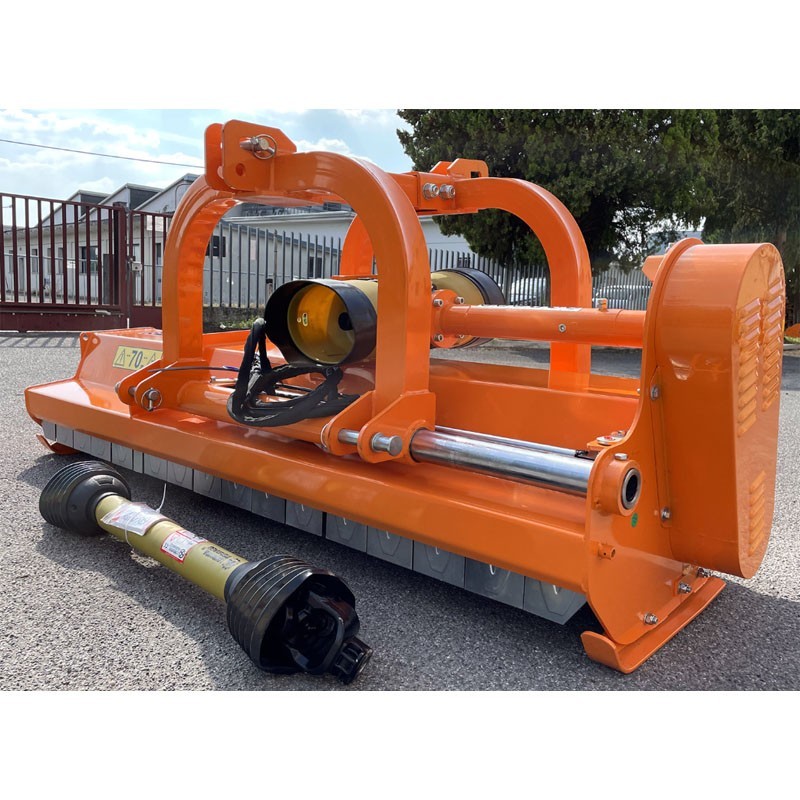

The GRIZZLY Brushcutter is a heavy and compact model, which can be mounted either on the front or on the rear of the tractor, it has a specialized design for vineyards and vine shoots, this brushcutter has a hydraulic side shift and thanks to its robust chassis it can be mounted on the front or on the rear of the tractor cut pruning up to 4 - 5 cm in diameter.
This model of brushcutter is fixed to the tractor with a 3-point hitch which has a reinforced steel and is adapted for most of the tractors with 50 to 100 HP.

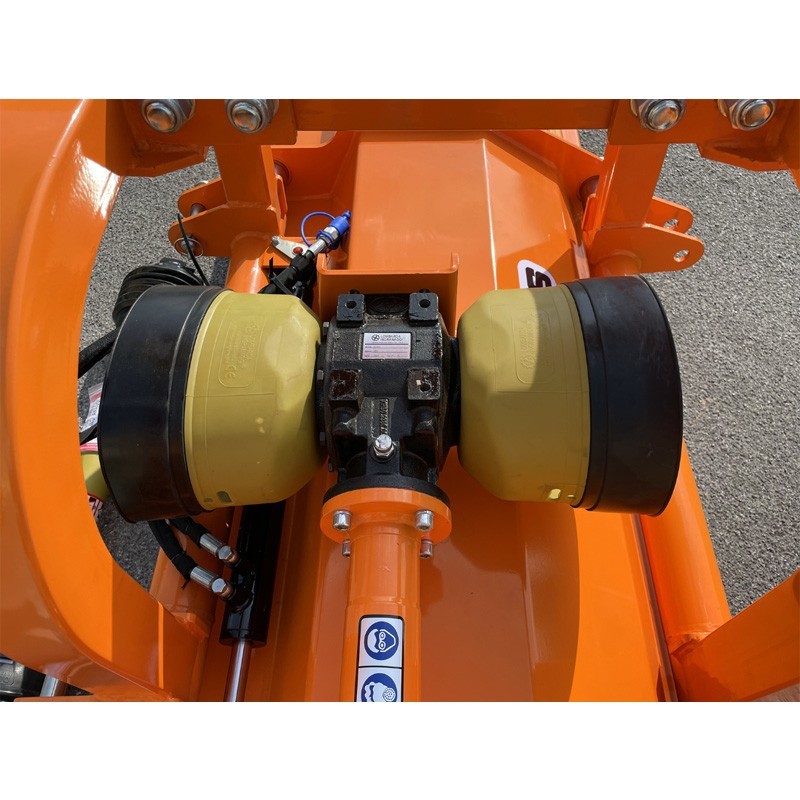

It has a double box of heavy and robust conception for professional use, it has a reversible use of 540 r/min, it is equipped with 4 heavy duty straps and an external voltage adjustment can be made, your 152 mm rear roller and adjustable side skids make it a much more versatile and useful machine.

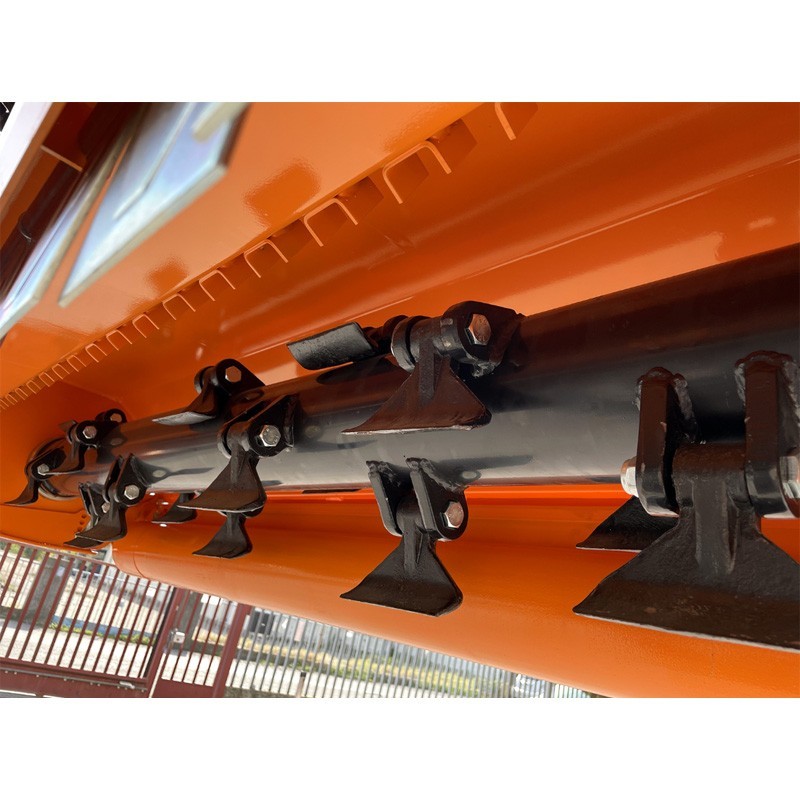

Its rotor is electronically balanced and is equipped with forged hammers for cutting vegetation up to 4 - 5 cm in diameter
Model | GRIZZLY 160 | GRIZZLY 180 | GRIZZLY 200 | GRIZZLY 220 |
Working width | 1600 mm | 1800 mm | 2000 mm | 2200 mm |
Overall width | 1750.0 mm | 1950.0 mm | 2150.0 mm | 2350.0 mm |
Tractor power | 50 - 100 HP | 60 - 100 HP | 60 - 100 HP | 70 - 100 HP |
Weight | 480.0 kg | 520.0 kg | 540.0 kg | 570.0 kg |
Position of the gearbox | 750.0 mm from left side / 850.0 mm from right side. | 800.0 mm from the left side / 1000.0 mm from the right side. | 800.0 mm from the left side / 1000.0 mm from the right side. | 800.0 mm from the left side / 1000.0 mm from the right side. |
Number of hammers | 14 | 16 | 18 | 20 |

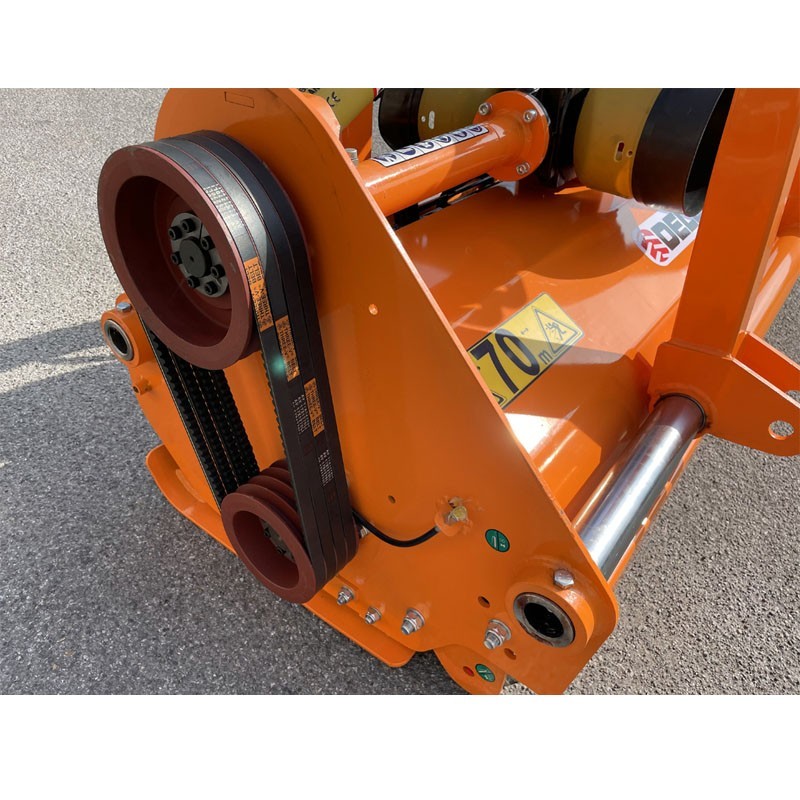

Transmission type | V-belts | V-belts | V-belts | V-belts |
Cutting height min/max | 5.0 - 55.0 mm | |||
Total height | 1050.0 mm | |||
3-point hitch | Cat. 2 (ø 25.0-28.0mm | |||
Hood height | 500.0 mm | |||

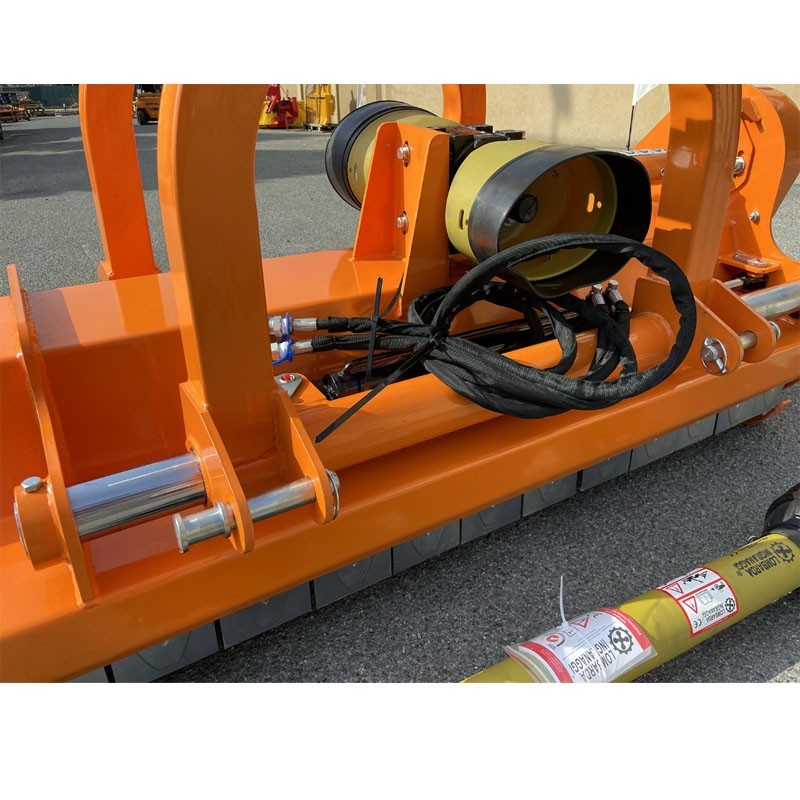

Hydraulic hoses (2) | 2500.0 mm, 1.2" AGRI, WP-400 bar | |||
Distance between the lower points | 740.0 - 890.0 mm | |||
Max. cutting diameter | 40.0 - 50.0 mm | |||
Total length | 1030.0 mm | |||
Ground to gearbox spacing | 550.0 mm | |||
Plate thickness | 5.0 mm | |||
Thickness of sheet metal on the sides | 8.0 mm | |||
Skid thickness | 6.0 mm | |||
Transmission: Gearbox | Lombarda Ingranaggi 540 r/min (Warranty 3 years) | |||
Transmission: PTO | 540 r/min | |||
Transmission: direction of rotation | Schedule | |||
Transmission: freewheel | √ | |||
Transmission: rotor speed | 2140 rpm | |||
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 | |||
Transmission: number of Koreas | 4 | |||
Transmission: diameter of upper pulley | 180.0 mm | |||
Drive: diameter of lower pulley | 130.0 mm | |||
Transmission: dimensions of the Koreas | Transmission: number of Koreas | |||
Rotor: diameter | 127.0 mm | |||
Rotor: bearing type and dimension | 40x90 | |||
Rotor: balancing | Electronic | |||
Rotor: blade thickness | 8.0 mm | |||
Hammers: weight | 1100.0 g | |||
Hammers: hole dia | 16.0 mm | |||
Hammers: base width | 140.0 mm | |||
Hammers: head width | 40.0 mm | |||
Hammers: diagonal | 97.0 mm | |||
Roll: diameter | 152.0 mm | |||
Roll: sheet thickness | 6.0 mm | |||
Roll: bearing type and dimension | 90x40 mm - GB276-6308 | |||
Cardan | CE 6x1000 mm | |||
Hood length | 1000.0 mm | |||
Horizontal displacement | 400.0 mm hydraulic | |||
Packaging dimensions | 175 x 105 x 105 cm | 195 x 105 x 105 cm | 215 x 105 x 105 cm | 235 x 105 x 105 |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
