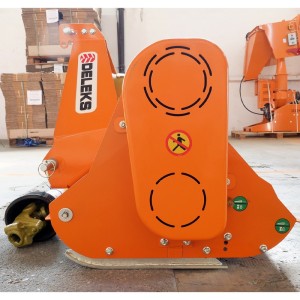

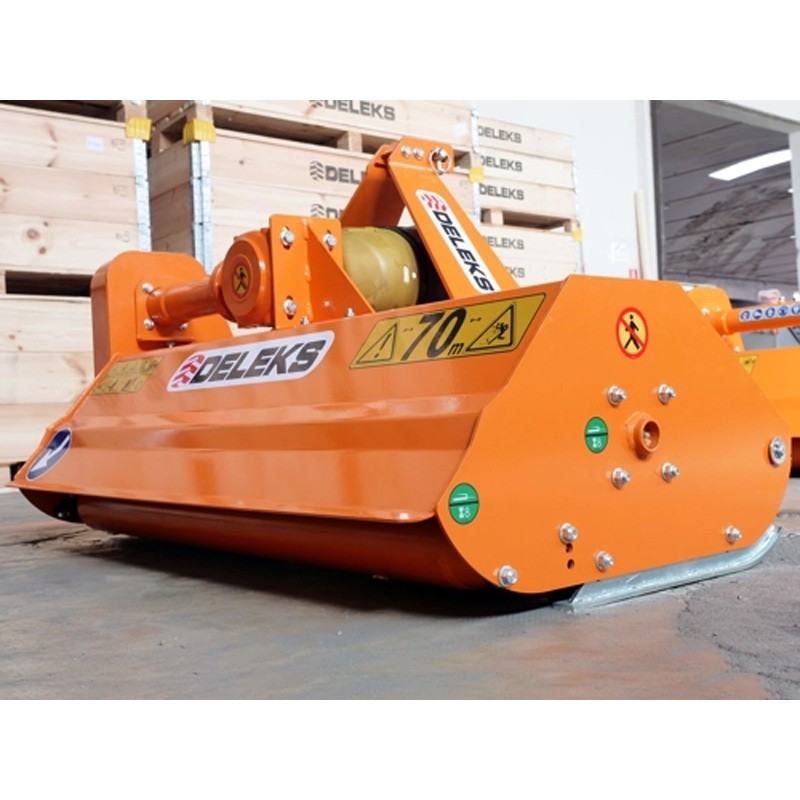

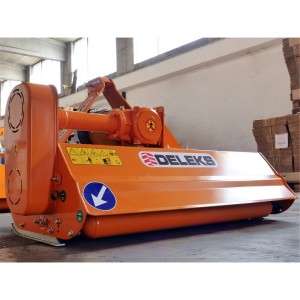

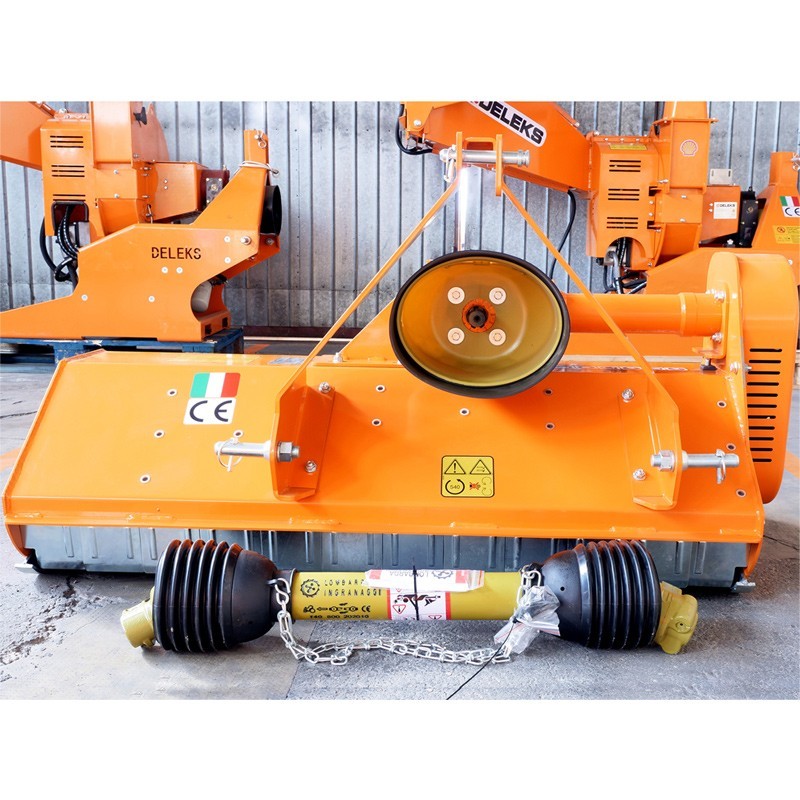

The Hammer crusher Deleks LINCE-165 is specially designed for tractors with low horsepower, and is 25 to 45 HP. This shredder model is used for gardens and agricultural fields.
The model Deleks LINCE-165Has forged hammers for grass and small brambles. It has an adjustable cutting height thanks to the rear roller and adjustable skids. It also has a cAT 1 universal 3-point linkage.

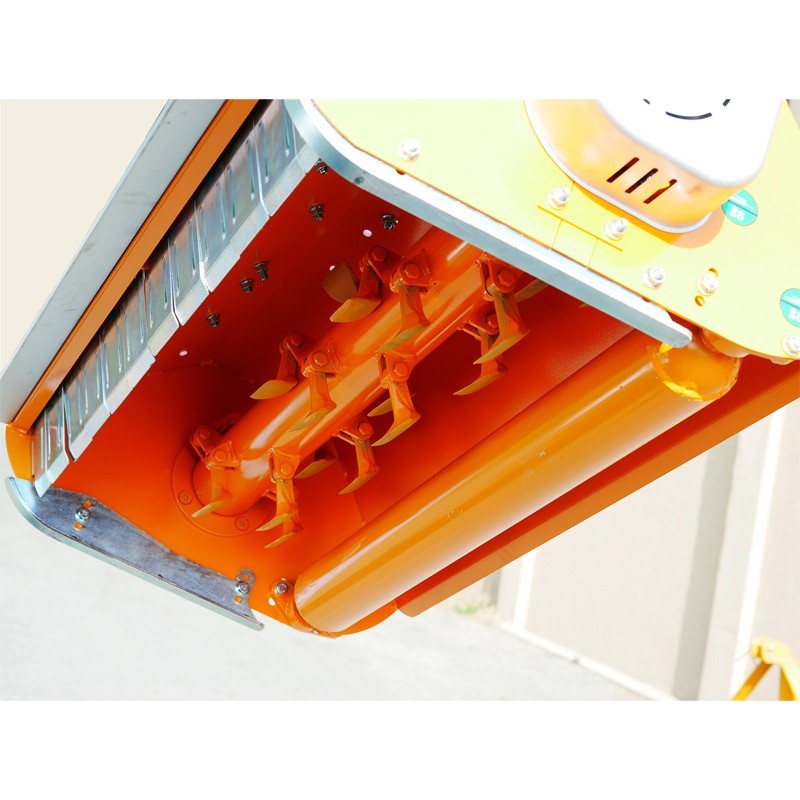

In terms of its characteristics, we can highlight its good structure completely in swedish steel SSAB. It also offers a rotor made of ARVEDI tube (Cremona) electronically balanced. It is made of S355 steel with 8mm thickness and hammers mounted on 6 rows.

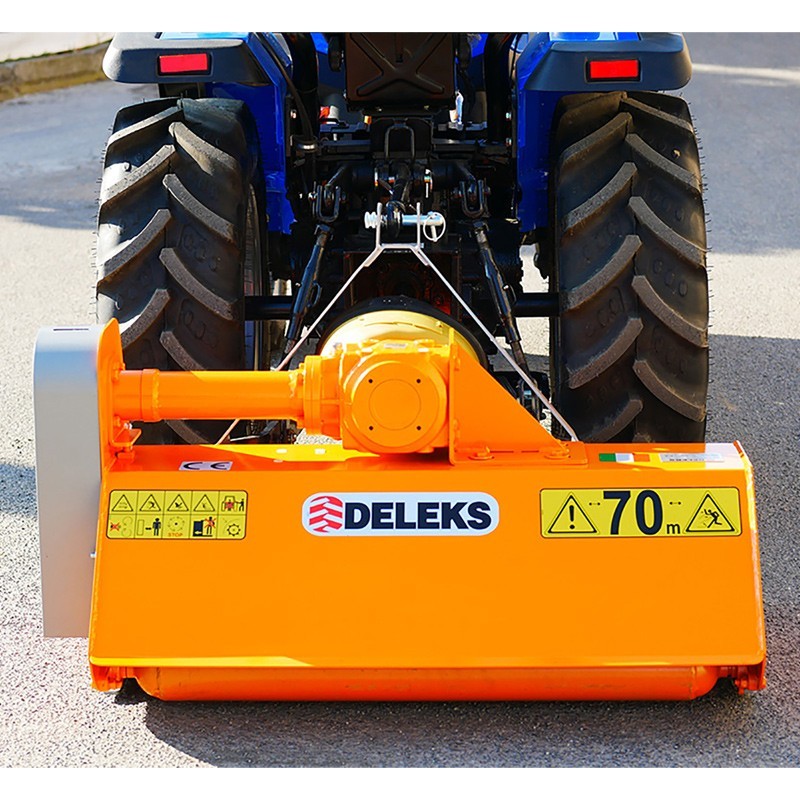

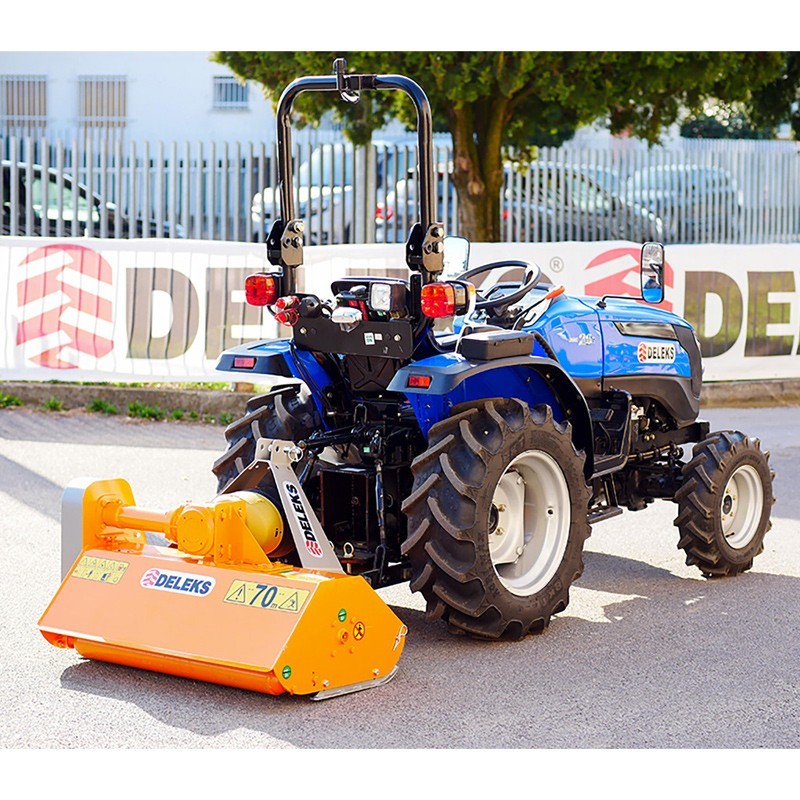

The Hammer crusher Deleks LINCE-165 comes with cE gimbal included, it also includes hammer supports in HARDOX. The implement can be used on tractors with low power in gardens and orchards thanks to its light weight of 280kg.
This model of hammer crusher Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1650 mm and the total width 1755mm. We can also highlight the cutting height adjustable from 10 to 45 mm and the total height 750mm. It has a transmission box Lombarda IngranaggiWith a freewheel.
Working width | 1650 mm |
Overall width | 1755 mm |
Cutting height min/max | 10 - 45 mm |
Weight | 222 kg |
Total height | 750 mm |
Tractor power | 25 - 45 HP |
3-point hitch | Cat. 1 (ø 19-22mm) |
Position of the gearbox | 745 mm from left side / 1010 mm from right side. |
Hood height | 358 mm |
Distance between the lower points | 470 - 710 mm |
Number of hammers | 30 |
Max. cutting diameter | 20 - 30 mm |
Total length | 730 mm |
Ground to gearbox spacing | 472 mm |
Plate thickness | 4 mm |
Thickness of sheet metal on the sides | 5 mm |
Skid thickness | 6 mm |
Transmission type | V-belts |

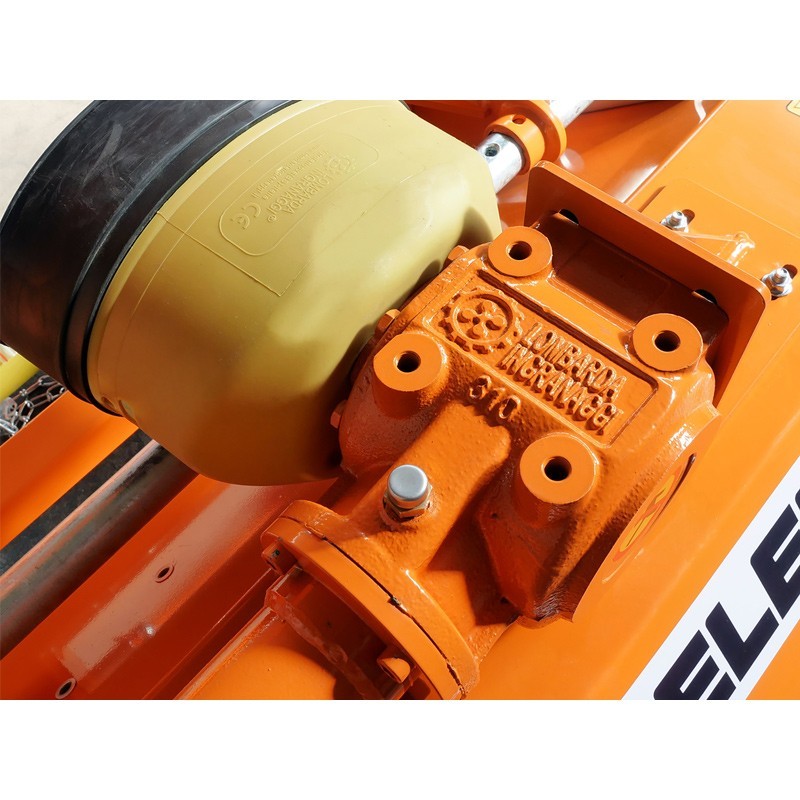

Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 3150 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 206 mm |
Transmission: lower pulley diameter | 106 mm |
Transmission: number of Koreas | 4 |
Transmission: dimensions of the Koreas | AX39 |
Rotor: diameter | 102 mm |

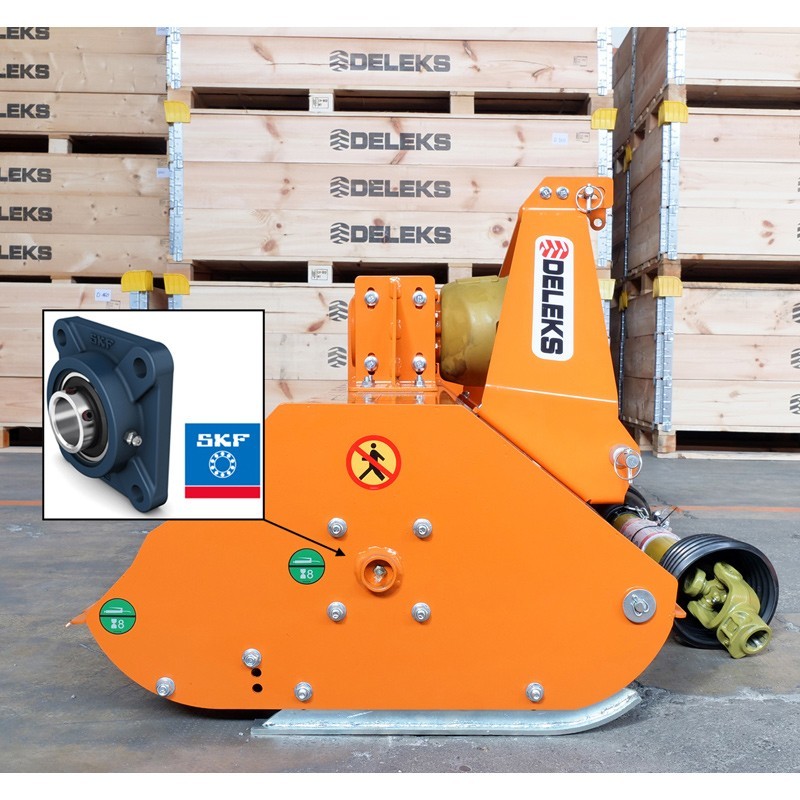

Rotor: bearing type and dimension | SKF UCF-207 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8 mm |
Hammers: weight | 330 g |
Hammers: hole dia | 11 mm |
Hammers: base width | 80 mm |
Hammers: head width | 14 mm |
Hammers: diagonal | 75 mm |
Roll: diameter | 102 mm |
Roll: sheet thickness | 6 mm |
Roll: bearing type and dimension | FL205 |
Cardan | CE 4x800 mm |
Hood length | 665 mm |
Horizontal displacement | - |
Packing dimensions | 1800*850*700 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.

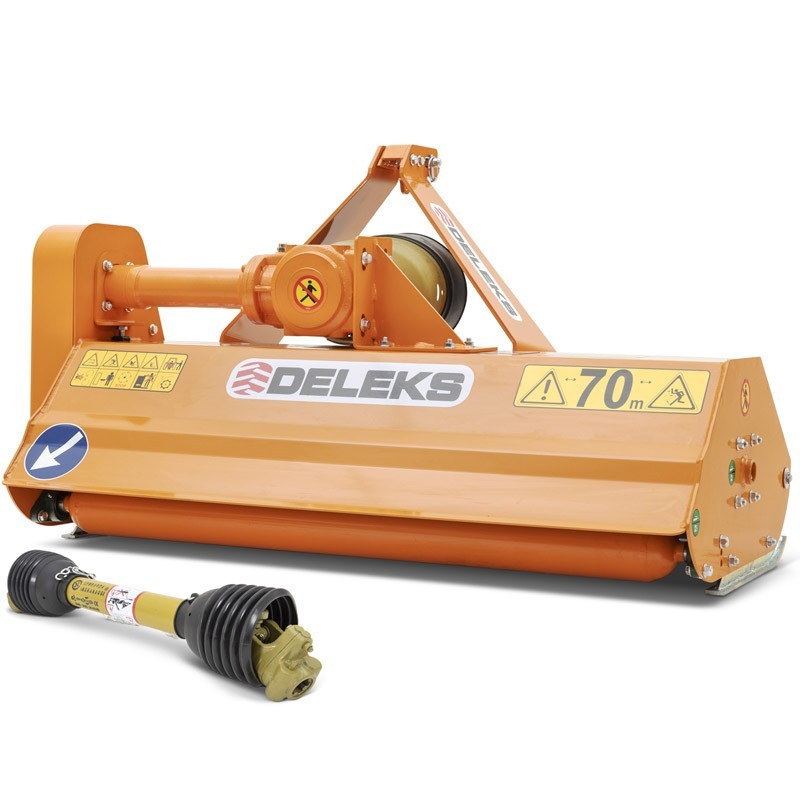

INCLUDES PTO SHAFT
