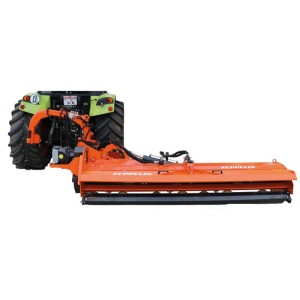

Zeppelin Monegros super reinforced arm crusher
- Working width: 1980-2850 mm
- Power requirement: 90-180 HP
- Double angle
CARDAN SHAFT INCLUDED
€4,913.92 VAT incl.
Deleks products take about 15 to 25 days. |

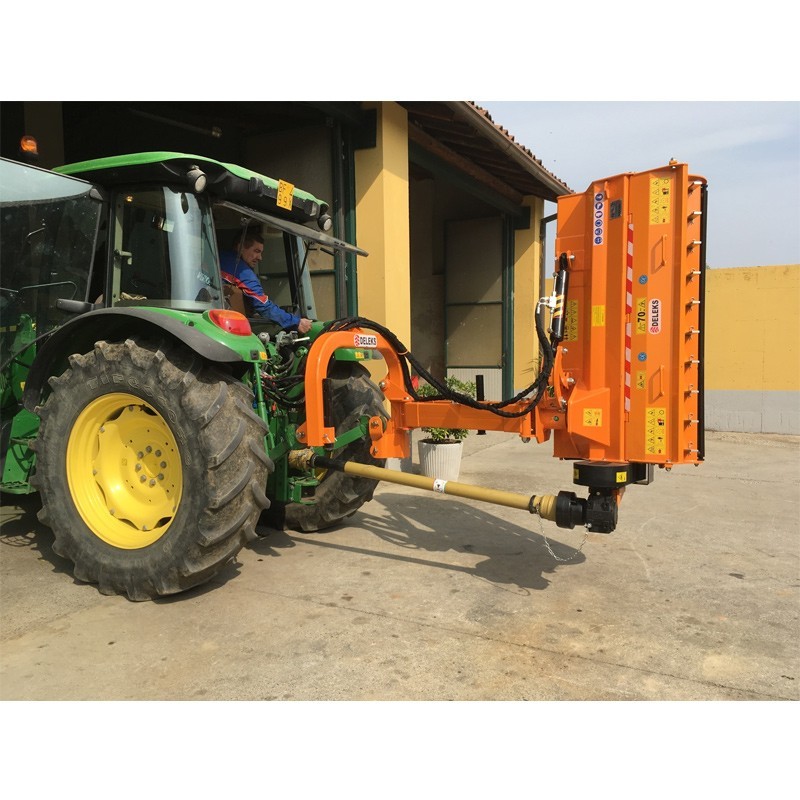

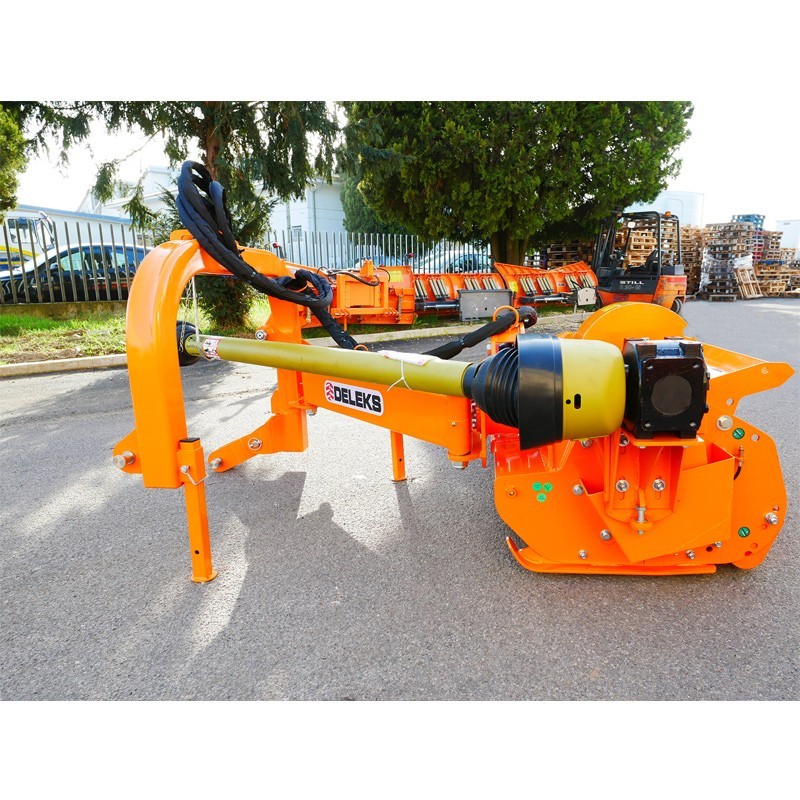

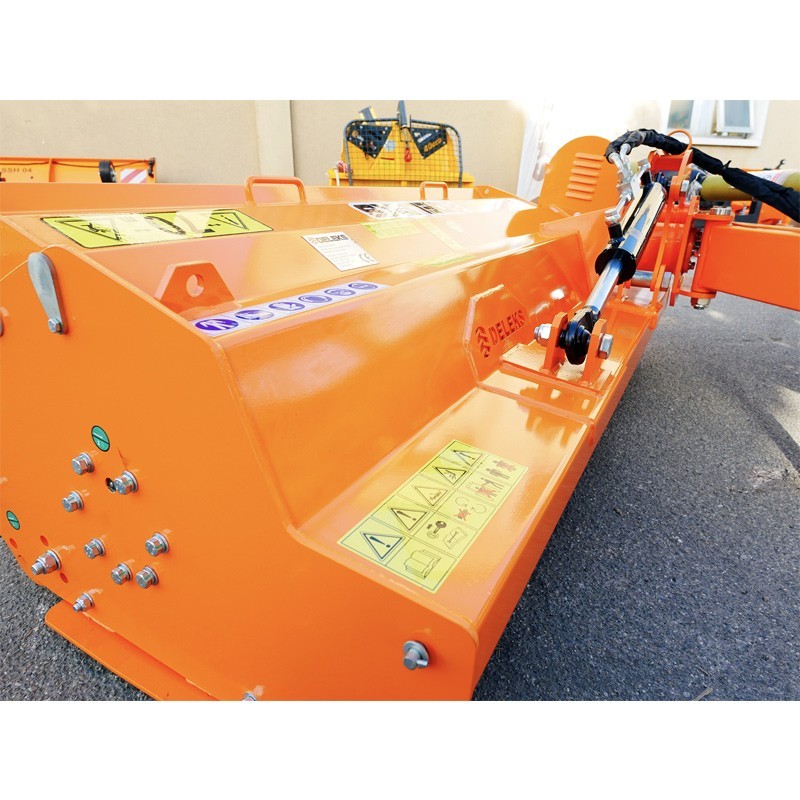

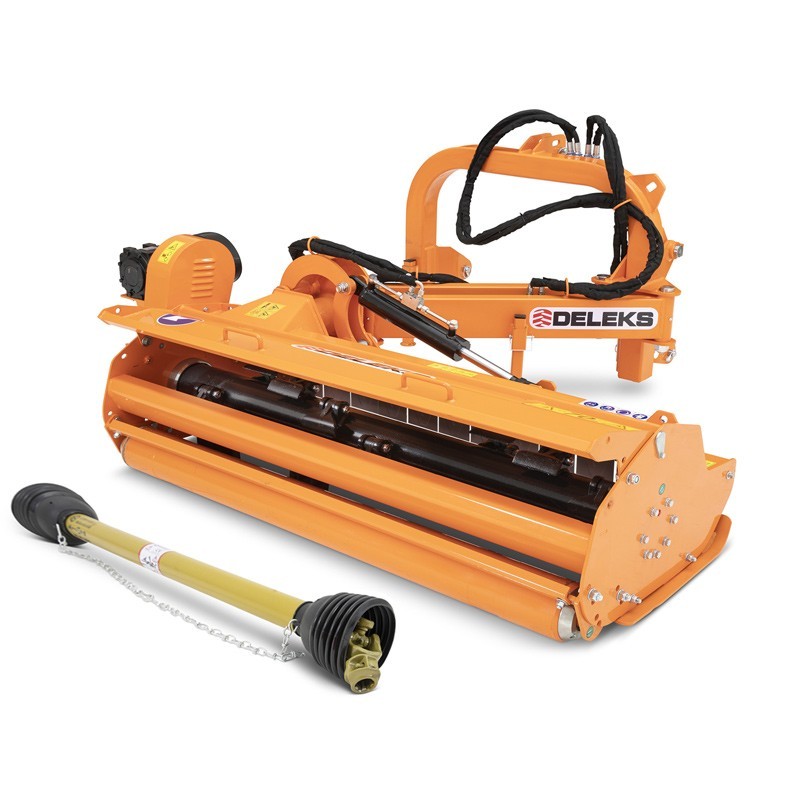

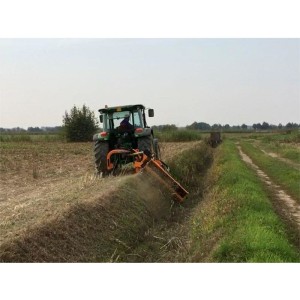

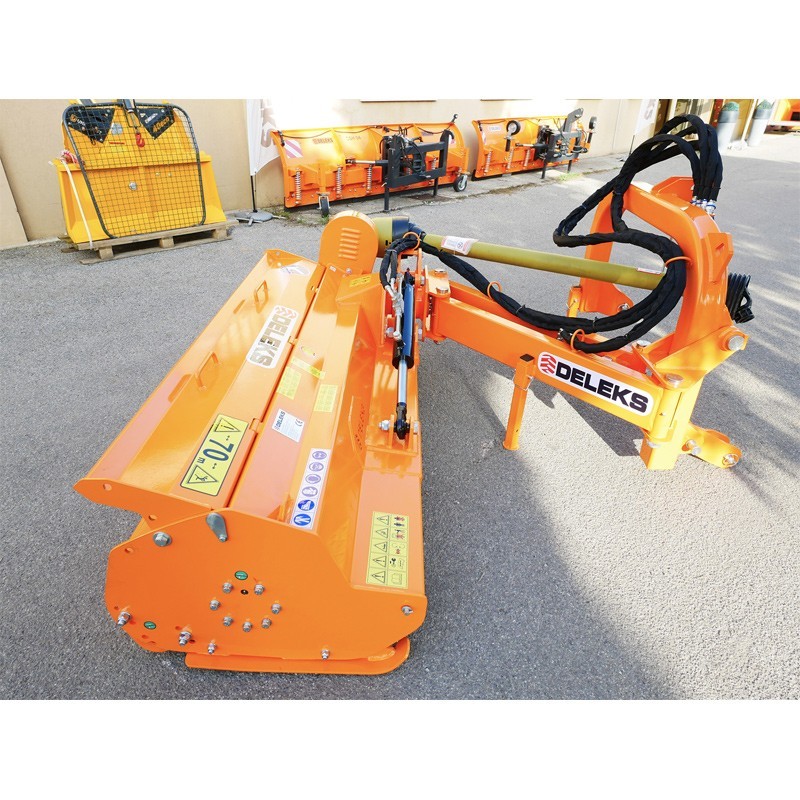

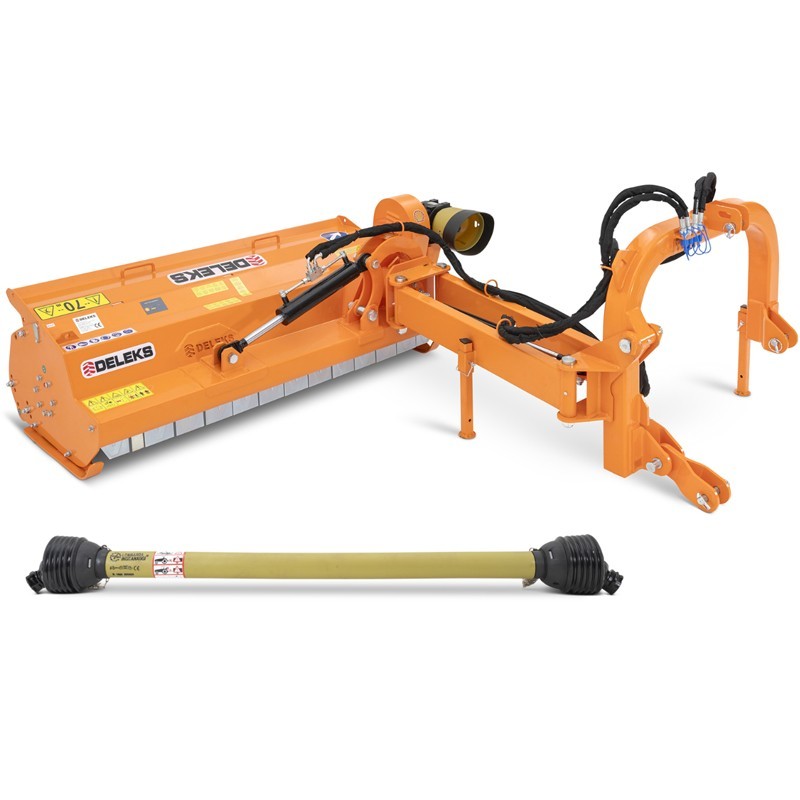

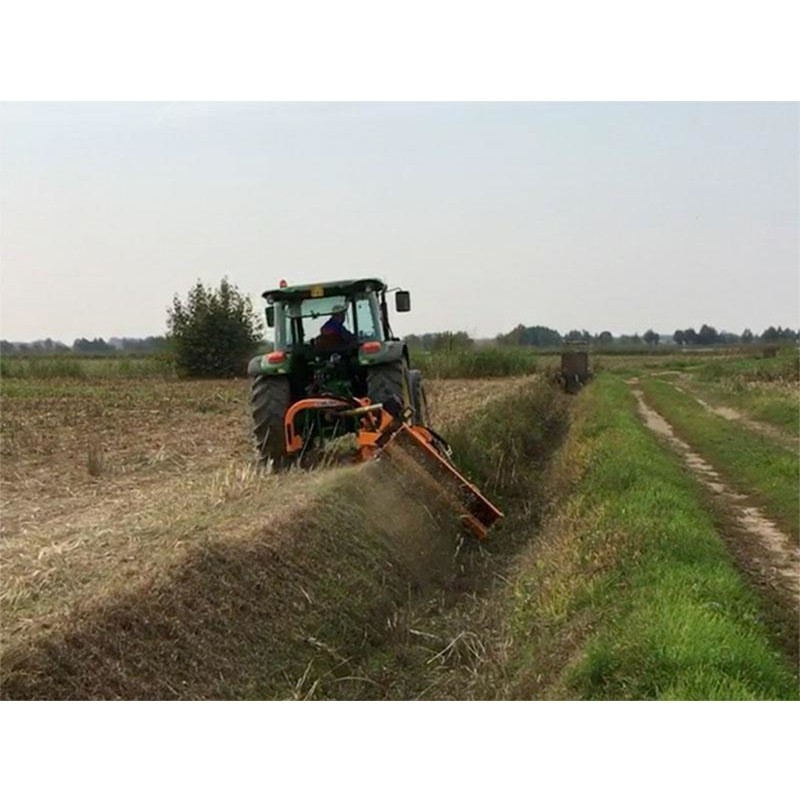

The ALCE 220 side brush cutter, is designed for individuals and professionals, to cut grass, brambles, and prune up to 4 cm in diameter. This model it can tilt more than 90 degrees and less than 60 degrees, for clearing the edges of ponds, for example.
This brush cutter is suitable for tractors that have a Power from 80 to 110 HP, in addition to having a 3-point hitch of cat 2 with hydraulic displacement and a 180 cm CE driveshaft.
It has a transmission box outside the chassis to maximize lateral displacement and a double box. Its heavy and robust design is excellent for professional use, it can beWork horizontally on the tractor axle and Laterally for the orchards.

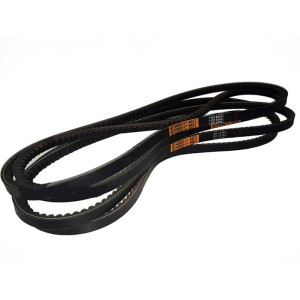

Has 4 belts high resistance that can have their tension adjusted from the outside, in addition to having a 152 mm rear roller and adjustable side skates and its rotor is electronically balanced
Working width | 2195.0 mm |
Total width | 2590.0 mm |
Minimum/maximum cutting height | 35.0 - 95.0 mm |
Weight | 720.0 kg |
Total height | 1150.0 mm |
Tractor power | 80 - 110 HP |
Three-point hitch | Cat. 2 (ø 25.0-28.0 mm) |
Position of the transmission box | External |
Height of the hood | 470.0 mm |
Distance between the lower points | 840.0 - 970.0 mm |
Number of hammers | 20 |
Maximum cutting diameter | 40-50 mm |
Total length | 1750 mm (closed) |
Space between the ground and the transmission box | 650 mm |
Thickness of the sheet | 5 mm + reinforcements |
Thickness of the sheet on the sides | 8 mm |
Thickness of the skates | 8 mm |
Type of transmission | Correas V |

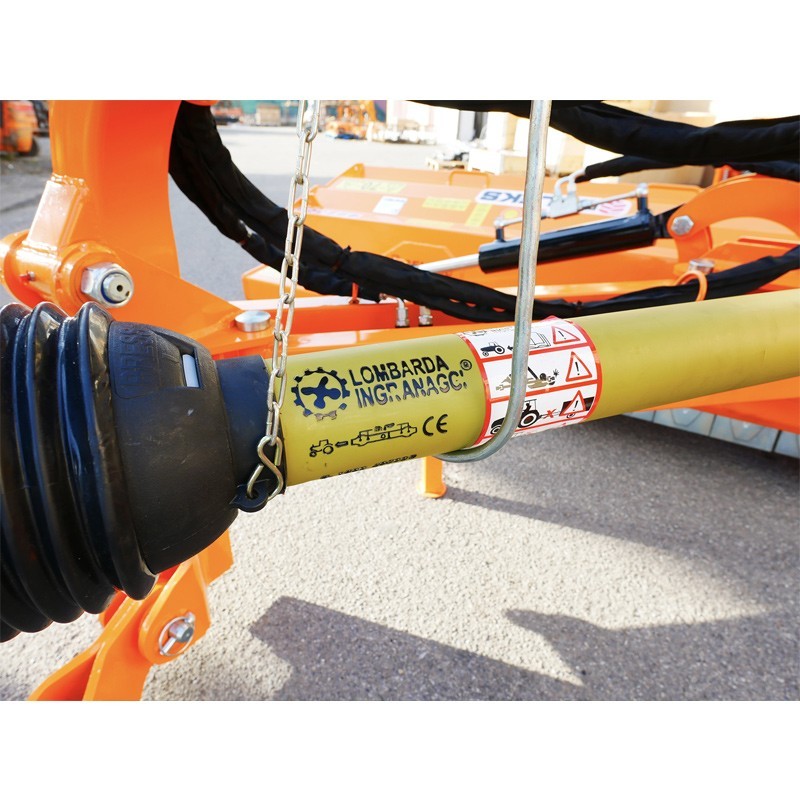

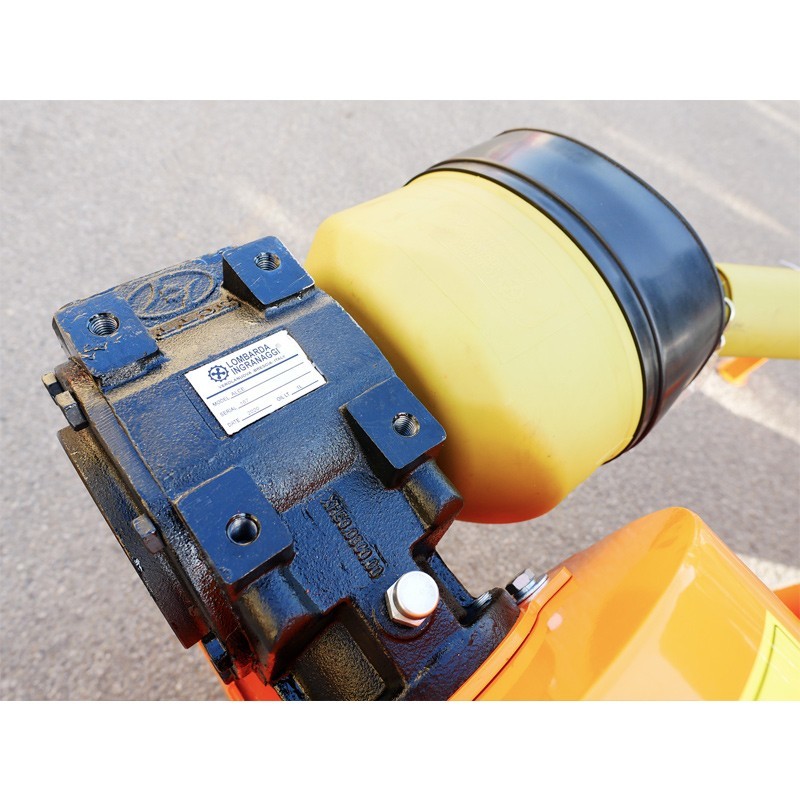

Transmission: Gearbox | Lombarda Ingranaggi Srl |
Transmission: PTO | 540 rpm (revolutions per minute) |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 2134 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of the upper pulley | 220 mm |
Transmission: diameter of the lower pulley | 165 mm |
Transmission: number of Koreas | 4 |
Transmission: dimensions of the Koreas | 17x1270 |

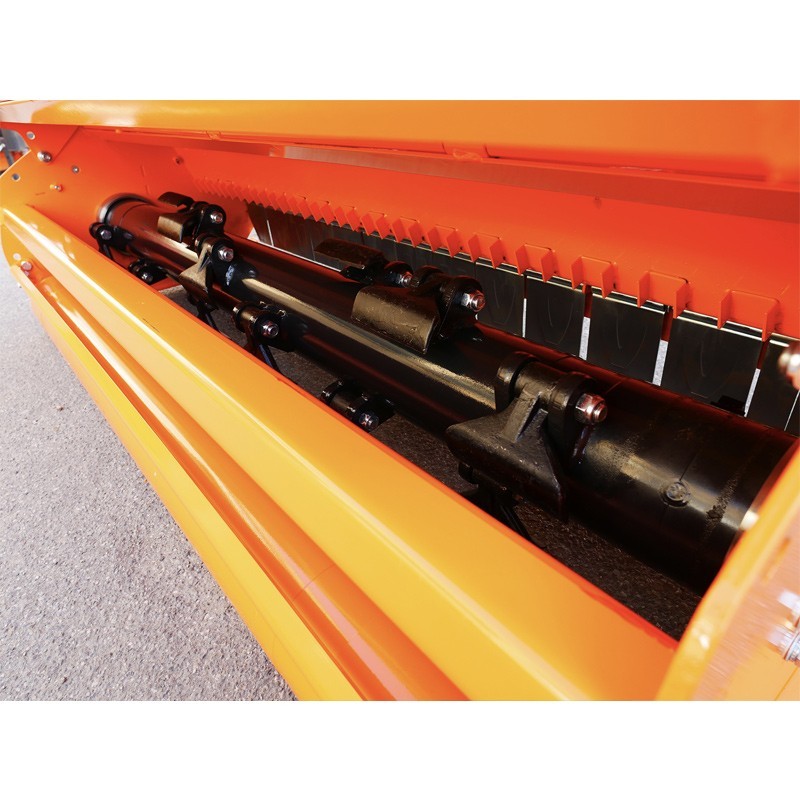

Rotor: diameter | 152.0 mm |
Rotor: type of bearings and dimension | 40x90 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8 mm |

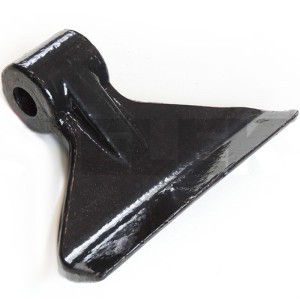

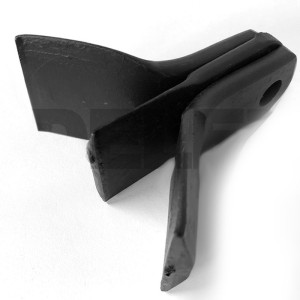

Hammers: weight | 1100 g |
Hammers: ø hole | 16 mm |
Hammers: base width | 140 mm |
Hammers: head width | 40 mm |
Hammers: diagonal | 97 mm |
Roll: diameter | 152 mm |
Roll: sheet thickness | 6 mm |
Roll: type of bearings and dimension | 90x40 mm - GB276-6308 |

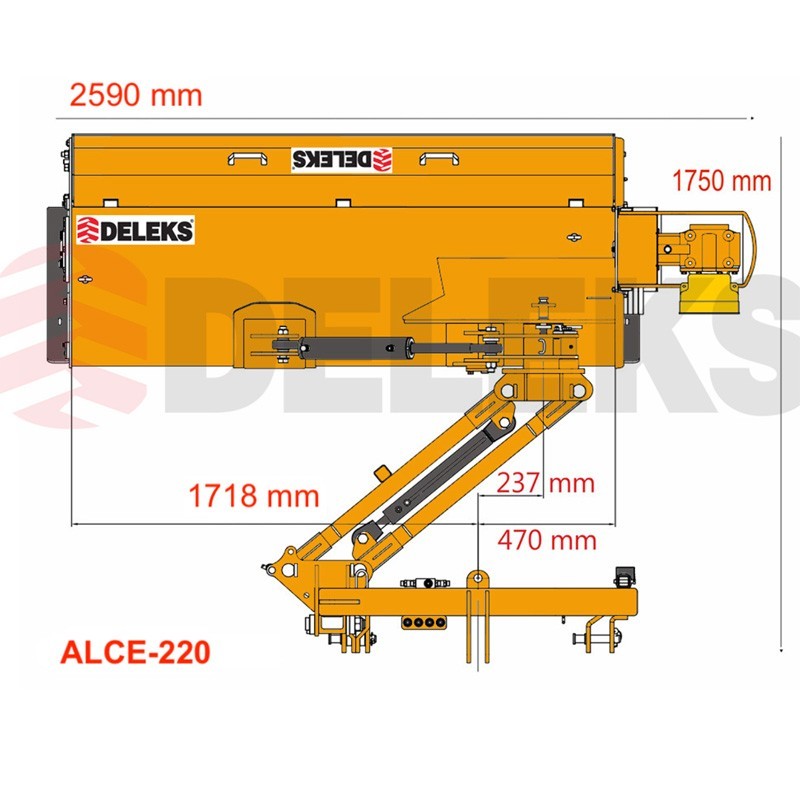

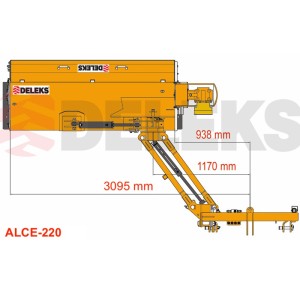

Displacement and dimensions | View photos |

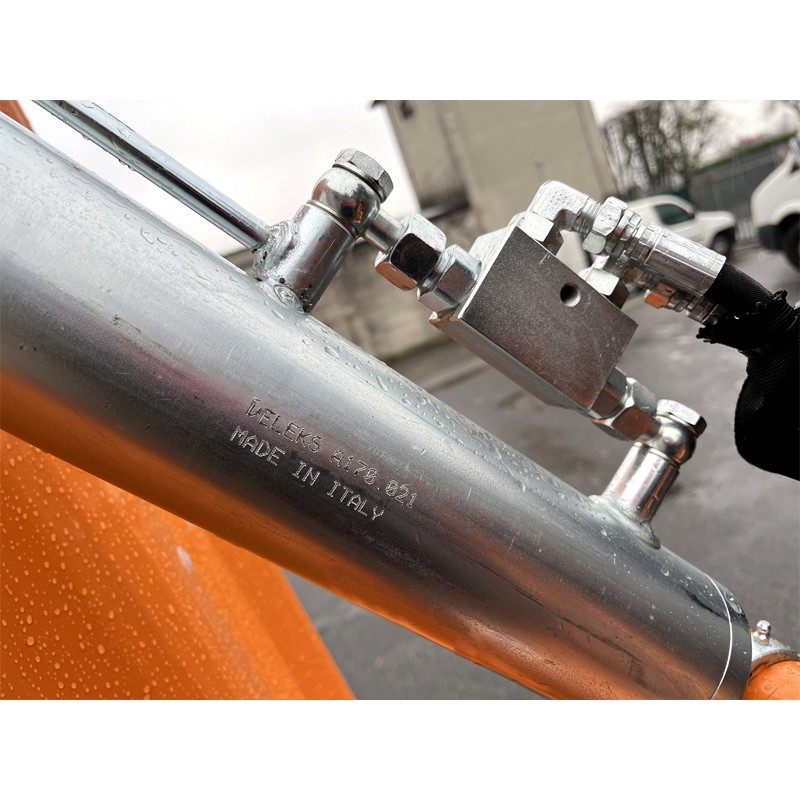

ø Hydraulic Cylinder A | 80-35 mm |
ø Hydraulic Cylinder B | 60-30 mm |
Oil pressure min./max. | 120 - 150 bar |
Optimal oil flow | 18 - 22 l/min |
Hydraulic tubes | WP 400 Bar, 1/2" Agri Standard |
Cardan | CE 5x1800 mm |
Length of the hood | 770 mm |
Packaging dimension | 260 x 100 x 100 cm |
IMPORTANT NOTICE |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
