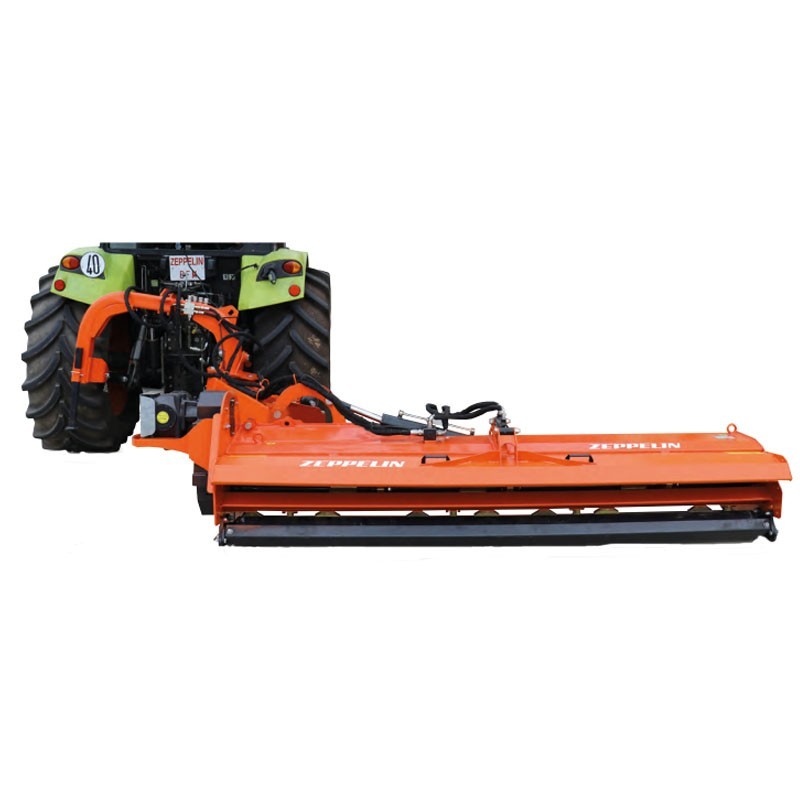

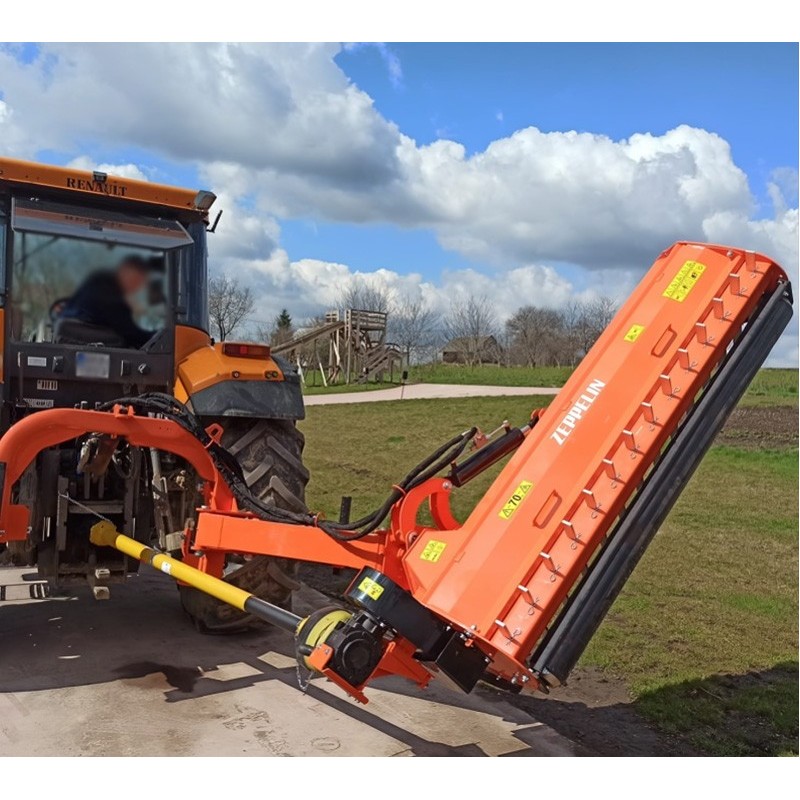

Super reinforced boom shredder Zeppelin Monegros
Super reinforced boom shredder Zeppelin Monegros
Super reinforced boom shredder Zeppelin Monegros
Super reinforced boom shredder Zeppelin Monegros
Super reinforced boom shredder Zeppelin Monegros
Super reinforced boom shredder Zeppelin Monegros

Super reinforced boom shredder Zeppelin Monegros

Rating:
(0)
  • Working width: 1980-2850 mm
  • Power requirement: 90-180 HP
  • Double angle

CARDAN SHAFT INCLUDED

Assembly and set-up INCLUDED
En stock
icon Shredder type
Shredder type
Shredder with side arm
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
198 - 285 cm
icon Tractor power
Tractor power
90 - 180 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Pantograph displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Heavy
icon Reinforced chassis
Reinforced chassis
Yes
icon Number of hammers
Number of hammers
18 - 28
icon ✔️
✔️
Rear rakes
icon Weight
Weight
856 - 999 kg
€4,563.02 excl. VAT
- 7%
€4,243.61 excl. VAT
€5,134.77 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Super reinforced boom shredder Zeppelin Monegros
€5,134.77
Select
Qty

Multifunctional shredder Zeppelin Monegros 198-285cm

The new multifunctional shredder Zeppelin Monegros offers 4 different models adaptable to all working needs. This shredder is equipped with a hydraulic and mechanical safety system. The new Monegros shredder models are super reinforced, ensuring their long durability.

The working width varies depending on the model from 1980 to 2850 mm. The power required also varies depending on the model needed, between 90-180 HP of power. The 2850 mm working width model does not include stubble. Cardan shaft is included.

Features

Model ESDESB2000APP ESDESB2200APP ESDESB2450APP ESDESB2800APP
Working width 1980 mm 2180 mm 2450 mm 2850 mm
Upper angle 90º 90º 90º 90º
Lower angle 65º 65º 55º 55º
Belts 4 4 5 5
Hammers 18 20 26 28
Tailgate opening Manual Manual Manual Hydraulic
Weight 856 Kg 917 Kg 961 Kg 999 Kg
PTO r/min 540 540 540 540
Power requirement 90-110 HP 90-120 HP 110-140 HP 130-180 HP
Rear Rakes / Rakes Yes Yes Yes No

Dimensions


ESDESB 2000APP ESDESB 2200APP ESDESB 2450APP ESDESB 2800APP
A 3010 mm 3210 mm 3358 mm 3850 mm
B 1750 mm 1750 mm 1998 mm 1998 mm
C 2050 mm 2050 mm 2450 mm 2450 mm
D 475 mm 475 mm 475 mm 475 mm
E 1623 mm 1623 mm 1650 mm 1650 mm
Dimensiones Trituradora s

Inclination

dimensiones

IMPORTANT NOTICES
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement , except for pending examination.
