Zeppelin HIGH TECH Combinator: Pack 2 shredders

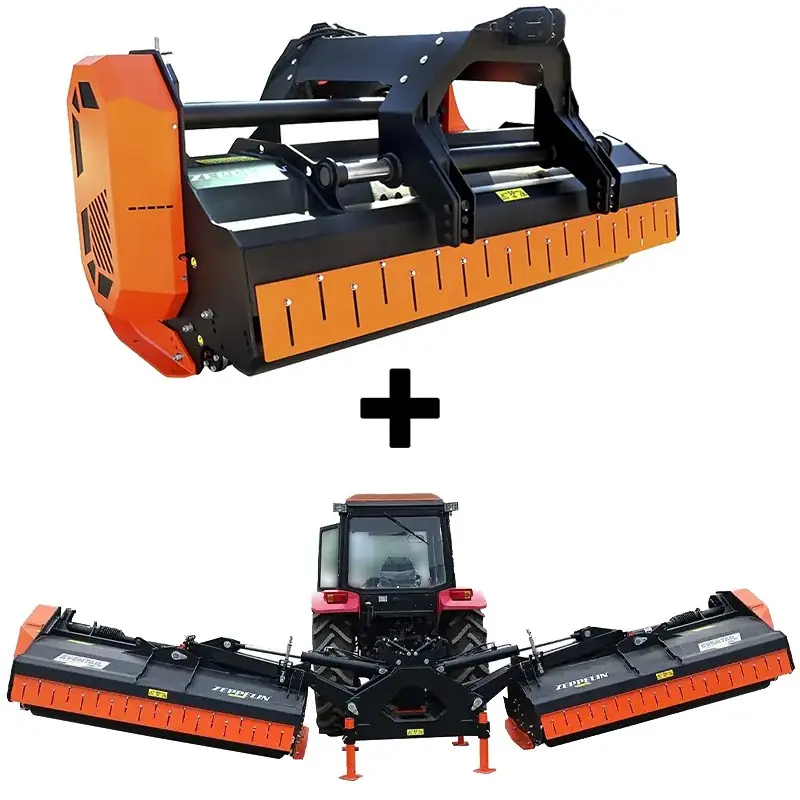

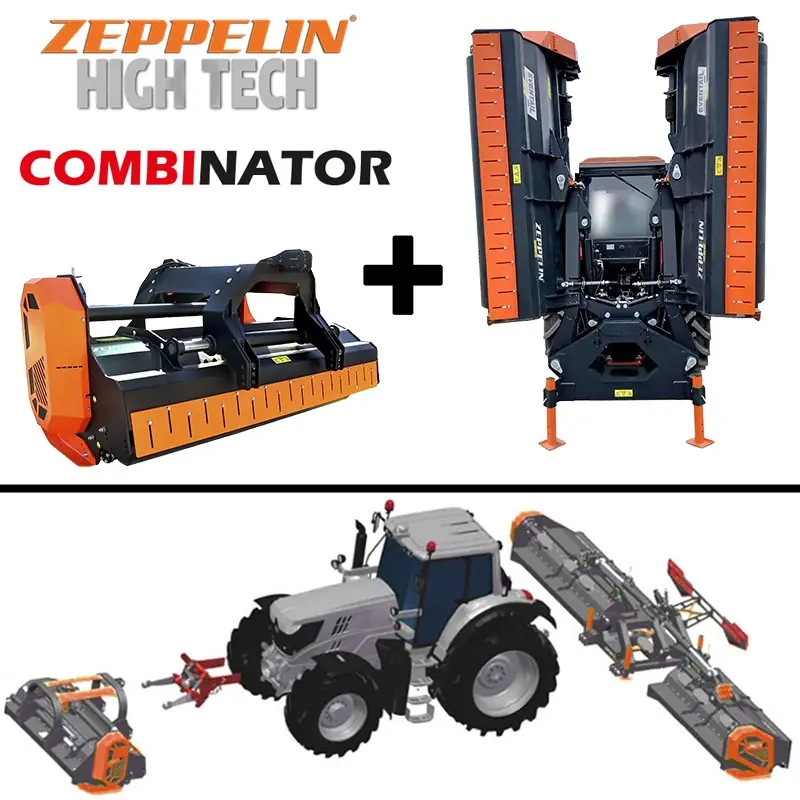

The Zeppelin HIGH TECH Combinator pack is the ideal solution for those looking for maximum productivity in the management of plant residues. This set allows to work together with the folding shredder Zeppelin HT Eventail 690, 6.9 meters wide, and the reversible shredder Zeppelin Arizona HT R, 2.4 meters wide, both coupled to the tractor to cover large areas and difficult to access areas in a single pass.

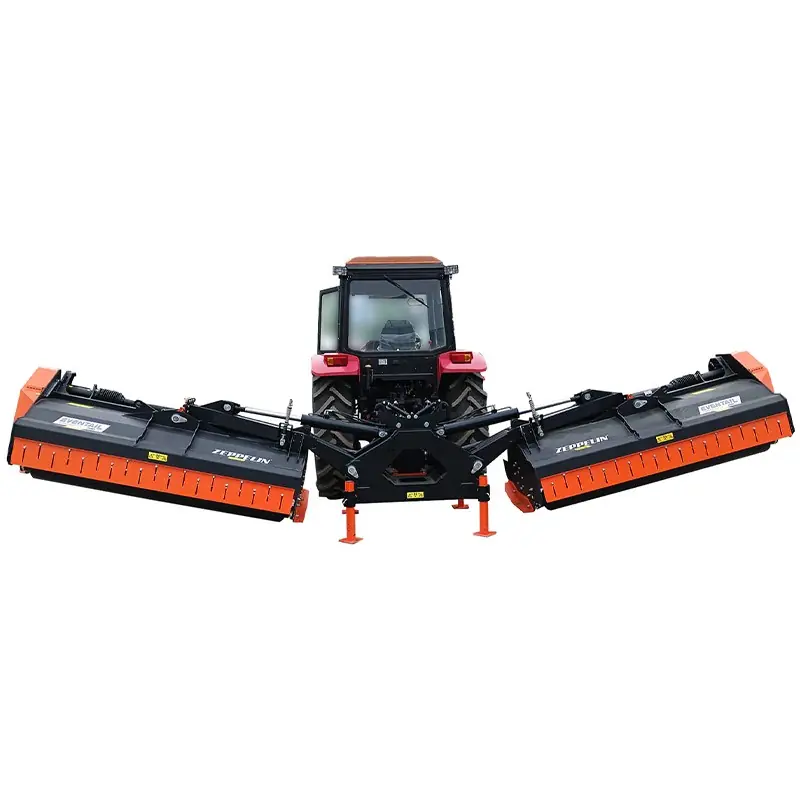

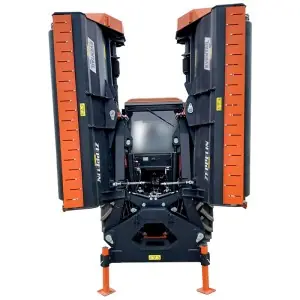

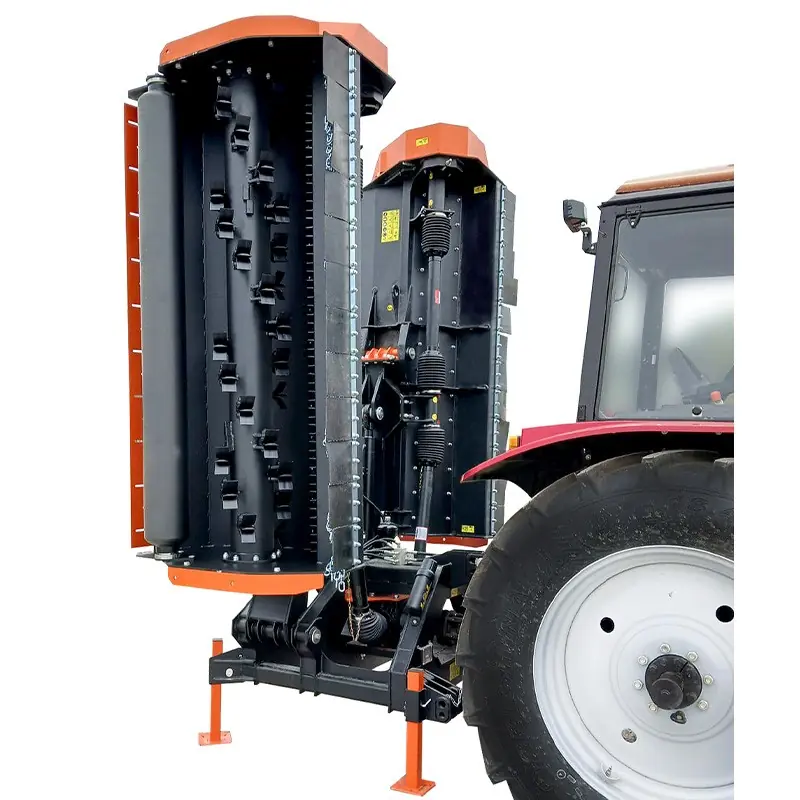

The Zeppelin HT Eventail 690 shredder stands out for its innovative folding design, which facilitates transport and storage, and for its ability to adapt to uneven terrain thanks to its floating heads. Equipped with 56 spiral blades and designed for tractors of more than 180 HP, it ensures efficient and uniform shredding of crop residues such as rice, corn, soybeans or cotton, improving soil health and soil cleanliness.

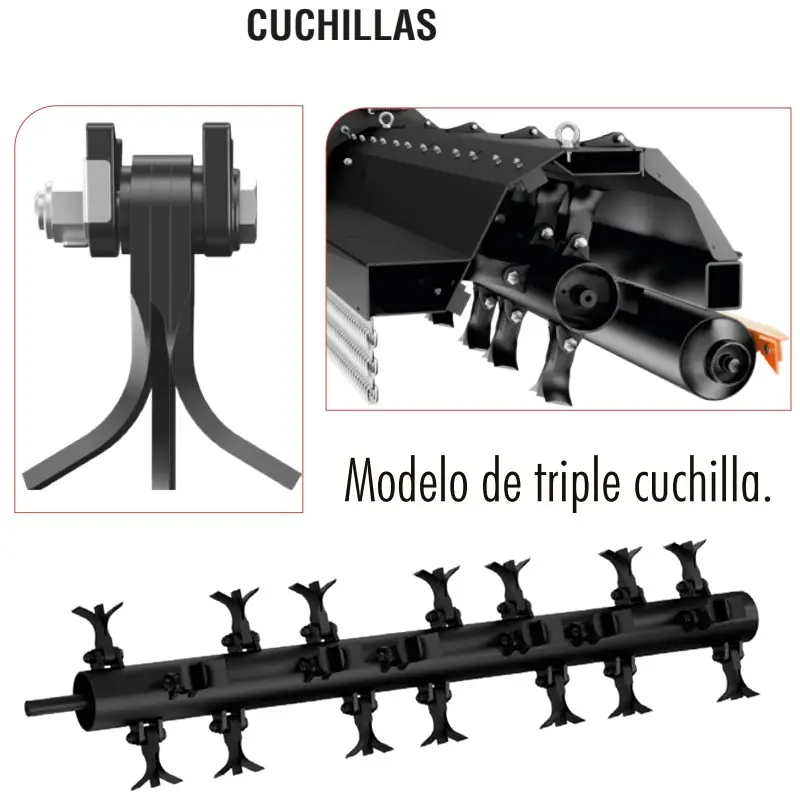

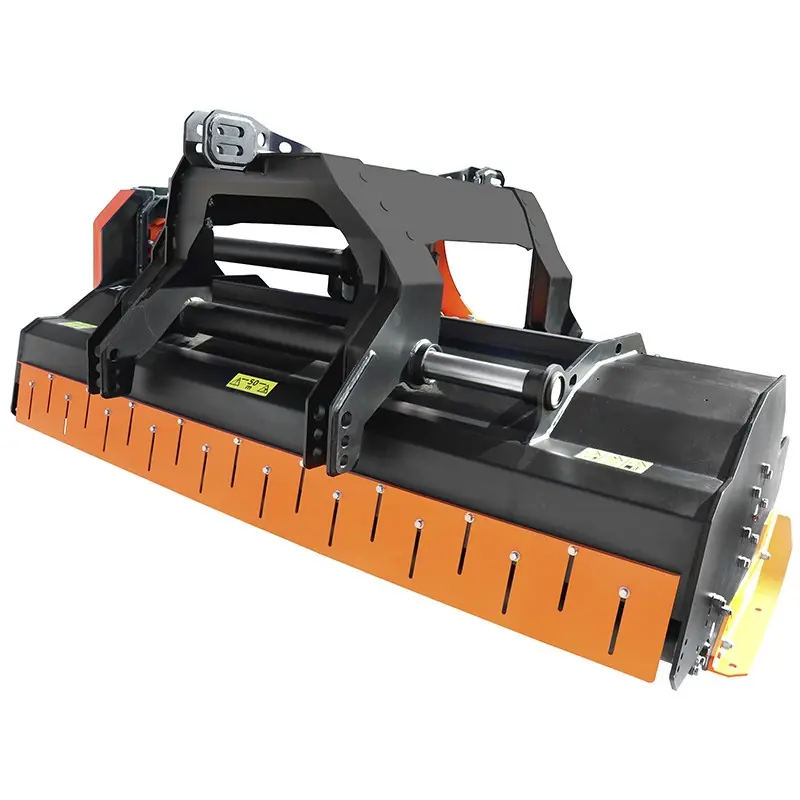

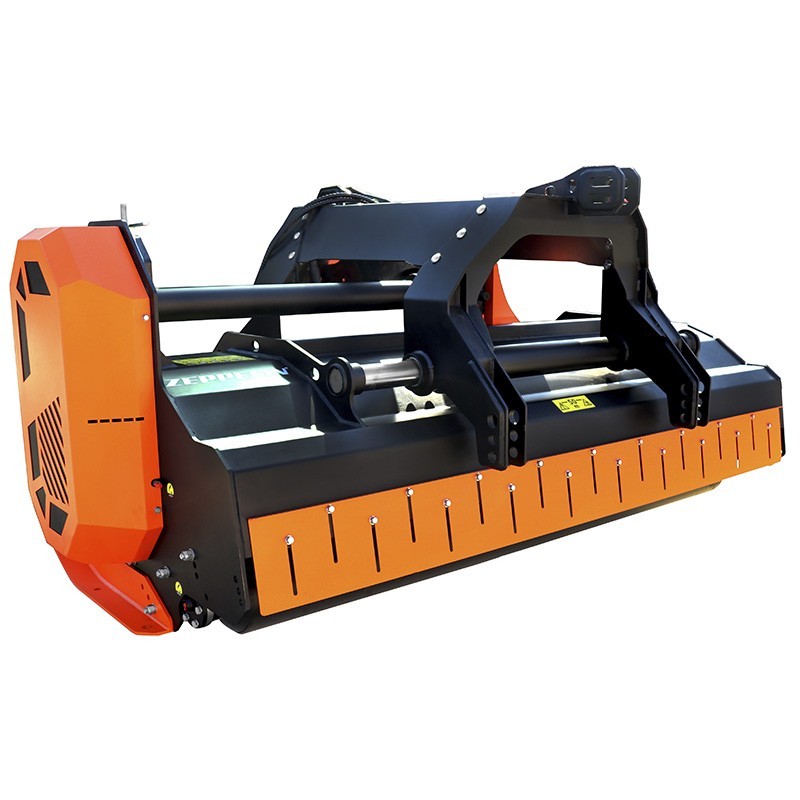

The Zeppelin Arizona HT R adds versatility to the package, as it can be mounted on either the front or rear of the tractor and features side shift. Its Y-type blades made of high-manganese steel and its reinforced group ensure precise and safe work, even in demanding conditions, making it perfect for tractors with more than 100 HP.

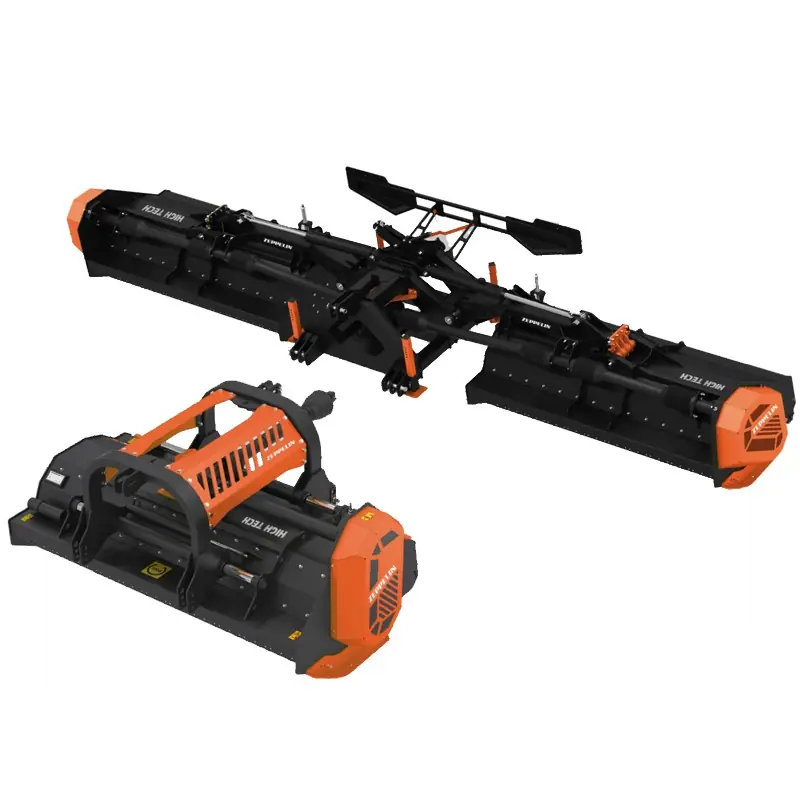

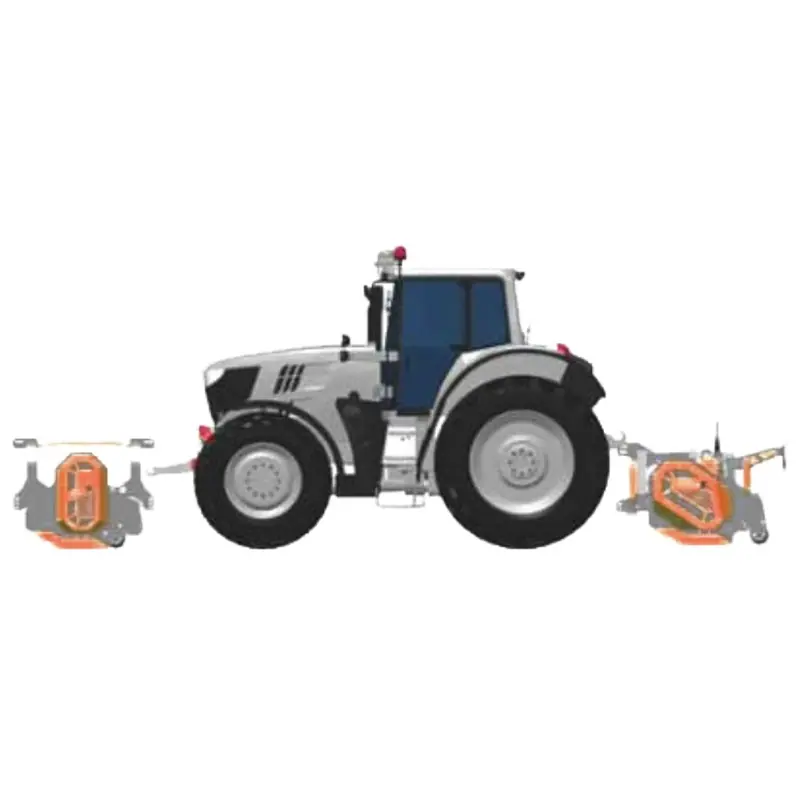

The great advantage of this pack is that, as shown in the picture, the 6.9 meters of the Eventail 690 are not covered 100% by itself, as the central part is not reached by the side heads of the folding mulcher. However, by incorporating the Arizona HT R at the front of the tractor, the central area is perfectly covered, thus achieving uniform and efficient work over the entire 6.9 meter width, leaving no uncrushed areas.
Folding mulcher features
| Model |
Eventail 690 |
| Working width |
690 cm |

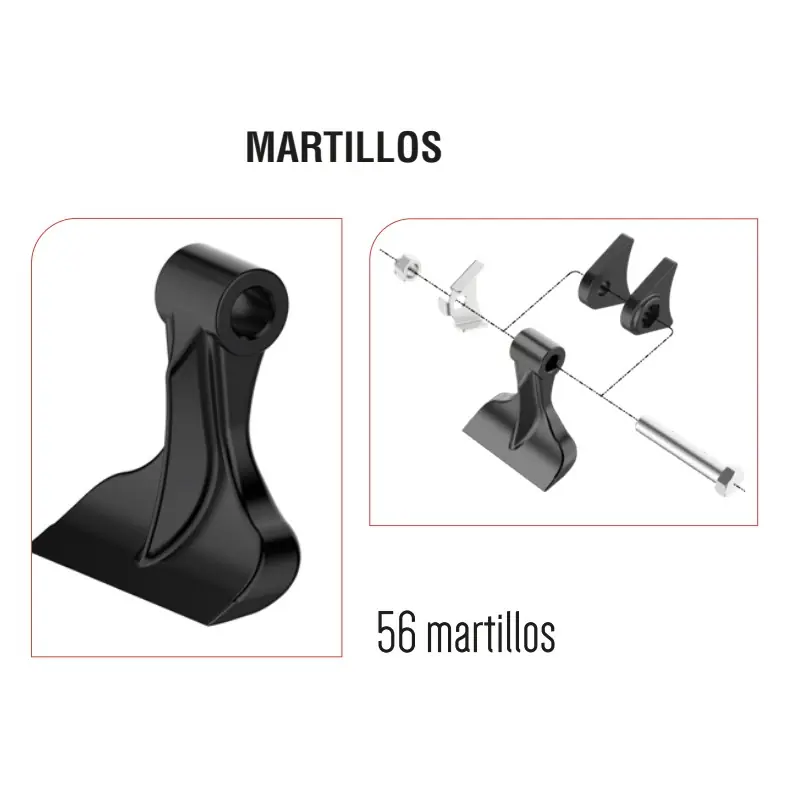

| No. of blades / hammers |
56 |
| Belts |
10 |
| Tractor power required |
+180 Hp |
| PTO |
1000 RPM |
| Weight |
3204 Kg |
| Dimensions |
712 x 166,5 x 126 cm |
| Reference |
ESTR7CDHZ |
Reversible shredder features
| Model |
Arizona HT R |
| Working width |
240 cm |
| No. of hammers |
28 |
| Belts |
5 |
| Tractor power required |
+100 Hp |
| PTO |
1000 RPM |
| Weight |
1300 Kg |
| Dimensions |
270,5 x 155 x 121,5 cm |
| Reference |
ESTRGC240ZREVHT |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
