PTO Shredder for Vineyards GEO ITALY MA 160 - 220 cm
PTO Shredder for Vineyards GEO ITALY MA 160 - 220 cm
PTO Shredder for Vineyards GEO ITALY MA 160 - 220 cm
PTO Shredder for Vineyards GEO ITALY MA 160 - 220 cm
PTO Shredder for Vineyards GEO ITALY MA 160 - 220 cm
PTO Shredder for Vineyards GEO ITALY MA 160 - 220 cm
PTO Shredder for Vineyards GEO ITALY MA 160 - 220 cm

PTO Shredder for Vineyards GEO ITALY MA 160 - 220 cm


  • Weight : 485 - 545 kg
  • Power Supply pTO tractor
  • Working width PTO : 160 - 220 cm
  • Cardan shaft : Yes
  • Robustness : Medium
  • Min. tractor power : 35 - 85 HP
  • Number of hammers : 22 - 28
  • Country of manufacture : Italy

CARDAN SHAFT INCLUDED

En stock
Extras
Extras
Precio total de la opción:
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
160 - 220 cm
icon Tractor power
Tractor power
35 - 85 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Fixed hitch
icon Robustness
Robustness
Medium
icon Number of hammers
Number of hammers
22 - 28
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
485 - 545 kg
€2,719.74 excl. VAT
- 4%
€2,610.95 excl. VAT
€3,159.25 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


PTO Shredder for Vineyards GEO ITALY MA 160 - 220 cm
€3,159.25
Extras
Extras
Precio total de la opción:
Select
Qty

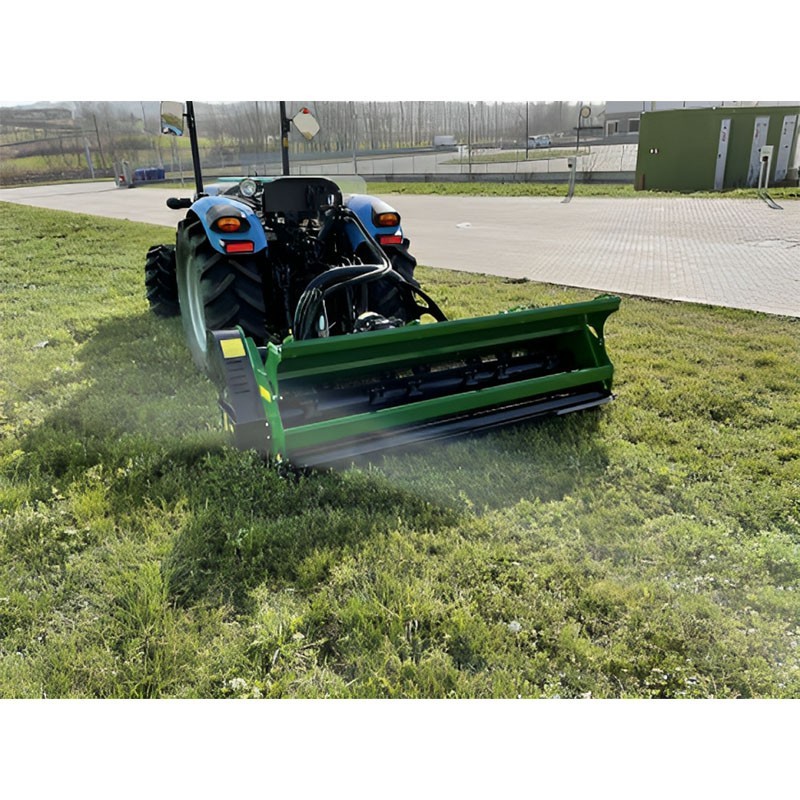

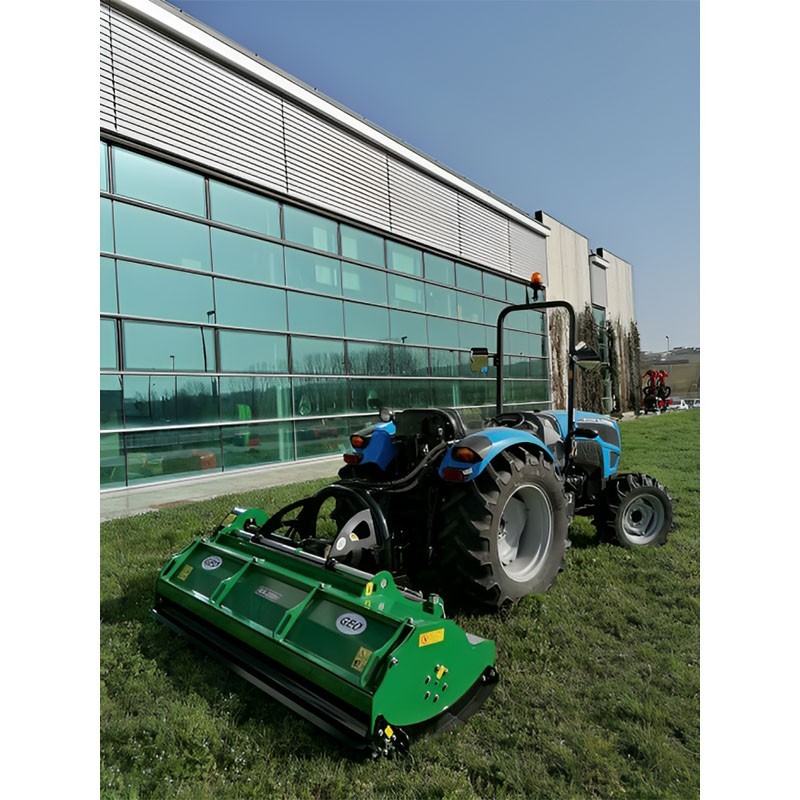

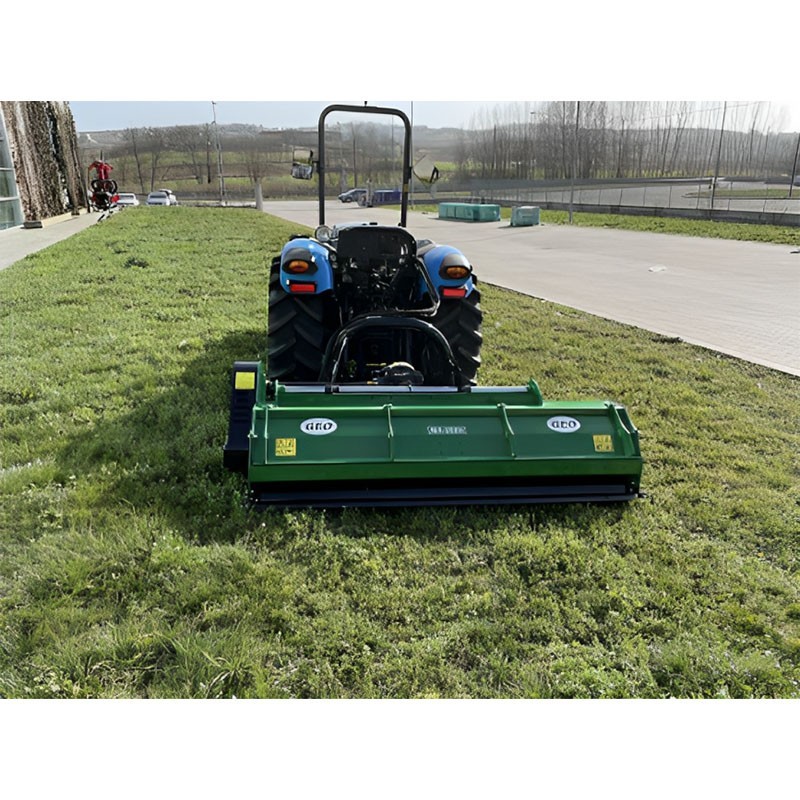

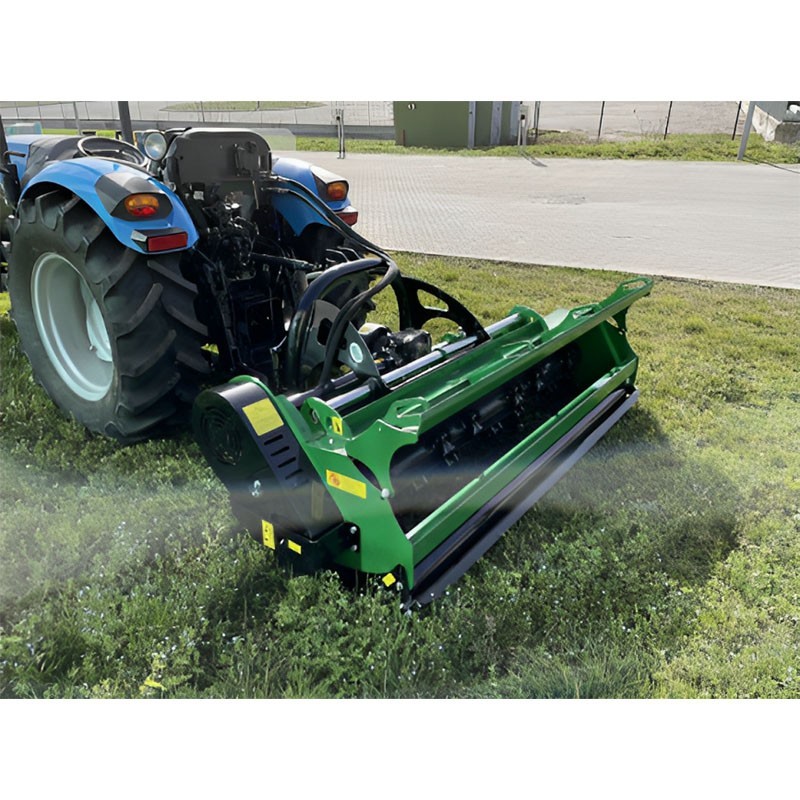

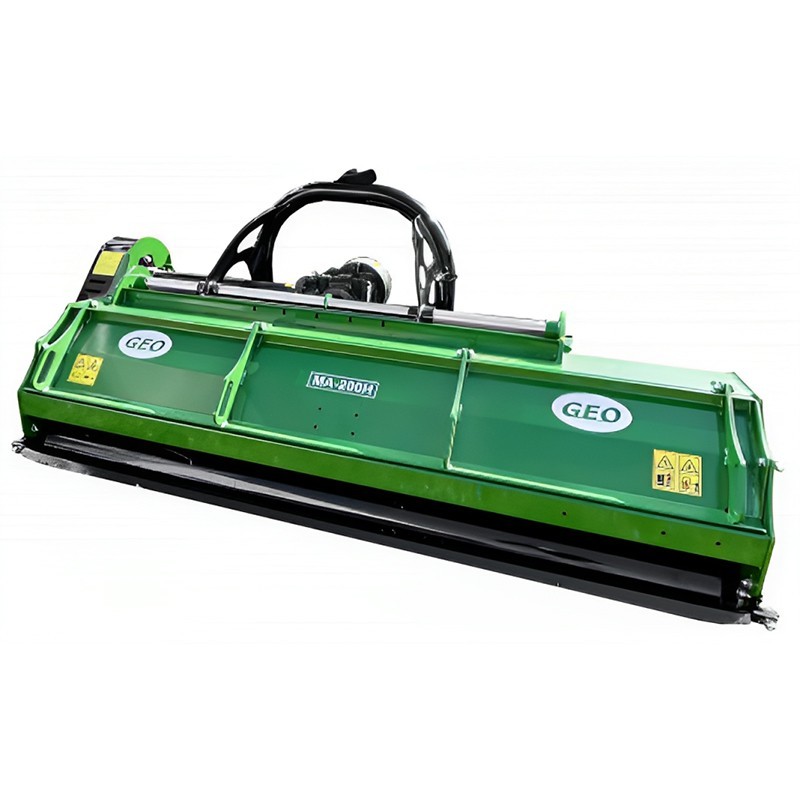

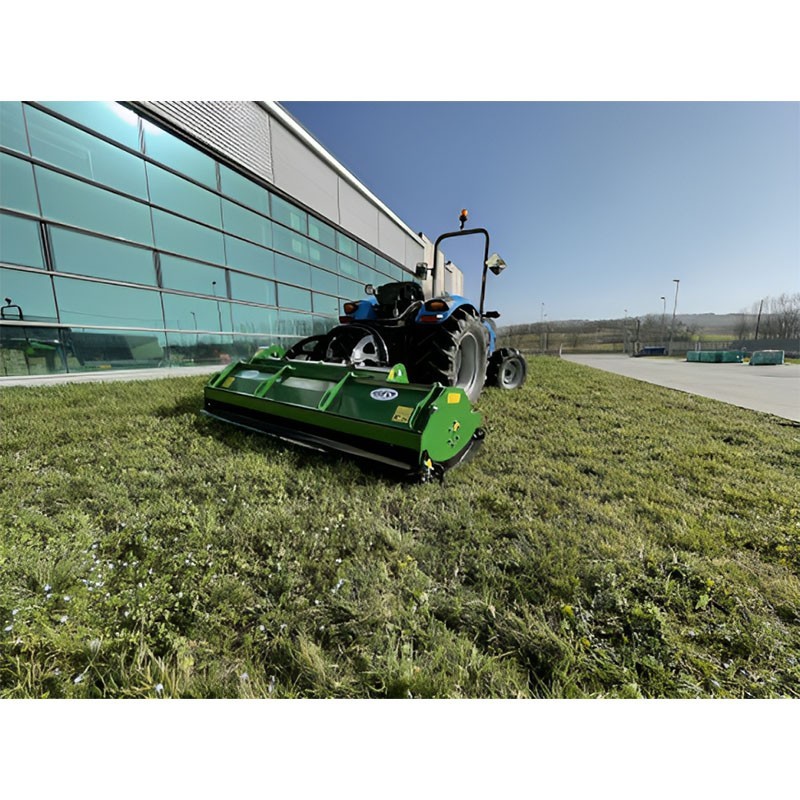

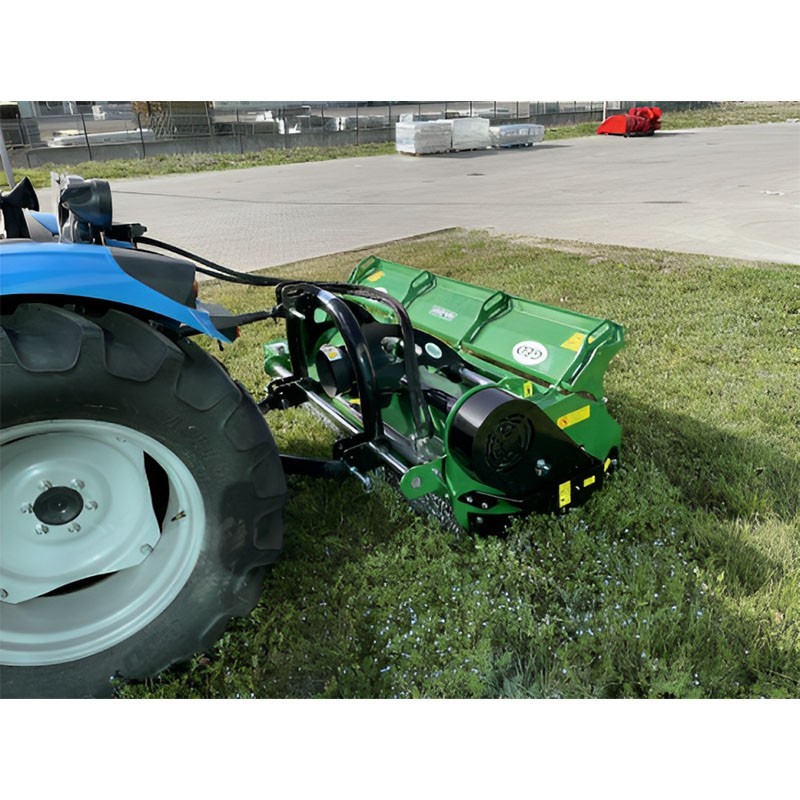

Vineyard shredder PTO GEO ITALY MA

The vineyard shredder PTO GEO ITALY MA is a machine designed for specific work in vineyards and orchards, ideal for tractors from 35 to 85 HP. With its cast iron gearbox with RL and 400 mm hydraulic side shift, it offers versatility and robustness in its operation.

Its rotor, with a tube diameter of 168 mm and 410 mm cutting diameter, together with a peripheral speed of 45.5 m/s, guarantees optimum shredding efficiency. With the option of changing the hammers for blades.

Equipped with safety features such as front guards with chains and an adjustable tensioning system, this shredder also has a universal three-point support for category I and II hitching.

Additional features, such as the serrated counter knife, 50-80 HP tractor box and rear opening for inspection, show its attention to detail and ease of maintenance. Complying with CE safety regulations, its design includes crash protection, while recommending the use of SAE90 or EP00 oils for optimum performance.

Features

Model MA 160 MA 180 MA 200 MA 220
Working width 160 cm 180 cm 200 cm 220 cm
Total width 180 cm 200 cm 220 cm 240 cm
Tractor power (HP) 35-85 35-85 35-85 35-85
Weight 485 kg 505 kg 524 kg 545 kg
Hammers 22 24 26 28
Belts 4 4 4 4
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
This tractor shredder includes a hammer cutting system. You also have the option of ordering a blade system by calling our customer service department.
259447

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Working width PTO
160 - 220 cm
Tractor power
35 - 85 HP
Cardan shaft
Including
Type of coupling
Fixed hitch
Robustness
Medium
Number of hammers
22 - 28
Working width (cm)
160 - 169 cm
180 - 189 cm
200 - 209 cm
220 - 229 cm
Country of manufacture
Italy
Weight
485 - 545 kg

Specific References

mpn
3.52.160
New
