Tractor hammer crusher Deleks TIGRE-200 60-90HP
- Tractor power: 60 - 90 HP
- Cutting height: 5 - 65 mm
- Total width: 2170 mm
- Number of hammers: 32
€2,786.63 VAT incl.
CARDAN SHAFT INCLUDED

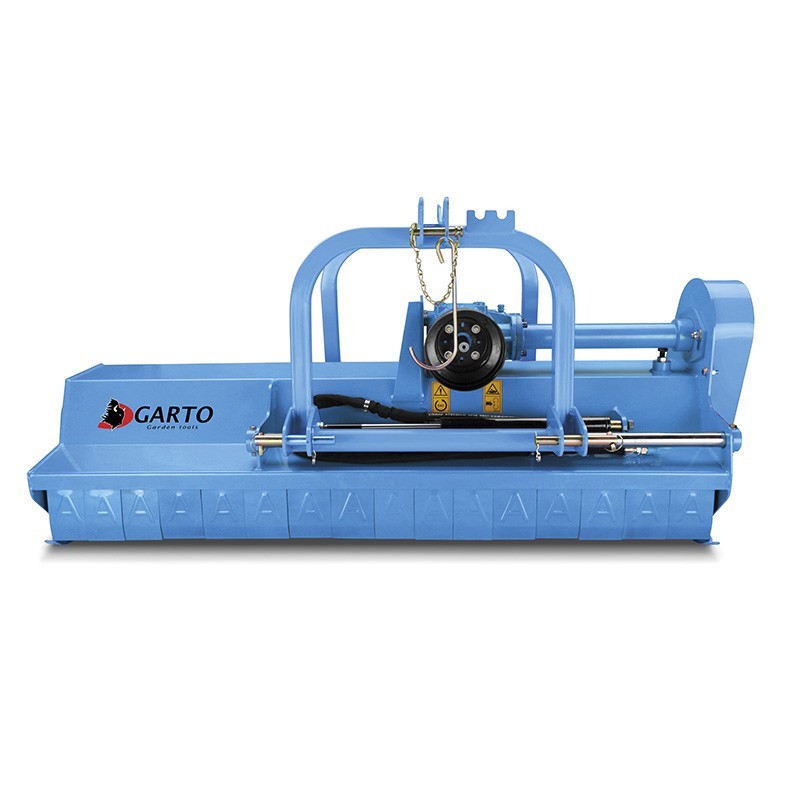

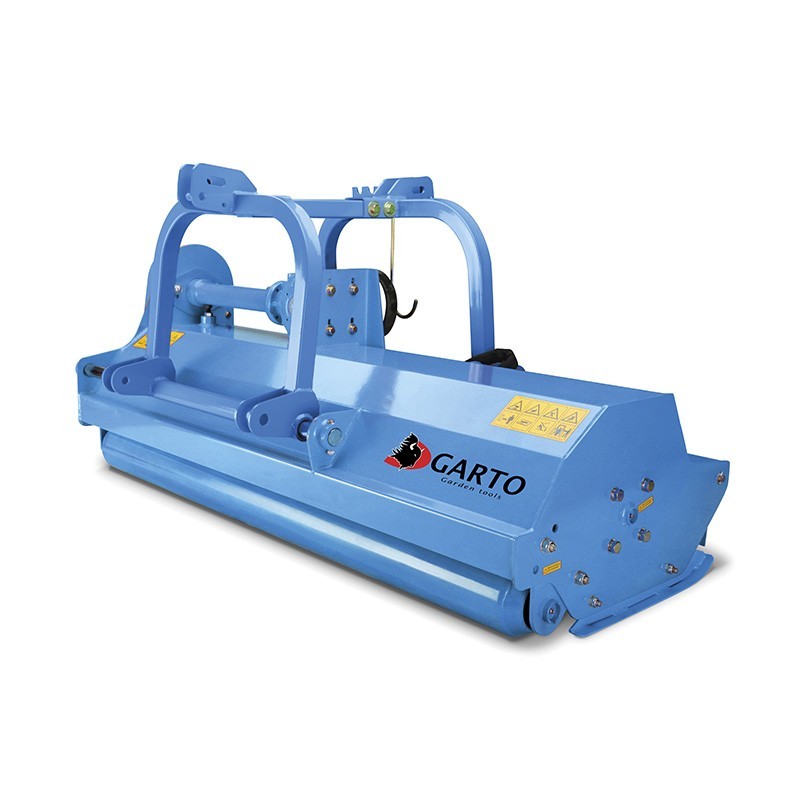

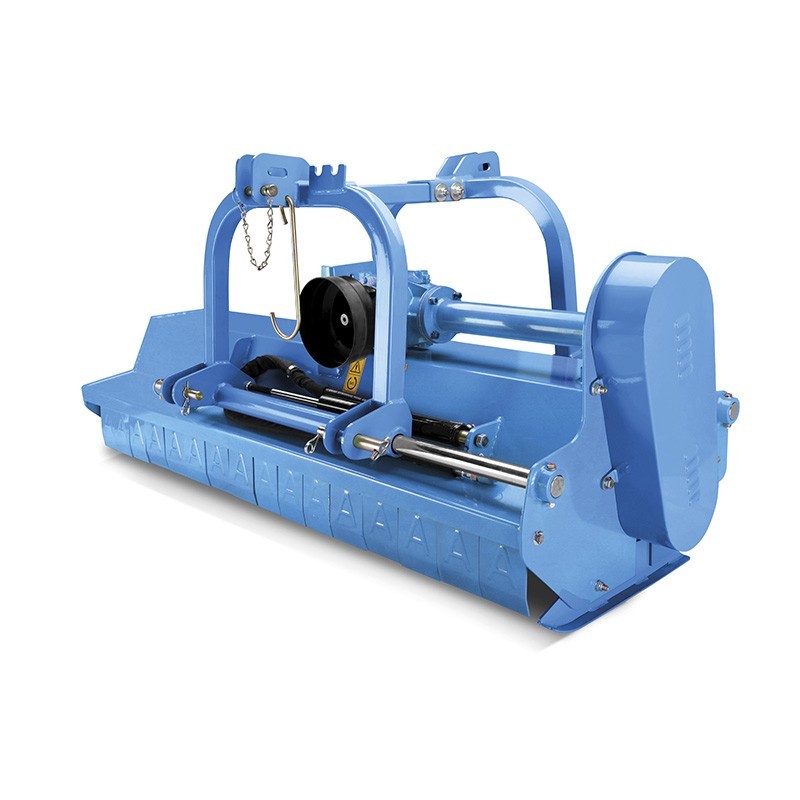

The Reversible Tractor Shredder Garto GA 140-240 cm is a specialized tool for shredding pruning residues, such as citrus, fruit trees, vineyards, low vegetation, grass, among others.
It has a hydraulic displacement that facilitates its adjustment and adaptation to the working terrain, and a reversible group allows it to be hitched to both the front and rear of the tractor, providing flexibility and versatility in its use.

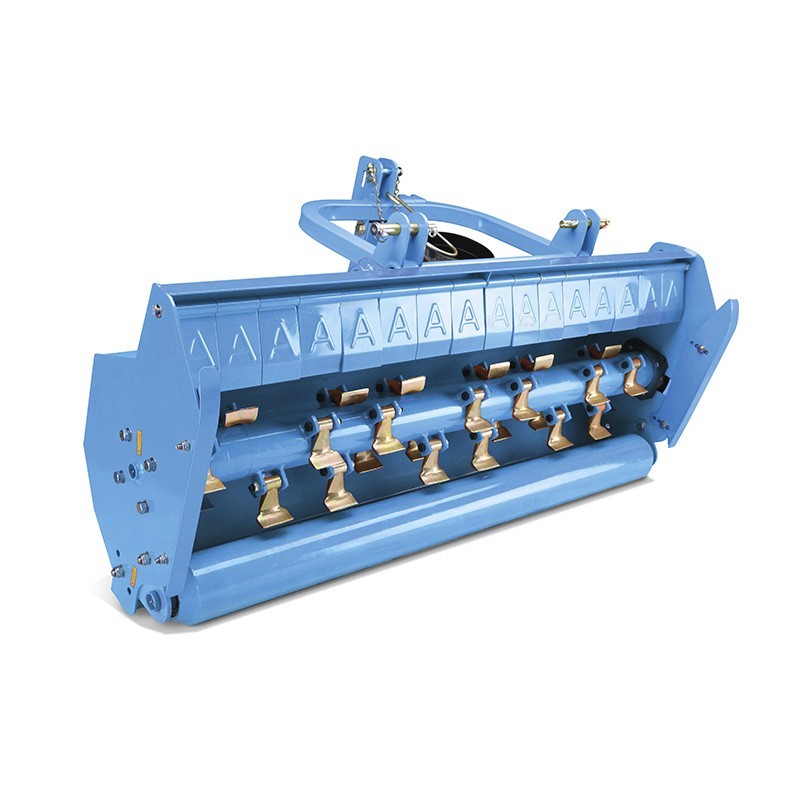

The rotor is equipped with large hammers, which are supported on self-leveling cushions, ensuring efficient and uniform crushing of materials.
For a perfect adaptation to the ground, this shredder is equipped with skids and rollers that allow a smooth and controlled sliding, avoiding damages and ensuring a precise work.
This Reversible Tractor Shredder Garto GA is a specialized tool for shredding pruning residues, with hydraulic displacement, reversible group, rotor with large hammers and skids and rollers for a perfect adaptation to the terrain. It is ideal for agricultural work requiring efficient and precise shredding.
Model | GA140 | GA160 | GA180 | GA200 | GA220 | GA240 |
Working width | 1380 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm | 2400 mm |
Width | 1540 mm | 1740 mm | 1940 mm | 2140 mm | 2430 mm | 2540 mm |
Weight | 320 kg | 498 kg | 528 kg | 538 kg | 568 kg | 598 kg |
No. of hammers | 12 | 14 | 16 | 18 | 32 | 34 |
No. of belts | 3 | 3 | 3 | 4 | 4 | 4 |
PTO speed | 540 RPM | 540 RPM | 540 RPM | 540 RPM | 540 RPM | 540 RPM |
Power requirement | 45 - 85 hp | 60 - 95 hp | 70 - 110 hp | 90 - 100 hp | 90 - 120 hp | 110 - 140 hp |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
