Reversible PTO tractor shredder VG Agro KDX

Rating:
(0)
  • Rotor diameter: 127 mm
  • Hydraulic displacement on zinc-plated bars
  • Adjustable tensioner
  • Adjustable height by lateral skids

Cardan shaft included

En stock
icon Shredder type
Shredder type
Reversible shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
140 - 240 cm
icon Tractor power
Tractor power
minimum 35 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium
icon Number of hammers
Number of hammers
14 - 20
icon Weight
Weight
340 - 573 kg
€2,591.07 excl. VAT
- 4%
€2,487.43 excl. VAT
€3,009.79 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Reversible PTO tractor shredder VG Agro KDX
€3,009.79
Select
Qty

Tractor mounted mulcher VG Agro KDX

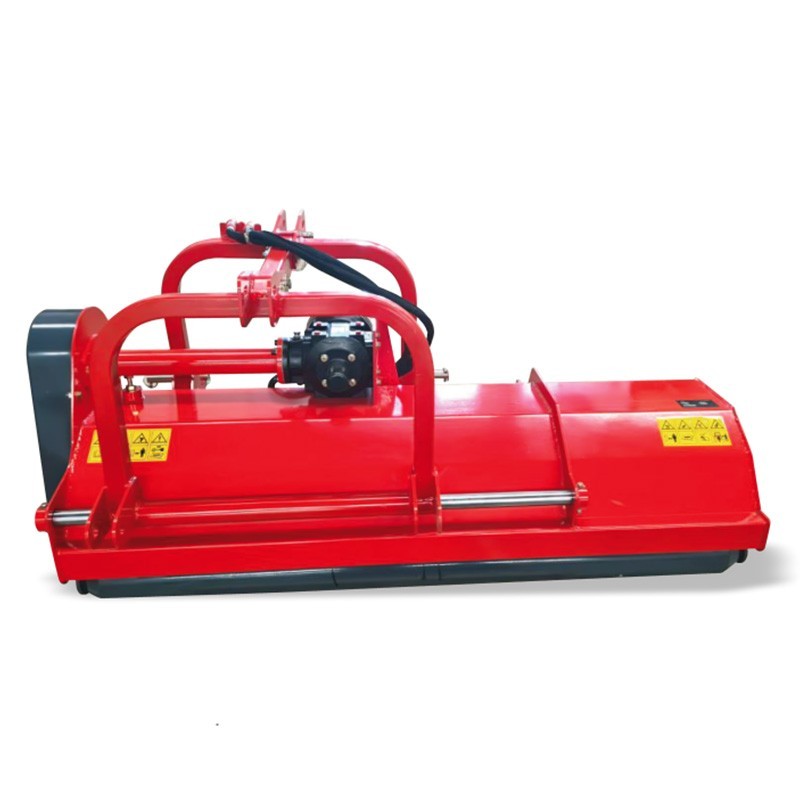

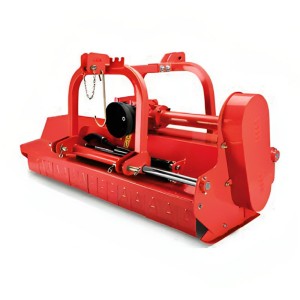

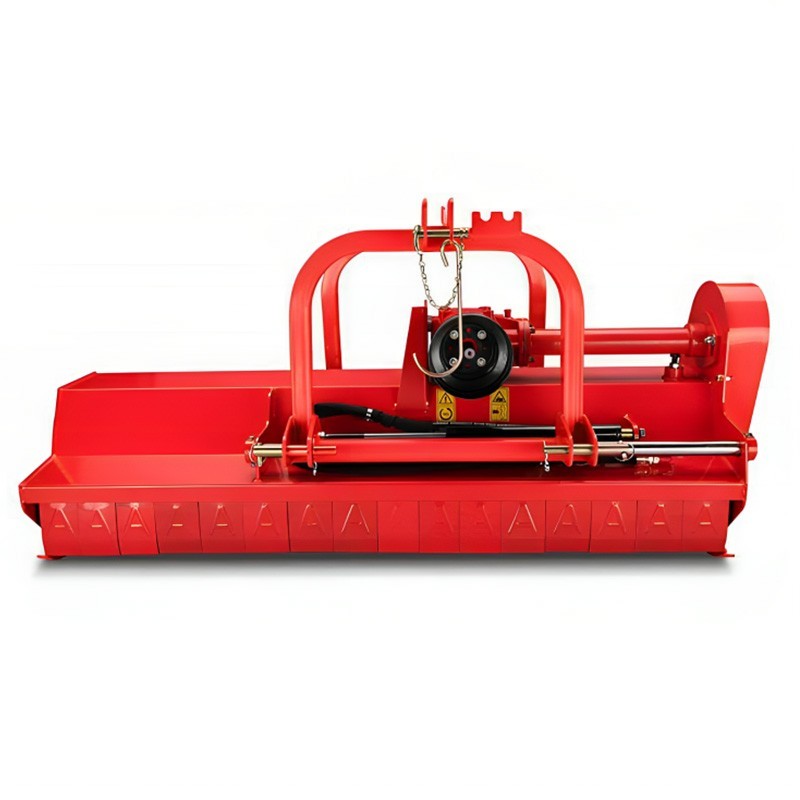

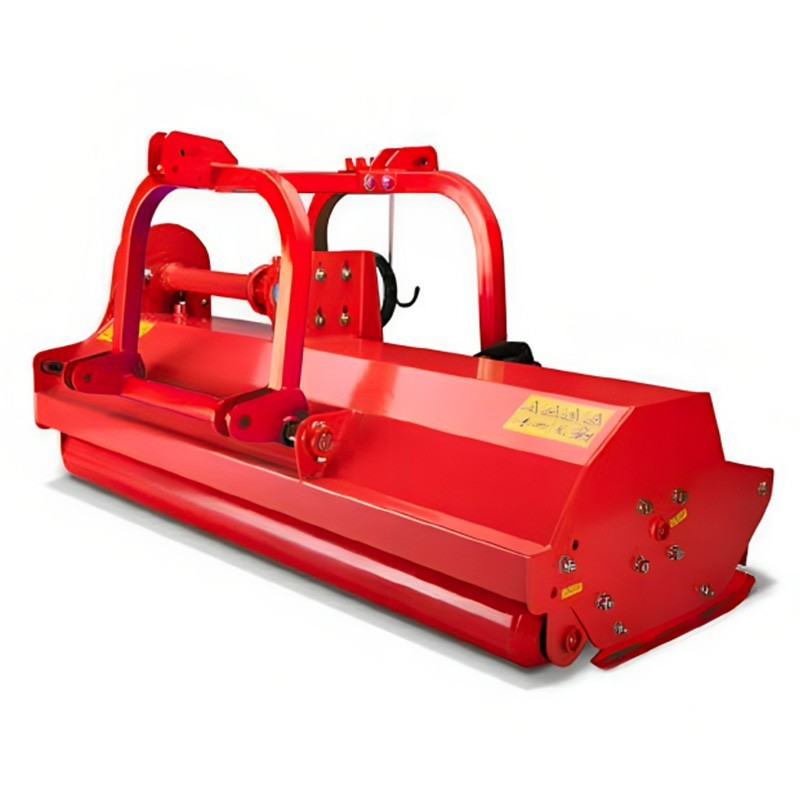

The tractor shredder VG Agro KDX has a reversible hitch as its main feature, allowing it to be connected to the front or rear PTO. The diameter of the rotor is 127 millimeters.

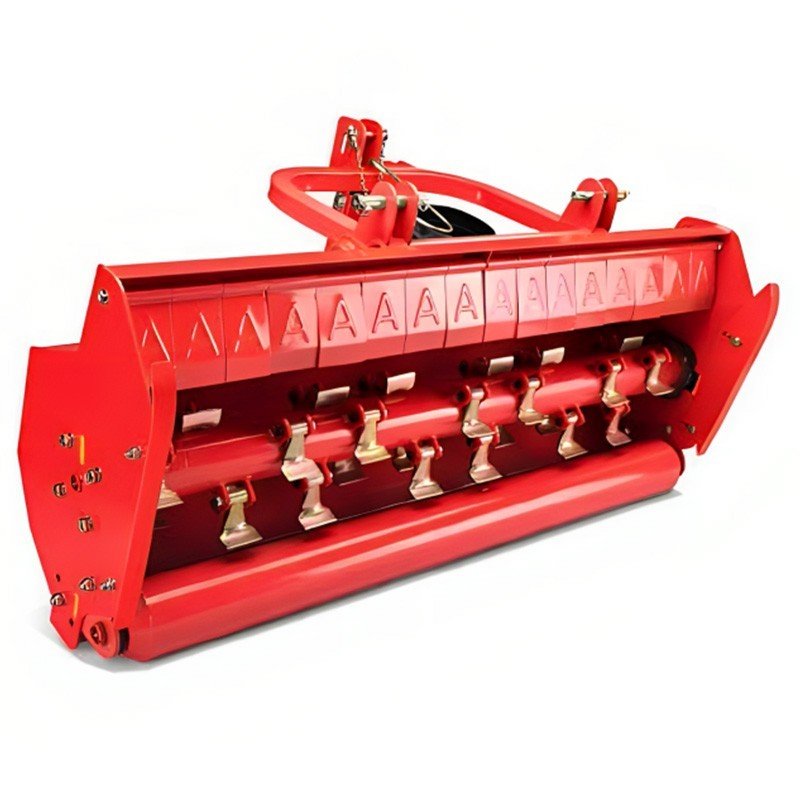

The maximum size of the pruning debris that this tractor shredder can work with is 4 cm. Among other features we can highlight that the VG Agro KDX shredder has adjustable height by lateral skids and in the case of models over 1.8 meters wide, they have reinforced hammers.

The displacement of this machine is hydraulic and can move up to 50 centimeters. Another feature that we can mention is that it has a rear roller with a scraper for mud.

Finally, the minimum tractor power required to operate this shredder is 35 HP, although depending on the model we choose, we will need up to 80 HP of tractor power.

Technical data sheet of VG Agro KDX

MODEL Min. power (HP) Rotor Ø (mm) No. of hammers Weight (Kg) Dimensions (mm)
KDX140 35 127 20 340 1540x985x1005
KDX160 60 127 14 417 1740x985x1005
KDX180 60 127 14 443 1840x985x1005
KDX200 70 127 16 499 2140x985x1005
KDX220 80 127 18 540 2340x985x1005
KDX240 80 127 20 573 2540x985x1005
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
