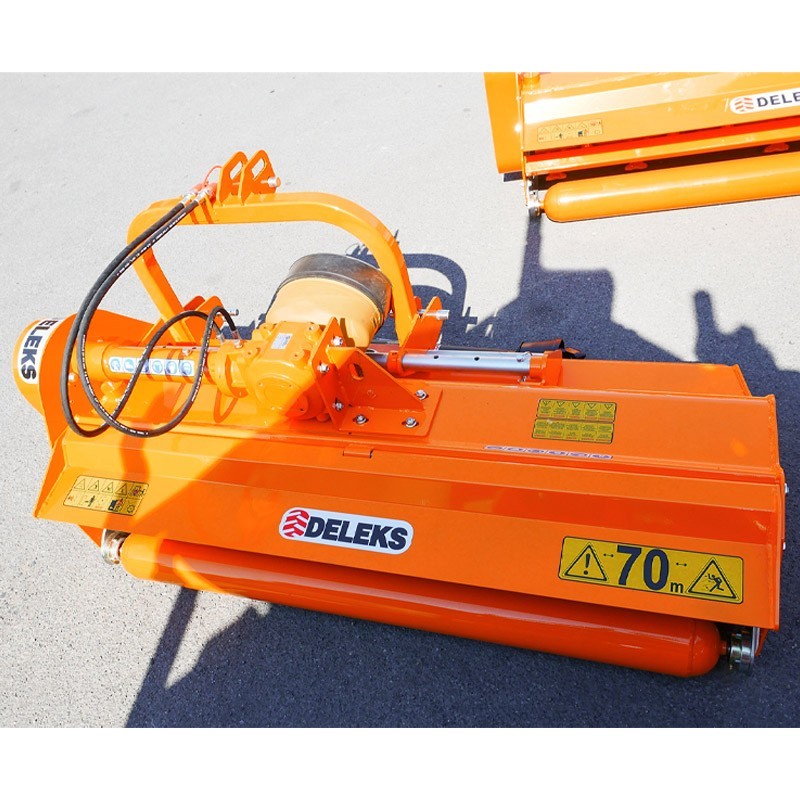

The Hammer crusher Deleks LEOPARD-160-SPH is specially designed for tractors with low horsepower, and is 40-70HP. This shredder model is used for orchards, vineyards, olive groves and uncultivated areas.
The model Deleks LEOPARD-160-SPHHas forged hammers for grass and small brambles. It is a shredder versatile, suitable for cutting grass. Thanks to its sturdy structure, it is very useful for cutting pruning and pruning waste, up to 4-5cm in diameter.
This Shredder from Deleks also has a cAT 1-2 universal 3-point linkage. It is suitable for most tractors from 40 to 70 HP. As for its characteristics, we can highlight its good transmission box P.d.p. 540 r/min increased. It comes with built-in freewheel of Lombarda Ingranaggi brand.

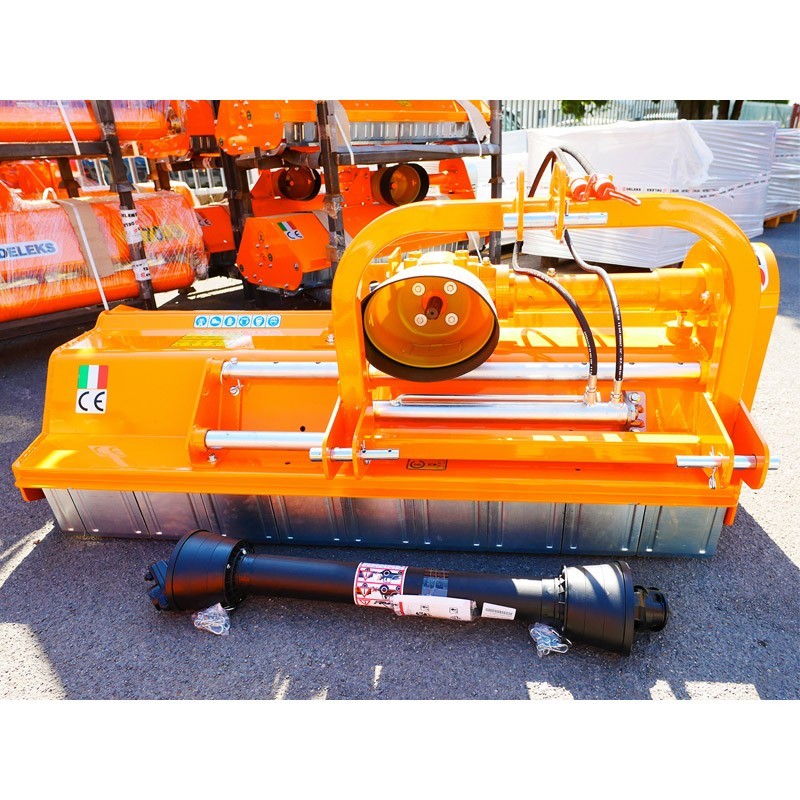

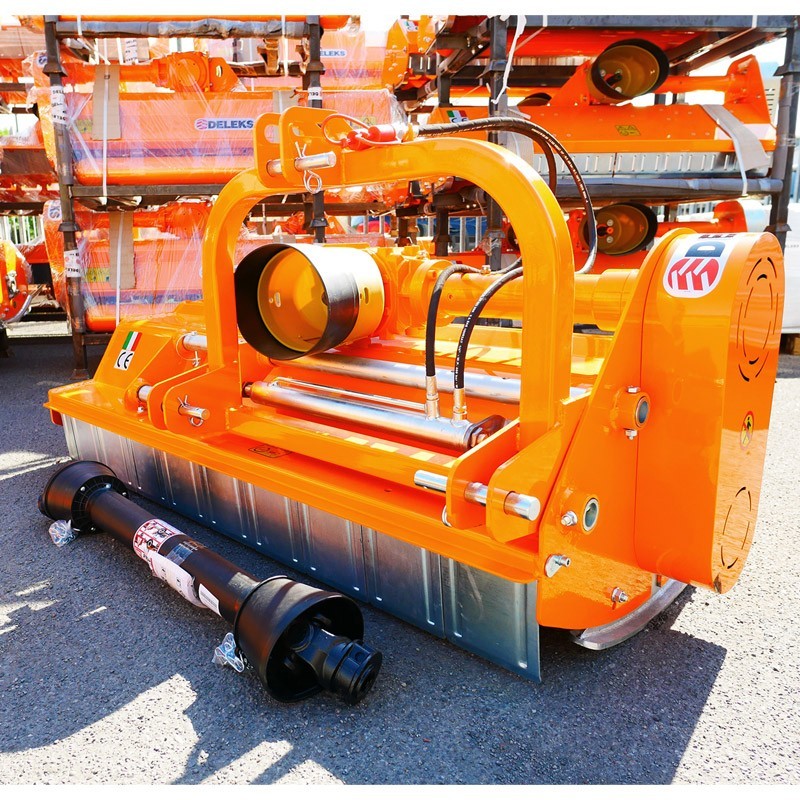

The LEOPARD-160-SPH Shredder comes with 6x1000 CE gimbal included, it also includes SKF branded rotor bearings. The implement can be used on tractors with low power in gardens and orchards. This is thanks to its light weight of 345kg.
This model of Shredder of hammers Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1600mm and the total width of 1740.5mm. We can also highlight the adjustable cutting height from 10 up to 45mm and the total height of 800mm.
Working width | 1600 mm |
Overall width | 1740.5 mm |
Min/max cutting height | 10 - 45 mm |
Weight | 345 kg |
Total height | 800 mm |
Tractor power | 40 - 70 HP |
3-point hitch | Cat. 1-2 (ø 19-22mm / 25-28mm) |
Hood height | 460 mm |
Distance between the lower points | 560 - 950 mm |
Number of hammers | 24 |
Max. cutting diameter | 40 - 50 mm |
Total length | 865 mm |
Ground to gearbox spacing | 520 mm |
Plate thickness | 4 + 6 mm |
Thickness of sheet metal on the sides | 6 mm |
Skid thickness | 6 mm |
Transmission type | V-belts |

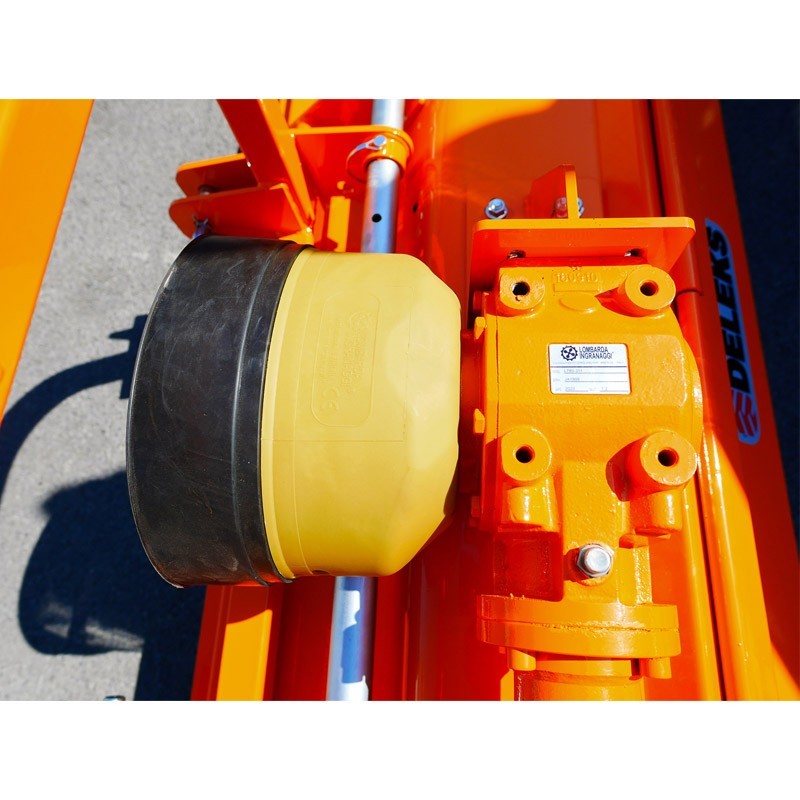

Transmission: Gearbox | Lombarda Ingranaggi (Italy) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 2300 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 180 mm |
Transmission: lower pulley diameter | 130 mm |
Transmission: number of Koreas | 4 |
Transmission: dimensions of the Koreas | BX43 |
Rotor: diameter | 108 mm |
Rotor: bearing type and dimension | SKF UCF-208 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8 mm |
Hammers: weight | 820 g |
Hammers: hole dia | 15 mm |
Hammers: base width | 82. mm |
Hammers: head width | 45 mm |
Hammers: diagonal | 95 mm |

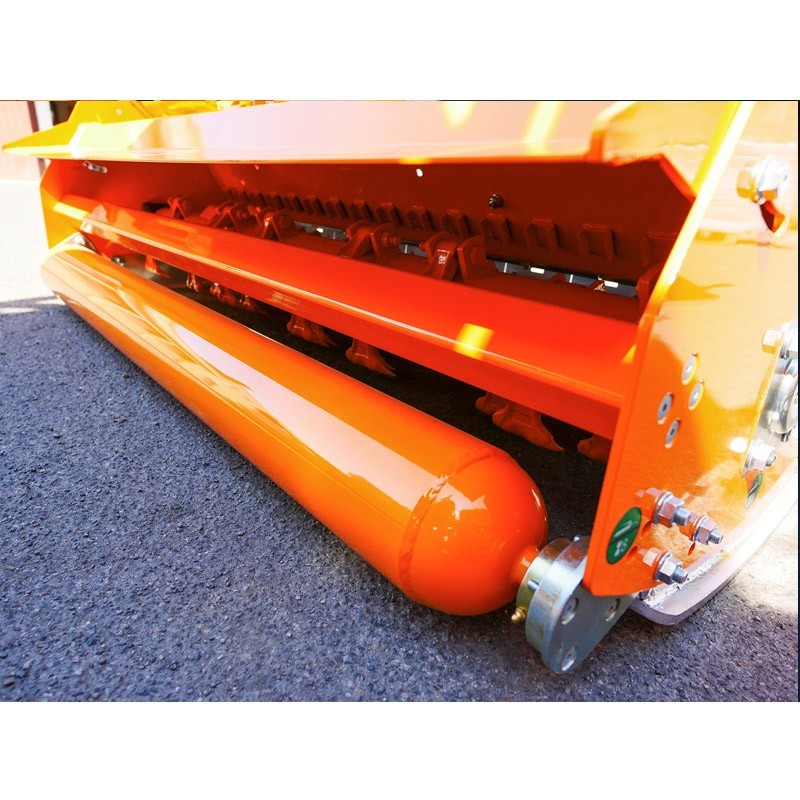

Roll: diameter | 140 mm |
Roll: sheet thickness | 5 mm |
Roll: bearing type and dimension | UC205 |
Cardan | CE 6x1000 mm + Bolt |

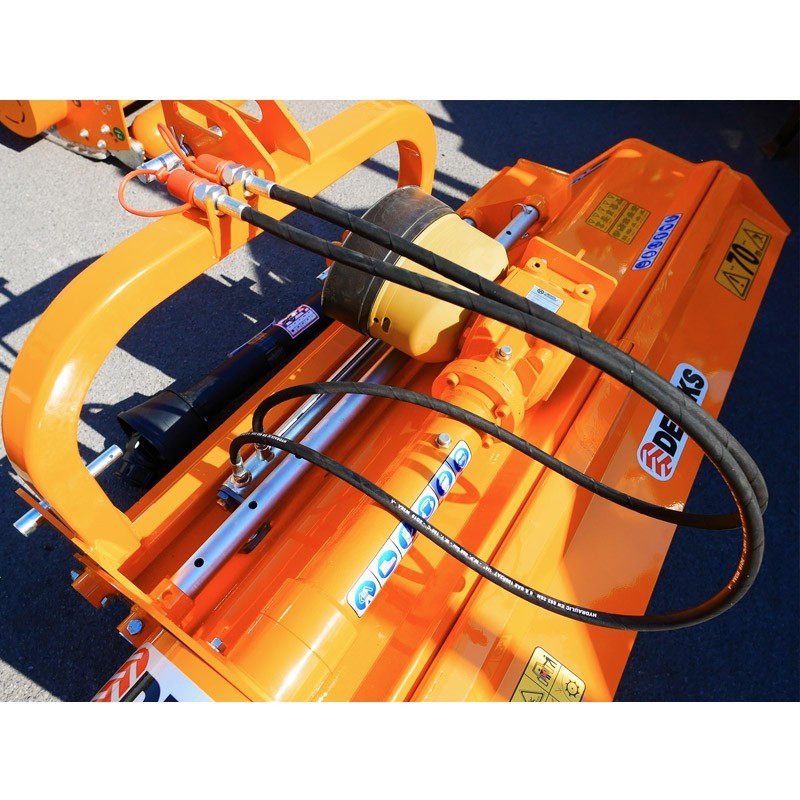

Horizontal displacement | 310 mm (Hydr.) |
Packing dimensions | 1780*900*800 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
