Fixed pruning residue crusher Zeppelin Top Viña reversible
- Working width: 1300 - 1800 mm
- Power requirement: 50-100 / 80-120 Hp
- Weight: 1254 - 1430 kg
CARDAN SHAFT INCLUDED
€5,522.11 VAT incl.

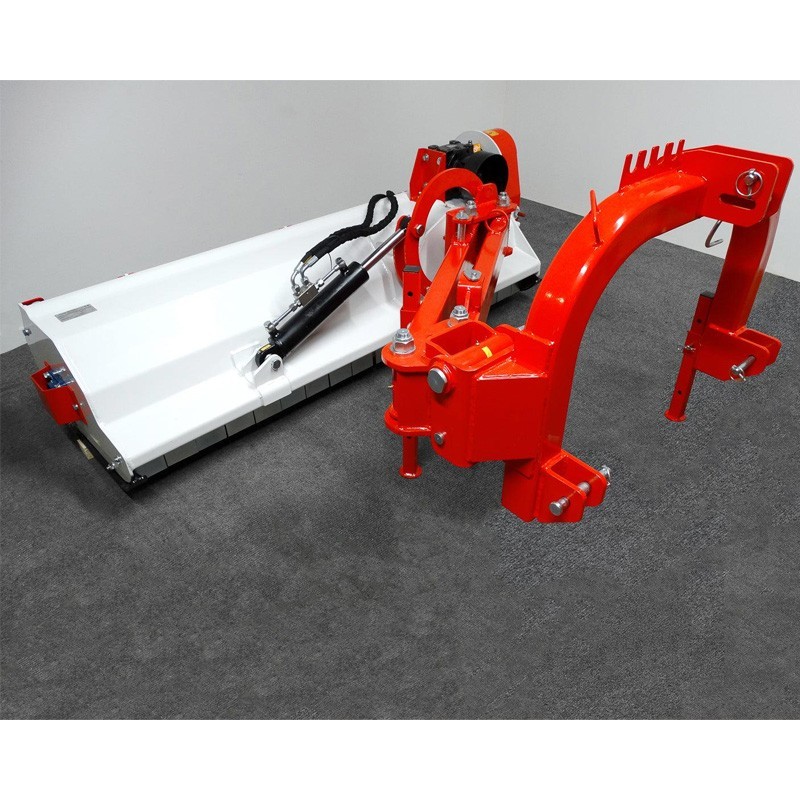

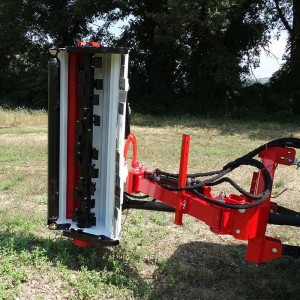

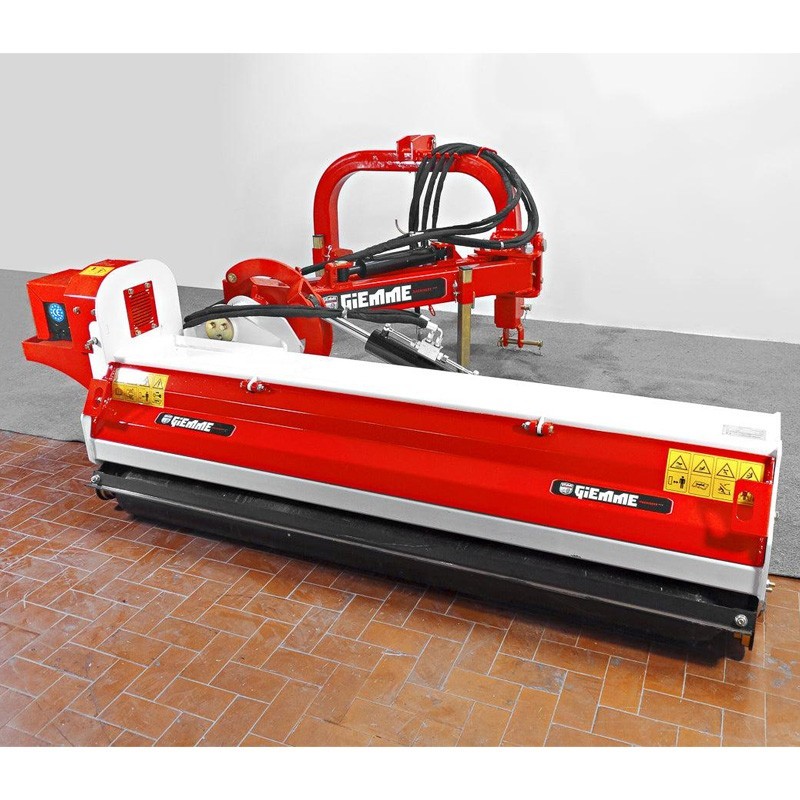

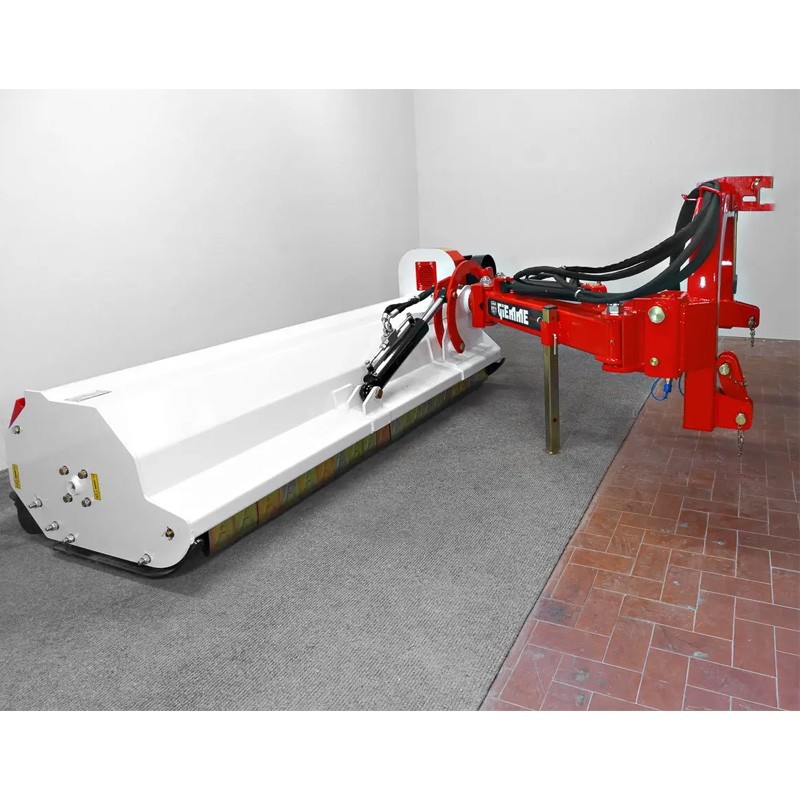

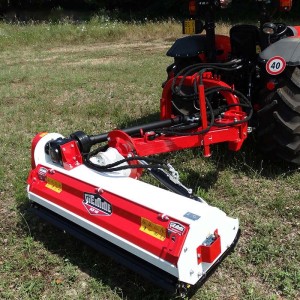

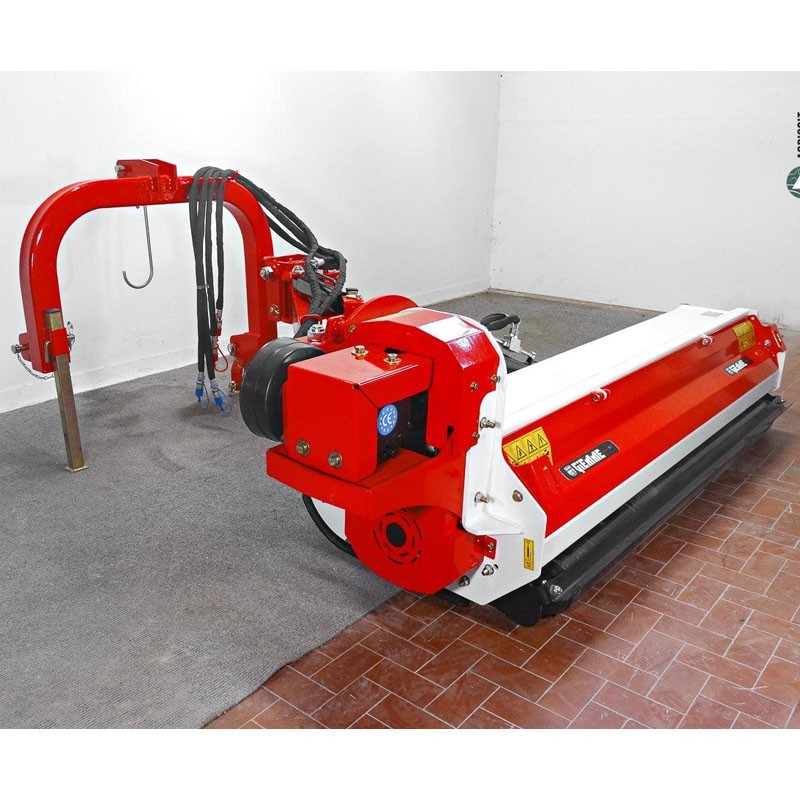

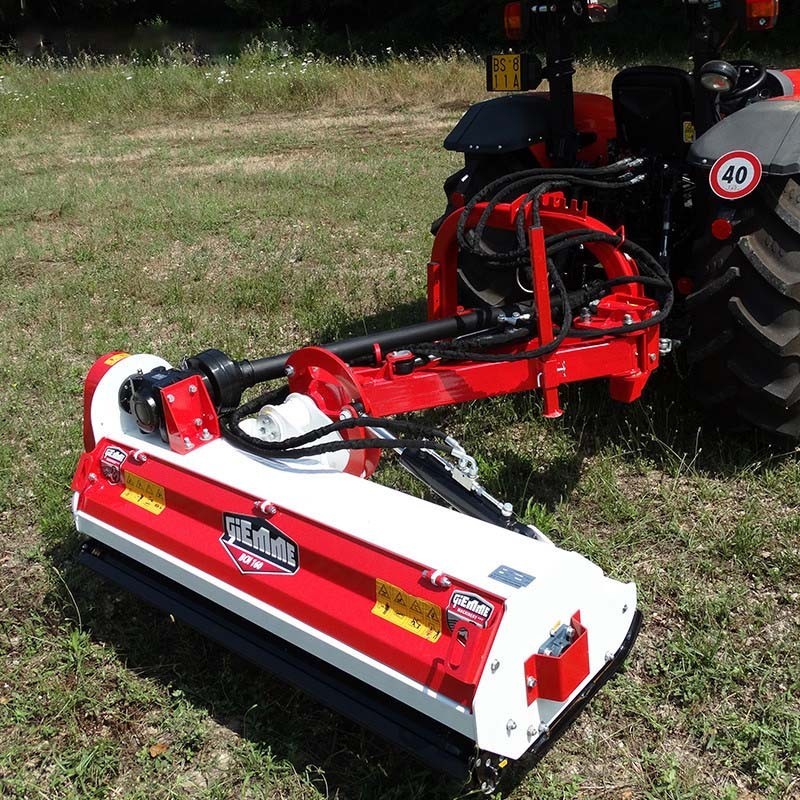

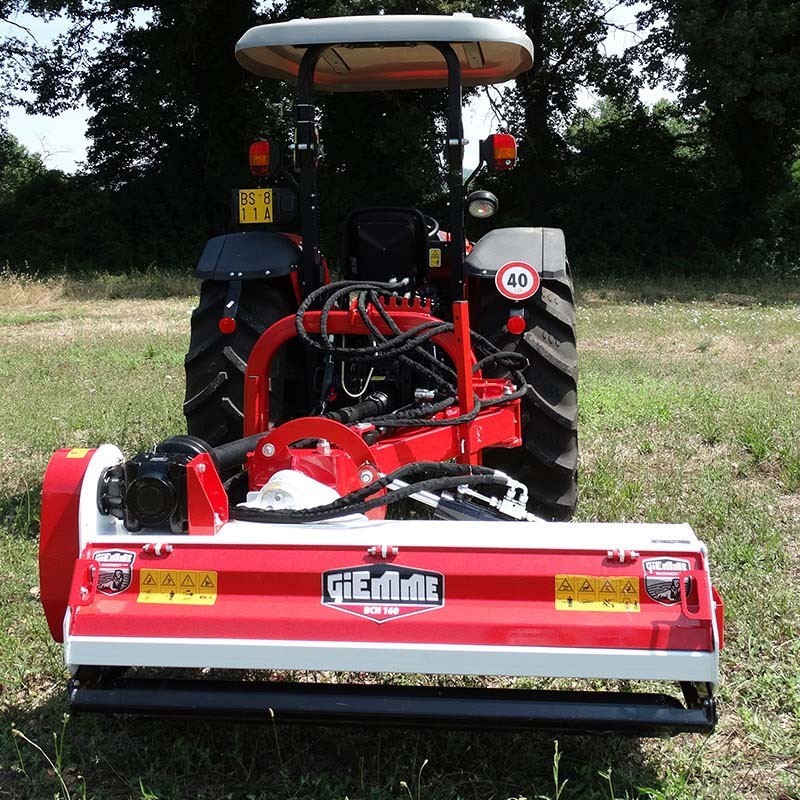

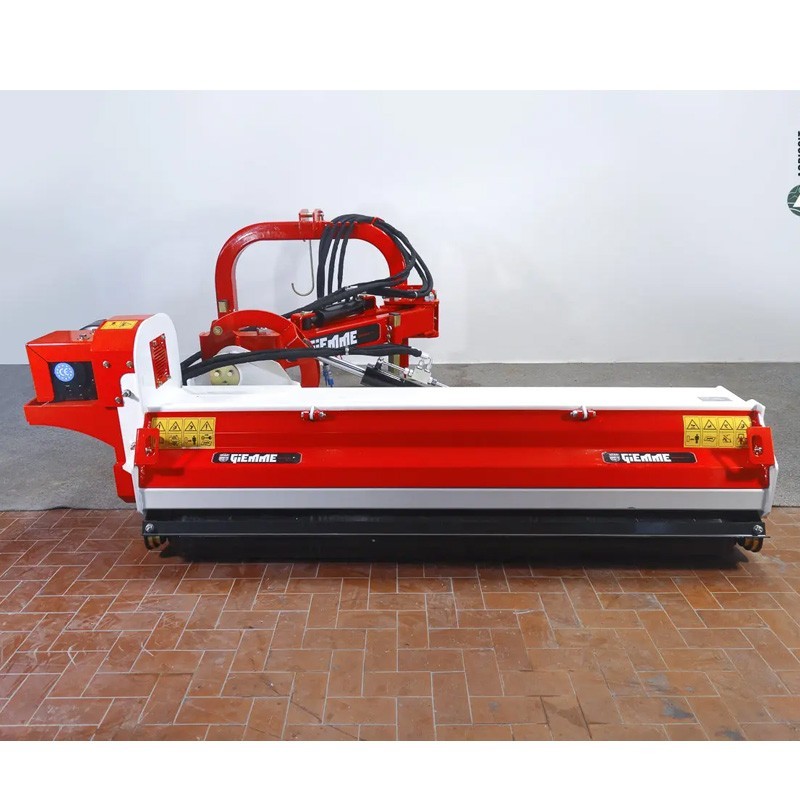

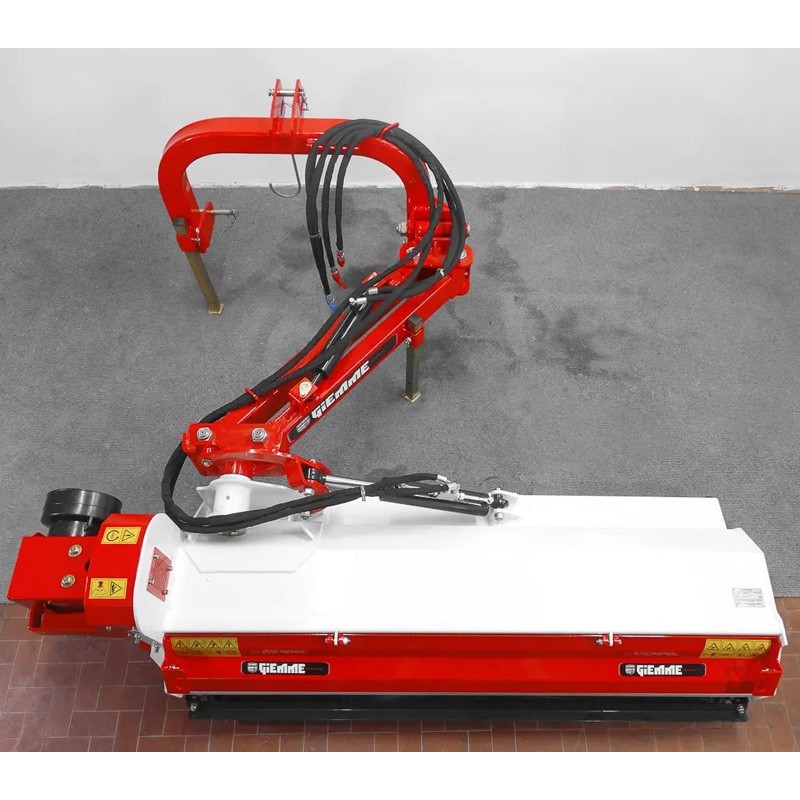

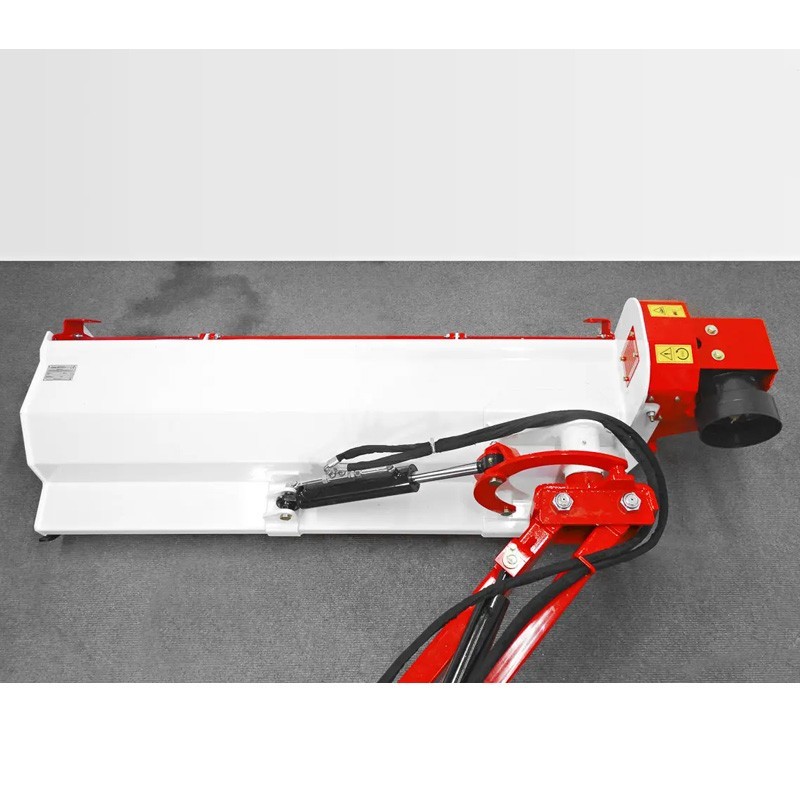

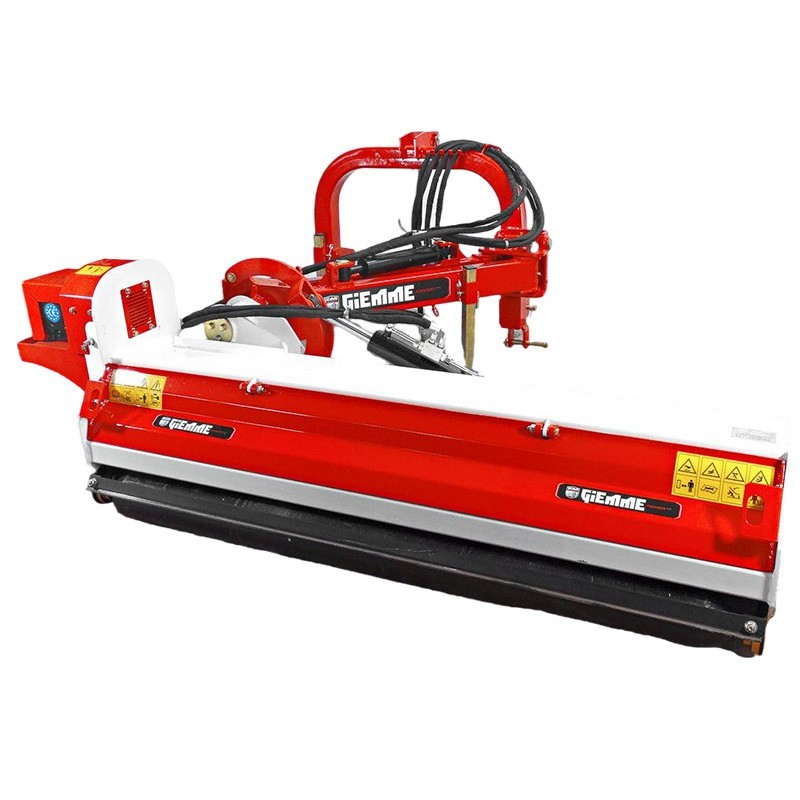

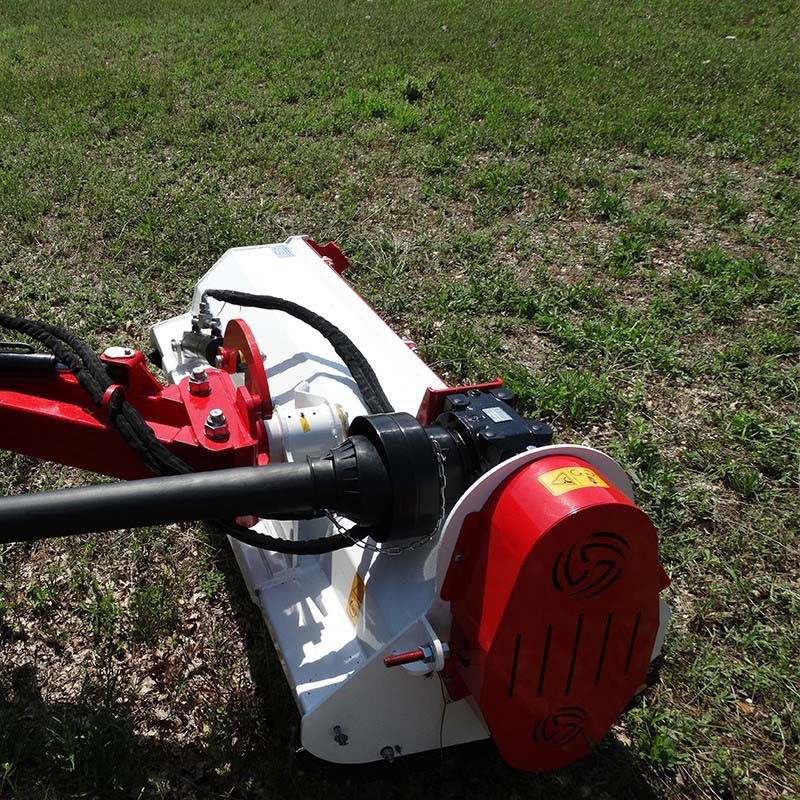

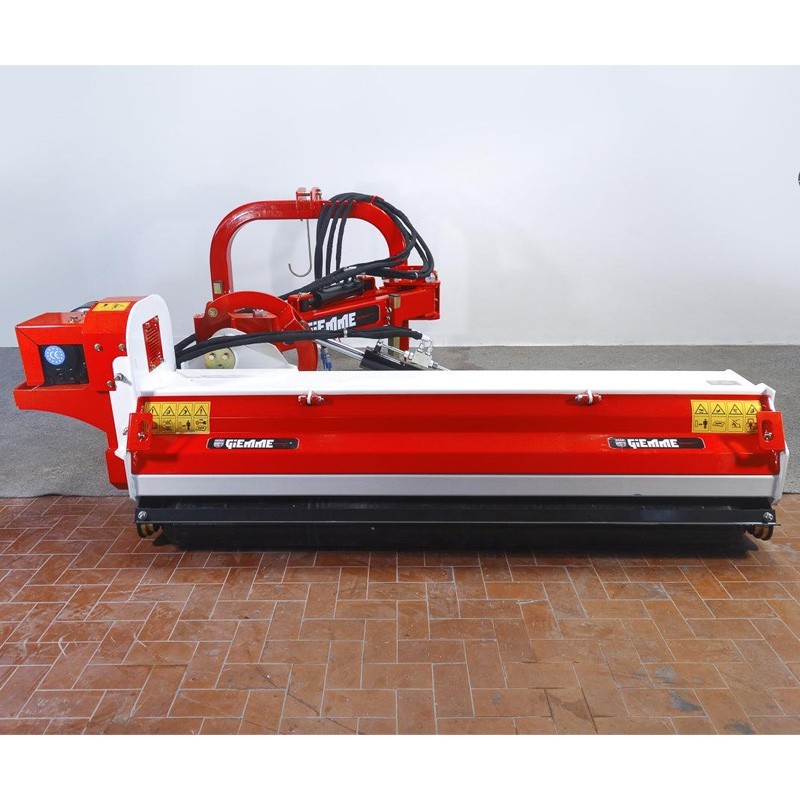

The Giemme BCN Shredder is a versatile and robust tool designed to facilitate the maintenance of green and agricultural areas. Available in two versions, bCN with internal gearbox and BCN M with external gearbox, this shredder offers three different models that vary in working width, adapting to different needs.

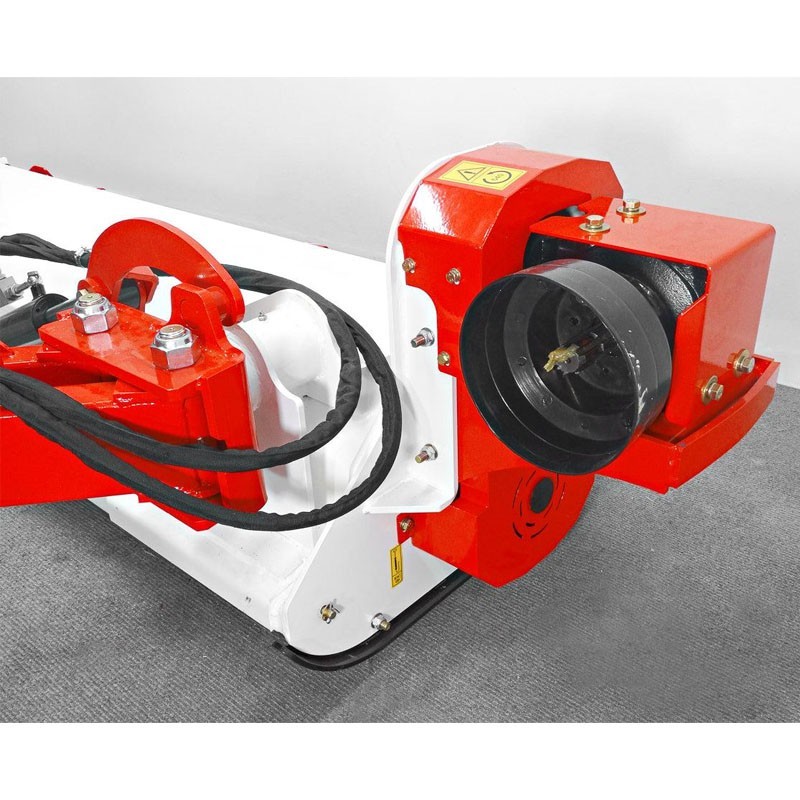

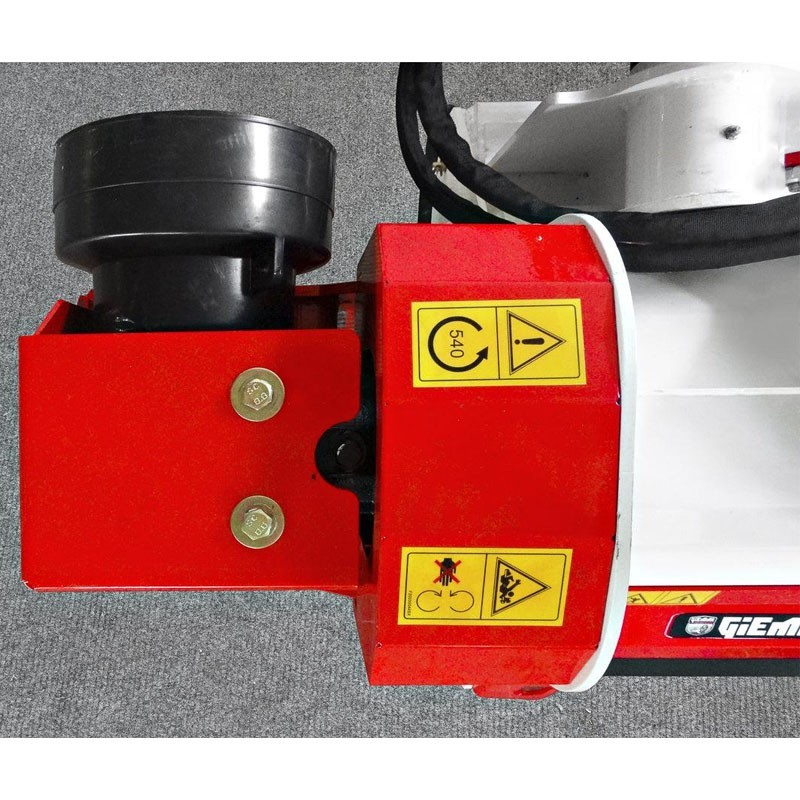

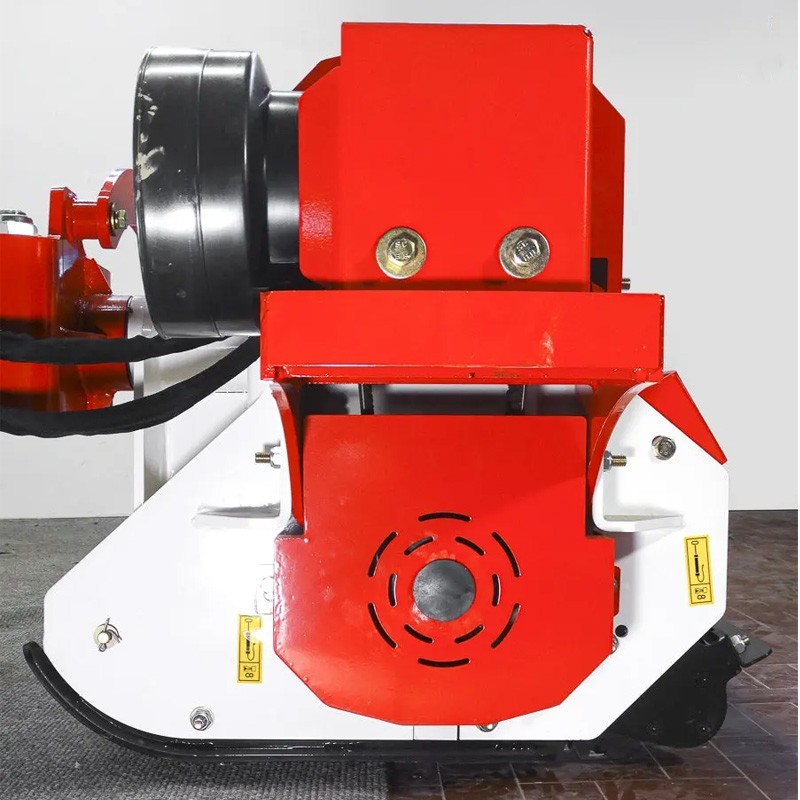

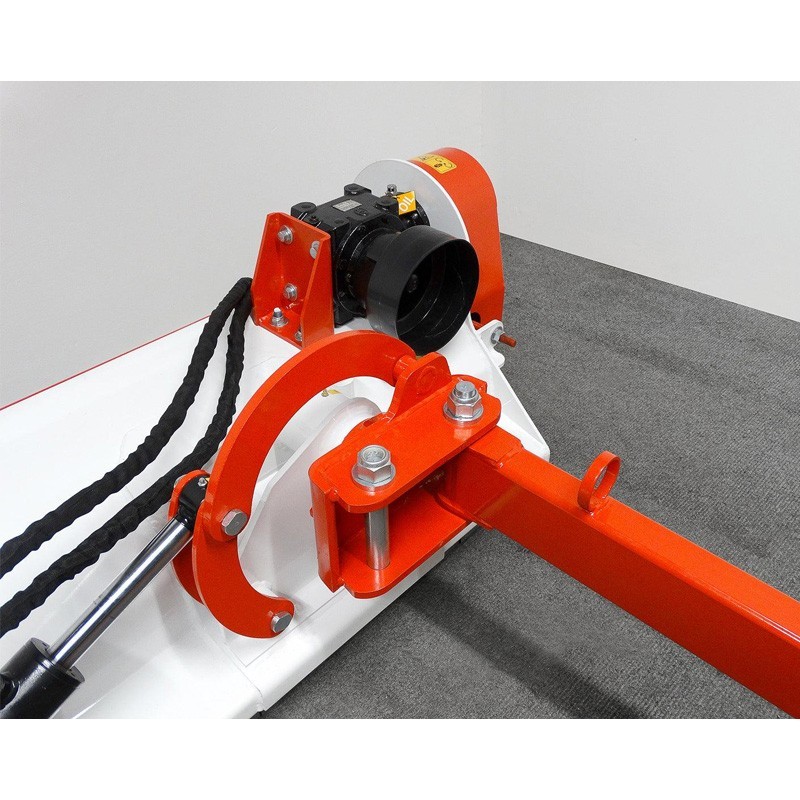

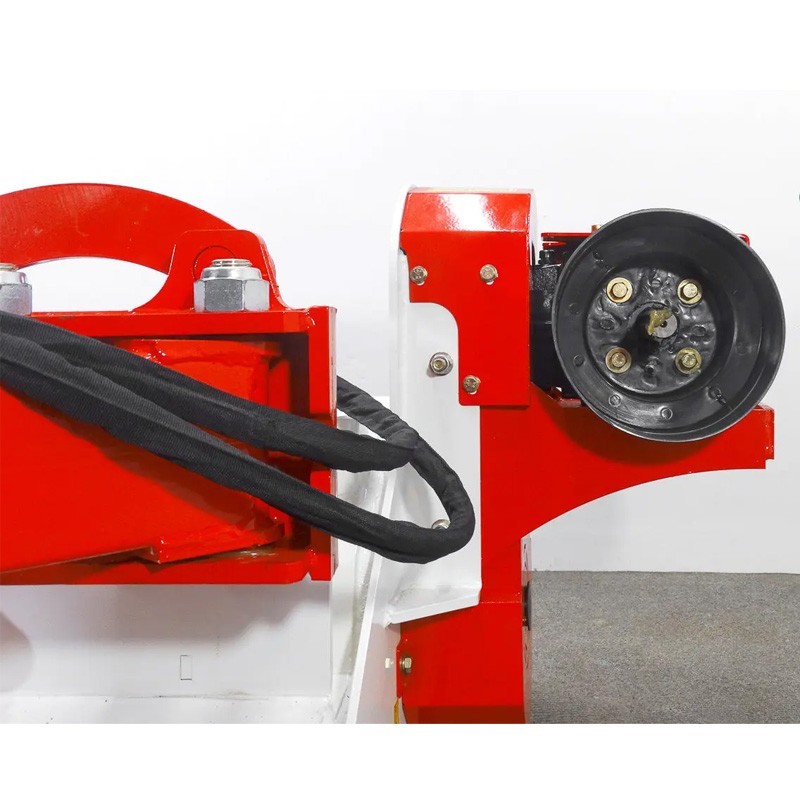

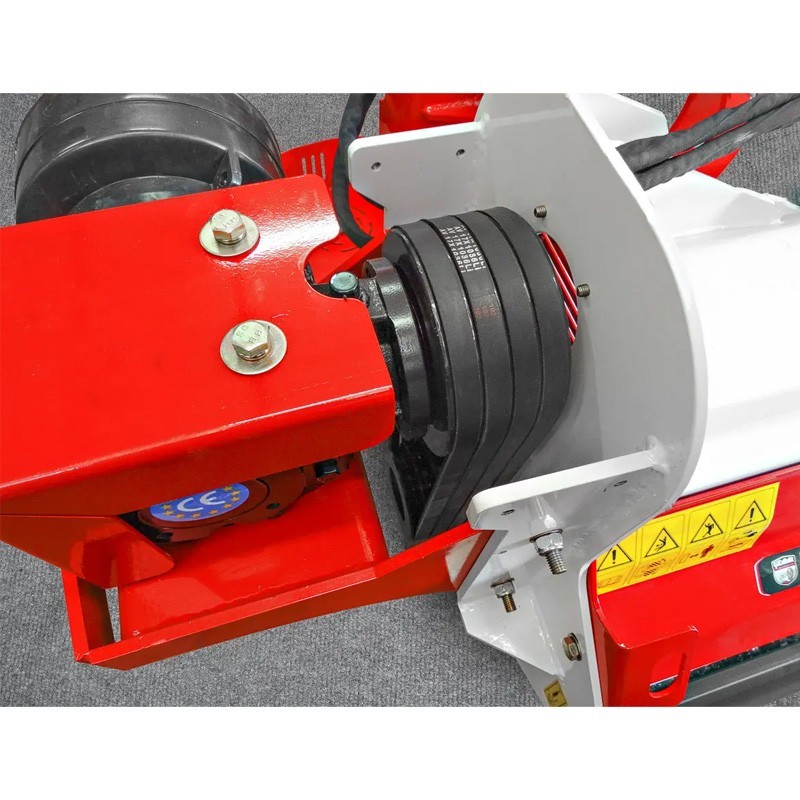

Equipped with a cast iron gearbox "COMER" with 540 rpm freewheel, these shredders guarantee efficient and durable performance. The rotor, , electronically balanced, can be equipped with 0.8 kg hammers or Y-shaped blades, providing a precise and efficient cutting action.

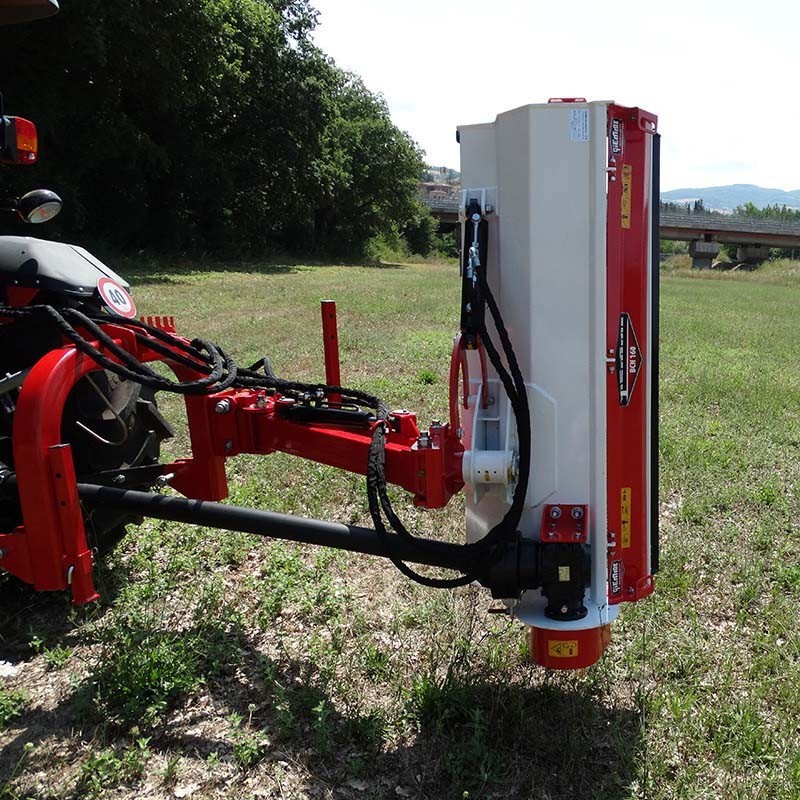

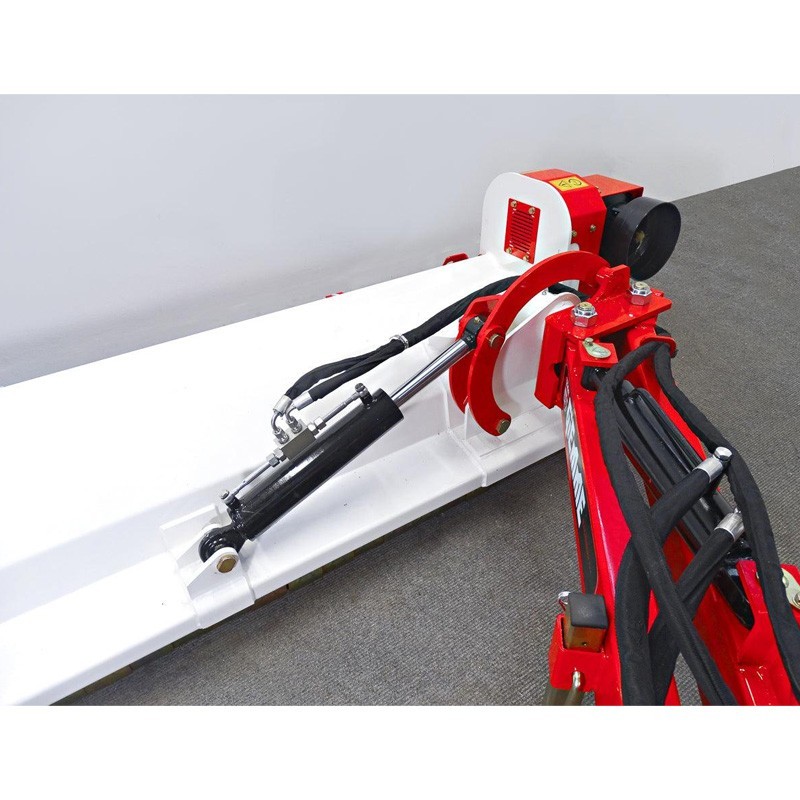

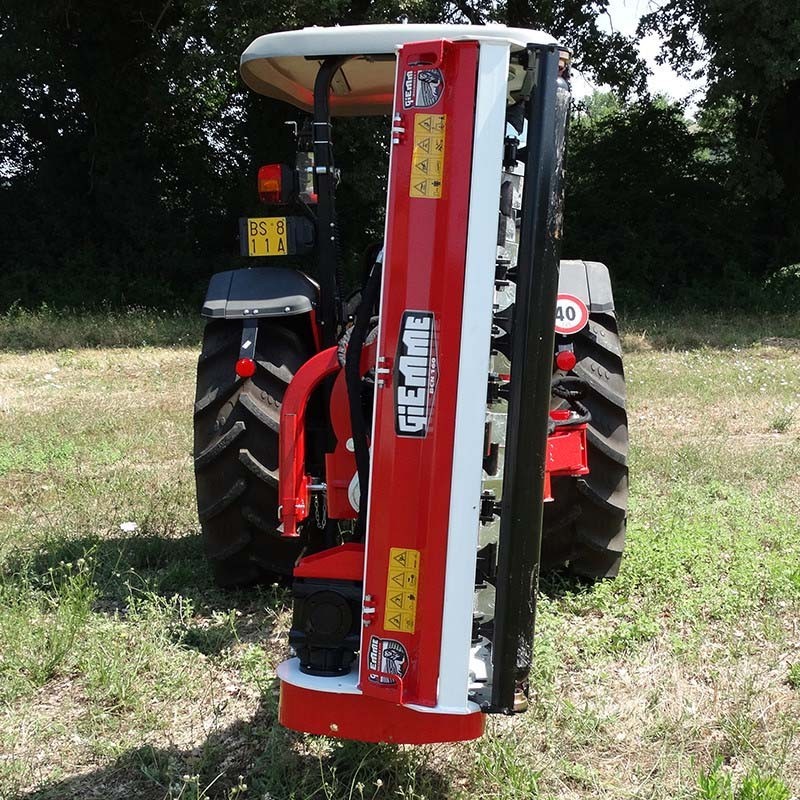

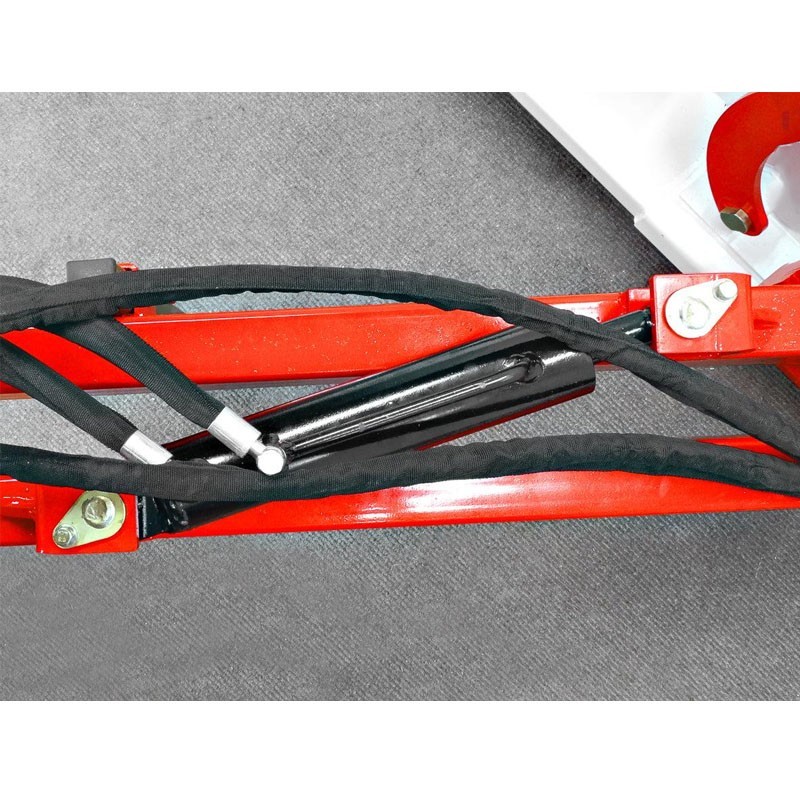

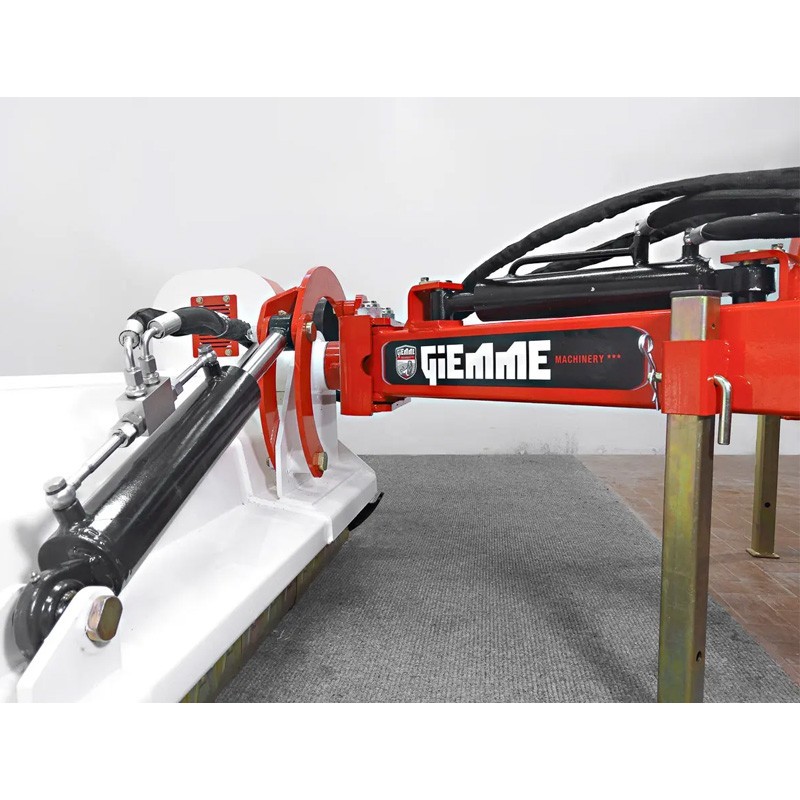

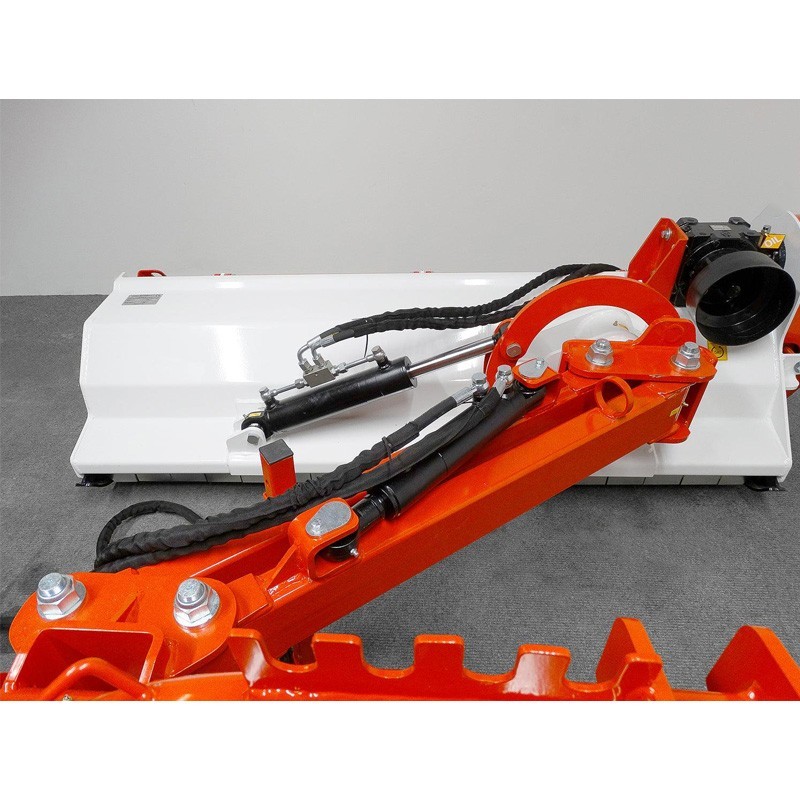

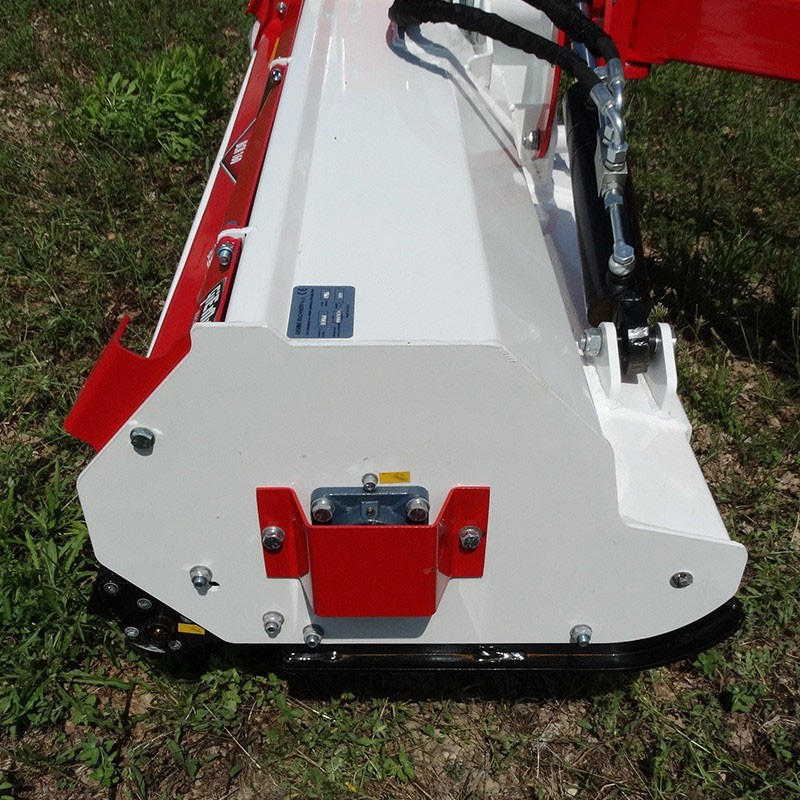

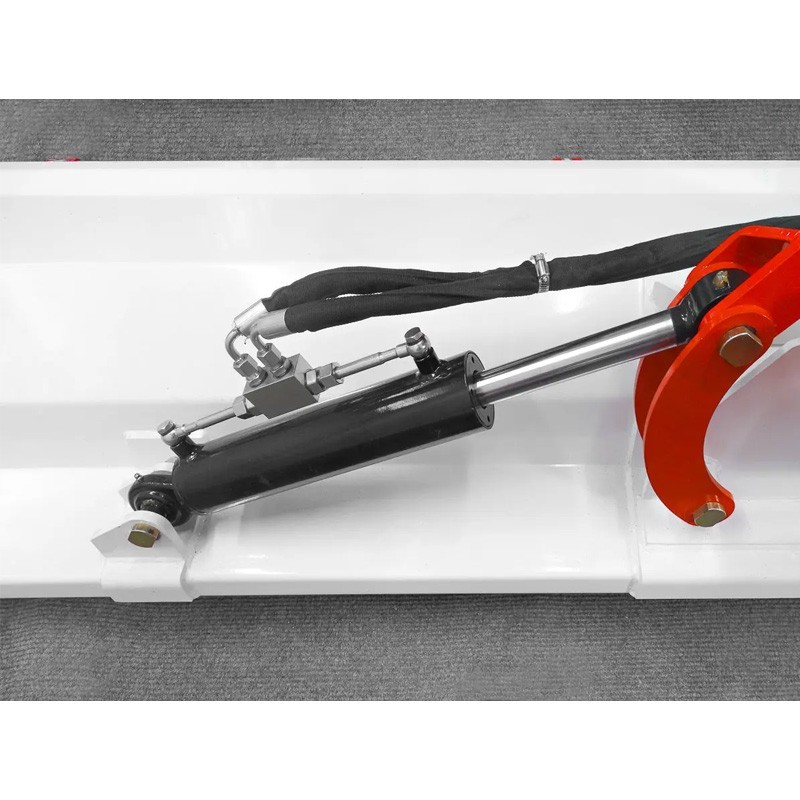

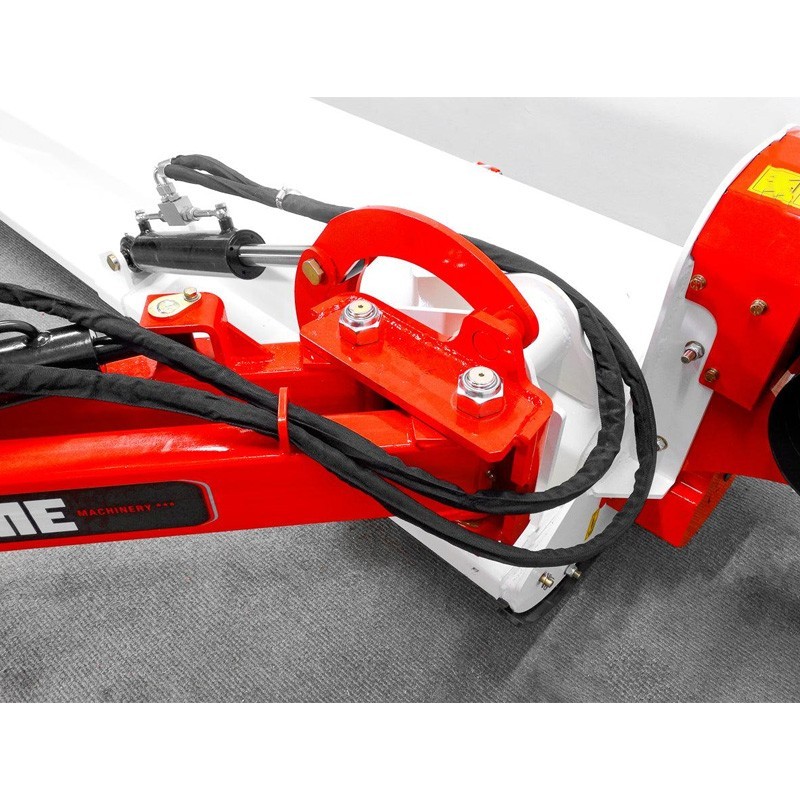

In addition, they have a adjustable rear roller with scraper, and a hydraulic inclination of the shredding head ranging from +90° to -50°, allowing flexible handling on uneven terrain.

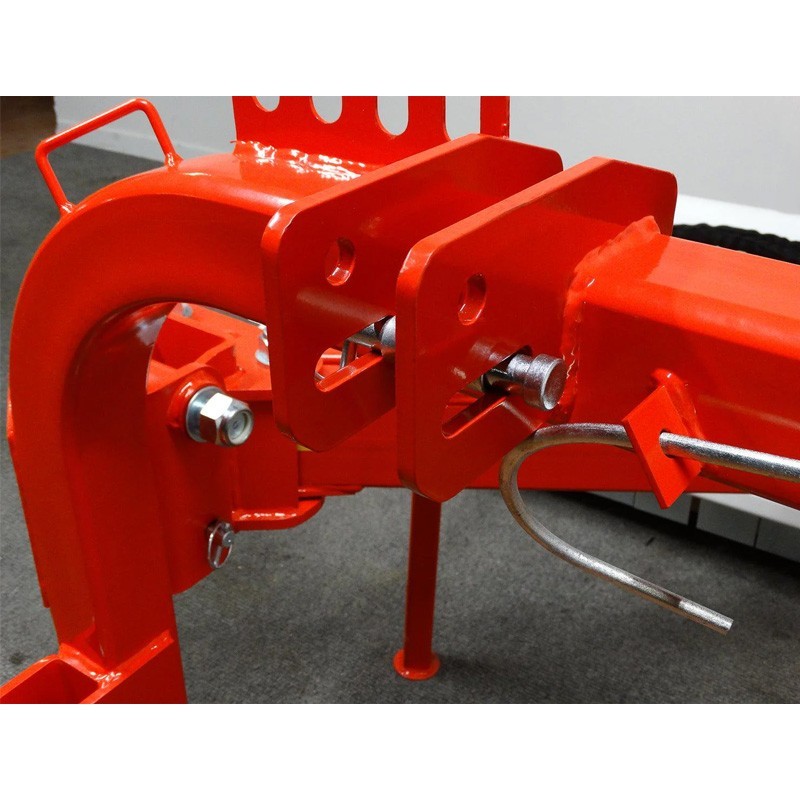

The safety design of the Giemme BCN Shredder includes a mechanical anti-collision safety system and adjustable tensioners. The height-adjustable side slides and protective front bulkheads ensure safe operation adapted to different working conditions.

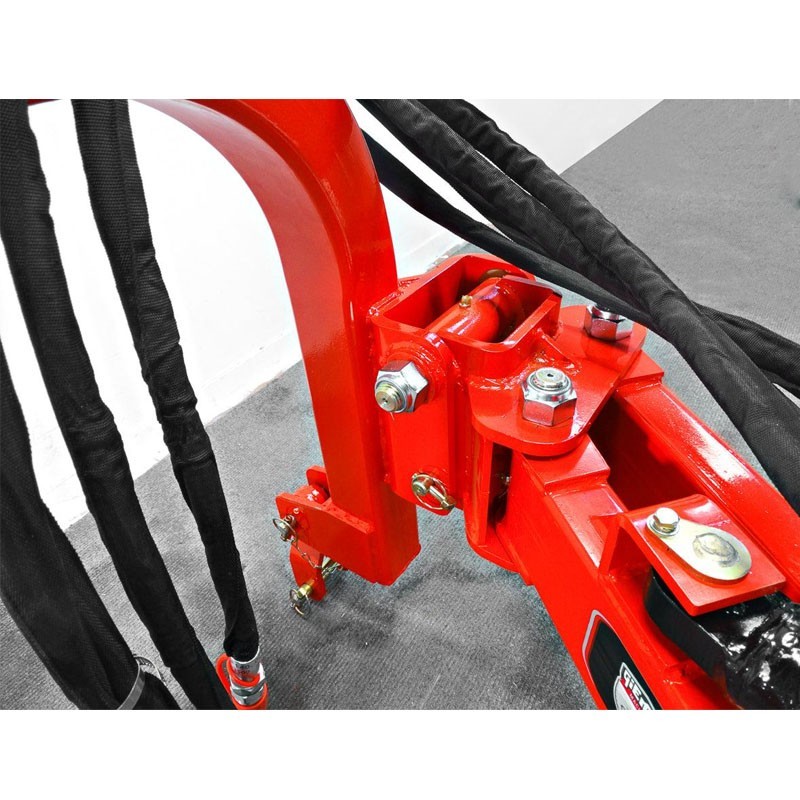

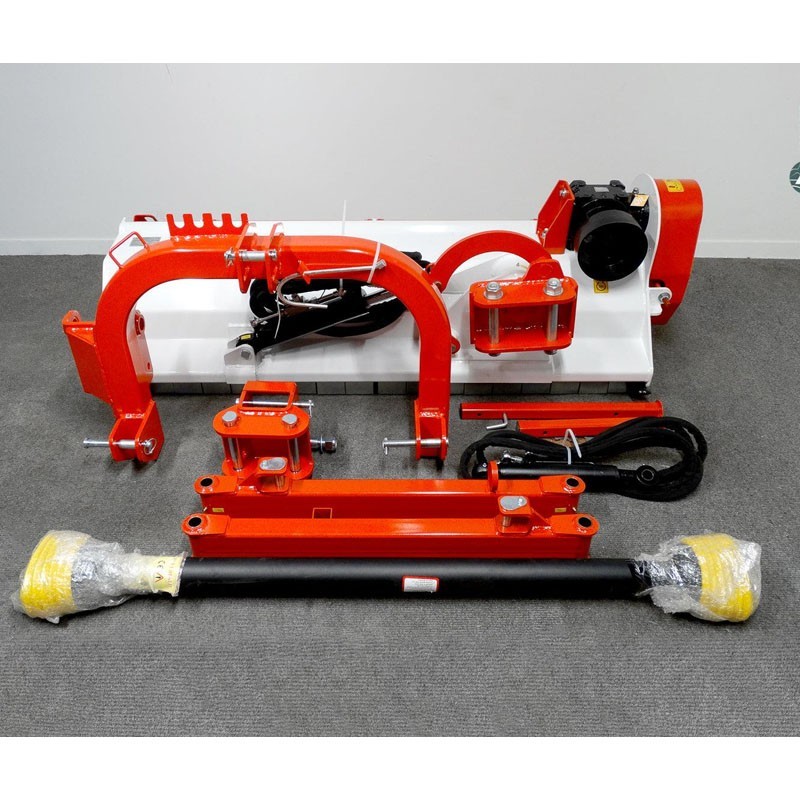

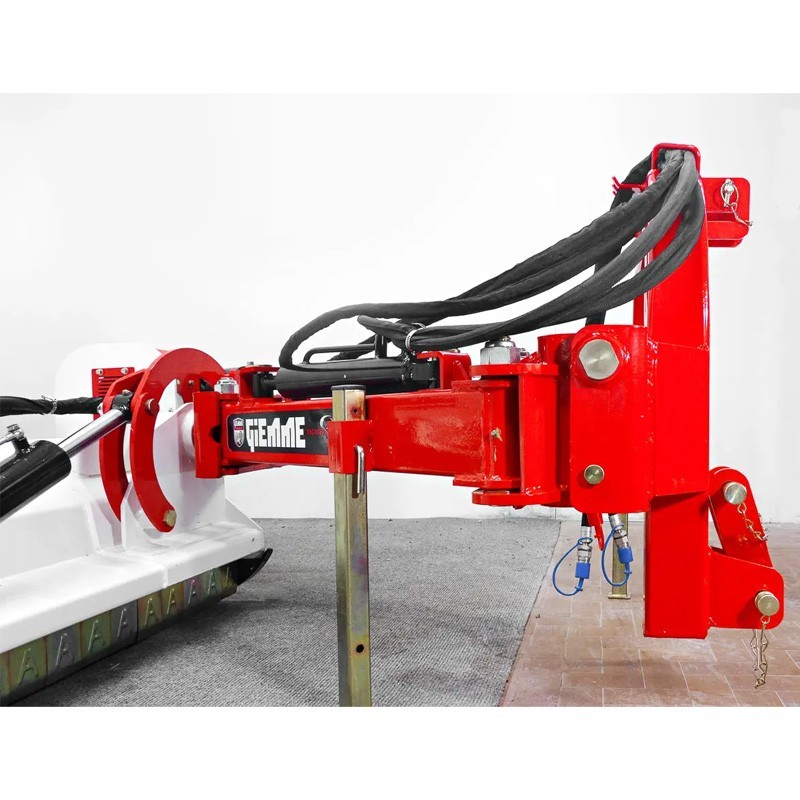

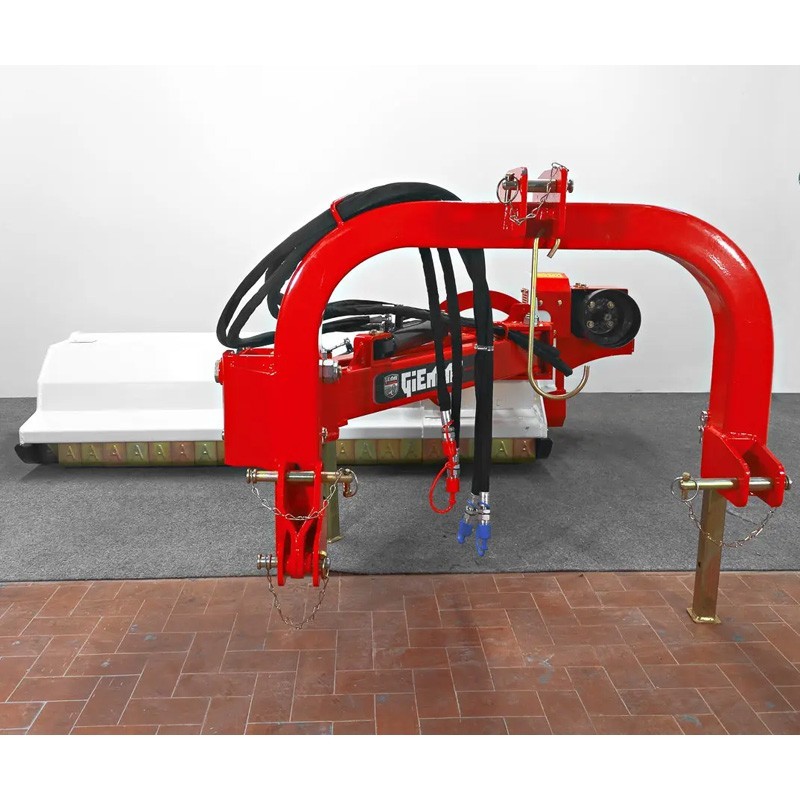

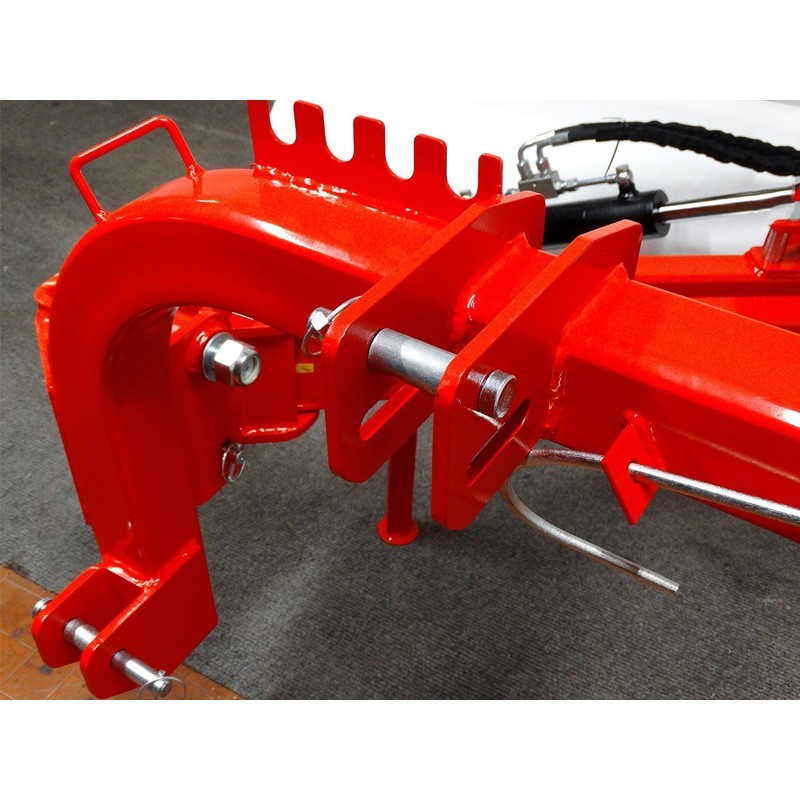

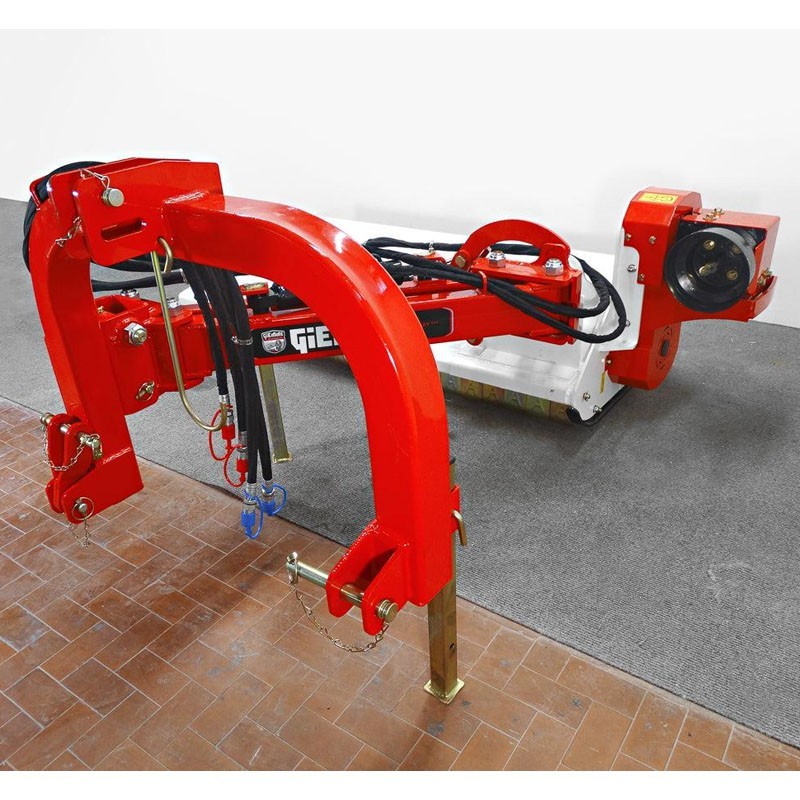

With a folding tailgate and a category I-II universal three-point hitch, this tool is ideal for professionals looking for efficiency and safety in their agricultural maintenance tasks. It includes a 1,600 mm T4 Cardan.
Model | BCN 140 | BCN 160 | BCN 180 |
Working width | 140 cm | 160 cm | 180 cm |
Total width | 155 cm | 175 cm | 195 cm |
Tractor power | 50/70 HP | 50/70 HP | 50/70 HP |
Weight | 475 kg | 499 kg | 530 kg |
Hammers | 20 | 24 | 28 |
Belts | 3 | 4 | 4 |
Minimum tractor weight | 1.600 kg | 1.700 kg | 1.800 kg |
Internal gearbox (BCN) |
External gearbox (BCN M) |
![]() |
![]() |
![]() |
||||||
Model | BCN 140 | BCN 160 | BCN 180 | BCN 140 M | BCN 160 M | BCN 180 M |
A (cm) |
71 | 71 | 71 | 69 | 69 | 69 |
B (cm) | 85 cm | 105 | 125 | 115 | 135 | 155 |
C (cm) | 156 | 176 | 196 | 184 | 204 | 224 |
D (cm) | 183 | 183 | 183 | 183 | 183 | 183 |
E (cm) | 205 | 225 | 245 | 235 | 255 | 275 |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
This tractor shredder includes a hammer cutting system. It also has the option to order blade system by calling our customer service. |
