Heavy side shredder for tractor GEO ITALY AGF 140 - 220 cm

Rating:
(0)
  • Weight : 550 - 710 kg
  • Power supply : PTO tractor
  • Working width PTO : 140 - 220 cm
  • Cardan shaft : Yes
  • Robustness : Medium
  • Min. tractor power : 50 - 80 HP
  • Number of hammers : 12 - 22
  • Country of manufacture : Italy
  • CARDAN SHAFT INCLUDED
En stock
Extras
Extras
Precio total de la opción:
icon Shredder type
Shredder type
Shredder with side arm
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
140 - 220 cm
icon Tractor power
Tractor power
50 - 80 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Pantograph displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Heavy
icon Number of hammers
Number of hammers
12 - 22
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
550 - 710 kg
€3,009.02 excl. VAT
- 4%
€2,888.66 excl. VAT
€3,495.28 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Heavy side shredder for tractor GEO ITALY AGF 140 - 220 cm
€3,495.28
Extras
Extras
Precio total de la opción:
Select
Qty

Heavy side shredder PTO GEO ITALY AGF

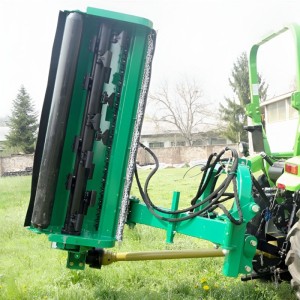

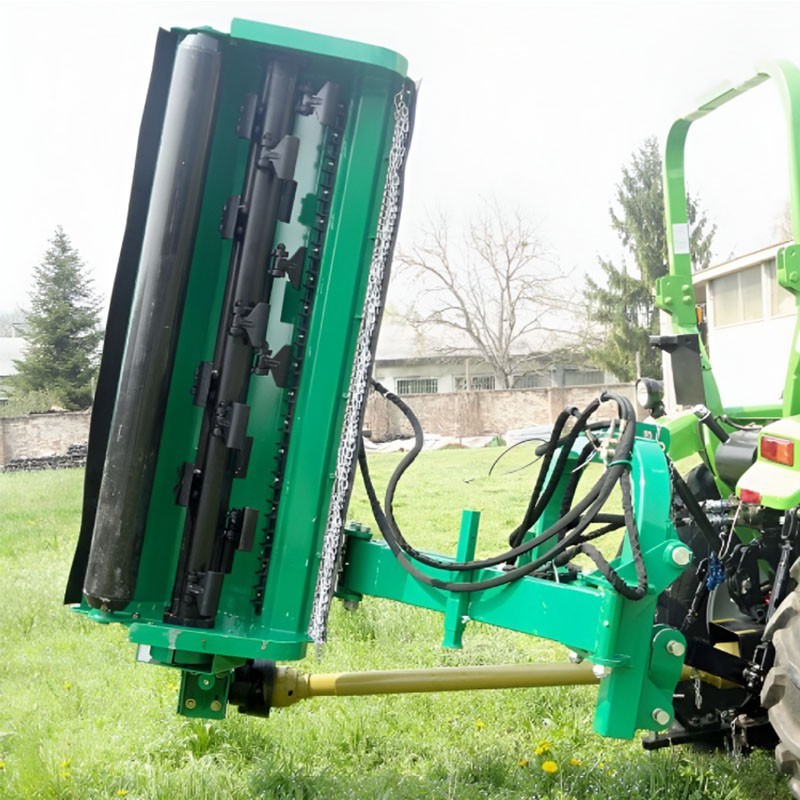

The GEO ITALY AGF PTO heavy side shredder is a powerful tool designed to work with tractors from 50 to 80 HP (37-60 kW). Its RL cast iron gearbox and external gearbox with impact protection ensure exceptional durability in various working conditions.

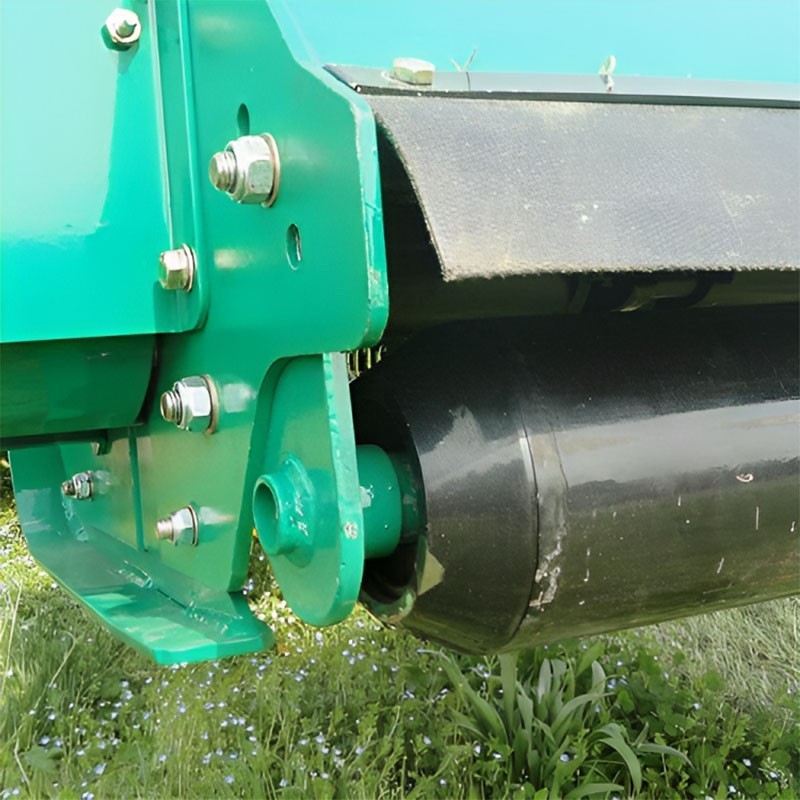

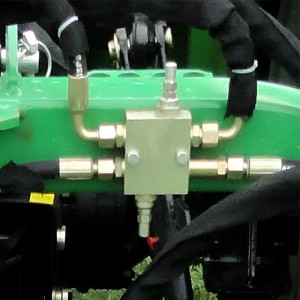

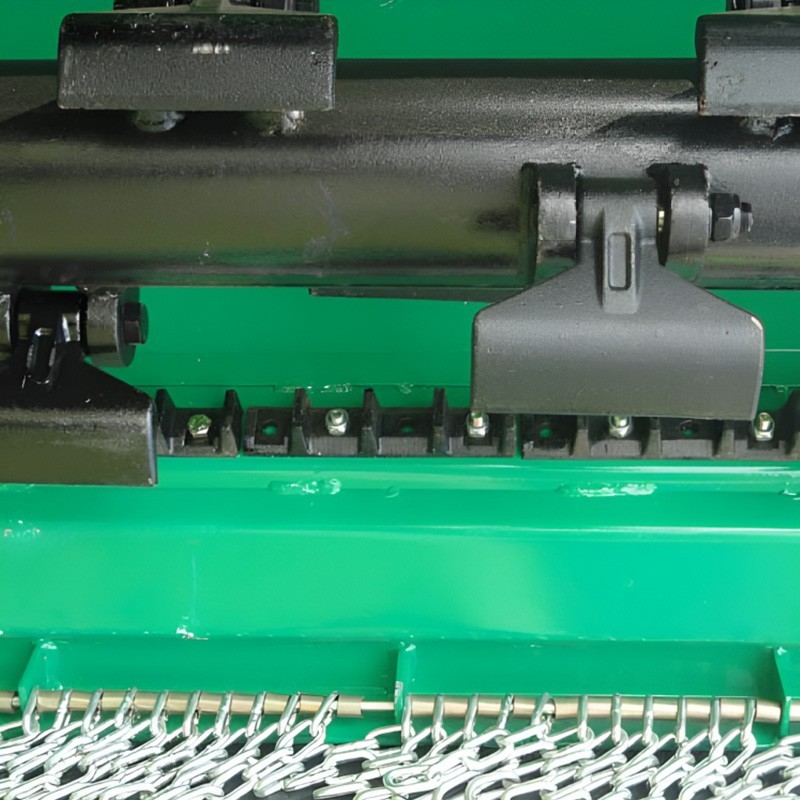

In addition, it features an adjustable rear roller, chain and rubber guards, as well as a removable toothed counter knife for optimum versatility during use. With its anti-shock valves for standard safety and a universal 3-point hitch, this mulcher incorporates a design focused on safety and practicality.

Adjustable side skids and an adjustable tensioner make it adaptable to different terrains and needs. With a double piston system for mulcher movement and CE safety guards, this machine offers an ideal balance between performance and protection in agricultural work.

Features

Model AGF 140 AGF 160 AGF 180
Working width 140 cm 160 cm 180 cm
Tractor power (HP) 50-80 50-80 50-80
Tractor power (KW) 37-60 37-60 37-60
Weight 550 kg 590 kg 640 kg
Hammers 12 14 16
Belts 3 3 3
Model AGF 200 AGF 220
Working width 200 cm 220 cm
Tractor power (HP) 50-80 50-80
Tractor power (KW) 37-60 37-60
Weight 680 kg 710 kg
Hammers 18 22
Belts 4 4

Dimensions


Model AGF 140 AGF 160 AGF 180 AGF 200 AGF 220
A (cm) 86 86 86 86 86
B (cm) 82 102 122 142 162
C (cm) 168 188 208 228 268
D (cm) 140 140 140 140 140
E (cm) 200 220 240 260 300
Dimensiones AGE

Inclination

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.

259467

Data sheet

Shredder type
Shredder with side arm
Type of cut
Hammers
Working width PTO
140 - 220 cm
Tractor power
50 - 80 HP
Cardan shaft
Including
Type of coupling
Pantograph displacement
Displacement
Hydraulic
Robustness
Medium-Heavy
Number of hammers
12 - 22
Working width (cm)
140 - 149 cm
160 - 169 cm
180 - 189 cm
200 - 209 cm
220 - 229 cm
Country of manufacture
Italy
Weight
550 - 710 kg
